PRGR RED EYES POCKET HS-120A User manual

Portable Launch Monitor
RED EYES POCKET HS 120A
USER MANUAL
CLUB INDICATORSWING SPEED
BALL SPEED
DISTANCE
SMASH FACTOR

Turning the device on
Press and hold down the ON/OFF button for
approximately 2 seconds.
A double “beep” sound indicates that the power has
been switched on.
Turning the device off
Press and hold down the ON/OFF button for
approximately 2 seconds.
An elongated single “beep” sound indicates that the
power has been switched off.
How to measure when hitting a golf ball
Set the number of the club you are using
Press the ENTER button.
The club number selection display in the top right-hand
side of the screen will flash.
Press the scroll buttons to switch between club
numbers.
Press the ENTER button to confirm your club selection.
The device cannot accurately estimate distance of flight
if the club number is not set.
The W1 setting refers to driver.
The device will not measure above 180 mph ball speed
How to measure when using SuperSpeed
Set the club setting to W1
Follow all positioning recommendations as to when
hitting a golf ball
When practicing swinging without a ball, only club head
speed can be displayed. In some rare cases, ball speed
and distance of flight may be displayed when practicing
swinging without a ball. These values are due to noise
interface, and are not correct measurement results.

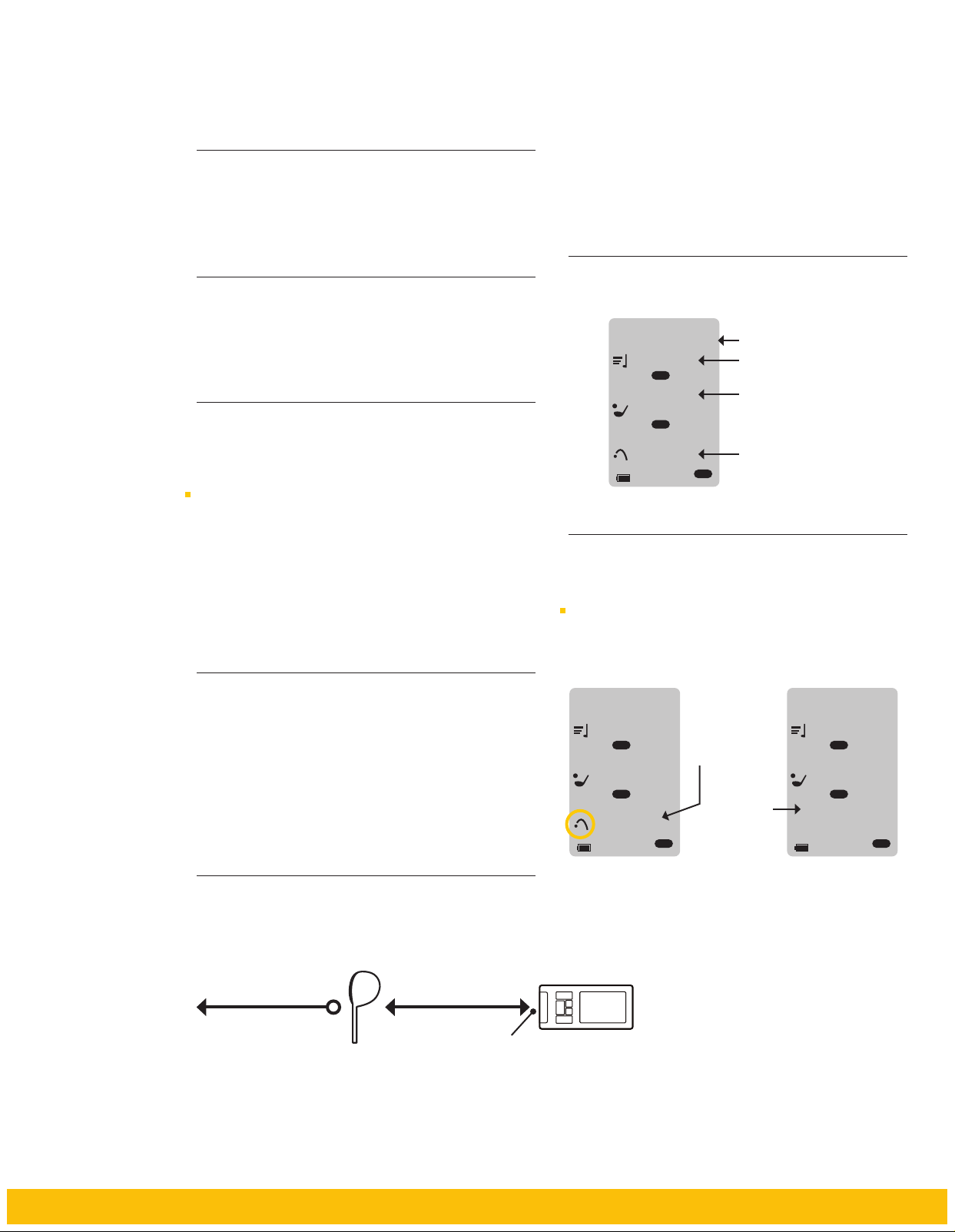

Install / position the device
Install/position the device as shown in the figure below.
Position the device in a flat location with no uneven
terrain, and ensure that there are no obstacles between
the device and the ball.
CARRY TOTAL
DIRECTION OF SWING 3.5 ft - 5 ft
MEASURING SECTION
If there is a discrepancy between the direction of your swing
(i.e. the direction in which you are hitting the ball) and the
direction in which the device is facing, you will not be able to
make accurate measurements.
Standard display
(displays distance of flight)
This mode displays club head speed, ball speed and
estimated distance of flight simultaneously.
Switching between CARRY & TOTAL modes
Pressing the CARRY/TOTAL button allows you to switch
between modes for displaying estimated distance of
flight.
The icon is only displayed during CARRY display mode.
95
138
224
W1
MPH
MPH
MPH
yard
Club Number
Club Head Speed
Ball Speed
Estimated Distance
of Flight
95
138
224
W1
MPH
MPH
MPH
yard
95
138
227
W1
MPH
MPH
MPH
yard
Estimated
Distance
of Flight
(CARRY)
Estimated
Distance
of Flight
(TOTAL)
OPERATION

The device will not take measurements
Check the “Install/position the device” section of this manual to
confirm that the device has been installed/positioned correctly.
In some cases, when hitting the ball high in the air using a wedge or
other such club, the ball speed will be slow and the smash factor will be
below the prescribed level, preventing measurements from being taken.
(This is a result of the specifications of the device itself, and is not a
malfunction).
The measurement values are strange or abnormal
Measurements of club head speed are made in accordance with PRGR’s
own criteria. Differences may arise between measurements taken with
this device and those taken with devices manufactured by other firms.
Check the “Install/position the device” section of this manual to confirm
that the device has been installed/positioned correctly.
Depending on the type of ball used, in some cases, ball speed may not
be displayed correctly. Measurements cannot be made using plastic
balls, sponge balls, or other balls designed for practice-only use.
To account for ones own unique swing characteristics the device may be
turned up to 45 degrees in either direction in relation to the target line
and elevated off the ground up to 5 inches
TROUBLESHOOTING
Smash factor display mode
Press the MODE button and the display will switch to
display your smash factor.
Estimated distance of flight
• Portable Launch Monitor -Red Eyes Pocket- calculates
the estimated distance of a flight based on large
volumes of practice swing data accumulated by PRGR.
• The estimated distance of flight is the carry flight
distance calculated using measured ball speed and the
average angle of swing and amount of spin for each
numbered club.
• Depending on the club that you are using,
discrepancies may arise between the estimated
distance of flight and the actual distance travelled by
the ball.
• The estimate does not take the directionality of a hit
ball into consideration.
95
138
145
W1
MPH
MPH
MPH
yard
Club Head Speed
Ball Speed
Smash Factor
