Owner’s Manual
ATTENTION:
Please read the content
of your owner’s manual
before operating your
power chair.

www.pridemobility.com Jazzy 1122
SAFETY GUIDELINES
Thesymbolsbelowareusedthroughoutthisowner'smanualandonthepowerchairtoidentifywarningsand
importantinformation.Itisveryimportantforyoutoreadthemandunderstandthemcompletely.
WARNING! Failure to follow designated procedures can cause either personal injury,
component damage, or malfunction (black symbol on yellow triangle with black border).
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause injury to personnel and/or damage to equipment (white
symbol on blue dot).
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause injury to personnel
and/or damage to equipment (black symbol with red circle and red slash).
Copyright©2006
PrideMobilityProductsCorp.
INFMANU1489/RevH/May2006

Jazzy 1122 www.pridemobility.com 3
I. INTRODUCTION......................................................................................................................... 4
II. SAFETY......................................................................................................................................... 6
III. YOUR POWER CHAIR............................................................................................................ 14
IV. ASSEMBLY................................................................................................................................. 19
V. COMFORT ADJUSTMENTS................................................................................................ 21
VI. DISASSEMBLY ......................................................................................................................... 28
VII. OPERATION............................................................................................................................... 29
VIII.BATTERIES AND CHARGING ............................................................................................ 42
IX. CARE AND MAINTENANCE ................................................................................................ 47
X. WARRANTY................................................................................................................................52
CONTENTS
Thisowner’smanualiscompiledfromthelatestspecificationsandproductinformationavailableatthetimeofpubli-
cation.We reservetheright tomakechanges as theybecomenecessary.Any changestoour products maycause
slightvariationsbetweentheillustrationsandexplanationsinthismanualandtheproductyouhavepurchased.

4 www.pridemobility.com Jazzy 1122
I. INTRODUCTION
SAFETY
WELCOMEto Pride Mobility Products Corporation (Pride). The power chair you have purchased combines
state-of-the-artcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthatthesedesignfeatures
willprovideyouwiththeconveniencesyouexpectduringyourdailyactivities.Onceyouunderstandhowto safely
operateandcare for yourpowerchair,it should giveyouyears of troublefreeoperation and service.
Readand followallinstructions,warnings, andnotesinthismanualbeforeattemptingtooperateyourpowerchair
for the firsttime. In addition, your safetydepends upon you, as well as your provider,caretaker,or healthcare
professionalinusinggoodjudgement.
Ifthere isanyinformation inthis manualwhichyou donot understand,orif yourequireadditionalassistancefor
setup or operation, please contact your authorized Pride Provider.Failuretofollowtheinstructionsin this
manualandthoselocatedonyourpowerchaircanleadtopersonal injury and/or damage to the power
chair,includingvoidingthewarranty.
PURCHASER’S AGREEMENT
Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove
orrenderinoperableorunsafe anyguards,shields,orothersafetyfeaturesofthisproduct;fail,refuse,orneglectto
installany retrofit kitsfromtime totimeprovided byPrideto enhanceorpreserve thesafeuse ofthisproduct.
INFORMATION EXCHANGE
Wewanttohearyourquestions, comments,andsuggestions aboutthis manual.Wewouldalso liketo hearabout
thesafety andreliabilityofyournew powerchair,andabout theservice youreceivedfromyourauthorized Pride
Provider.
Pleasenotifyusofanychangeofaddress,sowecankeepyou apprisedofimportantinformationabout safety,new
products, and new options that can increase your ability to use and enjoy your power chair. Please feel free to
contactusatthe address below:
PrideMobility ProductsCorporation
Attn:Customer CareDepartment
182SusquehannaAvenue
Exeter, PA18643-2694
[e-mail]
800-424-8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

Jazzy 1122 www.pridemobility.com 5
I. INTRODUCTION
PRIDE OWNERS CLUB
AsanownerofaPrideproduct,youareinvitedtoregisteryourproduct’swarrantyandenrollinthePrideOwners
Club.Youmaydosobyfilling outandreturningyourenclosedproductregistrationcardorbyvisitingPride'sweb
siteatwww.pridemobility.com.Asaregistered member, each timeyouvisit oursite,you will haveaccessto the
mostinteractive andhonest educationalvenueavailabletodayfor peoplewith mobilityneeds,theirfamilies,and
friends.
From our home page, select “Owners Club” to enter a page dedicated to current and potential Pride product
owners.Youwillgainaccesstointerviews,stories,recreationideas,dailylivingtips,productandfundinginforma-
tion,and interactivemessage boards.These messageboardsinviteyoutocommunicatewith otherPride custom-
ersas wellasPride representativeswho areavailableto assistyouwithanyquestions orconcernsyou mayhave.
MyAuthorizedPrideProvider:
Name:_____________________________________________________________________________________
Address:_______________________________________________________________________________
PhoneNumber:__________________________________________________________________________
PurchaseDate:___________________________________________________________________________

6 www.pridemobility.com Jazzy 1122
II. SAFETY
SAFETY
MANDATORY! Do not operate your new power chair for the first time without completely
reading and understanding this owner’s manual.
Your powerchairisa state-of-the-art life-enhancementdevicedesigned toincreasemobility. Prideprovidesan
extensivevariety ofproducts tobestfittheindividualneedsof thepower chairuser.Pleasebeawarethatthefinal
selectionandpurchasing decisionregardingthe typeofpower chair tobeused istheresponsibility of thepower
chairuser, who is capable of making such a decision, andhis/herhealthcareprofessional(i.e.,medicaldoctor,
physicaltherapist,etc.).
Thecontentsofthismanualarebasedontheexpectationthatamobilitydeviceexperthasproperlyfittedthepower
chairtotheuserandhasassistedtheprescribinghealthcareprofessionaland/ortheauthorizedPrideProviderinthe
instructionprocessfor theuseof theproduct.
Thereare certainsituations,includingsomemedical conditions,wherethepowerchair userwill needtopractice
operatingthepowerchairinthepresenceofatrained attendant.Atrained attendant can be defined as a family
memberorcareprofessionalspeciallytrainedinassistingapowerchairuserinvariousdaily livingactivities.
Asyoubeginusingyourpowerchairduringdailyactivities,youwillprobablyencountersituationsinwhichyouwill
needsomepractice.Simplytake your time and you willsoonbeinfulland confident control as you maneuver
throughdoorways,on and offofelevators, up and downramps,and over moderateterrain.
Belowaresome precautions, tips,andother safety considerationsthatwill help theuserbecome accustomed to
operatingthe powerchair safely.
Modifications
Pridehasdesigned and engineered yourpowerchair to provide maximummobilityandutility.Awiderangeof
accessoriesis available fromyourauthorized PrideProviderto furthercustomizeyour powerchairto better suit
yourneedsand/orpreferences.However,undernocircumstances shouldyou modify,add,remove,ordisableany
feature,part, orfunctionof your powerchair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Unautho-
rized modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Getto know thefeelof yourpowerchair anditscapabilities. Priderecommendsthat you performasafety check
beforeeachuse to makesureyourpower chair operatessmoothlyandsafely.SeeIX.“Care and Maintenance.”
Performthefollowinginspectionspriortousing yourpowerchair:
!Checkfor propertireinflation. Maintain35psi(2.4bar) ineach tireif equippedwithpneumatic tires.
!Checkallelectrical connections.Makesure they aretightand not corroded.
!Checkallcontroller connectionstotheelectronics tray.Make sure theyaresecured properly.
!Checkthebrakes.SeeIX.“Care and Maintenance.”
!Checkbatterycharge. SeeVIII.“Batteries andCharging.”

Jazzy 1122 www.pridemobility.com 7
II. SAFETY
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.
Weight Limitations
Yourpowerchair isratedforamaximumweightcapacity.Pleaserefertothespecificationstableforthis limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tire Inflation
Ifyourpower chair isequippedwith pneumatic tires,youshould check orhavethe air pressurecheckedatleast
oncea week.Proper inflationpressureswillprolongthe lifeof yourtiresandhelpensurethesmooth operationof
yourpower chair.
WARNING! It is important that 35 psi (2.4 bar) tire pressure be maintained in pneumatic
tires at all times. Do not underinflate or overinflate your tires. Low pressure may result in
loss of control, and overinflated tires may burst. Failure to maintain 35 psi (2.4 bar) tire
pressure in pneumatic tires at all times may result in tire and/or wheel failure, causing
serious personal injury and/or damage to your power chair.
WARNING! Inflate your power chair drive tires from a regulated air source with an avail-
able pressure gauge. Inflating your tires from an unregulated air source could overinflate
them, resulting in a burst tire and/or personal injury.
Incline Information
Moreandmorebuildingshaveramps with specified degrees of inclination, designed for easy andsafeaccess.
Someramps mayhaveturning switchbacks(180-degreeturns) thatrequireyou to havegood cornering skillson
yourpower chair.
!Proceedwithextreme cautionasyouapproach the downgradeofa ramp orotherincline.
!Take wide swingswithyourpowerchair’sfrontwheelsaroundany tight corners. If you do that,thepower
chair’srear wheels will followawide arc, not cutthecornershort, and notbumpintoor get hunguponany
railingcorners.
!Whendrivingdown a ramp,keepthe power chair’sspeedadjustment set to theslowestspeed setting toen-
sureasafely controlled descent. See VII. “Operation.”
!Avoid sudden stops andstarts.
Whenclimbing anincline,try tokeepyour powerchairmoving. Ifyoumust stop,startup againslowlyand then
acceleratecautiously. Whendrivingdown anincline,set yourpowerchair totheslowest setting anddrivein the
forwarddirection only.If yourpower chairstartstomovedown theincline fasterthanyouanticipatedor desired,
allowitto come to acompletestopby releasing the joystick,thenpushthe joystick forward slightlytoensurea
safelycontrolleddescent.

8 www.pridemobility.com Jazzy 1122
II. SAFETY
5 (8.7%)

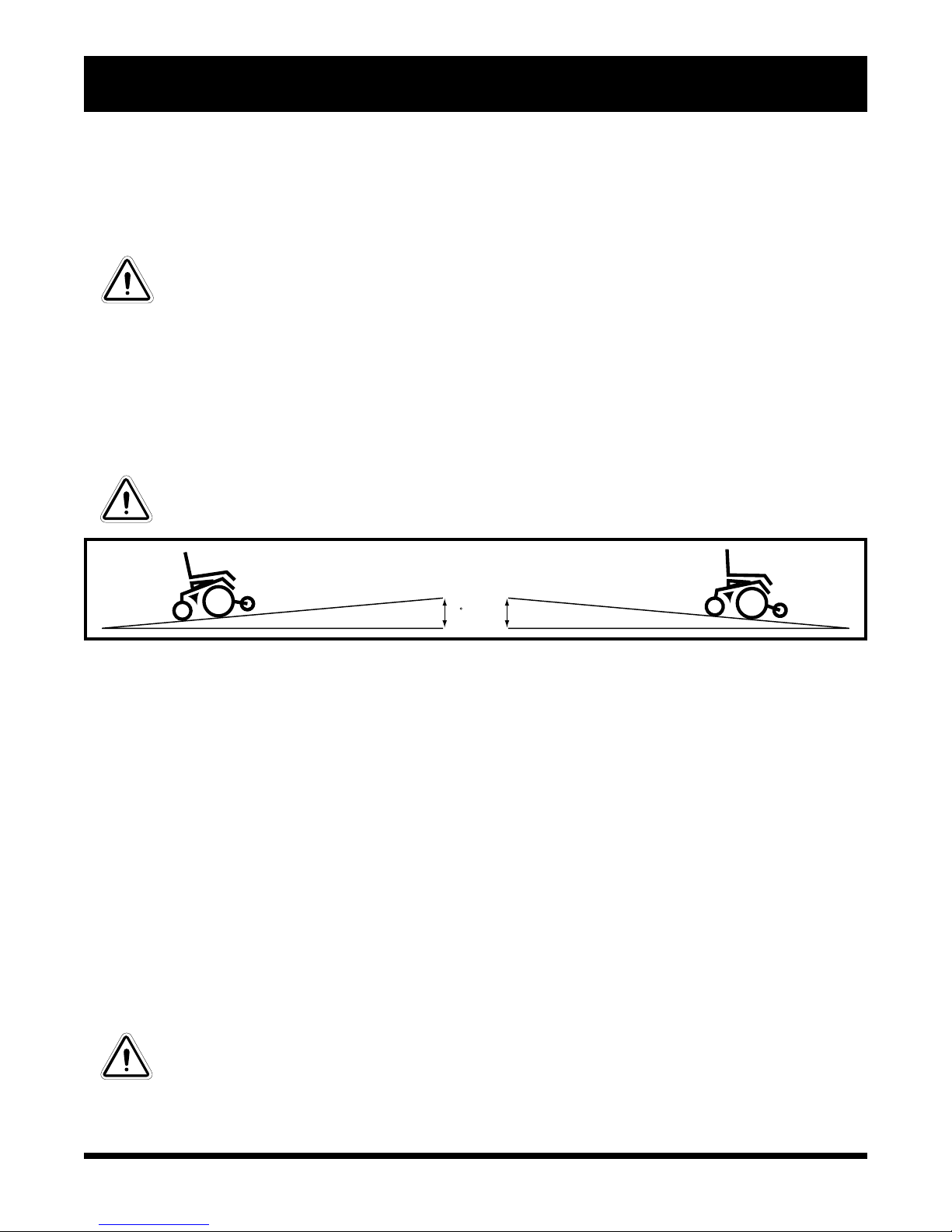

Figure 1. Maximum Safe Angle (Ascending and Descending)
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. This greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline backwards. This may result in personal injury.
Incompliance withtheAmericanswithDisabilitiesActof1990,all handicappublic accessramps arerequiredto
haveamaximumslopeof5°(8.7%).Therefore,Priderecommendsthatthe maximum slope of an incline you
attempttosafelyascendordescendonyourpowerchairdoesnotexceed5°(8.7%). Seefigure1.
WARNING! Any attempt to climb or descend a slope steeper than 5° (8.7%) may put your
power chair in an unstable position and cause it to tip, resulting in personal injury.
Braking Information
Yourpowerchairisequippedwith twopowerfulbrake systems:
1. Regenerative—useselectricitytorapidlyslowthevehiclewhenthejoystickreturnstothecenter/stopposition.
2. DiscParkBrake —activatesmechanically afterregenerativebrakingslowsthe vehicletonear stop,orwhen
powerisremoved fromthesystem foranyreason.
Cornering Information
Whileyour powerchairisequippedwith rearcaster wheelsandfrontanti-tipwheels, excessivelyhigh cornering
speedscan stillcreate thepossibilityoftipping.Factorswhichaffect thepossibility oftippinginclude,butarenot
limitedto:corneringspeed,steeringangle(howsharplyyouareturning), uneven road surfaces, inclined road
surfaces,ridingfromanareaoflowtraction to an area of high traction (such as passing from a grassy areatoa
pavedarea–especiallyathighspeedwhileturning),andabruptdirectionalchanges.Highcorneringspeedsarenot
recommended.If youfeelthat youmaytip overina corner, reduceyourspeed andsteering angle(i.e.,lessen the
sharpnessof theturn)to preventyourpower chairfrom tipping.
WARNING! When cornering sharply, reduce your speed. This greatly reduces the possibil-
ity of a tip or fall. To avoid personal injury and/or property damage, always exercise com-
mon sense when cornering.

Jazzy 1122 www.pridemobility.com 9
II. SAFETY
CURB
Figure 2. Correct Curb Approach
Outdoor Driving Surfaces
Yourpowerchairisdesignedto provideoptimumstability undernormaldrivingconditions—dry,levelsurfaces
composedofconcrete,blacktop,orasphalt.However,Priderecognizesthattherewillbe times when you will
encounterother surfacetypes. Forthis reason,your powerchairisdesignedtoperformadmirablyonpackedsoil,
grass,andgravel. Feel free touseyourpower chair safelyonlawnsand in park areas.
!Reduceyour powerchair’sspeedwhen drivingon uneventerrainand/or softsurfaces.
!Avoidtallgrassthat canentangletherunninggear.
!Avoidlooselypacked gravelandsand.
!Ifyou feelunsure aboutadrivingsurface,avoidthatsurface.
Freewheel Mode
Yourpowerchair is equipped with a manual freewheel lever toallowformanualmaneuverabilityby a trained
attendant.Formoreinformationabouthowtoplaceyourpowerchairintoandoutoffreewheelmode,seeIII.
“YourPowerChair.”
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. The
chair could roll uncontrollably on its own, causing personal injury.
Stationary Obstacles (Steps, Curbs, etc.)
Proceedwith extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs,
porches,stairs, etc.). Thecorrectmethod forapproachinga curbisillustrated infigure2.
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than two inches unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backwards down any step,
curb, or other obstacle. This may cause the power chair to tip and cause personal injury.
CURB
Figure 3. Incorrect Curb Approach

10 www.pridemobility.com Jazzy 1122
II. SAFETY
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Powerchairsarenot designed to travelupordownstairs or escalators. Always useanelevator.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
Doors
!Determineifthe dooropenstowardor awayfromyou.
!Driveyour power chairgentlyand slowlyforwardto pushthedoor open. Ordriveyour powerchairgently
andslowlybackwards to pull the dooropen.
Elevators
Modernelevatorshave a dooredgesafety mechanism that,whenpushed,reopens the elevatordoor(s).
!Ifyouareinthe doorway of an elevator when thedoor(s)begintoclose, push on the rubber door edgeor
allowtherubberdoor edge to contact the powerchairandthedoor will reopen.
!Usecarethatpocketbooks,packages,orpowerchairaccessoriesdonot become caught in elevator doors.
Lift/Elevation Products
Ifyouwill be traveling with yourpowerchair,youmay find it necessarytousea lift/elevation product toaidin
transportation.Pride recommendsthat youclosely reviewthe instructions,specifications,andsafetyinformation
setforth bythe manufacturerof thelift/elevation productbeforeusingthatproduct.
Motor Vehicle Transport
Priderecommendsthatyoudonotremainseatedinyourpowerchairwhiletravelinginamotorvehicle.Thepower
chairshouldbestowedinthetrunkofa carorinthebackofatruckor vanwith thebatteriesremovedandproperly
secured.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when it
is being transported. Failure to do so may result in personal injury and/or damage to your
power chair.

Jazzy 1122 www.pridemobility.com 11
II. SAFETY
Transfers
Transferringontoandoffofyourpowerchairrequires
agoodsenseofbalance.Always have an attendant
orhealthcareprofessional presentwhilelearning to
properlytransferyourself.
Toeliminate the possibility of injury,Pride recom-
mends that you or a trained attendant perform the
followingtasksbeforeattemptingatransfer:
!Turnoffthepowertothecontroller.SeeVII.“Op-
eration.”
!Ensureyourpowerchairisnotinfreewheelmode.
SeeIII.“YourPowerChair.”
!Turn the frontcasterwheels towardthetransfer
destinationtoimprovepowerchair stabilitydur-
ingtransfer.
!Make sure both armrests are flipped up or re-
movedfrom yourpowerchair.
!Flip up the foot platform or move the leg rests
aside;thiswillhelptokeepyourfeetfromgetting
caughtonthefootriggingduringthetransfer.
!Reducethedistancebetween your power chair
andthe objectyouare transferringonto.
WARNING! Before transferring, position yourself as far back as possible in the power
chair seat to prevent the power chair from tipping forward during transfer and causing
injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.
Positioning Belts
YourauthorizedPrideProvider,therapist(s), andotherhealthcare professionals areresponsiblefor determining
yourrequirement forapositioning beltinorder tooperate yourpowerchair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your power chair suitable for use as a seat in any vehicle. Anyone traveling in a
vehicle should be properly belted into seats approved by the vehicle manufacturer.
Figure 4.IdealTransfer Position

12 www.pridemobility.com Jazzy 1122
II. SAFETY
Inclement Weather Precautions
Exposureofyourpowerchairtoinclementweatherconditionsshouldbe avoidedwhenever possible.Ifsuddenly
caughtupinrain,snow,severe cold, or heat while operating yourpowerchairproceedtoshelter at the earliest
opportunity. Thoroughlydryyourpower chairbefore storing,charging,oroperatingyour powerchair
WARNING! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can cause personal injury and/or damage to the power chair and electrical system. Maintain
and store your power chair in a dry and clean condition.
Reaching and Bending
Neverreach,lean,orbendwhiledrivingyourpowerchair. Ifitis absolutelynecessaryto reach,lean,orbendwhile
seatedonyourpower chair,it isimportanttomaintaina stable center ofgravityandkeepthe power chair from
tipping.Pride recommendsthat thepowerchairuserdeterminehis/herpersonal limitationsand practicebending
andreachinginthepresenceofaqualifiedhealthcareprofessional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reachingdown between your knees.Movementssuch as these maychangeyour center of gravity
and the weight distribution of the power chair. This may cause your power chair to tip, possibly
resulting in personal injury.
WARNING! Prevent personal injury! Keep your hands away from the tires when driving. Be aware
that loose fitting clothing can become caught in drive tires.
Batteries
Inadditionto followingthewarnings below,besure to complywithall otherbatteryhandling information. For
moreinformation aboutyourpower chair’sbatteries,seeVIII.“Batteriesand Charging.”
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that
much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING!Alwaysprotect the batteriesfromfreezingandneverchargeafrozenbattery.Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM)
sources. Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Usersmustexercisecareand common sense when operating a power chair. This includes awarenessofsafety
issueswhen takingprescribed orover-the-counterdrugsorwhentheuserhasspecific physicallimitations.
WARNING!Consultyourphysicianifyouaretakingprescribedorover-the-countermedicationorif
youhave certain physical limitations. Somemedications and limitations may impair your ability to
operate your power chair in a safe manner.

Jazzy 1122 www.pridemobility.com 13
Alcohol
Thepowerchair user must exercise careandcommon sense when operating his/herpowerchair.Thisincludes
awarenessofsafetyissueswhileunderthe influenceofalcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.
II. SAFETY
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves
can have an adverse affect on the performance of electrically-powered mobility vehicles.
Electromagneticand RadioFrequencyInterferencecancome fromsourcessuchascellular phones,mobiletwo-
way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless
computerlinks,microwavesignals,pagingtransmitters,andmedium-rangemobiletransceiversusedbyemergency
vehicles.Insomecases,thesewaves can cause unintended movement or damage to the controlsystem.Every
electrically-poweredmobilityvehiclehasanimmunity(orresistance)toEMI.Thehigherthe immunitylevel, the
greaterthe protection againstEMI.This producthasbeen testedandhas passedatan immunitylevelof 20V/m.
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio
transmitters may cause unintended movement of your electrically-powered mobility vehicle
due to EMI. Exercise caution when using any of these items while operating your mobility
vehicle and avoid coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility
vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your power
chair in any way not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance
of other electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call
Pride at 800-424-8205 to report the incident.

14 www.pridemobility.com Jazzy 1122
III. YOUR POWER CHAIR
THE JAZZY 1122
Your power chair has two main assemblies: the seat and the power base. See figure 5. Typically, the seating
assemblyincludesthe armrests, seatback, andcontroller.The power baseassemblyincludestwo drive wheels,
twoanti-tipwheels,tworear caster wheels, a power seat connector (optional), harnessconnectors,andabody
shroud. Seefigures5 through9.

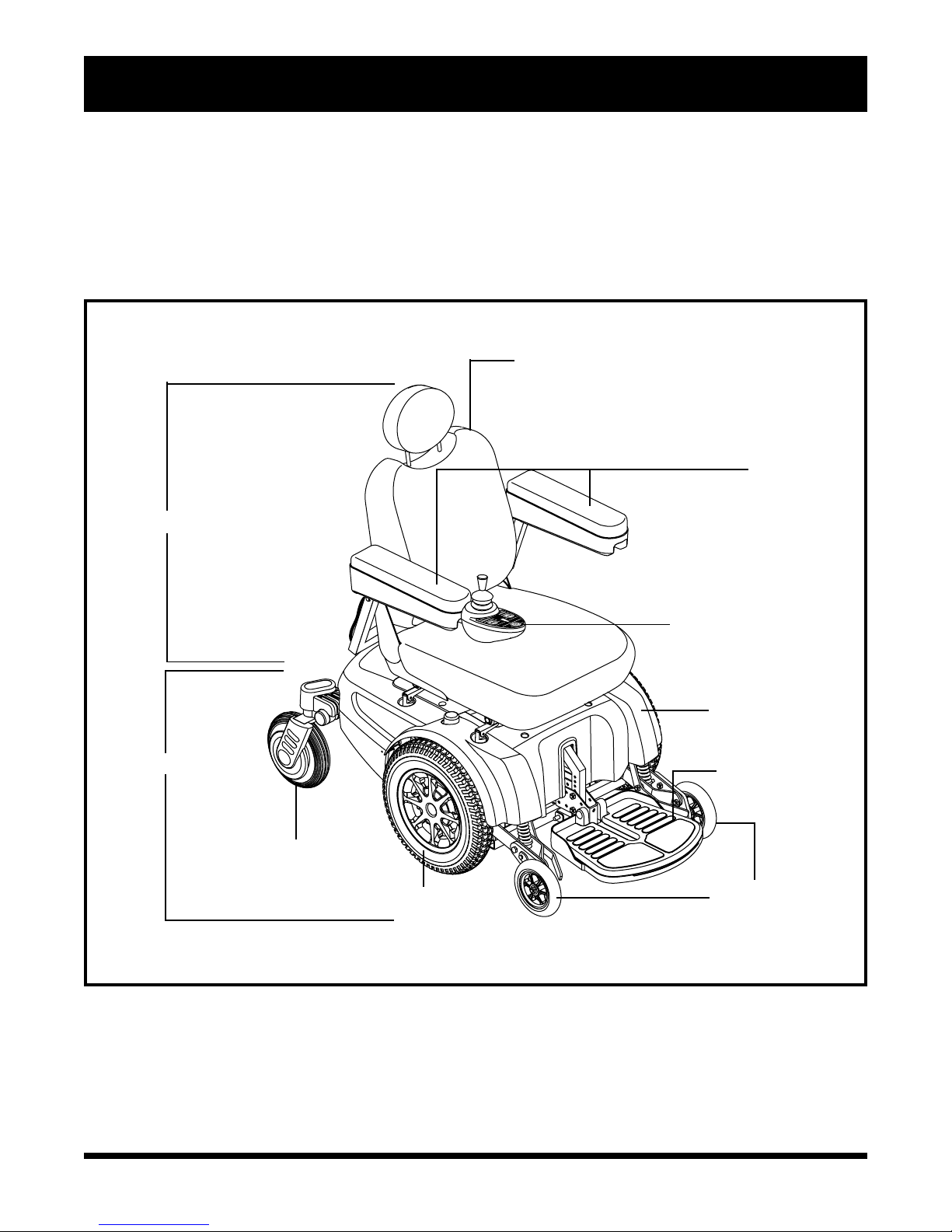

Figure 5.The Jazzy 1122
SEAT ASSEMBLY
SEATBACK
CONTROLLER
(REMOTE PLUS SHOWN)
ARMRESTS
BODY SHROUD
ANTI-TIP WHEELS
DRIVEWHEEL
REARCASTERWHEEL
FOOTRIGGING
(FOOT PLATFORM
SHOWN)
POWERBASEASSEMBLY

Jazzy 1122 www.pridemobility.com 15
III. YOUR POWER CHAIR
Electronics Tray
Theelectronics trayislocatedonthe rearofyourpowerchair. Theelectronics trayis locatedunderneaththe rear
sliding door.The electronics tray consists of the ammeter, the battery charger plug, the main circuit breaker,
accessoryconnector (optionalequipment),and thecontrollerharnessconnectors.
Ammeter:Theammeterdisplaysthecharger’scurrentoutputinamps. Formoreinformation,seeVIII.“Batteries
andCharging.”
ChargerPower CordReceptacle:This plugisused wheneveryourbatteryneeds recharging.
MainCircuitBreaker:Themaincircuitbreaker isa safetyfeaturebuilt intoyour powerchair.Whenthebatter-
ies and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent
damagetothe motorsandthe electronics. Ifthecircuit trips, allowyourpower chair to“rest”for approximately
oneminute. Next,pushin thecircuitbreaker button,turnon thecontroller,and continuenormaloperation. Ifthe
maincircuit breakercontinuestotriprepeatedly,contactyour authorizedPrideProvider.
AccessoryConnector(Optional): This iswhere theaccessory harness connects tothe controller (powerseat,
lighting).
ControllerConnector:This is where the controller connects to the power base. The VSI uses a large, 9-pin
connector(notshown). TheRemotePlus and Europausesmaller,multi-pin communications cableconnectors.
Seefigure 6.

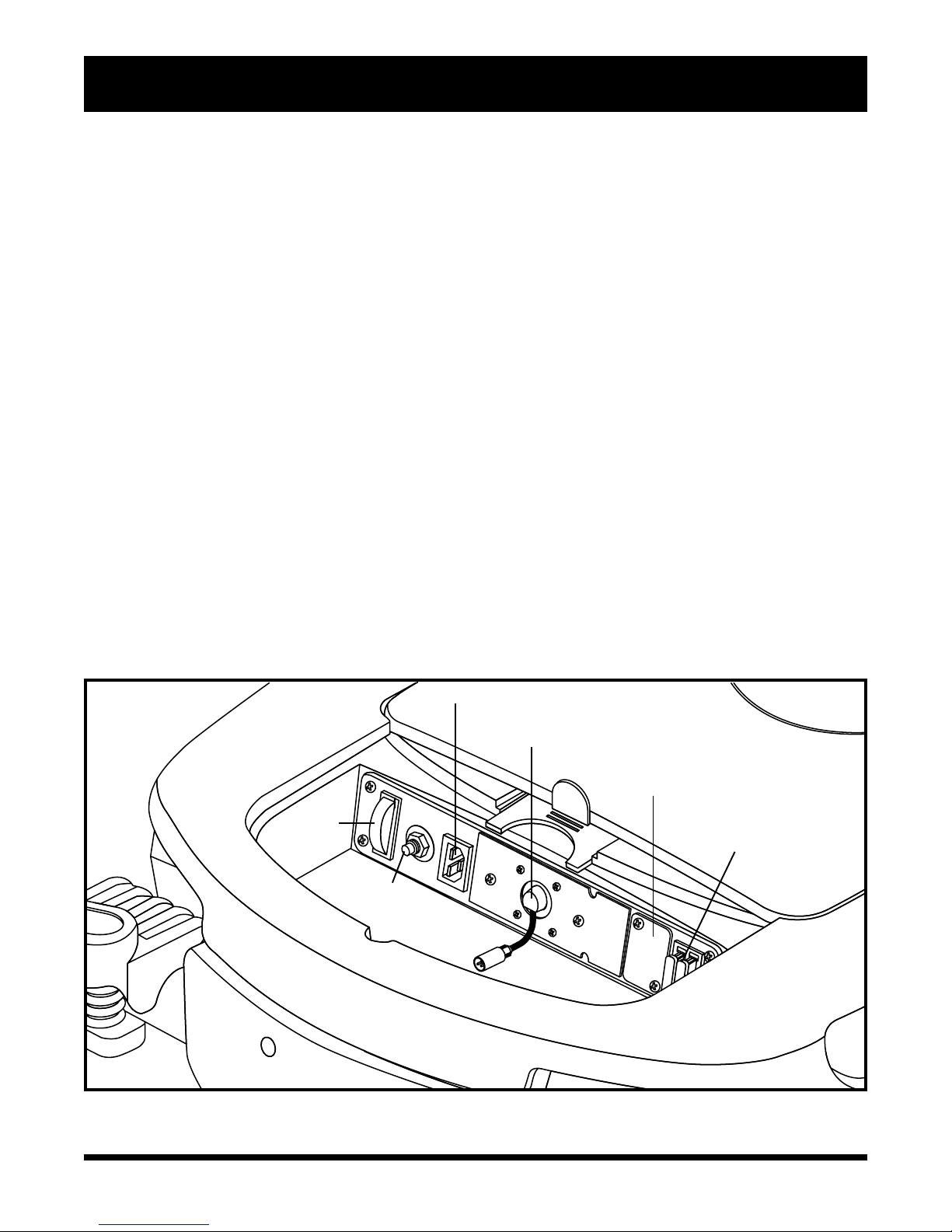

Figure 6.ElectronicsTray
AMMETER
OPTIONAL ACCESSORY
CONNECTOR LOCATION
CONTROLLER CONNECTOR
(REMOTE PLUS SHOWN)
CHARGERPOWERCORDRECEPTACLE
MAIN CIRCUIT
BREAKER
CHARGERFUSE

16 www.pridemobility.com Jazzy 1122
III. YOUR POWER CHAIR

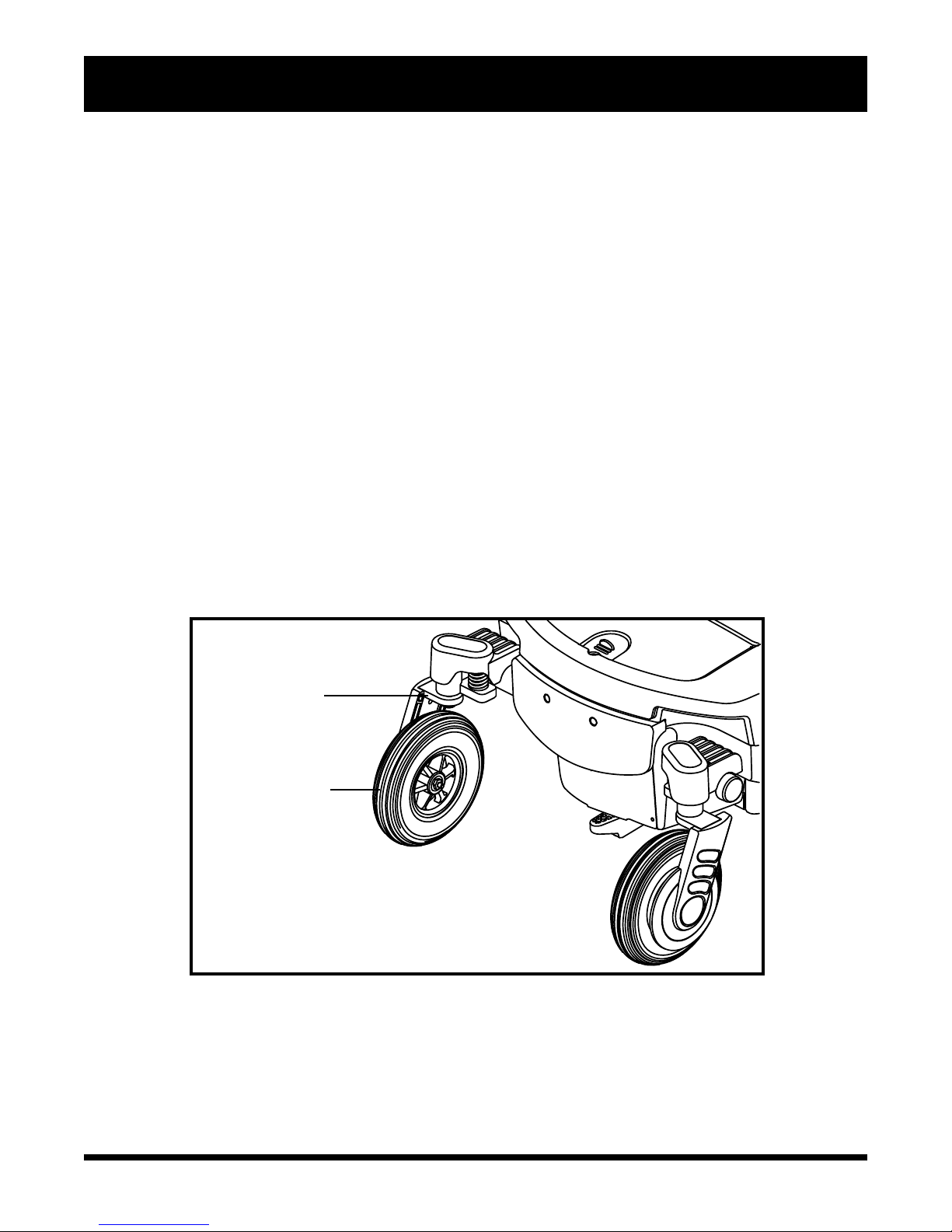

Dual Manual Freewheel Levers
Foryourconvenience,yourpowerchairisequippedwithdualmanualfreewheellevers. Thelevers arelocated on
the inside of the anti-tip wheels. The levers allow you to disengage the drive motors and maneuver the chair
manually.
WARNING! In freewheel mode, the braking system is disengaged. Only engage the free-
wheel mode when on a level surface. Failure to comply could result in injury and/or dam-
age to your product.
WARNING! Prevent personal injury and/or equipment damage. Do not use the freewheel
lever handles as tie-down points to secure this product.
Tooperate the dual manualfreewheellevers:
1. Pullupbothmanualfreewheelleversfor freewheelmode (drivemotor disengaged).Seefigure7.
2. Pushdownboth manualfreewheelleversfordrive mode(drivemotor engaged).See figure8.
NOTE: If a lever is difficult to move in either direction, rock your power chair back and forth slightly.
The lever should then move to the desired position.
Figure 7. Freewheel Mode (left side shown) Figure 8. Drive Mode (left side shown)

Jazzy 1122 www.pridemobility.com 17
Active-Trac Suspension
Yourpowerchairisequippedwith Active-TracSuspension(ATS). ATSisasuspensionsystemdesigned tomake
yourpower chairtraverse differenttypesofterrainandobstacleswhilemaintainingsmoothoperation.WithATS,
thefront anti-tipwheels workinconjunctionwiththemotorsuspension tohelp youmaneuveroverobstacles.
Asthe frontanti-tipwheels comein contactwithan obstacle,thefrontanti-tipwheel assemblyisdrawnupward.
At the same time, the motors are forced downward. This allows the motors to push the power chair over an
obstacleand limitsthe possibilityof yourpower chairgettingcaughtontheobstacle.
ATSalsohelpsinday-to-dayoperating conditions.Forinstance, whenyoureleasethejoystick yourpowerchair
beginstoslowdown. Asthechairslowsdown,thefrontanti-tipwheelswillautomaticallydroptowardtheground.
Thiswillreducetheforwardtipthatistypicallyencounteredwithcenter-wheeldrivechairs.
Rear Suspension
Your power chair is equipped with a rear suspension system. See figure 9. This suspension system works in
conjunctionwiththeATS andisdesigned to maintainasmooth ridewhendrivingover roughterrainand up and
downcurbs.Thissystemworksbyallowingthe casterforkstorespondtoweighttransfersand uneventerrain.The
rearcaster wheelswillpivotasyoudriveoverobstacles.Thissystemalsoenhancesperformancewhenthefrontanti-
tipwheelsare set lower tothesurface.
III. YOUR POWER CHAIR
Figure 9. Rear Suspension System
REARCASTERWHEEL
REARCASTERFORK

18 www.pridemobility.com Jazzy 1122
III. YOUR POWER CHAIR
Specifications
Suspension: ATS andrearsuspension
DriveWheels: 14 in.,pneumatic,center-mounted(solidtiresareoptional)
CasterWheels: 8in.,solid,rear-articulating
Anti-tipWheels: 6in.,solid,front-mounted
MaximumSpeed:¹ Up to 6 mph (up to 4.5 mph w/hightorquemotors)
Brakes: “IntelligentBraking,”electronicregenerative,disc parkbrake
GroundClearance:² 3.25 in.
TurningRadius:² 21 in.
OverallSize:² Length:40.5in.
Width:25.4in.
SeatingOptions: Medium-back(optional) SpecialitySeat(optional)
High-backwithheadrest(standard) Power-elevatingSeat(optional)
RecliningSeat(optional)
SynergySeat(optional)
Tru-BalancePowerPositioningSystems(optional)
Drivetrain: Two motor, mid-wheel
Batteries:³ Two12-volt,Group24batteries
NF-22batteriesforthe power seat option
Range:¹ Up to 25 miles
BatteryCharger: 8-amp, off-board
5-amp, on-board (optional)
5-amp, on-board/8-amp, off-board combo (optional)
Electronics: 70-ampPGDrives VSIController
70-ampPG DrivesRemotePlus Controller
70-ampDynamic EuropaRemote Controller
WeightCapacity: 300 lbs.
ComponentWeights: Base: 129 lbs.
Seat: 40 lbs. (standard seat)
Batteries:53.5lbs. each
¹Varies withuserweight,terraintype, battery amp hour rating (AH),batterycharge,battery condition, and tire
condition.
²Duetomanufacturingtolerancesandcontinuedproductimprovement,thisspecificationcanbesubjecttovarianceof
(+ or – ) 3%.
³AGMorGel-Cell typerecommended.
NOTE: All specifications subject to change without notice.

Jazzy 1122 www.pridemobility.com 19
IV. ASSEMBLY
InitialAssembly
Yourpowerchair mayrequiresomeassemblyeither beforeinitial useoraftertransportation.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair
must be replaced with a new nut. Nylon insert lock nuts should not be reused as it may cause damage
to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at
local hardware stores or through your authorized Pride Provider.
Seat Installation
MostseatsareattachedtothepowerbasewiththeUniversalMounting System (UMS). The UMS consists of
universal parts that may be attached to any medium-back or high-back seat, regardless of seat width or seat
depth.Thetwomain componentsare aluminumextrusions mountedto theseat base.These extrusionsattach toa
pair of trapeze bars that are mounted to the power base. See figure 10. If your power chair is equipped with a
SynergySeat, referto theinformationprovidedinseparatemanuals.
WARNING! Do not pick up the seat frame by the armrests. They are free to pivot, and you
may lose control of the seat if they do so, resulting in personal injury or damage to the
chair.
Figure 10. Seat Installation
REARTRAPEZEBAR
FRONT TRAPEZE BAR
SEAT LATCH SAFETY
REAR EXTRUSION
FRONT EXTRUSION

20 www.pridemobility.com Jazzy 1122
IV. ASSEMBLY
To install the seat:
1. Setthetrapezebarstothedesired height.To changethe trapeze
barheight, seeV.“ComfortAdjustments.”
2. Tilt the seat back and slide the rear extrusion onto the rear
trapezebar.Seefigure10.
3. Lower the front extrusion onto the front trapeze bar untilthe
seatlocksinto place.
4. Fliptheseat latchsafetydown.
WARNING! Make sure the seat latch safety is
flipped down before using your power chair.
Power Seat Installation (Optional)
Yourpowerchairmaybeequippedwiththepowerseatoption.While
theseatitself maybeanyoneofthestylesofferedforthismodel,the
waytheseatbaseattachestothepowerchairpowerbaseisdifferent.
To install the power seat:

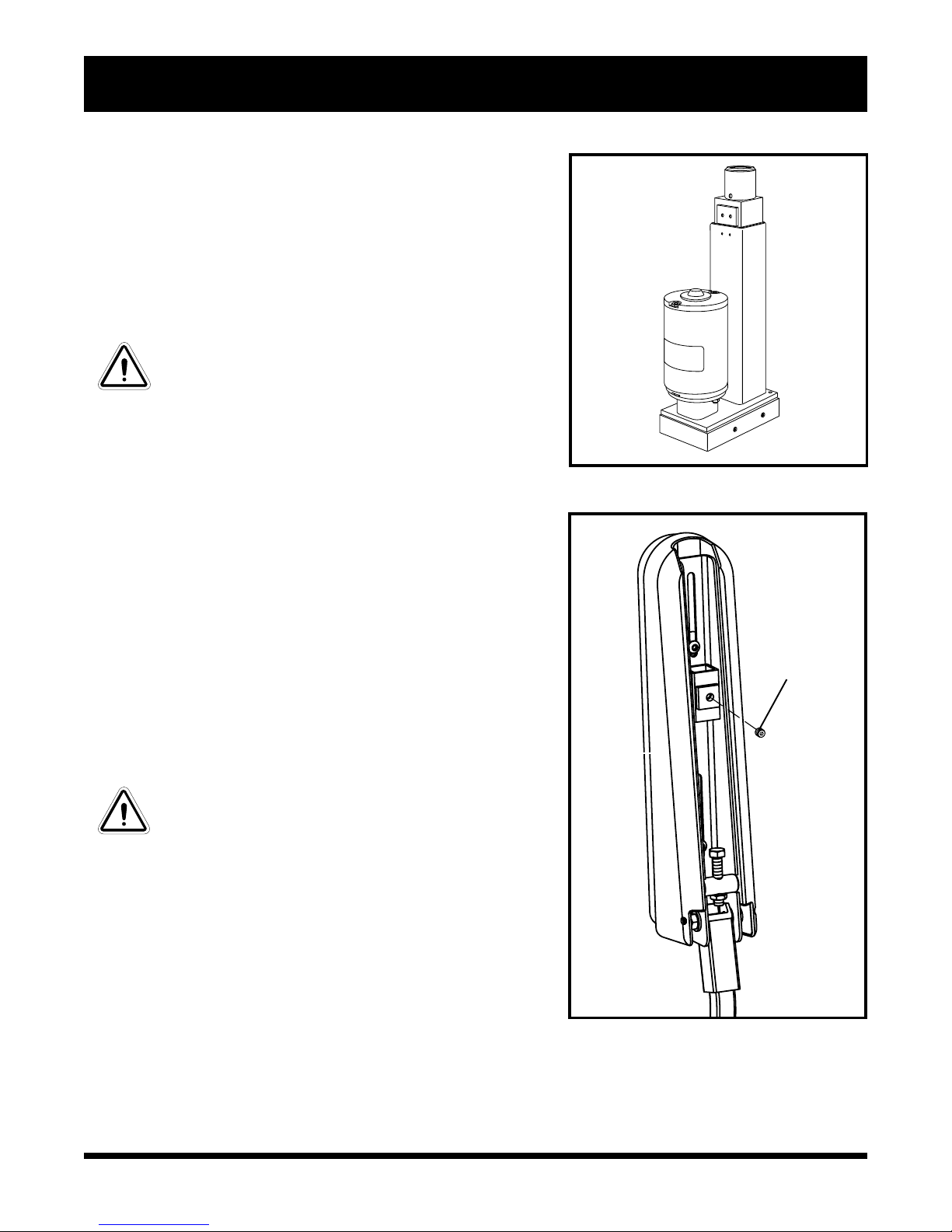

l. Aligntheseatshafttotheholeintheactuator.Seefigure11.
2. Inserttheseat into actuatorandpushthe seat lever forward.
3. Locktheseat into place.
4. Plugthepowerelevatingseatswitchcableintotheconnectoron
theelectronicstray.
Controller Installation
Dependingonthe variousconfigurationsandoptionsyouhavecho-
sen for your power chair, it may have been shipped without the
controllermoduleinstalledinthearmrest.
WARNING!Do not place thecontroller cable so that
it can be pinched in the seat frame or power base
frame.
1. Flipupeithertheright orleft armrest.
2. Loosenthesetscrew on theundersideofthe armrest. Seefig-
ure12.
3. Slide thecontrollerintothearmrest.
4. Tightenthesetscrewandlower thearmrest.
5. Route the controller cable so that it cannot be pinched on the
seathinge.
6. Slidetherear cover to exposetheelectronicstray.
7. Plugthecontrollerconnectorintotheelectronicstray.Seefigure6.
8. Securethecontroller cabletothearmrest receiverwithoneor
morewire ties.
Figure 12. Controller Installation
(Undersideof Armrest)
SETSCREW
Figure 11.Power Seat Actuator
