Four-way Cassette Type
INSTALLATION MANUAL
PCM123HX
PCM183HX

1
installation manual
1. PRECAUTIONS
The safty precautions listed here are divided into two categories.
After completing the installation, make sure that the unit operates
properly during the start-up operation. Please instruct the customer
on how to operate the unit and keep it maintained.Also, inform
customers that they should store this installation manual along with
the owner's manual for future reference.
Be sure only trained and qualified service personnel to
install, repair or service the equipment.
Improper installation, repair, and maintenance may result in
electric shocks, short-circuit, leaks, fire or other damage to
the equipment.
If you do not follow these instrutions exactly, the unit may
cause property damage, personal injury or loss of life.
If you do not follow these instrutions exactly, the unit may
cause minor or moderate property damage, personal
CONTENTS PAGE
Install according to this installation instructions strictly.
If installation is defective, it will cause water leakage,
electrical shock and fire.
When installing the unit in a small room, take measures
against to keep refrigerant concentration from exceeding
allowable safety limits in the event of refrigerant leakage.
Contact the place of purchase for more information.
Excessive refrigerant in a closed ambient can lead to oxygen
deficiency.
Use the attached accessories parts and specified parts
for installation.
otherwise, it will cause the set to fall, water leakage,
electrical shock and fire.
Install at a strong and firm location which is able to
withstand the set' s weight.
If the strength is not enough or installation is not properly
done, the set will drop to cause injury.
The appliance must be installed 2.3m above floor.
The appliance shall not be installed in the laundry.
Before obtaining access to terminals, all supply circuits
must be disconnected.
The appliance must be positioned so that the plug is
accessible.
The enclosure of the appliance shall be marked by word,
or by symbols, with the direction of the fluid flow.
For electrical work, follow the local national wiring
standard, regulation and this installation instructions. An
independent circuit and single outlet must be used.
If electrical circuit capacity is not enough or defect in
electrical work, it will cause electrical shock or fire.
Use the specified cable and connect tightly and clamp
the cable so that no external force will be acted on the
terminal.
If connection or fixing is not perfect, it will cause heat-up or
fire at the connection.
Wiring routing must be properly arranged so that control
board cover is fixed properly.
If control board cover is not fixed perfectly, it will cause
heat-up at connection point of terminal, fire or electrical
shock.
If the supply cord is damaged, it must be replaced by the
manufacture or its service agent or a similarly qualified
person in order to avoid a hazard.
An all-pole disconnection switch having a contact
separation of at least 3mm in all poles should be
connected in fixed wiring.
When carrying out piping connection, take care not to let
air substances go into refrigeration cycle.
Otherwise, it will cause lower capacity, abnormal high
pressure in the refrigeration cycle, explosion and injury.
Do not modify the length of the power supply cord or use
of extension cord, and do not share the single outlet with
other electrical appliances.
Otherwise, it will cause fire or electrical shock.
Carry out the specified installation work after taking into
account strong winds, typhoons or earthquakes.
Improper installation work may result in the equipment falling
and causing accidents.
CAUTION
WARNING
WARNING
PRECAUTIONS......................................................................
INSTALLATION INFORMATION.............................................
ATTACHED FITTINGS............................................................
INSPECTING AND HANDLING THE UNIT.............................
INDOOR UNIT INSTALLATION..............................................
OUTDOOR UNIT INSTALLATION..........................................
INSTALL THE CONNECTING PIPE.......................................
CONNECT THE DRAIN PIPE................................................
CONNECTIVE DIAGRAM .....................................................
WIRING...................................................................................
TEST OPERATION.................................................................
1
2
3
4
4
11
15
18
19
20
21
CONTENTS PAGE
Keep this manual where the operator can easily find them.
Read this manual attentively before starting up the units.
For safety reason the operator must read the following
cautions carefully.

2
installation manual
To install properly, please read this "installation manual" at
first.
The heat pump must be installed by qualified persons.
When installing the indoor unit or its tubing, please follow
this manual as strictly as possible.
If the heat pump is installed on a metal part of the building,
it must be electrically insulated according to the relevant
standards to electrical appliances.
When all the installation work is finished, please turn on
the power only after a thorough check.
Regret for no further announcement if there is any change
of this manual caused by product improvement.
2. INSTALLATION INFORMATION
Ground the heat pump.
Do not connect the ground wire to gas or water pipes,
lightning rod or a telephone ground wire.Inappropriate
grounding may result in electric shocks.
Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may result in
electric shocks.
Connect the outdoor unit wires , then connect the indoor
unit wires.
You are not allowed to connect the heat pump with the power
supply until the wiring and piping is done.
While following the instructions in this installation
manual, install drain piping in order to ensure proper
drainage and insulate piping in order to prevent
condensation.
Improper drain piping may result in water leakage and
property damage.
Install the indoor and outdoor units, power supply wiring
and connecting wires should be at least 1 meter away
from televisions or radios in order to prevent image
interference or noise.
Depending on the radio waves, a distance of 1 meter may not
be sufficient enough to eliminate the noise.
The appliance is not intended for use by young children
or infirm persons without supervision.
Don't install the heat pump in the following
circumstance:
There is petrolatum existing.
There is salty air surrounding (near the coast).
There is caustic gas (the sulfide, for example) existing
in the air (near a hot spring).
The Volt vibrates violently (in the factories).
In buses or cabinets.
In kitchen where it is full of oil gas.
There is strong electromagnetic wave existing.
There are inflammable materials or gas.
There is acid or alkaline liquid evaporating.
Other special conditions.
If the refrigerant leaks during installation, ventilate the
area immediately.
Toxic gas may be produced if the refrigerant comes into the
place contacting with fire.
The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper
tube.
After completing the installation work, check that the
refrigerant does not leak.
Toxic gas may be produced if the refrigerant leaks into the
room and comes into contact with a source of fire, such as a
fan heater, stove or cooker.
INSTALLATION ORDER
Select the location;
Install the indoor unit;
Install the outdoor unit;
Install the connecting pipe ;
Connect the drain pipe;
Wiring;
Test operation.
CAUTION

3
installation manual

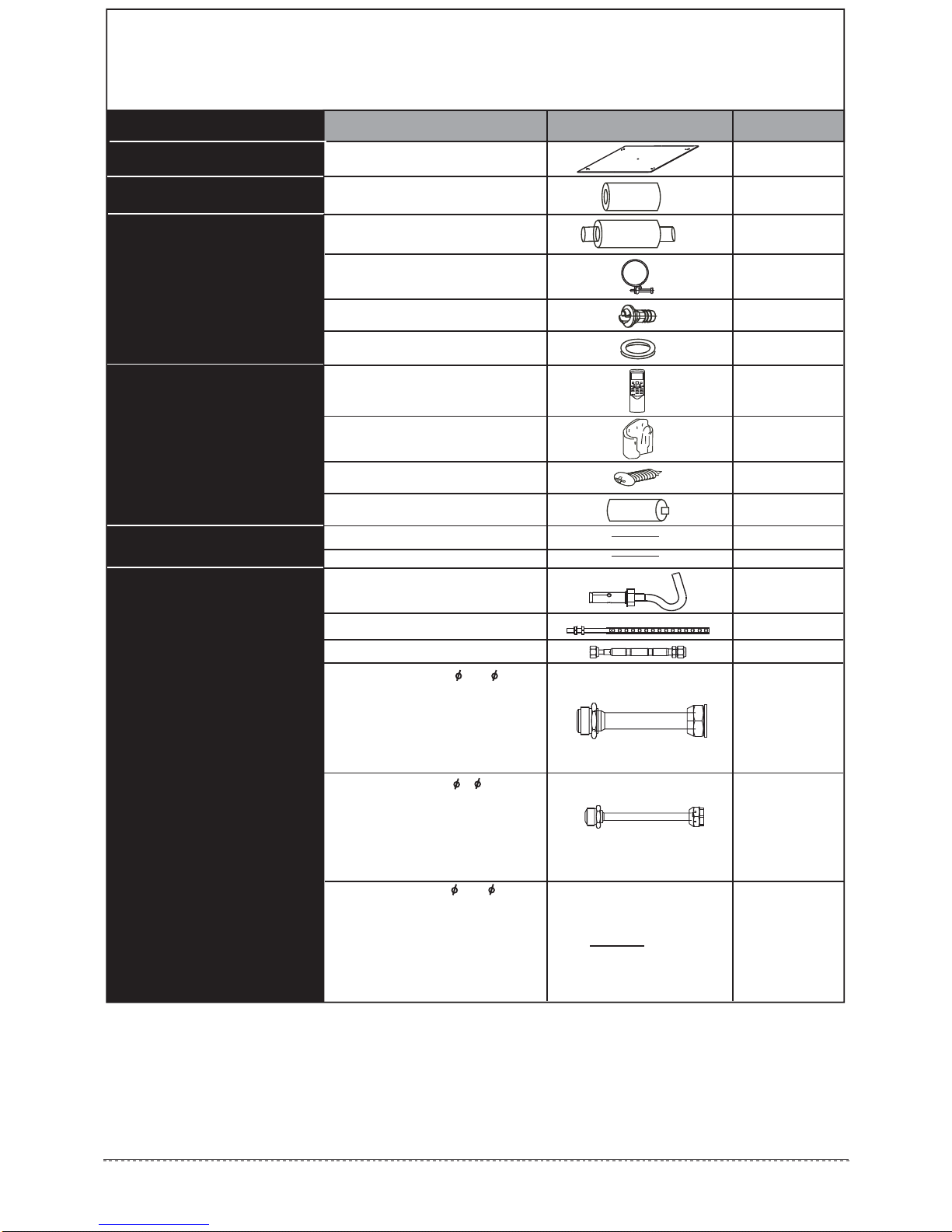

3. ATTACHED FITTINGS
Please check whether the following fittings are of full scope. If there are some spare fittings , please restore them carefully.
QUANTITY
Tubing & Fittings
Remote controller & Its Frame
Drainpipe Fittings
Installation Fittings
SHAPE
NAME
13. Expansible hook
3. Out-let pipe sheath
4. Out-let pipe clasp
5. Drain joint(on some models)
6. Seal ring(on some models)
11. Owner's manual
12. Installation manual
7. Remote controller
8. Remote controller holder
9. Mounting screw(ST2.9× 10-C-H)
10. Alkaline dry batteries (AM4)
14. Installation hook
1. Installation paper board
(on some models)
(on some models)
(on some models)
(on some models)
4
1
4
1
1
1
1
1
1
1
2
2
1
1
2. Soundproof / insulation sheath
15 .Orifice
16 .Transfer connector( 12.7- 16)
(Packed with the indoor unit )
(NOTE: Pipe size differ from appliance
to appliance.To meet different pipe size
requirement, sometimes the pipe
connections need the transfer connector
to install on the outdoor unit .)
18 .Transfer connector( 9.52- 12.7)
(Packed with the indoor unit ，used for
multi-type models only)
(NOTE: Pipe size differ from appliance
to appliance.To meet different pipe size
requirement, sometimes the pipe
connections need the transfer connector
to install on the outdoor unit .)
1
1
(on some models)
1
(on some models)
17 .Transfer connector( 6- 9.52)
(Packed with the indoor unit )
(NOTE: Pipe size differ from appliance
to appliance.To meet different pipe size
requirement, sometimes the pipe
connections need the transfer connector
to install on the outdoor unit .)
1
(on some models)
Installation accessory
(The product you have might not be
provided the following accessory)
(The product you have might not be
provided the following accessory)

4
installation manual
Keep indoor unit, outdoor unit, power supply wiring and
transmission wiring at least 1 meter away from televisions
and radios. This is to prevent image interference and
noise in those electrical appliances. (Noise may be
generated depending on the conditions under which the
electric wave is generated, even if 1 meter is kept.)
There is enough room for installation and maintenance.
The ceiling is horizontal, and its structure can endure the
weight of the indoor unit.
The outlet and the inlet are not impeded, and the
influence of external air is the least.
The air flow can reach throughout the room.
The connecting pipe and drainpipe could be extracted out
easily.
There is no direct radiation from heaters.
4. INSPECTING AND HANDLING THE UNIT
At delivery, the package should be checked and any damage should
be reported immediately to the service agent.
When handling the unit, take into account the following:
5. INDOOR UNIT INSTALLATION

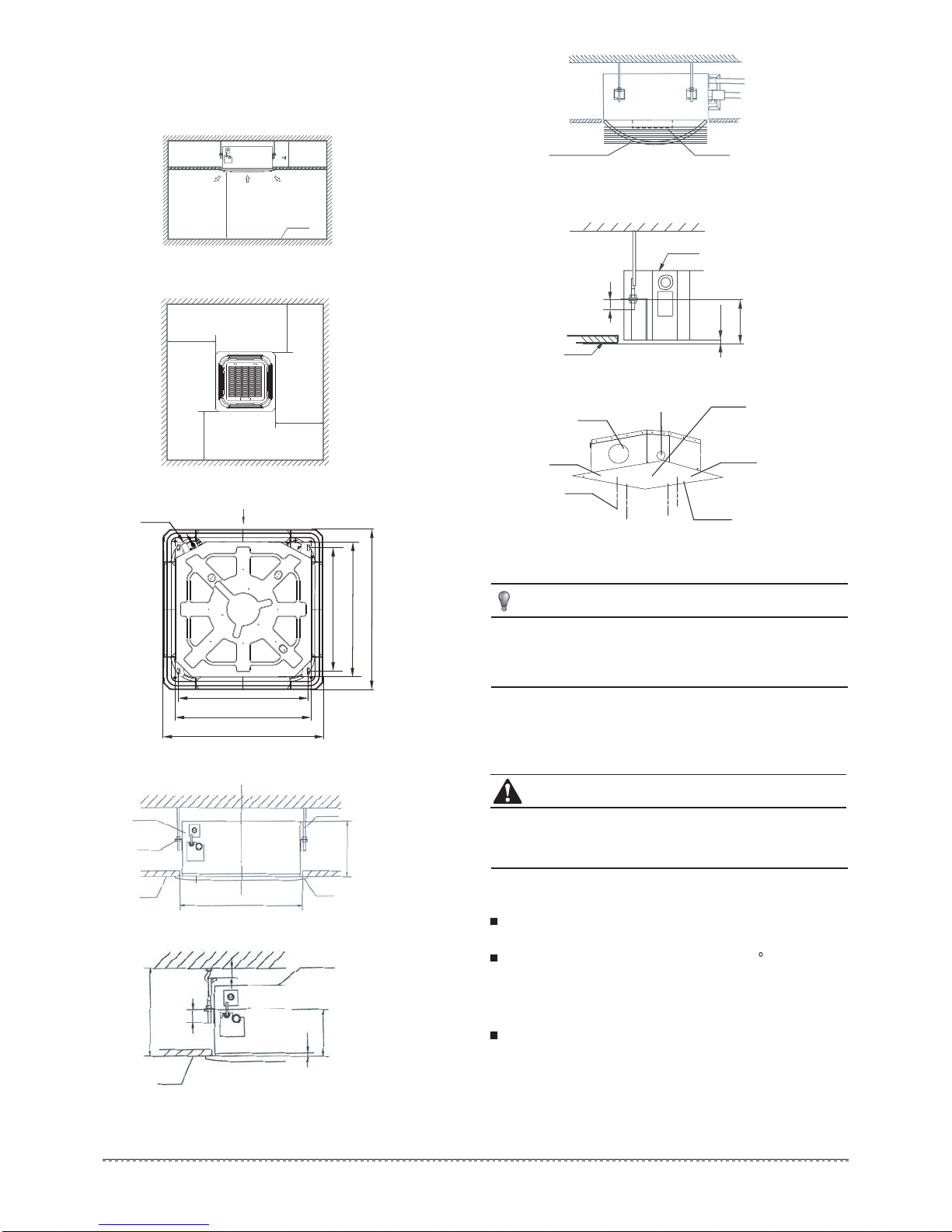

5.1 Installation place
(Refer to Fig.5-1,Fig.5-2,Fig.5-3 and Table 5-1 for specification.)
The indoor unit should be installed in a location that meets
the following reauirements:
5.2 Installation procedures for fresh air
intake duct connection
5.3.1 Install the main body(cassette type
heat pump)
Cut a quadrangular hole of 880x880mm in the ceiling
according to the shape of the installation paper board.
(Refer to Fig.5-2)
The center of the hole should be at the same position of
that of the heat pump body.
Determine the lengths and outlets of the connecting pipe,
drainpipe and cables.
To balance the ceiling and to avoid vibration, please
enforce the ceiling when necessary.
Adjust the hexangular nuts on the four installation hooks
evenly, to ensure the balance of the body.
If the drainpipe is awry, leakage will be caused by the
malfunction of the water-level switch.
Adjust the position to ensure the gaps between the body
and the four sides of ceiling are even. The body's lower
part should sink into the ceiling for 10~12 mm (Refer to
Fig.5-6).
In general, L is half of the screw length of the installation
hook.(Refer to Fig.5-6)
Locate the heat pump firmly by wrenching the nuts after
having adjusted the body's position well.(Refer to Fig.5-7)
Select the position of installation hooks according to the
hook holes on the installation board.
Drill four holes of Ø12mm, 45~50mm deep at the selected
positions on the ceiling. Then embed the expansible
hooks (fittings).
Face the concave side of the installation hooks toward the
expansible hooks. Determine the length of the installation
hooks from the height of ceiling, then cut off the
unnecessary part.
If the ceiling is extremely high, please determine the
length of the installation hook according to facts.
1
2
3
1
2
3
4
New built houses and ceilings
In the case of new built house, the hook can be embedded
in advance (refer to 2 mentioned above). But it should be
strong enough to bear the indoor unit and will not become
loose because of concrete shrinking.
After installing the body, please fasten the installation paper
board onto the heat pump with bolts(M6X12) to determine in
advance the sizes and positions of the hole opening on
ceiling.(Refer to Fig.5-8)
Refer to 3 above for installation.
Remove the installation paper board.
Please first guarantee the flatness and horizontal of
ceiling when installing it.
Refer to 1 mentioned above for others.
After installing the body, the four bolts(M6x12)must be
fastened to the heat pump onto ensure the body is
grounded well.
Fragile, handle the unit with care.
Keep the unit upright in order to avoid compressor
damage.
Choose on before hand the path along which the unit is to be
brought in.
Move this unit as originally package as possible.
When lifting the unit , always use protectors to prevent belt
damage and pay attention to the position of the unit’s centre
of gravity.
1
2
3
4
CAUTION
CAUTION
Preparing the connection hole
The existing ceiling (to be horizontal)
Placing the insulation
Cut off the knockout hole on the side plate with a nipper.
Cut the inner insulation of the hole portion with a cutter.
(Refer to Fig.5-4)
Put the insulation tightly around the hole of the unit as
shown.
The ends of the side plate and the inner insulation must be
completely adhered without leaving any clearance along the
circumference of the hole.
Make sure the inner surface of insulation tightly contacts the
inner insulation edge and the side plate. (Refer to Fig.5-5)

5
installation manual
Drain side
Tubing side
(Unit: mm)
780(Hook-location)
840(Body)
950(Panel)
>1000mm
>1000mm
mm0001>
mm0001>
L
Ceiling
880mm (ceiling hole)
Ground
A
H
Panel
Inlet
Outlet Outlet
m
m0052>
Fig.5-2
Fig.5-4
Fig.5-1
Fig.5-3
Fig.5-5
Fig.5-7Fig.5-6
Inner insulation
Inner insulation
±10mm
Body
m
m
2
1-
01
m
m
6
3
1
Ceiling
Drain piper
piping
Slit
Side plate
)noitacol-
k
ooH(086
Connecting point of
refrigerant pipe
Connecting point of
refrigerant pipe
(Gas side ØB)
(Liquid side ØC)
Connecting point of drain pipe
)ydoB(048
)lenaP
(
05
9
Inner insulation
Side plate
Side plate
Insulation(local)
Insulation(local)
Bolt M6X12
Fig.5-8
Central hole
Installation
paper board
Body
Table 5-1 mm
MODEL A H
18
30~60
＞260
＞330
230
300
Remark
R410A &R22 Cooling/Cooling & Heating
24 ＞260230
R410A &R22 Cooling/Cooling & Heating
R410A &R22 Cooling/Cooling & Heating
＞330
300
R410A &R22 Cooling/Cooling & Heating

6
installation manual
4
Fig.5-11
Fig.5-10
Grid switch
Fig.5-9
<200mm
m
m057
<
Lean over 1/50
Pump-pipe clasp
(the fittings)
panel sponge
body
Ceiling
panel
panel foam1
air out
Fan panel foam 2
Loosen upper nut
Adjust lower nut
Gap not allowed
4- m
m6
outlet foam
1-1.5m
Pump joint
Test mouth
Body
Water-receiver
Test cover
Stow tube
Drain plug
Fig.5-12
Fig.5-14
Fig.5-16
Fig.5-17
Fig.5-13
Fig.5-15
Fig.5-18
Tubing joint
Outlet joint
Hook panel
Water-receiver
Swing Motor
Hook-bolt
Cross-screwdriver
Leakage
Installation cover’s rope
Tap Screw Slide the four sliders
in the corresponding
channel when installing
the cover
Ceiling
Pollution Water condensation

7
installation manual
L
Body
m
m2
1-
01
m
m
6
3
1
Ceiling
Fresh air intake (ф65)
5.3.2 Install the main body(small cassette
type heat pump)
5.4.1 Install The Panel(cassette type heat
pump)
Remove the air-in grill.
Never put the panel face down on floor or against the
wall, or on bulgy objects.
Never crash or strike it.
Slide two grill switches toward the middle at the same time,
and then pull them up. (Refer to Fig.5-9)
Draw the grill up to an angle of about 45, and remove it.
(Refer to Fig.5-10)
Remove the installation covers at the four corners
Wrench off the bolts, loose the rope of the installation covers,
and remove them. (Refer to Fig.5-11)
1
2
CAUTION
Central hole
Hook hole
Installation paper board
Body
Fixing hole
installation paper board
523(Hook-location)
570(Body)
647(Panel)
Drain side
(Unit: mm)
545(Hook-location)
570(Body)
647(Panel)
Fig.5-20
Fig.5-19
Fig.5-21
Fig.5-22
Fig.5-23
Fig.5-24
Fig.5-25
Fig.5-26
All the pictures in this manual are for explanation purpose only.
They may be slightly different from the heat pump you
purchased(depend on model).The actual shape shall prevail.
NOTE
0
8
2
A
Necessary room
Ground
Outlet
Outlet
0032>
Inlet
A
0
0
0
1>
>1000
>1000
0
0
0
1>
L
2
1-01
671
4
3
Colourless
trans parent pipe
Ceiling
Body
Ceiling
Panel
Hook
A
0
62
Nut
Body
600
)thgiehgn
il
i
e
c(H
Horizontal
indicator
Screw M5x16
(Accessory)
50

8
installation manual
5.4.2 Install The Panel(samll cassette type
heat pump)
Do not coil the wiring of the swing motor into the seal
sponge.
Install the panel
Align the swing motor on the panel to the tubing joints of the
body properly. ( Refer to Fig.5-12)
Fix hooks of the panel at swing motor and its opposite sides
to the hooks of corresponding water receiver. ( Refer to
Fig.5-12.1) Then hang the other two panel hooks onto
corresponding hangers of the body. ( Refer to Fig.5-12.2)
Adjust the four panel hook screws to keep the panel
horizontal, and screw them up to the ceiling evenly. ( Refer to
Fig.5-12.3)
Regulate the panel in the direction of the arrow in Fig.5-12.4
slightly to fit the panel's center to the center of the ceiling's
opening. Guarantee that hooks of four corners are fixed well.
Keep fastening the screws under the panel hooks, until the
thickness of the sponge between the body and the panel's
outlet has been reduced to about 4~6mm. The edge of the
panel should contact with the ceiling well. (Refer to Fig.5-13)
3
4
5
6
Fasten the rope of installation cover on the bolt of the
installation cover. (Refer to Fig.5-16-left)
Press the installation cover into the panel slightly. (Refer to
Fig.5-16-right)
Malfunction described in Fig.5-14 can be caused by
inappropriate tightness the screw.
If the gap between the panel and ceiling still exists after
fastening the screws, the height of the indoor unit should
be modified again. ( Refer to Fig.5-15-left)
You can modify the height of the indoor unit through the
openings on the panel's four corners, if the lift of the
indoor unit and the drainpipe is not influenced (Refer to
Fig.5-16-right).
Hang the air-in grill to the panel, then connect the lead
terminator of the swing motor and that of the control box
with corresponding terminators on the body respectively.
Relocate the air-in grill in the procedure of reversed order.
Relocate the installation cover.
CAUTION
Fig.5-27
Fig.5-28
4
5
Remove the air-in grill.
Never put the panel face down on floor or against the
wall, or on bulgy objects.
Never crash or strike it.
Slide two grill switches toward the middle at the same time,
and then pull them up. (Refer to Fig.5-27)
Draw the grill up to an angle of about 45, and remove it.
(Refer to Fig.5-28)
1
CAUTION
Grid switch
The installation cover of the swing motor must sink into
the corresponding water receiver.
Install the panel
Align the swing motor on the panel to the tubing joints of the
body properly. ( Refer to Fig.5-29)
Hang the four fixed rope of the main body to the installation
cover and the other three covers of the swing motor: (Refer
to Fig.5-29 and )
Install the panel on the main body with bolt (M5×16) and
washer. (Refer to Fig.5-29 )
Adjust the four panel hook screws to keep the panel
horizontal, and screw them up to the ceiling evenly.
Regulate the panel in the direction of the arrow in Fig.5-29.
slightly to fit the panel's center to the center of the ceiling's
opening. Guarantee that hooks of four corners are fixed well.
Keep fastening the screws under the panel hooks, until the
thickness of the sponge between the body and the panel's
outlet has been reduced to about 4~6mm. The edge of the
panel should contact with the ceiling well. (Refer to Fig.5-30)
2
4
5
Malfunction described in Fig.5-31 can be caused by
inappropriate tightness the screw.
If the gap between the panel and ceiling still exists after
fastening the screws, the height of the indoor unit should
be modified again. ( Refer to Fig.5-32-left)
You can modify the height of the indoor unit through the
openings on the panel's four corners, if the lift of the
indoor unit and the drainpipe is not influenced (Refer to
Fig.5-32-right).
Hang the air-in grill to the panel, then connect the lead
terminator of the swing motor and that of the control box
with corresponding terminators on the body respectively.
Relocate the air-in grid in the procedure of reversed order,
install the air-in grid.
CAUTION

9
installation manual
Fig.5-33
Distribution duct
Distribution duct
Distribution duct
Distribution duct
Fresh air
Fresh air intake ( 75)
5.5.1 Install the distribution duct(cassette type heat pump)
Conditioned air can be distributes by means of a distribution duct.
Fig.5-29
Fig.5-30
Body
Panel foam2 Ceiling
Panel foam
Air plate
Panel Panel foam1
Panel sealing foam
Inlet air
Outlet air
Cover
Steel rope
Swing motor installation cover
1 2
3
Cover
Steel rope
Swing motor installation cover
1 2
3
Swing motor side
Drain side
Bolt, washer
4
3
Please operate according
to the direction of the arrow,
or it can not be disassembled
when it is necessary.
Fig.5-31
Fig.5-32
Ceiling Leakage
Dew
Hexagon nut
Ceiling
Horizontal adjust ment
80mm
80mm
Ø75mm
MODLE (18-60)

10
installation manual
Distribution duct
Distribution duct
Fig.5-34
Fig.5-35
Fig.5-36
One-way
Two- way
Two- way
5.5.1 Install the distribution duct(small
cassette type heat pump)
Conditioned air can be distributes by means of a distribution
duct.
model 18 to 24 Series A=350mm; Series B=85mm
model 36 to 60 Series A=350mm; Series B=155mm
The air volume in duct is around 300-360m3/h for model 18
to 24 unit.
The air volume in duct is around 400-640m3/h for model 36
to 60 unit.
The max. length of duct is 2m.
The original air outlet with the same direction of duct should
be sealed In case of two duct connection.
The air volume in one duct is around 200-260m3/h for model
18 to 24 unit.
The air volume in one duct is around 300-500m3/h for model
36 to 60 unit.
The max. length of duct is 1.5m for one duct.
The original air outlet with the same direction of duct should
be sealed.
In case of one duct connection
In case of two duct connection
The air volume in duct is around 180-300m3/h for model 12
to 18 unit.
The max. length of duct is 1m.
The original air outlet with the same direction of duct should
be sealed In case of two duct connection.
The air volume in one duct is around 100-200m3/h for model
12 to 18 unit.
The max. length of duct is 0.75m for one duct.
The original air outlet with the same direction of duct should
be sealed.
In case of one duct connection
In case of two duct connection
NOTE
model 12 to 18 Series A=150mm
NOTE
Fresh air
One-way
Fresh air intake ( 75)
Ø65mm Ø75mm
MODLE (12-18)

11
installation manual

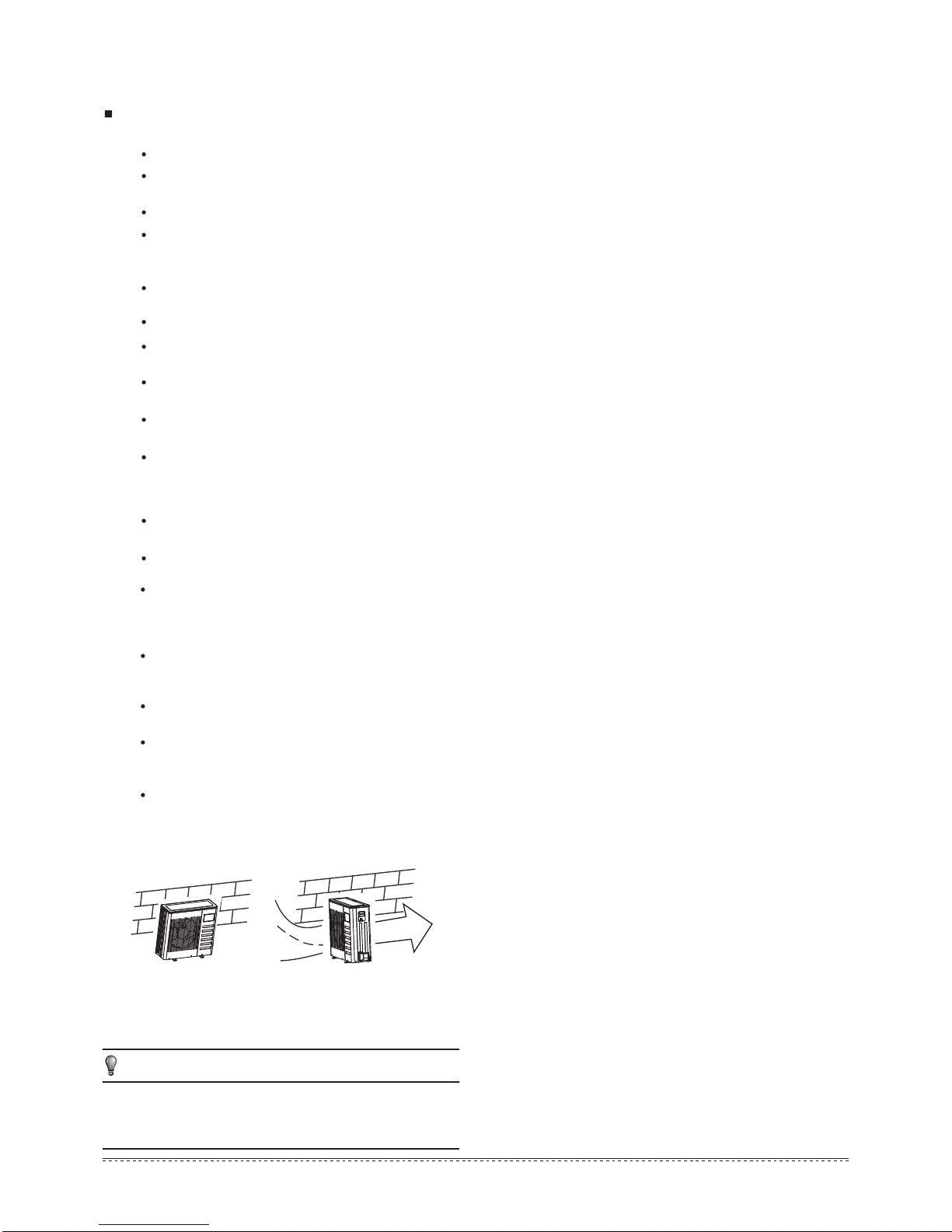

6.1 Installation Place
6. OUTDOOR UNIT INSTALLATION
There is enough room for installation and maintenance.
The air outlet and the air inlet are not impeded, and can
not be reached by strong wind.
It must be a dry and well ventilating place.
The support is flat and horizontal and can stand the
weight of the outdoor unit. And will no additional noise or
vibration.
Your neighborhood will not feel uncomfortable with the
noise or expelled air.
It is easy to install the connecting pipes or cables.
Determine the air outlet direction where the discharged
air is not blocked.
There is no danger of fire due to leakage of inflammable
gas.
The piping length between the outdoor unit and the indoor
unit may not exceed the allowable piping length.
In the case that the installation place is exposed to strong
wind such as a seaside, make sure the fan operating
properly by putting the unit lengthwise along the wall or
using a dust or shield.(Refer to Fig.6-1)
If possible, do not install the unit where it is exposed to
direct sunlight.
If necessary, install a blind that does not interfere with the
air flow.
Fig.6-1
The outdoor unit should be installed in the location that
meets the following requiements:
All the figures in this manual are for explanation
purpose only. They may be slightly different from the
heat pump you purchased.The actual unit shall prevail.
NOTE
O
X
Strong wind
During the heating mode, the water drained off the
outdoor unit ,The condensate should be well drained
away by the drain hole to an appropriate place, so as not
to interfere other people.
Select the position where it will not be subject to snow
drifts, accumulation of leaves or other seasonal debris. If
unavoidable, please cover it with a shelter.
Locate the outdoor unit as close to the indoor unit as
possible.
If possible, please remove the obstacles nearby to
prevent the performance from being impeded by too little
of air circulation.
The minimum distance between the outdoor unit and
obstacles described in the installation chart does not
mean that the same is applicable to the situation of an
airtight room. Leave open two of the three
directions.(Refore to Fig.6-4, Fig.6-5)

12
installation manual
852 582 368 390 328 660340
762 530 290 315 270 593282
762 530 290 315 270 593282
Fig.6-2
Fig.6-4
Fig.6-3
Fig.6-6
Table 6-1 mm
A
H
H
A
A
B
C
Fig.6-5
1. Split type outdoor unit
2. Vertical discharge type outdoor unit

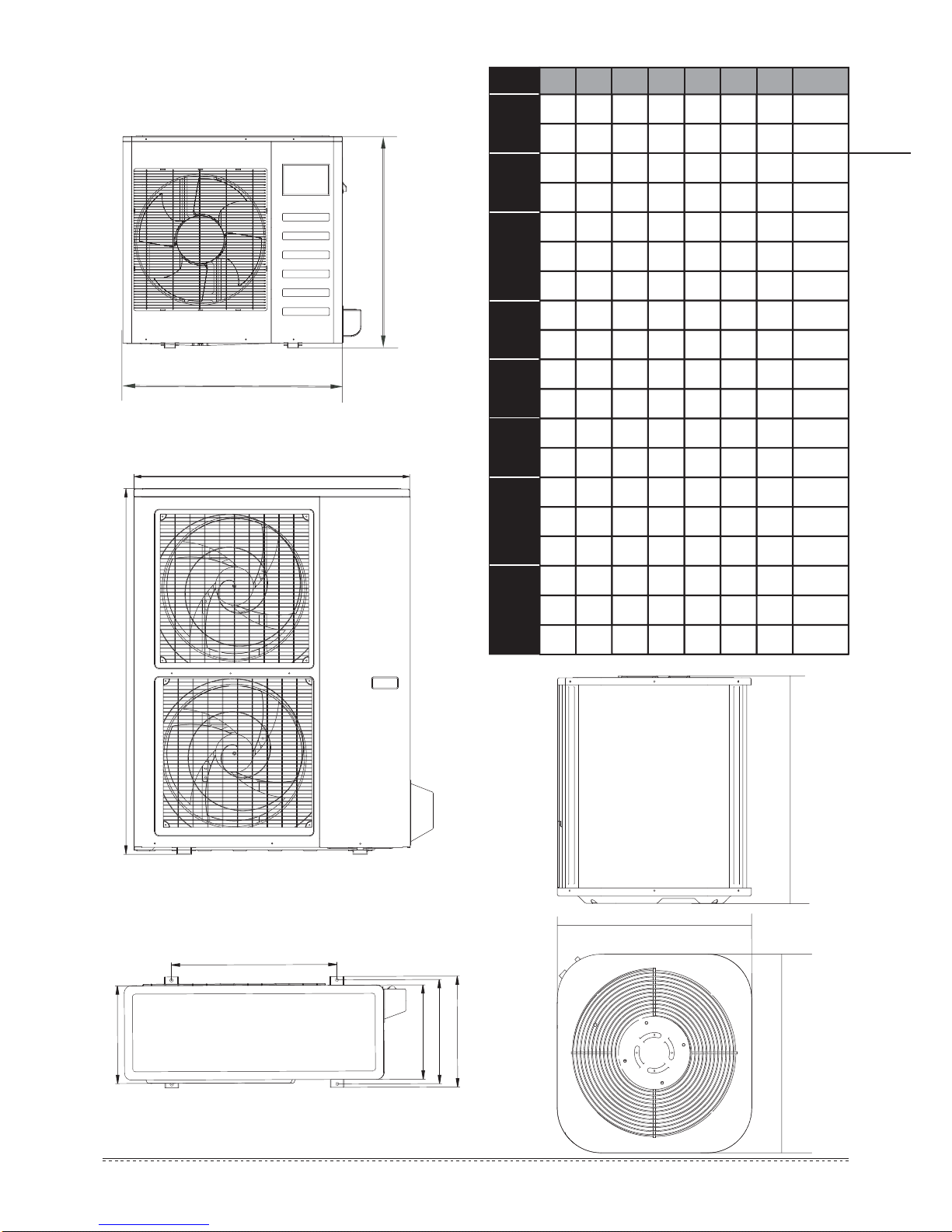

6.2 Figure of body size
B
C
D
E
F
MODEL A B C D E HF
24
18
30
36
842
940
560
600
600
335
376
376
360
400
400
312
340
340
695
1245
1245
324
895 590 333 355 302 862313
990 624 366 396 340 966354
990 624 366 396 340 966354
990 624 366 396 340 966354
990 624 366 396 340 966354
360
940 600 376 400 340 1245360
990 624 366 396 340 966354
360940
600 376 400 340 1245360940
590 378 400 330 1167340900
42
48
60
12
Fig.6-2
780 548 266 300 241 547250
Fig.6-2
Fig.6-2
Fig.6-2
Fig.6-2
Fig.6-2
895 590 333 355 302 862313
Fig.6-2
Fig.6-2
Fig.6-2
Fig.6-2
Fig.6-3
Fig.6-2
Fig.6-3
Fig.6-2
Fig.6-3
Fig.6-3
590 378 400 330 1167340900
Fig.6-3
643 404 448 368 1369392938
Fig.6-3
Fig.6-3

13
installation manual
Table 6-3
mm
0
0
3
>
>300mm
>300mm
m
m
0
03>
m
m
0
0
21
>
te
ltu
Or
i
A
t
e
l
nir
iA
Air inlet
Air inlet
t
e
l
n
i
r
iA
Fig.6-10
Fig.6-11
(Wall or obstacle)
(Wall or obstacle)
Fig.6-9
>300mm
m
m
0
0
3>
m
m
0
0
0
2
>
>600mm
(Wall or obstacle)
Maintain channel
Air outlet
Air inlet
M
P
Air inlet
N
Fig.6-8
Fig.6-7
≥m
m00
4
3
≥mm00
m
m
003≥
A
B
D
E
F
H
I J
G
C
mm
a) In case that suspending in the ceiling
3. Centrifugal fan outdoor unit
3. Centrifugal fan outdoor unit
1. Split type outdoor unit
2. Vertical discharge type outdoor unit
6.3 Space of installation and maintenance
Table 6-2 mm
BA C
636 554 554
636 554 554
840
852
554 554
740 740
843 740 740
MODEL DIMENSIONS
48
60
36
24
18
Refore to
Fig.6-5
Fig.6-6
REMARK
A
1381
1394
1174
B
1328
1338
1120
C
702
783
680
D
740
820
720
E
770
850
750
F
520
568
475
G
336
398
300
H
500
574
430
I
296
342
265
J
443
1381 1328 702 740 770 520 336 500 296 443
463
1338 783 820 850 568 398 574 342 463
393
MODEL
30
36
48
60
18
1174 1120 680 720 750 475 300 430 265 393
24
1394

14
installation manual
6.5 Moving and installation
Fig.6-15
All the figures in this manual are for explanation
purpose only. They may be slightly different from the
heat pump you purchased.The actual unit shall prevail.
Since the gravity center of the unit is not at its physical
center, so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from
deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45, and do not lay it sidelong.
Make concrete foundation accoding to the sepecifications of
the outdoor units.
Fasten the feet of this unit with bolts firmly to prevent it from
collapsing in case of earthquake or strong wind.(Refer to
Fig.6-15)
NOTE
≥60cm
Fix with bolt
6.4 Available configuration
NOTE
Four different configuration are available for oudoor unit only
changing the panels and fan position.
Keep in mind that fan unit weight is aprox 30kg ,the unit as
well as relevant equipment covered with the vinyl cover
during installation work.
To change air inlet is only necessary to interchange the
indicated panels position. Both panels use screws to be fixed
to unit chassis.
To change air outlet is necessary to interchange panels too.
Fan outlet panel is attached to fan structure, which must be
mounted as follow.
Air inlet modification
Change Panel
Fig6-13
Fig.6-14
All the figures in this manual are for explanation
purpose only. They may be slightly different from the heat
The actual unit shall prevail.
NOTE
Fig.6-12
m
m00
3
≥
m
m
004≥
mm0
0
3≥
b)In case that installing on the floor
pump you purchased.

15
installation manual
Foundation could be on flat and is recommended be 100-300mm
higher than ground level.
Install a drainage around foundation for smooth drain
When installing the outdoor unit fix the unit by anchor bolts of
M10.
When installing the unit on a roof or a veranda,drain water
sometimes turns to ice on a cold morning. Therefore, avoid
draining in an area that people often use because it is slippery.
1
2
3
4
1
The Procedure of Connecting Pipes
7.1
All field piping must be provided by a licensed
refrigeration technician and must comply with the
relevant local and national codes.
Prevent let air, dust, or other impurities enter the pipe
system during installation.
Insulation pipe shall be used to the gas piping and the
liquid piping. Otherwise, the condensate may happen
CAUTION
7. INSTALL THE CONNECTING PIPE
Check whether the height drop between the indoor unit and
outdoor unit, the length of refrigerant pipe, and the number of
the bends meet the following requirements:
(The number of the bends less than 15.)
unit: m
Concrete Foundation
1. Suspend the unit as the drawing indicates.
2. Ensure that ceiling can resist the Outdoor unit weight indicated
in specification label plate.
Suspended unit
No Description
1 Outdoor Unit
2 Vibration-proof rubber
3 Anchor Bolt M10
4 Drainage (Wide 100×Depth 150)
5 Drainage
6 Mortar Hole (Φ100×Depth 150)
Sling Bolt
Suspension Bracket
Table 6-4
Table 6-5 mm
MODEL
Unit BC
1120 720
1328 740
1338 820
18~24
30~36
48
Fig.6-16
Fig.6-17
≥100
0
0
1 0
0
3
Table 7-1
R410A
Drill a hole in the wall (suitable just for the size of the wall
conduit), then set on the fittings such as the wall conduit and
its cover.
Model
12K
18K-24K
30K-42K
12K
18K-24K
30K-60K
48K-60K
12K
18K-24K
30K
48K-60K
36K
50Hz T1 condition/R22
Split type heat pump
50Hz Vertical discharge heat pump
/60Hz T1 condition/R22 Split type
heat pump and Vertical discharge
heat pump
The type of models
R410A inverter Split type heat pump
and Centrifugal fan outdoor unit
50
50
30
15
50
30
15
30
30
25
10
25
R410A Split type heat pump
and and Centrifugal fan outdoor
unit
50Hz/60Hz T3 condition
(outdoor unit down)
50Hz/60Hz T3 condition
(outdoor unit up)
the unit with quick joint
12K
48K-60K
18K-30K
36K
18K-24K
42K-60K
30K
36K
18K-24K
12K-18K
48K-60K
42K
30K
36K
50
25
15
30
50
30
25
30
25
50
30
30
50
15
35
5 5
25
20
30
25
15
8
20
25
15
10
20
20
25
12
5
15
25
10
8
20
10
8
20
refrigerant pipe
The length of
height drop
The max

16
installation manual
2
3
5
6
7
Bind the connecting pipe and the cables together tightly with
binding tapes.
Pass the bound connecting pipe through the wall conduct
from outside. Be careful of the pipe allocation to do on
damage to the tubing.
Connect the pipes. Refer to "How to Connect the pipes" for
details.
Expel the air with a vacuum pump. Refer to "How to expel the
air with a vacuum pump" for details.
open the stop values of the outdoor unit to make the
refrigerant pipe connecting the indoor unit with the outdoor
unit in fluent flow.
Check the leakage. Check all the joints with the leak detector
or soap water.
Cover the joints of the connecting pipe with the soundproof /
insulating sheath (fittings), and bind it well with the tapes to
prevent leakage.
4
Table 7-2
Ø6.4 8.3 8.7
Ø9.5 12.0
Ø12.7 15.4
Ø15.9
Ø19.1
18.6
22.9
R0.4~0.8
45
°
±
2
90
°
± 4
A
65~67N.m
(663~684 kgf.cm)
45~47 N.m
(459~480 kgf.cm)
35~36 N.m
(357~367 kgf.cm)
25~26N.m
(255~265 kgf.cm)
15~16 N.m
(153~163 kgf.cm)
(mm)
min max
Pipe gauge Tightening torque Flare dimensin A Flare shape
12.4
15.8
19.0
23.3
4
Bend the tubing in proper way. Do not harm to them.
Connect the indoor unit at first, then the outdoor unit.
The bending angle should not exceed 90.
Bending position is preferably in the middle of the
bendable pipe. The larger the bending radius the better it
is.
Do not bend the pipe more than three times.
When connecting the flare nut, coat the flare both inside
and outside with either oil or ester oil and initially tighten
by hand 3 or 4 turns before tighting firmly.
Bend the pipe with thumb
min-radius 100mm
Fig.7-4
Fig.7-5

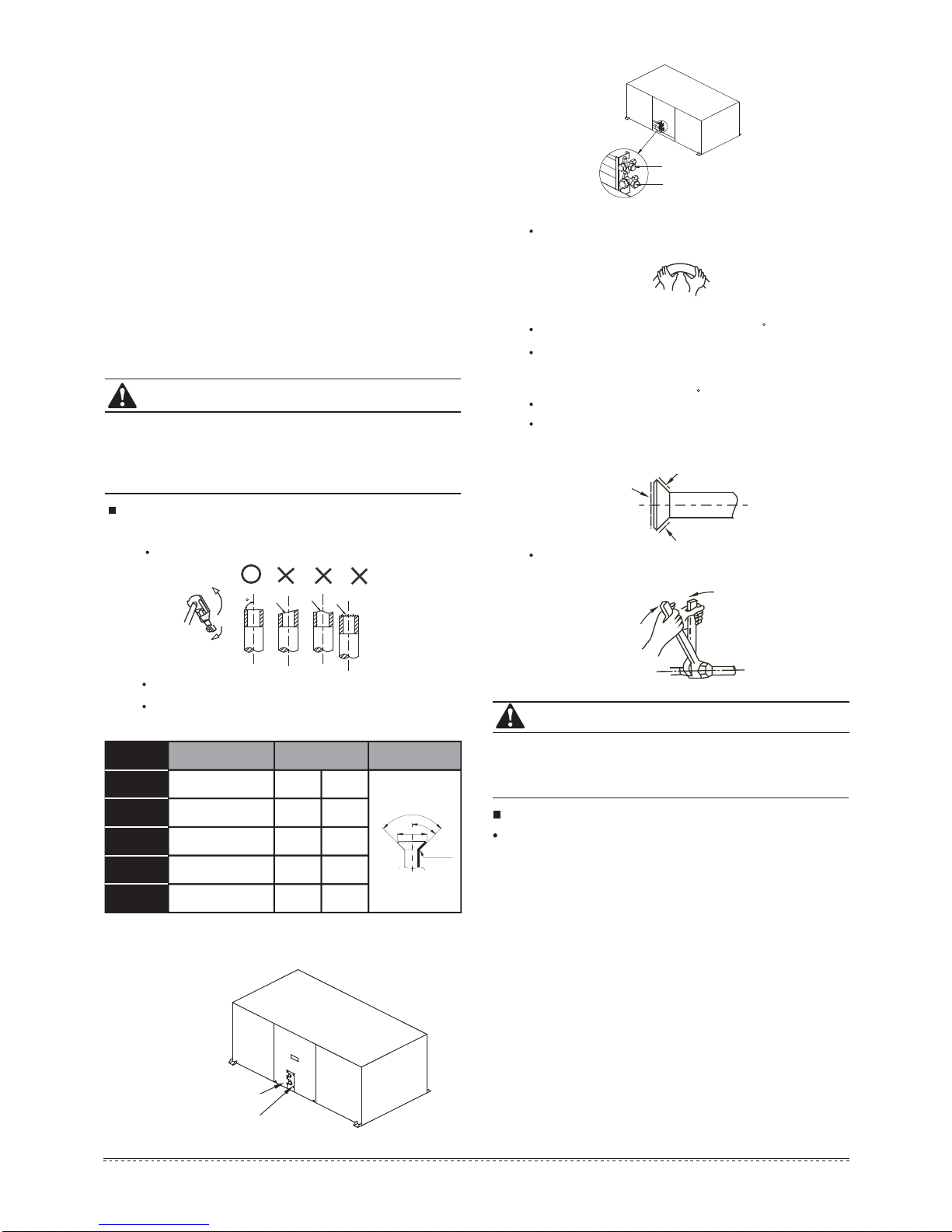

How to Connect the pipes
Flaring
1
Cut a pipe with a pipe cutter. (Refer to Fig.7-1)
Insert a flare nut into a pipe and flare the pipe.
Refer to Table 4 for the dimension of flare nut spaces.
Fig.7-1
90
Lean crude burr
Be sure to with insulating materials cover all the exposed
parts of the flare pipe joints and refrigerant pipe on the
liquid-side and the gas-side. Ensure that there is no gap
between them.
Incomplete insulation may cause water condensation.
CAUTION
2 Remove the Cycle Service Panel and the Cover
Board, unscrewing the screws which secure it to
the structure
3 Remove the protection cover of stop valve
Fig.7-2
Fig.7-3
Cycle Service Panel
Cover Board
Liquid Valve
Gas Valve
Too large torque will harm the bellmouthing and too small will cause
leakage. Please determine the torque according to Table 7-2.
After the connecting work is finished, be sure to check that there is
no gas leak.
Fig.7-6

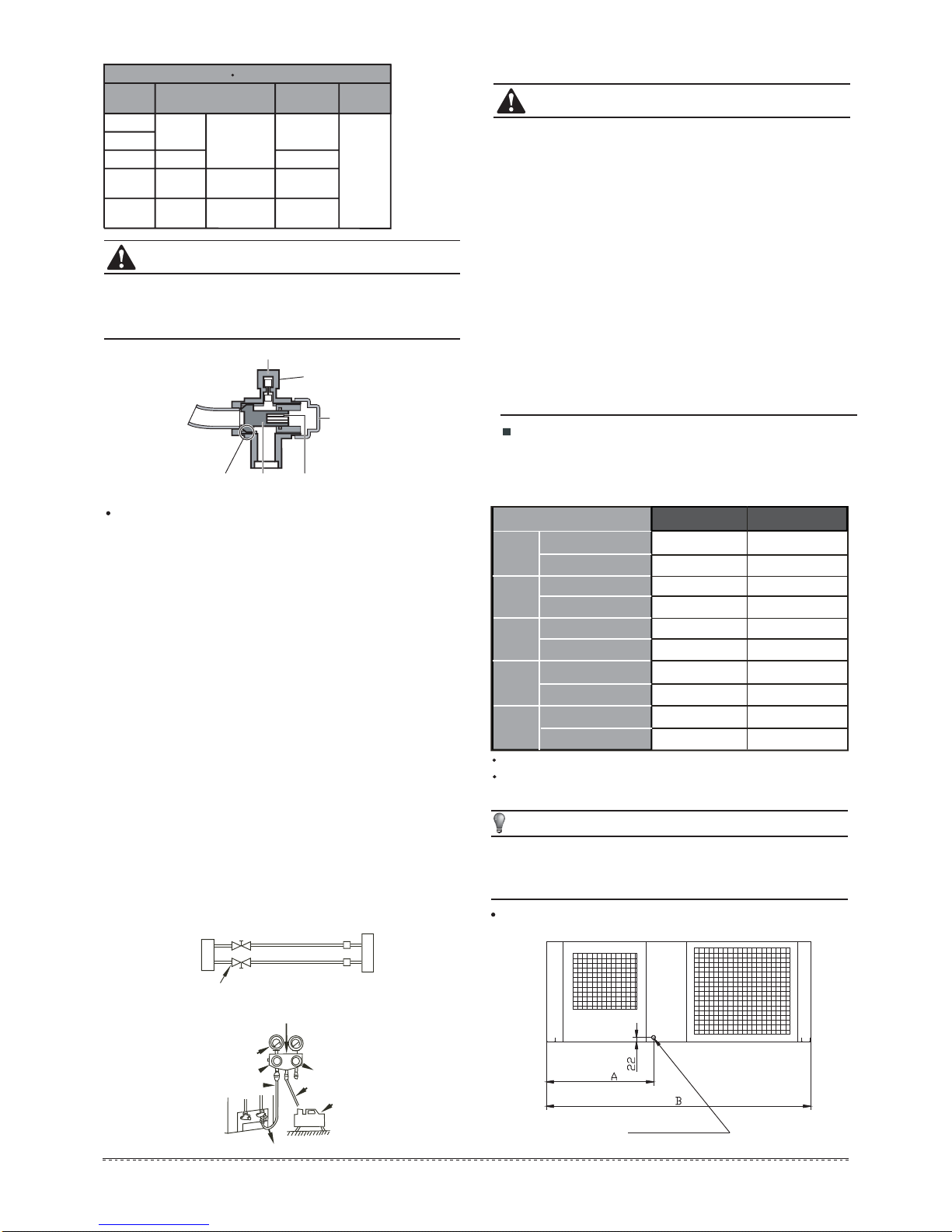

How to expel the air with a vacuum pump
CAUTION
Stop valve operation introduction
1. Opening stop valve
2. Closing stop valve
1.
2.
1.
2.
3.
Remove the cap and turn the valve
counterclock-wise with the hexagon wrench.
Turn it until the shaft stops.Do not apply excessive force
to the stop valve. Doing so may breakthe valve body, as
the valve is not a backseat type. Always use the special
tool.
Make sure to tighten the cap securely.
Remove the cap and turn the valve clockwise with the
hexagon wrench.
Securely tighten the valve until the shaft contacts the
main bodyseal.
Make sure to tighten the cap securely.
For the tightening torque, refer to the table below.
Be sure to use both a spanner and torque wrench
together when connecting or disconnecting pipes to /from
the unit.

17
installation manual
Drain Piping
Fig.7-10
1
2
4
3
5
6
Fig.7-9
Using the vacuum pump
Loosen and remove the maintenance nuts of stop valves A
and B, and connect the charge hose of the manifold valve to
the service port of stop valve A. (Be sure that stop valves A
and B are both closed)
Connect the joint of the charge hose with the vacuum pump.
Open the Lo-lever of the manifold value completely.
Turn on the vacuum pump. At the beginning of pumping,
loosen the maintenance nut of stop valve B a little to check
whether the air comes in (the sound of the pump changes,
and the indicator of compound meter turns below zero). Then
fasten the maintenace nut.
When the pumping has finished, close the Lo-lever of the
manifold valve completely and turn off the vacuum
pump.Make pumping for 15 minutes or more and check that
the compound meter indicates -76cmHg(-1X10 Pa)
Loosen and remove the cap of stop valves A and B to open
stop valve A and B completely, then fasten the cap.
Disassemble the charge hose from the service port of stop
valve A, and fasten the nut.
5
7
Fig.7-8
Fig.7-7
service port
cap
maintenance nut
Stop valve
Gas side
Liquid side
hexagon holeshaftseal
Outdoor
unit
Indoor
unit
A C
D
B
Pressure meterMulti-meter
-76 cmHg
Lo-lever
Lo-lever
Charge hose Charge hose
Vacuum pump
Hi-lever
Manifold valve
Always use a charge hose for service port connection.
After tightening the cap, check that no refrigerant leaks
arepresent.
Table 7-3
CAUTION
Tightening torque N M (Turn clockwise to close)
Stop
Valve size Shaft (valve body) Cap (Valve lid)
Ø6.4
Hexagonal
wrench 4 mm
Ø9.5
Ø12.7
Ø15.9
Hexagonal
wrench 6 mm
Hexagonal
wrench 6 mm
Ø19.1
Maintenance nut
35～40
23～27
18～22
13.5～16.55～7
7～9
9～11
11～13
11.5～13.9
Additional Refrigerant Charge
7.2
Refrigerant cannot be charged until field wiring has been
completed.
Refrigerant may only be charged after performing the leak
test and the vacuum pumping.
When charging a system, care shall be taken that its
maximum permissible charge is never exceeded, in view of
the danger of liquid hammer.
Charging with an unsuitable substance may cause
explosions and accidents, so always ensure that the
appropriate refrigerant is charged.
NOTE
CAUTION
If a negative result is gotten for R from Table 7-4, no
refrigerant needs to be added nor removed.
Additional refrigerant will be twice of R from Table 7-4 if
the indoor unit installed throttle assembly.
Outdoor unit is equiped with a drain piping. Its position is
shown figure below.
The outdoor unit is factory charged with refrigerant. Calculate
the added refrigerant according to the diameter and the
length of the liquid side pipe of the outdoor unit/indoor unit
connection.
Refrigerant containers shall be opened slowly.
Always use protective gloves and protect your eyes when
charging refrigerant.
Table 7-2
Brass tube(mm) R410A R22
Ø6.35
Ø9.53
Ø12.7
Ø15.9
Ø19.0
0.022kg/m×(L-5)
0.011kg/m×(L-5)
0.060kg/m×(L-5)
0.030kg/m×(L-5)
0.110kg/m×(L-5)
0.060kg/m×(L-5)
0.170kg/m×(L-5)
0.085kg/m×(L-5)
0.250kg/m×(L-5)
0.125kg/m×(L-5)
0.030kg/m×(L-5)
0.015kg/m×L
0.065kg/m×(L-5)
0.030kg/m×L
0.115kg/m×(L-5)
0.060kg/m×L
0.190kg/m×(L-5)
0.095kg/m×L
0.290kg/m×(L-5)
0.145kg/m×L
orifice in the indoorunit
orifice in the outdoorunit
orifice in the outdoorunit
orifice in the outdoorunit
orifice in the outdoorunit
orifice in the outdoorunit
orifice in the indoorunit
orifice in the indoorunit
orifice in the indoorunit
orifice in the indoorunit
NOTE:The number of bends is up to the length of the max
height drop.Usually for each 10m need a bend.
NOTE:the table above refer to the liquid tube.

18
installation manual

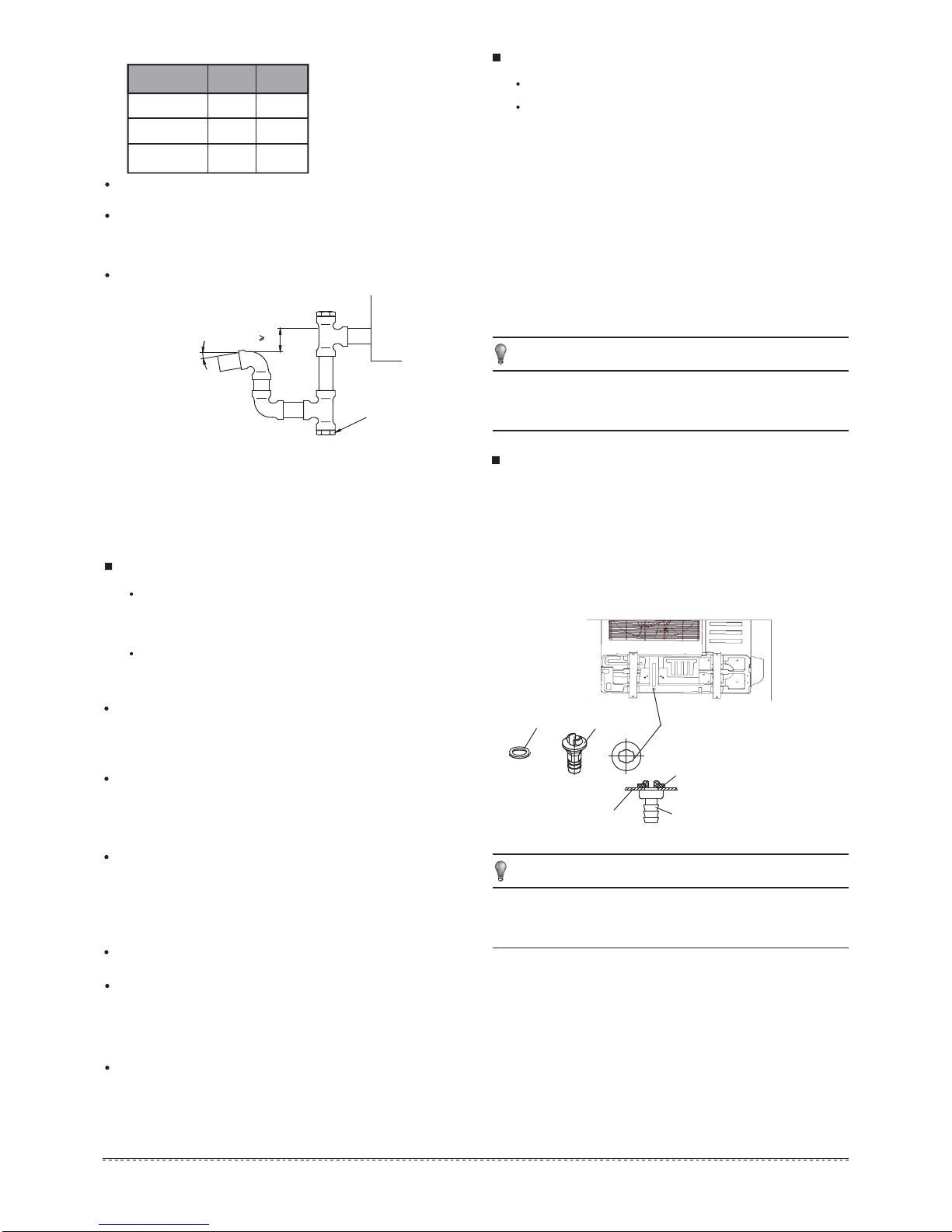

Plug
75
Slope 2 %
Fig.7-11
Prepare a polyviny chloride with 21mm inner diameter
Connect a siphon, as shown in figure below
Fasten the tube to the drain hose with an adhesive and the
field-supplied clamp. The drain piping must be performed with
a DOWN-SLOPE pitch of 1/25 to 1/100
A B
18~24 595 1200
30~36 624 1381
48 646 1385
MODEL
Unit
Table7-6 mm
8. CONNECT THE DRAIN PIPE
Install the drainpipe of the indoor unit
You can use a polyethylene tube as the drainpipe
(out-dia.37-39mm, in-dia.32mm). It could be bought at local
market or from your dealer.
Set the mouth of the drainpipe onto the root of the body's
pump-pipe, and clip the drainpipe and the out-let pipe sheath
(fittings) together firmly with the out-let pipe clasp (fitting).
The body's pump pipe and the drainpipe (especially the
indoor part) should be covered evenly with the out-let pipe
sheath (fittings) and be bound tightly with the constrictor to
prevent condensation caused by entered air.
To prevent water from flowing backwards into the heat pump
while the heat pump stops, please lean the drainpipe down
toward outdoor (outlet-side) at a degree of over 1/ 50. And
please avoid any bulge or water deposit. ( Refer to Fig.5-17.a
in the figure page)
Do not drag the drainpipe violently when connecting to
prevent the body from being pulled. Meanwhile, one
supportpoint should be set every 1~1.5m to prevent the
drainpipe from yielding (Refer to Fig.5-17a in the figure page).
Or you can tie the drainpipe with the connecting pipe to fix
it.(Refer to Fig.5-17.c in the figure page)
In the case of prolonged drainpipe, you had better tighten its
indoor part with a protection tube to prevent it from loosing.
If the outlet of the drainpipe is higher than the body's pump
joint, the pipe should be arranged as vertically as possible.
And the lift distance must be less than 200mm, otherwise the
water will overflow when the heat pump stops. (Refer to
Fig.5-18 in the figure page)
The end of the drainpipe should be over 50mm higher than
the ground or the bottom of the drainage chute, and do not
immerse it in water. If you discharge the water directly into
sewage, be sure to make a U-form aquaseal by bending the
pipe up to prevent the smelly gas entering the house through
the drain pipe.
Drainage testDrainage test
Check whether the drainpipe is unhindered.
New built house should have this test done before paving
the ceiling.
Remove the test cover, and stow water of about 2000ml to the
water receiver through the stow tube. ( Refer to Fig.5-18 in the
figure page)
Turn on the power, and operate the heat pump under the
"COOLING" mode. Listen to the sound of the drain pump.
Check whether the water is discharger well (a lag of 1min is
allowed before discharging, according to the length of the drain
pipe), and check whether water leaks from the joints.
1
2
Stop the heat pump, turn off the power, and reset the test cover
to its original position.
3
The drain plug is used to empty the water-receiver for
maintenance of the heat pump. Please stuff it imposition
at all times during operation to avoid leakage.
NOTE
Install the drain joint of the outdoor unit
Fit the seal into the drain joint, then insert the drain joint into the
base pan hole of outdoor, rotate 90° to securely assemble them.
Fit the seal into the drain joint, then insert the drain joint into the
base pan hole of outdoor, rotate 90° to securely assemble them.
Connect the drain joint with an extension drain hose (Locally
purchased), in case of the condensate draining off the outdoor
unit during the heating mode.
Seal The base pan hole
of outdoor unit
Drain joint
Seal
The base pan
of outdoor unit
Drain
joint Fig.8-1
All the figures in this manual are for explanation
purpose only. They may be slightly different from the
heat pump you purchased.The actual unit shall prevail.
NOTE

19
installation manual
Liquid side
Gas side
9. CONNECTIVE DIAGRAM
Orifice
Fig. 9-1
For ensuring throttled efficiency , Please mount the Orifice
assembly as horizontally as possible; and anti-shock rubber
should be wrapped at external of the Orifice for denoise.
NOTE
Fig. 9-2
CAUTION
Please purchase the fittings according to the requirements in
the manual strictly.
Refer the diagram when installing.
Mark the data plate with the Orifice installed(for some
models).
Liquid side
Liquid side
Indoor
Indoor
Outdoor
Outdoor
X
Liquid side
Indoor
Outdoor
X
1. Cooling&heating
Fig. 9-3
Liquid side
Liquid side
Indoor
Indoor
Outdoor
Outdoor
Liquid side
Indoor
Outdoor
X
2. Cooling only
