S2P KS2P-18C210 User manual

Evaporative Air Cooler
1
OWNER’S MANUAL
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before
setting up and operating this unit. This
manual is designed to provide you with
important information needed to setup,
operate, maintain, and troubleshoot your
cooler. Failure to follow these instructions
may damage and/or impair its operation
and void the warranty.
OUTDOOR EVAPORATIVE AIR COOLER
MODEL NO.: KS2P-18C210

Evaporative Air Cooler
2
PREFACE
We really appreciate you credit and support in advance. Our evaporative air cooler will bring you
breeze health with least energy.
Adopting the most advanced evaporative cooling technology in the world and the contemporary
production management system, this installation manual is specific for KS2P-18C210 evaporative air
cooler. To ensure the optimal efficiency, we recommend you to read the manual carefully before use.
How evaporative cooling works?
Evaporation cooling is to cool and humidify air by water evaporation to absorb heat. Do you ever
wonder why you feel cooler by the ocean? It is because hot air is blown over water causing some of
the water to evaporate and absorb heat. Evaporative air cooler working this evaporation principle.
In an evaporative cooler a circulation pump keeps the cellulose filter pads fully soaked. As warm air
passes over wet filter pads water naturally evaporates into the air. The air is cooled as it gives up the
heat required to evaporate the water.
Application areas of evaporative air cooler
1. Relative dry and hot areas
Most of the areas which need to reduce temperature and increase ventilation can use our product,
such as mall, supermarket, office, hotel, Hospital, station, gymnasium, exhibition, restaurant, dancing
room, hall, school, factory.
2. Relative humid areas
Evaporative air cooler is also suitable for the high-temperature or peculiar smelly factories, such as
textile mill, dress mill, printing and dyeing mill, tannery, shoes mill, plastic mill, steel works, electronic
manufacture and chemical plant. You can use our cooler to full cooling. Our cooler is also suitable for
the fuggy areas such as game or disco parlor, kitchens, refectory or hotel, you can use the cooler to
cooling and vent.

Evaporative Air Cooler
3
Location of evaporative air cooler
Always make sure the unit is operated on a level surface. When using the cooler indoors, the best
location for it is near a partiallyopened windowor door where hot outdoor air can be drawn into the unit.
The Mobile Model is portable but use caution when rolling the unit to avoid splashing and spilling of
water. Cool air can best be directed through the space by using a partlyopened windowor door, ideally
one that is situated on the opposite side of the space from the cooler. This allows the cooled air to be
moved through the space and exhausted back outdoors which is critical to proper operation of the
cooler.
Our evaporative coolers features
1. Well designed system ensures best cooling effect;
2. Energy efficient and environmental friendly saving more than 80% of electricity as compare
with conventional compressor air conditioners;
3. The patented filter pad has over 90% of soak rate;
4. High quality sealed aluminum motor, with good sinking effect, IP44 high level protection,stable
temperature, water-proof and good appearance;
5. The exclusive fan blades produce large airflowand create little noise;
6. Filter pads are easy to clean and maintain;
7. Patented open-stylewater diffuser ensures high efficiency and stable water supply;
8. Multi-lever air flow regulator.
KS2P-18C210 technical details
Model no. KS2P-18C210
Voltage 220V
Frequency 50Hz
Wattage 1100W
Max airflow 18000 m3/h
Fan type axial flow
Water consumption 15-20 L/h
Water storage capacity 30L
Filter material Honeycomb
Effective area up to 100-150 square meters
Net Weight 75kg
Gross Weight 85kg

Evaporative Air Cooler
4
Product dissection and spare parts

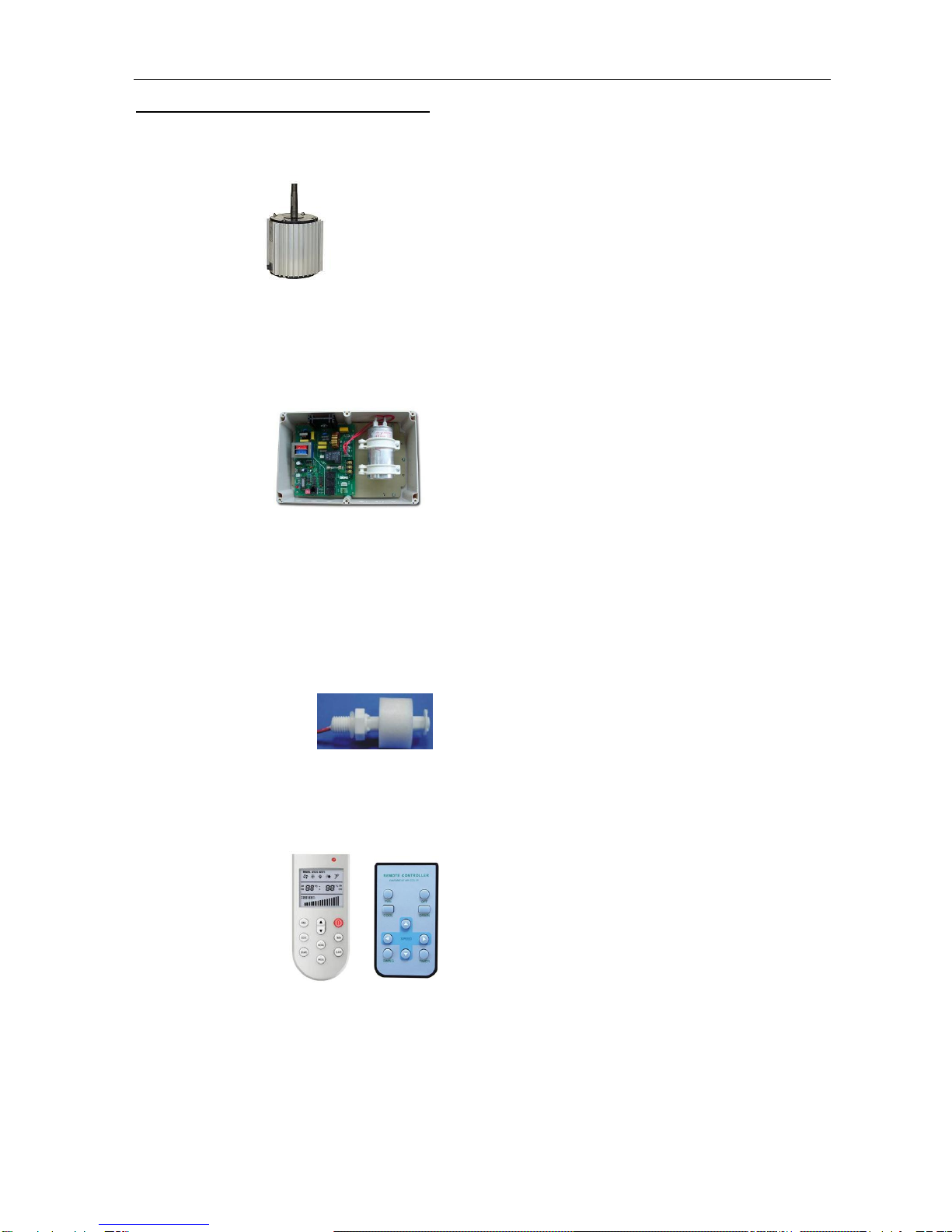

Main components:
Motor:
high efficiency, low noise, strong power volume
Full protection against over current, over voltage and overload
Unsurpassed reliability
Control box:
Micro-computer control, easy upgrade, can design for customer specialrequirement
High reliability, suit for used in various industrial environments
High protective control box, networked control system
N-hour automatic cleaning and drainage functions, keep the evaporative air coolers blow
fresh and cool air
Water level probe
Water level control
Precisely and accurately checks the water level
Device to prevent damage if the circulation pump lack of water
LCD Controller and remote control:
Temperatureand humidity control function, Sweden imported sensitive thermostat
To control power supply and components, and implement instructions from the MCU
Multi function MCU control system includes a programmed on/off function
Large-screen liquid crystal display panels, display airflow, water level, temperature and
humidity etc., all information been display on it.

Evaporative Air Cooler
5
Fan blade:
Made up of 6 pieces of high-rigid and fibrous plastic
All pieces can be adjusted the prefer angle
Strong wind volume
Drain valve:
Automatic water draining every 8hours
Prevents algae growth
Maintains clean unit
Clean and dry function
Inlet valve:
New type, smart designed, permanent magnetic valve
Small buoy, unsurpassed reliability
Circulation water pump:
Professionally manufactured, good heat-radiating performance
Permanent magnetic synchro motor inside
Powerful, durable, high lift, low noise
Exceptional reliability in extreme conditions

Evaporative Air Cooler
6
Check up and adjustment before operation:
1. Is the cooler installed horizontally?
2. Is drain pipe connected to the machine?
3. Is the water supply leaking?
4. Adjust water level in the sump?
5. Is the power supply connected correctly (particularly for three phase machine)?
6. Is the power line for the control panel correctly connected?
7. Is the operation current within the rated range?
8. Is there unwanted object in the vent?
9. Is the voltage correct?
10. Does cooler vibrates noticeably while operating?
11. Is there any foreign objects in the sump?
Important notes
1. The best effect is achieved when the unit is used in a well ventilated and dry place, where the unit
takes in 100% fresh air from outside and no re-circulation occurs.
2. Avoid discharging cool air into an closed space. There must be enough space for discharged air, even
use exhaust fans
3. For a place without powered exhaust, 0.8m²of exhaust area is needed for every 3600m³/h air
discharge. When using a powered exhaust, the designed exhaust volume shall not be less than 85%
of air intake.
4. Keep the unit away from welding sparks or any source of fire during the installation and when the unit
is running.
5. The unit must be tested and adjusted. E.g.: adjusting water level floats before operation. Ensure that
the unit is operating within the rated electrical currency.
6. Ensure correct wiring of the power and controller. The section in the power socket shall not be less
than 1.5mm². the units shall use a dedicated power line instead of sharing a power line with other
equipments.
7. Voltage of power supply shall be within 10% vibration from the rated voltage. Lower voltage may
cause motor start failure or undue frequent starts and stops. Long-term low voltage or high voltage will
cause damage to the motor.
8. The controller and its wire shall be kept away form strong electronic and magnetic interference, such
as frequency converter, silicon speed and temperature controller, high frequency heater circuit or high
power motor. Avoid wiring the power supply lines parallel to these sources. In the case of
unavoidability, the power line must maintain a distance of more than 30cm from parallel interference
source.

Evaporative Air Cooler
7
Packing and transportation
1. Packed in carton on wood pallet.
2. Keep dry and upright.
3. Do not pile more than 2 units.
4. Keep the unit vertical during transportation. The tilt angle shall be less than 60 degrees.
Operating Instructions
Installing the casters:
Locate the casters inside of the cooler and attach them to the cabinet bottom. Start all bolts into nuts before
tightening. The rigid casters mount at the front and the swivel casters mount at the back.
Connecting the water:
Move the cooler to an area where it can be filled with water and drained. The cooler should be located on
level ground. Connect to a water supply using a commercial grade garden hose connected to the adapter
on the float valve and turn on the water. Verify water tight connections by visually examining both the
float/hose connection and drain plug.
Turn on the water supply to the cooler. The hose connection to the float valve provides an automatic
method of refilling the water supply as water is evaporated.
For best results, turn the pump on a few minutes before turning on the blower fan. This allows the cooling
pads to pre-wet best efficiency.
Whenever possible operate the blower fan at low speed for maximum cooling. When cooling is not required
you can operate the unit as a fan only by turning on the blower fan and leaving the pump turned off.
The water can be adjusted by tightening of loosening the clamp that pinches the water supply tube. Adjust
the water flow clamp so that adequate water is supplied to the aspen pads without excess water splashing
out of the trough during normal operation.

Evaporative Air Cooler
8
Operating approach of RTC wall controller for KS2P-18C210
1. TURN ON/ TURN OFF
1) Press the button of , you can turn on and turn off evaporative air cooler manually .
2) Hold button down for 5 seconds, the wall controller will get back to the ex-factory setting,
restart.
2.SETTING THE CLOCK
Set the clock on the wall controller before proceeding with any other programs. The picture of 2-1, the
current time is 12:00. The setting as follows:
1) Press the button, the hour will flash. Use to change hours.
2) Press the button again, the minute will flash. Use to change minutes.
3) Press the button one moretime, time setting been finished.
Picture 2-1show the current time picture 2-2 change hours
Picture 2-3 change minutes

Evaporative Air Cooler
9
3. FAN
Note: The EXHAUST function does not apply to all machines, it will be taken effect only for
INVERTER evaporative air coolers. If your controller does not support the EXHAUST function,
the button is not available. (KS2P-18C210 without EXHAUST function)
The button is used to select VENT(fresh air been delivered into rooms, but the air doesn’t been
cooled).
Press button can turn on and turn off VENT function.
Press button can turn on and turn off EXHAUST function.
Once VENT or EXHAUST function has been selected, the wall controller will maintain a constant fan
speed. To increase or decrease the fan speed required, press the buttons.
Note: in order to protect motor, when the VENT function been switched to EXHAUST, or the
EXHAUST function been switched to VENT, the motor will stop for 25 seconds, then run by
contraries.
Picture 3-1 turn on VENT picture 3-2 turn on EXHAUST
4. COOL
COOL function will make the pump to work, take out water from tank to wet cooling pad. Cooled air will
be delivered.
Press button can turn on and turn off COOL unction.
When you press button, if the water level on tank is too low, the pump will stop running while
the water is enough. The COOL icon is flashing on screen, that means the pump stop running at the
moment.

Evaporative Air Cooler
10
Note: The pump protection also happens on water shortage when cool function been turned
on.
Picture 4-1 turn on VENT and COOL Picture 4-2 pump stop running (lowwater)
5. CLEAN
Drain function makes motor run by contraries to clean cooling pad, turn on the drain valve, drain the
dirty water out.
Press button can turn on and turn off CLEAN unction.
Drain function running for 5 minutes, will stop automatically.
When draining, the water level will decline rapidly, so ifthe COOL function is still keep on, the pump
will pause automatically to protect pump, and running again when DRAINstop and water filled enough.
Picture 5-1 turn on VENT, COOL and CLEAN
6. AUTO-CLEANING
When FANand COOL functions work together for N hours(Ncan be set), air cooler will open the clean
function, drain out the dirty water in tank, and add clean water automatically.
The default of Auto- cleaning cycle is 08-hour.
Press button to set up Auto-cleaning cycle , press for 3 seconds, the Auto-cleaning cycle

Evaporative Air Cooler
11
will be 00 → 04 → 08 → 16 → 32 → 48 → 00 (in hours). If the Auto-cleaning cycle is 00H, the
Auto-cleaning function been cancelled.
When set Auto-cleaning cycle, the screen will show the cycle of Auto-cleaning(as shown in picture 6-1),
Auto-cleaning cycle is 08-hour. The time will disappear when setting finish.
Note: Auto-cleaning function turns on under FANand COOL functions work together.

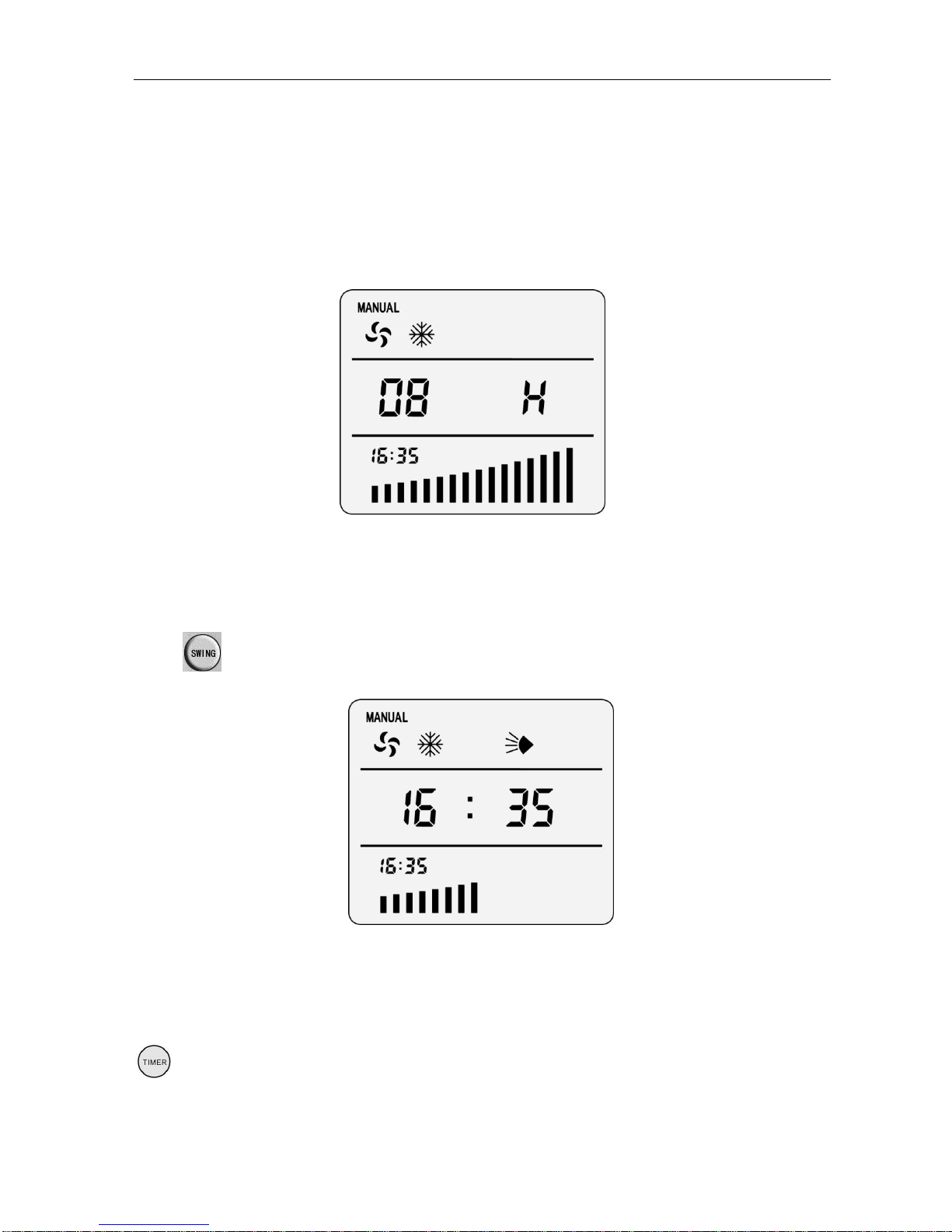

Picture 6-1 Auto-cleaning cycle is 08-hour
7. SWING
Note: if there is no electronic swing air diffuser, this function will not available.
Swing function means change wind direction circularly.
Press button can turn on and turn off SWING unction.
Picture 7-1turn on VENT, COOL, and SWING

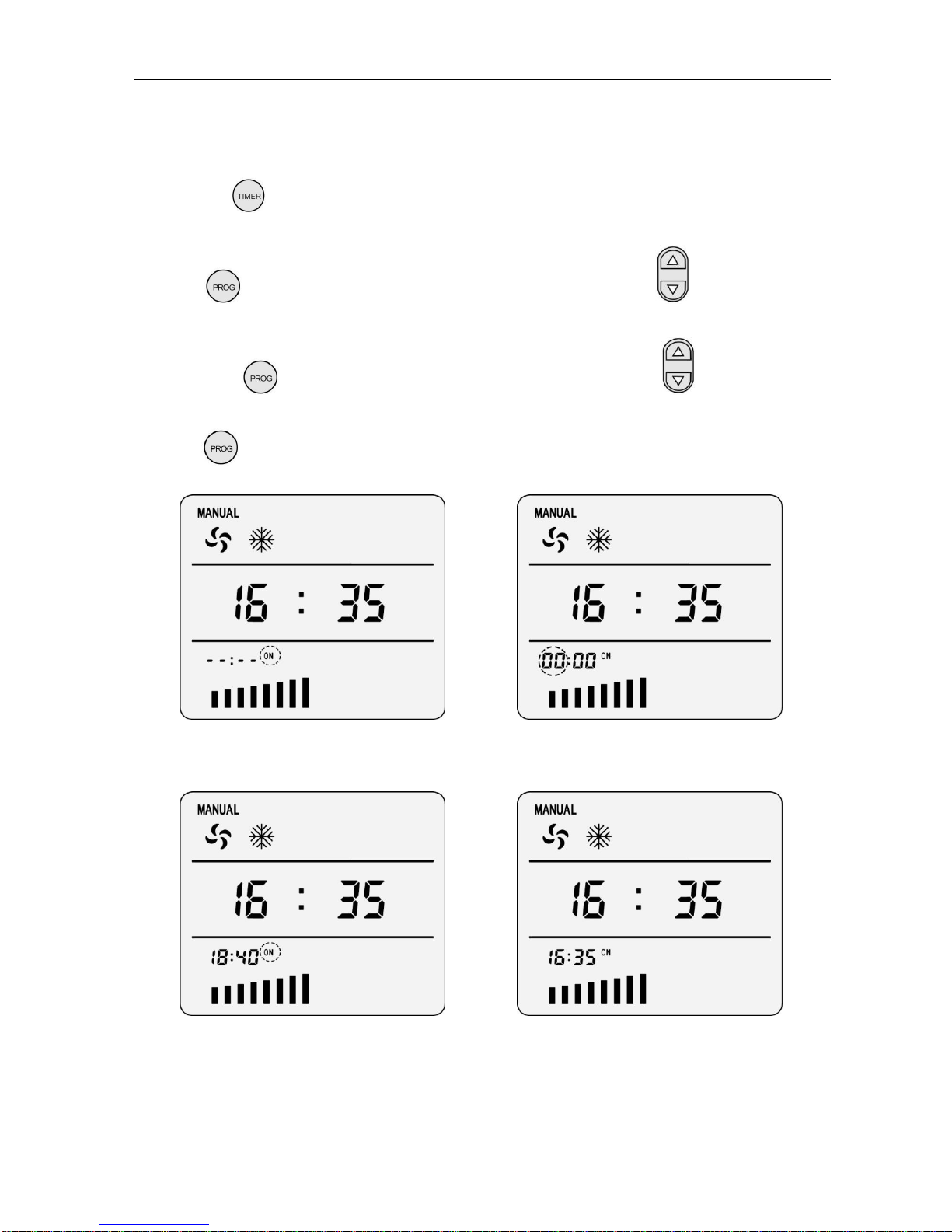

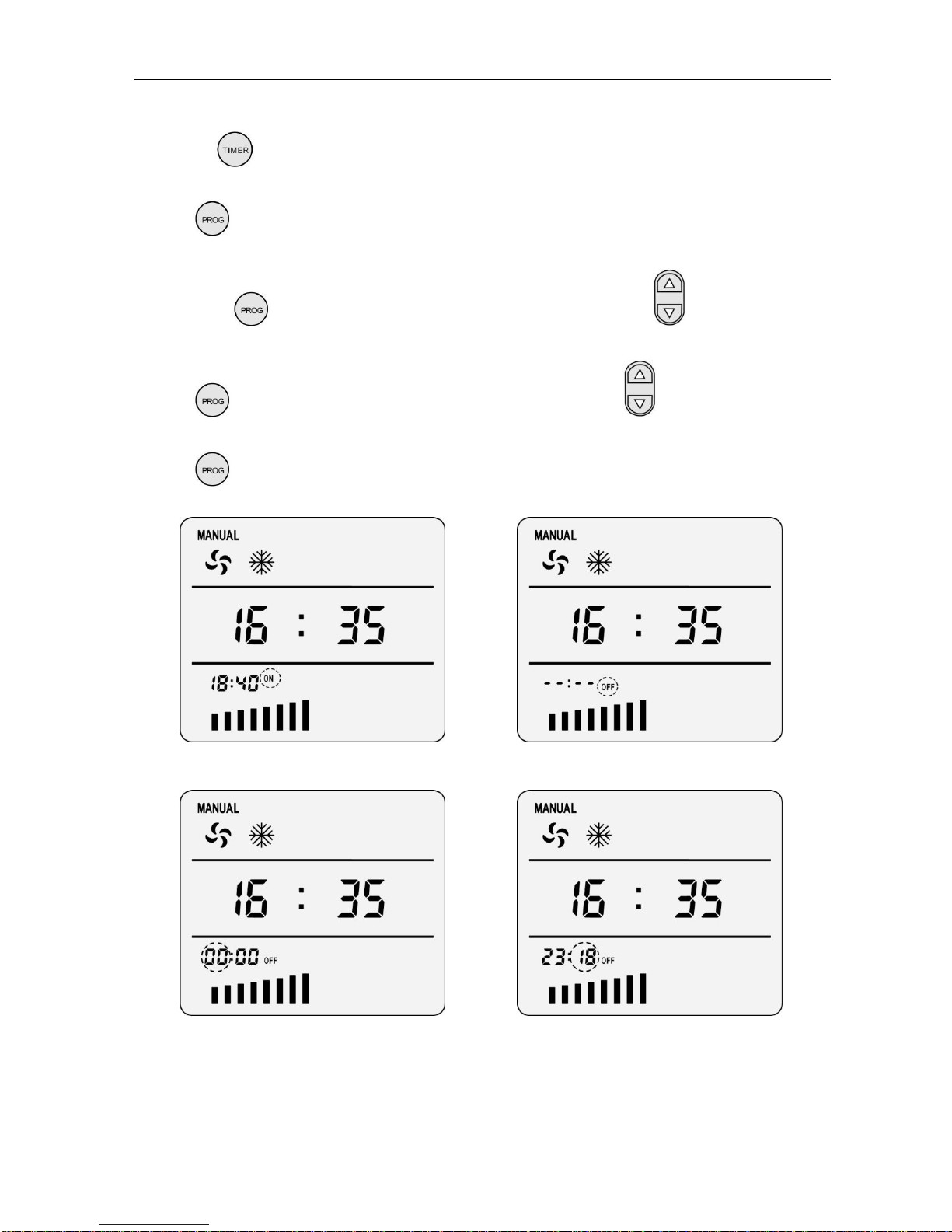

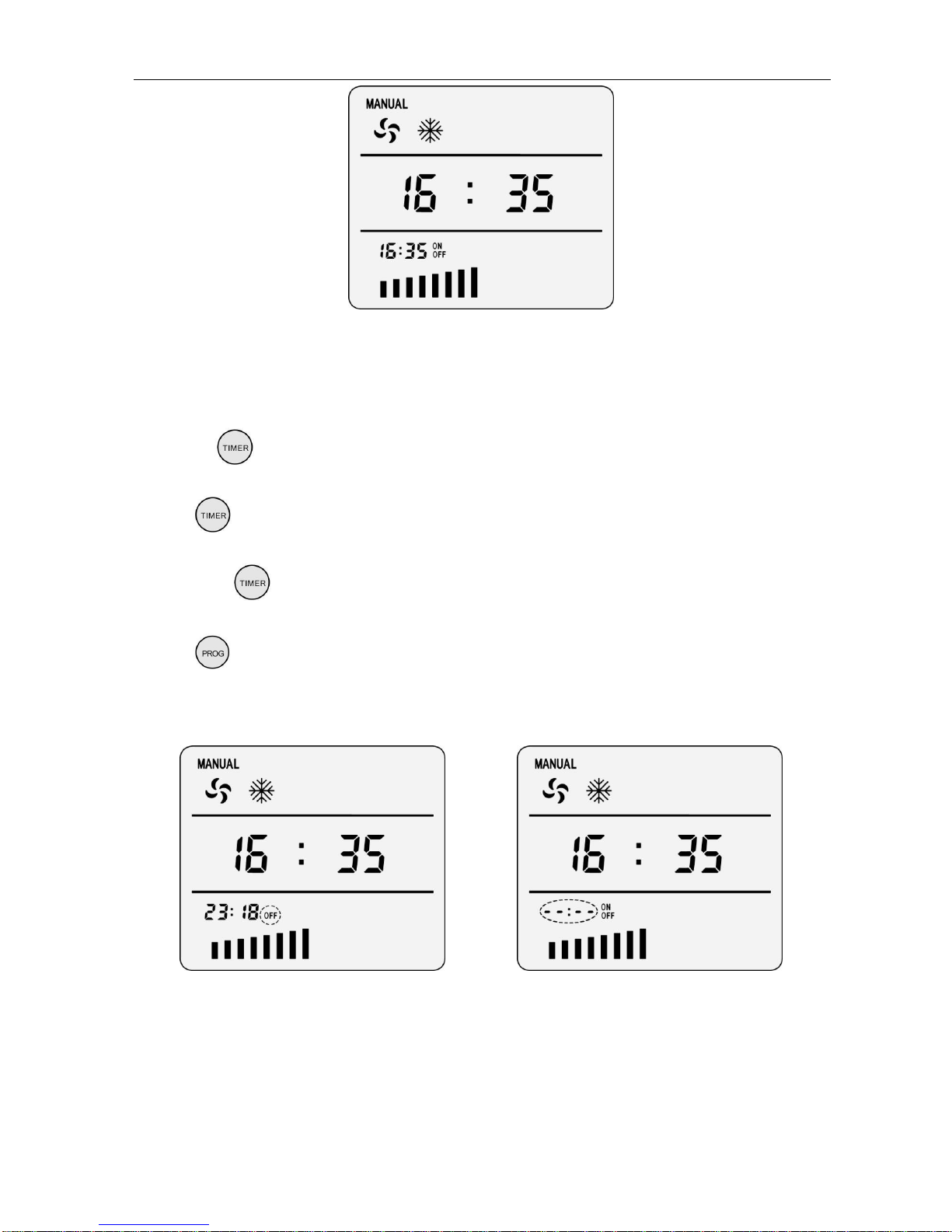

8. TIMER
can turn on/turn off the timing function, the wall controller will work according to the last setting
before shutdown.
TIMER function can work on any working modes, the setting methodsare same in any working modes,

Evaporative Air Cooler
12
take an example of manual mode (MANUAL).
8.1 TIMING TURN ON
The processes are asfollows:
1) Press the button, the screen will show “--:--“, “ON” is flashing, means timing turn on function
doesn’t be set, like the picture of 8-1.
2) Press button, --:-- changes to 00:00, and the hour is flashing, use button to changes
hour, like the picture of 8-2.
3) Then Press button, the hour stop blinking, the minute isflashing, use button to changes
minutes, like the picture of8-3.
4) Press button once again, finish the setting, the screen shows the current time 16:35 and “ON”,
means the timing turn on function is finished, like the picture of 8-4.
Picture 8-1timing turn on Picture 8-2 setting hours
Picture 8-3 setting minutes Picture 8-4finish the setting

Evaporative Air Cooler
13
8.2 TIMING TURN OFF
The processes are asfollows:
1)Press the button, and the screen will show “18:40”, “ON” is flashing, means the machine will
be turned on at 18:40; see the picture of 8-5.
2) Press button, and the screen will show “--:--“, “OFF” is flashing, means timing turn off function
doesn’t be set; see the picture of 8-6.
3) Then Press button, “--:--” change to 00:00,the hour is blinking, press button to change
hours; like the picture of 8-7.
4) Press button, the hour stop blinking, the minute is flashing, press button to change minutes;
like the picture of 8-8.
4) Press button once again, finish the setting, the screen shows the current time “16:35”, “ON”
and “OFF”, means the timing turn on and turn off functions have been finished, like the picture of 8-9.
Picture 8-5 setting of timing turn on Picture 8-6 setting of timing turn off
Picture 8-7 setting hours Picture 8-8 setting minutes

Evaporative Air Cooler
14
Picture 8-9 finish the settings of timing turn on/off
8.3 CANCEL TIMING
The processes are asfollows:
1)Press the button, the screen shows “18:40”, “ON” is flashing, time of turn on is 18:40,
see the picture of 8-5.
2) Press button, the screen shows “23:30”, “OFF” is flashing, time of turn off is 23:30; see the
picture of 8-10.
3) Then Press button, the screen shows “ON” and “OFF”, “--:--”is flashing, timing been canceled;
see the picture of 8-11.
4) Press button, timing function been canceled, the screen just shows current time 18:35, no any
timing setting.
Picture 8-10 setting of timing turn off Picture 8-11 cancel the setting

Evaporative Air Cooler
15
Picture 8-12 timing function been cancel
9. MODE
Note: This feature does not apply to all machines, it will be taken effect only for evaporative air
coolers with Relative Humidity and Temperature Detecting functions.
If your controller does not support the Relative Humidity and Temperature Detecting functions,
will show 00 ℃ and 00% on screen. (like the pictures 9-1 and 9-2)
Picture 9-1 Picture 9-2
does not support the temperature control does not support the humidity control
press button for 3 seconds, can switch air cooler’s working modes, that is MANUAL, AUTO℃,
AUTO%.
9.1 MANUAL MODE
With the wall controller on, press the button until MANUALis shown on the top left corner of
screen. Current temperature and relative humidity will be shown on the screen. If FANis selected, the
wall controller will showa constant fan speed, indicated on the bar graph on the bottom of screen.
If the water is enough in tank,press button, will turn on or turn off pump.
9.2 AUTO℃MODE
Under the mode of AUTO℃, the wall controller will adjust fan speed and pump’s work to maintain the

Evaporative Air Cooler
16
preconcerted temperature.
When the mode switch to AUTO℃, the icons of AUTO℃, FAN and COOL will be shown on screen,
FANand COOL functions will be turned on automatically, use buttons to change speed.
As shown in picture 9-3, current temperature is 27℃, the preconcerted temperature is 25℃, FANand
COOL functions been turned on.
The default temperature on AUTO℃mode is 25℃, if want to change, press button, the
preconcerted temperature will flash (as shown in picture 9-4), button will change the
preconcerted temperature, press button again, the setting is finished. The temperature has been
change to 23℃.(as shown in picture 9-5).
Picture 9-3 AUTO℃mode Picture 9-4 set temperature
Picture 9-5 Finish the setting
9.3 AUTO%MODE
Under the mode of AUTO%, the wall controller will adjust fan speed and pump’s work to maintain the
relative humidity.
When the mode switch to AUTO%, the icons of AUTO%, FAN and COOL will be shown on screen,

Evaporative Air Cooler
17
FANand COOL functions will be turned on automatically, use button to change speed.
(as shown in picture 9-6), the current relative humidity is 56%, preconcerted relative humidity is 60%,
FAN and COOL functions been turned on.
The default temperature on AUTO% mode is 60%, if want to change, press button, the
preconcerted temperature will flash(as shown in picture 9-7), use buttons to change,
press button again, the setting been finished. (as shown in picture 9-8). The relative humidity has
been change to 57%.
Picture 9-6 AUTO% mode Picture 9-6 set relative humidity
Picture 9-8 Finish the setting
10. PRE-COOLING MODE
If your wall controller is designed to allow for the saturation of the cooler’s cooling pads before the fan
is switched on. The defaultof pre-cooling mode is closed.
On the state of shutdown, press the buttons of and for 5 seconds, can turn on and turn

Evaporative Air Cooler
18
off the cooling mode. (picture 10-1 and 10-2). If the cooling mode been enabled, press the button,
the cooler will operate as follows:
(1) If the water level is low, the tank will be filled automatically. FAN icon flashes on screen. (like the
picture of 10-3).
(2) 2 minutes later, the pump will be turned on and saturate for filter pads. if the water tank still in low
water level, the pro-cooling action will be closed,and start to vent.
(3) 1 minute later, the pump stops, and fan starts running, the FANicon shows on the screen.
Note 1: PRE-COOLING mode will not be activated if FAN been chose again shortly after turned off.
Note 2: The settings on PRE-COOLING mode will be stored automatically and continue to use in next
reboot.
Picture 10-1 Turn on PRE-COOLING mode Picture 10-2 Turn off PRE-COOLING mode
Picute10-3 PRE-COOLING function is running
11. INTELLIGENT CLEANING MODE
Note: This feature does not apply to all machines, it will be taken effect only for evaporative air
coolers with EXHAUST function.We suggest you consult to sellers before you operate this
settings. (KS2P-18C210 without this function)
If your wall controller is designed to intelligent cleaning mode, when clean the air cooler, the motor will
run by contraries, and cooling pad been soaked.The default of intelligent cleaning mode is closed.
On the state of shutdown, press the button of and for 5 seconds, can turn on and turn
off the intelligent cleaning mode.

Evaporative Air Cooler
19
If intelligent cleaning mode is enabled, press the button, the cooler will operate as follows:
(1) The motor will run by contraries and exhaust air.
If the current air cooler is venting, the venting function will be stopped. 25 seconds later, exhaust
function be opened automatically. If the COOL function is working at this moment, the drain valve will
be turned on automatically, or else, no action on drain valve.
(2) 5 minutes later, the drain valve will self-closing (if been opened), air cooler resumes to the state
before cleaning.
Note: The settings on Intelligent cleaning mode will be stored automatically and continue to use in next
reboot.
Picture 11-1 Turn on INTELLIGENT Picture11-2 Turn on INTELLIGENT CLEANING MODE
CLEANING MODE
12. SHUTDOWN CLEANING MODE
Note: If your wall controller is designed to shutdown cleaning mode, the cooler will open the
clean function automatically when shutdown. The default of shutdown cleaning mode is
closed.
On the state of shutdown, press the buttonof and for 5 seconds, can turn on and turn
off the shutdown cleaning mode.
If shutdown cleaning mode is enabled, turn the cooler off, the cooler will operate as follows:
(1) All functions will be closed except the clean function, CLEANicon shows on wall controller.
(2) 5 minutes later, cleaning function will turn off automatically. The screen shows nothing.
Note: The settings of shutdown cleaning mode will be stored automatically and continue to use in next
reboot.

Evaporative Air Cooler
20
Picture 12-1 turn on the SHUTDOWN 12-2 turn off the SHUTDOWNCLEANING MODE
CLEANING MODE Picture
13.SUGGESTIONS
13.1COOL ICON FLASHING
COOL icon flashing (as shown in picture 4-2), indicates the water tank with low water level.
In order to product the pump, the pump will pause, and work again when water is enough.
13.2 FAN ICON FLASHING
When the FANicon flashing (asshown in picture 10-3), that means, the air cooler is pre-cooling, pump
works for 1 minute, the FAN will be opened automatically. If the water level is too low, will water
automatically.
14.MALFUNCTIONS
E1
"E1" flashing indicates, (as shown in picture 14-1) the power supply to air cooler is over-current.
Please break the power off, and check the power supply.
Picture 14-1 over-current
E2
”E2” flashing indicates, the voltage supply to air cooler is over-voltage (more than 265V). Please break
the power off, and check the power supply.
