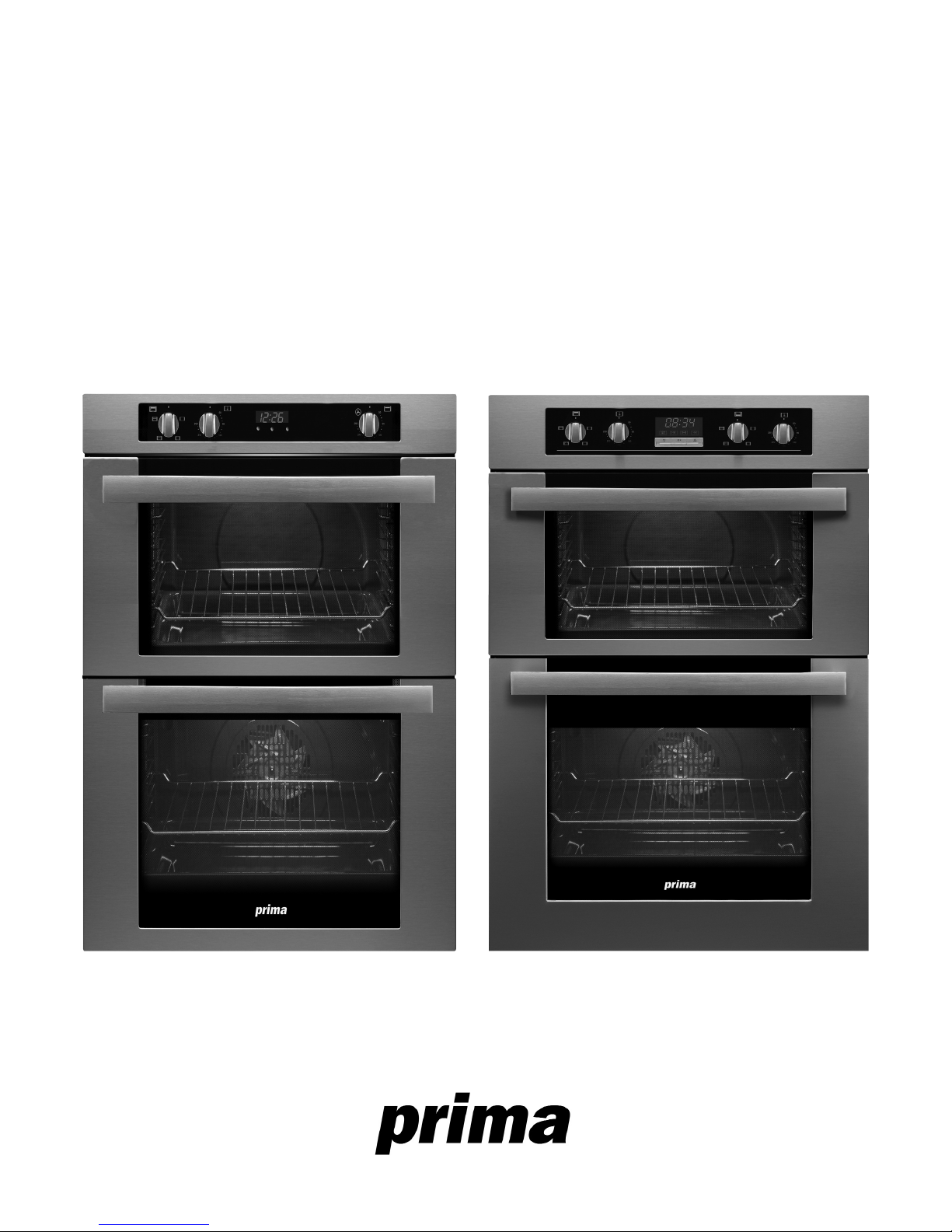

Prima PRDO 202 Owner's manual

PRDO 202/203
PRDO 204/205
Feature List

Top cavity
1Temperature selector.
2Function selector.
3Heating indicator light. Indicates that the
heat is going to the food and it goes out
when the set temperature is reached.
Main cavity
4Electronic clock.
5Function selector.
6Temperature selector.
7Heating indicator light.
8Fan oven + temperature selector.
Model PRDO204/PRDO205
Model PRDO202/PRDO203
Control Panel
Oven Functions
3 2 1 4 8 7
1 2 3 4 57 6
Model PRDO204/PRDO205
Top cavity: / / / /
Main cavity:
Model PRDO202/PRDO203
Top cavity: / / / /
Main cavity: ////
Switch off oven
Conventional
It is used for sponges and cakes where the
heat received must be uniform to achieve a
spongy texture.
Lower Element
Heats only from beneath. Suitable for heating
dishes and raising pastry and similar.
2

3
ENGLISH
Model PRDO204/PRDO205
Setting the Time on the Clock
On connecting the oven you will notice that
daytime flashes on the display, starting from
0:00 and the auto symbol A flashes.
Press the “+” and “-” buttons simultaneously
and then pressing the “+” or “-” buttons the
correct time can be set on the display.
Manual Use
After setting the correct time, the oven is ready
for use. The symbol is illuminated on the dis-
play. Select a temperature and a cooking func-
tion.
To switch off the oven, set the controls to the
position.
Warning Function
This function generates a buzzer interval alarm
signal at a specified time.
1Press the MODE button until the symbol
begins to flash.
2Choose the time when you want the alarm to
sound, pressing the “+” or “-” buttons.
Use of the Oven
MaxiGrill
Allows greater surfaces to be prepared, than
with the grill, together with higher power
reducing the time required for browning of the
food.
Grill
For preparing dishes with superficial roasting.
It allows the outer layer to be browned without
affecting the inside of the food. Ideal for flat
food, such as steaks, ribs, fish, toast.
MaxiGrill with fan
Allows uniform roasting at the same time as
surface browning. Ideal for grills. Special for
large volume pieces, such as poultry game
etc. It is recommended to put the item on a
rack with a tray beneath to collect the stock
and juices.
Caution
While using the Grill, MaxiGrill or MaxiGrill with
fan, the door must be kept closed.
Turbo
The fan distributes the heat produced by an
element located at the rear of the oven. Due
to the uniform heat distribution, it allows
roasting and baking to take place on two
levels at the same time.
Defrosting
This cooking mode is suitable for gentle
defrosting of delicate food to be consumed
unheated, e.g.: cream, custard, pastry, tarts,
cakes, fruit,...
Note
The pilot light remains on in any cooking
function.
3Subsequently, the symbol will remain on
indicating that the alarm is programmed.
4At the end of the programmed time, an
acoustic interval signal will sound and
the symbol will begin to flash.
5Press any button to turn off the acoustic
signal.
The buzzer signal frequency can be changed by
MINUS in 3 circular steps. For listening to the
actual valid signal, press “-” button for some
seconds while the display reads the time of
the day. Every new key press within the time
window changes the buzzer signal. Now this
tone is valid as program end alarm signal.
Programming the Cooking Time
This function allows to programme the oven to
cook for a specified time, after which it will
switch itself off.
1Press the MODE button until the display
automatically switches over between “dur”
display and duration time setting mode. The
symbol A is flashing.

4
2Select the duration, pressing the “+” or “-”
buttons.
3Subsequently, the symbol A that was
flashing will light, indicating that the oven
will switch itself off automatically.
4The display will then show the current time.
5Select a temperature and cooking function.
6When the set time has elapsed the oven will
disconnect, the symbol will switch off, an
acoustic interval signal will sound and the
symbol A will begin to flash.
7Press any button to switch off the acoustic
signal, reconnecting the oven.
8Set the controls in the position to switch
off the oven.
Programming the End of Cooking Time for the
Oven
This function allows to establish the exact
hour, after which the oven will switch itself off.
1Press the MODE button until the display
automatically switches over between “End”
display and end time setting mode. The
symbol A is flashing.
2Select the time that cooking is to finish,
pressing the “+” or “-” buttons.
3Subsequently, the symbol A that was
flashing will light, indicating that the oven
will switch itself off automatically.
4The display will then show the current time.
5Select a temperature and cooking function.
6When the programmed time is reached the
oven will disconnect, the symbol will
switch off, an acoustic interval signal will
sound and the symbol A will begin to flash.
7Press any button to switch off the acoustic
signal and the oven will reconnect.
8Set the controls to the position to switch
off the oven.
This function may be used even though you are
already cooking in your oven. To do so, follow
the instructions given except Nº 5.
Programming the Duration and Automatic Stop
This function is used to control the duration
and the time at which the oven will turn itself
off. This function allows the oven to start and
stop automatically.
1Press the MODE button until the display
automatically switches over between “dur”
display and duration time setting mode.
The symbol A is flashing.
2Select the duration, pressing the “+” or “-”
buttons.
3Subsequently, the symbol A that was
flashing will light, indicating that the oven
will switch itself off automatically.
4Press the MODE button until the display
automatically switches over between “End”
display and end time setting mode. The
symbol A is flashing.
5Select the time that cooking is to finish,
pressing the “+” or “-” buttons.
6Subsequently, the symbol A that was
flashing will light, the symbol will switch
off and the oven will remain disconnected.
Your oven is programmed.
7Select a function and cooking temperature.
8When the time to begin cooking is reached,
the oven will switch itself on and will continue
cooking during the programmed time.
9When the programmed finishing time is
reached, the oven will disconnect, an
acoustic interval signal will sound and the
symbol A will begin to flash.
10 Press any button to switch off the acoustic
signal and the oven will reconnect.
11 Set the controls to the position to switch
of the oven.
Caution
Pressing the MODE button the display on the
screen shows any function programmed. It can
be changed by pressing the “+” or “-“ buttons.
Program times for automatic programs can be
cleared by pressing “+” and “-” simultaneous-
ly. For clearing warning function, first you must
be select the warning function in the display.
mode

5
ENGLISH
Model PRDO202/PRDO203
Setting the Time on the Electronic Clock
When the oven is connected to the power supply,
the indication 00:00 flash on the display. Press
or to set the time on the clock. The clock
beeps twice to confirm the selected time.
If you wish to modify the time, press or
until the current time flash on the screen.
Press . Then press or to modify
the time. The clock beeps twice to confirm the
modification.
Manual Operation
The oven is ready to be used when the clock
has been set. Select a cooking function and a
temperature.
Set the controls to to turn the oven off.
Functions of the Electronic Clock
Alarm: Creates an alarm signal when the peri-
od of time finishes; the oven does not need to
be in use in order to use this function.
Cooking Time: To cook for a selected length of
time; the oven turns itself off automatically
when the time finishes.
End Cooking Time: To cook until a set time;
the oven turns itself off automatically when
the time finishes.
Cooking time and End Cooking Time: To cook
for a selected length of time and end at a set
time. When this function is set, the oven
comes on automatically at the time required in
order to cook for the set length of time
(Cooking time) and end automatically at the
indicated time (End Cooking Time)
Programming the Alarm
1Press until symbol lights up. Press
.
2Set the period of time after which you wish
the alarm to sound by pressing or .
3The clock beeps twice, the current time is
displayed and symbol lights up perma-
nently to indicate that the alarm has been
set.
4When the set period of time comes to an
end, the alarm sounds and symbol
starts to flash.
5Press any button to stop the alarm; symbol
goes out.
You can consult the remaining time at any
moment by pressing or until symbol
flashes and then pressing . You can
also modify the set time at this point by press-
ing or . The clock beeps twice to con-
firm the change.
If you wish the remaining time to be displayed
until the end of the set period of time, press
or until symbol flashes and then
press and keep it pressed in. Symbol
flashes. Keep pressed in again to
return to the real time.
Setting the Cooking Time
1Press or until symbol lights up.
Press .
2Select the period of time you wish to cook
for by pressing or .
3The clock beeps twice, the current time is
displayed and symbol lights up perma-
nently to indicate that the oven will turn
itself off automatically.
4Select a cooking function and temperature.
5When the cooking time comes to an end, the
oven turns itself off, the alarm sounds and
symbol flashes.
6Press any button to stop the alarm and turn
the oven back on again.
7Set the controls to to turn the oven off.
You can consult the remaining cooking time at
any moment by pressing or until sym-
bol flashes and then pressing . You
can also modify the set time at this point by

6
pressing or . The clock beeps twice to
confirm the change.
If you wish the remaining time to be displayed
until the end of the set period of time, press
or until symbol flashes and then
press OK and keep it pressed in. Symbol
flashes. Keep pressed in again to return
to the real time.
Setting the End Cooking Time
1Press or until symbol lights up.
Press .
2Select the time you wish the cooking
process to finish at by pressing or .
3The clock beeps twice, the current time is
displayed and symbol lights up perma-
nently to indicate that the oven will turn
itself off automatically.
4Select a cooking function and temperature.
5When the set time is reached, the oven
turns itself off, the alarm sounds and sym-
bol flashes.
6Press any button to stop the alarm and turn
the oven back on again.
7Set the controls to to turn the oven off.
You can consult the end cooking time at any
moment by pressing or until symbol
flashes and then pressing . You can
also modify the end cooking time at this point
by pressing or . The clock beeps twice
to confirm the change.
This function can be used even when you are
already using the oven. To do this, follow the
instructions indicated above except point
number 4.
Setting the Cooking Time and the End
Cooking Time
1Press or until symbol lights
up. Press .
2Select the period of time you wish to cook
for by pressing or .
3The clock beeps twice, the current time is
displayed and symbol lights up per-
manently.
4Press or until symbol lights
up. Press .
5Select the time you wish the cooking
process to finish at by pressing or .
6The clock beeps twice, the current time is
displayed and symbol lights up per-
manently.
7Select a cooking function and temperature.
8The oven remains off with symbols
and lit up. Your oven is set.
9When the time to start cooking is reached,
the oven starts up and cooks for the set
period of time.
10 When the set end cooking time is reached,
the oven turns itself off, the alarm sounds
and symbols and flash.
11 Press any button to stop the alarm and
turn the oven back on again.
12 Set the controls to to turn the oven off.
You can modify the end cooking time by press-
ing or until symbol lights up and
then pressing . You can now modify the
end cooking time by pressing or . The
clock beeps twice to confirm the change.
Important
In the event of a power cut, all the electronic
clock settings are deleted and the indication
00:00 flashes on the display. It is necessary to
set the time and programme the clock again.

7
ENGLISH
Tray Handle
The tray handle is used when you need to remove the tray to check the food. See figures. To lift
the tray out of the oven, you need to use gloves to protect yourself.
Cake tray handle position. You must put the
short hook over the tray.
Short hook Long hook
Roasting tray handle position. You must put
the long hook over the tray.

Energy
efficiency
class on a
scale of A
(more efficient)
to G (less
efficient).
Heating
function.
Conventional.
Forced air
convection.
Energy
consumption.
Conventional.
Forced air
convection.
Usable volume
(litres).
Size:Small
Medium
Large
Time to cook
standard load.
Conventional.
Forced air
convection.
Baking area.
Noise (dB (A)
re 1 pW).
A
- - -
0,79
Kwh
59
- - - -
43 min.
1300 cm2
- - -
A
- - -
0,68
Kwh
40
- - - -
39 min.
1300 cm2
- - -
BROCHURE
Manufacturer PRIMA PRIMA
Model PRD0202/203 PRDO 204/205
Our contribution to enviromental protection: we use recycled paper. Cod.: 83172615/3172615-001
