PrimeWeld MULTI-PROCESS MTS145 User manual

User Manual
MTS145 MULTI-PROCESS
MIG WELDER
856-537-4368

MIG WELDER - MTS145 MULTI-PROCESS 2
SETTING UP AND OPERATING INSTRUCTIONS
Your study of this manual will be highly appreciated.
Fail to follow the instructions could cause serious
injury in using.
Keep This Manual
MTS145 MULTI-PROCESS
MIG WELDER

MIG WELDER - MTS145 MULTI-PROCESS 3
Congratulations on your new product and wise decision to choose us. We are
honored to have you as our customer, and will strive to provide you with the
reliability all the time.
This Manual’s designed to instruct you on the correct operation and use of this
machine. Your satisfaction and safe operation is our ultimate care. We appreciate
your time to study the entire manual, especially the Safety part. It will help to avoid
potential hazards that may exist in the working, thank you.
Details oered below, safety warn¬ings and precautions, assembly, operat¬ing,
inspection, maintenance and cleaning procedures. You can record the product’s
serial number in the tail of the manual near the assembly diagram (or month and
year of purchasing if no product number). Keep the manual and receipt in a safe
and dry place for future reference.
Caution
Be sure to read the Safety Precautions before installing or operating this
equipment. Fail to follow the instructions listed below may cause electric shock,
burning, or serious injury. If you are not fully understand the principles of operation
and safe practices for welding machine, you are urged to read it again, or contact
your supplier for further information.
USER RESPONSIBILITY
This equipment will operate following the instructions provided. It must be checked
regularly for safety and maintenance, not well-maintained ones should not be used
any more. Accessories and Parts which are broken, missing, deformed must be
replaced or xed immediately.
This equipment or any of the parts should not be changed without permission. The
user shall take the sole responsibility, in case of any malfunction which caused by
improper use, faulty maintenance, improper xing or repair by anyone others, if not
the manufacturer or its representative.
MIG WELDER

MIG WELDER - MTS145 MULTI-PROCESS 4
CONTENTS
5 Section 1
5 VITAL SAFETY INFORMATION
5 1.1 General Safety Rules
7 1.2 Specic Safety Rules
10 Section 2
10 SPECIFICATIONS
11 Section 3
11 Initial Setting Up Instructions
11 3.1 Assembly
12 Section 4

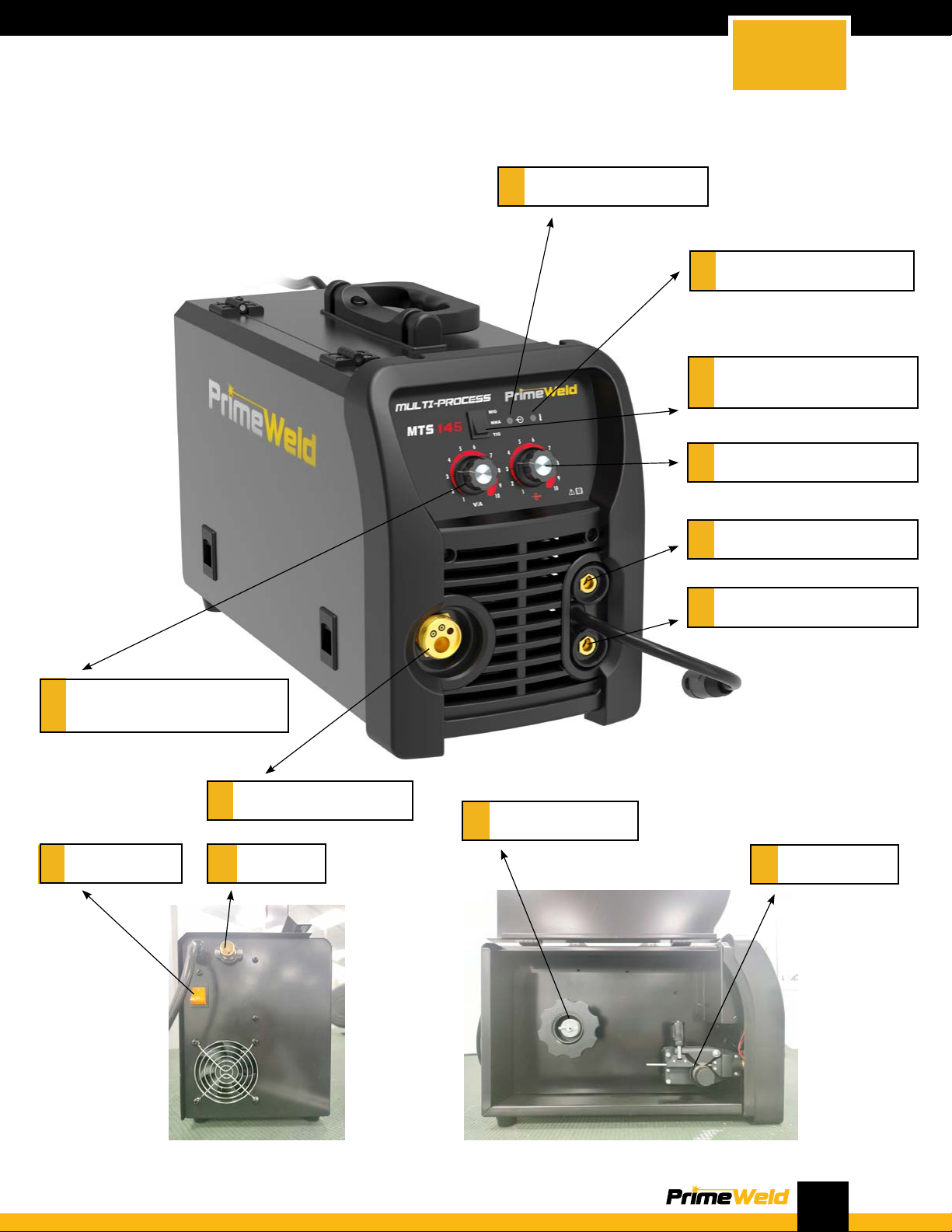

12 CONTROLS & INDICATORS
14 Section 5
14 Operating Instructions
14 5.1 Work Piece And Work Area Setting Up
15 5.2 General Operating Instructions
16 5.3 Setup for dierent Processes.
19 Section 6
19 Maintenance And Service
19 6.1 Cleaning, Maintenance, and Lubrication
20 Section 7
20 Troubleshooting Guide

MIG WELDER - MTS145 MULTI-PROCESS 5
Section
1
VITAL SAFETY INFORMATION
1.1 General Safety Rules
1. Work Area Safety
a. Take a suitable work area, must be clean and well bright. Cluttered or dark
areas could cause acci¬dents.
b. Do not operate welders in atmospheres containing dangerously reactive or
ammable liquids, gases, vapors, or dust. Provide adequate ventilation in work
areas to prevent accumulation of such substances.
c. Keep children and bystanders away while operating the welder. Distractions
can make you lose all the control.
2. Electrical Safety
a. Avoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
b. Do not expose the welder to rain or wet conditions. Water entering a welder
will increase the risk of electric shock.
c. Do not abuse the Power Cord. Never use the Cord for pulling or unplugging
the welder. Keep Cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled Cords increase the risk of electric shock.
d. people with pacemakers should consult their physician(s) before use.
Electromagnetic elds in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
e. When operating a welder out¬doors, use an extension cord suit¬able for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f. When not welding, cut wire back to contact tip or remove electrode from
electrode holder.
3. Personal Safety
a. Stay alert, watch what you are doing and use common sense when oper¬ating
a welder. Do not use a welder while you are tired or under the inuence
of drugs, alcohol or medication. A moment of inatten¬tion while operating
welders may result in serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety equipment such
as arc shaded, impact safety full face shield, dust mask or respi¬rator, heavy-
duty work gloves, non-skid safety shoes, or hearing protec¬tion used for
appropriate conditions will reduce personal injuries. Do not wear loose tting
things, like rings, scarves, etc., which is high risk of being trapped or burnt.

MIG WELDER - MTS145 MULTI-PROCESS 6
c. Avoid accidental starting. Ensure the Power Switch is in the o-position before
plugging in. Plug¬ging in welders that have the Switch on invites accidents.
d. Do not overreach. Keep proper foot¬ing and balance at all time. This enables
better control of the welder in unexpected situations.
4. Welder Use and Care
a. Use the correct welder for your application. The correct welder will do the job
better and safer at the rate for which it was designed.
b. Do not use the welder if the Power Switch does not turn it on and o. Any
welder that can¬not be controlled with the Switch is dangerous and must be
repaired.
c. Disconnect the Power Cord from the power source before mak¬ing any
adjustments, changing ac¬cessories, or storing the machine. Such preventive
safety measures reduce the risk of starting the machine accidentally.
d. Store idle machine out of the reach of children and do not allow persons
unfamiliar with the welder or these instructions to oper¬ate the machine.
Welders are dangerous in the hands of untrained users.
e. Maintain welders. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may aect the welder’s
operation. If dam¬aged, have the welder re¬paired before use. Many
accidents are caused by poorly maintained welders.
f. Use the welder and accesso¬ries in accordance with these in¬structions and
in the manner intend¬ed for the particular type of welder, taking into account
the work¬ing conditions and the work to be performed. Use of the welder for
operations dierent from those intended could result in a hazardous situation.
5. Service
Have your welder serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the welder is maintained.
Section
1
VITAL SAFETY INFORMATION

MIG WELDER - MTS145 MULTI-PROCESS 7
1.2 Specic Safety Rules
1. Maintain labels and nameplates on the Inverter Welder. These carry important
safety information.
2. Avoid electric shock. Do not per¬mit electrically live parts, cables, or electrodes
to contact skin, clothing, or gloves. Wear protec¬tive clothing. This unit draws
enough current to cause serious injury or death. Do not use the welder unless
you are insulated from the ground and the work piece.
3. Avoid body damage. Arc rays and infrared radiation can injure eyes and burn
skin. Wear eye and body protection. Do not allow viewing by visitors without
proper eye and body protection. Use a Face Shield with arc shaded lter plate.
4. Move ammable and explosive mate¬ rail at least 10 meters from the welding
arc to prevent sparks or molten metal from starting a re. Keep a type ABC re
extinguisher within easy reach.
5. Avoid unintentional starting. Prepare to begin work before turning on the
Inverter Welder.
6. Do not leave the Welder unat¬tended when it is plugged into an electrical outlet.
Turn o the machine, and unplug it from its electrical outlet before leaving.
7. Use clamps or other practical ways to secure and support the work piece to a
stable platform. Holding the work by hand or against your body is unstable and
may lead to loss of control.
8. This product is not a toy. Keep it out of reach of children.
9. People with pacemakers should consult their physician(s) before using.
Electromagnetic elds in close prox¬imity to heart pacemaker could cause
pacemaker interference or pacemak¬er failure. In addition, people with
pacemakers should:
• Avoid operating alone.
• Do not use with Power Switch locked on.
• Properly maintain and inspect to avoid electrical shock.
• Any Power Cord must be prop¬erly grounded. Ground Fault Circuit Interrupter
(GFCI) should also be implemented – it prevents sustained electrical shock.
10. Prevent eye injury and burns. Wearing and using personal safety clothing and
safety devices reduce the risk for injury.
• Wear safety impact eye goggles underneath welding eye protection featuring at
Section
1
VITAL SAFETY INFORMATION

MIG WELDER - MTS145 MULTI-PROCESS 8
least a Number 10 shade lens rating.
• Leather leggings, re resistant shoes or boots should be
worn when using this product. Do not wear pants with cus,
shirts with open pockets, or any clothing that can catch and hold
molten metal or sparks.
• Keep clothing free of grease, oil, solvents, or any ammable sub¬stances. Wear
dry, insulating gloves and protective clothing.
• Wear an approved head covering to protect the head and neck. Use aprons,
cape, sleeves, shoulder covers, and bibs designed and approved for welding and
cut¬ting procedures.
• When welding/cutting overhead or in conned spaces, wear ame resistant ear
plugs or ear mus to keep sparks out of ears.
11. Prevent accidental res. Remove any combustible material from the work area.
• When possible, move the work to a location well away from
combustible materials. If relocation is not pos¬sible, protect the
combustibles with a cover made of re resistant mate¬rial.
• Remove or make safe all combus¬tible materials for a
radius of 10 meters around the work area. Use a re resistant
material to cover or block all open doorways, win-dows, cracks,
and other openings.
• Enclose the work area with portable re resistant screens. Protect combustible
walls, ceilings, oors, etc., from sparks and heat with re resistant covers.
• If working on a metal wall, ceiling, etc., prevent ignition of combus¬tibles on
the other side by moving the combustibles to a safe loca¬tion. If relocation
of combustibles is not possible, designate someone to serve as a re watch,
equipped with a re extinguisher, during the welding process and for at least
one half hour after the welding is com¬pleted.
• Do not weld or cut on materials having a combustible coating or combustible
internal structure, as in walls or ceilings, without an ap¬proved method for
eliminating the hazard.
• Do not dispose of hot slag in containers holding combustible materi¬als. Keep a
re extinguisher nearby and know how to use it.
• After welding, make a thorough examination for evidence of re. Be aware that
easily-visible smoke or ame may not be present for some time after the re
has started. Do not weld or cut in atmospheres containing dangerously reactive
or ammable gases, vapors, liquids, and dust. Provide adequate ven¬tilation
in work areas to prevent accumulation of ammable gases, vapors, and dust.
Do not apply heat to a container that has held an unknown substance or a
Section
1
VITAL SAFETY INFORMATION

MIG WELDER - MTS145 MULTI-PROCESS 9
combus¬tible material whose contents, when heated, can produce ammable
or explosive vapors. Clean and purge containers before applying heat. Vent
closed containers, including castings, before preheating, weld¬ing, or cutting.
12. Do not touch live electrical parts. Wear dry, insulating gloves. Do not touch
electrode or conductor tong with bare hand. Do not wear wet or damaged
gloves.
13. Protect yourself from electric shock. Do not use outdoors. Insulate your¬self
from the work piece and ground. Use nonammable, dry insulating material if
possible, or use dry rubber mats, dry wood or plywood, or other dry insulating
material big enough to cover your full area of contact with the work or ground.
14. Ensure that the unit is placed on a stable location before use. If this unit falls
while plugged in, severe injury, electric shock, or re may result.
15. Never remove the grounding prong or modify the Power Cord Plug in any way.
Do not use adapter plugs with this product.
16. Avoid overexposure to fumes and gases. Always keep your head out of the
fumes. Do not breathe the fumes. Use enough ventilation or exhaust, or both,
to keep fumes and gases from your breathing zone and general area.
17. Live torch when Trigger is pressed. Keep Torch away from people and
ammables before touching Trigger.
18. Turn o, unplug, and discharge electrode to ground before performing any
inspection, maintenance, or cleaning.
19. The warnings, precautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
Section
1
VITAL SAFETY INFORMATION

MIG WELDER - MTS145 MULTI-PROCESS 10
SPECIFICATIONS
Section
2

MIG WELDER - MTS145 MULTI-PROCESS 11
Read the Entire Important Safety Information section at the
beginning of this manual including all text under subheadings
therein before set up or use of this product.
To prevent serious injury from accidental operation:
Turn the Power Switch of the Welder to its “OFF” position and unplug the
Welder from its electrical outlet before assembling or making any adjustments
to the machine.
3.1 Assembly
1. UNPACKING, Unpack and make sure all the items in good condition. When you
receive the parcel, check it carefully to make sure no damage due to shipping. If
there is any damage happened, inform the carrier immediately to claim before
installing. Care the safety to avoid damaging the machine when using bars,
hammers, etc.
2. Make sure the welder is transported securely. If the machine must be moved,
always disconnect the power cable from the electrical outlet. Please note the
HANDLE is not for mechanical lifting. And do not touch live electrical parts.
3. Check the input voltage supplied to the welder before turning it on. Verify
the input connection of ground wires from the machine to the input source.
Optional adapter allows for connection of the power supply input cable plug
when using unique input volt¬age.
4. Since the inhalation of welding fumes can be harmful, ensure that the welding
area is eectively ventilated.
Section
3
Initial Setting Up Instructions
WARNING

MIG WELDER - MTS145 MULTI-PROCESS 12
2. Warning indicator
1. Power indicator
CONTROLS & INDICATORS
Section
4
3. Weld mode selection
(MIG/MMA/TIG)
5. WFS control knob (MIG)
6. Output terminal (Positive)
7. Output terminal (Negative)
4. Amp control knob (STICK/TIG)
Voltage control knob (MIG)
8. Euro connector socket
9. Power switch 10. Air Inlet
12. Wire Spool Spindle
11. Wire Feeder

MIG WELDER - MTS145 MULTI-PROCESS 13
CONTROLS & INDICATORS
1. Power Indicator: Power Indicator turns on when Power switch is in ON
position.
2. Warning Indicator: Warning Indicator turns on when machine working time
exceeds its rated duty cycle, or input voltage exceeds the proper range.
3. Weld Mode Selection Button: Press the button can exchange the welding
mode, MIG/STICK/TIG.
4. Amp/Voltage Control Knob: Turn this knob to adjust Voltage in MIG mode, and
Welding Current in TIG and STICK mode.
5. WFS Control Knob: Turn this knob to adjust Wire Feeding Speed in MIG mode.
6. Output terminal (Positive)
7. Output terminal (Negative)
8. Euro Connect Socket for MIG Torch
9. Power switch
10. Air Inlet
11. Wire Feeder
12. Wire Spool Spindle
Section
4

MIG WELDER - MTS145 MULTI-PROCESS 14
Section
5
Operating Instructions
Read the entire Important Safety Information section at the beginning
of this manual including all text under subheadings therein before set
up or use of this product.
To prevent serious injury from accidental operation:
Turn the Power Switch to “OFF” or “0” position before performing any inspection,
maintenance, or cleaning procedures.
5.1 Work Piece And Work Area Setting Up
Prevent eye injury and burns. Wearing personal protective equipment to reduce the
risk of injury.
An important factor in making a satisfactory weld is preparation. This includes studying the
process and equipment and practicing welding before attempting to weld nished product.
An organized, safe, ergonomic, comfortable, and well-lit work area should be prepared for
the operator. The work area should specically be free of all ammables with both a re
extinguisher and a bucket of sand available.
To properly prepare for welding with your new welder, it is necessary to:
1. Read the safety precautions in this manual.
2. Prepare an organized, well-lit work area.
3. Provide protection for the eyes and skin of the operator and bystanders.
4. Attach the ground clamp to the bare metal to be welded, making sure of good contact.
5. Make sure that the wire-roller groove in the roller corresponds to the diameter and
type of wire being used.
6. Plug the machine into a suitable outlet. Route the Power Cord along a safe route to
reach the work area without creating a tripping hazard or exposing the Power Cord
to pos¬sible damage. The Power Cord must reach the work area with enough extra
length to allow free movement while working.
7. Completely open the gas cylinder valve. Adjust the gas pressure regulator to the
correct ow rate. (Not applicable to Stick process.)
8. A barrier, such as a welding curtain or welding shroud should be put up to protect
others in the work area and limit the spray of sparks.
WARNING

MIG WELDER - MTS145 MULTI-PROCESS 15
5.2 General Operating Instructions
1. Gas Cylinder and Regulator Connection
Cylinders are highly pressurized. Handle with care. Serious accidents can result
from improper handling or misuse of compressed gas cylinders. Do not drop the
cylinder, knock it over, expose it to excessive heat, ames or sparks. Do not strike
it against other cylinders or strike an arc on it.
The gas cylinder (not supplied) should be located near the rear of the welder, in a well-
ventilated area and securely xed to the work bench or to the wall to ensure that it will
not fall.
For safety and economy, ensure that the regulator is fully closed (turned counter-
clockwise) when not welding and when tting or removing the gas cylinder.
•Turn the regulator adjustment knob counter-clockwise to ensure the valve is fully
closed.
•Screw the gas regulator down on the gas bottle valve and tighten.
•Connect the gas hose to the regulator, securing with the clip/nut provided.
•Connect the other end to the Air Inlet on the back of the machine.
•Open the cylinder valve, then set the gas ow to approximately 20 - 35 CFH (cubic ft.
per hour) on the regulator.
•Depress the gun trigger to ensure that the gas is owing through the gun.
2. Loading the Electrode Wire
•Turn the machine o.
•Open the side door of the machine.
•Unscrew the locking nut of the spool spindle.
•Load the spool with the wire on the spindle such that the spool turns anticlockwise
when the wire is fed into the wire feeder.
•Make sure that the spool locating pin goes into the tting hole on the spool.
•Screw in the fastening cap of the spindle.
•Put in the wire roll using the correct groove corresponding to the wire diameter.
Section
5
Operating Instructions
WARNING

MIG WELDER - MTS145 MULTI-PROCESS 16
•Free the end of the wire and cut o the bent end making sure it has no burr.
•Rotate the wire spool anticlockwise and thread the end of the wire into the wire
feeder as far as the Euro Connect Socket.
•Adjust force of pressure roll of the wire feeder properly.
3. Inserting Electrode Wire into MIG Gun
•Turn the welder o.
•Connect MIG gun to the Euro Connect Socket.
•Remote the nozzle from the gun and contact tip or protection cap and contact tip,
then straighten the gun out at.
•Turn the welding machine on.
•Depress the gun trigger to feed the wire through the gun linear until the wire comes
out of the threaded end. Or Depress the Cold Wire Feeding Button to feed the wire
instead of depressing the gun trigger, which will make the wire fed at the maximum
speed.
•Turn the welding machine o.
•Install a proper contact tip, and the nozzle or protection cap.
Take precaution to keep eyes and hands away from the end of the gun while the wire
is being come out of the threaded end.
5.3 Setup for dierent Processes.
Protective gear must be worn when using the Welder. Arc shaded, eye
protection, a full face shield, heavy-duty work gloves, a welding apron,
respirator, and heavy-duty work clothes without pockets should be worn when
using this product. Do not look at the ignited arc without eye protection. Light
from the arc can cause permanent damage to the eyes. Light from the arc can
burn the skin. Do not breathe arc fumes.
WARNING
WARNING
Section
5
Operating Instructions

MIG WELDER - MTS145 MULTI-PROCESS 17
1. Setup for MIG Welding
•Thread the MIG gun into the Euro Connect Socket.
•Connect the ground cable to the appropriate Dinse Socket: Ground cable to NEGATIVE
(-) Dinse Socket.
•Ensure the ground clamp has a good connection to the workpiece and is connected on
clean, bare metal (not rusty or painted).
•Load the spool of wire inside the door and feed it through the Wire Feeder into the gun
(see “Loading the Electrode Wire” & “Inserting Electrode Wire into MIG Gun”).
•Make sure the gas shied has been connected (see ” Gas Cylinder and Regulator
Connection”). Turn on the gas cylinder, pull the trigger to check for gas ow and adjust
the ow rate.
•Turn the machine ON.
•Depress Weld Mode Selection Button and select MIG mode.
•Set the welding parameters through adjusting WFS Control Knob, Voltage control
Knob.
•Bring the gun close to the workpiece and press the trigger to start to weld.
Section
5
Operating Instructions
2. Setup for TIG Welding with Lift Arc
•Connect the TIG torch cable to the NEGATIVE (-) Dinse Socket and ground cable
connector to the POSITIVE (+) Dinse Socket of the welder.
•Ensure the ground clamp has a good connection to the workpiece and is
connected on clean, bare metal (not rusty or painted).
•Connect the TIG torch gas line to the gas regulator (argon gas only) (see ” Gas
Cylinder and Regulator Connection”). Turn on the gas cylinder, pull the trigger
to check for gas ow and adjust the ow rate.
•Fix a proper tungsten electrode in the TIG torch.
MIG Set-up Parameter
Gas Wire
diameter
Material Thickness
0.8mm 1.6mm 3.0mm 5.0mm
Left
Knob
Right
Knob
Left
Knob
Right
Knob
Left
Knob
Right
Knob
Left
Knob
Right
Knob
C25
0.6 2.5 3 5 10
0.8 1 1 3 4 6 10
0.9 2 1 7 7.5 8.5 10
Flux Cord 0.8 3 2 5 8.5 7 10
SUS 0.8 2.5 2.5 6 7.5 9 10

MIG WELDER - MTS145 MULTI-PROCESS 18
Section
5
Operating Instructions
•Ensure the TIG torch is safely away from all conductive materials.
•Turn the machine ON.
•Depress Weld Mode Selection Button and select TIG mode.
•Set the output amperage with the Amp Control Knob.
•Open the gas valve on the torch handle.
•Initiate the weld arc with a lift arc technique (contact ignition and lift ignition),
and start to weld.
•Close the gas valve on the torch handle after post-weld ow has been
completed.
TIG Set-up Parameter
Gas
Material Thickness
0.8mm 1.6mm 3.0mm 5.0mm
Left Knob Left Knob Left Knob Left Knob
100% Argon 1-2 2.5-4 4-7 7-10
3. Setup for STICK Welding
•Check the electrode packaging to determine the recommended polarity and connect
the electrode holder and ground clamp to the POSITIVE (+) and NEGATIVE (-) Dinse
Sockets accordingly.
•Ensure the ground clamp has a good connection to the workpiece and is connected
on clean, bare metal (not rusty or painted).
•Turn the machine ON.
•Depress Weld Mode Selection Button and select STICK mode.
•Set the output amperage with the Amp Control Knob and arc force with Arc Force
Control Knob.
•Begin Welding.
STICK Set-up Parameter
Material Type
Material Thickness
1.6mm 2mm 2.4mm 3mm 3.2mm
Left Knob Left Knob Left Knob Left Knob Left Knob
E6013
E7018 4 5-6 5-7 7-10 7-10

MIG WELDER - MTS145 MULTI-PROCESS 19
Maintenance And Service
Procedures not specically explained in this manual must be
performed only by a qualied technician.
To prevent serious injury from accidental operation:
Turn the Power Switch of the welder to its “OFF” position and unplug the machine
from its electrical outlet before performing any inspection, maintenance, or cleaning
procedures.
To prevent serious injury from welder failure:
Do not use damaged equipment. If abnormal noise or vibration occurs, have the
problem corrected before further use.
6.1 Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general condition of the welding machine. Check
for loose screws, cracked or broken parts, damaged electrical wiring, and any
other condition that may aect its safe operation.
2. Remove the spatters from the welding gun nozzle. Spatters could interfere with
the shielding gas ow to the arc.
3. Check the welding gun condition: replace it if necessary.
4. Check condition and operation of the fan, keep cleaning its airow slots.
5. After Use, clean external surfaces of the welding machine with a dry cloth.
6. Periodically, using compressed air, blow out all dust and debris from the
interior.
7. If the unit repeatedly shuts down from thermal overload, stop all use. Have the
machine inspected and repaired by a qualied service technician.
8. Store the welding machine and accessories in a clean and dry location out of
reach of children.
Section
6
WARNING
WARNING! If any part of this welder is damaged, it must be replaced
only by a qualied service technician.

MIG WELDER - MTS145 MULTI-PROCESS 20
Section
7
WARNING
Troubleshooting Guide
To Prevent serious injury:
Shut o the Welder, disconnect the power, and discharge the torch/gun
to ground before adjusting, cleaning, or repairing the unit. To make sure
discharge all capacitors before performing any internal procedures.
