Инструкция для
Miss Geico 29 Catamaran RTR
Proboat
Перейти в карточку товара
8 800 775 98 98

Specifications
Length .......................................................................................... 30 in (762mm)
Beam............................................................................................ 11 in (279mm)
Motor...........................................................A3630-1500Kv Water-Cooled Brushless
Receiver......................................................................... Spektrum 2.4GHz Marine
Speed Control ............................................................ 45-amp Waterproof Brushless
Hull Material .......................................................................... Fiberglass Composite
Battery ...... 7.4V 2S 25C Li-Po or 7.2V Sub-C with Deans Connector (2) (not included)
Radio ....................................................................................................2-channel
www.ProBoatModels.com
®
Owners Manual

2
2
Notice ................................................................................................................. 2
Meaning of Special Language ................................................................................. 2
Table of Contents ................................................................................................. 2
Recommended Tools and Adhesives ........................................................................ 3
Recommended Batteries........................................................................................3
General Guidelines and Safety Precautions .............................................................. 3
Basic Assembly .................................................................................................... 4
Handling Adjustments ........................................................................................... 7
Maintenance ........................................................................................................ 8
Warranty and Repair Policy .................................................................................. 10
Warranty Services .............................................................................................. 11
Warranty Services .............................................................................................. 12
Compliance Information for the European Union..................................................... 13
Replacement Parts.............................................................................................. 14
Item Identification.............................................................................................. 15
Meaning of Special Language
The following terms are used throughout the product literature to indicate various levels of
potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property
damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of
property damage, collateral damage, and serious injury OR create a high probability
of superficial injury.
Notice
All instructions, warranties and other collateral documents are subject to change at the
sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www.
horizonhobby.com and click on the support tab for this product.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the
product, personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and
common sense and requires some basic mechanical ability. Failure to operate this Product in a
safe and responsible manner could result in injury or damage to the product or other property.
This product is not intended for use by children without direct adult supervision. Do not attempt
disassembly, use with incompatible components or augment product in any way without the
approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Table of Contents

3
It is important that you read and follow this
instruction manual, along with the radio
system manual before you run this exciting
boat. Failure to read and understand the
manual could result in personal injury,
property damage or permanent damage to
your boat. It is also important to run your
boat responsibly. With proper care and
maintenance, you will be able to proudly enjoy
your Miss Geico for many years to come.
When operating the boat, stay clear of people,
full-scale boats, stationary objects and wildlife.
It is preferable to operate the Miss Geico in
low wake, low wind conditions and in areas
free of people, wildlife and objects.
Check all of the hardware, and the propeller,
for damage and loose screws before and after
each run.
If at any time while operating your model
you sense any abnormal function, end your
operation immediately. Do not operate your
boat again until you are certain the problem
has been corrected. Always stay clear of
the propeller.
Batteries
We recommend the purchase of one of the following batteries:
• PRB3316 7.2V 5100mAh Ni-MH with Deans Connector
• DYN5351D 7.4V 3200mAh 25C Li-Po with Deans Connector
• DYN5352D 7.4V 4200mAh 25C Li-Po with Deans Connector
• DYN5360D 7.4V 5300mAh 25C Li-Po with Deans Connector
• DYN5361D 7.4V 6000mAh 25C Li-Po with Deans Connector
www.dynamiterc.com
• Needle nose pliers
• Marine grease (PRB0100 or PRB0101)
• Paper towel
• Rubbing alcohol
• Open end wrench: 10mm
• Nut driver: 7mm
• Phillips screwdriver: #1
• Hex wrench: 2.5mm, 3mm
• Clear tape (PRB0102)
General Guidelines and Safety Precautions
Recommended Tools and Adhesives
Recommended Batteries

4
Required Equipment and Accessories
Transmitter
AA battery (4)
Motor battery (2) (charged)
Hook and loop tape
1. Locate the pieces for the boat stand.
The longer side pieces will key to the
shorter end pieces. Use a small amount of
Medium CA to glue the pieces together.
2. Slide the cover from the bottom of the
transmitter to access the battery holder.
3. Install the four AA batteries in the
battery holder. Match the polarity of the
batteries to the molded markings in the
battery holder.
4. Slide the battery cover back on the
bottom of the transmitter.
5. Lift the hatch cover from the hull at
the rear and slide it back to remove.
The cover is held at the rear using two
magnets, and at the front with a small pin.
Basic Assembly

5
6. Remove the radio box cover from the
hull by lifting it up using the tab at the
rear of the cover.
7. Apply the hook and loop tape to the
bottom of both batteries. Also apply the
mating piece of tape in the hull where the
batteries will be located.
8. Place the motor batteries in the hull.
There will be one battery on the left of the
hull, and one on the right side of the hull.
Note: Center the trims for both the
steering and throttle on your transmitter
before turning the transmitter on.
9. Move the switch on the transmitter to
the ON position and confirm that the red
and green LED illuminate. Turn off the
transmitter.

6
About your Speed Controller
Be sure to use a Programming Module
(PRB3311) to adjust the cutoff voltage when
using Li-Po batteries to protect against over-
discharging the batteries.
Note: The ESC is factory-set for use with
Ni-MH batteries.
The programming module offers other
beneficial adjustments like exponential
throttle curves and timing adjustments. Visit
ProBoatModels.com and search "Programming
Module" for further details.
10. Confirm that the ESC on/off switch
is in the "OFF" position and connect the
batteries to the battery plugs from the
speed control.
11. Turn on the transmitter, then the ESC
on/off switch. The ESC will beep until you
pull the throttle trigger to full throttle and
return it to the neutral position. Check the
operation of the propeller in relationship
to the throttle trigger. When the trigger
is pulled in, the propeller must rotate
counterclockwise as shown. If the motor
turns in the wrong direction, switch any 2
motor wires.
12. Check the operation of the steering in
relationship to the steering wheel. When
the wheel is rotated clockwise, the rudder
must move right as shown. If not, follow
the instructions from the radio to set the
servo reversing for the steering.

7

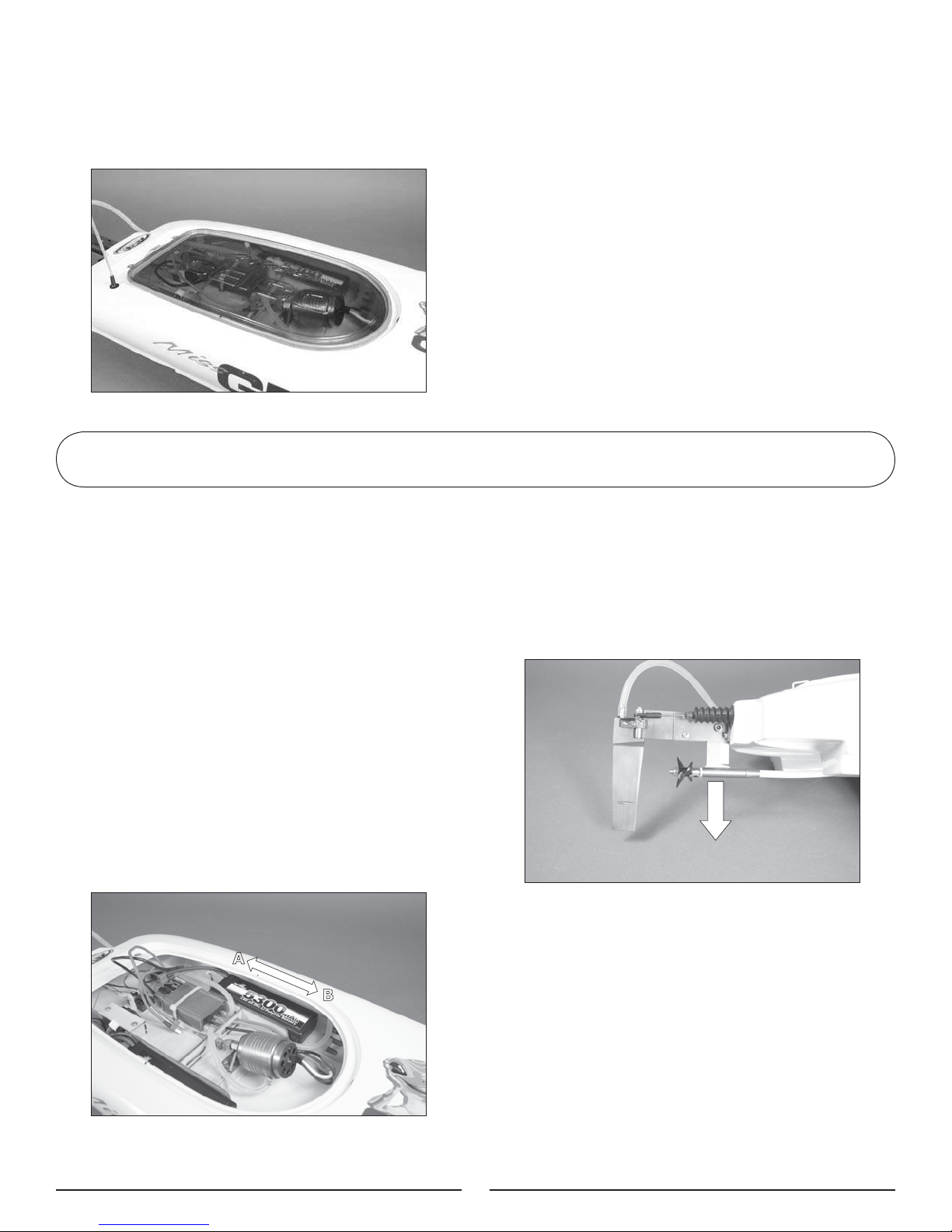

13. Place the clear battery cover back
into position. We suggest using clear tape
(PRB102) around the edge of the main
hatch to keep it in place in the event of a
roll over.
Note: The radio system is pre-bound at
the factory but the 2.4GHz radio system
may not bind correctly if the radio is
adjacent to a large amount of metal such
as an aluminum dock. Read the radio
manual for binding details.
Required Equipment and Accessories
Hex wrench: 3mm
Nut driver: 7mm
Changing the Center of Gravity
Moving the batteries to the front or back can
significantly affect the boat's performance. As
a starting point, the center of gravity of the
boat should be 30% (9-inches (228mm) from
the rear of the boat).
A: Move the batteries toward the rear of the
boat to raise the front of the hull out of the
water for increased speed.
B: Move the batteries toward the front of
the boat for faster initial acceleration,
to eliminate oscillation or bouncing and
increase stability.
A
B
Drive Height
The center of the propeller shaft should be just
about the bottom of the sponsons. Lowering
the drive will increase the propeller's ability
to bite at take off but excessive lowering can
cause the back of the boat to feel loose and
decrease top end stability.
Handling Adjustments

8
Required Tools and Lubricants
Marine grease
Paper towel
Rubbing alcohol
Open end wrench: 10mm (2)
Hex wrench: 2.5mm
Nut driver: 4mm
Lubricating the Flex Shaft
Lubricating the drive system is vital to the life
of the drivetrain. The lubricant also acts as a
water seal, keeping water from entering the
hull through the stuffing box.
Lubricate the drive shaft, propeller shaft
and all moving parts after every 2–3 hours
of operation.
1. Use a 4mm nut driver and 2.5mm hex
wrench to remove the two screws that
secure the rudder to the rudder bracket.
Move the rudder aside, but do not
disconnect the rudder linkage.
Raising the drive helps eliminate oscillation or
bouncing and assist with top end stability but
excessively raising the drive can reduce top
speeds and cause cavitation.
Use a 3mm hex wrench and 7mm nut driver
to loosen the bolt that attaches the output to
the bracket to adjust the height.
Maintenance

9
2. Use two 10mm open end wrenches to
loosen the ferrule that secures the flex
shaft to the motor.
3. Remove the flex shaft by pulling it out
of the stuffing box by the propeller.
4. Use a paper towel and rubbing alcohol
to clean the flex shaft.
5. Apply a waterproof marine grease to
the flex shaft. We recommend the Pro
Boat marine grease available at your local
hobby dealer.
6. Reverse the previous steps to reinstall
the flex drive. Check that there is a
slight gap of 1/32-inch (1mm) between
the stuffing box and propeller mount as
shown. Also make sure the rudder mount
is parallel to the rudder bracket when
installed.

10
Warranty Period
Exclusive Warranty- Horizon Hobby, Inc.,
(Horizon) warranties that the Products
purchased (the “Product”) will be free from
defects in materials and workmanship at the
date of purchase by the Purchaser.
Limited Warranty
Horizon reserves the right to change or
modify this warranty without notice and
disclaims all other warranties, express or
implied.
(a) This warranty is limited to the original
Purchaser (“Purchaser”) and is not
transferable. REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY OF THE PURCHASER.
This warranty covers only those Products
purchased from an authorized Horizon dealer.
Third party transactions are not covered by
this warranty. Proof of purchase is required for
all warranty claims.
(b) Limitations- HORIZON MAKES NO
WARRANTY OR REPRESENTATION, EXPRESS
OR IMPLIED, ABOUT NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OF THE PRODUCT.
THE PURCHASER ACKNOWLEDGES THAT
THEY ALONE HAVE DETERMINED THAT
THE PRODUCT WILL SUITABLY MEET THE
REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.
(c) Purchaser Remedy- Horizon’s sole
obligation hereunder shall be that Horizon
will, at its option, (i) repair or (ii) replace,
any Product determined by Horizon to be
defective. In the event of a defect, these are
the Purchaser’s exclusive remedies. Horizon
reserves the right to inspect any and all
equipment involved in a warranty claim.
Repair or replacement decisions are at the sole
discretion of Horizon. This warranty does not
cover cosmetic damage or damage due to acts
of God, accident, misuse, abuse, negligence,
commercial use, or modification of or to any
part of the Product. This warranty does not
cover damage due to improper installation,
operation, maintenance, or attempted repair
by anyone other than Horizon. Return of any
Product by Purchaser must be approved in
writing by Horizon before shipment.
Warranty and Repair Policy

11
Damage Limits
HORIZON SHALL NOT BE LIABLE FOR
SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR
PRODUCTION OR COMMERCIAL LOSS IN
ANY WAY CONNECTED WITH THE PRODUCT,
WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, NEGLIGENCE, OR
STRICT LIABILITY. Further, in no event shall
the liability of Horizon exceed the individual
price of the Product on which liability is
asserted. As Horizon has no control over use,
setup, final assembly, modification or misuse,
no liability shall be assumed nor accepted for
any resulting damage or injury. By the act of
use, setup or assembly, the user accepts all
resulting liability.
If you as the Purchaser or user are not
prepared to accept the liability associated with
the use of this Product, you are advised to
return this Product immediately in new and
unused condition to the place of purchase.
Law: These Terms are governed by Illinois law
(without regard to conflict of law principals).
Questions, Assistance, and Repairs
Your local hobby store and/or place of
purchase cannot provide warranty support
or repair. Once assembly, setup or use of
the Product has been started, you must
contact Horizon directly. This will enable
Horizon to better answer your questions and
service you in the event that you may need
any assistance. For questions or assistance,
please direct your email to productsupport@
horizonhobby.com, or call 877.504.0233
toll free to speak to a Product Support
representative. You may also find information
on our website at www.horizonhobby.com.
Inspection or Repairs
If this Product needs to be inspected or
repaired, please use the Horizon Online Repair
Request submission process found on our
website or call Horizon to obtain a Return
Merchandise Authorization (RMA) number.
Pack the Product securely using a shipping
carton. Please note that original boxes may be
included, but are not designed to withstand
the rigors of shipping without additional
protection. Ship via a carrier that provides
tracking and insurance for lost or damaged
parcels, as Horizon is not responsible for
merchandise until it arrives and is accepted
at our facility. An Online Repair Request is
available at www.horizonhobby.com http://
www.horizonhobby.com under the Repairs
tab. If you do not have internet access,
please contact Horizon Product Support to
obtain a RMA number along with instructions
for submitting your product for repair. When
calling Horizon, you will be asked to provide
your complete name, street address, email
address and phone number where you can be
reached during business hours. When sending
product into Horizon, please include your RMA
number, a list of the included items, and a
brief summary of the problem. A copy of your
original sales receipt must be included for
warranty consideration. Be sure your name,
address, and RMA number are clearly written
on the outside of the shipping carton.
Notice: Do not ship batteries to
Horizon. If you have any issue
with a battery, please contact the
appropriate Horizon Product Support
office.
Warranty Services

12
Warranty Inspection and Repairs
To receive warranty service, you must
include your original sales receipt
verifying the proof-of-purchase date. Provided
warranty conditions have been met, your
Product will be repaired or replaced free of
charge. Repair or replacement decisions are at
the sole discretion of Horizon.
Non-Warranty Repairs
Should your repair not be covered by
warranty the repair will be completed
and payment will be required without
notification or estimate of the expense
unless the expense exceeds 50% of the
retail purchase cost. By submitting the item
for repair you are agreeing to payment of the
repair without notification. Repair estimates
are available upon request. You must include
this request with your repair. Non-warranty
repair estimates will be billed a minimum of
½ hour of labor. In addition you will be billed
for return freight. Horizon accepts money
orders and cashiers checks, as well as Visa,
MasterCard, American Express, and Discover
cards. By submitting any item to Horizon
for inspection or repair, you are agreeing to
Horizon’s Terms and Conditions found on our
website under the Repairs tab.
United States
(Electronics and engines)
Horizon Service Center
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
[e-mail]
877-504-0233
(All other products)
Horizon Product Support
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
[e-mail]
877-504-0233
United Kingdom
Horizon Hobby Limited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
[e-mail]
[phone]
Germany
Horizon Technischer Service
Hamburger Str. 10
25335 Elmshorn
Germany
[e-mail]
[phone]
France
Horizon Hobby SAS
14 Rue Gustave Eiffel
Zone d’Activité du Réveil Matin
91230 Montgeron
[phone]
Warranty Services

13
Declaration of Conformity
(in accordance with
ISO/IEC 17050-1)
No. HH2010070302
Product(s): PRB Miss Geico
Item Number(s): PRB4100
Equipment class: 2
The object of declaration described above
is in conformity with the requirements of
the specifications listed below, following the
provisions of the European R&TTE directive
1999/5/EC:
EN 300-328 Technical requirements for
Radio equipment.
EN 301 489-1, 301 489-17 General EMC
requirements
EN 60950 Safety
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
July 3, 2010
Steven A. Hall
Vice President
International Operations and Risk Management
Horizon Hobby, Inc.
Instructions for Disposal
of WEEE by Users in the
European Union
This product must not be disposed
of with other waste. Instead, it is
the user’s responsibility to dispose of
their waste equipment by handing it over to
a designated collection point for the recycling
of waste electrical and electronic equipment.
The separate collection and recycling of your
waste equipment at the time of disposal will
help to conserve natural resources and ensure
that it is recycled in a manner that protects
human health and the environment. For more
information about where you can drop off your
waste equipment for recycling, please contact
your local city office, your household waste
disposal service or where you purchased the
product.
Compliance Information for the European Union

14
Go to ProBoatModels.com to see photos of the replacement parts listed under Miss Geico. If
you have any questions concerning the setup or running of your model, please see page 12 to
contact the appropriate Horizon service center.
PRB4101 Hull and Canopy
PRB4102 Canopy
PRB4103 Radio Box Cover
PRB4104 Boat Stand
PRB4105 Prop Strut
PRB4106 Rudder with Strut
PRB4107 Flexshaft
PRB4108 Drive Dog
PRB4109 Prop Nut
PRB4110 Stuffing Box
PRB4111 Rudder Pushrod Set
PRB2068 Water Outlet
PRB0151 1.6" x 2.5" Composite Propeller
PRB2288 Nylon Washer
PRB2223 Push Rod Connector
PRB2224 Silicone Tubing
PRB4012 Antenna Tube
PRB2073 Rubber Boot
PRB3307 Motor Mount
PRB3308 Cable Collet
PRB3309 45-AMP Brushless ESC
PRB3310 A3630-1500 Brushless Motor
PRB3311 Brushless ESC Programming
Module
PRB3312 Tamiya/Deans Charge Adapter
PRB3315 Antenna Mount
PRB0100 Marine Grease
PRB0101 Marine Grease Refill 5 oz
PRB0102 Clear Flex Tape
PRB2239 Drain Plug
Replacement Parts

15
Item Identification
Water Outlet Radio Box
Cover Stand
Hatch
Cover
Hull
Antenna
Motor
Steering Servo
Speed Control
Receiver
Switch
Propeller
Stuffing Box
Rudder
Cooling Line
Rudder Linkage

®
17976Printed 06/2010
© 2010 Horizon Hobby, Inc.
horizonhobby.com
www.proboatmodels.com

лтззлюбым
дбнымбм
глтчня
лжбдджи
Дтвззв
вии
фмлнидит
нлнз2минты
мнииДтвилтвинитзывыцииииди
Miss Geico 29 Catamaran RTR
Proboat
Описание
