IMPORTANT SAFETY INSTRUCTIONS
The X9 Rotor Matching System is a precision instrument which requires close attention while in operation. It will pro-
vide many years of service if it is operated safely. Basic Safety precautions should always be followed, including the
following:
Read all instructions
Care must be taken as burns can occur from touching hot parts.
Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged - until it has been
examined by a qualified service person.
Do not let a cord hang over the edge of the table, bench, counter or come in contact with hot manifolds or moving fan
blades.
If an extension cord is necessary, a cord with a current rating equal to or more than that of the equipment should be
used. Cords rated for less current than the equipment may overheat. Care should be taken to arrange the cord so that
it will not be tripped over or pulled
Always unplug equipment from electrical outlets when not in use. Never use the cord to pull the plug from the outlet.
Grasp the plug and pull to disconnect.
Let equipment cool completely before putting away. Loop cord loosely around equipment when storing.
To reduce the risk of fire, do not operate equipment in the vicinity of open containers of flammable liquids (gasoline).
Adequate ventilation should be provided when working on operating internal combustion engines.
Keep hair, loose clothing, fingers, and all parts of the body away from moving parts.
To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended attachments.
ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant lenses. THEY ARE NOT SAFETY
GLASSES.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
SAVE THESE INSTRUCTIONS
PG /8800.543.6618
Congratulations on your purchase of the PFM X9, the world’s fastest and most accurate computerized on-car
brake lathe.
For many years, on-car lathes were used only for rotors that were difficult to remove. Due to current trends,
virtually all auto manufacturers now require or recommend the use of on-car technology to match every rotor
to every hub. By matching a rotor to the hub, the chance of a vehicle returning for a lateral run-out induced
brake pedal pulsation is virtually eliminated. There is simply no better way to refinish and match a rotor than
with the patented X9 ROTOR MATCHING SYSTEM.
The following pages are designed to guide you through set-up, operation, and maintenance of your lathe.
If you have any questions along the way, please call us. Our technical support team is standing by from 8
a.m. to 5 p.m. Eastern time. Or browse our website for technical information and tips: www.procutusa.com.
WELCOME TO THE PRO-CUT TEAM.
INTRODUCTION
WWW.PROCUTUSA.COM PG /9
Every Pro-Cut PFM X9 Lathe Package comes complete, ready to assemble and use. Setup and on-site training is
included by a local, certified Pro-Cut Rep. Please contact Pro-Cut at 800-543-6618 immediately if you have not
already made arrangements for on-site training. In order for your shop to appreciate the benefits of this machine
as soon as possible after the lathe is installed, it is CRITICAL that technicians take the on-line training PRIOR to
the Pro-Cut Rep arriving to set up the lathe.
TrainSMART is Pro-Cut’s nationwide training and certification program in rotor matching. The two-part program
begins with an online class where the basics of rotor matching and lathe use are covered, and is a prerequisite
Level 2. Techs will take an online quiz and print a certificate to be signed later by the trainer after part 2 is com-
pleted successfully. The second part of the program is a hands-on training class offered by an expert Pro-Cut
representative or college instructor.
YOUR LATHE PACKAGE
PG /10 800.543.6618
LATERAL Run-out leads to ...
THICKNESS VARIATION which results in ...
BRAKE PEDAL PULSATION.
Run-out DEFINED
WWW.PROCUTUSA.COM PG /11
800.543.6618
Brake pedal pulsation is most often the result of thickness variation in the brake
rotor. Thickness variation is the technical term for a rotor that is not uniformly
thick. New rotors are uniformly thick, and stop the vehicle smoothly. But thick-
ness variation can develop over time and eventually lead to brake pedal pulsa-
tion.
How does thickness variation develop? Through lateral run-out in the face of the
rotor. Lateral run-out is the technical term for “wobble”, and is a measurement of
how much the surface of the disc wobbles from side to side as it rotates .
A rotor with lateral run-out will not wear evenly, and uneven wear increases over
time. As the vehicle moves down the road with the brakes relaxed, the rotor will
brush each pad once per revolution, resulting in a thin spot on the rotor.
Since vehicle hubs often have lateral run-out due to stacked component toler-
ances, a new or newly bench machined rotor will often exhibit excessive lateral
run-out as it turns on the hub. Most manufacturers require rotor run-out to be
below 0.002”. The X9 Rotor Matching System allows you to match every rotor
to the hub on which it turns. The on-board PFM computer compensation system
delivers a precise alignment between the lathe axis and the hub axis, thereby
guaranteeing that a Pro-Cut machined rotor will have less than 0.001” lateral
run-out every time.
By match-machining the
rotor to the hub assembly
on which it resides, lateral
run-out will be reduced to
below OEM specs every
time!
PG /11
WWW.PROCUTUSA.COM
PG /12 800.543.6618

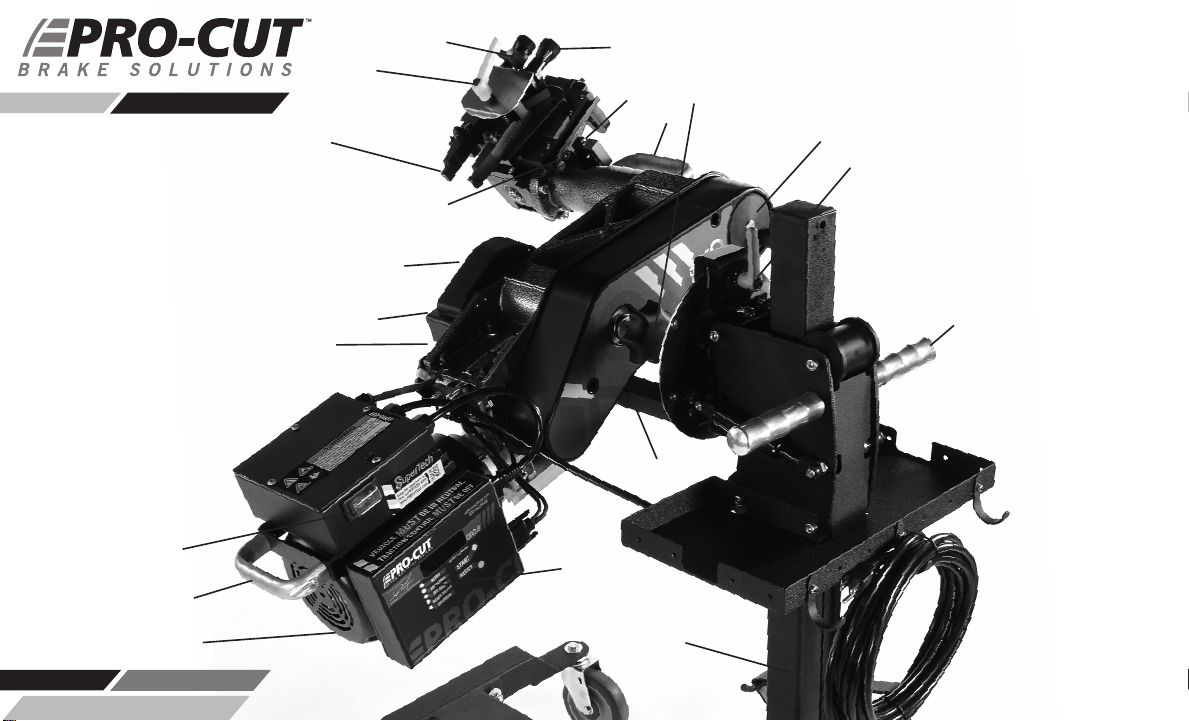

Lathe Overview
14
1
8
11
13
12
9
5
6
7
3
2
4
17
15
16
18
17
10
17
WWW.PROCUTUSA.COM PG /13
1. X9 Computer Box
2. On/Off Switch
3. 1 hp Motor
4. Draw Bar Knob
5. Adjustment Flange (obscured)
6. Adjustment Solenoid
7. Feed Engagement Knob
8. Disc-Lock Lever
9. Automatic Shut-off Switch
10. Automatic Shut-off Cam
11. Cut Depth Adjustment Dials
12. Cutting Tips/Inserts
13. Tool Arm Lock Lever
14. Trolley
15. Cutting Head lateral Lock Knob
16. Lathe Trolley Arm
17. Lathe Handles
COMPONENTS
PG /14 800.543.6618
Before you begin setting up, check contents
against the parts diagram enclosed in the
lathe package. If you are missing any parts,
call Pro-Cut immediately.
SETTING UP A NEW LATHE
WWW.PROCUTUSA.COM PG /15
ASSEMBLE THE TROLLEY
Open the trolley box and check contents against the parts diagram . If you are missing any parts, call Pro-Cut
immediately. Proceed with assembly, following the instructions enclosed in the box.
MOUNT THE LATHE TO THE TROLLEY
Once the trolley is assembled you will need to mount the lathe to the trolley. Locate lathe arm on trolley so
that lathe will be in upright horizontal position when it is installed, then lock the disc-lock lever firmly.
1 ) Remove the lathe body from the shipping pallet and install mounting studs under lathe in two threaded
holes that correspond with the lathe trolley arm holes.
2 ) Find another person to help lift the lathe using the handles on either end, and insert the lathe mounting
studs into trolley arm. Secure with two nuts (36-001B) and flat washers (37-108).
Assemble the trolley com-
pletely then get assis-
tance from another person
to mount the lathe on the
trolley.
Cutting
Edge
Tip
PG /16 800.543.6618
VEHICLE PREPARATION
Before lifting the vehicle, the front wheels should be straight and the parking brake should be off, with the
transmission in neutral, and the traction control turned off.
NOTE: Remember to index mark rotors before removing them so you
can be sure they are returned to the same positions on the hub.
1. Raise the vehicle according to the lift manufacturer’s instructions. Raise until the wheel hub is about belt level.
2. Check wheel bearings for damage or excessive play. If this or any other wheel service is required, it should be performed
before match-machining the rotors as loose or damaged bearings will keep the lathe from doing the most accurate job possible.
3. Remove the wheels. Remove the brake calipers and suspend them out of the way of moving parts such as half shafts and
CV joints using the yellow S-hooks provided (pn 37-034). Be sure to remove all wheels that may turn when the lathe is
turned on.
4. Use Pro-Cut part number 37-996 wheel hub cleaning kit, or other suitable wheel hub cleaning tool to remove rust or debris.
Clean all material from the mounting area.
5. The rotor on the side of the vehicle that is not to be machined should be marked and removed if it is free on the hub or
secured with at least 2 lug nuts. Match marking the rotors to the hub is very important.
6. Use a micrometer to measure rotor thickness and determine how much material may be removed from the rotor by com-
paring to brake spec guide provided. Visually inspect for deep rust or grooves. This inspection will help determine the
depth of the cut.
WWW.PROCUTUSA.COM PG /17
It is important to start on the proper side. The Pro-Cut mounts directly to the hub of the vehicle.
With the lathe right-side up (FIG:1) the cutting head is to the right of the hub as you face the vehicle
wheel well. When machining a rotor, the cutting head is most often positioned where the caliper
rides. On a vehicle where the calipers ride in front of the hub, always start on the passenger side. If
the caliper rides to the rear of the hub, begin on the driver’s side.
When you flip the lathe to machine the opposite side of the vehicle (FIG:2), no inboard / outboard
cutting head adjustments are required since they were made in the upright position.
Lathe in upside-down position. You will need to flip the
lathe over into this position to machine one side of the ve-
hicle if there is a dust shield, or other interference behind
the rotor.
The Pro-Cut X9 ma-
chines both front and
rear rotors. The lathe’s
operations do not
change at all in the
rear of the vehicle.
NOTE
Lathe in upright position. Note that adjustments to
cutting head are made in this position.
FIG:1
FIG:2
PG /18 800.543.6618
LATHE PREPARATION
This is the premium Pro-
Cut tip (50-742).When
the tip is mounted cor-
rectly, the chip breaker
and dots face up.
Before mounting the lathe, check the cutting tips and make sure they are ready for use. The cutting tips are one of the most
critical components of the machine. It is vital that they are Pro-Cut brand tips in good condition and properly mounted. Each
cutting tip has three corners which may be used. The correctly installed tip is wider on the top and has a groove, or dots, facing
up. A tip mounted upside down will produce a surface finish that looks like a record.
You should get at least 7 cuts per corner. However, tip life is affected by variables such as rust or ridges. In order to determine
when to rotate tips, monitor rotor finish. If the rotor finish begins to look inconsistent, or feels rough to the touch, tips should be
rotated. Tips that are chipped or cracked should never be used.
Be sure that the tip pocket is clean before positioning the tip. Any foreign material pinched under the tip will cause problems.
NOTE 2: Use only Pro-Cut Cutting Tips (50-742 or 50-743). Although
other tips may fit the machine, only Pro-Cut tips have been specifically
engineered in tandem with the Pro-Cut lathe. Using a non-Pro-Cut tip may
compromise lathe performance and result in poor surface finish.
NOTE 1: The lathe has a powerful 1 hp motor which requires 20 amp ser-
vice. All extension cords must be at least 12 gage and less than 25 feet;
drop light cords are not recommended.
CHECK CUTTING TIPS
*OPTIONAL 50-1250 CUTTING HEAD SHOWN
WWW.PROCUTUSA.COM PG /19
The adapters are made of
case iron, not aluminum or
steel like wheels. They are
not designed to withstand
the use of impact tools.
DO NOT USE IMPACT
GUNS TO ATTACH THESE
ADAPTERS! Twenty to
thirty ft.-lbs. applied by
hand is plenty to secure
the adapter to the vehicle.
Excess torque applied
with an impact wrench
will damage the adapters.
Warranty does not cover
this misuse.
WARNING
STEP 1: MOUNT THE ADAPTER (2 Minutes)
MACHINING ROTORS
In just 4 steps in about 7-9 minutes, any tech can perform top-quality brake work.
Step 1: Mount the Adapter (2 mins.)
Step 2: Set up the Lathe (1-2 mins.)
Step 3: Adjust for Lateral Run-out (1 mins.)
Step 4: Make the Cut (3-4 mins.)
The First step is to choose the proper adapter. Most passenger cars require either the four (50-687) or
five lug (50-688) Direct Fit® adapter. Some larger passenger cars and smaller trucks use the (50-693)
adapter. For most trucks and vans, use the larger adapter (50-681) or the 50-694. See the adapter guide
on pages 70-71 of this manual, or use the adapter search on the Pro-Cut website or SuperTech app for
more specific information.
Once you’ve selected the correct size adapter, place it over the studs or threaded holes (European vehicles)
in the correct position indicated by the adapter guide. When possible, use the nuts provided with the
machine. Tighten nuts with an open box end wrench or a torque wrench in a star pattern. Do not use high
torque impact guns to mount adapters. Nuts should be tightened to 25-30 ft. lbs. Excess torque may
damage the adapter.
Some vehicles require the use of a spacer (30-791 or 50-246) which are provided in the lathe package. If
the adapter doesn’t fit flush and square, use the spacer. Sometimes the holes in the spacer are not needed
as the entire bolt pattern will fit in the center of the spacer.
If the four steps are followed properly on each brake job, the Pro-Cut X9 RMS will operate accurately and efficiently.
PG /20 800.543.6618
MACHINING ROTORS CONTINUED
Vibration is the root cause of
most surface finish problems.
Be sure the cutting head is
securely locked in place.
Tight connections here reduce
the chance of vibration.
SECURING THE
CUTTING HEAD
STEP 2: SET UP THE LATHE (2 Minutes)
A. Mount the Lathe to the Adapter
Move the cutting head out so that the tips will not strike the rotor as you mount the lathe.
Next, roll the machine into place and match it up with the adapter. Note that the trolley moves up
and down to accommodate different heights. The small dowel pin on the face of the adapter will fit
into any of holes holes on the run-out adjustment flange. Turn the draw bar knob to thread into the
adapter securely connecting the lathe to the vehicle.
NOTE: It is very important that the machine be mounted smoothly on the adapter without prying or
forcing. Take the time to align the machine properly in order to avoid damage to the run-out adjust-
ment flange. The large draw bar knob will spin on very easily when the machine is properly aligned,
much like installing an oil filter. Tighten it by hand only.
Loosen the trolley lock lever so that the machine is free to rotate. Rotate the machine so that the
cutting head is in a position where there is clearance to make the cut. Be sure to check the back side
of the rotor for obstacles. Make sure there will be clearance for the chip deflector as well. Lock the
trolley lever so the machine will not rotate when the motor is started.
B. Position the Lathe for Cutting
Step 2: Technician mounts the
lathe to the adapter
Table of contents
Other Pro-Cut Lathe manuals
