Pro-Form PFEL09911.0 User manual

USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEL09911.0
Serial No.
Write the serial number in the space
above for reference.
www.proform.com
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com

2
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the ellip-
tical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Heart Rate Monitor
Resistance Control
Console
Upper Body Arm
Handlebar
Ramp Control
Wheel
Pedal
Roller
Pedal Knob
Accessory Tray
Ramp
Fan
Length: 5 ft. 9 in. (175 cm)
Width: 2 ft. 2 in. (66 cm)
Thank you for selecting the revolutionary PROFORM®
910 E elliptical. The 910 E elliptical provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN

5
M8 x 35mm
Bolt (96)–4
M10 x 75mm Screw
(119)–2
M10 x 90mm
Screw (84)–2
M8 Locknut
(102)–4 Wave Washer
(95)–2
M8 x 25mm
Washer (98)–6
M8 Star
Washer (122)–4
#8 x 1/2"
Screw (124)–4
M8 x 16mm
Screw (120)–8
M8 x 19mm
Screw (82)–4
M6 x 10mm
Screw (121)–8
#8 x 3/4"
Screw (123)–11
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
• Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the front of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the front of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 90mm Screws (84). Then,
remove and discard the shipping bracket (not
shown).
2. Orient the Front Stabilizer Cover (8) as shown.
Press the Mounts (117) (only three are shown)
on the underside of the Front Stabilizer Cover
(8) into the Frame (1). Then, press the Front
Stabilizer Cover into place.
1
2
6
1
1
84
8
117

7
3
5
1
119
Welded Tubes
3. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the rear of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the rear of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Orient the Rear Stabilizer (5) so that the welded
tubes are in the locations shown.
Attach the Rear Stabilizer (5) to the Frame (1)
with two M10 x 75mm Screws (119).
Then, remove and discard the shipping bracket
(not shown).
4
5
2
117
4. Orient the Rear Stabilizer Cover (2) as shown.
Press the Mounts (117) on the underside of the
Rear Stabilizer Cover (2) into the Rear Stabilizer
(5). Then, press the Rear Stabilizer Cover into
place.
5. Have a second person hold the Upright (4) near
the Frame (1).
See the inset drawing. Locate the wire tie in the
lower end of the Upright (4). Tie the wire tie to
the Main Wire (110). Then, pull the upper end of
the wire tie until the Main Wire is routed through
the Upright.
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie.
5
1
4
110
Wire
Tie
Wire
Tie
110

8
6. Tip: Avoid pinching the Main Wire (110). Set
the Upright (4) on the Frame (1).
Attach the Upright (4) with four M8 x 19mm
Screws (82) and four M8 Star Washers (122).
6
Avoid pinching the
Main Wire (110)
1
82
4
122
110
7
56
75
7. Orient the Lower Upright Cover (56) as shown.
Press the Lower Upright Cover (56) into the
Shield Cover (75).

9
8
68
55
4
8. Identify the Left and Right Inner Covers (55, 68),
which are marked with “Left” and “Right” stick-
ers, and orient them as shown.
Slide the Left Inner Cover (55) onto the left side
of the Upright (4). Then, slide the Right Inner
Cover (68) onto the right side of the Upright.
9. Using a small plastic bag to keep your fingers
clean, apply some of the included grease to the
Pivot Axle (35) and to two Wave Washers (95).
Insert the Pivot Axle (35) through the Upright (4)
and then center it. Tip: It may be helpful to use
a rubber mallet.
Identify the Right Upper Body Arm (61), which
is marked with a “Right” sticker, and orient it as
shown.
Slide a Wave Washer (95) and the Right Upper
Body Arm (61) onto the right side of the Pivot
Axle (35).
Repeat these actions for the Left Upper Body
Arm (not shown).
61
95
35
4
Grease
9

10
10. Tighten an M8 x 16mm Screw (120) and an M8
x 25mm Washer (98) into each end of the Pivot
Axle (35) at the same time.
10
120
120
98
98
35
11. Identify the Right Pedal (49) and the Right Pedal
Arm (58), which are marked with “Right” stickers,
and orient them as shown.
Attach the Right Pedal (49) to the Right Pedal
Bracket (139) on the Right Pedal Arm (58) with
four M6 x 10mm Screws (121).
Repeat this step for the Left Pedal (not
shown) and the Left Pedal Arm (not shown).
11
58
49
121
121
139

11
12. Orient the Left Pedal Arm (44) as shown.
Apply grease to the axle on the Left Pedal Arm
(44).
Attach the Left Pedal Arm (44) to the Left Roller
Arm (12) with an M8 x 16mm Screw (120), a
Roller Arm Cover (81), and an M8 x 25mm
Washer (98).
Repeat this step for the Right Pedal Arm (not
shown).
12
81
98
44
12
120
Grease
13. Tip: Do not insert the Right Upper Body Arm
(61) into the Right Upper Body Leg (36) until
step 14.
Orient the Right Upper Body Leg (36) as shown.
Apply grease to the axle on the Right Upper
Body Leg.
Slide the Pedal Arm Flex Bracket (136) on the
Right Pedal Arm (58) onto the Right Upper Body
Leg (36).
Attach the Pedal Arm Bracket (136) to the Right
Upper Body Leg (36) with two M8 x 16mm
Screws (120), two Axle Covers (53), and an M8
x 25mm Washer (98). Do not fully tighten the
Screws yet.
Repeat this step on the other side of the
elliptical.
53
98 53
Grease
120
120
36
58
136
13
61

12
36
61
96
102
Hexagonal
Holes
14. Insert the Right Upper Body Arm (61) into the
Right Upper Body Leg (36).
Attach the Right Upper Body Arm (61) with two
M8 x 35mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step on the other side of the
elliptical.
See step 13. Tighten the M8 x 16mm
Screws (120).
67
68
36
123
123
15. Attach the Right Inner Cover (68) to the
Right Upper Body Arm (61) with a #8 x 3/4"
Screw (123).
Identify the Right Outer Cover (67), which is
marked with a “Right” sticker, and orient it as
shown.
Attach the Right Outer Cover (67) to the Right
Inner Cover (68) and the Right Upper Body Leg
(36) with two #8 x 3/4" Screws (123).
Repeat this step on the other side of the
elliptical.
61
14
15

13
17

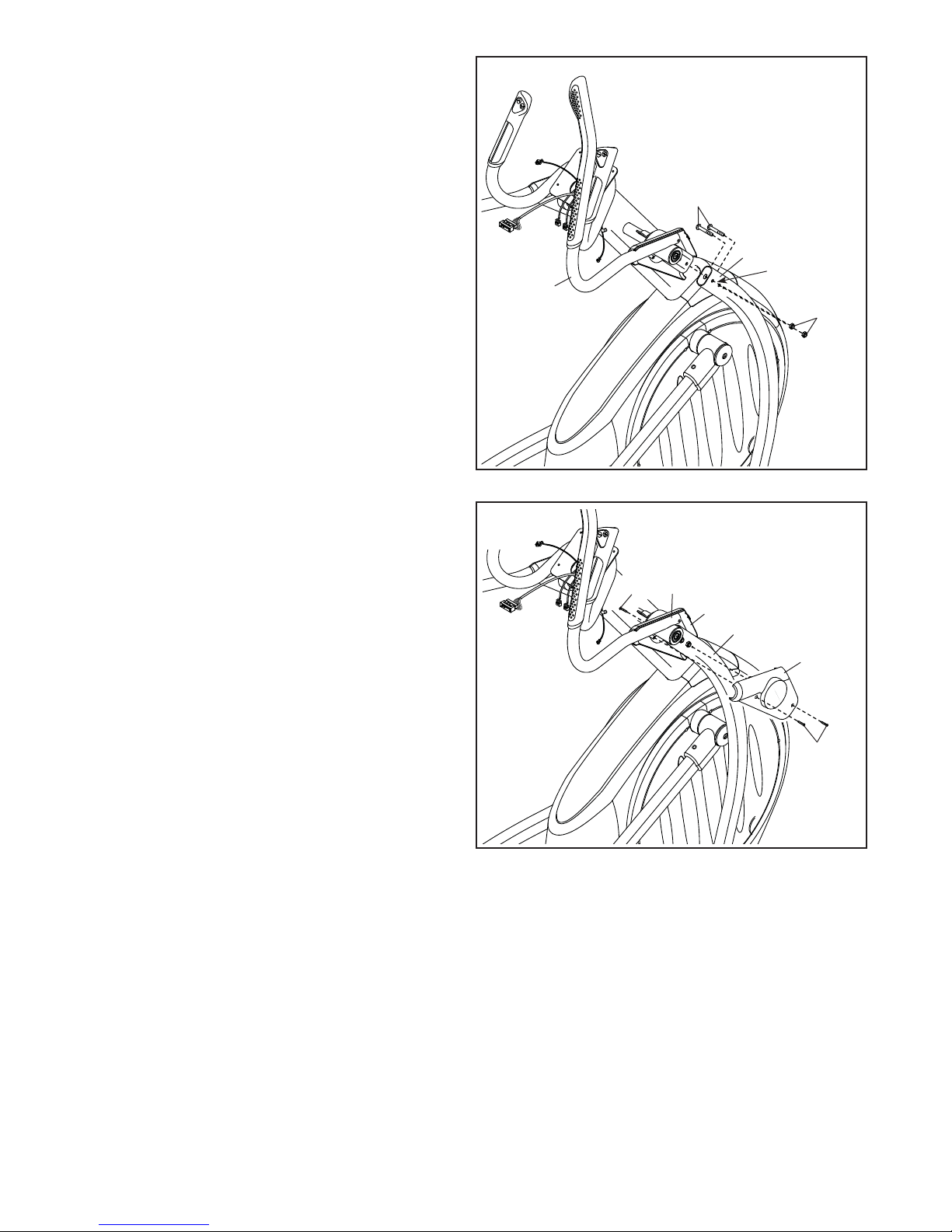

16. Untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110), to the Right and
Left Sensor Wires (63, 69), and to the Extension
Wire (150).
Insert the excess wire into the Upright (4) or into
the Console (7).
16
7
17. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four #8 x 1/2"
Screws (124).
18
Avoid pinching
the wires
124
124
4
18. Note: If you purchase the optional chest
heart rate monitor (see page 23), see
step 21 on page 14 to install the receiver
included with the heart rate monitor.
Orient the Rear Upright Cover (80) as shown.
Attach the Rear Upright Cover (80) to the Upright
(4) with four #8 x 3/4" Screws (123).
80
123
123
4
4
110
7
63, 69
150

14
20. Make sure that all parts are properly tightened before you use the elliptical. Note: After assembly is com-
pleted, some extra parts may be left over. Place a mat beneath the elliptical to protect the floor.
19. Orient the Front Upright Cover (91) as shown.
Press the Front Upright Cover (91) into the Rear
Upright Cover (80).
Attach the Front Upright Cover (91) to the
Upright (4) with a #8 x 3/4" Screw (123).
19
80
91
123
4
If you purchase the optional chest heart rate monitor (see page 23), follow the additional step below to
install the receiver included with the heart rate monitor.
21. See steps 18 and 19. Remove the Front and
Rear Upright Covers (91, 80) if necessary.
Remove the paper from the adhesive pad on
the back of the Receiver (A). Press the Receiver
onto the indicated location on the inside of the
Rear Upright Cover (80) below the Accessory
Tray (37).
See the inset drawing. Make sure that the
antenna on the Receiver (A) is oriented so
that it is in a horizontal position parallel to
the floor.
Connect the wire on the Receiver (A) to the
Extension Wire (150).
Next, attach the Rear Upright Cover (80) with
four #8 x 3/4" Screws (123). Then, see step 19
and attach the Front Upright Cover (91).
Note: Discard any other wires that are included
with the heart rate monitor.
21
80
37
A
A
Antenna
123
123
4

15
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-
volt circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualified electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, simply lift the pedal and turn the
pedal knob beneath the pedal. Make sure to adjust
both pedals to the same position.
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Grounded Outlet
2-pole Receptacle
Grounding Pin
Adapter
Lug
Metal Screw
Pedal
Knob
Pedal

16
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
front wheels. Pull on the upright and have a second
person lift the handle on the ramp until the elliptical will
roll on the front wheels. Carefully move the elliptical to
the desired location, and then lower it to the floor.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or
the handlebars and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The crank arms can turn in either
direction. It is recommended that you turn the
crank arms in the direction shown by the arrow;
however, for variety, you can turn the crank arms in
the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Pedals
Crank Arm
Upper Body
Arms
Handlebars
Place
your foot
here
Pull on the
upright
Lift here

17
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button. While you
exercise, the console will display continuous exercise
feedback. You can also measure your heart rate using
the handgrip heart rate monitor or an optional chest
heart rate monitor.
In addition, the console offers twenty-four target toning
workouts designed to work different muscle groups.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts you
to vary your pedaling pace as it guides you through an
effective workout.
The console also features revolutionary iFit Live
technology that enables the console to communicate
with your wireless network through an optional iFit Live
module. With the iFit Live mode, you can download
personalized workouts, create your own workouts,
track your workout results, race against other iFit Live
runners, and access many other features. To pur-
chase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 18. To use the
manual mode, see page 18. To use a target ton-
ing workout, see page 21. To use an iFit Live
workout, see page 22. To use the sound system,
see page 23. To change console settings, see
page 24.
Note: If there is a sheet of plastic on the display,
remove the plastic.
CONSOLE DIAGRAM

18
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
15). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then light and the console will be ready
for use.
Note: When you turn on the power for the first time,
the ramp will calibrate automatically. The ramp will
move upward and downward as it calibrates. When the
ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 26 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual Control button on the console to
select the manual mode.
If a wireless iFit Live module is not inserted into
the console and connected to iFit Live, the manual
mode will be selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons located on the console or on the right
handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered Quick Power Ramp
buttons or press the Quick Power Ramp increase
and decrease buttons located on the console or on
the left handlebar.
Note: After you press a button, it will take a
moment for the ramp to reach the selected incline
level.
Reset
Position

19
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Incline—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor or
an optional chest heart rate monitor (see step 5 on
page 20).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Stride—This display mode will show the total num-
ber of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Incline—This tab will show a profile of the incline
settings of the workout. A new segment will appear
at the end of each minute.
Speed—This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that rep-
resents 1/4 mile (400 m). As you exercise, the
flashing rectangle will show your progress. The
My Trail tab will also show the number of laps you
complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 24 to set the default menu).
If necessary, press the Home button again.

20
When a wireless iFit
Live module is con-
nected, the wireless
symbol at the top
of the display will
show the strength of
your wireless signal. Four arcs indicate full signal
strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume
level of the console by
pressing the Volume
increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip heart rate monitor or the optional chest
heart rate monitor (see page 23 for information
about the optional chest heart rate monitor).
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor,
remove the plas-
tic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms
resting against the
contacts. Avoid moving your hands or gripping
the contacts tightly.
When your pulse is detected, a heart symbol will
flash in the display each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has low and
high speed set-
tings. Press the Fan
increase and decrease
buttons repeatedly to
select a fan speed or
to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
Contacts
