Pro-Form PFTL57007.0 User manual

Serial
Number
Decal
Model No. PFTL57007.0
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
Write the serial number in the
space above for future reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V

TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
The decals shown here have been applied in the lo-
cations shown. If a decal is missing or illegible,
call the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
PROFORM is a registered trademark of ICON IP, Inc.
2

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or persons
with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women.
Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 25 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARNING: Toreduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS

4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 23.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the frame is held securely in the
storage position.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary PROFORM®
5.5 CROSSTRAINER treadmill. The 5.5 CROSS-
TRAINER treadmill offers an impressive array of fea-
tures designed to make your workouts at home more
enjoyable and effective. And when you’re not exercis-
ing, the unique 5.5 CROSSTRAINER treadmill can be
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill.If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

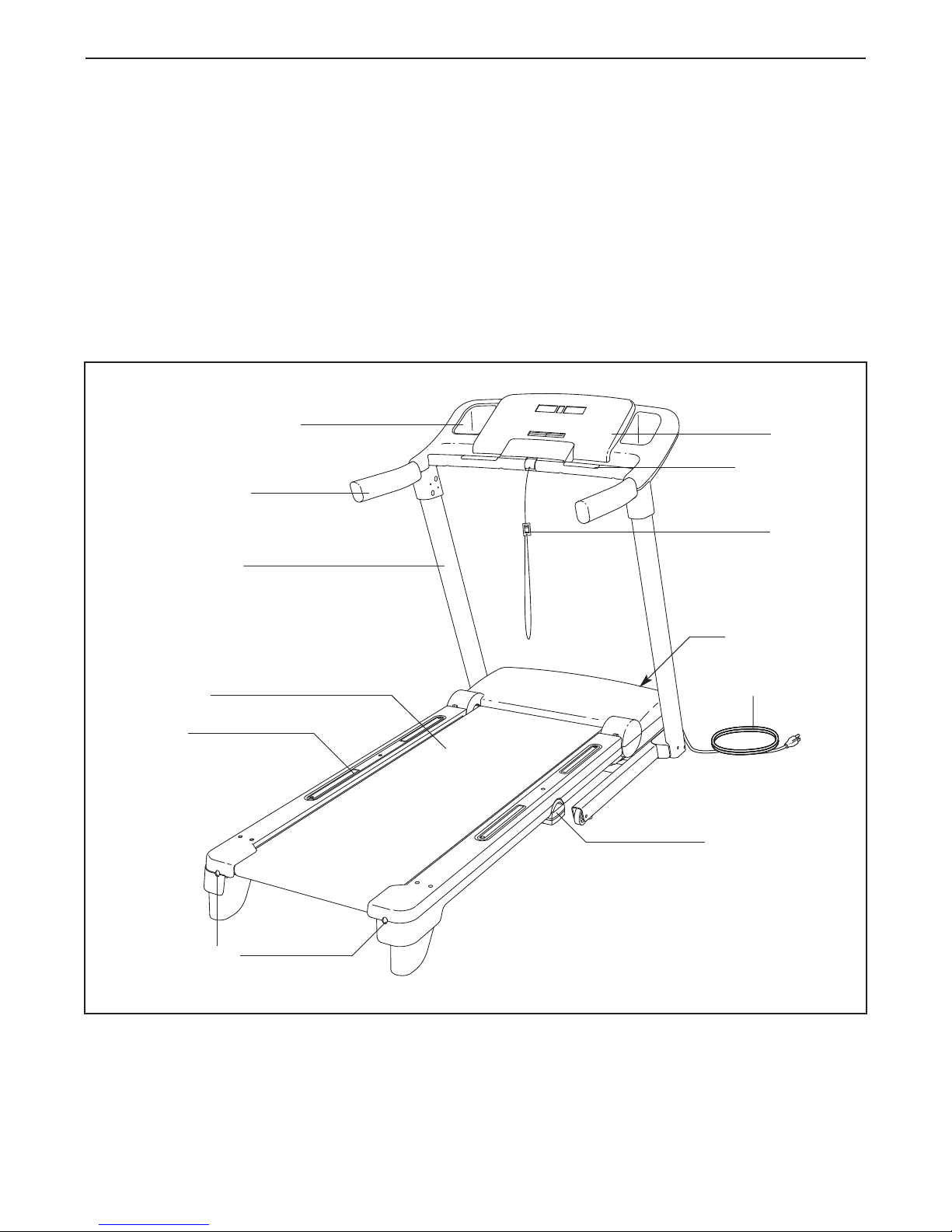

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Accessory Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Console
Pulse Sensor

6
ASSEMBLY
Tohire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , scissors , and rubber mallet .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
3/8" Nut (8)–2
#8 x 1" Tek Screw (2)–4
Base Pad Spacer
(13)–2
3
3/8" Star
Washer (9)–8
#10 x 3/4"
Screw (5)–2 #8 x 3/4"
Screw (12)–14
#10 Star
Washer (27)–2
#8 x 3/4" Endcap
Screw (16)–2
3/8" x 1 1/4" Bolt (7)–4
3
3/8" x 4" Bolt (6)–4
3/8" x 2" Bolt (4)–2
5
Bolt Spacer (80)–4

7

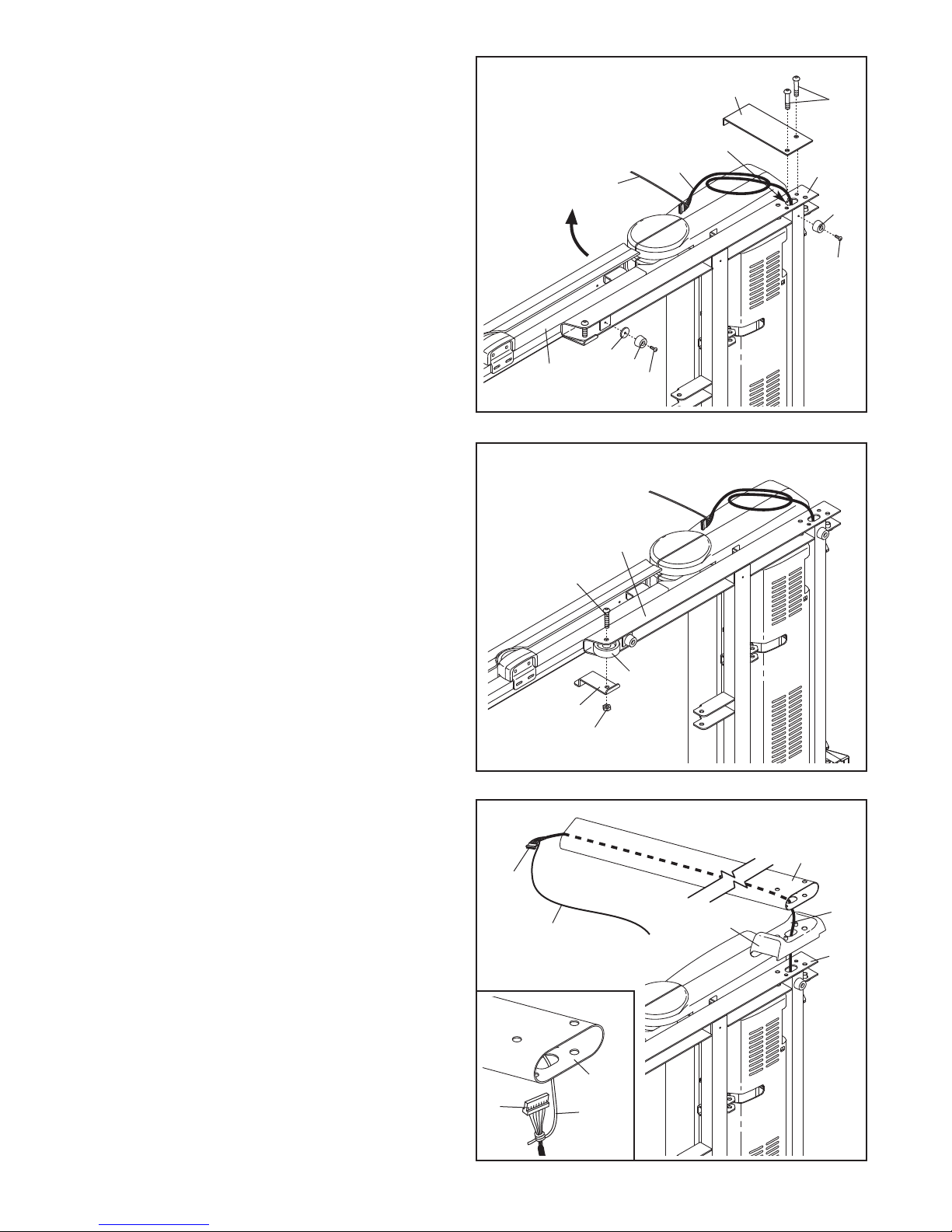

3. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown.
See the inset drawing. Tie the long tie in the
Right Upright (78) securely around the end of
the Upright Wire (38). With the help of a second
person, hold the Right Upright near the Base
(83). Then, pull the other end of the long tie until
the Upright Wire is routed completely through
the Right Upright.
83
38
78
79 38
3
2. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
Attach a Wheel (84) with the Bolt and the Nut
that you just removed. Do not overtighten the
Nut; the Wheel must turn freely. Discard the
shipping bracket. 83
4
C
8
2
84
Long
Tie
78
38
1.Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the tie securing the Upright Wire (38) to the
Base (83). Use the tie to pull the Upright Wire
out of the indicated hole.
Attach a Base Pad (81) to the Base (83) in the
location shown with a Base Pad Spacer (13) and
a#8 x 1" Tek Screw (2). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
83
2
56
BA
81
1
81 2
38
Tie
Hole
13
Long
Tie

8

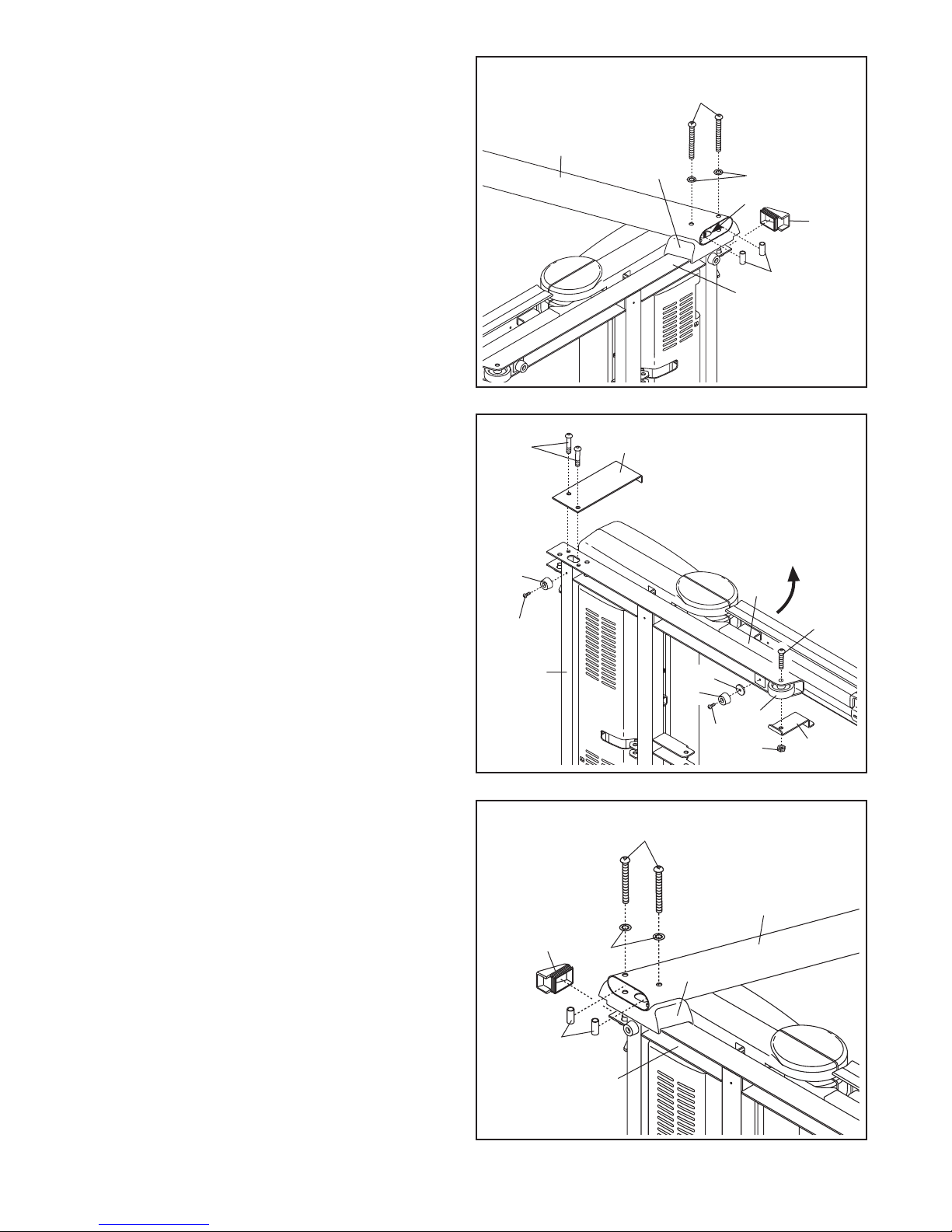

6. Set the Left Upright Spacer (76) on the Base
(83). With the help of a second person, hold a
Bolt Spacer (80) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a sec-
ond Bolt Spacer (80), 3/8" x 4" Bolt (6), and
3/8" Star Washer (9). Set the Left Upright in the
Left Upright Spacer.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
77
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
aBase Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
Attach a Wheel (84) with the Bolt and the Nut
that you just removed. Do not overtighten the
Nut; the Wheel must turn freely. Discard the
shipping bracket.
5
83
B
A
84
56
8C
81
24
2
4. Set the Right Upright Spacer (79) on the Base
(83). Make sure the Upright Wire (38) is not
pinched. With the help of a second person, hold
aBolt Spacer (80) inside the lower end of the
Right Upright (78). Insert a 3/8" x 4" Bolt (6) with
a3/8" Star Washer (9) into the Right Upright
and the Bolt Spacer. Repeat this step with a
second Bolt Spacer (80), 3/8" x 4" Bolt (6),
and 3/8" Star Washer (9). Set the Right Upright
into the Right Upright Spacer.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
79
78
77
6
4
38
9
9
83
80
81
13
80

9
9. Attach the Pulse Bar Bottom (95) to the Left
Handrail (33) and the Right Handrail (34) with
two #10 x 3/4" Screws (5) and two #10 Star
Washers (27).
Remove the long tie from the Upright Wire (38).
9
95
5
538
34
33
27
27
Long Tie
7. Press a Front Handrail Endcap (97) into the Left
Handrail (33). Attach the Front Handrail Endcap
with a #8 x 3/4" Endcap Screw (16).
Slide the Left Collar (47) onto the Left Upright
(74). Align the large holes in the Left Collar
with the large holes in the Left Upright. Set
the Left Handrail (33) on the Left Collar.
Attach the Left Handrail (33) with two 3/8" x
11/4" Bolts (7) and two 3/8" Star Washers (9).
Firmly tighten the Bolts.
Tighten two #8 x 3/4" Screws (12) into the Left
Collar (47).
16
7
8. Hold the Right Handrail (34) near the Right
Upright (78). Insert the Upright Wire (38)
through the Right Collar (60), into the hole in the
bottom of the Right Handrail, and out of the
large hole in the side of the Right Handrail.
See the inset drawing. Insert the included plas-
tic tie through the holes in the Right Handrail
(34) as shown. Look inside the Right Handrail.
Make sure that the plastic tie holds the
Upright Wire (38) to the side as shown in the
inset drawing. Tighten the plastic tie.
Press a Front Handrail Endcap (97) into the
Right Handrail (34). Attach the Front Handrail
Endcap with a #8 x 3/4" Endcap Screw (16).
Attach the Right Handrail (34) with two 3/8" x 1
1/4" Bolts (7) and two 3/8" Star Washers (9).
Firmly tighten the Bolts.
Tighten two #8 x 3/4" Screws (12) into the Right
Collar (60).
8
33
60
78
97
38
34 12
79
Plastic Tie
Large
Hole
16
74
47
912
7
97
38
34 Tie
60
Hole
Hole

10
12. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the hole.
Pull on the sleeve to make sure that it is
locked into place.
54
Sleeve
Hole
Tube
53
12

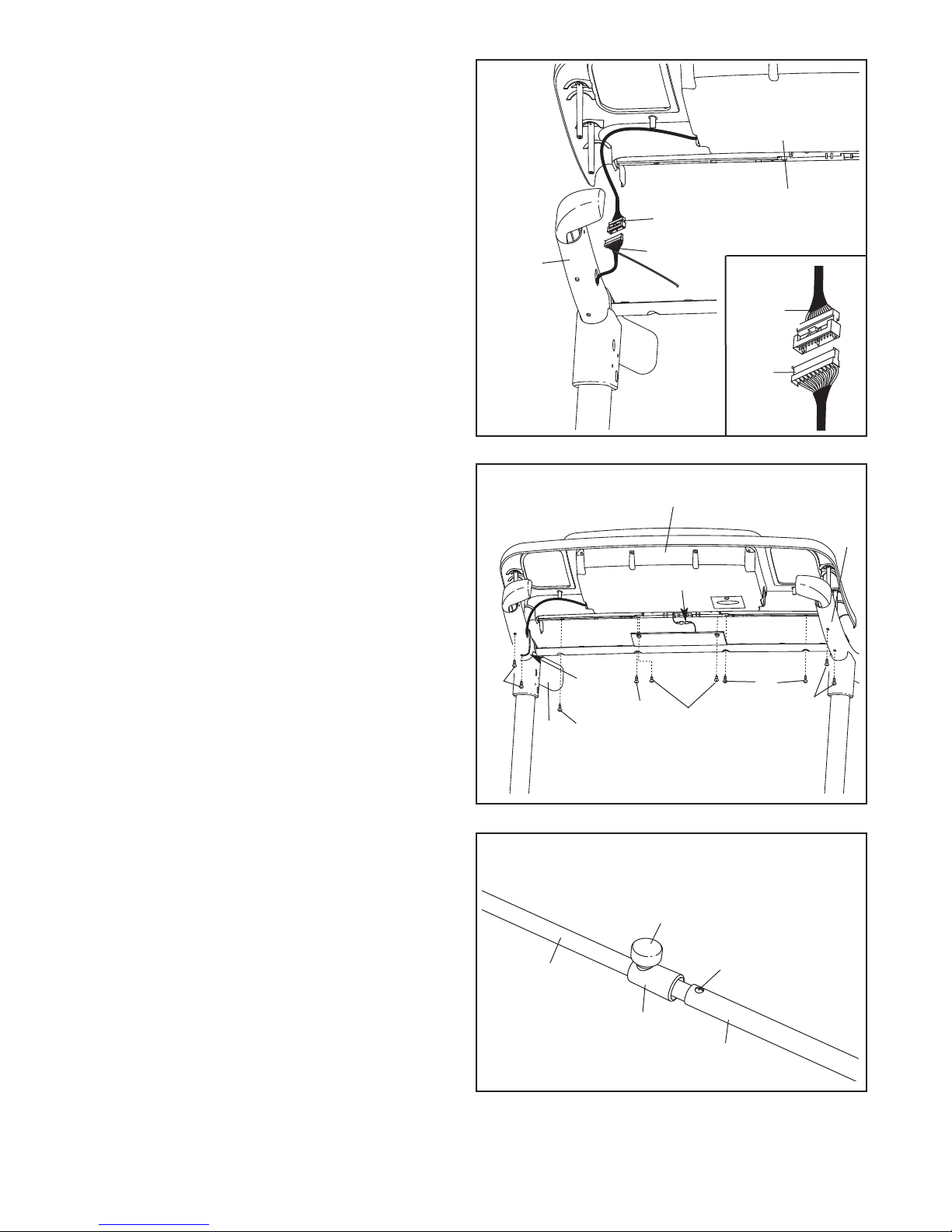

10. With the help of a second person, hold the con-
sole assembly near the Right Handrail (34) and
the Left Handrail (not shown).
Connect the Upright Wire (38) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN YOU TURN ON THE
POWER. Insert the connectors and the excess
wire into the Right Handrail (34).
Console
Assembly
10
11. Connect the console ground wire to the handrail
ground wire.
Set the console assembly on the Right Handrail
(34) and the Left Handrail (33). Make sure that
the wire harnesses are not pinched. Attach
the console assembly with ten #8 x 3/4" Screws
(12). Start all the Screws before tightening
any of them.
Cut the plastic tie off the Right Handrail (34).
See steps 4 and 6. Firmly tighten the four 3/8" x
4" Bolts (6).
Console Assembly
Ground Wires
11
Console
Wire
Console
Wire
38
38
34
12
12
Plastic
Tie
12
12
12
12
33
34

11
13. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the posi-
tions shown. Attach the lower end of the Storage
Latch to the bracket on the Base (83) with a 3/8"
x2" Bolt (4) and a 3/8" Nut (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 24).
53
8
8
Large
Barrel
83
4
56
13
4
54
14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used
to adjust the walking belt (see pages 26 and 27).

12
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin

13

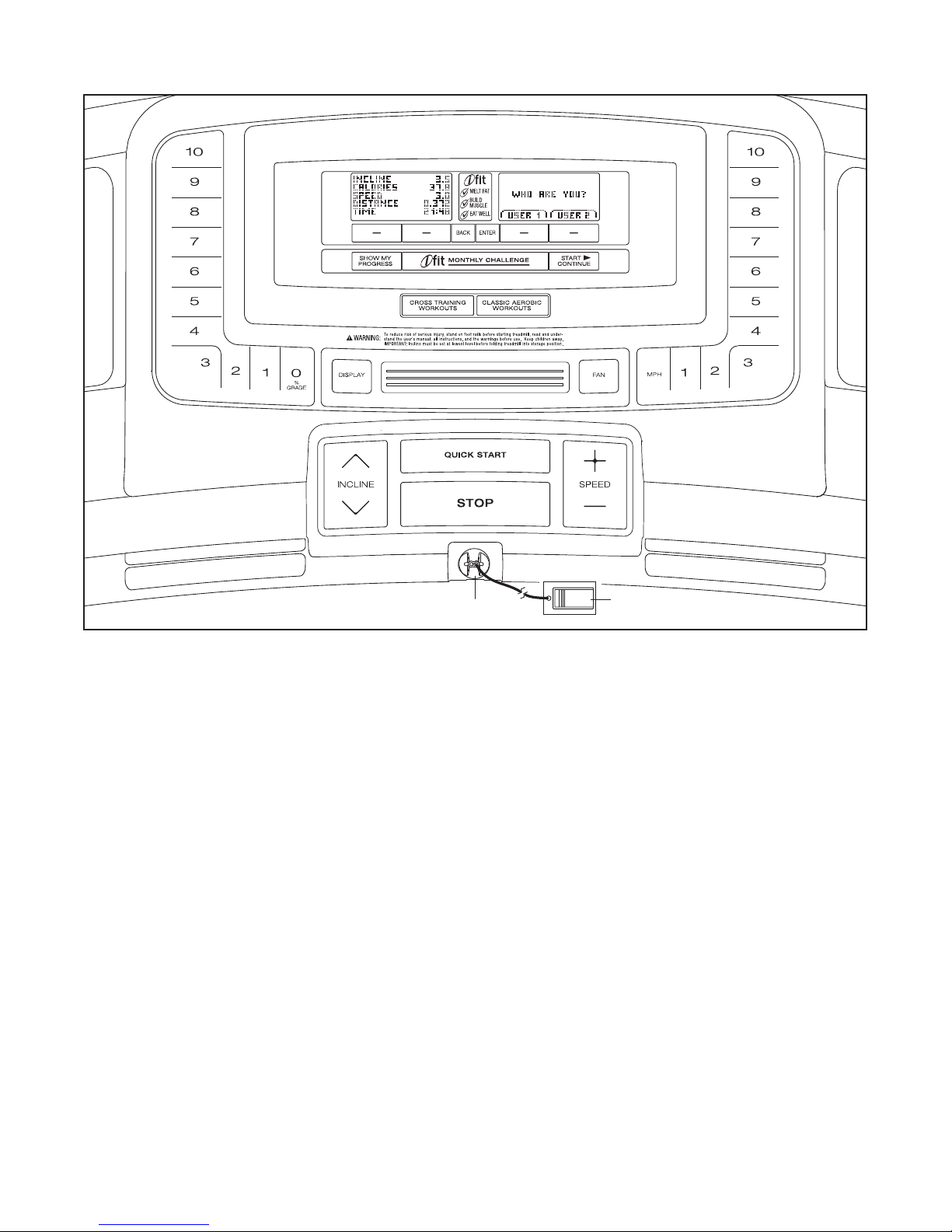

FEATURES OF THE CONSOLE
The revolutionary treadmill console offers a selection
of features designed to make your workouts more
effective and enjoyable.
When you select the manual mode of the console, you
can change the speed and incline of the treadmill with
the touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the handgrip pulse sen-
sor or the optional chest pulse sensor (see page 22 for
information about the optional chest pulse sensor).
The console also features 24 interactive cross training
workouts designed to help you to burn calories and en-
hance your cardiovascular system while toning and
strengthening your muscles. The cross training work-
outs automatically control the speed and incline of the
treadmill and prompt you to perform a variety of
strength exercises during your workout. Note: The
strength exercises require the use of dumbbells and an
inflatable exercise ball (not included). To purchase
dumbbells or an exercise ball, see the front cover
of this manual.
In addition to the cross training workouts, the console
features nine classic aerobic workouts. Each workout
automatically controls the speed and incline of the
treadmill as it guides you through an effective workout.
The iFIT monthly challenge helps you set fitness goals
and track your progress using the iFIT monthly chal-
lenge log. The iFIT monthly challenge even provides
the right workout for your fitness level and a personal-
ized calorie plan to help you create healthy eating
habits.
To use the manual mode of the console, follow the
steps beginning on page 14. To use a cross training
workout,see page 17. To use a classic aerobic
workout,see page 19. To use the iFIT monthly chal-
lenge,see page 20. To review your monthly chal-
lenge log,see page 21. To use the information
mode,see page 21.
Key Clip
CONSOLE DIAGRAM

14
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, the console displays or other electrical
components may become damaged.
Plug in the power cord (see
page 12). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Switch the cir-
cuit breaker to the reset posi-
tion.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 21 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 13)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. When the key is
inserted, the displays will light. IMPORTANT: In an
emergency situation, the key can be pulled from
the console, causing the walking belt to slow to a
stop. Test the clip by carefully taking a few steps
backward; if the key is not pulled from the console,
adjust the position of the clip.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To pre-
vent damage to the walking platform, wear clean
athletic shoes while using the treadmill. The first
time the treadmill is used, observe the alignment of
the walking belt, and center the walking belt if nec-
essary (see page 27).
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of mea-
surement is selected, see THE INFORMATION MODE
on page 21. For simplicity, all instructions in this man-
ual refer to miles.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
When the key
is inserted,
the manual
mode will be
selected. If
you have se-
lected a workout, reselect the manual mode by
pressing either of the Workouts buttons repeatedly
until only zeros appear in the displays.
3. Start the walking belt.
To start the walking belt, press the Quick Start but-
ton, the Speed increase button, or one of the
speed buttons numbered 1 to 10.
If you press the Quick Start button or the Speed in-
crease button, the walking belt will begin to move at
1mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time you press
abutton, the speed setting will change by 0.1 mph;
if you hold down a button, the speed setting will
change in increments of 0.5 mph. Note: After you
press the buttons, it may take a moment for the walk-
ing belt to reach the selected speed setting.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
Reset
Position

15
After the walking belt
starts moving, the left
display will ask whether
you want to include the
workout towards your
monthly challenge goal.
To include the workout,
press the button below the word YES in the dis-
play. Then select either user 1 or user 2 in the
same way and the workout will continue. If you se-
lect NO, the workout will continue. Note: The con-
sole can track workout history information for two
different users. Once you determine which user
you will be, continue to select that user each time
you use the treadmill. After you have selected user
1or user 2, your user number will be saved in
memory for the remainder of the workout session.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Quick Start but-
ton, the Speed increase button, or one of the num-
bered speed buttons.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the incline buttons numbered 0 to 10. Each time
you press the Incline increase or decrease button,
the incline will change by 0.5%. If you press one of
the numbered incline buttons, the treadmill will ad-
just to the selected incline setting. Note: After you
press the buttons, it may take a moment for the
treadmill to reach the selected incline setting.
5. Select a display mode and monitor your
progress with the displays.
When the manual mode is selected, the console of-
fers several display modes. The display mode that
you select will determine which workout information
is shown. Press the Display button repeatedly to
select the desired display mode.
As you walk or run on the treadmill, the display can
show the following workout information:
•The elapsed time.
•The distance that you have walked or run.
• The speed of the walking belt.
• The incline setting of the treadmill.
•The approximate number of calories you have
burned.
• The date.
•Your heart rate. Note: Your heart rate can be dis-
played only while you use the handgrip pulse sen-
sor or the optional chest pulse sensor.
To reset the display, press the Stop button, remove
the key, and then reinsert the key.

16
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same
time, the console will not display your heart
rate accurately. See page 22 for more information
on the optional chest pulse sensor.
Before using
the handgrip
pulse sensor,
remove the
sheets of
clear plastic
from the
metal con-
tacts. In addi-
tion, make sure that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail—
avoid moving your hands.When your pulse is de-
tected, your heart rate will be shown. For the most
accurate heart rate reading, continue to hold
the contacts for about 15 seconds.
7. Turn on the fan if desired.
Press the Fan button repeatedly to turn on or off
the fan. Note: If the fan is on when the walking belt
stops, the fan will automatically turn off after a few
minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
or you may damage the treadmill when you fold
it to the storage position. Next, remove the key
from the console and put it in a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmill’s electrical compo-
nents may wear prematurely.
Contacts

17
HOW TO USE A CROSS TRAINING WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Select a cross training workout.
To select a
cross train-
ing workout,
press the
Cross
Training
Workouts button repeatedly until the desired work-
out appears in the displays.

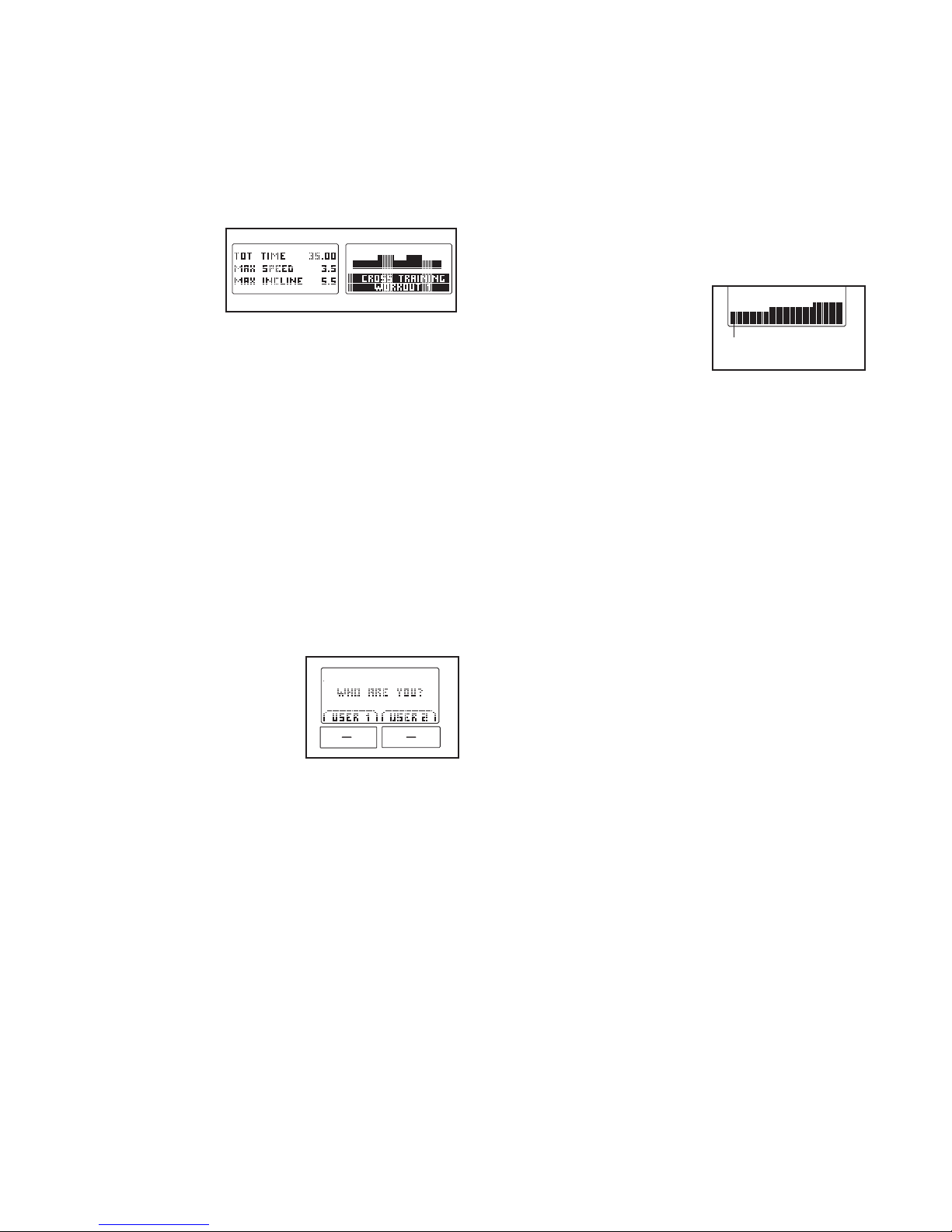

The left display will show the duration, the maxi-
mum speed setting, and the maximum incline set-
ting of the workout. The right display will show the
name of the workout and the profile of the speed
settings of the workout.
3.Press the Quick Start button to start the work-
out.
Amoment after you press the button, the treadmill
will automatically adjust to the first speed and in-
cline settings of the workout. Hold the handrails
and begin walking.
After the walking belt
starts moving, the right
display will ask whether
you want to include the
workout towards your
monthly challenge goal.
To include the workout,
press the button below the word YES in the dis-
play. Then select either user 1 or user 2 in the
same way and the workout will continue. If you se-
lect NO, the workout will continue. Note: The con-
sole can track workout history information for two
different users. Once you determine which user
you will be, continue to select that user each time
you use the treadmill. After you have selected user
1or user 2, your user number will be saved in
memory for the remainder of the workout session.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
most segments. During other segments, the console
will prompt you to perform strength exercises. Note:
The same speed and/or incline setting may be pro-
grammed for consecutive segments.
During the workout, the
profile will show your
progress. The flashing
segment of the profile
represents the current
segment of the workout.
The height of the flashing segment indicates the
speed setting for the current segment. At the end of
each segment, a series of tones will sound and the
new speed setting, new incline setting, and the next
segment of the profile will flash in the display.
The workout will continue in this way until the last
segment of the profile flashes in the right display
and the last segment ends. The walking belt will
then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or incline
buttons; however, when the next segment of the
workout begins, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Quick Start
button or the Speed increase button. The walking
belt will begin to move at 1 mph. When the next
segment of the workout begins, the treadmill will au-
tomatically adjust to the speed and incline settings
for the next segment.
Current Segment

18
4. Perform the first strength exercise when
prompted.
When the first strength exercise segment begins,
the walking belt will slow to a stop and the name of
the first strength exercise will appear in the left dis-
play.
The right display will show the recommended num-
ber of repetitions for the first strength exercise and
show a person demonstrating the exercise. The left
display will give you instructions to help you per-
form the exercise.
Remove the clip from the waistband of your
clothes, step off the treadmill, and prepare to begin
the first strength exercise. Exercise with a slow,
steady motion.
Note: When performing lunges, alternate legs with
each repetition. When performing dumbbell rows,
perform half the repetitions with your right arm and
half the repetitions with your left arm. The strength
exercises require the use of dumbbells and an in-
flatable exercise ball (not included). To purchase
dumbbells or an exercise ball, call the tele-
phone number on the front cover of this man-
ual.
5. Continue the cross trainer workout.
When you have performed the recommended num-
ber of repetitions, step onto the treadmill, slide the
clip back onto the waistband of your clothes,
and press the Continue button. The treadmill will
automatically adjust to the speed and incline set-
tings for the next segment.
The workout will continue in this way until the last
segment ends. The walking belt will then slow to a
stop.
6. Select a display mode and monitor your
progress with the displays.
When a workout is selected, the console offers sev-
eral display modes. The display mode that you se-
lect will determine which workout information is
shown. Press the Display button repeatedly to se-
lect the desired display mode.
As you walk or run on the treadmill, the display can
show the following workout information:
• The profile of the speed settings of the workout.
•The elapsed time.
•The distance that you have walked or run.
• The speed of the walking belt.
• The incline setting of the treadmill.
•The approximate number of calories you have
burned.
• The date.
•Your heart rate. Note: Your heart rate can be dis-
played only while you use the handgrip pulse sen-
sor or the optional chest pulse sensor.
To reset the display, press the Stop button, remove
the key, and then reinsert the key.
7. Measure your heart rate if desired.
See step 6 on page 16.
8. Turn on the fan if desired.
See step 7 on page 16.
9. When you are finished exercising, remove the
key from the console.
See step 8 on page 16.

19
HOW TO USE A CLASSIC AEROBIC WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Select a classic aerobic workout.
To select a
classic aero-
bic workout,
press the
Classic
Aerobic
Workouts but-
ton repeatedly until the desired workout appears in
the display.
When a classic aerobic workout is selected, the left
display will show the duration, the maximum speed
setting, and the maximum incline setting of the
workout. The right display will show the name of
the workout and the profile of the speed settings of
the workout.
3. Press the Quick Start button or Speed increase
button to start the workout.
Amoment after you press the button, the treadmill
will automatically adjust to the first speed and in-
cline settings of the workout. Hold the handrails
and begin walking.
After the walking belt starts moving, the right dis-
play will ask whether you want to include the work-
out towards your monthly challenge goal. To in-
clude the workout, press the button below the word
YES in the display. Then select either user 1 or
user 2 in the same way and the workout will con-
tinue. If you select NO, the workout will continue.
Note: The console can track workout history infor-
mation for two different users. Once you determine
which user you will be, continue to select that user
each time you use the treadmill. After you have se-
lected user 1 or user 2, your user number will be
saved in memory for the remainder of the workout
session.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are pro-
grammed for each segment. Note: The same
speed setting and/or incline setting may be pro-
grammed for consecutive segments.
During the workout, the
profile will show your
progress. The flashing
segment of the profile
represents the current
segment of the workout.
The height of the flashing segment indicates the
speed setting for the current segment. At the end of
each segment, a series of tones will sound and the
new speed setting, new incline setting, and the next
segment of the profile will flash in the display.
The workout will continue in this way until the last
segment of the profile flashes in the right display
and the last segment ends. The walking belt will
then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or incline
buttons; however, when the next segment of the
workout begins, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Quick Start
button or the Speed increase button. The walking
belt will begin to move at 1 mph. When the next
segment of the workout begins, the treadmill will au-
tomatically adjust to the speed and incline settings
for the next segment.
4. Select a display mode and monitor your
progress with the displays.
See step 6 on page 18.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. Turn on the fan if desired.
See step 7 on page 16.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 16.
Current Segment

20
HOW TO USE THE iFIT MONTHLY CHALLENGE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Select the monthly challenge.
To select the monthly challenge, press the iFIT
Monthly Challenge button.
When the iFIT monthly
challenge is selected,
you can begin warming
up while you answer
several questions. Press
the buttons below the
display to select the de-
sired answer. Press the Enter button after each
question. The console will display the calorie plan
that is right for you. Refer to the accompanying
eating guide for details on the correct calorie plan.
Then the console will display your intensity level.
To accept the intensity level, press the button
below ACCEPT in the right display. To change the
intensity level, press the button below CHANGE in
the display. Then press the buttons below the dis-
play to increase or decrease the intensity level.
Press the Enter button when the desired intensity
level is selected.
If you wish to change your user info or see your
calorie goal plan again, highlight CHANGE USER
INFO by pressing the buttons below the up and
down arrows in the display. Then press the Enter
button. Answer the questions as described above.
3. Get a monthly challenge goal.
After you have answered all the questions, high-
light the words NEW CHALLENGE in the right dis-
play. Then press Enter. Press the button below the
word YES to begin a monthly challenge. To
change the beginning time or date, press the but-
ton below YES in the left display. Press the buttons
below the right display to move the cursor. Press
the Enter button to select an item. Press the but-
tons below the right display to change the date or
time. Press the Enter button to deselect an item.
When you are finished setting the date and time,
press the button below DONE in the left display.
Note: For best results, make sure that the date and
time are set correctly before you use the iFIT
monthly challenge.
4.Start the workout.
Highlight the words START WORKOUT in the right
display by pressing the buttons below the up and
down arrows. Then press the Enter button.
Amoment after you press the button, the treadmill
will automatically adjust to the first speed and in-
cline settings of the workout. Hold the handrails
and begin walking.
5. Select a display mode and monitor your
progress with the displays.
The right display can show the approximate number
of calories burned per hour, your exercise intensity
in mets, your pace in minutes per mile or minutes
per kilometer, the incline level of the treadmill, your
pulse, questions, and instructions. One met is the
amount of energy you use while sitting. To answer
the questions, press the button below the desired
answer. Press the Display button repeatedly until
the right display shows the information you are
most interested in viewing.
The left display will show the time remaining in the
current segment, the approximate number of calo-
ries burned, the speed of the walking belt, the total
distance traveled, and the total workout time.
6. Complete the workout.
See steps 4–9 on page 18.
To review your progress, see HOW TO REVIEW
YOUR MONTHLY CHALLENGE LOG on page 21.
