Pro-Form PFTL43205.1 User manual

Model No. PFTL43205.1
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
Serial Number
Decal

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
2
PROFORM is a registered trademark of ICON IP, Inc.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
amat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 275 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes; never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 9),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 9. To purchase a surge suppressor, see
your local PROFORM dealer or call the toll-
free telephone number on the front cover of
this manual and order part number 146148, or
see your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 19 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 10).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user’s move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only as
an exercise aid in determining heart rate
trends in general.
19. Use the included hand weights only as de-
scribed in this manual. Properly store the
weights in the weight rack when you are not
using them (see page 5). If the hand weights
are improperly stored, they may fall off the
rack, causing the user to trip.
20. Never leave the treadmill unattended while it
is running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
3

4
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 17.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. Never insert any object into any opening.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill. If a decal is missing, or
if it is not legible, call the toll-free telephone number on the front cover of this
manual and order a free replacement decal. Apply the decal in the location shown.
Note: The decals are not shown at actual size.

5
Thank you for selecting the new PROFORM®525 X
treadmill. The PROFORM 525 X treadmill offers a selec-
tion of features designed to make your workouts at
home more effective and enjoyable. And when you’re
not exercising, the PROFORM 525 X treadmill can be
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill.If you have questions after read-
ing this manual, see the front cover of this manual. To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL43205.1. The serial
number can be found on a decal attached to the tread-
mill (see the front cover of this manual for the location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

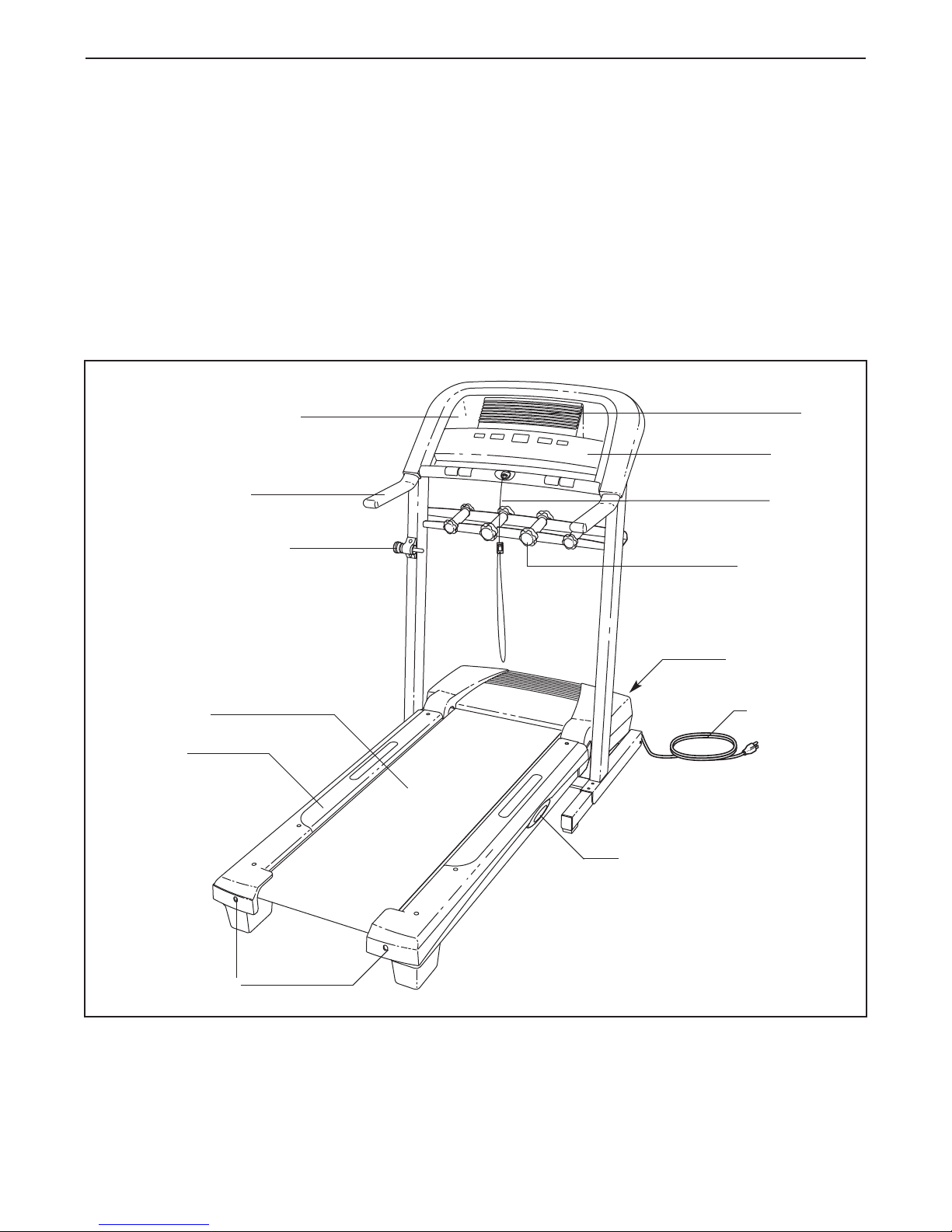

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Storage Latch
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Cushioned Walking Platform
for maximum exercise comfort
Foot Rail
Power Cord
RIGHT SIDE
Rear Roller
Adjustment Bolts
Console
Fan
Accessory Tray
Hand Weights/
Weight Rack
BACK

ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver ,
rubber mallet , and adjustable wrench .

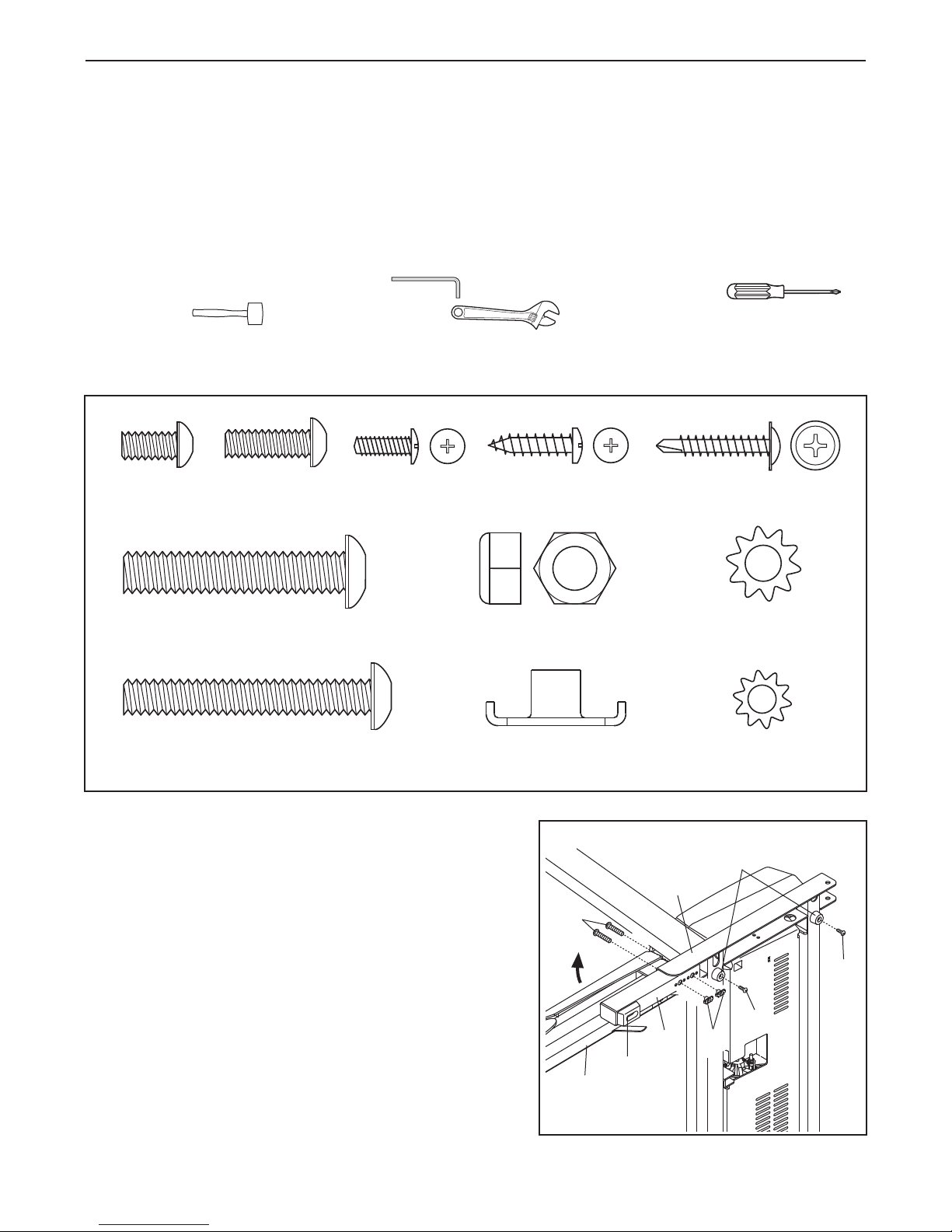

For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, check
to see if it has been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Wheel Nut (32)–2
Wheel Bolt (64)–2
1” Tek Screw (39)–4
Extension Leg
Nut (46)–4
Extension Leg Bolt (93)–8
3/4” Screw (2)–6
1/4” Star Washer
(96)–2
Silver Ground
Screw (75)–1
Console
Bolt (90)–2
Rack Bolt
(101)–2
Handrail Star
Washer (95)–4
1. Make sure that the power cord is unplugged. With
the help of a second person, carefully tip the treadmill
onto its left side as shown. Partially fold the Frame (86)
so the treadmill is more stable. Do not fully fold the
treadmill until it is completely assembled.
Orient an Extension Leg (63) so the Base Pad (61) is in
the position shown, and insert the Extension Leg into the
base of the Uprights (69). If necessary, use a rubber
mallet to fully insert the Extension Leg. Next, hold two
Extension Leg Nuts (46) in the bottom of the Extension
Leg, and insert two Extension Leg Bolts (93) into the top
of the Extension Leg. Firmly tighten the Extension Leg
Bolts into the Extension Leg Nuts.
Attach two Base Pads (57) to the base of the Uprights
(69) with two 1” Tek Screws (39).
63
86
61
57
69
39
39
93
46
1
6

7
2. Attach a Wheel (66) to the base of the Uprights (69) with
aWheel Bolt (64) and a Wheel Nut (32) as shown. Do
not overtighten the Wheel Bolt; the Wheel should turn
freely.
With the help of a second person, carefully tip the tread-
mill onto its other side. See assembly step 1 and attach
the other Extension Leg (63) and Base Pads (57). Next,
attach the other Wheel (66) as described above.
With the help of a second person, carefully tip the tread-
mill so the base of the Uprights (69) is flat on the floor.
66
32
69
64
2
42
71
4. Have another person hold the Console Base (47) near
the right Handrail (71). If there is a green ground wire
extending from the Console Base, attach the end of
the ground wire to the indicated small hole in the right
Handrail with the Silver Ground Screw (75).
Connect the Wire Harness (42) to the wire harness on
the Console Base (47). Make sure to connect the con-
nectors properly (see the inset drawing). The con-
nectors should slide together easily and snap into
place. If the connectors do not slide together easily and
snap into place, turn one connector and try again. IF THE
CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
75
47
Ground
Wire
4

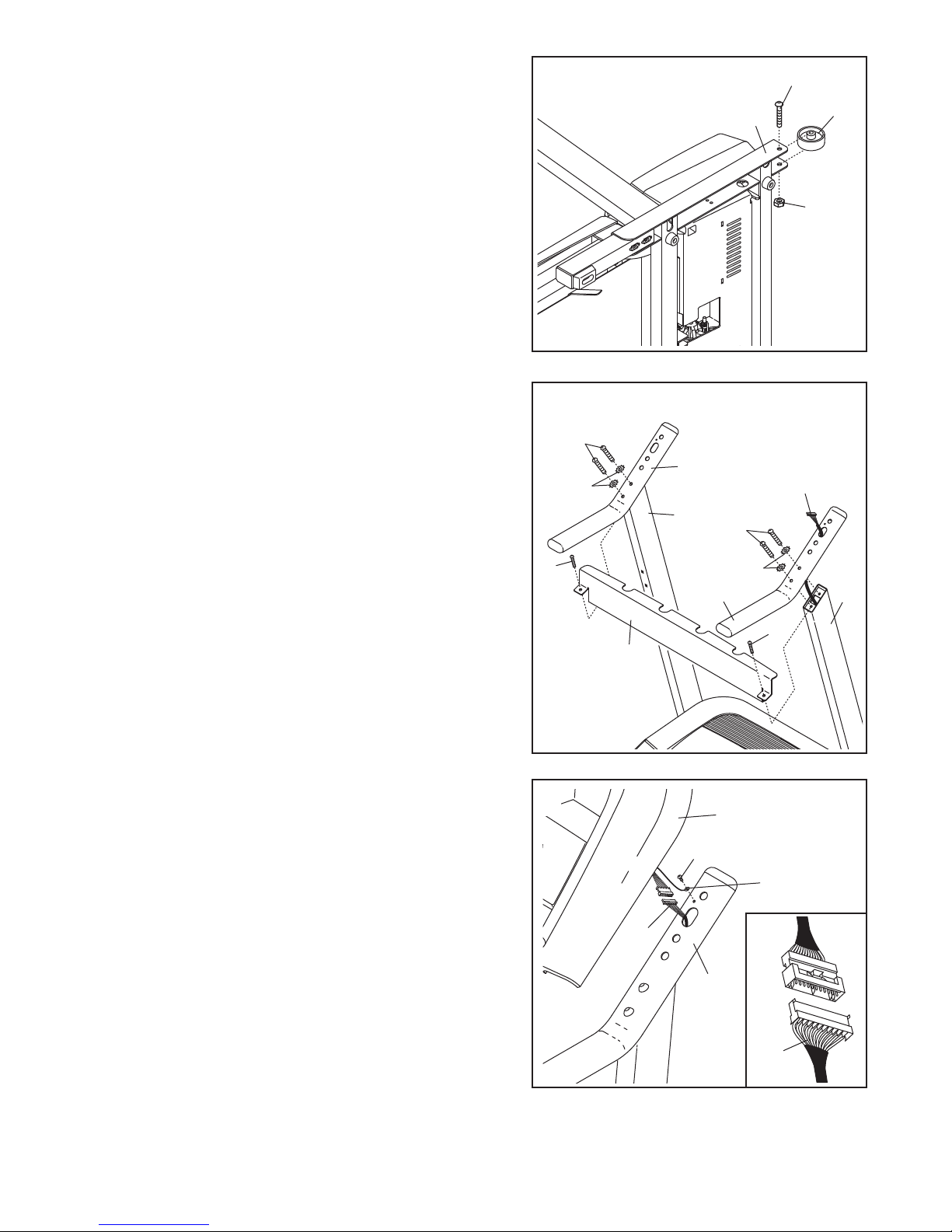

3. Remove the two bolts (A) attaching the Weight Rack
(102) to the Uprights (69), and discard the bolts. Remove
the Weights from the Weight Rack. The Weight Rack will
be assembled in step 6.
Remove the tie from the Wire Harness (42). Hold one of
the Handrails (71) near the right Upright (69), and insert
the Wire Harness into the opening in the bottom of the
Handrail and out of the indicated hole in the top.
Set the Handrail (71) on the right Upright (69), and
tighten two Extension Leg Bolts (93) with two Handrail
Star Washers (95) into the Handrail and the right
Upright. Make sure that the Wire Harness (42) is not
pinched.
Attach the other Handrail (71) to the left Upright (69) as
described above. Note: There is not a wire harness on
the left side.
69
69
42
93
95
A
A
71
95
93
71
102
3
42

8
90
5. Set the console assembly on the Handrails (71); insert
the excess wiring down into the right Handrail. Attach the
console assembly with four 3/4” Screws (2), two Console
Bolts (90), and two 1/4” Star Washers (96) as shown.
Make sure that no wires are pinched. Start all four
Screws and both Console Bolts before tightening
any of them.
290
96
96
2
71 71
5Console Assembly
8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the
walking belt (see page 20). To protect the floor or carpet, place a mat under the treadmill.
7. Attach the Latch Housing (29) to the left Upright (69) with
two 3/4” Screws (2). Make sure that the large hole in
the Latch Housing is on the side shown. Do not over-
tighten the Screws.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Then, insert the
pin into the Latch Housing (29), and tighten the knob
back onto the pin.
Place the Weights (not shown) on the Weight Rack
(102).
2
29
69
7
Knob
Pin
Collar
Spring
6. Attach the Weight Rack (102) to the Uprights (69) with
two Rack Screws (101).
102
101
101
69
6
102

9
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the toll-free
telephone number on the front cover of this man-
ual and order part number 146148, or see your local
electronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin

10
FEATURES OF THE CONSOLE
The treadmill console offers an array of features de-
signed to make your workouts more effective. When
the manual mode of the console is selected, the speed
and incline of the treadmill can be changed with the
touch of a button. As you exercise, the console will dis-
play continuous exercise feedback. You can even
measure your heart rate using the handgrip pulse
sensor.
In addition, the console features two trainer programs.
Each program automatically controls the speed and in-
cline of the treadmill as it guides you through an effec-
tive workout. You can even create your own custom
programs and store them in memory for future use.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a trainer
program,see page 13. To create and use a custom
program,see pages 14 and 15.
HOW TO TURN ON THE POWER
Plug in the power cord (see
page 9). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Make sure that
the circuit breaker is in the
“reset” position.
Next, stand on the foot rails of the treadmill. Locate the
clip attached to the key (see the drawing above), and
slide the clip securely onto the waistband of your
clothes. Then, insert the key into the console. After a
moment, the displays will light. Important: In an emer-
gency situation, the key can be pulled from the
console, causing the walking belt to slow to a stop.
Test the clip by carefully taking a few steps back-
ward; if the key is not pulled from the console, ad-
just the position of the clip.
Note: To prevent damage to the walking platform,
always wear clean shoes while using the treadmill.
Note: If there are thin sheets of plastic
on the console, remove the plastic. Key
Clip
Reset
CONSOLE DIAGRAM

11
HOW TO USE THE MANUAL MODE
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
Select the manual mode.
When the key is inserted,
the manual mode will be
selected. If a program
has been selected, press
the Trainer Programs but-
ton repeatedly until a
track appears in the matrix.
Start the walking belt.
To start the walking belt, press the Start button,
the Speed increase button, or one of the buttons
numbered 1 through 10.
If the Start button or the
Speed increase button is
pressed, the walking belt
will begin to move at 1
mph. As you exercise,
change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons.Each time a button
is pressed, the speed setting will change by 0.1
mph; if a button is held down, the speed setting
will change in increments of 0.5 mph.
If one of the ten numbered buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting. Note: The
console can display speed and distance in ei-
ther miles or kilometers (see THE INFORMA-
TION MODE/DEMO MODE on page 16). For
simplicity, all instructions in this section refer
to miles.
To stop the walking belt, press the Stop button.
The time will begin to flash in the Time/Pace dis-
play. To restart the walking belt, press the Start
button, the Speed increase button, or one of the
ten numbered buttons.
Note: The first time you use the treadmill, periodi-
cally inspect the alignment of the walking belt, and
center the walking belt if necessary (see page 20).
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline increase and de-
crease buttons. Each time
abutton is pressed, the
incline setting will change
by 0.5%; if a button is held down, the incline set-
ting will change quickly.
Monitor your progress with the displays and
the matrix.
The Incline/Pulse dis-
play—This display will
show the incline level of
the treadmill. This display
will also show your heart
rate when you use the
handgrip pulse sensor.
The Distance/Calories
display—This display will
show the distance that
you have walked or run
during your workout and
the approximate number
of calories that you have burned.
The matrix—When the
manual mode is selected,
the matrix will show a 1/4-
mile track. As you walk or
run, the indicators around
the track will light in suc-
cession until the entire track is lit. The track will
then darken and the indicators will again begin to
light in succession.
The Time/Pace display—
This display will show the
elapsed time. Each time
the speed setting
changes, the display will
also show your pace, in
minutes per mile. Note: When a program is se-
lected, this display will show the time remaining in
the program instead of the elapsed time.
The Speed display—
This display will show the
speed of the walking belt.
5
4
3
2
1

12
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate if desired.
Before using
the handgrip
pulse sensor,
remove the
sheets of clear
plastic from the
metal contacts.
In addition,
make sure that
your hands are clean.
To measure your heart rate, stand on the foot
rails and place your hands on the metal con-
tacts—avoid moving your hands.When your
pulse is detected, one or two dashes will appear in
the Incline/Pulse display and then your heart rate
will be shown. For the most accurate heart rate
reading, continue to hold the contacts for
about 15 seconds.
Turn on the fan if desired.
To turn on the fan, press the Fan button. To turn
on the fan at high speed, press the button a sec-
ond time. To turn off the fan, press the button a
third time. Note: If the fan is left on when the walk-
ing belt is stopped, the fan will automatically turn
off after a few minutes.
When you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion, or the treadmill will become damaged. Next,
remove the key from the console and put it in a se-
cure place. Note: If the display remains lit after
the key is removed, the console is in the
“demo” mode. See page 16 and turn off the
demo mode.

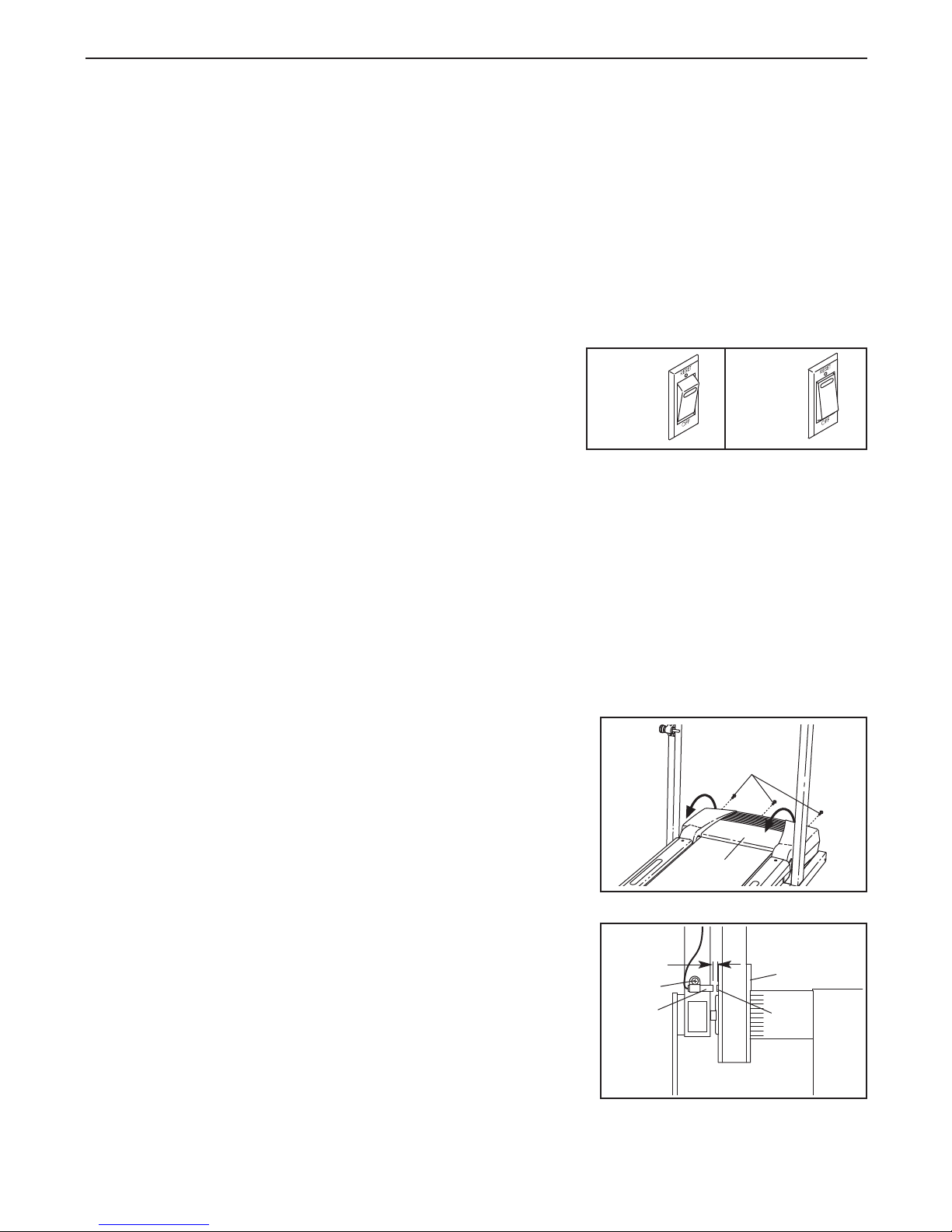

When you are finished using the treadmill,
switch the reset/off circuit breaker to the “off”
position and unplug the power cord.
8
7
6
Metal Contacts

13
HOW TO USE A TRAINER PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.

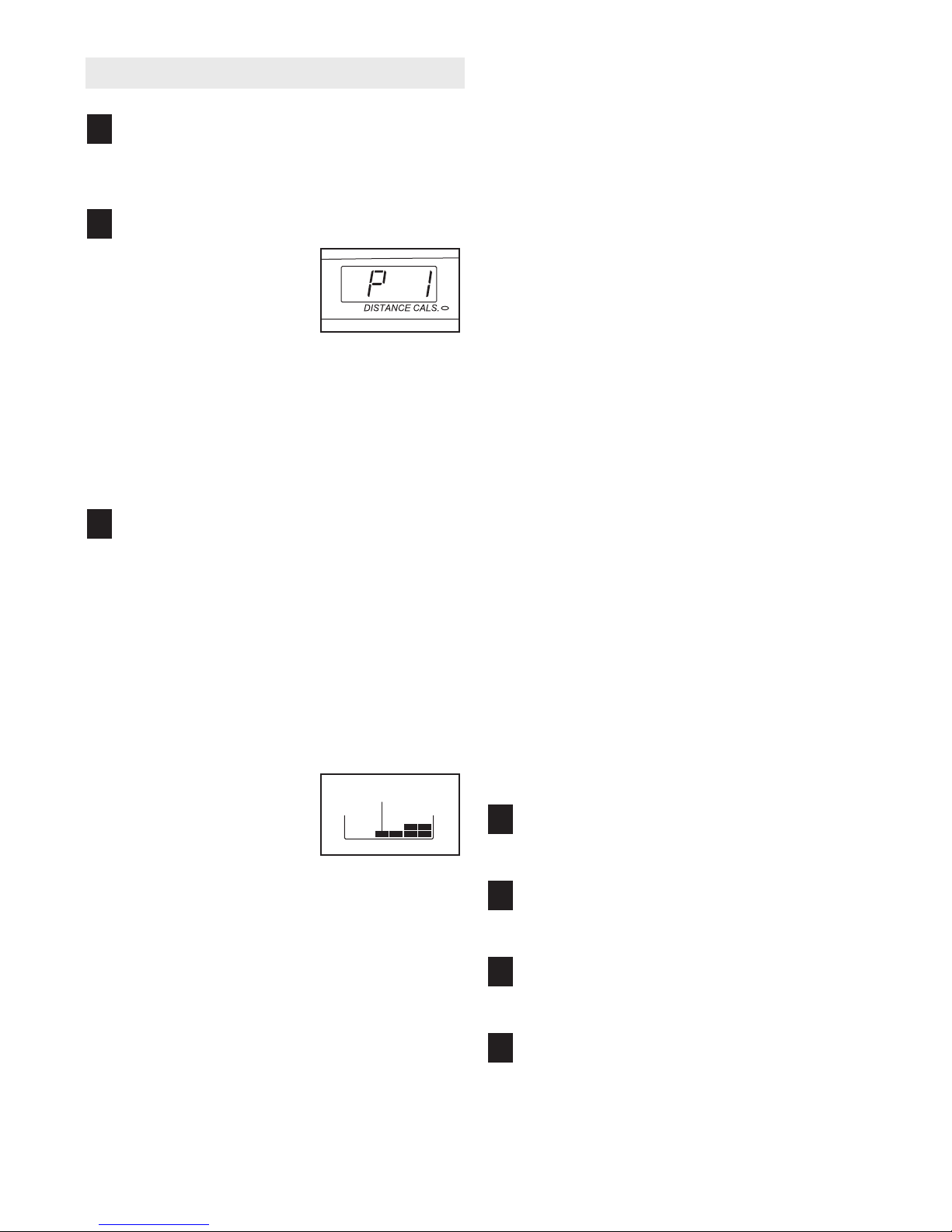

Select a trainer program.
To select a trainer pro-
gram, press the Trainer
Programs button repeat-
edly until “P 1” or “P 2”
appears in the
Distance/Calories dis-
play. When a trainer program is selected, the
maximum incline setting of the program will flash
in the Incline/Pulse display for a few seconds, the
maximum speed setting will flash in the Speed
display, and the program time will appear in the
Time/Pace display. A profile of the speed settings
of the program will scroll across the matrix.
Press the Start button or the Speed increase
button to start the program.
Amoment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into 30 one-minute peri-
ods. One speed setting and one incline setting are
programmed for each period. Note: The same
speed setting and/or incline setting may be pro-
grammed for two or more consecutive periods.
The speed setting for the
first period will be shown
in the flashing Current
Period column of the ma-
trix. (The incline settings
are not shown in the ma-
trix.) The speed settings for the next three periods
will be shown in the columns to the right.
When only three seconds remain in the first period
of the program, both the Current Period column
and the column to the right will flash and a series
of tones will sound. If the speed and/or incline of
the treadmill is about to change, the speed setting
and/or the incline setting will flash to alert you.
When the first period is completed, all speed set-
tings will move one column to the left .The speed
setting for the second period will then be shown in
the flashing Current Period column and the tread-
mill will automatically adjust to the speed and in-
cline settings for the second period. Note: If all six
of the indicators in the Current Period column are
lit, the speed settings may move downward so that
only the highest indicators appear in the matrix.
The program will continue in this way until the
speed setting for the last period is shown in the
Current Period column and the last period ends.
The walking belt will then slow to a stop.
If the speed or incline setting for the current period
is too high or too low, you can manually override
the setting by pressing the Speed or Incline but-
tons. Every few times a Speed button is pressed,
an additional indicator will appear or disappear in
the Current Period column; if any of the columns
to the right of the Current Period column have the
same number of lit indicators as the Current
Period column, an additional indicator may appear
or disappear in those columns as well. Important:
When the current period of the program ends,
the treadmill will automatically adjust to the
speed and incline settings for the next period.
To stop the program temporarily, press the Stop
button. The time will begin to flash in the
Time/Pace display. To restart the program, press
the Start button or the Speed increase button. The
walking belt will begin to move at 1 mph. When the
next period of the program begins, the treadmill
will automatically adjust to the speed and incline
settings for the next period. To end the program,
press the Stop button, remove the key, and then
reinsert the key.

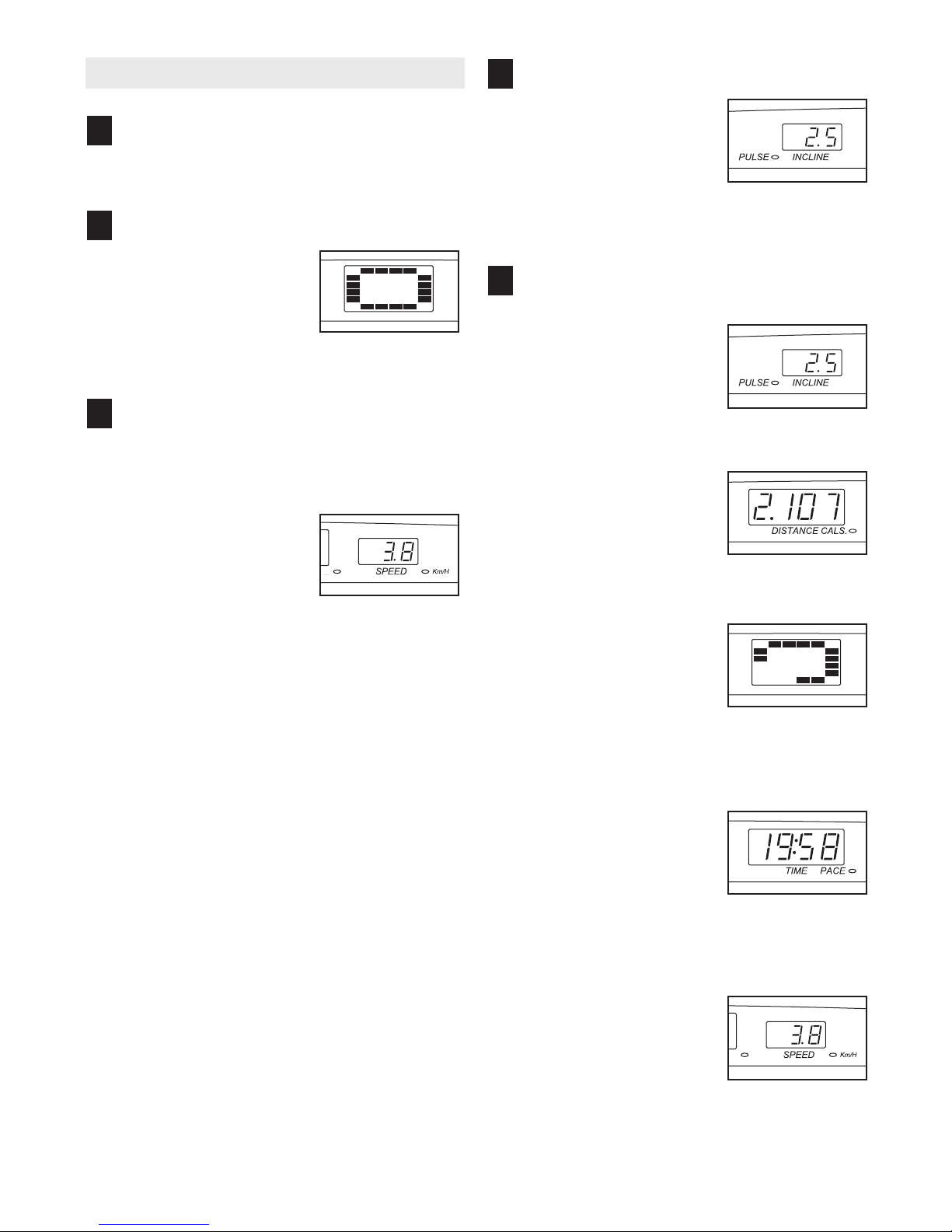

Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate if desired.
See step 6 on page 12.
Turn on the fan if desired.
See step 7 on page 12.
When the program is completed, remove the
key.
See step 8 on page 12
7
6
5
4
3
2
1
Current Period

14
HOW TO CREATE A CUSTOM PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
Select a custom program.
To select a custom pro-
gram, press the Custom
Programs button repeat-
edly until “P 3” or “P 4”
appears in the Distance/
Calories display.
Note: If the custom program has not yet been
defined, three columns of indicators will scroll
across the matrix. If more than three columns
of indicators scroll across the matrix, see HOW
TO USE A CUSTOM PROGRAM on page 15.
Press the Start button or the Speed increase
button and program the desired speed and in-
cline settings.
Amoment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Refer to the matrix. Each custom program is di-
vided into one-minute periods. One speed setting
and one incline setting
can be programmed for
each period. The speed
setting for the first period
is shown in the flashing
Current Period column of
the matrix. (The incline settings are not shown in
the matrix.) To program a speed setting and an in-
cline setting for the first period, simply adjust the
speed and incline of the treadmill as desired by
pressing the Speed and Incline buttons. Every few
times a Speed button is pressed, an additional in-
dicator will appear or disappear in the Current
Period column.
When the first period of the program ends, a se-
ries of tones will sound and the current speed set-
ting and the current incline setting will be saved in
memory.
The three columns of indicators will then
move one column to the left, and the speed set-
ting for the second period will be shown in the
flashing Current Period column. Program a speed
setting and an incline setting for the second period
as described above.
Continue programming speed and incline settings
for as many periods as desired; custom programs
can have up to forty periods. When you are fin-
ished with your workout, press the Stop button
twice. The speed and incline settings that you have
programmed and the number of periods that you
have programmed will then be saved in memory.
When you are finished exercising, remove the
key.
See step 8 on page 12.
4
3
2
1
Current Period

15
HOW TO USE A CUSTOM PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
Select a custom program.
To select a custom pro-
gram, press the Custom
Program button repeat-
edly until “P 3” or “P 4”
appears in the
Distance/Calories dis-
play. When a custom program is selected, the
maximum incline setting of the program will flash
in the Incline/Pulse display for a few seconds, the
maximum speed setting will flash in the Speed
display, and the program time will appear in the
Time/Pace display. A profile of the speed settings
of the program will scroll across the matrix.
Note: If only three columns of indicators scroll
across the matrix, see HOW TO CREATE A
CUSTOM PROGRAM on page 14.
Press the Start button or the Speed increase
button to start the program.
Amoment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings that you programmed previously.
Hold the handrails and begin walking.
Each custom program is divided into several one-
minute periods. One speed setting and one incline
setting are programmed for each period. Note: The
same speed setting and/or incline setting may be
programmed for two or more consecutive periods.
The speed setting for the
first period will be shown
in the flashing Current
Period column of the ma-
trix. (The incline settings
are not shown in the ma-
trix.) The speed settings for the next three periods
will be shown in the columns to the right.
When only three seconds remain in the first period
of the program, both the Current Period column
and the column to the right will flash, a series of
tones will sound, and the speed setting and the in-
cline setting will flash. When the first period ends,
all speed settings will move one column to the left .
The speed setting for the second period will then
be shown in the flashing Current Period column,
and the treadmill will automatically adjust to the
second speed and incline settings that you pro-
grammed previously.
The program will continue in this way until the
speed setting for the last period is shown in the
Current Period column and the last period ends.
The walking belt will then slow to a stop.
If desired, you can redefine to the program while
using it. To change the speed or incline setting
for the current period, simply press the Speed or
Incline buttons. When the current period ends, the
new setting will be saved in memory. To increase
the length of the program, first wait until the pro-
gram is completed. Then, press the Start button and
program speed and incline settings for as many ad-
ditional periods as desired. When you have added
as many periods as desired, press the Stop button
twice. To decrease the length of the program,
press the Stop button twice at any time before the
program is completed.
To stop the program temporarily, press the Stop
button. To restart the program, press the Start but-
ton or the Speed increase button.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate if desired.
See step 6 on page 12.
Turn on the fan if desired.
See step 7 on page 12.
When you are finished exercising, remove the
key from the console.
See step 8 on page 12.
7
6
5
4
3
2
1
Current Period

16
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of miles or kilometers that the
walking belt has moved and the total number of hours
that the treadmill has been operated. The information
mode also allows you to select miles or kilometers as
the unit of measurement and to turn on and turn off the
demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console, and
then release the Stop button. When the information
mode is selected, the following information will be dis-
played:
The Distance/Calories display
will show the total number of
miles or kilometers that the
walking belt has moved.
The Time/Pace display will
show the total number of
hours that the treadmill has
been used.
An “E” for English miles or an
“M” for metric kilometers will
appear in the Speed display.
Press the Speed increase but-
ton to change the unit of mea-
surement, if desired.
IMPORTANT: If a “d” appears
in the Incline/Pulse display, the
console is in the “demo” mode.
This mode is intended to be
used only when a treadmill is
displayed in a store. When the
console is in the demo mode, the power cord can be
plugged in, the key can be removed from the console,
and the indicators in the display will automatically light
in a preset sequence, although the buttons on the con-
sole will not operate. If a “d” appears when the infor-
mation mode is selected, press the Speed decrease
button so the “d” disappears.
To exit the information mode, remove the key from the
console.
HOW TO USE THE HAND WEIGHTS
To exercise your upper
body as you walk on
the treadmill, hold the
2-pound weights at
your sides or press the
weights above your
head. To increase the
intensity of your exer-
cise, use the 3-pound
weights. The weights can be stored in the weight rack.
WARNING: Do not use the hand weights at speeds
faster than walking speeds. Using weights and not
holding the handrails may compromise your ability
to maintain your balance. Exercises using weights
should be attempted only by experienced users.
Weight Rack

17
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be per-
manently damaged. Next, unplug the power cord. CAUTION:
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by the
arrow at the right. CAUTION: To decrease the possibility
of injury, do not lift the frame by the plastic foot rails.
Make sure to bend your legs and keep your back straight.
As you raise the frame, make sure to lift with your legs
rather than your back. Raise the frame about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the frame until the hole in the frame
is aligned with the latch pin. Slowly release the latch knob;
make sure that the latch pin is fully inserted into the hole
in the frame.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun-
light. Do not leave the treadmill in the storage position in
temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the latch pin is
fully inserted into the hole in the frame.
1. Hold the upper ends of the handrails, and place one foot
against one of the wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov-
ing the treadmill. Do not move the treadmill over an un-
even surface.
3. Place one foot against one of the wheels, and carefully lower
the treadmill until it is resting in the storage position.
Base
Wheels
Engaged
Frame
Latch
Knob
Frame

18
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill with your right hand as shown. Pull the
latch knob to the left and hold it. Pivot the frame down until it
is past the latch pin.
2. Hold the metal frame firmly with both hands,and lower it
to the floor. CAUTION: To decrease the possibility of in-
jury, do not lower the frame by gripping only the plastic
foot rails. Do not drop the frame to the floor. Make sure to
bend your legs and keep your back straight.
Engaged
Frame
Latch
Knob
Frame

19
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 9. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the Screws (26) from the
Hood (1), and carefully pivot the Hood off.
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8”. If necessary, loosen the
Screw (100), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Hood (not shown),
and run the treadmill for a few minutes to check for a
correct speed reading.
Tripped Reset
c
26
1
a
18
10
100
Top
View
1/8” 17

20
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD.Using the allen wrench, turn both
rear roller bolts counterclockwise, 1/4 of a turn. When
the walking belt is properly tightened, you should be
able to lift each edge of the walking belt 2 to 3 inches
off the walking platform. Be careful to keep the walk-
ing belt centered. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD.If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Then, plug in the
power cord, insert the key, and run the treadmill for a
few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD.Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tight-
ened, you should be able to lift each edge of the walk-
ing belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
Rear Roller Bolts
2”–3”
b
a
b
