Pro-Form SPORT 1000 User manual

0
Model No. PFTL91205.1
Serial No.
Write the serial number in the space
above for future reference.
Serial_Nu_
QUESTIONS?
As amanufacturer, we are corn=
mitred to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL=FREE:
1-888-533-1333
Mon.-Fri., 6 a.rn.-6 p.m. MST
ON THE WEB:
www.proforrnservice.corn
SE UAL
www.proform.com
new products, prizes,
fitness tips, and much more!

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
TREADMILL OPERATION ................................................................... 10
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 19
TROUBLESHOOTING ...................................................................... 21
EXERCISE GUIDELINES ................................................................... 23
PART LIST ............................................................................... 26
EXPLODED DRAWING ..................................................................... 28
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
2

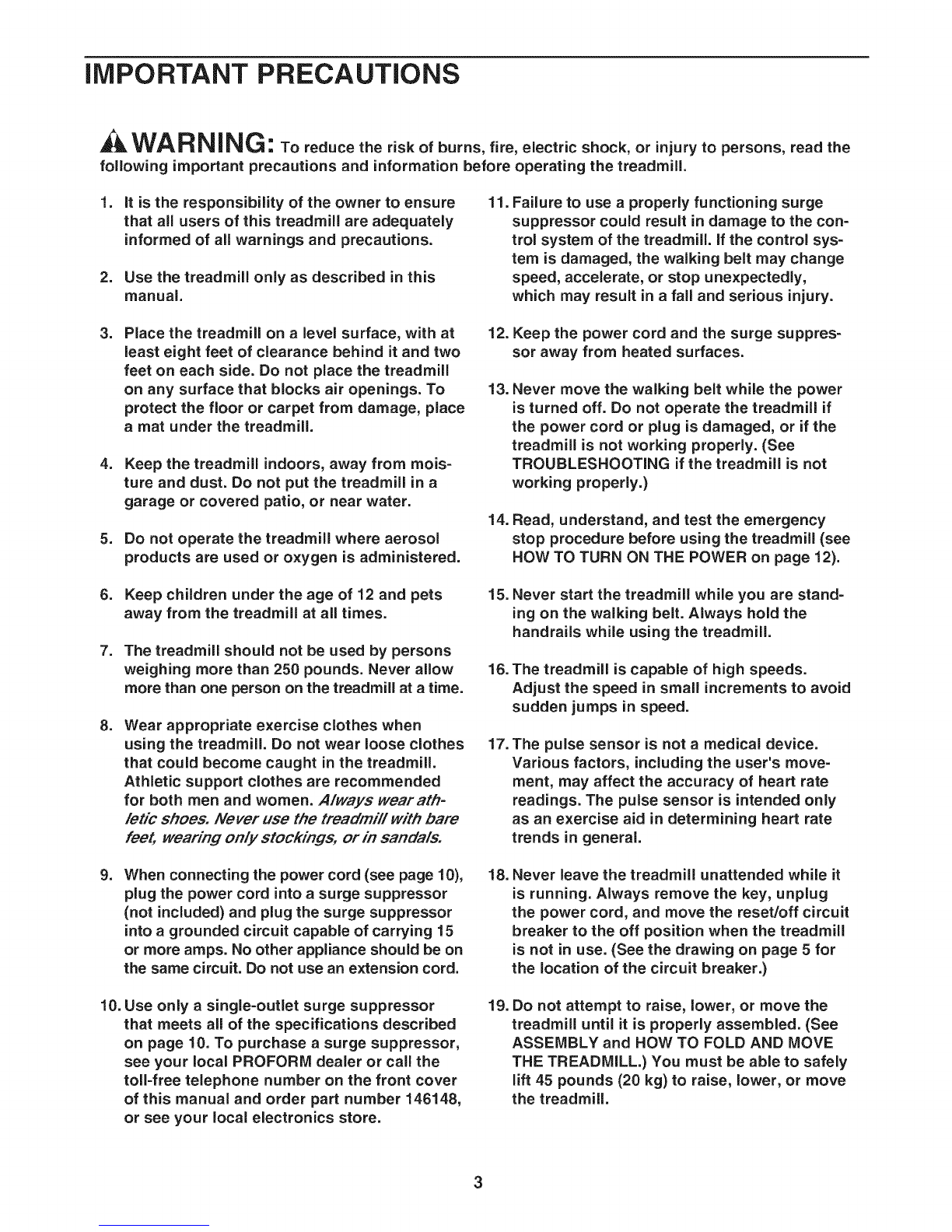

iMPORTANT PRECAUTIONS
WARNING: Toreducethe.skofburns,f re,e ect.cshock,or ojurytopersons,readthe
following important precautions and information before operating the treadmill.
1. it is the responsibility of the owner to ensure 11.
that all users of this treadmill are adequately
informed of all warnings and precautions.
.Use the treadmill only as described in this
manual.
Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill, if the control sys-
tern is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
,
.
.
Place the treadmill on alevel surface, with at 12.
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To 13.
protect the floor or carpet from damage, place
a mat under the treadmill.
Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Do not operate the treadmill where aerosol
products are used or oxygen is administered.
14.
Keep the power cord and the surge suppres-
sor away from heated surfaces.
Never move the walking belt while the power
is turned off. Do not operate the treadrnill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING if the treadmill is not
working properly.)
Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 12).
.
.
.
Keep children under the age of 12 and pets
away from the treadmill at all times.
The treadmill should not be used by persons
weighing more than 250 pounds. Never allow
more than one person on the treadmill at atime.
Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. A/ways wear ath-
letic shoes. Never use the treadmillwithbare
feet,wearing onlystockings,orinsandals.
15.
16.
17.
Never start the treadrnill while you are stand=
ing on the walking belt. Always hold the
handrails while using the treadmill
The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
The pulse sensor is not amedical device.
Various factors, including the user's move-
rnent, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general
g, When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into agrounded circuit capable of carrying 15
or more arnps. No other appliance should be on
the same circuit. Do not use an extension cord.
18. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and move the resetloff circuit
breaker to the off position when the treadrnill
is not in use. (See the drawing on page 5 for
the location of the circuit breaker.)
10. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 10. To purchase a surge suppressor,
see your local PROFORM dealer or call the
toll-free telephone number on the front cover
of this manual and order part number 146148,
or see your local electronics store.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY and HOW TO FOLD AND MOVE
THE TREADMILL.) You must be able to safely
lift 45 pounds (20 kg) to raise, lower, or move
the treadmill.
3

20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. inspect and properly tighten all parts of the
treadmill every three months.
22. Never drop or insert any object into any open-
ing on the treadmill.
23.DANGER: A waysunplugthepower
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
24. The treadmill is intended for in=home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
AWARNING: Beforebeginningthisoranyexerciseprogram,consu,yourphysician.This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using, iCON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE iNSTRUCTiONS
The decals shown here have been placed on the treadmill, if adecal is missing,
or if it is not legible, call the toll=free telephone number on the front cover of this
manual and order a free replacement decal. Apply the decal in the location
shown. Note: The decals are not shown at actual size.
:kCAUT|ON
KEEP HANDSAND FEETAWAY
FROMTHiSAREAWHILETHE
TREADMILLiS iN OPERATION.
Protectyourself and
others from nsk ofsenous
injury. Read the user's
manual and
L_ ,Stand only on the
side rails when
stalling or slopping
_readrmll
•Change speed _n
small increments
•Hold handrails to
prevent falling and
always wear the
safety clip while
operabng treadmill
,Stop If you feel faint,
dizzy or short of
brealh
. Fully engage Stolage
latch before tread-
m,II ,s moved or
s[ored
•Reduce incline to its
lowest level before
folding lreadm_ll into
slorage posl[ion
•Never allow
,,,,,._ children on oraround treadm41
,Remove key when
not in use
,Keep clolhlng,
fingers and hair
away from moving
belt
•Never try to adjust
or fix the dell while
it is moving.
,Always wear
athletic shoes while
operahng treadm41
4

BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM _
SPORT 1000 treadmill. The SPORT 1000 treadmill of-
fers an impressive array of features designed to make
your workouts at home more enjoyable and effective.
And when you're not exercising, the unique SPORT
1000 treadmill can be folded up, requiring less than half
the floor space of other treadmills.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number of the treadmill is PFTL91205.1. The
serial number can be found on a decal attached to the
treadmill (see the front cover of this manual for the lo-
cation).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts,
Book Holder
Accessory Tray
Handrail
Handgrip Pulse Sensor
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
Fan
Console
Key/Clip
Reset/Off
Circuit Breaker
-- Power Cord
RIGHT SIDE

ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call toll=free 1=800=445=2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. Ifthere is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys _ and your own phillips screwdriver
adjustable wrench and wire cutters _->.
For help identifying assembly hardware, see the drawings below. Note: The assembly hardware and other
small parts are packaged in separate part bags. If a part is not in the part bags, check to see if the part has
been preattached. To avoid damaging plastic parts, do not use power tools for assembly.
1/4" Star Washer (92)-4 Wheel Nut (21)-2 3/4" Screw (6)-2 3/4" Tek Screw (47)-4
5/16" x 1" Bolt 1/4" x 1" Bolt
(122)-4 (71)-4
4" Bolt (112)-2
N_
Wheel Bolt (107)-2
1. With the help of a second person, carefully raise the
Uprights (109) to the position shown.
Insert one of the Extension Legs (105)into the treadmill
as shown. Make sure that the Extension Leg is turned so
the Base Pad (100) is beneath it. Note: It may be helpful
to tip the Uprights (109) forward as you insert the
Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
109
1O0 105

2. 2
Removethescrewsandthewoodbracefromthe
Uprights(109).Discardthescrewsandthebrace.
Identifythelefthandrail,whichhasaholeintheindi-
catedlocation,andtherighthandrail.Holdtheright
handrailneartherightUpright(109),andinserttheWire
Harness(83)intothelargeholeintherighthandrailand
outoftheupperendasshown.
Next,holdtherighthandrailagainsttherightUpright
(109).Tightena 4"Bolt(112)threetofourturnsintothe
rightUprightandthelowerendoftherighthandrail.
Tightentwo5/16"x 1"Bolts(122)intotheupperendof
therighthandrailandtherightUpright.Becarefulnot
todroptheBoltsinto the handrail. If necessary, raise
or lower the handrail to thread the 5/16" x 1" Bolts into
the right Upright. Firmly tighten all three Bolts.
Attach the left handrail as described above. Note: There
is not a wire harness in the left Upright (109).
122
Left
Handrail
Brace
Screw
.With the help of another person, hold the console as-
sembly near the right Upright (109) and the left Upright
(not shown).
Connect the Wire Harness (83) to the wire harness on
the console assembly. Make sure to connect the con-
nectors properly (see the inset drawing); the con-
nectors should slide together easily and snap into
place. Ifthe connectors do not slide together easily and
snap into place, turn one connector and then try to con-
nect them. IF THE CONNECTORS ARE NOT CON=
NECTED PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON. Insert the
excess wire harness into the right handrail.
Set the console assembly on the right Upright (109) and
the Left Upright (not shown). Thread two 1/4" x 1" Bolts
(71) with 1/4" Star Washers (92) into each side of the
console assembly. After you have started all four
Bolts, tighten them.
3
Console
Right
83
........ . 92
-_71
7

,With the help of a second person, carefully tip the
Uprights (109) down to the position shown. Make sure
that the Extension Legs (105) remain in the Uprights.
Attach each Extension Leg (105) with two 3/4" Tek
Screws (47) and a Round Base Pad (121) as shown.
Note: Attach the lower Tek Screw (without the Round
Base Pad) first.
Attach a Wheel (108) to each Wheel Housing (106) with
a Wheel Bolt (107) and a Wheel Nut (21). Make sure
that the Wheel Bolts are inserted from the outside as
shown. Do not overtighten the Wheel Bolts.
With the help of a second person, carefully raise the
Uprights (109) so the Wheels (108) touch the floor.
4
109
21
106
21
108
,Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. Insert the pin into the
Latch Housing (75), and tighten the knob back onto the
pin.
Raise the Frame (54) to the vertical position. While another
person holds the Frame, hold the Latch Housing (75)
against the inside of the Frame. Thread two 3/4" Screws
(6) several turns into the Latch Housing and the Frame.
Align the pin with the hole in the Left Handgrip (76) by
sliding the Latch Housing (75) up or down. Make sure
that the pin can be inserted fully into the hole. Hold
the Latch Housing in place and tighten the two 3/4"
Screws (6). Be careful not to overtighten the Screws.
Pull the knob to the right and carefully lower the Frame
(54) to the floor.
Note: After a period of use, the Latch Housing (75) may
need to be adjusted again to align the pin with the hole in
the Left Handgrip (76).
Hole 76
Collar
75
Spring
Knl
6. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt
(see page 22). To protect the floor or carpet, place a mat under the treadmill.
8

if you purchase the optional chest pulse sensor (see page 18), follow the steps below to install the re=
ceiver and the short jumper wire included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated 3/4" Screw (6) and the Access Door (94)
from the back of the Console Back (95).
2. Connect the wire on the receiver (A) to the indicated wire
extending from the Console Back (95). Next, remove the
paper from the adhesive pad on the back of the receiver.
Hold the receiver so the small cylinder is near the
lower edge of the receiver and is facing the Console
Back as shown. Firmly press the receiver onto the indi-
cated corner of the Access Door (94). Note: If there are
two screws included with the chest pulse sensor and two
plastic posts on the inside of the Access Door, attach the
receiver to the plastic posts on the Access Door with the
two screws.
3. Make sure that no wires are pinched. Reattach the Access Door (94) with the 3/4" Screw (6). The other wires
included with the receiver may be discarded,

TREADMILL OPERATION
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the toll-free
telephone number on the front cover of this man-
ual and order part number 146148, or see your local
electronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 arnps. There must be amoni=
toting light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
IGrounded Outlet Box
_...J ,._¢_ Surge Suppressor
_'"_ GroundingPin......
Grounding Pin
Grounded Outlet Grounding Plug
2Outlet Box
Adapter Surge Suppressor
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
10

0000(
0000@
START /STOP
Key
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable,
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will
display instant exercise feedback. You can even mea-
sure your heart rate using the handgrip pulse sensor or
the optional chest pulse sensor (see page 18).
In addition, the console offers twelve preset programs.
Each program automatically controls the speed and in-
cline of the treadmill as it guides you through an effec-
tive workout.
Two heart rate programs are also offered. Each pro-
gram automatically adjusts the speed and incline of the
treadmill to keep your heart rate near a target heart
rate while you exercise.
To use the manual mode of the console, follow the
steps beginning on page 12. To use a preset pro=
gram, see page 14. To use a heart rate program,
see page 16.
Note: If there is a sheet of clear plastic on the console,
remove the plastic. To prevent damage to the walking
platform, wear clean athletic shoes while using the
treadmill. The first time the treadmill is used, observe
the alignment of the walking belt, and center the walk-
ing belt if necessary (see page 22).
11

HOW TO TURN ON THE POWER
nPlug in the power cord (see page 10).
Locate the reset/off
circuit breaker on the
treadmill frame near
the power cord. Make
sure that the circuit
breaker is in the reset
position.
Reset
Position
Stand on the foot rails of the treadmill. Find the clip
attached to the key (see the drawing on page 11)
and slide the clip onto the waistband of your
clothes. Next, route the cord attached to the clip
under the handgrip pulse sensor, and insert the
key into the console. After a moment, the displays
and various indicators will light. Important: In an
emergency situation, the key can be pulled
from the console, causing the walking belt to
slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled
from the console, adjust the position of the
clip.
HOW TOUSE THE MANUAL MODE
_ Insert the key into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in-
serted, the manual
mode will be selected
and a track will appear
in the display. If a pro-
gram has been
selected, remove the
key and then reinsert it.
i
/,','3333o7//i
Start the walking belt.
To start the walking belt, press the Start button,
the speed + button, or one of the ten numbered
Quick Speed buttons.
If the Start button or the speed + button is
pressed, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the speed +
and - buttons. Each time a button is pressed, the
speed setting will change by 0.1 mph; if a button
is held down, the speed setting will change in in-
crements of 0.5 mph. Note: After the buttons are
pressed, it may take a moment for the walking belt
to reach the selected speed setting.
If one of the ten numbered Quick Speed buttons is
pressed, the walking belt will gradually increase in
speed until it reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
speed + button, or one of the ten numbered Quick
Speed buttons.
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
incline increase and de-
crease buttons or one of
the ten numbered Quick
Incline buttons. Each
time the incline increase or decrease button is
pressed, the incline will change by 0.5%. if one of
the ten numbered Quick Incline buttons is
pressed, the treadmill will adjust to the selected
incline setting. Note: After the buttons are
pressed, it may take a moment for the treadmill to
reach the selected incline setting.
Monitor your progress with the matrix and the
displays.
The matrix--When the
manual mode isse- ® ® ®® ®
lected, the matrix will
display a 1/4-mile track.
As you exercise, the in-
dicators around the track
will light in succession
until the entire track is lit. The track will then
darken and the indicators will again begin to light
in succession.
12

Speed display--This
display shows the
speed of the walking
belt,
Note: The console can
display speed and dis-
tance in either miles or
kilometers. To find
which unit of measure-
ment is selected, press
the Stop button while inserting the key into the
console. An "E" for English miles or an "M" for met-
ric kilometers will appear in the Speed display.
Press the speed + button to change the unit of
measurement if desired. When the desired unit of
measurement is selected, remove the key and
then reinsert it. Note: For simplicity, all instruc-
tions in this manual refer to miles.
Distance/Incline dis-
play--This display
shows the distance that
you have walked or run
and the incline level of
the treadmill. The dis-
ii_-t
I\ .o-_Jj
play will change from one number to the other
every few seconds. Note: Each time the incline
changes, the display will show the incline setting
for several seconds.
Calories/Pulse
display--This display
shows the approximate
number of calories you
have burned. The dis-
play will also show your
i\[_-J
heart rate when you use the handgrip pulse sen-
sor or the optional chest pulse sensor. The display
will change from one number to the other every
few seconds.
Time/Pace display--
When the manual mode
isselected, this display
will show the elapsed
time and your current
pace (pace is shown in
minutes per mile). The display will change from
one number to the other every few seconds.
When a program is selected (except for the sec-
ond heart rate program), the display will show the
time remaining in the program rather than the
elapsed time.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate if desired.
Note: Ifyou use the handgrip pulse sensor and
the optional chest pulse sensor at the same time,
the console will not display your heart rate accu-
rately. Before using the handgrip pulse sensor,
first remove the
sheets of clear
plastic from the
metal contacts
on the pulse bar.
In addition, make
sure that your Contacts
hands are clean.
To use the handgrip pulse sensor, stand on the
foot rails and hold the pulse bar with your palms
on the metal contacts. Avoid moving your
hands. When your pulse is detected, two dashes
(- -) will appear in the Calories/Pulse display, and
then your heart rate will be shown. For the most
accurate heart rate reading, continue to hold
the contacts for about 15 seconds.
Note: The pulse bar is intended to be used only
for heart rate measurement. Do not use the
pulse bar as a handlebar. Always hold the
handrails for support when you are not mea-
suring your heart rate.
Turn on the fan if desired.
To turn on the fan, press the Fan button. To turn
on the fan at high speed, press the button a sec-
ond time. To turn off the fan, press the button a
third time. Note: If the fan is on when the walking
belt is stopped, the fan will automatically turn off
after a few minutes.
When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion or the treadmill will become damaged. Next,
remove the key from the console and put it in a se-
cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is
removed, the console is in the "demo" mode.
See page 18 and turn off the demo mode.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the "off" position and
unplug the power cord.
13

HOW TO USE A PRESET PROGRAM
nInsert the key into the console.
See HOW TO TURN ON THE POWER on
page 12.
Select a preset program.
To select a preset pro-
gram, press the
Personal Trainer
Programs button re-
peatedly until one of the
twelve preset program
indicators lights.
When a preset program is selected, the maximum
speed setting of the program will flash in the
Speed display for a few seconds, the maximum in-
cline setting will flash in the Distance/Incline dis-
play, and the program
time will appear in the
Time/Pace display. In
addition, a profile of the
speed settings of the
program will scroll
across the matrix.
m
/oOOOOOOO;//
/oooo,o,o,o///i
Press the Start button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into 30 one-minute seg-
ments. One speed setting and one incline setting
are programmed for each segment. Note: The
same speed setting and/or incline setting may be
programmed for two or more consecutive seg-
ments.
The speed setting for
the first segment will be
shown in the flashing
Current Segment col-
umn of the matrix. (The
incline settings are not
shown in the matrix.)
The speed settings for
Current Segment
e ® ejj/
the next four segments are shown in the columns
to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or in-
cline of the treadmill is about to change, the Speed
display and/or the Distance/Incline display will
flash to alert you. When the first segment ends, a//
speed settings willmove one column to the left.
The speed setting for the second segment will then
be shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
speed and incline settings for the second segment.
Note: If all of the indicators in the Current Segment
column are lit after the speed settings have moved
to the left, the speed settings may move downward
so that only the highest indicators appear in the
matrix. If some of the indicators in the Current
Segment column are not lit when the speed set-
tings move to the left again, the speed settings will
move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the speed or in-
cline buttons. Every few times a speed button is
pressed, an additional indicator will light or darken
in the Current Segment column. (If any of the
columns to the right of the Current Segment col-
umn have the same number of lit indicators as the
Current Segment column, an additional indicator
may light or darken in those columns as well.)
Note: When the next segment of the program
begins, the treadmill will automatically adjust
to the speed and incline settings for the next
segment.
To stop the program at any time, press the Stop
button. To restart the program, press the Start but-
ton or the speed + button. The walking belt will
begin to move at 1 mph. When the next segment
of the program begins, the treadmill will automati-
cally adjust to the speed and incline settings for the
next segment.
14

Monitor your progress with the displays.
See step 5 on pages 12 and 13.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the console.
When the program ends, make sure that the in=
cline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in
a secure place. Note: If the displays and various
indicators on the console remain lit after the
key is removed, the console is in the "demo"
mode. See page 18 and turn off the demo mode.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the "off" position and
unplug the power cord,
15

HOW TO USE AHEART RATE PROGRAM
nPut on the optional chest pulse sensor.
You must wear the optional chest pulse sensor
(see page 18) to use a heart rate program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 12.
Select a heart rate program.
To select a heart rate
program, press the
Heart Rate Control
Programs button once
or twice until one of the
two heart rate program
indicators lights.
m
I/o___ o_:_-_
/o_'_-_ o_:___
/o_ o_ ,
@J................
If the first heart rate
program is selected, a
profile of the target
heart rate settings of
the program will scroll
across the matrix.
m
/°::::::///I
If the second heart
rate program is se-
lected, a pulse symbol
will scroll across the
matrix.
m
/OOoOOOO,7//i
Enter a target heart rate setting.
If the first heart rate
program is selected,
the maximum target
heart rate setting of the
program will flash in the I\
Calories/Pulse display. If desired, press the in-
crease and decrease buttons beside the Enter
button to change the maximum target heart rate
setting (see EXERCISE INTENSITY on page 23).
Then, press the Enter button. Note: If the maxi-
mum target heart rate setting is changed, the in-
tensity level of the entire program will change.
If the second heart rate program is selected,
the target heart rate setting for the entire program
will flash in the Calories/Pulse display. If desired,
press the increase and decrease buttons beside
the Enter button to change the target heart rate
setting (see EXERCISE INTENSITY on page 23).
Then, press the Enter button.
Press the Start button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
The first heart rate program is divided into 20 one-
minute segments. One target heart rate setting is
programmed for each segment. (The same target
heart rate setting may be programmed for two or
more consecutive segments.) The second heart
rate program is divided into 100 one-minute seg-
ments. The same target heart rate setting is pro-
grammed for all segments. Note: For a shorter
workout, simply stop the program before it ends.
If the first heart rate pro-
gram is selected, the
target heart rate setting
for the first segment will
be shown in the flashing
Current Segment col-
umn of the matrix. The
target heart rate settings
for the next four seg-
Current Segment
®®®/j/
ments will be shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound.
When the first segment ends, a// tardet heart rate
settings will move one column to the lefL The tar-
get heart rate setting for the second segment will
then be shown in the flashing Current Segment
column.
16

During both heart rate programs, the console will
regularly compare your heart rate to the target
heart rate setting for the current segment. If your
heart rate is too far below or above the target
heart rate setting, the speed of the walking belt
will automatically increase or decrease to bring
your heart rate closer to the target heart rate set-
ting.
If the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the speed or incline buttons. However,
when the console compares your heart rate to the
target heart rate setting, the speed of the treadmill
may automatically change to bring your heart rate
closer to the target heart rate setting.
If your pulse is not detected during the program,
the letters "PLS" will flash in the Calories/Pulse
display and the speed of the treadmill may auto-
matically decrease. If this occurs, see the instruc-
tions included with the optional chest pulse sen-
sor.
To stop the program at any time, press the Stop
button. To restart the program, press the Start but-
ton or the speed + button. The walking belt will
begin to move at 1 mph. When the console com-
pares your heart rate to the target heart rate set-
ting, the speed and/or incline of the treadmill may
automatically change to bring your heart rate
closer to the target heart rate setting.
Monitor your progress with the displays.
See step 5 on pages 12 and 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
17

THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to switch the console from miles to kilometers. In addi-
tion, the information mode allows you to turn on and
turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
An "E" for English miles or
an "M" for metric kilometers
will appear in the Speed dis-
play. Press the speed + but-
ton to change the unit of
measurement if desired,
The Distance/Incline display
will show the total number of
miles (or kilometers) that the
walking belt has moved.
The Time/Pace display will
show the total number of
hours the treadmill has been
used.
IMPORTANT: The Calories/Pulse display should be
blank. Ifa "d" appears in the display, the console is in
the "demo" mode. This mode is intended to be used
only when a treadmill is displayed in a store. When the
console is in the demo mode, the power cord can be
plugged in, the key can be removed from the console,
and the displays and indicators on the console will au-
tomatically light in a preset sequence. The buttons on
the console will not operate. If a "d" appears in the
Calories/Pulse display when the information mode
is selected, press the speed - button so the display
is blank.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor provides
hands-free operation and allows you to use the con-
sows heart rate programs. To purchase the optional
chest pulse sensor, call the toll=free telephone
number on the front cover of this manual.
18

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position; if you do not do this, you may perma=
nently damage the treadmill. Next, unplug the power
cord. CAUTION: You must be able to safely lift 45
pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill in the locations shown at the right. To
decrease the possibility of injury, bend your legs and
keep your back straight. As you raise the frame, make
sure to lift with your legs rather than with your back.
Raise the frame about halfway to the vertical position.
2. Hold the treadmill frame firmly with your left hand. Using
your right hand, pull the latch knob to the right and hold it.
Raise the treadmill until the pin on the latch knob is
aligned with the hole in the left handgrip. Then, release
the latch knob. Make sure that the latch knob is fully
released so the pin is fully inserted into the hole in
the left handgrip. Note: After a period of use, the latch
housing may need to be adjusted to align the pin with the
hole in the left handgrip (see assembly step 5 on page 8).
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor=
age position in temperatures above 85 ° Fahrenheit.
Handgrip
Frame --
\\
Latch
)oo Latch
Knob
Pin
Handgrip
II
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure the pin on
the latch knob is fully inserted into the hole in the left
handgrip.
1. Hold the treadmill and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls on the wheels. Carefully
move the treadmill to the desired location. To reduce the
risk of injury, use extreme caution while moving the
treadmill. Do not attempt to move the treadmill over
an uneven surface.
3. Place one foot against one of the wheels, and carefully
lower the treadmill until the base is resting in the storage
position.
ase
Wheel
19

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill frame firmly with your left hand. Pull
the latch knob to the right. Pivot the frame down until the
pin on the latch knob is below the handgrip. Then, slowly
release the latch knob.
Pin
Handgri__,_
f
Latch
J- Knob
Frame
2. Hold the frame firmly with both hands, and lower it to the
floor. To decrease the possibility of injury, bend your
legs and keep your back straight.
2O
