Prodipe Iem5120 User manual

UHF personal monitor system

Prodipe IEM5120

User guide

____________________________________________________________________________________________________________

Safety Informations

Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual

carefully and retain it for future reference. This manual can be downloaded from our site.

CAUTION

Risk of electric shock

Do not open!

Precautions

The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the

presence of non-insulated “dangerous voltage” inside the appliance that may be of sufficient magnitude to

constitute a risk of electric shock..

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the product.

Important instructions

1. Read these instructions.

2. Retain these instructions.

3. Heed all warnings.

4. Follow all instructions..

5. Do not use this appliance near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings that were installed in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the

third prong is provided for your safety. If the plug provided does not fit into your outlet, consult an electrician to

ensure replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the

point where it exits from the appliance.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

appliance. If using a cart, be careful when moving the cart/appliance combination to avoid injury from tip- over

(Figure 1).

13. Unplug this appliance during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any

way, for example, the power-supply cord or plug is damaged, liquid has been spilled or objects have falle inside the

appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: The appliance should not be exposed to drips or splashes of water. Objects filled with liquids, such as

vases, should not be placed on the appliance.

This logo indicates that the product can be recycled after it has been used. Please do not dispose of the

product with your normal household waste. Return the product to the shop where you purchased it or

place it in the designated recycling container.

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Contents

Safety Information........................................................................................................................... 15

Contents........................................................................................................................................... 16

Introduction..................................................................................................................................... 16

Statement of Compliance................................................................................................................ 16

Description of the IEM5120............................................................................................................. 16

Features of the IEM5120 ................................................................................................................. 17

Functions of the IEM5120 transmitter ............................................................................................ 18

Functions of the bodypack receiver: ............................................................................................... 19

Prodipe earphones .......................................................................................................................... 20

Programming the transmitter ......................................................................................................... 21

Programming the bodypack receiver .............................................................................................. 22

Audio connections ........................................................................................................................... 24

Specifications................................................................................................................................... 25

Precautions and guarantee conditions............................................................................................ 26

Notes................................................................................................................................................ 27

Introduction

We would like to thank you for buying this product. To gain maximum satisfaction from your

Prodipe IEM5120 Personal Monitor Wireless System, please read the instructions in this manual

carefully. It is important that you keep the manual in a safe place. Before leaving the factory, every

product is meticulously checked by our extremely thorough quality control team.

Statement of Compliance

This piece of radio equipment is designed to be used at professional musical events or similar and for radio

broadcasts.

This equipment conforms to the requirements of the RED 2014/53/EU European Directive. The

frequencies used are subject to license in Belgium and Germany. Before using the equipment,

please act in accordance with the provisions of the law currently operating in your country.

Description of the IEM5120

The Prodipe IEM5120 UHF personal monitor wireless system includes an audio transmitter and

receiver built with the highest quality components to maintain a link between the audio source

(mixing desk, front mix, soundtracks, etc.) and your ears via the IEM3 earphones and bodypack

receiver.

Boasting a set of professional in-ear monitors that offers comfort and discretion, the system

provides on-stage singers, musicians and public speakers with excellent personal audio quality and

complete freedom of movement.

Each receiver bodypack can receive the signal from several transmitters. And each transmitter can

be listened to by several bodypack receptors.

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

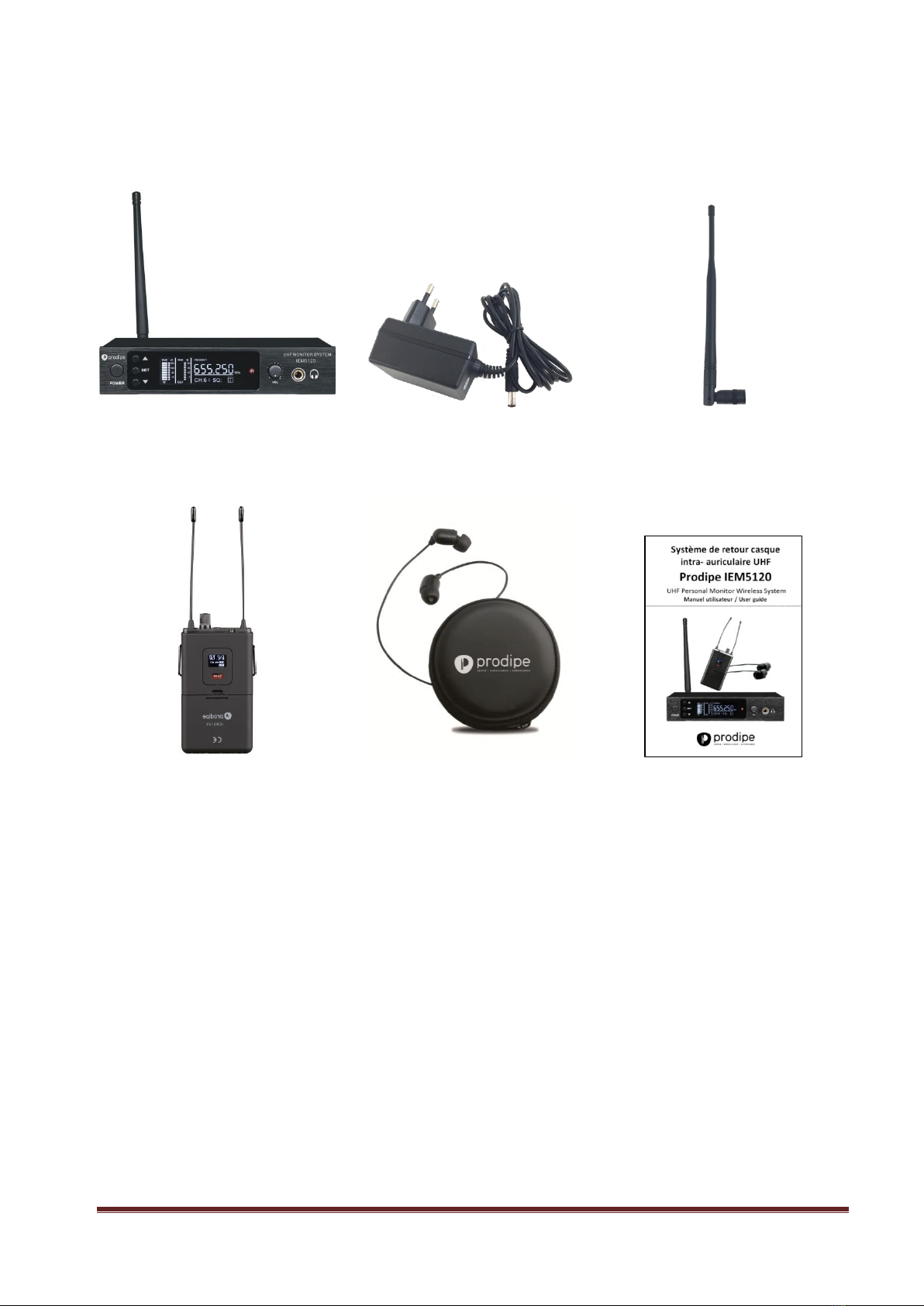

Features of the IEM5120

Transmitter

AC adapter

Antenna BNC

Bodypack

Earphones Prodipe

User guide

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Functions of the IEM5120 transmitter

Front Panel

1. On/off switch (POWER)

2. Up button (UP "▲")

3. Down button (DOWN "▼")

4. Menu/Set button ("SET")

5. LCD screen with information display (channels, levels, etc.)

6. [IR] Cell (infra-red)

7. Headphone volume knob

8. Headphone jack (6.35mm) for earphones

Rear panel

1. 6.35mm audio Jack output (Left + Right)

2. 3.5mm audio jack input (Left + Right)

3. Left level knob (VOL-L)

4. Combo XLR/Jack input (LEFT)

5. Combo XLR/Jack input (RIGHT)

6. Right level knob (VOL-R)

7. DC Adaptator

8. BNC antenna socket

1 3 4 5 6 7 8

1 2 3 4 5 6 7 8

2

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Functions of the bodypack receiver:

1. Fixed antenna

2. On/off switch/volume knob for the earphones

3. Output Jack (3.5mm) for Prodipe IEM3 earphones

4. Battery indicator light (flashes red when battery power low)

5. LCD screen with information display (channels, etc.)

6. [IR] Cell (infra-red)

7. Battery compartment (takes two AA batteries, not included)

8. Belt clip

4

6

1

5

3 2

1

7

8

1 3 1

4 2

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

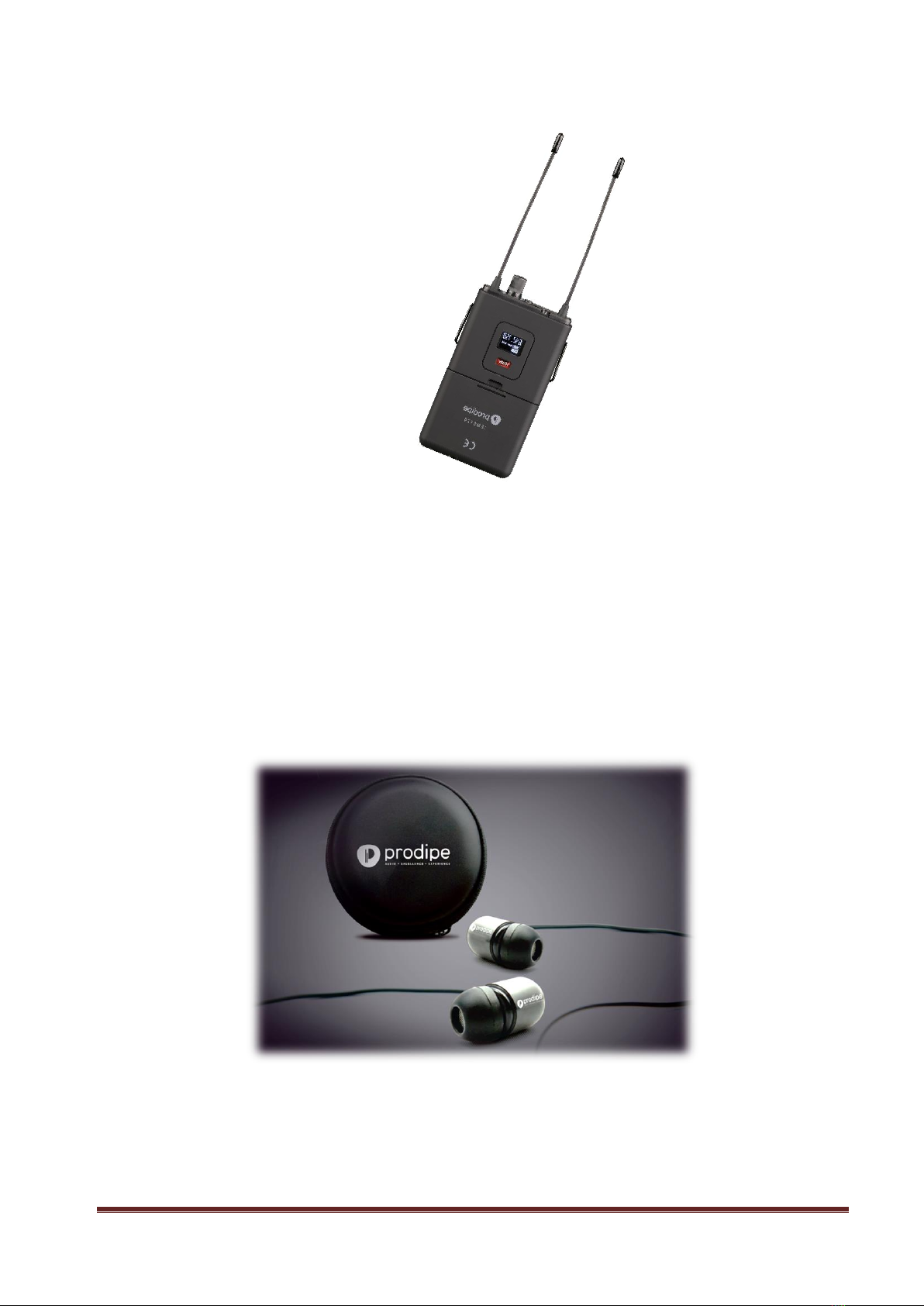

To attach the bodypack to your belt or item of clothing, turn the receiver round and use the belt

clip at the back. For guitars or other instruments that have a strap, you can also attach the receiver

to this strap.

The expected life for two standard alkaline batteries is approximately five hours at a mid level

volume. When the battery indicator begins to flash on the bodypack LCD screen, the batteries

should be changed as soon as possible (see image).

Prodipe earphones

The Prodipe earphones have been ergonomically designed to ensure that no external noise can

interfere with the listening experience for musicians on stage, on the road or in the studio. They

offer perfect neutrality and an impeccable balance between lows and highs.

They come with a carrying case and rubberized tips of different sizes.

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Programming the transmitter

Switching on the IEM5120 transmitter:

Hold the POWER button down for 3 seconds until your transmitter comes on.

Do the same to switch off.

Selecting the channel for your system:

Align the bodypack and the transmitter to about ten centimeters. Then, press and hold the "SET" key on

the display. The indicator "1A ----" will flash.

Auto Pairing will be completed when the RF Receive Level indicator appears and the "MUTE" logo

disappears

Pairing in progress

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Programming the bodypack receiver

Switching on the IEM5120 transmitter:

Hold the POWER button down for 3 seconds until your transmitter comes on.

Do the same to switch off.

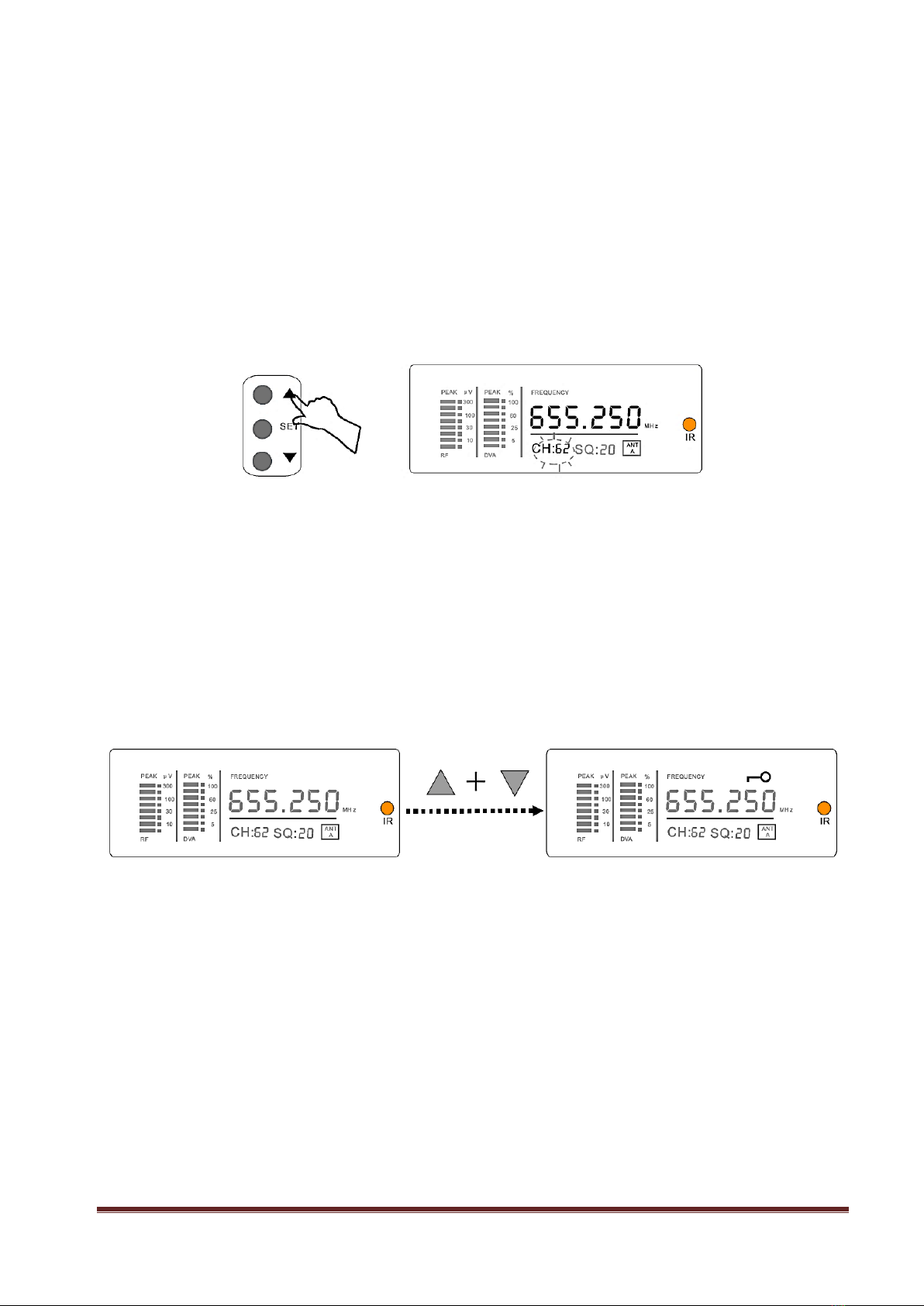

Selecting the channel for your system:

Press and hold the "UP" button on the bodypack receiver until the channel blinks.

While the channel is flashing, press "UP" or "DOWN" to select the desired channel. Then press "SET" to

confirm the selection.

Activate the menu lock:

Press the "UP" and "DOWN" buttons simultaneously to lock/unlock the setting.

CAUTION: When using multiple systems, set them to a different channel number for each system.

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

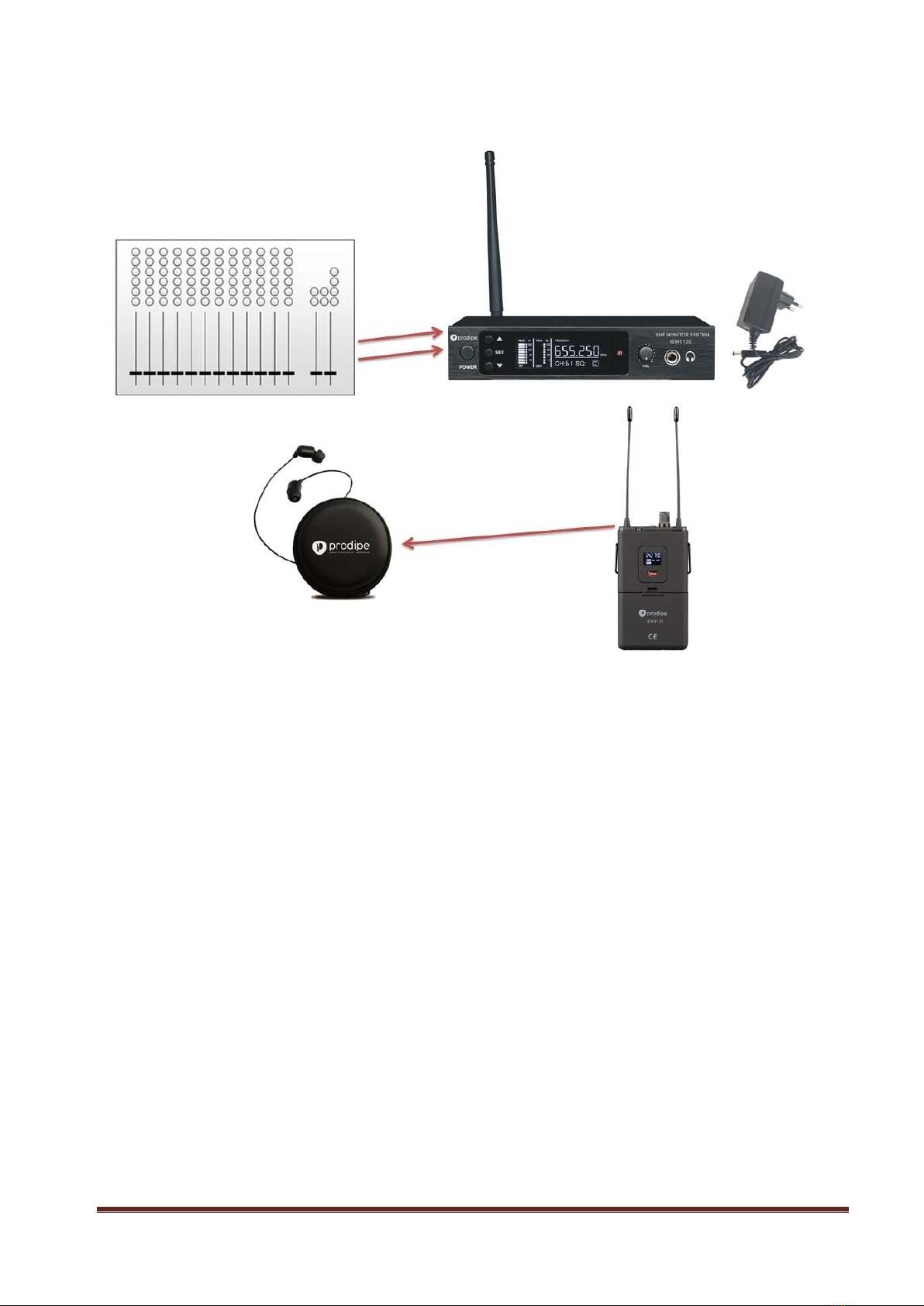

Audio connections

Connect the audio source (mixing desk, front mix, etc.) to the XLR/Jack inputs on the IEM5120 transmitter.

Next adjust the level using the "Left" and 'Right" level's knob at the rear of the device.

Connect one end of the mains adaptor to the dc input socket at the rear of the receiver and the other end

to a standard power outlet (230V/50Hz).

A 6.35mm audio output Jack is located alongside the "VOLUME" knob at the front of the transmitter. It

controls the signal sent by the transmitter.

Connect the Prodipe IEM3 earphones to the 3.5mm output Jack on the bodypack receiver. Use the knob to

adjust the volume.

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Specifications

In-ear monitor IEM3 Prodipe

Earphone diameter: Ø 10mm

Impedance: 16Ω

Sensitivity: 92dB±3 dB

Frequency response: 10Hz at 22kHz

Cable length: environ 1.2 m

Connector type: Ø3.5mm stereo

IEM5120 (transmitter and bodypack):

Transmission type: UHF

UHF frequency range: 630MHz at 680 MHz

Number of channels: 100

Dynamic: >90dB

THD: ＜0.1%

Frequency range: 30Hz～20KHz

Operating range: 80m (optimum conditions outside)

S/N ratio: ＞105dB

IEM5120 transmitter:

Output power: 10mW

Audio input: Combo XLR/Jack 6.35mm (x2)

Audio input: Jack 3.5mm (left + right)

Audio output : Jack 6.35mm (left + right)

Audio headphone output headphone: Jack 6.35mm

Dimensions (W x H x D) : 220mm x 47mm x 186mm

Weight: 780g

Bodypack receiver:

Audio output: Jack 3.5mm (casque audio stéréo)

Battery: two AA batteries (not included)

Battery life: about 8 hours (optimum conditions outside)

Sensitivity: <-94dBm

Dimensions (L x W x P): 66mm x 108mm x 22mm

Weight: 80g (without battery)

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

Frequencies table

CH NO.

Frequency

CH NO.

Frequency

CH NO.

Frequency

CH NO.

Frequency

0

630.10

26

636.60

52

643.10

78

649.60

1

630.35

27

636.85

53

643.35

79

649.85

2

630.60

28

637.10

54

643.60

80

650.10

3

630.85

29

637.35

55

643.85

81

650.35

4

631.10

30

637.60

56

644.10

82

650.60

5

631.35

31

637.85

57

644.35

83

650.85

6

631.60

32

638.10

58

644.60

84

651.10

7

631.85

33

638.35

59

644.85

85

651.35

8

632.10

34

638.60

60

645.10

86

651.60

9

632.35

35

638.85

61

645.35

87

651.85

10

632.60

36

639.10

62

645.60

88

652.10

11

632.85

37

639.35

63

645.85

89

652.35

12

633.10

38

639.60

64

646.10

90

652.60

13

633.35

39

639.85

65

646.35

91

652.85

14

633.60

40

640.10

66

646.60

92

653.10

15

633.85

41

640.35

67

646.85

93

653.35

16

634.10

42

640.60

68

647.10

94

653.60

17

634.35

43

640.85

69

647.35

95

653.85

18

634.60

44

641.10

70

647.60

96

654.10

19

634.85

45

641.35

71

647.85

97

654.35

20

635.10

46

641.60

72

648.10

98

654.60

21

635.35

47

641.85

73

648.35

99

654.85

22

635.60

48

642.10

74

648.60

23

635.85

49

642.35

75

648.85

24

636.10

50

642.60

76

649.10

25

636.35

51

642.85

77

649.35

Precautions and guarantee conditions

For hygienic reasons, you should replace your Prodipe earbuds from time to time.

CAREFUL: do not use any cleaning products that may contain solvents.

Use a soft, dry cloth to clean your earphones. If necessary, the earphones can be washed in soapy

water (use a mild cleanser such as washing-up liquid).

Avoid listening through your earphones at high volume for prolonged periods, as this may cause

irreversible damage to your hearing. We recommend that you keep the volume at a reasonable

level.

Prodipe and its distributors decline all responsibility for any damage caused to the unit in the event

that the above precautions are not followed.

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

_______________________________________________________________________________________

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

_______________________________________________________________________________________

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

_______________________________________________________________________________________

Illustrations et photos non contractuelles

Actual product(s) may differ from illustrations/photographs used

IPE Music

20, rue Clément ADER

Z.A. Les Gloriets

Olonne sur Mer

85340 Les Sables d’Olonne

France

www.prodipe.com

Prodipe IEM5120 User manual

Popular Recording Equipment manuals by other brands
