PROEL Axiom DSO480 User manual

USER’S MANUAL
www.proelgroup.com
english

2

3
DSO480 QuickReference
Editingchannels:presschannel’sGAIN key.Firstpressaccessesthat
channel’sgain.Toscrollthroughchannel’sparameters,usetheBACKand
NEXTkeys.Secondpressaccesseslastviewedparameter.Thirdpresswill
dropbacktothedefaultscreen.
Accessingmenus:presstheMENUkey.UsetheBACKandNEXTkeysto
selectthesub‐menurequired,andenterthesub‐menuusingtheENTERkey.
Thisappliestoalllevelsofmenu.ENTERalwaysconfirmsselections.
TheMenusandtheirContents
GLOBAL MEMORY Sub‐menu:Recall/Store/Eraseinputandcrossover
settings,orcombinationsof.
INPUT SECTIONSub‐menu:Setupinputganging,andGEQ‘Q’setting.
CROSSOVERSub‐menu:Setuporadjustcrossoverdesign,including
routingandautolimitersetting.Alsosetupoutputganging.
INTERFACESub‐menu:Commsinterfacesetup(RS232)
SYSTEM Sub‐menu:Usedtoviewunit’sstatus,andselectvariousglobal
optionssuchasPEQ‘Q’orbandwidthunits,delayunits,andoutputmetering
point(pre/postmute).
SECURITY Sub‐menu:Usedforlockingvariousoperationsoftheunit,
usinga4digitcode.
AES/EBU Sub‐menu:Switchoutputsfromanaloguetodigitaland
monitorAESinputstatusinfo.(AESinputsareswitchedviarearpanel.)
Notes
Thecrossover(output)settingsmaybestoredindependentlyoftheinput
settings,usingtheGlobalMemorysub‐menu.
Theoutputmetersshowlevel,indBfromthelimiterthreshold,andtheinput
metersshowlevelfromclippingtheA‐Dconverters,
pre‐gainandallEQ.
Thehighandlowpasscrossoverfiltersaredefinedindependentlyoneach
outputchannel.
Toaccessthelimiterattackandreleaseparameters,select“AutoLimiter
TimeCst:No”whendesigningacrossover.
Toswapparametricfilterunitsbetweenbandwidth(‘BandW’)and‘Q’,enter
SystemSub‐menu,select‘FilterQ/Bandwidth’,andselectrequired
readoutunits.
Toswapdelaytimeunits,enterSystemSub‐menu,select‘DelayTime/
Distance’,andselectrequiredreadoutunits.
PressinganEDITkeyflashescorrespondingchannelsroutedto/fromthat
channel.

4
Contents
Important Safety Information 6
Thanks 7
Unpacking the unit 7
Introduction 8
Features 8
Front Panel Familiarisation 9
Rear Panel Connections 10
Operating the DSO480 11
Preliminary Set-up 11
Input Channel Makeup 12
Output Channel Makeup 12

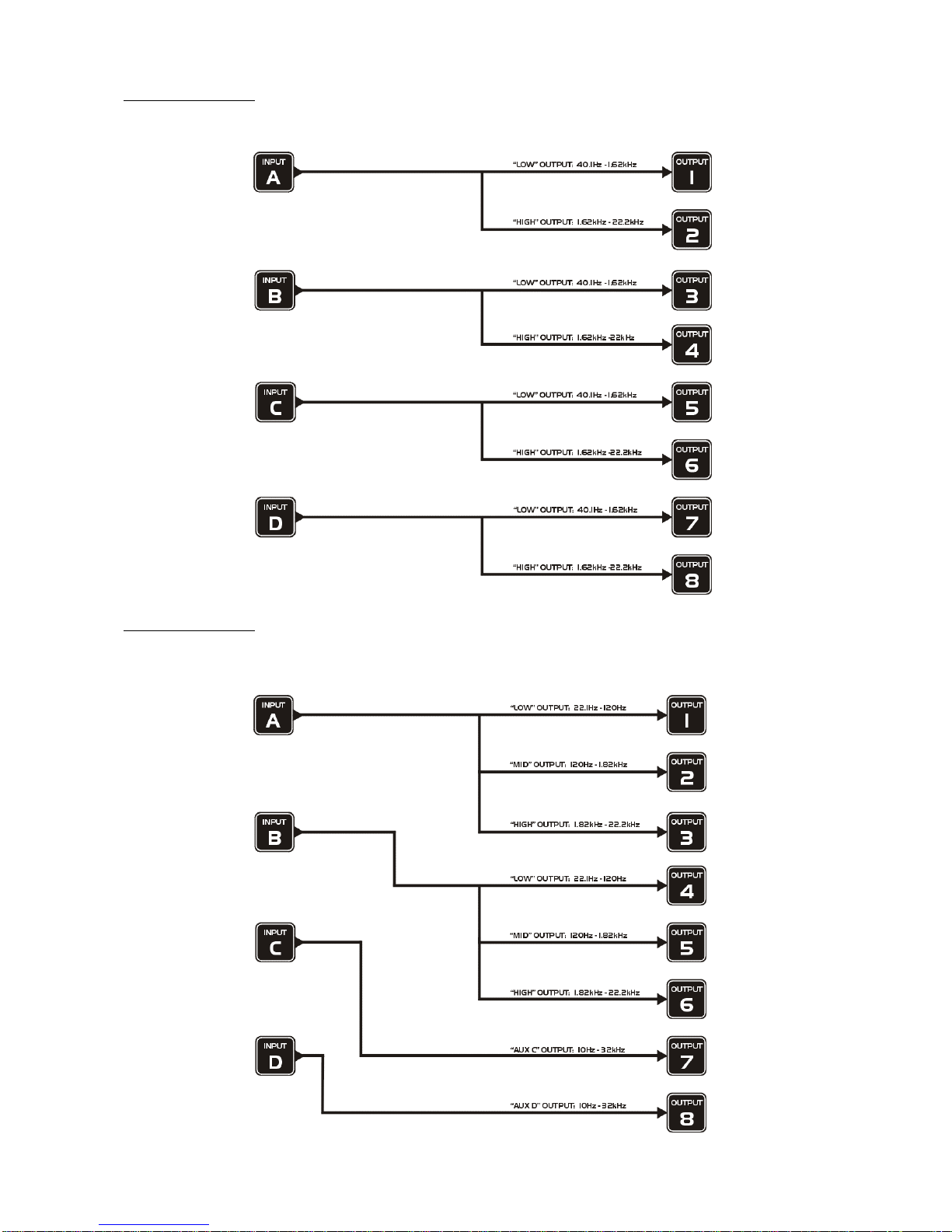

Preset Routing Configurations 12
Free Assign Routing 15
Input Gain 16
Base Delay 16
Input Parametric EQ 16
Output Gain 17
Output Polarity 17
Output Delay 17
Output High Pass Filter 18
Output Low Pass Filter 18
Output Parametric EQ 18
Output Limiter 19
Output “D-Max” (Clip) Limiter 19
Input Ganging and Output Ganging 19
Menu System Overview 21
Menus in Detail 23
Memory Structure 24
Remote Control Interface Operation 25
RS232 Interface 25
RS232 Connection (Single Unit) 25
Loading New Software via a PC 26
AES Inputs 26
AES Input 26
Security and Locking 27
Entering the Password to Complete the Locking Operation 27
Unlocking the Unit 28
Forgotten the Password? 28
Program Limiter and “D-Max” Limiter 29
Program Limiter 29
“D-Max” Clip Limiter 29
Setting Accurate Limiter Thresholds 32
Crossover Filter Slopes 33

5
Time Alignment 33
Parametric Filter Types and Their Uses 34
Standard Parametric EQ 34
Shelving EQ (High Shelf shown) 35
Creating a Flat-topped EQ Response 35
Bandpass Filter 36
Notch Filter 36
All Pass Filter 37
Phase Filter 37
Low/High Pass Variable ‘Q’ Filter (Low Pass shown) 38
Elliptical filters 38
Factory presets 39
Warranty 39
Specifications 40

6
Anexampleofthisequipmenthasbeentestedandfoundtocomplywiththefollowing
EuropeanandinternationalStandardsforElectromagneticCompatibilityandElectricalSafety:
RadiatedEmissions(EU):EN55013‐1(1996)
RFImmunity(EU):EN55103‐2(1996)RFImmunity,ESD,BurstTransient,Surge,Dips&Dwells
ElectricalSafety(EU): EN60065(1993)
ImportantSafetyInformation
DonotremoveCovers.
Nouserserviceablepartsinside,referservicingtoqualifiedservicepersonnel.
Thisequipmentmustbeearthed.
CAUTION
RISKOFELECTRICSHOCK
DONOTOPEN
DONOTEXPOSETORAIN,MOISTURE,
DRIPPINGORSPLASHING
ATTENTION
RISQUEDECHOCELECTRIQUE
NEPASENLEVER
NEPASEXPOSERALAPLUIENIAL’HUMITE
Objectscontainingliquids,suchasvases,mustnotbeplacedonthisequipment.
Itshouldnotbenecessarytoremoveanyprotectiveearthorsignalcableshieldconnections.
Donotdefeatthepurposeofthepolarizedorgrounding‐typeplug.Apolarizedplughastwobladeswith
onewiderthantheother.Agroundingtypeplughastwobladesandathirdgroundingprong.Thewider
bladeandthethirdprongareprovidedforyoursafety.Whentheprovidedplugdoesnotfitintoyour
outlet,consultanelectricianforreplacementoftheobsoleteoutlet.
Onlyusethisequipmentwithanappropriatemainscord.
IntheUSAthecordshouldcomplywiththerequirementscontainedintheStandardforCordSetsand
PowerSupplyCords,UL817,bemarkedVW‐1,andhaveanampcapacityratingnotlessthanthemarked
ratingoftheapparatus.

7
Thanks
ThankyouforchoosingaPROELDSO480 foryourapplication.Pleasespendalittletimereadingthrough
thismanual,sothatyouobtainthebestpossibleperformancefromtheunit.
AllPROELproductsarecarefullydesignedandengineeredforcutting‐edgeperformanceandworld‐class
reliability.IfyouwouldlikefurtherinformationaboutthisoranyotherPROELproduct,pleasecontactus.
Welookforwardtohearingfromyouinthenearfuture.
Unpackingtheunit
Afterunpackingtheunit,pleasecheckitcarefullyforanydamage.Ifanyisfound,immediatelynotifythe
carrierconcerned‐you,theconsignee,mustinstigateanyclaim.Pleaseretainallpackagingincaseof
futurere‐shipment.
Pleasethinkofourenvironmentanddon’tbinanymaterials,includingthismanual.
Whentheproducthasreachedtheendofitsusefullife,pleasedisposeofitresponsibly
througharecyclingcentre.
FEDERALCOMMUNICATIONSCOMMISSION
ThisisaclassAdigitaldevice,whichismarkedforuseinacommercial,industrialorbusiness
environment,exclusiveofusedbythegeneralpublicorusedinthehome.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany
interferencereceived,includinginterferencethatmaycauseundesiredoperation.
CAUTION:Changesormodificationstothisproductnotexpresslyapprovedbythemanufacturercould
voidtheuser'sauthoritytooperatethisproduct.
NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,
pursuanttoPart15ofFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst
harmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipment
generates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordance
withtheinstructionmanual,maycauseharmfulinterferencetoradiocommunications.Operationsof
thisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwill
berequiredtocorrecttheinterferenceathisownexpense.

8
Introduction
TheDSO480ispowerfulDSPbasedaudioprocessors,ideallysuitedforinstallapplications,wherethey
combinethefunctionsofamultitudeofconventionalproductsinacompact1Uunitwithextensiveremote
controlcapabilities.Toachievethis,theunitshaveuptofourinputsandeightoutputswhichcanbe
configuredinaselectionofbasiccrossovermodes–4x2way;2x3way+2Aux;2x4way;and1x8way
(asapplicabletoi/oconfigurations).Theyalsooffera“freeassign”mode,whichallowscompletelyflexible
routingofanyoutputfromanycombinationofinputs.
Eachinputhasagaincontrol,variabledelay,aeightbandsoffullyparametricequalisation.Theparametric
filterbandshavealargeselectionofdifferentfiltertypesavailable,includingshelving,notch,band‐pass,
phaseandellipticalbehaviours.
Eachoutputhasagaincontrol,variabledelay,highandlowpasscrossoverfilters,ninebandsoffully
parametricequalisation,polarityswitchingand,additionally,afullyfeaturedlimiter,andafinalcliplimiter.
Thecrossoverfiltersofferslopesofupto48dB/Octave.,withavarietyofresponsesavailable.
RemotecontroliscateredforintheformofRS232,andmultipleusermemoriesareprovidedforthe
storageandrecallofsettings.
Securitylock‐outisavailableforallcontrols.
TheDSO480isalsoequippedwithAES/EBUdigitalinputs,andincludeasamplerateconverter,capableof
acceptinganythingfrom32kHzupto192kHz.
Features
Superbaudioquality–carefullyoptimiseddoubleprecisionsignalprocessingcoupledwith24bit
conversionensureadynamicrangeinexcessof116dB.Thehighsamplingrateof96kHzmeansminimal
filteringprovidingexceptionalsonicpuritywithabandwidthinexcessof32kHz.
Aflexibleinput/outputmulti‐modeformatcatersforanyconfiguration,regardlessofscale.
Bothroutingofinputstooutputs,andganging(forediting)arecompletelyflexible.
AcompletelynewSHARCTMbasedDSPplatformsuppliesphenomenalcomputationalpower,allowingthe
unittoprovidemultiplebandsofstandardparametricequalisationoneveryinputandoutput.This
additionalpoweralsopermitsbothprogramlimitersandnoovershootcliplimitersoneachoutput.
Delayofupto650mSmaybeindependentlysetforeachoutput,withanexceptionallyfineminimum
incrementof300nS,whichcorrespondstoadistancechangeof0.1mm!
Thecomprehensivestandardspecificationalsoincludesupto255memories,andremotecontrolviaRS232
withsecuritylockout.algorithmensuresthatnomatterhowmuchequalisationisappliedtoachannel,
therewillalwaysbesufficientheadroomavailabletocaterforit.

9
FrontPanelFamiliarisation
LCDScreen:Shows,bydefault,thenameof
thelastrecalledmemoryonthebottomline
ofthescreen,andthecurrentroutingonthe
topline.Alsousedtoshowallparametersas
theyareedited,andallmenuselections.
ControlKeys:Selectionandadjustmentofparameters.
NEXTkeymovesforwardthroughlistofparameters.
BACKkeymovesbackwardsthroughlistofparameters.
MENUkeyactivatesthemainmenu–asecondpressselectsthelastmenuedited–athird
pressselectsthelastmenuitem.Inthisway,threepressesonMENUfromthedefault
screenwilljumpbacktothelastparameteradjusted.Selectionofdifferentmenusis
accomplishedusingtheBACKandNEXTkeys,orwiththeFREQencoder.
ENTERkeyentersthechosenmenu,confirmsselections,andchangesfiltertypes
wheneditingparametricsections.
BYPASSwillflattenthecurrentlyselectedparametricsections.Notethat,forsafetyreasons,itisnot
possibletobypassthehighandlowpassfiltersections.
QUITexitsmenusbacktothedefaultscreen.
RotaryEncoders:Threevelocitysensitiveencodersadjusttherelevant
parametersasdisplayedonthescreen.
StatusLEDs:ThetwostatusLEDsshowAESinputsselected(flashingifnot
locked);ERRifsomeerroroccurinthedigitalinputssection
InputSections:Controlandmonitorinputsignalpaths.
RedMUTEbuttonsilluminatewhenpressedandmuteaudioforthatchannel.
EDITbuttonsilluminateyellowwhenpressed,andaccessgainonfirstpress,
thenlastviewedparameteronsecondpress,thenexitonthirdpress.
InputmetersshowdBfromclippingpointoftheanaloguetodigital
converters.Yellow(0dB)LEDilluminates3dBfromclipping.RedCLIPLED
mayilluminateindependentlyfromtherestofthemetertoshowdigitaloverflow.AllfourCLIPLEDs
illuminatingindicatesinternalclippingaftertheADC.
OutputSections:Controlandmonitor
outputsignalpaths.
RedMUTEbuttonsilluminatewhen
pressedandmuteaudioforthat
channel.
EDITbuttonsilluminateyellowwhen
pressed,andaccessgainonfirstpress,
thenlastviewedparameteronsecondpress,thenexitonthirdpress.OutputmetersshowdBfrom
limiting.TheyellowLEDilluminatesattheonsetoflimiting.TheredLEDilluminatesat4dBintolimiting
(i.e.4dBofgainreduction).

10

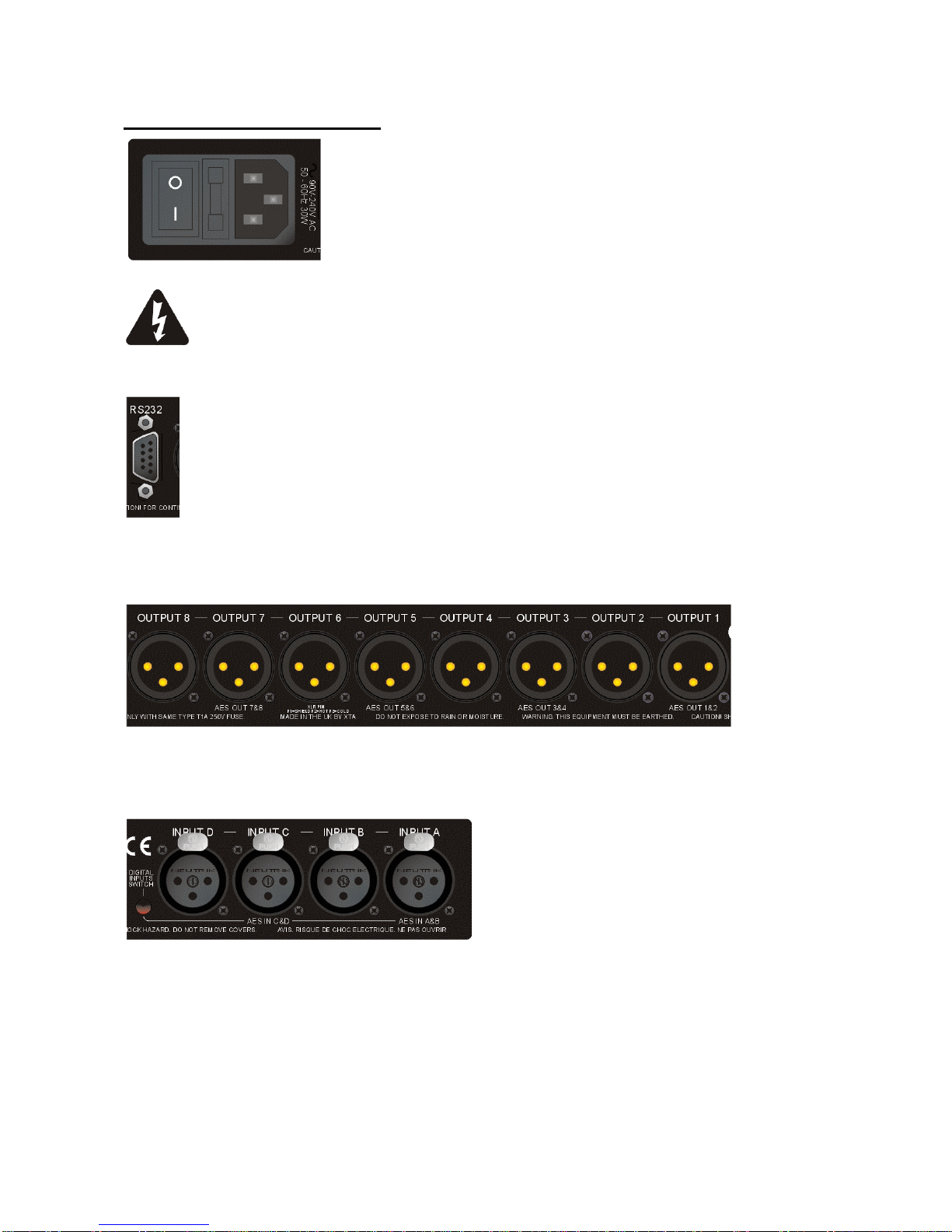

RearPanelConnections
PowerSwitch:turnstheunit’smainssupplyoffandon.
MainsFuse:locatedinafinger‐proofholderadjacenttothemainsinlet.A
sparefuseisalsolocatedinthisholder.
MainsInlet:connectedviaastandardIECsocket.
Alwaysreplacethefusewiththecorrecttypeandratingasshownontherearpanellegend.
RS232:RS232standardviaa9pinD‐typeconnector,forconnectiontoaPC.
AudioOutputs:3pinXLRsocketsareprovidedforeachchannel.Allarefullybalanced,pin2hot,3cold,1
screen.
AESInputSwitch:RecessedswitchtoselectAESdigitalinputs.RedLEDwillilluminateintheholewhen
AESinputsareselected,alongwiththecorrespondingfrontpanelindicator.
AudioInputs:3pinXLRsocketsareprovidedforeachchannel.Allarefullybalanced,pin2hot,3cold,1
screen.
NotethelegendingonthepaneltodesignatewhichinputsareusedforAESwhenthedigitalinputsare
enabled.Pleaseseepage26formoreinformation.

11
OperatingtheDSO480
PreliminarySet‐up
TheprocedurebelowshouldbefollowedwhenfirstinstallingaDSO480unit.
Designyourcrossover!Todothis,pressMENU,andusetheBACKorNEXTkeytoselect
‘Crossover sub-menu’andthenpressENTER.UsetheBACKorNEXTkeytoselect
‘Design a crossover’andthenpressENTER.Finally,usetheBACKorNEXTkeytoselect
thedesiredrouting1andfollowtheset‐upwizardtofinaliseyourdesign.
Notethatwheninamenu,ENTERisalwaysusedtoconfirmselections.Thecurrentselectionis
markedwithanasterisk‘*’.
UsetheEDITkeysoneachoutputchannelwiththeBACKandNEXTkeystoselectthehighpass
filters,lowpassfilters,parametricsetc.Notethatwhendesigninganewcrossover,thehighand
lowpassfilterswillbesettodefaultvalues.
UsetheEDITkeysoneachinputchannelwiththeBACKandNEXTkeystoselectthegain,delay
andparametricsavailableoneachinput.
Info: Note that if no action is taken in menu mode, the unit will return to normal ‘default’ mode
after about twenty (20) seconds. Repeat the above directions to return to menu mode.
1For details about adjusting the routing if one of the standard configurations does not suit, see page 15.

12
Routing Options and Processing Blocks
DuetothecompletelynewDSPplatform,theroutingpossibilitieswithintheDSO480 havebeenmade
completelyflexible,withamatrixavailableallowinganycombinationofinputstoberoutedtoanyoutput.
TheadditionalDSPpowerhaspermittedtheinclusionofmoreprocessingblocks,evenconsideringthe
extrainputsandoutputs,andthedoublingofsamplerate.
Toreduceset‐uptimeandaidusability,severalstandardconfigurationsareavailableasdescribedinalater
section.
Thissectionwilloutlinetheprocessingblocksavailableinrelationtothesignalpath,andexplainthe
variousoptionsforrouting,includingthe“FreeAssign”mode,whichopensupcompletelyflexiblechannel
routing.
Input Channel Makeup
Thediagrambelowshowstheprocessingavailableoneachofthefourinputchannels,beforeroutingtothe
matrix.
Output Channel Makeup
Thediagrambelowshowstheprocessingavailableoneachoftheeightoutputchannels,afterroutingfrom
thematrix.
PresetRoutingConfigurations
Inadditiontotheabilitytoassignanycombinationofinputstoanyoutput,anumberofpreset
configurationsareprovided,forusewhendesigningacrossoverfromscratch.Thesehavetheadvantageof
suggestedsettingsforthehighandlowpassfilterstousefulbasicstartingpoints,tofilterthedifferent
outputsasappropriateforthechosenconfiguration.Thesemay,ofcourse,befreelymodifiedafterwards
shouldtheynotsuittherequirementsexactly.
Thediagramsonthefollowingpagesshowtheconnectionsmadebetweeninputsandoutputs,andthe
suggestedvalueschosenforthehighandlowpassfilters.

13
4x2waycrossover:Asshown,eachinputfeedsapairofoutputs,oddnumbersbeingthelowfrequency
split,andevennumbersbeingthehighpartofthespectrum.Defaultsuggestedcrossoverfrequenciesare
shownbyeachoutput.
2x3waycrossover:InputsAandBfeedthreeoutputseach,withoutput7beingfedfrominputC,and
output8frominputD.Notethe‘Aux’outputsaresettofullrange.Defaultsuggestedcrossover
frequenciesareshownbyeachoutput.

14
2x4waycrossover:InputsAandBfeedfouroutputseach,withinputsC&Dbeingunused.Default
suggestedcrossoverfrequenciesareshownbyeachoutput.
1x8waycrossover:InputsAisfedtoalleightoutputs,withinitialsettingsbeingallfullbandwidth.The
crossoverpointscanbeadjustedasdesired.

15
FreeAssignRouting
Ifnoneofthepresetconfigurationsareappropriatetotherequiredsystemsetup,itispossibletomanually
selecttheroutingofthecrossover.ThisisachievedthroughtheCrossover Menu -> Design A
Crossover.
PressingENTERwillstartthecrossoverdesignwizard,withthefirstoptionbeingtochoosetherouting.
Thedisplaywillshow
Design A Crossover ->
Routing = 2 X 4 WAY *
orwhateverthecurrentconfigurationissetto.
PressBACKuntilthedisplayshows
Design A Crossover ->
Routing = Free Assign
AndthenpressENTER. TheEDITkeywillilluminateforoutput1,aswillanyrelevantinputEDITkeys,
showingwhichinputsarefeedingoutput1.Thedisplaywillalsodetailthecurrentcombinationofinputs
feedingthisoutput.Tochangetheroutingforanyoutput,pressitsEDITkey,andthenchoosetherequired
inputchannelcombinationbyjustpressingtheinputEDITkeysasappropriate.Theinputcombinationscan
alsobesteppedthroughinturnbypressingNEXT,orBACK.
Tocompletetheprocedure,pressENTER.Thewizardwillcontinue,andiftheroutinghasbeenchanged,all
outputswillbemutedonexit.

16
Editing Audio Parameters – Input Channels
InputGain
Therangeofthecontrolovertheinputgainis–40dBto+6dBin0.1dBsteps.
InA Input A Gain
Input Gain = +6.0dB
Gain
BaseDelay
Themaximumavailabledelaybetweenanyinputandoutputis650.00ms.Forexample,iftheinputdelay
onchannelAissetto500ms,themaximumavailableoutputdelayforanyoutputfedfrominputAwillbe
150ms.Thereadoutunitscanbechangedbetweentimeinmilliseconds,distanceinfeetordistancein
metres.Pleaseseepage23formoredetails.
InA Input A Delay
Base Delay = 0.00mS
x1mS x10uS
343mm 4mm
InputParametricEQ
Thereareeightbandsofparameterequalisationavailableoneveryinput.Thebehaviourofeachindividual
bandcanbechangedtoavarietyofdifferentfiltershapes,includinghighandlowshelves,notch,and
bandpass.ChangingthefiltertypeisachievedbypressingENTERduringeditinganyparticularband.For
moredetailsaboutthevarioustypesoffilteravailable,pleaseseepage33.
InA Input A PEQ:1<>
1k00Hz Q=3.0 0.0dB
Frequency ‘Q’ Gain

17
Editing Audio Parameters – Output Channels
OutputGain
The range of the control over the input gain is –40 dB to +15 dB in 0.1 dB steps.
OP1 Output 1 Gain
Output Gain = +6.0dB
Gain
OutputPolarity
Thepolarity(orphase)ofeachoutputmaybeswitchedindividuallyasbelow.
OP1 Output 1 Polar.
Polarity = [+]
-or+
OutputDelay
Themaximumavailabledelaybetweenanyinputandoutputis650.00ms.Forexample,iftheinputdelay
onchannelAissetto500ms,themaximumavailableoutputdelayforanyoutputfedfrominputAwillbe
150ms.Thereadoutunitscanbechangedbetweentimeinmilliseconds,distanceinfeetordistancein
metres.Pleaseseepage23formoredetails.
OP1 Output 1 Delay
Delay = 0.0000mS
x1mS x10uS x0.3uS
343mm 4mm 0.1mm

18
OutputHighPassFilter
Thehighpasscrossoverfilteroneachoutputhasafrequencyrangeof<10Hzupto32kHzin1/36thOctave
steps.Ifyoutrytosetthehighpassfiltertoahigherfrequencythanthelowpass(whichwouldbe
pointlessandresultinnooutput),themessageHigh/Low Freq. Overlap!willbedisplayed.Note
thattoaccessthe48dB/Octavefilters,parametricbands6&7needtobebypassed,orsetto0dB.Ifthey
arenot,themessageBypass PEQ’s 6 & 7 To Access 48dB Slopeswillbedisplayed.
OP1 Output 1 HPF /~~
<10Hz Linkw-Riley 48dB
Frequency Slope
OutputLowPassFilter
Thelowpasscrossoverfilteroneachoutputhasafrequencyrangeof35.1Hzupto>32kHzin1/36th
Octavesteps.Ifyoutrytosetthelowpassfiltertoalowerfrequencythanthehighpass(whichwouldbe
pointlessandresultinnooutput),themessageHigh/Low Freq. Overlap!willbedisplayed.Note
thattoaccessthe48dB/Octavefilters,parametricbands8&9needtobebypassed,orsetto0dB.Ifthey
arenot,themessageBypass PEQ’s 8 & 9 To Access 48dB Slopeswillbedisplayed.
OP1 Output 1 LPF ~~\
>32kHz Linkw-Riley 48dB
Frequency Slope
OutputParametricEQ
Thereareninebandsofparametricequalisationavailableoneveryoutput2.Thebehaviourofeach
individualbandcanbechangedtoavarietyofdifferentfiltershapes,includinghighandlowshelves,notch,
andbandpass.ChangingthefiltertypeisachievedbypressingBYPASStobypassthefilterandthen
pressingENTERduringeditinganyparticularband.Formoredetailsaboutthevarioustypesoffilter
available,pleaseseepage33.
OP1 Output 1 PEQ:1<>
1k00Hz Q=3.0 0.0dB
Frequency ‘Q’ Gain
2Note that 2 bands each will be lost when using 48 dB slope crossover filters, resulting in a maximum of 5
bands of EQ when both high and low pass are set to 48 dB/Octave.

19
OutputLimiter
Thelimiteroneachoutputhasadjustableattackandthreshold,withareleasetimethatisselectabletobe
amultiplieroftheattacktime.Forexample,asshownbelow,theattacktimeis2msandreleaseis“x16”
so32ms.Theattackandreleasetimescanbeautomaticallylinkedtothehighpassfilterfrequency,sothat
theyaresettocorrectvaluesfortheoutput’sfrequencyrange.Ifthisfeatureisenabled,thedisplaywill
showAutomatic T/Cinplaceoftheattackandreleasetimes.Selectionofautomatictimeconstants
isthroughthe Design a Crossoverwizard,intheCrossover Sub-Menu.
OP1 Output 1 Limiter
Atk=2.0mS Rel=x16 +22dB
Attack Release Threshold
Output“D‐Max”(Clip)Limiter
Thecliplimiteroneachoutputisdesignedtositatathresholdjustabovethestandardlimiterandhasa
lookaheadattacksothatitsthresholdcanneverbeexceeded.Thereleasetimecanbeautomatically
linkedtothehighpassfilterfrequency,sothatitissettoavalueappropriatefortheoutput’sfrequency
range.Ifthisfeatureisenabled,thedisplaywillshowRel. = Autoinplaceofthereleasetime.
Selectionofautomatictimeconstantsisthroughthe
Design a Crossoverwizard,intheCrossover Sub-Menu.
Moreinformationaboutthelimitersandtheiruseisgiveninthesectiononpage29.
OP1 Output 1 ClipLim
Rel.=Medium 2dB Above
Release Threshold
InputGangingandOutputGanging
Themethodoflinkinginputsoroutputstogetherduringeditingisachievedinthesameway,soonly
crossover(output)gangingwillbeexplainedhere.HavingselectedCrossover Ganging fromthe
menuundertheCrossover Sub-Menu,thecurrentgangingset‐upwillbedisplayed.Thiswill
eitherbeapresetselectionaswouldbeusefulinastandardcrossoverconfiguration–forexample
<-Crossover Ganging
Ganging=1+3+5+7 2+4+6+8
…wouldbealogicalgangingarrangementifthecrossoverwassetupasa4x2way–linkingthecontrol
andadjustmentofall“Low”outputstogether,andthatofall“High”outputstogether.
However,ifthecrossoverhasnotbeensetupwithapresetroutingconfiguration,thenitmayberequired
tosetupthegangingtocomplimentthisconfiguration.ThisisachievedusingtheFree Assignmode.
Thisisselectedfromthepresetgangingchoices,whichare:
Ganging=None [all outputs independent]

20
Ganging=Free Assign [choose ganging]
Ganging=1+2+3+4+5+6+7+8 [1 x 8 way]
Ganging=1+5 2+6 3+7 4+8 [4 x 2 way]
Ganging=1+3+5+7 2+4+6+8 [2 x 4 way]
Selecting Free Assign and then pressing ENTERwill begin the process of ganging
outputs together using the following simple rules:
All outputs are ganged to the lowest number – so to gang 3 & 5, 5 must be
selected and then ganged to 3.
Outputs cannot share more than one ganging set – so for example output 3 cannot
be ganged to 2 and 4 unless they are ganged together as well. (Effectively 3 and 4
are ganged to 2 in this case)
Withtheserulesinmind,selectingandsettingupgangsisquitestraightforward.
PressaMUTEkeytochoosetheoutputtogang–itsLEDwillbegintoflash,andanEDITkeywillilluminateto
showwhichoutputitiscurrentlygangedwith.Tochangethisselection,justpressanotherEDITkey,
rememberingthatgangsworkfromthehighesttolowestnumber.So,togangoutputs1and5,pressMUTE
5thenEDIT1–thedisplaywillshow
<-Crossover Ganging
Gang Output 5 with 1
GangingisclearedbyselectingGanging=None fromtheinitialchoicesgivenabove.The Input
Ganging procedureisidenticaltothecrossoverganging,selectableunderthe Input Sub-Menu.
Table of contents
Other PROEL Music Equipment manuals
