Progress Lighting AirPro Schaal P250101 User manual

®
P250101
93165624_A

Limited Lifetime Warranty
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
P250101
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical
defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and
metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from
the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/
or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for
ENERGY STAR® qualied products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal
conditions of use, are warranted to be free from defects in material and workmanship which cause the light
sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase
on the LED Light modules and electrical components for fans used in single family residences, and (ii) three
(3) years from the date of purchase on the LED Light modules and electrical components for fans used in
multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other
than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the
rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)
678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall
be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor
(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,
misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser
or a third party, including without limitation improper voltage supply or power surge, use of improper parts or
accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION
AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.
PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF
BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations
of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specic rights and you may have other rights which vary from state to state.
785247255511
785247255528
111017

Safety Rules
Unpacking Your Fan
Installing Your Fan
Making the Electrical Connections
Operating Your Fan
Care of Your Fan
Troubleshooting
Specications
Table of Contents
1
2
3
6
10
11
11
12

1. To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70-1999 and local electrical
codes. Electrical installation should be performed by a
qualied licensed electrician.
3. CAUTION: To reduce the risk of personal injury, use only the
screws provided with the electrical box.
4. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9 kg) or less.”
5. CAUTION: The fan must be mounted with a minimum of 7
feet clearance from the trailing edge of the blades to the oor.
6. Do not operate reversing switch while fan blades are in motion.
Fan must be turned off and blades stopped before reversing
blade direction.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into
electrical box. The wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the electrical box and ungrounded
conductor on the other side of the electrical box.
11. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL Listed and marked suitable
for use with the model fan you are installing. Switches must be
UL General Use Switches. Refer to the instructions packaged
with the light kits and switches for proper assembly.
12. All set screws must be checked and retightened where
necessary before installation.
13. WARNING: To reduce the risk of re or electric shock, do not
use this fan with any solid-state speed control device.
14. WARNING: To reduce the risk of re or electric shock, this
fan should only be used with speed controller UC7312RE,
manufactured by Rhine Electronic Co., Ltd.
15. Suitable for use in damp locations. Use only with light kits
marked “Suitable for use in damp locations.”
1. Safety Rules
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN
SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-
VIDED WITH THE OUTLET BOX.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATION CONTROL/SWITCH.

a. Blade attachment hardware
(16 screws for for attaching blades to blade
arms)
b. Blade bracket attachment hardware
(11 screws for attaching blade arms to the
fan motor assembly)
c. Light shade attachment hardware
(4 screws)
d. Electrical hardware and balancing kit
(3 plastic wire connectors, blade balancing kit)
7. Blade Arms (5)
8. Light Kit Pan
9. Light Kit Fitter Assembly
10. Light Shade
11. Transmitter and Receiver
1. Mounting Bracket (inside canopy)
2. 6” Ball/Downrod Assembly (hanger pin
and locking pin pre-attached)
3. Canopy with Canopy Ring (attached)
4. Decorative Motor Collar Cover
5. Fan Motor Assembly
6. Blades (5)
2. Unpacking Your Fan

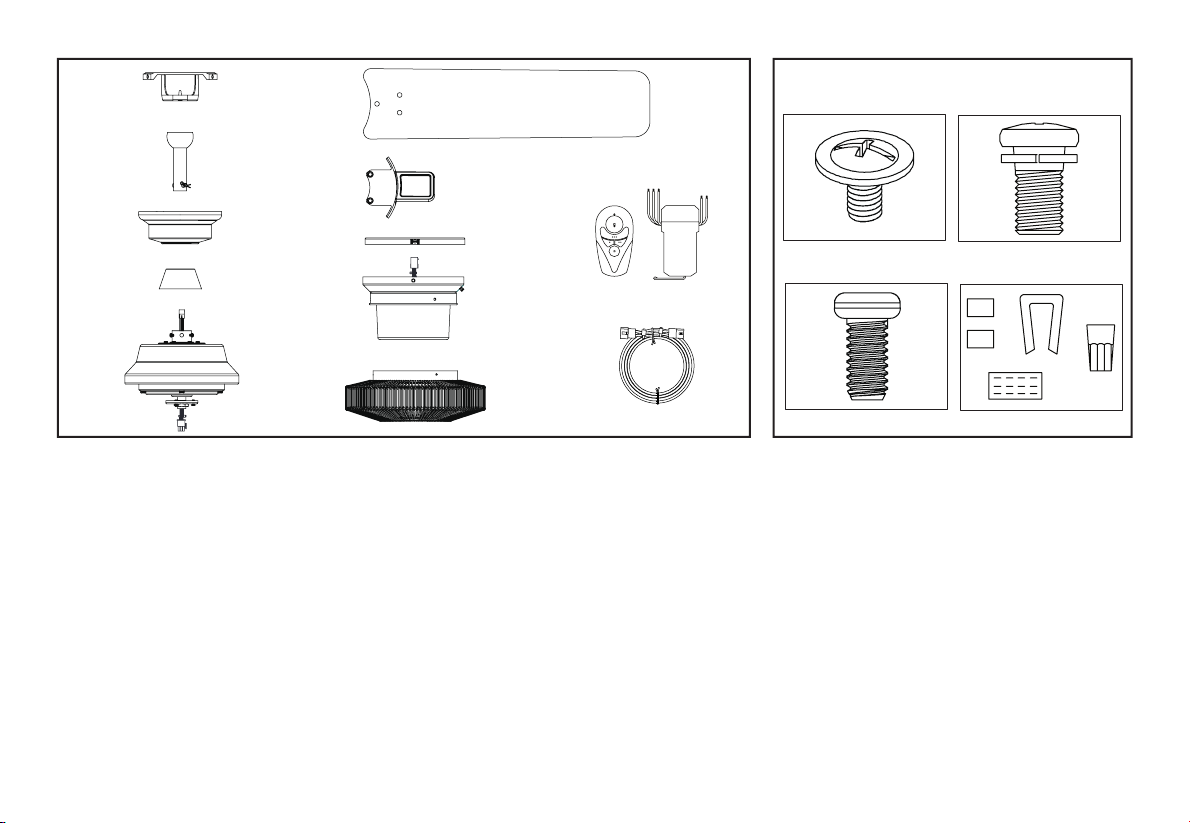

Unpack your fan and check the contents. You should have the following items:
1
2
3
4
5
6
7
8
9
10
11
ab
cd
12
12. Extension Lead Wire

3. Installing Your Fan
Tools Required
Phillips screw driver or straight slotted screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing electrical box, then
read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the electrical box directly to the building
structure. Use appropriate fasteners and
building materials. The electrical box and
its support must be able to fully support the
moving weight of the fan (at least 35 lbs.).
Do not use plastic electrical boxes.

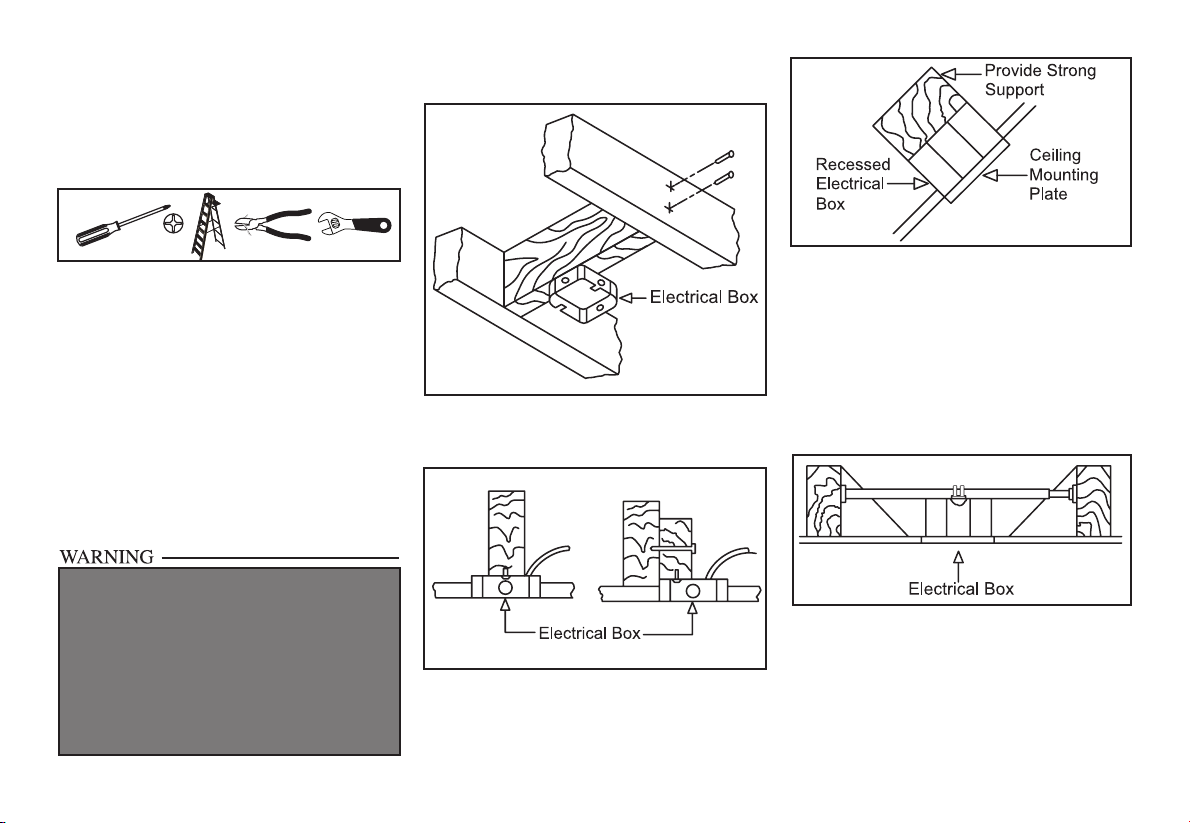

Figures 1, 2, and 3 are examples of different
ways to mount the electrical box.
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum
angle allowable is 20˚. If the canopy touches
downrod, remove the decorative canopy
bottom cover and turn the canopy 180˚ before
attaching the canopy to the mounting plate.
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR
LESS”, AND USE SCREWS PROVIDED WITH
THE OUTLET BOX. ELECTRICAL BOXES
COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES MAY NOT BE ACCEPT-
ABLE FOR FAN SUPPORT AND MAY NEED TO
BE REPLACED. CONSULT A QUALIFIED ELEC-
TRICIAN IF IN DOUBT.
Figure 1
Figure 2
Figure 4
Figure 3

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This fan is recommended for
standard ceiling mount using the downrod
provided with this fan. When using standard
ceiling installation with the 6 inch downrod
provided, the distance from the ceiling
to the bottom of the fan blades will be
approximately 11.8 inches.
Standard Ceiling Mounting
1. Remove the canopy ring from the canopy
by turning the ring until it unlocks.
(Figure 5)
2. Remove the mounting bracket from the
canopy by loosening the four screws on
the top of the canopy. Remove the two
non-slotted screws and loosen the slotted
screws. This will enable you to remove
the mounting bracket. (Figure 6)
3. Remove the hanger pin and locking pin
from downrod assembly.
4. Route the wires exiting the top of the fan
motor through the decorative motor collar
cover then the canopy ring. Make sure the
slot openings are on top. Route the wires
through the canopy and then through the
ball/downrod assembly. (Figure 7)
Remove
Loosen but Do Not Remove
Turn Canopy Ring to Remove
Figure 5
Figure 6
5. Loosen, but do not remove, the set screws
on the collar on the top of the motor
housing.
6. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing. (Figure 7)
Carefully insert the hanger pin through the
holes in the collar and downrod. Be careful
not to jam the hanger pin against the wiring
inside the downrod. Insert the locking pin
through the hole near the end of the bolt
until it snaps into its locked position, as
noted in the circle inset of Figure 7.
7. Re-tighten the set screws on the collar on
top of the motor housing.
8. Make sure the grommet is properly installed
in the collar cover, then slide the collar cover
on the downrod until it rests on the motor
housing. Be sure that the canopy and the
collar cover are both oriented correctly.
9. Proceed to “Installing the Fan” section.
FAILURE TO PROPERLY INSTALL SET SCREWS
AS NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Figure 7
Motor wires
Ball/downrod
assembly
Canopy
Canopy
ring
Motor collar
cover
Hanger pin Locking pin
Motor collar
Tighten
screws
Pin in locked
position

5.
Installing Fan to
the Electrical Box
1. Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket
as shown in Figure 8.
2. Install the ceiling mounting bracket on the
electrical box by using the mounting screws
provided with the electrical box. Note that
the at side of the mounting bracket is
toward the electrical box. (Figure 8)
3. Tighten the two screws on the electrical box
securely.
4. Carefully lift the fan assembly up to the
ceiling mounting bracket. Make sure the tab
on the mounting bracket is properly seated
in the groove in the hanger ball. (Figure 9)
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING BRACKET MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Figure 9
Washers
Mounting
screws
(supplied with
electrical box)
UL Listed
electrical box
Ceiling
mounting
bracket
Hook
120V wires
Standard mounting
Figure 8
Installing the
Receiver into the
Mounting Bracket
1. Position the house supply wires to one side
of the slide-on mounting bracket; position
the fan wires to the opposite side.
2. Insert the receiver into the slide-on
mounting bracket until it rests on top of the
ball/downrod assembly. (Figure 10)
Figure 10

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED
WITH THIS FAN IS DESIGNED TO ACCEPT UP TO
ONE 12 GAUGE HOUSE WIRE AND TWO WIRES
FROM THIS FAN. IF YOU HAVE LARGER THAN
12 GAUGE HOUSE WIRING OR MORE THAN
ONE HOUSE WIRE TO CONNECT TO THE FAN
WIRING, CONSULT AN ELECTRICIAN FOR THE
PROPER SIZE WIRE NUTS TO USE.
USE THE PLASTIC WIRE CONNECTORS
SUPPLIED WITH YOUR FAN. SECURE THE
CONNECTORS WITH ELECTRICAL TAPE AND
ENSURE THERE ARE NO LOOSE STRANDS OR
CONNECTIONS.
SUPPLY CIRCUIT
WHITE
Remote
Receiver
WHITE
L N
BLACK
BLACK
BLUE
GREEN
WHITE
BLACK
BLUE
MOUNTING
BRACKET
GREEN
Figure 11
Wiring the Receiver
to the Household
Wiring
REMEMBER to disconnect the power. If
you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
1. Connect the green wire to the household
ground wires using a wire connecting nut.
2. Connect the receiver black wire to
the household black wire using a wire
connecting nut.
3. Connect the receiver white wire to
the household white wire using a wire
connecting nut.
Wiring the Fan to the
Receiver
1. If using the 6 in. ball/downrod assembly
provided, wire the receiver to the fan wires
by connecting the molded adaptor plug from
this receiver with the molded adaptor of the
fan motor assembly together. (Figure 11)
2. If you wish to use longer downrod, you can
use the extension lead wire (66 in.) provided
by connecting the molded adaptors together.
6. Making the Electrical Connections
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
1. Align the locking slots of the ceiling
canopy with the two screws in the
mounting plate. Push up to engage the
slots and turn to lock in place. Immediately
tighten the two mounting screws rmly.
2. Install the remaining two mounting screws
into the holes in the canopy and tighten
rmly.
3. Install the decorative canopy ring by
aligning the ring’s slots with the screws in
the canopy. Rotate the ring clockwise to
lock in place.
4. You may now proceed to attaching the
fan blades.
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING PLATE MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.

7.

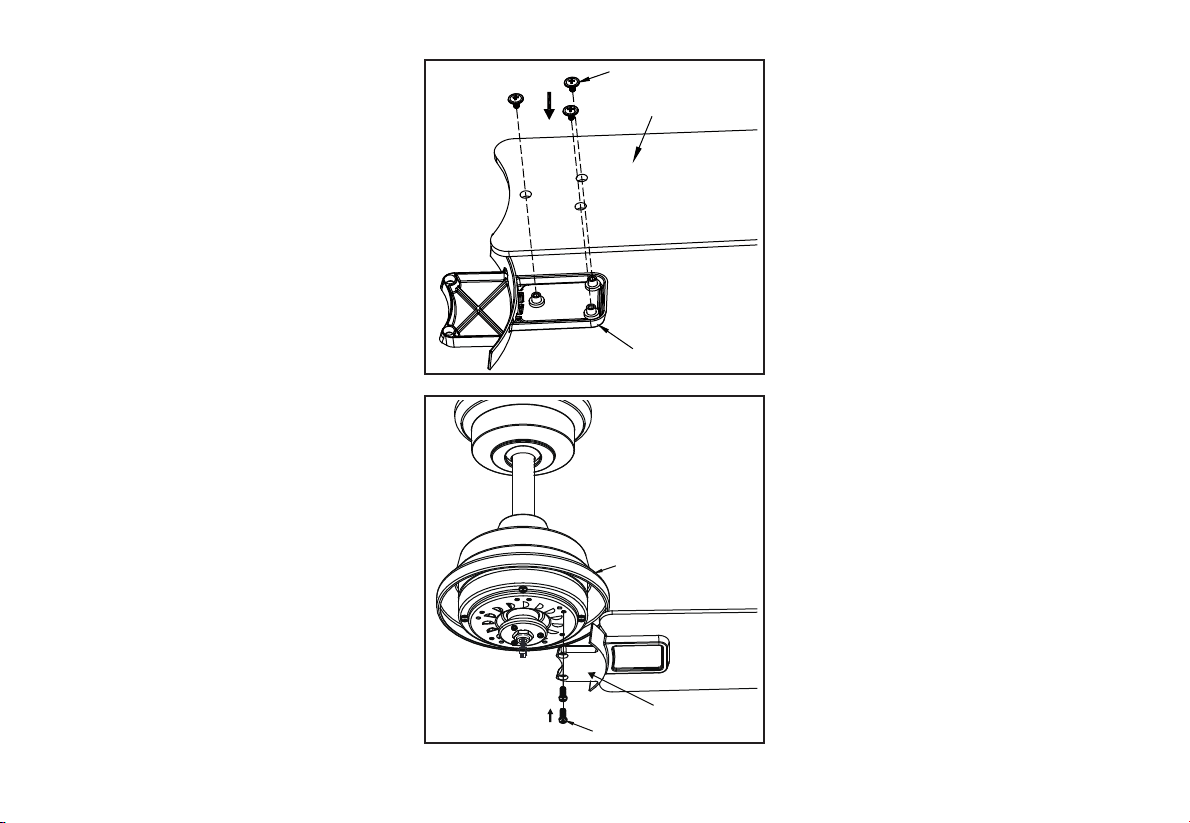

Attaching the Fan
Blades to Motor
Assembly
Figure 12
Figure 13
1. Attach blade to blade arm by inserting the
blade arm screw holes into the three screw
holes in the blade. Secure using the blade
attachment screws provided (Figure 12).
2. Fasten the blade assembly to the motor
assembly by aligning the two screw holes in
the blade assembly with the two screw holes
in the motor assembly. Attach using the
blade bracket screws provided (Figure 13).
3. Repeat steps 1 and 2 for the remaining
blades.
NOTE: Your fan blades are reversible.
Select the blade side nish which best
accentuates your decor.
Screw
Blade assembly
Motor Assembly
Screw
Blade
Blade arm

Figure 14

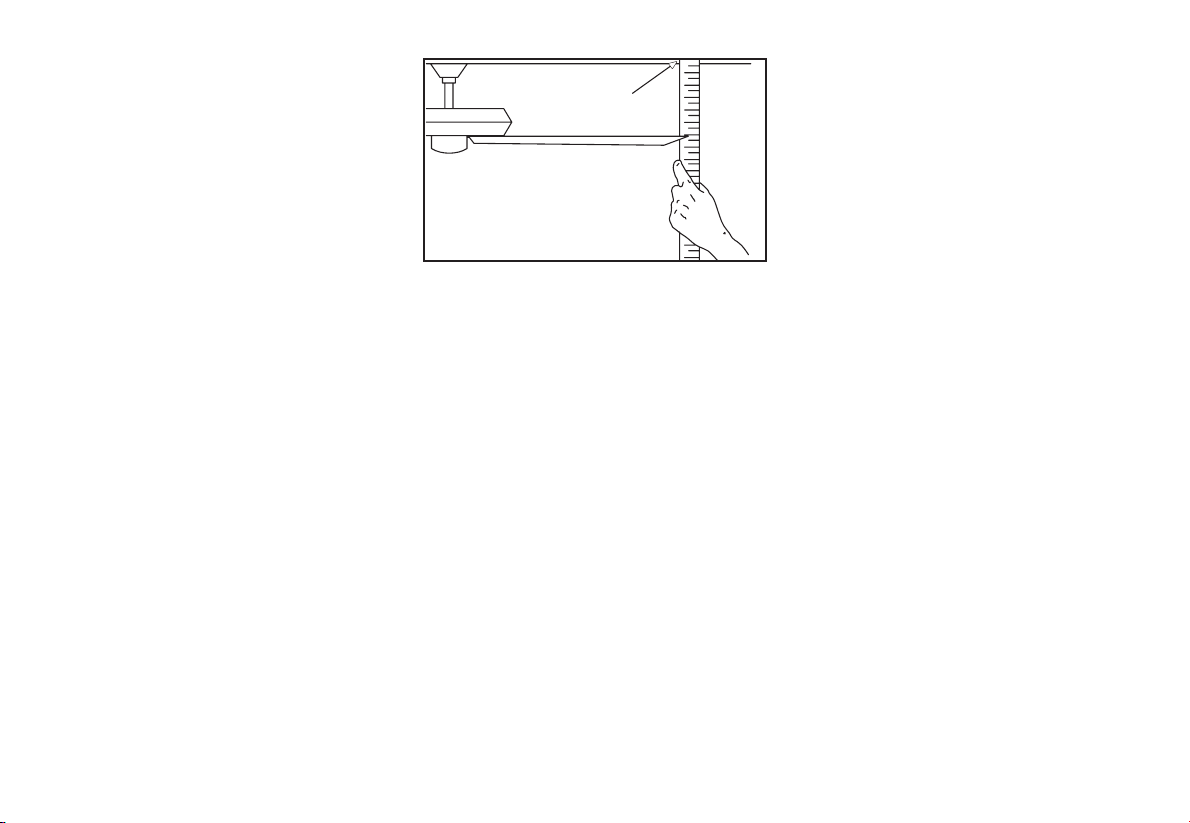

Blade Balancing
All blades are grouped by weight. Because
natural woods vary in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
from a point on the center of each blade
to the point on the ceiling. Measure this
distance as shown in Figure 14. Rotate
the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within
1/8”. Run the fan for 10 minutes.
3. Make sure that canopy is tightened securely
to ceiling mounting bracket and that the
ceiling mounting bracket is tightened
securely to the electrical box.
4. Interchanging two adjacent blades can
redistribute the weight and possibly result
in the smoother operation.
5. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
Touching
Ceiling
8.

9.

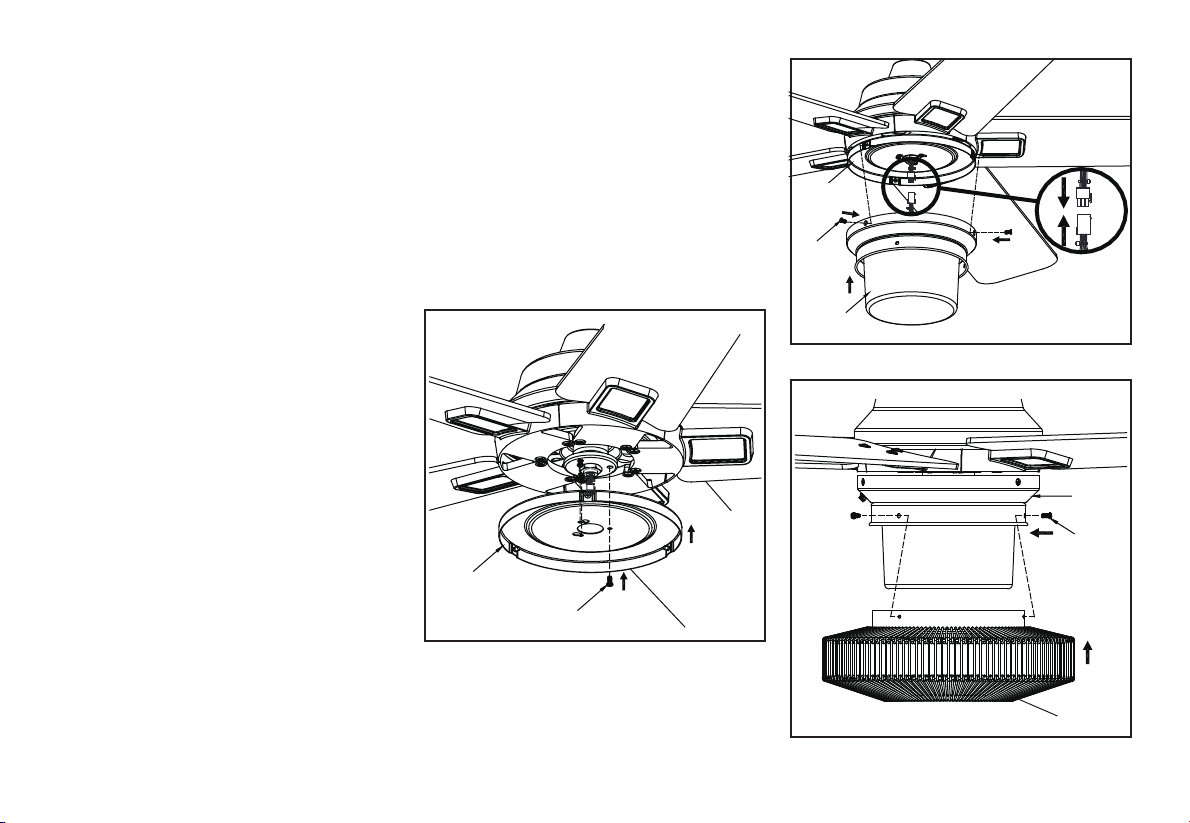

Installing the Switch
Cup Cover/ Light Kit/
Light Shade
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit
to the fan before installing the light kit.
1. Loosen but do not remove two of three
mounting screws from the fan motor
assembly; Remove one mounting screw.
(Figure 15)
2. Push the switch cup cover up to the fan
motor assembly so that the two loosened
screw heads t into the keyhole slots. Turn
the switch cup cover clockwise, tightened
the screws. Re-install the screw that was
removed in step 1 and tighten rmly.
(Figure 15)
3. Remove one screw from the switch cup
cover and loosen, but do not remove the
other two screws. Connect the wires from
the light kit to the wires from the fan motor
assembly by connecting the molded adaptor
plugs together. Carefully tuck all wires and
splices into the switch cap. (Figure 16)
4. Push the light kit up so that the two
loosened screw heads t into the keyhole
slots. Turn the light kit clockwise, tighten
the screws. Re-install the screw that was
removed in step 3 and tighten rmly.
(Figure 16)
5. Place the light shade into the light kit by
aligning the three screw holes in the light
kit shade with the screw holes in the light
kit. Secure with the light shade attachment
screws provided. (Figure 17)
Figure 15
Figure 16
Figure 17
Screw
Switch cup cover
Screw
Light kit
Light
shade
Screw
Light kit
Switch cup
cover

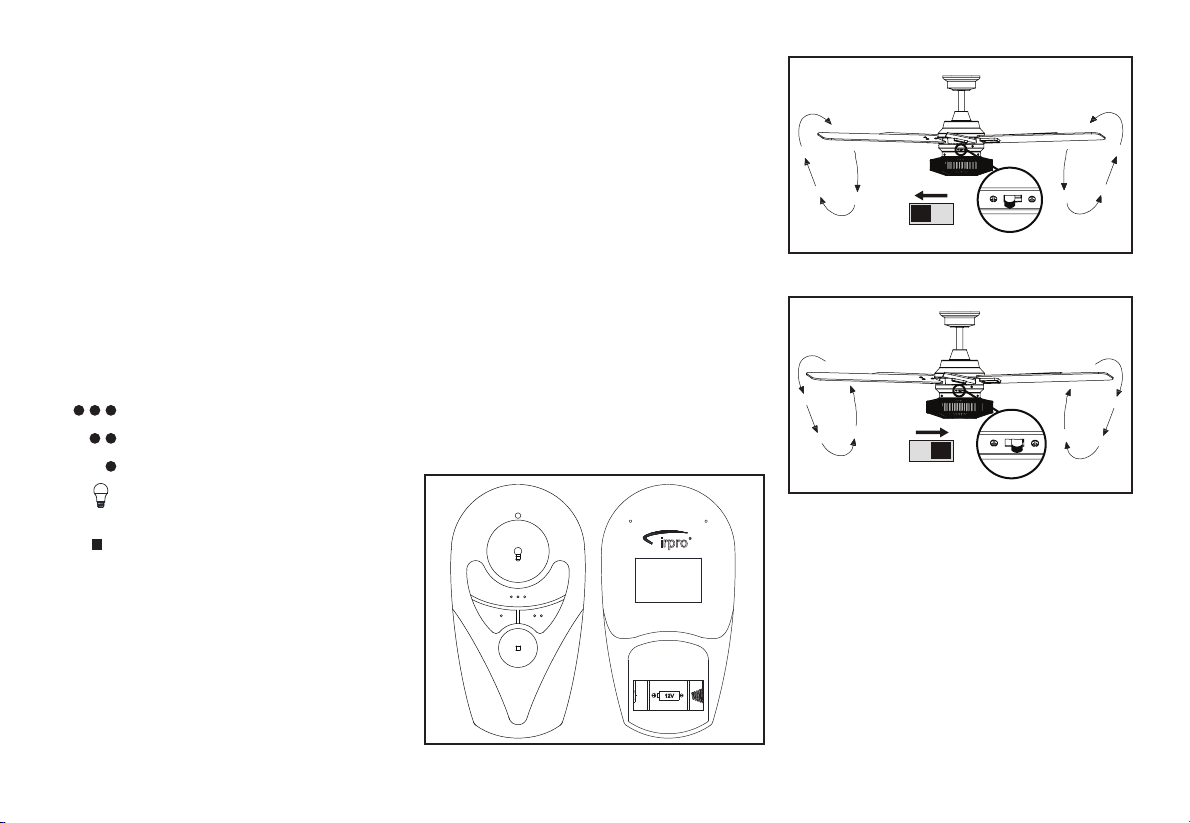

10. Operating Your Fan
Figure 19
The fan shipped from the factory with the reverse
switch positioned to circulate air downward.
If airow is desired in the opposite direction,
turn your fan off and wait for the blades to stop
turning, then slide the reversing switch (located
at the top of shade, refer to gure 19 and gure
20) to opposite position, and turn fan on again.
The fan blades will turn in the opposite direction
and reverse airow.”
Warm weather - (Forward) A downward air
ow creates a cooling effect as shown in Figure
19. This allows you to set your air conditioner on
a higher setting without affecting your comfort.
Cool weather - (Reverse) An upward air ow
moves warm air off the ceiling are as shown in
Figure 20. This allows you to set your heating
unit on a lower setting without affecting your
comfort.
Remote Control - Your fan is equipped with a
remote control to operate the speed and lights
of your new ceiling fan (Figure 18).
Model:UC7085T
FCC ID:CHQ7085T
IC:2968A-7085T
Complies with Canada
RSS-210
MADE IN CHINA
Airpro
R
12V
Figure 18
Key -
Key -
Key -
Key -
Key -
High speed
Medium speed
Low speed
Light on/off and dimmer (press
and hold to dim light)
Fan On/Off
1. Remove the battery cover and install 12V
battery.
2. Press the fan on/off button for 5 seconds
then release , If pairing is successful light
kit will ash two times and blades will
begin to spin.
NOTE: The remote control has already been
paired to the ceiling fan for your convenience.
If you have two of the same model fans in
your home, please follow the steps below to
control each fan independently.
Speed settings for warm or cool weather depend
on factors such as room size, ceiling height,
number of fans, and so on.
Figure 20

11. Care of Your Fan and Troubleshooting
Care of Your Fan
Here are some suggestions to help you
maintain your fan.
1. Because of the fan’s natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Do not
use water when cleaning, this could damage
the motor, or the wood or possibly cause
an electrical shock. Use only a soft brush
or lint-free cloth to avoid scratching the
nish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing.
Warning - Make sure the power is off
before cleaning your fan.
3. You can apply a light coat of furniture polish
to the wood for additional protection and
enhanced beauty. Cover small scratches
with a light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS.”
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
3. Check batteries in the transmitter. Does the red LED light come on?
Are you standing close enough to the fan? (Normal range is 10-20
feet.) Are the dip switch settings the same on the transmitter (hand unit)
and receiver? REMEMBER TO TURN OFF POWER SUPPLY
BEFORE CHECKING THE DIP SWITCH SETTINGS IN
RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
3. Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
CAUTION: Make sure power is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a
new fan disappear during this time.
5. If using the Ceiling Fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Make sure the canopy is a short distance from the ceiling.
It should not touch the ceiling.
7. Make sure your electrical box is secure and rubber isolator pads were
used between the mounting bracket and electrical box.
Troubleshooting
Problem Solution

12. Specications
FAN
SIZE SPEED VOLTS
FAN POWER
CONSUMPTION
(WITHOUT LIGHTS)
WATTS
AIRFLOW
CFM
AIRFLOW
EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
NET
WEIGHT
GROSS
WEIGHT
CUBE
FEET
52”
Low
120
11 1813 164.8 17.8
Lbs
20.5
Lbs 1.6
High 59 4687 79
©2017 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
Responsible Party - U.S. Contact Information: Progress Lighting , LLC 701 Mellennium Blvd Greenville , SC 29607, [phone].

®
Manual de instalación de ventilador de techo
P250101
93165624_A

Garantía limitada de por vida
Fecha de compra
Tienda donde se compró
Modelo UL #
# de serie
Proveedor #
UPC
P250101
Los motores de ventilador Progress Lighting se garantizan al comprador original como libres de defectos
eléctricos y/o mecánicos por el tiempo en que estén en su posesión como dueño. Los interruptores activados
por cadena, los interruptores de reversa, los capacitores y los acabados de metal se garantizan como libres de
defectos materiales o de fabricación por el plazo de 1 año desde la fecha de compra. Las deformaciones de las
aspas de madera o plástico no están cubiertas por esta garantía así como no lo están tampoco la corrosión y/o
deterioro del acabado de ventiladores instalados a menos de diez millas de la costa del mar. Pudieran aplicarse
garantías extendidas para productos ENERGY STAR® que caliquen.
Los ventiladores de techo Progress Lighting con fuentes de luz LED incorporadas, si han sido bien instalados
y bajo condiciones normales de uso, se garantizan como libres de defectos materiales y de fabricación que
puedan causar un fallo en el funcionamiento según las especicaciones de dichas fuentes de luz durante un
periodo de (i) cinco (5) años a partir de la fecha de compra para los módulos de luz LED y componentes
eléctricos de ventiladores usados en residencias unifamiliares y durante (ii) tres (3) años para ventiladores
usados residencias multifamiliares o en instalaciones comerciales. Las bombillas LED suministradas por
Progress Lighting sólo poseen la garantía del fabricante. Las bombillas que no sean LED no tienen garantía.
Con prueba de la compra, el comprador original puede devolver el ventilador defectuoso, para su reemplazo,
al lugar donde lo compró, dentro de los 30 días siguientes a la compra. Pasados 30 días, el comprador original
TIENE que contactar a Progress Lighting llamando al [phone] para reparación o reemplazo, según
determine Progress Lighting a su entera discreción, y este será el único y exclusivo remedio del comprador.
Se excluyen cargos por mano de obra y envío. Esta garantía no cubre ningún costo ni cargo asociado a la mano
de obra (incluyendo, pero sin limitarse a, los cargos del electricista) que se requiera para instalar, retirar o
reponer un ventilador o cualquiera de sus partes.
Esta garantía no cubre ninguna pérdida o daño resultante de (i) desgaste normal o alteración, mal uso, abuso
o negligencia, o (ii) instalación, operación, reparación o mantenimiento incorrectos por el comprador original
o un tercero, incluso sin limitación del suministro de tensión o sobrecarga de alimentación, uso de piezas o
accesorios inadecuados, reparación no autorizada (realizada o intentada) o falta de mantenimiento al ventilador.
LAS GARANTÍAS ANTERIORES ESTABLECEN LA OBLIGACIÓN DE GARANTÍA TOTAL DE
PROGRESS LIGHTING Y EL ÚNICO Y EXCLUSIVO REMEDIO DEL COMPRADOR ORIGINAL
RELACIONADO CON DICHOS PRODUCTOS. PROGRESS LIGHTING NO ES RESPONSABLE POR
NINGÚN DAÑO (SEAN INDIRECTOS, ESPECIALES, INCIDENTALES O CONSECUENTES) DEBIDO
A FALLAS DEL PRODUCTO, YA SEAN DERIVADAS DE INCUMPLIMIENTO DE LA GARANTÍA O
DEL CONTRATO, O DE CUALQUIER OTRA CAUSA. ESTA GARANTÍA SE OTORGA EN LUGAR
DE TODAS LAS DEMÁS, YA SEAN EXPRESAS O IMPLÍCITAS, INCLUIDAS LAS GARANTÍAS DE
COMERCIABILIDAD, IDONEIDAD PARA UN PROPÓSITO EN PARTICULAR O NO INFRACCIÓN.
Algunos estados no permiten limitaciones en la duración de una garantía implícita ni exclusión o limitaciones de
daños incidentales o consecuentes, así que las exclusiones o limitaciones anteriores pudieran no aplicarse a su
caso. Esta garantía le otorga derechos especícos y es posible que usted tenga otros, que varían de estado a estado.
785247255511
785247255528
111017

Normas de seguridad
Cómo desempacar el ventilador
Cómo instalar el ventilador
Cómo hacer las conexiones eléctricas
Cómo usar el ventilador
Cuidado del ventilador
Solución de problemas
Especicaciones
Tabla de contenido
1
2
3
6
10
11
11
12

1. Para disminuir el riesgo de descarga eléctrica, antes de
comenzar la instalación asegúrate de que la electricidad ha sido
cortada en el cortacircuitos o en la caja de fusibles.
2. Todo el cableado tiene que cumplir con el Código Nacional
de Electricidad ANSI/NFPA 70-1999 y los códigos eléctricos
locales. La instalación eléctrica debe hacerla un electricista
calicado con licencia.
3. PRECAUCIÓN: Para reducir el riesgo de lesiones físicas, usa
sólo los tornillos suministrados con la caja de distribución.
4. La caja eléctrica y estructura de soporte tienen que montarse
de forma segura para poder sostener con conanza 35 lb
(15.9 kg). Usa solo cajas eléctricas aprobadas por UL y
marcadas como “Apropiadas para sostener ventiladores de
15,9 kg (35 lb) o menos”.
5. PRECAUCIÓN: El ventilador tiene que montarse con al
menos 7 pies (2.13 m) de separación entre el borde trasero
de las aspas y el piso.
6. No operes el interruptor de reversa mientras las aspas del
ventilador estén en movimiento. El ventilador tiene que estar
apagado y las aspas detenidas antes de invertir el sentido del
movimiento.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones personales o daños al ventilador y otros
artículos, ten cuidado al limpiarlo o al trabajar cerca de él.
9. No usar agua ni detergentes para limpiar el ventilador o las
aspas. Para limpiar, casi siempre será adecuado un paño seco o
ligeramente humedecido con que quitar el polvo.
10. Después de concluir con las conexiones eléctricas, debes
voltear los conductores empalmados hacia arriba y empujarlos
con cuidado hacia dentro de la caja de distribución. Los cables
deben estar separados, con el cable y el conductor a tierra del
equipo hacia uno de los lados de la caja eléctrica y el conductor
sin conexión a tierra hacia el lado opuesto.
11. Los diagramas eléctricos son sólo para referencia. Los kits
de luces no empaquetados con el ventilador tienen que estar
aprobados por UL y marcados como apropiados para usar con
el modelo de ventilador que estás instalando. Los interruptores
tienen que estar clasicados de uso general por UL. Para
ensamblar bien, consulta las instrucciones adjuntas a los kits de
luces e interruptores.
12. Antes de la instalación, todos los tornillos de jación tienen
que comprobarse y reajustarse donde sea necesario.
13. ADVERTENCIA: Para reducir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de estado sólido para control de velocidad.
14. ADVERTENCIA: Para reducir el riesgo de incendio o
descarga eléctrica, este ventilador sólo debe ser utilizado con
el controlador de velocidad UC7312RE, fabricado por Rhine
Electronic Co., Ltd.
15. Puede usarse en lugares húmedos. Usar solo con kits de luces
marcados como “Adecuado para uso en lugares húmedos".
1. Normas de seguridad
LEE Y GUARDA ESTAS INSTRUCCIONES
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA
U OTRAS LESIONES, INSTALA SÓLO EN UNA CAJA ELÉCTRICA
CLASIFICADA COMO “APROPIADA PARA SOSTENER VENTILADORES
DE 35 LB (15.9 KG) O MENOS”, Y USA SÓLO LOS TORNILLOS
INCLUIDOS CON LA CAJA ELÉCTRICA.
PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, NO DOBLES
LOS BRAZOS DE LAS ASPAS (TAMBIÉN LLAMADOS “REBORDES”) NI
DURANTE NI DESPUÉS DE LA INSTALACIÓN. NO COLOCAR OBJETOS
EN LA TRAYECTORIA DE LAS ASPAS.
PARA REDUCIR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE
VENTILADOR TIENE QUE INSTALARSE CON UN CONTROL/
INTERRUPTOR DE AISLAMIENTO.

a. Herrajes para montaje de las aspas
(16 tornillos para jar las aspas a los brazos
de las aspas)
b. Herrajes de montaje de soporte de aspa
(11 tornillos para montar los brazos de aspa
en el ensamblado del motor del ventilador)
c. Herrajes de montaje de la pantalla de la
lámpara (4 tornillos)
d. Herrajes eléctricos y kit de compensación
(3 conectores plásticos de cable, kit de
compensación de aspas)
6. Aspas (5)
7. Brazos de aspas (5)
8. Carcasa del kit de luces
9. Conjunto de soporte del kit de luces
10. Pantalla de la lámpara
11. Transmisor y receptor
1. Soporte de montaje (dentro de la cubierta)
2. Conjunto de tubo bajante/esfera de 6”
(15.2 cm) (con pasadores de soporte y de
cierre prejados)
3. Cubierta con aro de cubierta (acoplado)
4. Cubierta decorativa del collarín del motor
5. Conjunto del motor del ventilador
2. Cómo desempacar el ventilador
Desempaca tu ventilador y revisa el contenido. Debes tener los siguientes artículos:
1
2
3
4
5
6
7
8
9
10
11
ab
cd
12
12. Extensión de cable terminal
