Ceiling Fan Installation Manual
P250059
93131622_B

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
126751
785247245468
785247245475
785247245451
Limited Lifetime Warranty
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so
long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to
be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic
blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of
any sea coast. Extended warranties for ENERGY STAR®qualified products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are
warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance
with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for
fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical
components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no
warranty other than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for
replacement. After 30 days, the original purchaser MUST contact Progress Lighting at [phone] for repair or replacement
which shall be determined in Progress Lighting’s sole discretion and shall be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not
limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or
neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without
limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or
attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION AND
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS
LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTIAL OR
CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY,
BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR NONINFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or
consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights
and you may have other rights which vary from state to state.

Table of Contents
Safety Rules.....................................................................................................................................................................................
Unpacking Your Fan .......................................................................................................................................................................
Installing Your Fan ..........................................................................................................................................................................
Installing the Light Kit.....................................................................................................................................................................

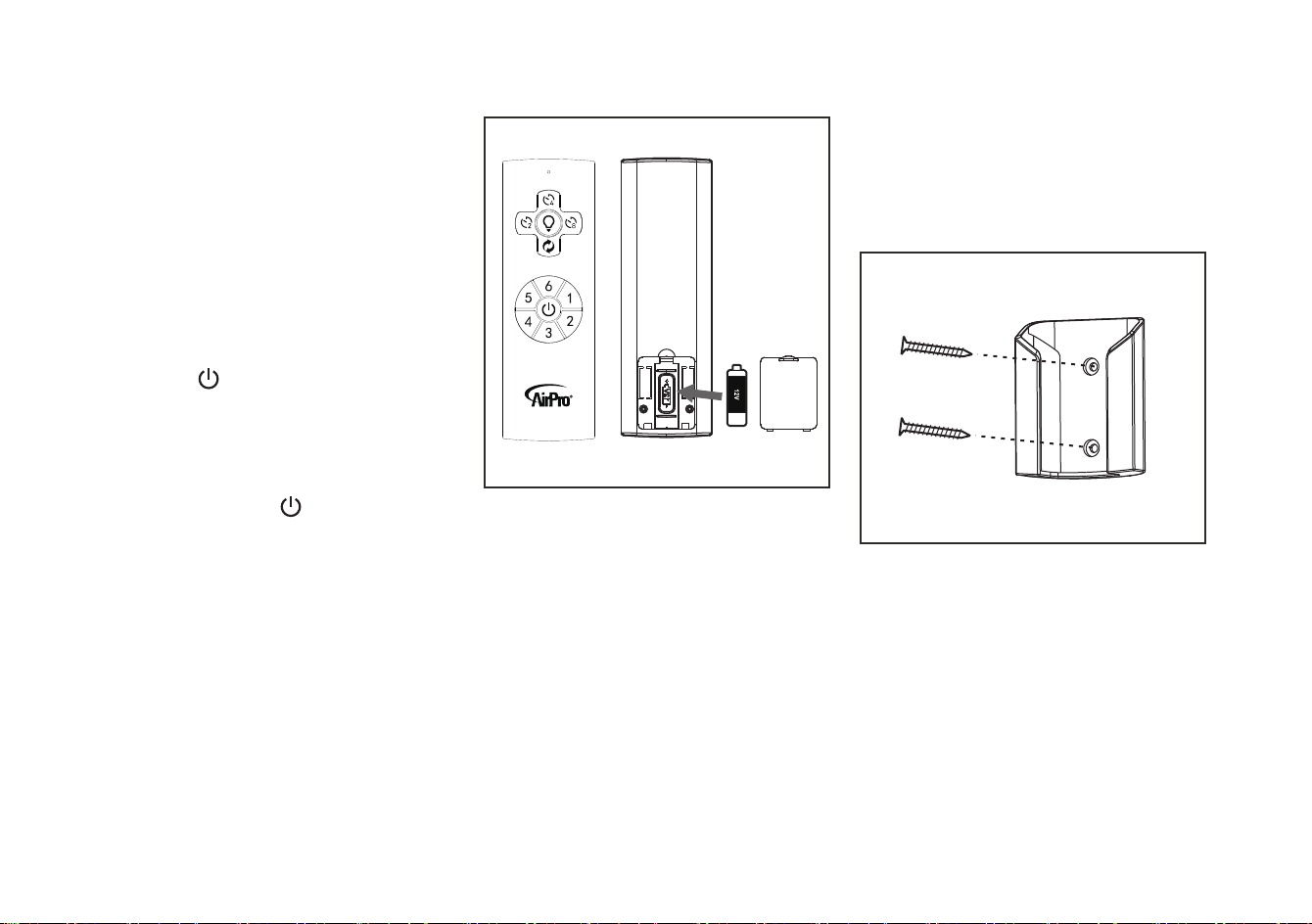

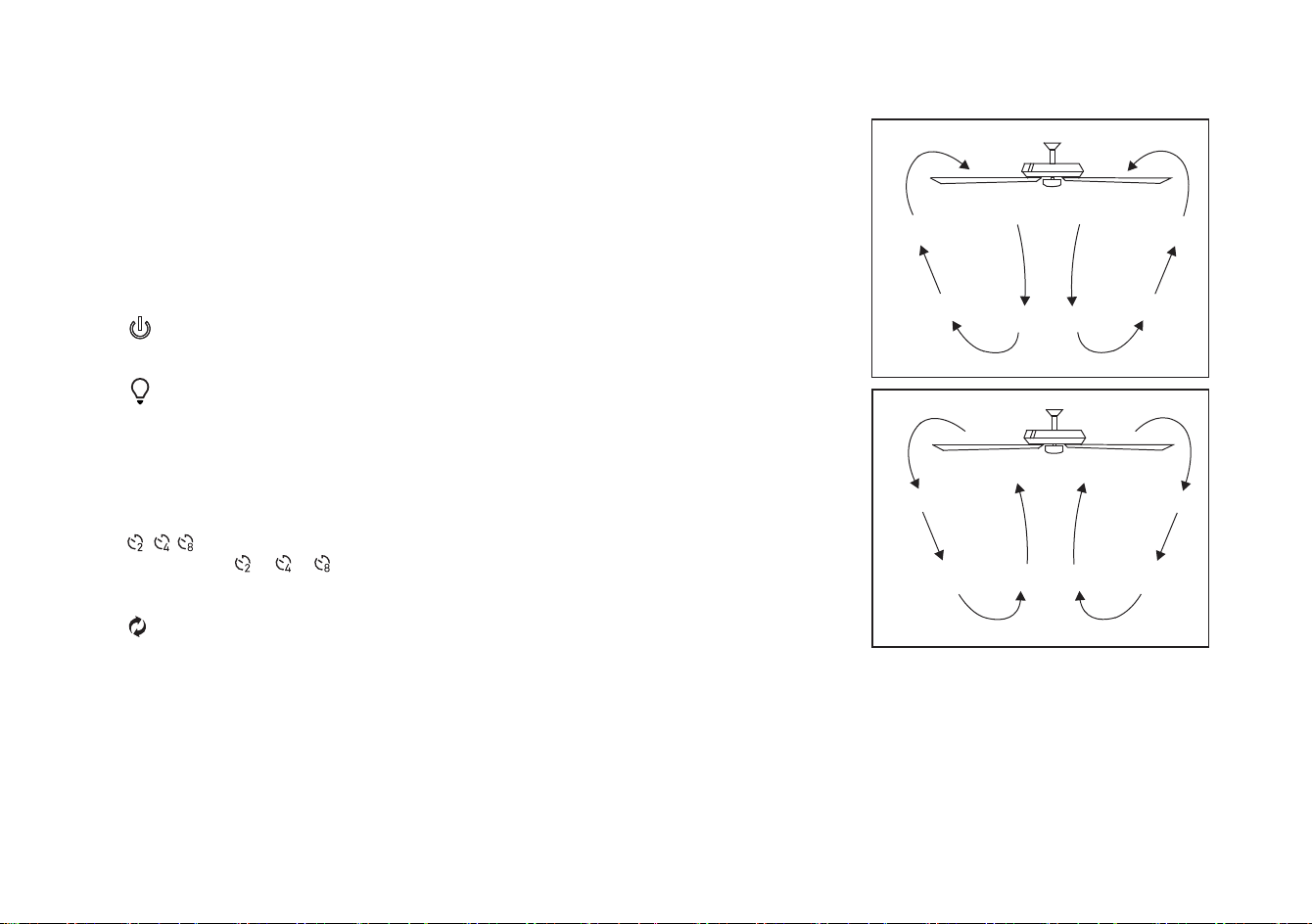

Operating Your Transmitter .............................................................................................................................................................
:,),&RQWURO6HWXS6PDUW'HYLFH&RQWURO
:,),&RQWURO6HWXS6PDUW6SHDNHU9RLFH&RQWURO
Care of Your Fan ..........................................................................................................................................................................
Troubleshooting ............................................................................................................................................................................
Specifications ................................................................................................................................................................................

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
2.All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING:To reduce the risk of electrical shock and fire, do not use
this fanwith any solid-state fanspeed control device.
4. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.)
Or Less" and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of light fixtures are not acceptable for
fan support and may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is strongly
recommended.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.
Use only CUL-listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from
the trailing edge of the blades to the floor.
7.Avoid placing objects in the path of the blades.
8.To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
9.Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
10. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
11. Electrical diagrams are for reference only. Light kits that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.

Unpack your fan and check the contents. You should have the following items:
Unpacking Your Fan 2.
14. Loose parts bag containing:
1. Fan blades (5)
2. M
ounting bracket
3. Canopy
4. Canopy cover
5. Ball/downrod assembly
6. Collar cover
7. Fan motor assembly
8. Flywheel
9. Mounting plate
10. LED light kit
11. Diffuser
12. Receiver with 9 wire nuts
13. Transmitter assembly
4
5
6
3
2
1
7
8
9
11
10
12
14
ab
13

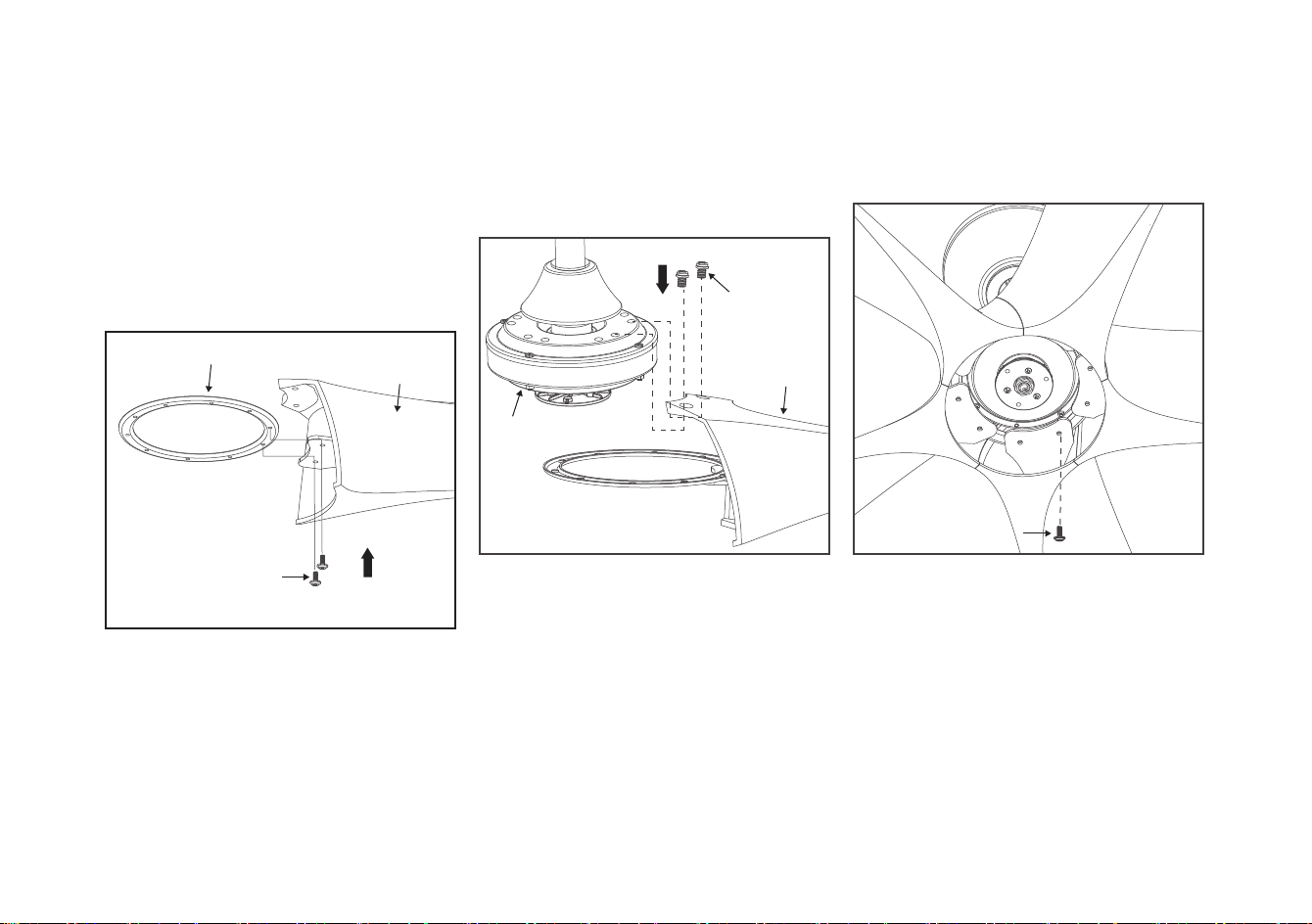

a. Blade attachment hardware
1/4” x12mm screw (1)
b. Flywheel attachment hardware
3/16” x 9 screw (1)

Tools Required
Phillips screw driver, straight slot screw driver,
adjustable wrench, step ladder, and wire cutters.
Mounting Options
If there isn't an existing cUL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the
fan (at least 35 lbs). Do not use plastic outlet
boxes.
3. Installing Your Fan
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR OTHER PERSONAL INJURY,
MOUNT FAN ONLY TO AN OUTLET BOX
MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE THE MOUNTING SCREWS
PROVIDED WITH THE OUTLET BOX. OUTLET
BOXES COMMONLY USED FOR THE
SUPPORT OF LIGHTING FIXTURES MAY NOT
BE ACCEPTABLE FOR FAN SUPPORT AND
MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figure 1 Figure 3
Figure 4
Figure 2
Outlet box
Outlet box Outlet box
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Progress Lighting Retailer).
Angled ceiling
maximum
12 angle
Recessed
outlet box
Provide strong support
Ceiling
hanger
bracket

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 5.
Step 2. Secure the mounting bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 3. Remove the hanger pin, lock pin from
the ball/downrod assembly, and loosen two
set screws from the top of the motor assembly.
(Fig. 6)
Step 4. Route wires exiting from the top of
the fan motor through the collar cover, canopy
cover, canopy and then through the ball / downrod.
(Fig. 6)
Step 5. Align the holes at the bottom of the downrod
with the holes in the collar on top of the motor
housing (Fig. 6). Carefully insert the hanger pin
through the holes in the collar and downrod. Be
careful not to jam the pin against the wiring inside the
downrod. Insert the locking pin through the hole near
the end of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 6.
WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 5
COULD RESULT IN FAN LOOSENING AND
POSSIBLY FALLING.
Figure 5
Figure 6
Ceiling
hanger
bracket
Mounting screws
(supplied with
electrical box)
cUL Listed
electrical
box
120V Wires
Washers
Step 7. Place the downrod ball into the mounting
bracket socket.
Step 6. Tighten two set screws on the motor collar
into the downrod firmly. (Fig. 6)
Supply wires
Downrod
Hanger pin
Lock pin
Set screws
Canopy
Canopy cover
Collar cover
Collar
Pin in locked
position
Safety cable

5.
Make the Electric
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse box
before wiring.
Step 1. (Fig. 7) Insert the receiver into the
mounting bracket with the flat side of the receiver
facing the ceiling.
Step 3. (Fig. 8) Receiver to House Supply Wires
Electrical Connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from the receiver. Connect the white
(neutral) wire from the ceiling to the white wire
marked "AC in N" from the Receiver. Secure the
wire connections with the plastic wire nuts
provided.
NOTE:Fan must be installed at a maximum
distance of 20 feet or less from the transmitting
unit for proper signal transmission between the
transmitting unit and the fan's receiving unit.
Figure 7
Figure 8
Receiver
Mounting
bracket
Step 2. (Fig. 8) Motor to Receiver Electrical
Connections: Connect the Red wire from the fan
to Red wire from the receiver. Connect the
Yellow wire from the fan to the Yellow wire
from the receiver. Connect the Gray wire from
the fan to the Gray wire from the receiver.
Connect the Blue wire from the fan to the Blue
wire marked "For Light" from the receiver.
Connect the White wire from the fan to the White
wire marked "For Light" from the receiver.
Secure wire connections with the plastic wire
nuts provided.
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Blue ("For Light")
Ground
(green)
Outlet box
Black (hot)
Black ("AC IN L")
Red
Yellow
Gray
Receiver
Red
Yellow
Gray
White ("For Light")
Blue ("For Light")
White ("For Light")
Ground (green)
(green)
Main ground
Step 4. (Fig. 8) If your outlet box has a ground
wire (green or bare copper) connect it to the
receiver main ground wire,connect the receiver
other ground wires and hanging ball ground
wire together. Otherwise connect the mounting
bracket ground wire to the receiver main
ground wire,connect the receiver other ground
wires and hanging ball ground wire togeth-
er.Secure the wire connection with a plastic nut
provided. After connecting the wires spread
them apart so that the green and white wires are
on one side of the outlet box and black wires is
on the other side. Carefully tuck the wire
connections up into the outlet box.

6.
Outlet box
Canopy cover
Canopy
Mounting
bracket
Figure 10
Screws
Finishing the Installation
Step 1. Tuck connections neatly into ceiling outlet
box.
Step 2. Slide the canopy up to mounting bracket and
place the key hole on the canopy over the screw on
the mounting bracket, turn canopy until it locks in
place at the narrow section of the key holes. (Fig.
10)
Step 3. Align the circular hole on canopy with the
remaining hole on the mounting bracket, secure by
tightening the two set screws. Note: Adjust the
canopy screws as necessary until the canopy and
canopy cover are snug.
WARNING
Make sure the notch on the mounting bracket properly
sits in the groove in the hanger ball before attaching
the canopy to the bracket by turning the housing until
it drops into place.
INSTALLATION OF
SAFETY SUPPORT
Figure 9
Secure safety cable to the building structure
with a wood screw. (wood screw not supplied)
(Fig. 9)
Mounting bracket
Safety cable

7.
Attaching the Fan Blades
Figure 12
Figure 11
Flywheel screws
Flywheel screws
Flywheel
Blade Blade
Blade screws
Fan motor
assembly
Figure 13
Step 1. Remove the ten blade screws from the fan
motor assembly.
Step 2. Remove the ten flywheel screws from the
flywheel.
Step 3. Attach the flywheel to one of the five
blades using two flywheel screws. (Fig. 11)
Step 4. Attach the blade with the flywheel to the
fan motor assembly using two blade screws. Attach
the other blades to the fan motor assembly. (Fig.
12)
Step 5. Reinstall the eight remaining flywheel
screws to the flywheel. (Fig. 13)

Installing the Light Kit 8.
Figure 14
Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 14)
Mounting
plate
Mounting ring
Screws
CAUTION:Before starting installation,
disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box. Turning
power off using the fan switch is not sufficient to
prevent electric shock.
1. Remove 1 of 3 screws from the mounting plate
and loosen the other 2 screws. (Do not remove)
2. While holding the LED light kit under the fan
motor assembly, make the 2-pin wire connections:
- White to white
- Blue to blue
3. Place the key holes in the LED light kit over
the two mounting screws previously loosened
from the mounting plate. Turn the LED light kit
until the LED light kit locks in place at the
narrow section of the key holes. Secure by
tightening the two screws previously loosened
and the one previously removed. (Fig. 15)
4. Raise the diffuser up against the LED light kit
and secure it to the fan by turning the diffuser
clockwise until snug. DO NOT OVERTIGHTEN.
(Fig. 15)
Figure 15
Screws
Diffuser
Mounting
plate
Wire connector
LED
Light kit

9. Operating Your Transmitter
INSTALLING THE
BATTERY
Figure 16
Figure 17
Remove the back cover on the transmitter and
install a 12V battery that is included with the
remote control. (Fig. 16)
INSTALLING THE
TRANSMITTER HOLDER
Attach the remote control holder with the two
remote control holder mounting screws.(Fig.17)
LEARNING PROCESS
NOTE: After the AC power is on, do not press
any other button on the remote control before
pressing the button. Doing so will cause the
procedure to fail.
Should you desire to use another remote control
unit with your new fan, install one using the
steps below:
Within 30 seconds of turning the fan’s AC power
ON, press and hold the button for 5 seconds
to enter the learning function. Once the receiver
has detected the set frequency, the down light of
your fan, if applicable, will blink twice. There is
no indication if your fan is not equipped with a
light.

10.
Restore power to ceiling fan and test for proper
operation.
Figure 18
Figure 19
A. 1,2,3,4,5,6 buttons:
These six buttons are used to set the fan speed as
follows:
1 = low speed 2 = medium low speed
3 = medium speed 4 = medium high speed
5 = high speed 6 = Extra high speed
B. button:
This button turns the fan off.
C. button:
This button controls the light. Press and release
the button to turn the light ON or OFF. Press and
hold the button to set the desired brightness. The
light key has an auto-resume, it will stay at the
same brightness as the last time it was turned off.
D. , , button:
Pressing the ( / / ) button will
automatically turn fan off after 2, 4 or 8 hours.
E. button:
Fan reverse button
(Must be Pushed when the fan is in operation)
Speed settings for warm or cool weather depend
on factors such as the room size. Ceiling height,
number of fans and so on.
NOTE: To operate the reverse function on this
fan, press the reverse button while the fan is
running.
Warm weather - (Forward) A downward airflow
creates a cooling effect as shown in Fig. 18. This
allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown in
Fig. 19. This allows you to set your heating unit
on a cooler setting without affecting your
comfort.

11. WIFI Control Setup - Smart Device Control
Follow these instructions to control your WIFI-enabled fan with a smart device (phone, tablet):

12. WIFI Control Setup - Smart Speaker Voice Control
Follow these instructions to add voice control to your fan with a smart speaker (Amazon Alexa, Google Home):

13. Care of Your Fan
Here are some suggestions to help you maintain your
fan
1. Because of the fan's natural movement, some
connections may become loose.
Check the support
connections, brackets, and blade attachments
twice a year.
Make sure they are secure. (It is not
necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new
appearance over the years. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The
plating is sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor, or the wood,
or possibly cause an electrical shock.
3. Cover small scratches with a light application
of shoe polish.
4.
There is no need to oil your fan. The motor has
permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"

Troubleshooting 14.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the lampshade are tight.
6. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s).
2. Re-do learning process.
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction

Fan Size Speed Volts
Amps Watts RPM CFM N.W. G.W. C.F.
60"
Low
High
120
120
These are approximate measures. They do not include Amps and Wattage used by the light kit.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
©2020 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved
20.24 25.74 4.00'
0.09
0.52
3.62
34.26
61
167
3103.61
6810.71
15. Specifications
lbs lbs

Manuel d’installation du ventilateur deplafond
P250059
93131622_%

SOIENT LIÉS À UNE VIOLATION DE LA GARANTIE, UNE VIOLATION DU CONTRAT OU AUTRE. LA PRÉSENTE
GARANTIE REMPLACE TOUTE AUTRE GARANTIE, EXPRESSE OU IMPLICITE, Y COMPRIS TOUTE GARANTIE
DE QUALITÉ MARCHANDE, D’UTILITÉ À UNE FIN PARTICULIÈRE OU D’ABSENCE DE CONTREFAÇON.
UPC
126751
Garantie limitée à vie
Progress Lighting garantit à l’acheteur initial que les moteurs de ventilateur sont exempts de défauts électriques ou mécaniques
tant que l’acheteur initial est propriétaire du ventilateur. Les interrupteurs à chaînette, les interrupteurs inverseurs, les
condensateurs et les finis métalliques sont garantis contre les défauts de matériaux ou de fabrication pendant une période d’un
an à partir de la date d’achat. Le gauchissement des pales de bois ou de plastique n’est pas couvert par la présente garantie, ni la
corrosion ou la détérioration du fini des ventilateurs installés à moins de dix milles d’un bord de mer. Les garanties prolongées
pour les produits homologués ENERGY STAR® peuvent s’appliquer.
Lorsqu’ils sont installés correctement et dans des conditions d’utilisation normales, les ventilateurs de plafond Progress
Lighting dotés d’une source lumineuse à DEL intégrée sont garantis contre les défauts de matériaux et de fabrication causant le
non fonctionnement de la source lumineuse selon les spécifications pendant (i) cinq (5) ans à partir de la date d’achat des
modules d’éclairage à DEL et des composants électriques des ventilateurs pour les résidences unifamiliales et (ii) trois (3) ans à
partir de la date d’achat des modules d’éclairage à DEL et des composants électriques des ventilateurs pour les résidences
multifamiliales et pour les utilisations commerciales. Les ampoules à DEL fournies par Progress Lighting ne sont assorties
d’aucune autre garantie que celle du fabricant. Les ampoules autres qu’à DEL ne sont assorties d’aucune garantie.
En fournissant la preuve d’achat, l’acheteur initial peut retourner le ventilateur défectueux à son lieu d’achat pendant les 30
premiers jours afin qu’il soit remplacé. Après 30 jours, l’acheteur initial DOIT communiquer avec Progress Lighting au 864
678-1000 pour la réparation ou le remplacement du ventilateur, ce qui sera déterminé exclusivement par Progress Lighting et
constituera le seul et unique recours de l’acheteur.
Main-d’œuvre et expédition exclus. La présente garantie ne couvre par les coûts et les frais associés à la main-d’œuvre (y
compris, sans s’y limiter, les frais d’électricien) nécessaires à l’installation, au retrait ou au remplacement du ventilateur ou des
pièces du ventilateur.
La présente garantie ne s’applique pas en cas de perte ou de dommage découlant (i) de l’usure normale, de l’altération ou d’un
usage incorrect, abusif ou négligent ou (ii) d’une installation, d’une utilisation, d’une réparation ou d’un entretien inadéquats par
l’acheteur initial ou un tiers, y compris, sans s’y limiter, une tension électrique inadéquate ou une surtension, l’utilisation de
pièces ou d’accessoires inadéquats, une réparation non autorisée (effectuée ou tentée) ou l’omission d’entretenir le ventilateur.
LES GARANTIES QUI PRÉCÈDENTÉNONCENT L’ENTIÈRE RESPONSABILITÉ DE PROGRESS LIGHTING AU
CHAPITRE DE LA GARANTIE AINSI QUE LE SEUL ET UNIQUE RECOURS DE L’ACHETEUR LIÉ À CES PRODUITS.
PROGRESS LIGHTING N’EST PAS RESPONSABLE DES DOMMAGES (Y COMPRIS LES DOMMAGES INDIRECTS,
SPÉCIAUX, ACCESSOIRES OU CONSÉCUTIFS) ATTRIBUABLES À LA DÉFECTUOSITÉ DU PRODUIT, QU’ILS
Certains États ne permettent pas de limitation à la durée implicite d’une garantie ou d’exclusion ou de limitation des dommages
accessoires ou consécutifs. Par conséquent, les limitations ci-dessus pourraient ne pas s’appliquer à vous. La présente garantie
vous accorde des droits précis et vous pourriez avoir d’autres droits qui peuvent varier d’un État à l’autre.
Date d’achat
Magasin
Nº de modèle.
Nº de série .
Nº du fournisseur
785247245468
785247245475
785247245451
