Proline PFL1165W-U User manual

SERVICE MANUL
PFL1165W-U
ˍ
SERVICE MANUAL
MODEL: PFL1165W-U
Washing Machine
Washing Machine
All rights reserved. Unauthorized copying and distribution is a violation of law.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING
Order No. FL0911S002V1.1

SERVICE MANUL
PFL1165W-U
ˎ
Contents
Chapter 1 General Information ________________________________________________ ː
1-1. General Guidelines_____________________________________________________ː
1-2. Caution and Warning symbols ____________________________________________ ː
1-3. Function indication symbols ______________________________________________ ː
Chapter 2 Product Feature ___________________________________________________ ˑ
2-1. Features _____________________________________________________________ ˑ
2-2. Specification __________________________________________________________ ˒
Chapter 3 Matters needing attention ___________________________________________ ˔
3-1. Safety _______________________________________________________________ ˔
3-2. During Use ___________________________________________________________ ˕
Chapter 4 Operational Guidance ____________________________________________ ˍˌ
Chapter 5 Program Introduction_____________________________________________ ˍˎ
Chapter 6 Washing Mathods ________________________________________________ ˍˏ
6-1. Loading____________________________________________________________ ˍˏ
6-2. Adding detergent ____________________________________________________ ˍˏ
6-3. Selecting washing program ____________________________________________ ˍˏ
Chapter 7 Appearance brief introduction _____________________________________ ˍː
7-1. Name of parts _______________________________________________________ ˍː
7-2. Net dimension_______________________________________________________ ˍˑ
Chapter 8 Disassembly and Installation ______________________________________ ˍ˒
8-1. Remove packing materials _____________________________________________ ˍ˒
8-2. Dismantle packing bolts _______________________________________________ ˍ˒

SERVICE MANUL
PFL1165W-U
ˏ
8-3. Adjusting the washing machine _________________________________________ ˍ˒
8-4. Joining the Inlet Hose to the Washing Machine _____________________________ ˍ˓
8-5. Drainage Hose ______________________________________________________ ˍ˓
8-6. Connecting to the Power Supply ________________________________________ ˍ˓
Chapter 9 Wiring circuit and Self check ______________________________________ ˍ˔
9-1. Wiring circuit ________________________________________________________ ˍ˔
9-2. Self check __________________________________________________________ ˍ˕
Chapter 10 Error Display and troubleshooting _________________________________ ˎˌ
10-1. Error Display _______________________________________________________ ˎˌ
10-2. Examination & Troubleshooting ________________________________________ ˎː
10-2-1. Display nothing__________________________________________________ ˎː
10-2-2. No water inletting ________________________________________________ ˎː
10-2-3. No draining _____________________________________________________ ˎˑ
10-2-4. Abnormal noise and vibration_______________________________________ ˎˑ
10-2-5. Water leaking ___________________________________________________ ˎ˒
Chapter 11 Maintenance ___________________________________________________ ˎ˓

SERVICE MANUL
PFL1165W-U
ː
Chapter 1 General Information
1-1. General Guidelines
When servicing,observe the original lead dress.If a short circuit is found, replace all parts which are
overheated or damaged by the short circuit.After servicing ,see to it that all the protective devices such as
insulation barriers ,insulation papers shields are properly installed .Confirm that the screws,parts and wiring
which were removed in order to service are put in the original positions, or whether there are the portions
which are deteriorated around the service places serviced or not. And be sure safety of that.
1-2. Caution and Warning symbols
(You will see them in “Matters needing attention”)
Any instructions in this service manual with this “Warning “sign must be followed strictly.
To prevent damage to the washing machine, any instructions in this manual with this “Stop “sign
must be followed strictly.
1-3. Function indication symbols
(You will see them in the specification table)
Signify the washing machine has this function.
Signify the washing machine doesn’t have this function.

SERVICE MANUL
PFL1165W-U
ˑ
Chapter 2 Product Feature
2-1. Features
(1). 300mm diameter porthole, door may be open at a 180 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
(2). Class A energy-saving
Scientific design for tub can reduce the use of water heavy during washing, consequently upgrade the
energy efficiency class to A,also use scientific washing
(3). Multi-gear speed controller
According to different costumingˈyou can select corresponding spin speedˈfrom 0 to 1000 rpm.
(4). Unique gasket design featuring no residual water hidden inside.
By the unique gasketˈwashing machine can left no residual water hidden between outer drum and front
board.
(5). Delay time adjustive.
According to different costumingˈyou can select delay timeˈfrom 1h to 24h.

SERVICE MANUL
PFL1165W-U
˒
2-2. Specification
washing machines PFL1165W-U
Product identification
Description of appliance Washing machine
Type of appliance(FS = standing, BI = built-in) FS
Supplier own brand
Supplier bar code˄Europe˅ EAN
Commercial Brand / Model
1.
Commercial bar code EAN
Key-Features
Energy efficiency class A
Washing performance class B
Spin efficiency class C
Programs n° 11
Capacity Kg 5
Spin speed (max.) rpm 1000
Noise level˄sound pressure level˅ dB(A) 71
Energy consumption per wash circle kWh 0.95
Water consumption per wash cycle l <49
Annual average energy consumption * kWh 190
Annual average water consumption* l 10800
Residual dampness (spin result) % 56%
Adjustable thermostat (water temp. adjust from - to)°C 80 -Ć
Drum capacity dry laundry / water kg / l 5/49
Auto water level adjust (depending on volume of filled in laundry) AWL
Washing time (max.) min 202(TBC)
Washing temperatures (program-controlled) °C 30/40/ 60 /80
Certification's (CE) CE/ISO 9001
Approvals (VDE/GS / TÜV/GS / IMQ) TÜV/GS (Rhl.)
2.
* per average 200 wash cycles (EN50242) T= COLD
3. Basics data
Unit dimensions (H x W x D) cm 85*53.5*59.5
Net weight kg 64
Voltage/frequency V/Hz 220-240V~/50Hz
Input power / main fuse (intensity) W / A 2100/10
Work top / removable /
Control M = electromechanical, E= electronic, F= fuzzy E
Drum S= stainless steel / Z= zinc coated S
Tub P= Polyprop./ S= stainless steel P
Door:
aesthetic (R= round, Y= big eye, Q= square) R
Diameter cm 30
Outer door frame S= stainless steel / M= metal / P= plastic P
Inner door G= glass / P= plastic G
Detergent compartments n° 3
Removable compartment for liquid detergent -
Delay timer (from - to) h0.5-24
Self cleaning suds pump -
Water inlet hose cold water / hot water /-
Water drain hose / -support /
Adjustable feet n° 4
Safety systems
Auto door lock ADL
Motor overheating protection MOP
4.
No heating without water NHW

SERVICE MANUL
PFL1165W-U
˓
Auto water cool-down (before drain 90°C boiled water) AWC 
Water overflow protection WRP 
Acqua Stop kit -
Child protection 
Programs
1) Strong action /cotton cycles (90°C/60°C/40°C/30°C/Ć)n° /
2) Normal action / synthetics (90°C/60°C/40°C/30°C/Ć)n° /
3) Delicate action / wool or cashmere cycles (60°C/40°C/30°C/Ć)n° /
4) Delicates silk (40°C/30°C/Ć)n° 
5) Speedy (40°C/30°C/Ćˈ29min) n° 
6) Sport n° -
7) Hand wash n° -
8) Underwear -
9) Jeans -
10) Duvet -
11) Special programs n° 4
Single Rinse n° 
Single Spin n° 
Single Drain 
Single Wash 
Optional function keys (additional program settings)
ON/OFF 
Start / Pause 
Delay 
Extra Rinse -
Rinse Hold (or Soak) -
Eco Time -
Spin Select 
Temperature Select 
Baby Care -
hsawdloC -
Super Wash -
Pre-wash -
5.
Easy ironing -
Packing dimensions & loadability
065*056*098mcmm)DxWxH(snoisnemidgnikcaP
Gross weight kg 66
6.
40' Container load pcs 220
Logistic / recicling information RS
Packing weight kg 2
Packing materials / Recycling symbols
Carton (weight) gr Shrink package
Polistyren (weight) gr 1800
Polyetylene foil (weight) gr 100
Other packing materials (weight) gr 100
7.
Wood (weight) kg -
Service RS
User instruction (languages)
8.
Max. failure rate (12 Months after sales to end customer) %
9. Delivery Time of First Batch Available

SERVICE MANUL
PFL1165W-U
˔
Chapter 3 Matters needing attention
3-1. Safety

SERVICE MANUL
PFL1165W-U
˕
3-2. During Use

SERVICE MANUL
PFL1165W-U
ˍˌ

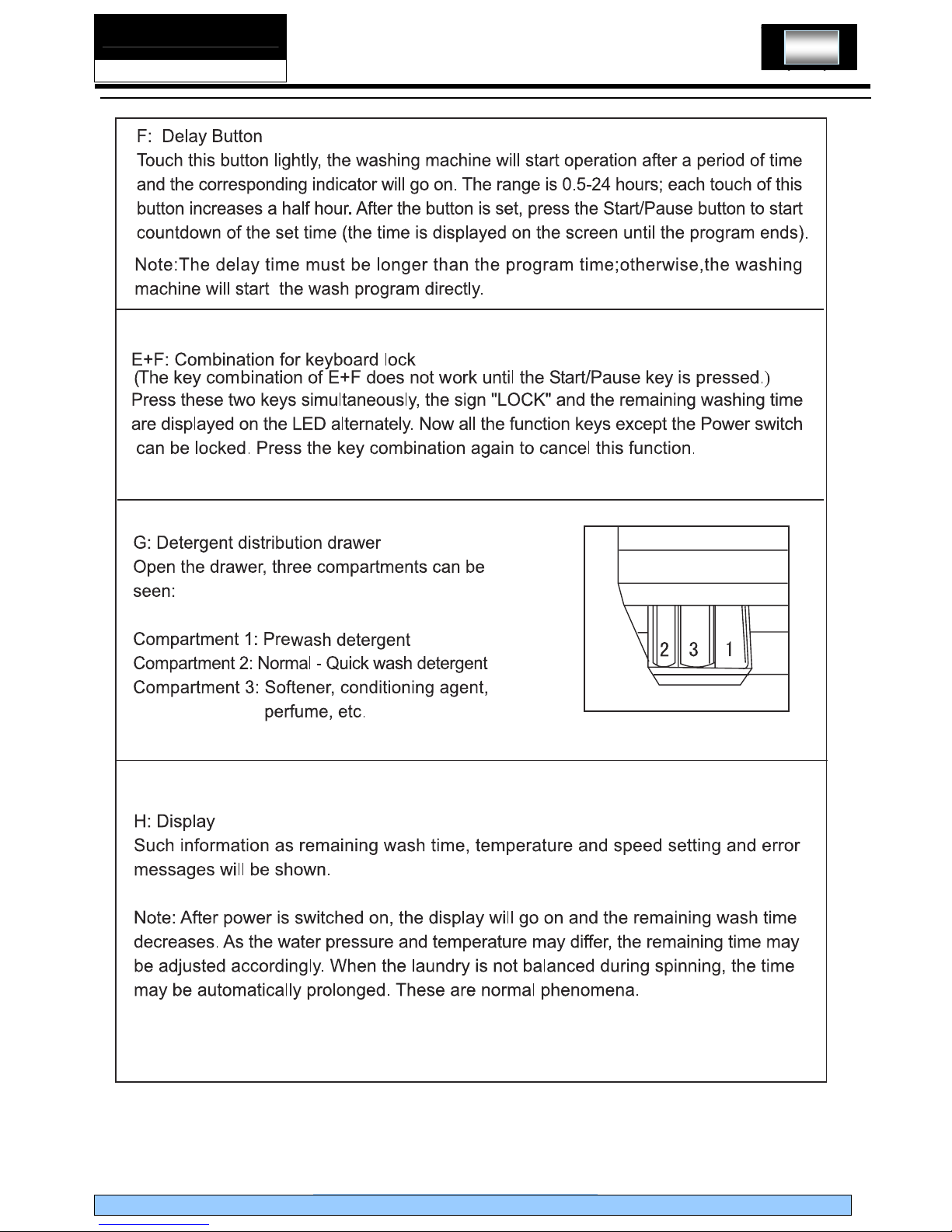

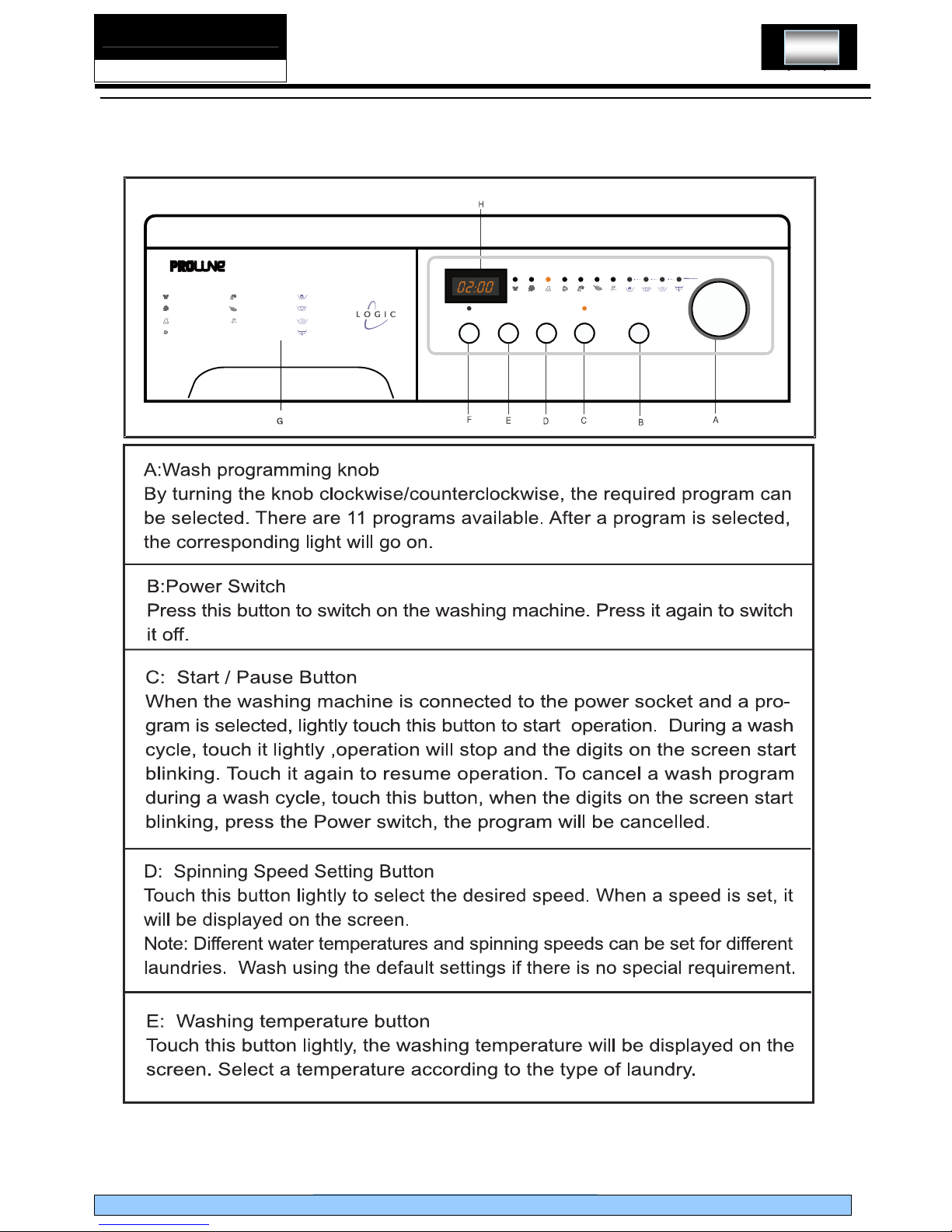

Chapter 4 Operational Guidance
PP
PROG.
PP
Delay Spin
Temperature
Delay Temperature Spin Start/Pause On/Off
Prewash
Cotton
Synthetic
Wool
Delicate
Silk
Quick
Wash
Rinse
Spin
Drain

SERVICE MANUL
PFL1165W-U
ˍˍ

SERVICE MANUL
PFL1165W-U
ˍˎ
Chapter 5 Program Introduction
90
90

SERVICE MANUL
PFL1165W-U
ˍˏ

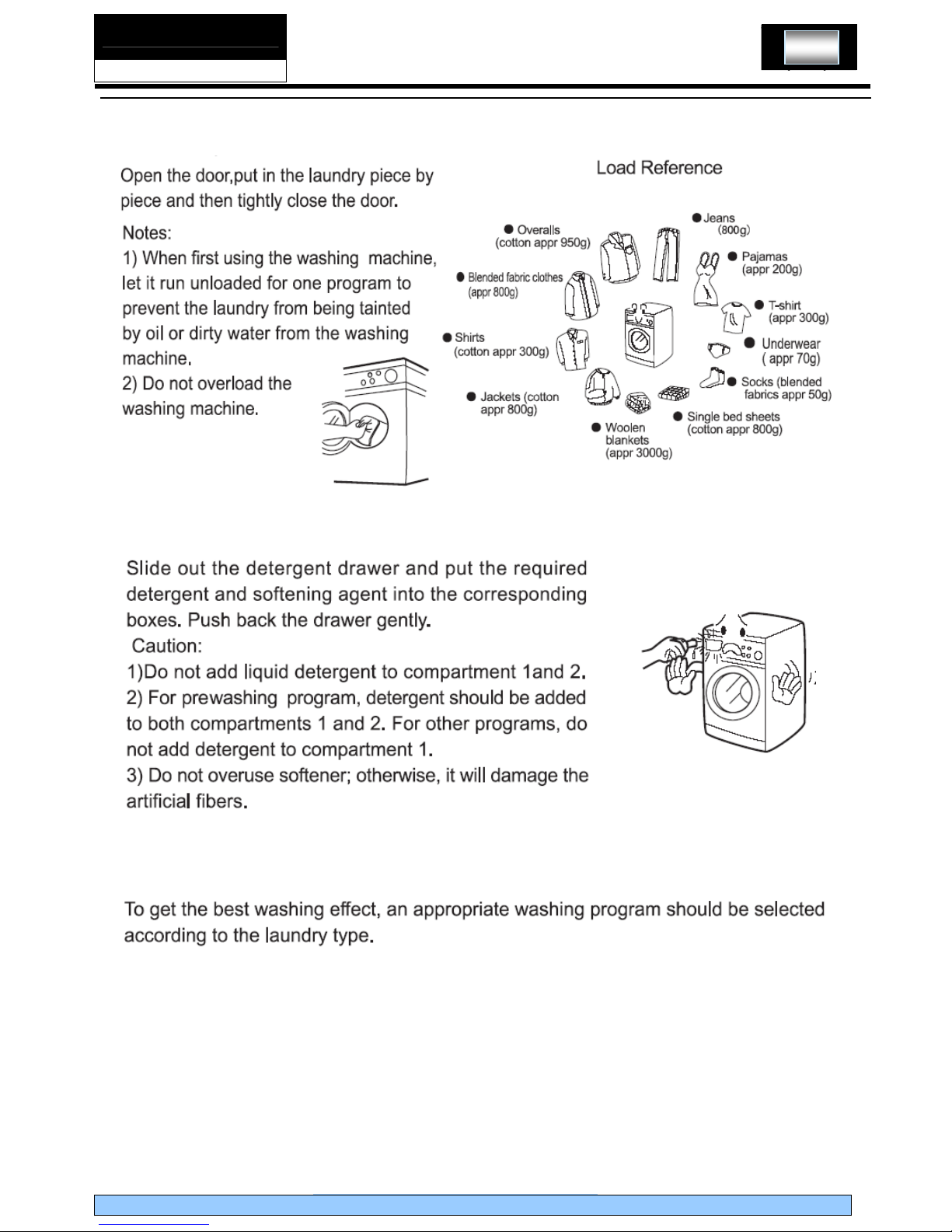

Chapter 6 Washing Mathods
6-1. Loading
6-2. Adding detergent
6-3. Selecting washing program

SERVICE MANUL
PFL1165W-U
ˍː
Chapter 7 Appearance brief introduction
7-1. Name of parts

SERVICE MANUL
PFL1165W-U
ˍˑ

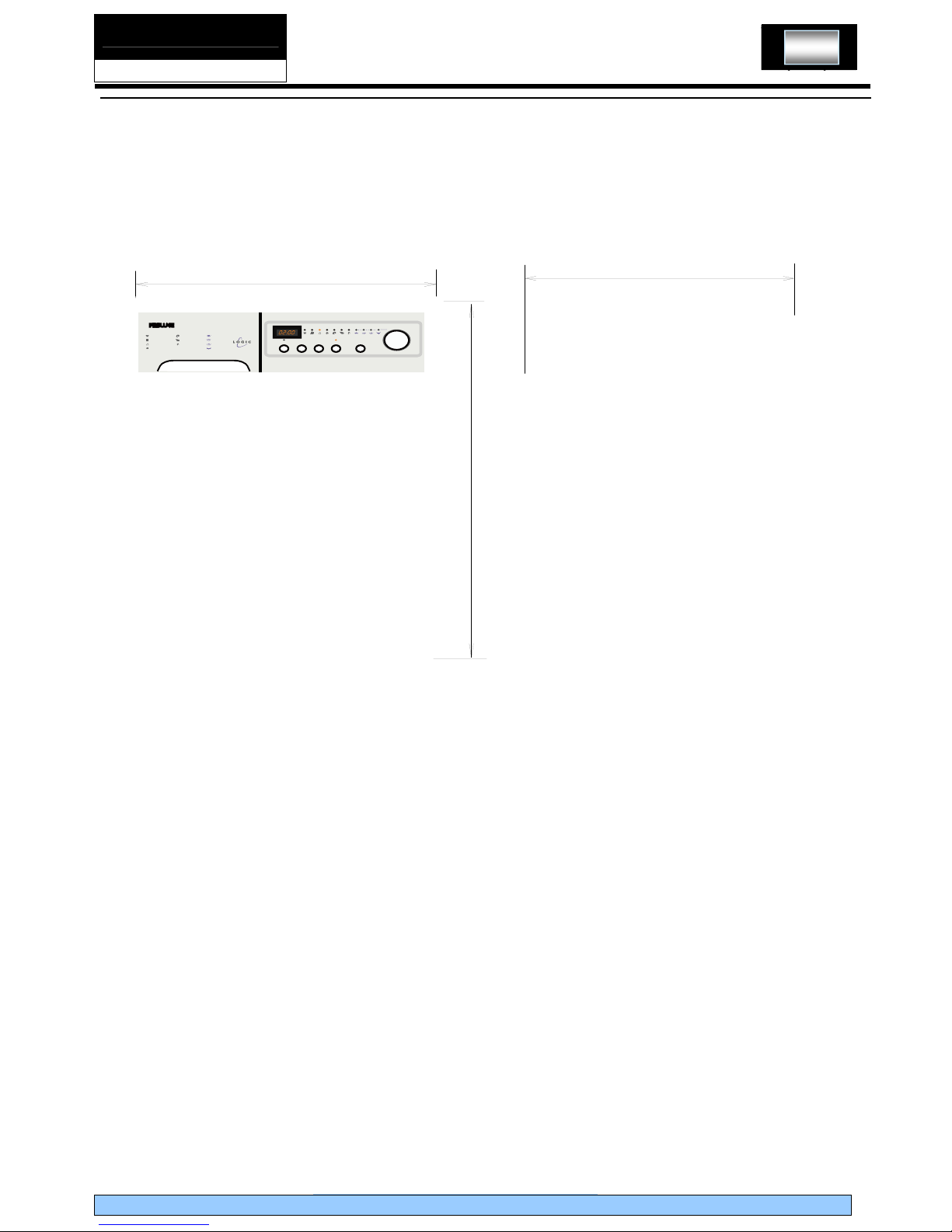

7-2. Net dimension
height:850mm / width:595mm / depth:535mm
595
850
535
PP
PROG.
PP
Delay Spin
Temperature
Delay Temperature Spin Start/Pause On/Off
Prewash
Cotton
Synthetic
Wool
Delicate
Silk
Quick
Wash
Rinse
Spin
Drain

SERVICE MANUL
PFL1165W-U
ˍ˒
Chapter 8 Disassembly and Installation
8-1. Remove packing materials
8-2. Dismantle packing bolts
8-3. Adjusting the washing machine

SERVICE MANUL
PFL1165W-U
ˍ˓

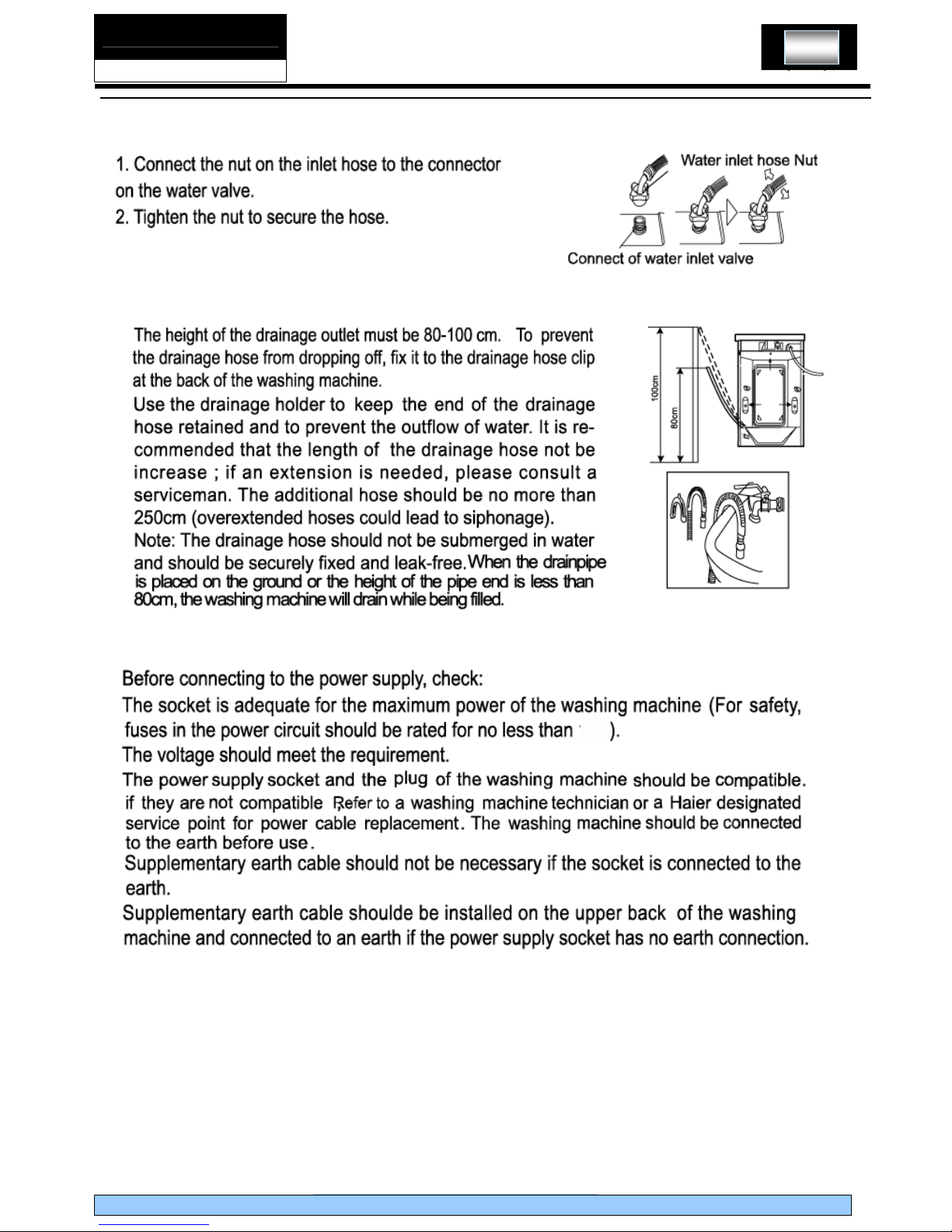

8-4. Joining the Inlet Hose to the Washing Machine
8-5. Drainage Hose
8-6. Connecting to the Power Supply
13A

SERVICE MANUL
PFL1165W-U
ˍ˔
Chapter 9 Wiring circuit and Self check

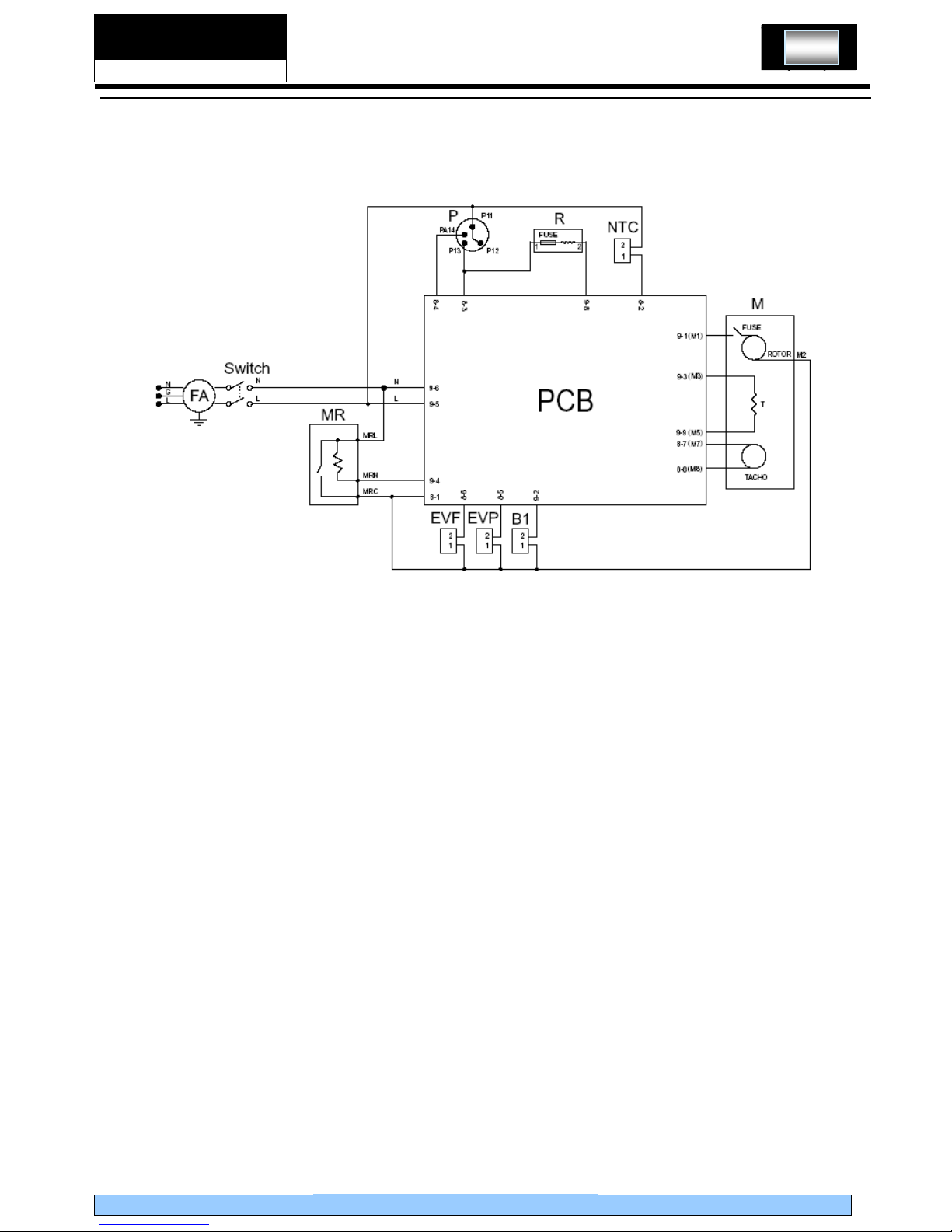

9-1. Wiring circuit
PCB-Printed Circuit Board NTC-Temperature Sensor
FA-Interference Suppresser MR-Door Lock
Switch-Power Switch EVP,EVF-Water Inlet Magnetic Valve
P- Pressure Switch B1-Drainage Pump
R-Heating element M-Motor

SERVICE MANUL
PFL1165W-U
ˍ˕
9-2. S elf check
Model selection
1.Press the temperature button and the power button at the same time for 4
seconds, and it will enter the model-selection mode.
2.The default display shows 1460. Press the speed button to choose
1460/1450/1260/1250/1060/1050/960/950/860/850/760/750 till the needed
model.Then press the reservation key and the model can be stored. The model
can not be changed after storage.
3.If you want to change the model again after storage, you can cut off the
NTC and do the cycle adjustment.

SERVICE MANUL
PFL1165W-U
ˎˌ
Chapter 10 Error Display and troubleshooting
10-1. Error Display
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
Error message: Drainage error, water not emptied within 4 min.
Troubleshooting:
Pushing the door to Check Whether
Door is properly shut or not
Y
Shut the door properly
Door lock is broken and need replacing,
then make sure wire is connected
properly.
N
Check the voltage between brown wire
and blue wire of PCB, is it between
AC 220-240V?
Check if drain pump acts by touching
pump position
Y
Check if drain pump or
drain pipe is jammed,
And open the filter and
clean
N
Cut off the power and choose spin
program to start ,then check the import
voltage of drain pump, is it between
AC 220-2240 V?
Replace drain pump
N
Cut off power and pull out water level
pressure switch wire connection. Set
spin program to start. Check the export
voltage to drain pump, is it between AC
220
-
240V?
Replace PCB
Cut off the power and then turn on again.
Check the voltage between brown wire
and blue wire of door lock, is it between
AC 220-240V?
N
Y
Replace
PCB
N
Connect the wire properly
Check if the wire connecting door lock
and PCB is loose
N
Y
Check if water is emptied Y
Cut off power and water level pressure switch wire
connection, measure the resistance of 1 and 3 pin, is
it infinite? If not, it is water level pressure switch
failure and replaces it. If it is, then repair and check
PCB and wire as followed.
N
YThe wire between PCB
and drain pump is not
connected properly.
Replace the wire.
Y
N
