Operations Manual
Model: DP2300:)E
Automatic Dough Press

-1- DP 2/04
Congratulations!
Your selection of the Doughpro DP
is a sound business decision. Doughpro
equipment is a result of the highest
quality engineering and time-tested
design. Your machine, combined with
Doughpro’s reputation of innovation in
dough press equipment manufacturing,
insures the continuing capability of
delivering the best-decorated product
possible.
This manual describes installation,
operation, and maintenance procedures
for your new model DP.
Your model DP machine will have
a long trouble-free life. Read this
manual carefully and keep it with your
machine; it’s your key to proper
operation and lasting service.
Installation
DOMESTIC
Use a separate  amp AC
circuit. Only industrial extension
cords with proper wire size
should be used; size 16/3 wire for
distance up to 25 feet, and size
14/3 for distance up to 50 feet.
INTERNATIONAL
Use a designated amp AC
circuit. Only industrial extension
cords with proper wire size (2.5
sq. mm) shall be used.
Make sure there is a proper electrical
wall outlet located within reach of the
cord and plug attached to the press.
Then place the press in an area which
allows for “swing clearance” of the
lower platen plus vertical and horizontal
clearance of the press itself.
Limited Machine Warranty
Doughpro warrants this dough press
machine, when operated under normal
conditions, to be free from
manufacturing defects in material and
workmanship for a period of one year on
parts and labor from the invoice date.
This warranty will be effective only
when Doughpro authorizes the original
purchaser to return the product to the
factory in South Gate, California freight
prepaid and only when the product, upon
examination, has proven to be defective.
This warranty does not apply to any
machine that has been subjected to
misuse, negligence or accident.
Doughpro shall not be liable for the
injury, loss or damage, direct or
consequential, arising out of the use or
the inability to use the product.
No claim of any kind shall be greater in
amount than the sale price of the product
or part to which claim is made.
This is the sole warranty given by the company, it is in
lieu of any other warranties, expressed or implied, in
law or in fact, including the warranties of
merchantability and fitness for a particular use, and is
accepted such by the purchaser in taking delivery of
this product.
Specifications
Electrical:
2V/50-60Hz/W/Amps
Includes 72” cord and NEMA
approved plug.
Shipping Weight:
200lbs. (91kg.) – DP
Safety Summary
WARNING
In case of power cord damage,
do not attempt to repair or
replace the power cord. Contact
the manufacturer or the local
distributor.
2/10
Perris,

-2- DP1300 2/04
WARNING
Avoid touching hot surfaces
while operating the machine.
CAUTION
During normal operation, the
base of the machine must be
installed or placed above the wall
socket.
CAUTION
When servicing or cleaning the
machine, make sure that the
power cord is removed from the
wall socket.
Operation Timer/Temperature
Control

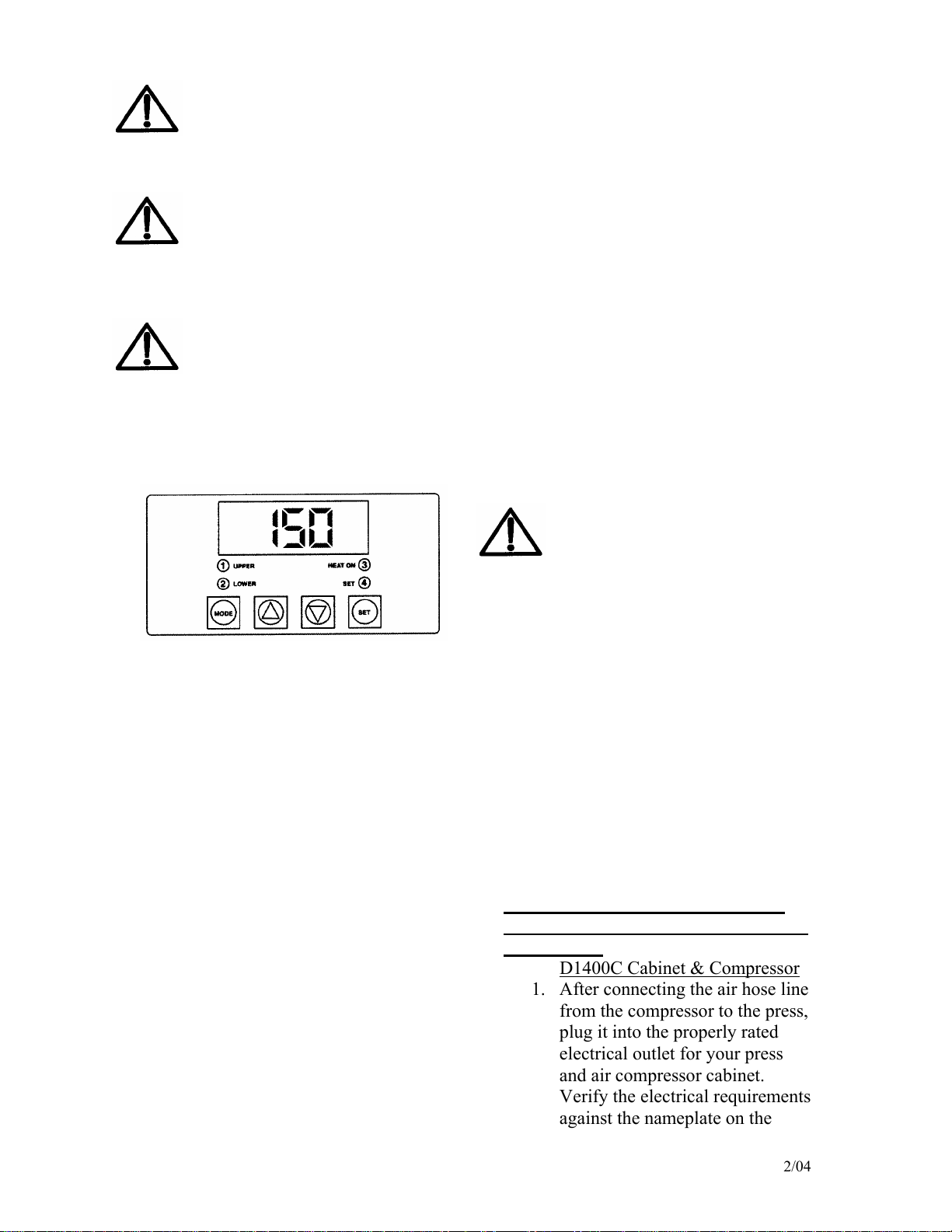

Fig. A
Solid State Controller
This controller has three (3) control
features:
1. Temperature – May be set from
100°-425°F (38°-163°C)
2. Time – Time may be set from 1
second to 10 minutes.
3. Counter – Cycle counter counts
the number of applications from
1 to 9999 (see additional Notes –
Counter).
4. “2Lower” (Fig. A) Refers to
models using upper and lower
heated surfaces.
Controller Operation
1. Viewing the Modes of Operation:
• To view the set points of
temperature, timer and counter,
press MODE button to view the
desired mode of operation.
2. Changing Temperature:
• Press MODE button until
temperature is displayed.
• Press and hold SET button
while pressing the UP (↑) and
DOWN (↓) arrow buttons to
desired temperature setting.
3. Changing Time:
• Press MODE button until time
is displayed.
• Press and hold SET button
while pressing the UP (↑) and
DOWN (↓) arrow buttons to
desired timer setting.
The DISENGAGE switch may
be pressed anytime during a
cycle, and the cycle will stop
immediately, and the timer will
reset.
4. Resetting the Counter
• Press MODE button until the
counter is displayed.
• To Reset the Counter (# of
Cycles), simultaneously push
UP (↑) or DOWN (↓) arrow
buttons (approx. 5 seconds).
PRESSING DOUGH:
For best results, your dough should be
proofed before pressing, but it will also
press directly out of your refrigerator.
Flour is not required to press a crust
and should not be dusted on any part of
the machine.
D1400C Cabinet & Compressor
1. After connecting the air hose line
from the compressor to the press,
plug it into the properly rated
electrical outlet for your press
and air compressor cabinet.
Verify the electrical requirements
against the nameplate on the
2/10

-3- DP 2/04
back of the press and air
compressor cabinet.
Note: The compressor portion of the
machine has a separate on/off switch
located on the rear of the lower cabinet.
2. Switch the DP to the ON
position.
Note: Initial temperature setting of
150°F has been shown to be acceptable
for most dough formulations; however,
you may have to determine the best
temperature for your own dough by trial
and error testing of your product at
different temperature settings.
3. Set the timer in accordance with
the following information:
2-4 seconds –For warm dough
with moderate yeast content.
2-6 seconds – For room
temperature dough with
moderate yeast content.
6-8 seconds – For cold dough
right out of the refrigerator with
low yeast content.
Remember that the timer does not
actuate until the upper platen mates
with the lower platen and resistance
is felt.
4. Set the thickness control lever to
“thick” or “thin” or anywhere in
between these settings as your
product requires.
Note: Diameter and thickness is
determined through experimenting with
your own dough and is a product of
dough weight, temperature, pressing
time, and thickness setting.
5. Swing open the lower platen and
apply a quick spray of a good
water based food release on the
lower platen. Doughpro offers
its own food release spray
NATURALLY CLEAR Model
No. DPPC1. (See our catalog
and price list for information.)
Note: This spray will not affect
the taste of your crust in any
way.
6. Place your pre-portioned ball of
dough in the approximate center
of the lower platen. Add another
dash of spray to the top of the
dough ball.
7. Close the platen and, with both
hands, press the two green
buttons on each side of the
machine simultaneously.
8. Hold the buttons in until
resistance is felt then release at
once. The timer will actuate and,
when the time cycle is
completed, the upper platen will
rise automatically (timer is preset
at factory for six (6) seconds, but
this is easily changed by
following the upcoming
instructions.)
9. Remove the crust, place on a
disc, screen, pan or peel, add
toppings and bake.
ADDITIONAL NOTES:

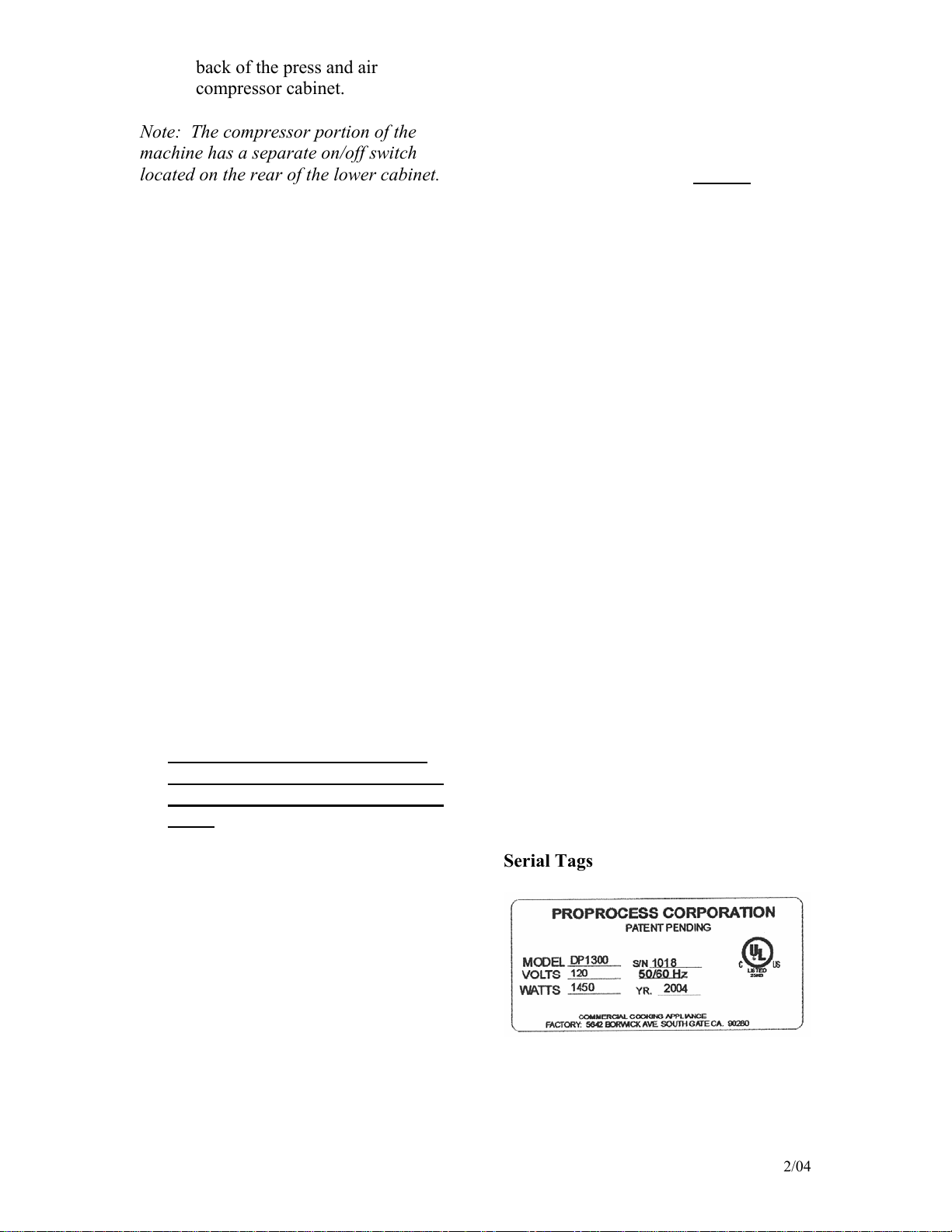

Serial Tags
2/10

-4- DP 2/04
International Symbols
Preventative Maintenance Suggestions
The Doughpro DP machines are
relatively maintenance free. For a long
and trouble-free life, the following
preventative maintenance should be
followed:
Daily Care:
1. Platens: Turn your machine off
and allow to cool down before
attempting to clean. These
platens should only be cleaned
with mild soap and warm water
then wiped off with a clean, soft
cloth or soft sponge. Never use
steel wool or harsh abrasives or
you will cause costly damage.
2. All other exterior surfaces:
Here again a daily wipe down
with mild soap and warm water
will do the job quite nicely.
Never use steel wool or harsh
abrasives or you will cause
costly damage.
Service Problems:
Contact our factory or approved service
agency [phone] (U.S. only).
Note: When contacting factory for
information, parts or service
instructions, it is of the utmost
importance that the serial number of the
machine be provided. This number can
be found on the serial plate located on
the rear of the machine.
2/10

DOUGHPRO
DP2300 Automatic Air Press Trouble Shooting Guide
Symptom Probable Cause Action to be Taken
Ref. #'s on

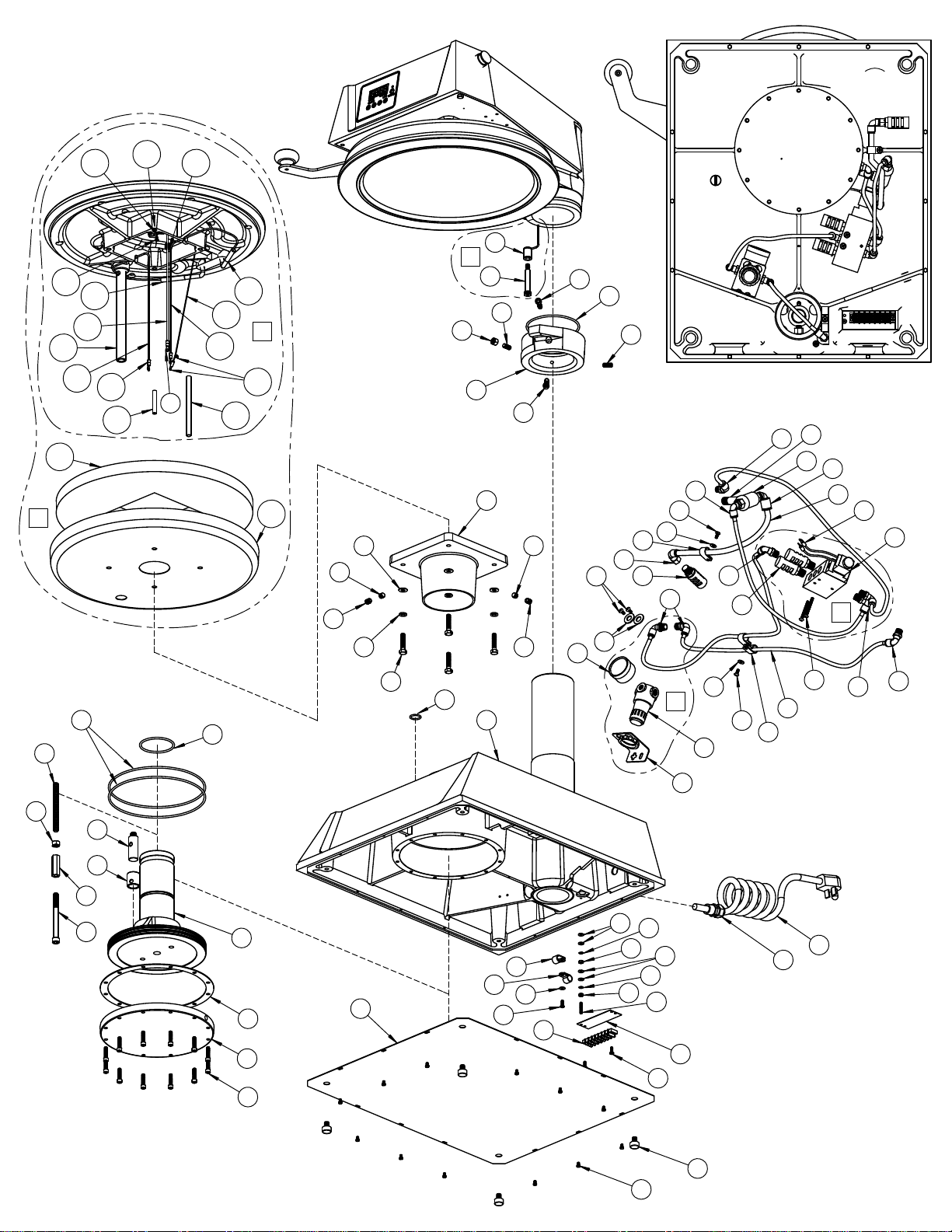

Explosion
Drawing
Power Button on Digital Controller
face is depressed but doesn’t turn
on.
Power Cord is not plugged in.
Plug power cord into wall 's
receptacle and depress power
button on controller
60
Circuit Breaker is tripped off in the
site's breaker box
Reset circuit breaker that the Grill is
plugged into. Depress Power Button
to turn on.
___
Transformer has taken a electrical
surge and is damaged
Replace Transformer after you check
secondary side of transformer. If
working properly, you should
receive 12vdc.
66
Check voltage on the secondary side
of the Transformer. If you read
12VDC then you are receiving voltage
to the Controller.
Replace Controller. Controller
should be on once the power button
is depressed.
76
Possibly blown Fuse Replace fuse. 39
Digital Controller's LED's are
scrambled or randomly irratic. If
when turning on, the display will
first go to segment check
Possibly a componet on the Digital
Controller is damaged
Replace Digital Controller
76
Possibly control needs to reset
While unit is on (controller lit up)
Unplug unit, wait for 1 min. then
plug machine on and depress power
button.
___
Digital Controller on startup goes
through LED segment check (8888)
then to version # and then loops
back to to the above reboot.
The relay driver on the digital control
may be blown.
Replace Digital Controller.
76
Digital display shows PROB. No
heat on Upper Platen.
Sensor lost it's continuity as shown
on a muti-meter.
Disconnect prob that is open (no
continuity as shown on a multi-
meter. Must replace Sensor (RTD).
Do not cut and splice new sensor.
Install new 2000 ohm RTD sensor to
under side of Heat Platen and
reconnect to Controller.
A1.10
When depressing the tactile button
on Digital Controller, nothing
happens.
The tactile buttons under the overlay
may be not close enough to activate.
Same goes if the buttons are already
pressed by overlay without
depressing button.
Carefully (no too much at one time
to avoid fracturing the traces on the
Controller) tighten the nuts on the
back of the Controller until button
activate. Same goes in reverse if
buttons are held down by the
overlay.
___
Digital display shows Rela and
Particular zone is over heating or
outer zone).
The Relay on the switched side is not
opening to regulate temperture.
Replace the Relay.
55
Beeper not functioning or
intermitten beeper sound.
Beeper on Digital Control board
failed.
Replace Digital Controller board 76
1

DOUGHPRO
DP2300 Automatic Air Press Trouble Shooting Guide
Symptom Probable Cause Action to be Taken
Ref. #'s on
Explosion
Drawing
If setpoint is reached but slighty off
in temperature.
Offset may need to be calibrated and
adjusted.
Must call [phone] ext. 129
for confidential instructions.
___
Press does not close when pressing
the two, green, start buttons
Did not simultaneously press the start
buttons exactly at the same time
Try pressing both buttons eactly at
the same time. This is a anti-tie-
down safety feature.
82
The Lower Platen switch mounted on
the base is not in contact to complete
circuit
Make sure the roller plunger comes
into contact (clicking noise). This is
also a safety feature that both
platens are aligned before
Heater Platen overheating
If the Relay (depending the year of
the model) on the coil side are
receiving 12vdc indicates the
Controller is functioning properly. On
the switching side of the relay, is
there 120 vac going to the heater in
question . If there is no voltage on
the to the switching side of the relay
to the heaters, the Relay is not
working properly
Replace Relay If the Controller's
heat-on LED is not lit indicating the
controller is working properly.
55
Power is on but hear a leaking of air
under the lower platen / Ram
casting while Press is idle.
The O'rings are warn allowing the air
to pass through the cylinder. This
occurs when the cylinder walls looses
it's lubrication due to excessive water
generated by poorly maintained
compressor or undersized
compressor generating heat thus
generating water. Be sure to drain
captured water from compressor
tank on a regular basis.
The cylinder needs orings, gasket
and new cylinder grease. Request
instruction sheet and need to order
P/N 110033 for the kit.
___
After activation Lower Platen and
when cycle is complete, the Lower
Platen either is very slow coming
down or doesn’t go up or down at
all.
The Mufflers on the Solenoid Valve
maybe dirty and now allowing alr
from passing though. This occurs
when excess water is passing from
the compressor to the press. If this
doesn't correct the problem. You
may need to replace the solenoid
valve.
Replace both Solenoid Valve
mufflers.
A5.2
Both Upper and Lower Platen not
aligned when activating. You may
experience a shifting of the platens
when coming into contact, or
striking noise.
Upper and Lower Platen misaligned.
On the left side of the Post Collar
(#35) are back- to-back set screws.
Remove the first locking set screw.
Adjust stopping set screw to align
platen (*IMPORTANT* must reduce
air pressure to a minimum as not to
damaging closing platens). After
alignment is complete, re-install
locking set screw as not to move the
alignment set screw.
17
2

DP2300WFE
AUTOMATIC
PIZZA PRESS
EXPDP2300WFE RB 61058
CUSTOMER MANUAL
PAGE 1 OF 3
72
12
A2
A1 05/02/17
1
84
83
81
82
81
83
83
81
82
78 4X
79 4X
76
71 4X
77
4X
78 4X
79 4X
75
73
34
25
90
18
55
23X
9
5X
14
35
18
35
95 93
57
58
13
66
56 2X
10
4X
15
39
41
40
7
11
4X
3
112
3X
44
42
43
97
102
110
102
110
107
26
20
103
104
106 104
113
105
80
94
8
22
59
36
35
99

A5
A7 53
2X
53
86
2X
109 2X
111
2X
110
53
86
87
635
18
52
53
91
85 48
88
95 2X
18
35
18
5
35
54 5X
38
53
114
A3
A4
EXPDP2300WFE RB 61058
CUSTOMER MANUAL
PAGE 2 OF 3
A6
102
103
20
26
80
94
107
104
110
106
31
109
100
97
24
37
2X
115
2X
32
16
33
32
27
80
28
28
80
68
4X
70
4X
69
4X
23
29
67
74
89 4X
30
92 12X
47
46
63
21
64
65
61
62
49
50
51
45 12X
17
4
635
57 19
57 2X
35 59
36 35
59
14
36
60
108
9
110
102
104

PROLUXE PARTS LIST FOR MODEL
DP2300WFE
ITEM
No.
DESCRIPTION
DP2300WFE
208 ~ AC
QTY.
1 HOUSING, INSTRUMENTAL DP1252201 1
2 HEX BOLT STAINLESS STEEL, 1/4-20 X 1/2 BH142012S 3
3 CLAMP-ON SHAFT COLLAR 110230031 1
4 CLAMP, CABLE 1/2 CC12 2
5 AIR REGULATOR, DP2300 BLAZE 110130004 1
6 CLAMP, CABLE 3/8 CC38 2
7 DECAL LABEL FUSE 2 MIL MYLAR 1 COLOR BLACK DLFUSE 1
8 ARM, MACHINED DP2300 11023002101 1
9 BOLT, SHOULDER 3/8 x 2 11023003 5
10 SPRING, DIE RED MEDIUM HEAVY DUTY 11020106 4
11 BOLT, HEX 1/4-20 x 5/8 BH142058 4
12 POWER DISTRIBUTION CABLE 110230068 1
13 TERMINAL BLOCK STAGE #5 DOUBLE 6015 1
14 SCREW, SET 8-32 x 1 SST8321 2
15 COVER, LEVELING SPRING 11023002 1
16 O-RING #2-243 N-70 MPSS062 1
17 POST COLLAR 1101751162301 1
18 SCREW, PAN HEAD PHILLIPS 8-32 x 3/8 SP83238 9
19 TERMINAL BLOCK #7 6017 1
20 WASHER, SAE #6 WSAE6 2
21 NUT, HEX 3/8-16 NH3816 1
22 SCREW, SET 1/4-20 x 1/2 SST142012 1
23 O-RING, SOFT BUNA-N 110230077 1
24 ALIGNMENT SWITCH ASSEMBLY 1101169341 1
25 HANDLE, SWING AWAY 11023004501 1
26 SCREW, PAN HEAD PHILLIPS 6-32 x 1/4 SP63214 2
27 PISTON RAM MACHINED DP2300 11023003001 1
28 3/8-16 x 1/2 SET SCREW CONE POINT SST381612CP 2
29 BASE ASSEMBLY 11023001101 1
30 COVER PLATE, BASE 11054 1
31 POST GUIDE DP2300 11023004 1
32 SCREW, SOCKET HEAD 5/16-18 x 1 DOMESTIC SSH516181D 2
33 SCREW, SOCKET SET, 5/16-18 x 3/4 SST5161834 1
34 KNOB SWING 110017 1
35 WASHER, SAE #8 WSAE8 14
36 NUT, HEX 8-32 NH832 4
37 NUT, HEX JAM 5/16-18 NHJ51618 2
38 GAUGE, AIR REGULATOR 1-1/2" 160 PSI CENTER BACK MOUNT 110130008 1
39 FUSE BUSS 1 AMP MPPF701R 1
40 FUSE HOLDER MPPF708 1
41 SCREW, PAN HEAD PHILLIPS 2-56 x 1/4 SP25614 1
42 THRUST WASHER 11059 1
43 ADJUSTMENT SCREW 110230042 1
44 THRUST PLATE 110230058 1
45 SCREW, SOCKET HEAD CAP, 1/4-20 x 1 SSH14201D 12
46 O-RING MPSR138 2
47 O-RING PISTON ROD 62308 1
48 FITTING, AIR 1/4" PIPE x 3/8 TUBE ELBOW 110559025 1
49 PISTON ASSEMBLY 110230039 1
50 GASKET, PISTON 8" MPSG140 1
51 PISTON, COVER 11013 1
52 FITTING, AIR 1/8" PIPE x 1/4 AQ69P4X2 2
PLDP2300WFE RB 61058 CUSTOMER MANUAL

PROLUXE PARTS LIST FOR MODEL
DP2300WFE
53 FITTING, AIR 1/4" PIPE x 1/4" TUBE 90° AQ69P4X4 8
54 TUBING, BLACK AIR LINE 1/4 TPE4014 4.16FT
55 RELAY, SOLID STATE MPR90217 2
56 SCREW, PAN HEAD PHILLIPS 8-32 x 1/4 SP83214 2
57 SCREW, PAN HEAD PHILLIPS 8-32 x 1/2 SP83212 5
58 MARKER STRIP #5 MS6015 1
59 WASHER, INTERNAL TOOTH LOCK #8 WLIT8 4
60 POWER CORD 110573175 1
61 GUIDE PISTON POST 11072 1
62 BUSHING, GUIDE POST MPSB070 1
63 ROD, THREADED 110230016 1
64 NUT, COUPLING 3/8-16 x 1-3/4 NC3816134 1
65 SCREW, SOCKET HEAD 3/8-16 x 4 SSH38164 1
66 TRANSFORMER 11096975 1
67 STRAIN RELIEF 3231 1
68 BOLT, HEX 5/16-18 x 1-1/2 PARTIALLY TREADED BH51618112G5 4
69 WASHER SPLIT LOCK 5/16 WL516 4
70 WASHER, SAE 5/16 WSAE516 4
71 WASHER, STEEL .311 O.D. x .150 I.D. x .020 THICK 311150019 4
72 WIRE HARNESS 110230050 1
73 CONTROL PANEL OVERLAY ODP1300 1
74 MARKER STRIP #7 MS6017 1
75 FACIA CONTROL PLATE 11086027 1
76 CONTROL, DIGITAL 110175116052 1
77 SPACER, NYLON 110969111 4
78 NUT, HEX 6-32 NH632 8
79 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 8
80 SCREW, SET 3/8-16 x 1/2 CUP SST381612 4
81 SWITCH, MOM P/S OP SCREW ON GE P9XPLOSO 3
82 GREEN MUSHROOM BUTTON SCREW ON P9ARB3V 2
83 CONTACT N/O SCREW TYPE, GE #P9B10VN 110101751 3
84 BUTTON BLACK MUSHROOM SCREW ON GE P9ARB3N 1
85 VALVE, QUICK EXHAUST 110559033 1
86 MUFFLER, 1/4 SUPER QUITE FLOW 110559029 3
87 FITTING, AIR (FEMALE) 1/4" PIPE x 3/8" TUBE 11017511602 1
88 TUBING POLY URETHANE BLUE 3/8 TP38 .33FT
89 FEET, RUBBER RF209 4
90 SCREW, BUTTON HEAD 1/4-20 X 5/8 SB142058 1
91 NIPPLE, BRASS 1/4 x 2 N142 1
92 BOLT HEX SLOTTED 8-32 x 1/4 BH83214 12
93 FITTING, ZERK 1/8" PIPE B610 1
94 RTD SENSOR ASSEMBLY 110949110 2
95 CLAMP, CABLE 5/16 CC516 2
97 DP INSULATION 1101171251 2
98 MANUAL DP2300 (WHOLE FOODS) MDP2300WF 1
99 UPPER HEAT SHROUD 110230036 1
100 SHROUD, LOWER PLATEN 110230037 1
101 WIRE, TGGT, 14 GA 110069 13.25FT
102 TFE, SHRINK TUBING 7 AWG 110131 .66FT
103 TERMINAL, RING #6 14-16 GA (HI-TEMP) 1601HT 2
104 TERMINAL, RING #8 14-16 GA (BLUE) 1604 4
105 TERMINAL, QD 3/16 x 18-22 GA (PINK) 2280 2
106 WIRE, TFE 14 GA GREEN WTFE14G 5.45FT
107 SLEEVING, PVC WIRE OPVC1050 1.91FT
PLDP2300WFE RB 61058 CUSTOMER MANUAL

PROLUXE PARTS LIST FOR MODEL
DP2300WFE
108 TFE NON SHRINK TUBING 110133 .50FT
109 TERMINAL, RING #6 x 18-22 GA, RED MOLEX 2202 4
110 VALVE SOLENOID 11017511604 1
111 SCREW, PAN HEAD 8-32 x 1-1/2 STAINLESS STEEL SP832112S 2
112 SCREW, SOCKET HEAD 1/4-20 X 3/4 SSH142034 3
113 14-16 GA #10 FORK TERMINAL ISUL. 1626 2
114 MOUNTING BRACKET REGULATOR AND PANEL NUT PLASTIC 110130005 1
115 COLLAR, STOP PIN DP12504 2
A1 KITTED, UPPER PLATEN WITH WIRING ONLY 11018276774208K 1
A2 KITTED, UPPER PLATEN COMPLETE ASSEMBLY 11018276774208AK 1
A3 KITTED, LOWER PLATEN WITH WIRING ONLY 11018276732208K 1
A4 KITTED, LOWER PLATEN ASSEMBLY 11018276732208AK 1
A5 KITTED, SOLENOID VALVE ASSEMBLY 11017511604K 1
A6 ALIGNMENT SWITCH ASSY KIT 1101169341K 1
A7 REGULATOR AND FITTING KIT 110230009 1
PLDP2300WFE RB 61058 CUSTOMER MANUAL

Warranty & Return Policy
Proluxe warrants all products manufactured by it against defects in workmanship or materials from the date of purchase for a period of
(1) year on parts and labor. This warranty applies to only equipment purchased and used in the United States. Warranty period
shall begin when equipment ships. Warranty travel shall only be covered for 60 miles. Limited lifetime warranty on heating
elements.
ALL WARRANTY SERVICE CALLS MUST BE APPROVED BY PROLUXE. IF THIS PROCEDURE IS NOT FOLLOWED,
WARRANTY SERVICE WILL NOT BE COVERED. WARRANTY SERVICE WILL BE PAID ON STRAIGHT TIME, OVERTIME WILL
NOT BE COVERED.
Exclusions:
1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall
be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be
free from defects in materials and workmanship for a period of one (1) year
from the date of purchase. Lifetime warranty against cracks on oven floor.
2. Air compressors are excluded from this warranty, but PROLUXE may act as a warranty expeditor in certain instances regarding
these compressors. The air compressor manufacturer provides a limited warranty
and a copy of this warranty is furnished with all compressors sold by PROLUXE. For prompt handling of compressor warranty claims
the instructions of the compressor manufacturer must be adhered to.
3. Equipment built to special order as well as accessories cannot be canceled and are not returnable unless defective within the
terms of this warranty.
4. In no event shall PROLUXE be liable for consequential damages arising out of the failure of any of its products if operated
improperly or caused by normal wear or damage by operator abuse.
5. BC2325 pedestal warranty disclaimer: Pedestals shall only be covered under warranty if they have been cleaned using the factory
approved cleaning method. cracked or damaged pedestals must be inspected by the factory before warranty is authorized.
6. Limited lifetime warranty on heating elements: If replacement is needed, Proluxe will send the new part at no charge but labor will
not be covered unless the unit is still under the 1 year manufacture warranty.
Returned Merchandise Policy:
Should it become necessary to return any of the company’s products, the following instructions must be adhered to: First,
contact our customer service department for approval and a return authorization number. Please have the serial number
of your item available at that time. All merchandise must be shipped freight prepaid by customer or service agency.
Subject to the inspection of the product by the company, a restocking charge of 20% of the Net purchased price paid to
PROLUXE will be assessed. Merchandise may not be returned for credit without prior written approval of PROLUXE. Collect shipments
will not be accepted. No returns after 60 days of original shipment date on machines. Purchased parts may not be returned after 30
days.
If upon inspection by PROLUXE or its authorized agent it is determined the equipment has not been used in an appropriate manner,
has been modified, or has not been properly maintained, or has been subject to misuse,
misapplication, neglect, abuse, accident, unauthorized modification, damage during transit, delivery, fire, flood, act or war,
riot or act of God, then this warranty shall be deemed null and void.
Terms & Conditions:
1. Prices indicated in the PRICE LIST are suggested retail prices and are shown in U.S. DOLLARS.
2. Terms of Payment: 1% 10 days, NET 30 days.
3. NEW ACCOUNTS: Satisfactory credit information must be provided before open account status can be extended.
Unless agreed otherwise, all shipments will be made C.O.D., CASH IN ADVANCE.
4. PRICING: Prices, specifications, model numbers, capacities and accessories are subject to change without notice.
5. FREIGHT / ROUTING: Method of shipment will be determined by PROLUXE unless otherwise
advised by PURCHASER.
6. DAMAGED CLAIMS: All merchandise shipped at purchaser’s risk. Inspection must be made by purchaser at time
goods are received. If goods are damaged, the PURCHASER shall request that the agent of the transportation
company make a written notation on the proper shipping documents immediately and then file a claim for damage.
GOODS DAMAGED IN SHIPMENT ARE NOT RETURNABLE.
7. RETURNS: Machines may not be returned after 60 days. Purchased parts may not be returned after 30 days. A
restocking fee of 20% will be assessed on non-warranty returns.
8. TAXES: Prices indicated herein DO NOT include State, Federal, Local or foreign taxes or duties, nor do they include
fees, permits, insurance or other levies, all of which are the responsibility of the purchaser.
9. All orders are subject to acceptance by PROLUXE.
10. Possession of this price list shall not be considered an offer to sell.
Rev 12916
