Promate PC121812 User manual

Operator Manual
AIR COMPRESSOR
IMPORTANT – Please make certain that persons who are to use this equipment
thoroughly read and understand these instructions and any additional instructions
provided prior to operation.
Record the model and serial numbers of your Generator below:
Model No._____________________ Serial No._______________________

FOREWORD
Thank you for purchasing our product. This operator manual is for proper handling, minor checking
and maintenance of the air compressor. Before using your air compressor: Please read these
instructions completely and carefully in order to make the best use of it as well as operate it safely.
Due to constant efforts to improve our products, certain procedures and specifications are subject
to change without notice, if you have any questions, please contact Promate Service.
CONTENTS
1 Safety Precautions 3
2-1 Parts Description 4
2 Key Parts Diagram 6
3 Tool Compatibility Chart 7
4 Important Information 8
5 Product Features 8
6 Assembly 8
7 Operation 8
7-1 Before Starting 8
7-2 Starting the Compressor 9
7-3 Shutting Down the Compressor 10
7-4 Draining the Tank 10
8 Maintenance and Storage 11
9 Troubleshooting 12
10 Service Information 13
Air Compressor Exploded View 14

1. Safety Precautions
When handling this unit, please keep to the following matters. Please make sure you review each
precaution carefully. You must also make sure that the procedure, work method, or operating
technique that you choose does not render the compressor unsafe.
Safety Symbols and Meanings
V
Volts Voltage
A
Amperes Current
Hz
Hertz Frequency (cycles per second)
W
Watts Power
~
Alternating current Type of current
Direct current Type of characteristic of current
No-load speed Rotational speed, at no load
lbs.
Pounds Weight
.../min
Per minute Revolutions, strokes, surface speed orbits, etc. per minute
Class II
construction
Double-insulated construction
Read the
operator’s manual
To reduce the risk of injury, read and understand operator’s
manual
Wear safety
glasses
Operation of power tool can result in foreign objects being thrown
into the eyes
Wear respiratory
protection
Use of this tool can generate dust which may cause respiratory
injury
Wear hearing
protection Noise from this product can contribute to hearing loss
Wear gloves Wear gloves to reduce risk of injury
Safety Alert
Symbol Alerts user to warning messages
Safety Alert
Symbol: Danger
Failure to obey this warning WILL result in death or serious injury
to yourself or to others
Safety Alert
Symbol: Warning
Failure to obey this warning CAN result in death or serious injury
to yourself or to others
Safety Alert
Symbol: Caution
Failure to obey this warning MAY result in death or serious injury
to yourself or to others
DANGER
WARNING
CAUTION
3

WARNING
1-1 Safety Instructions
WORK AREA SAFETY
1. Keep your work area clean and well lit.
Cluttered workbenches and dark areas
invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks which may ignite the
dust or fumes.
3. Keep bystanders, children and visitors
away while operating a power tool.
Distractions can cause you to lose control.
4. Make your workshop childproof with
padlocks and master switches. Lock tools
away when notin use.
5. Make sure the work area has ample lighting
so you can see the work and that there are
noobstructions that will interfere with safe
operation before using your power tool.
PERSONAL SAFETY
1. Know your power tool. Read the operator’s
manual carefully. Learn the power tools
applications and limitations, as well as the
specific potential hazards related to this
tool.
2. Stay alert, watch what you are doing and
use common sense when operating a
powertool.
3. Do not use tool while tired or under the
influence of drugs, alcohol or medication. A
moment of inattention while operating
power tools may result in serious personal
injury.
4. Dress properly. Do not wear loose clothing
or jewelry. Pull back long hair. Keep your
hair, clothing, and gloves away from
moving parts. Air vents often cover moving
parts and should also be avoided. Loose
clothing, jewelry or long hair can be caught
in moving parts.
5. Avoid accidental starting. Be sure switch is
in “OFF” position before plugging in. Do not
carry tools with your finger on the switch.
Carrying tools with your finger on the
switch or plugging in tools that have the
switch in the “ON” position invites
accidents.
6. Remove adjusting keys or wrenches before
turning the tool “ON”. A wrench that isleft
attached to a rotating part of the tool may
result in personal injury.
7. Do no overreach. Keep proper footing and
balance at all times. Proper footing and
balance enable better control of the tool in
unexpected situations.
8. Always secure your work. Use clamps or a
vise to hold work when practical. It is safer
than using your hand and frees both hands
tooperate tool.
9. Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat or hearing protection must
be used for appropriate conditions.
10. Do not use on a ladder or unstable support.
Stable footing on a solid surface enables
better control of the tool in unexpected
situations.
TOOL USE AND CARE SAFETY
BE SURE to read and understand all
instructions before operating this power tool.
1. Always use clamps or other practical ways
to secure and support the work piece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead toloss of control.
2. Do not force the tool. Use the correct tool
and blade for your application. The correct
tool and blade will do the job better and
safer at the rate for which it is designed.
3. Do not use the tool if switch does not turn
it “ON” or “OFF”. Any tool that cannot be
controlled with the switch is dangerous and
must be repaired.
4. Disconnect the plug from the power source
before making any adjustments, changing
accessories or storing the tool. Such
preventive safety measures reduce the risk
ofstarting the tool accidentally.
5. Never leave the tool running. Always turn it
off. Do not leave the tool until it comes to
a complete stop.
6. Store idle tools out of the reach of children
and other untrained persons. Tools are
dangerous in the hands of untrained users.
7. Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained tools
with sharp cutting edges are less likely to
bindand are easier to control.
8. Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tool’s
operation. If damaged, have the tool
serviced before using. Many accidents are
caused by poorly maintained tools.
9. Use only accessories that are
4

CAUTION
WARNING
recommendedfor this tool. Accessories that
may be suitable for one tool may become
hazardous when usedon another tool.
ELECTRICAL SAFETY
1. Avoid body contact with grounded surfaces
such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
2. Do not expose power tools to rain or wet
3. conditions. Water entering a power tool will
increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord
to carry the tool or pull the plug from an
outlet. Keep the cord away from heat, oil,
sharp edges, and moving parts.
5. Replace damaged cords immediately.
Damaged cords increase the risk of electric
shock.

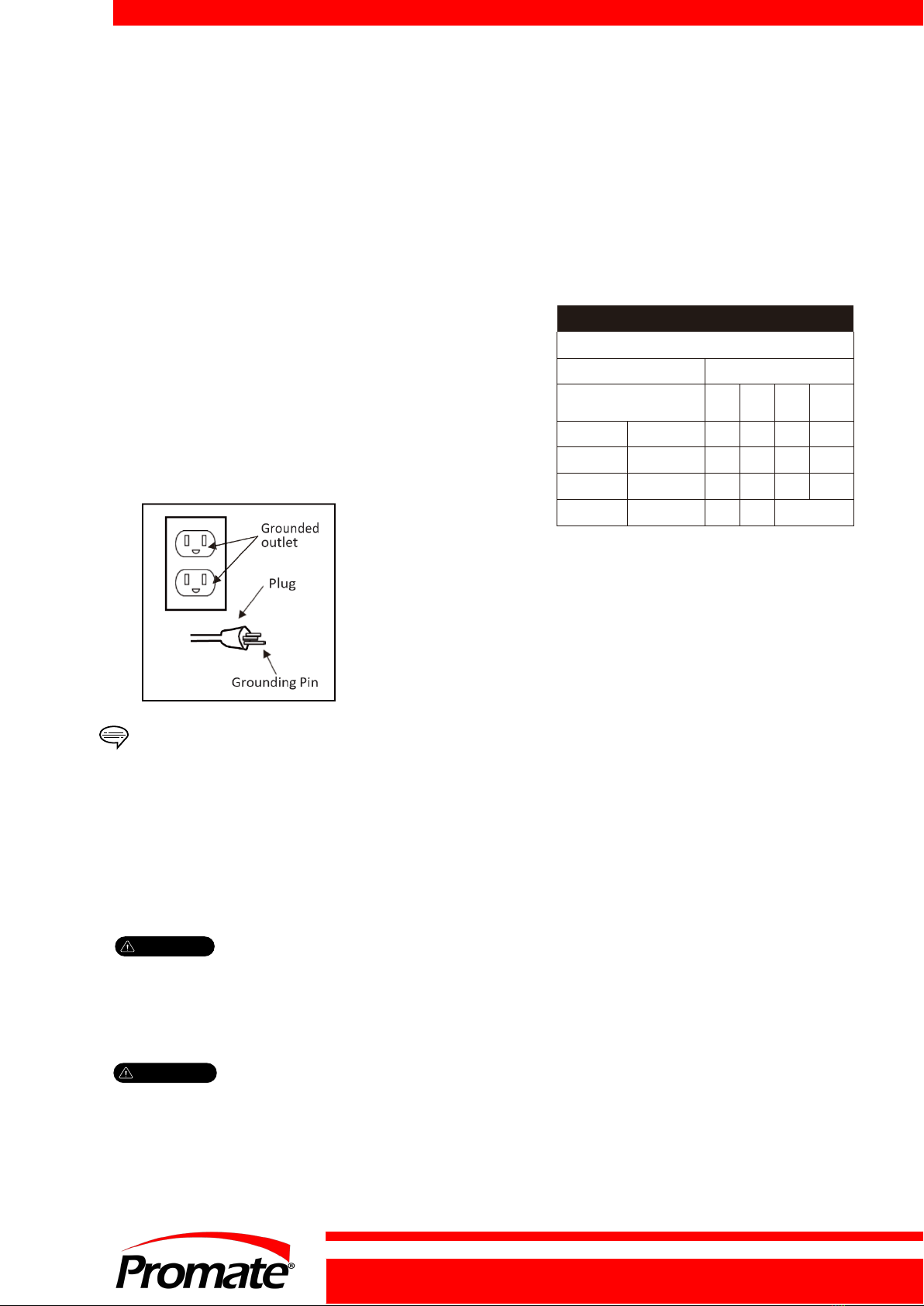

This compressor should be used on a nominal
220V grounded circuit. Use a power cord that
is equipped with a grounding plug. Verify that
the compressor is plugged into an outlet that
has the same configuration as theplug. Do not
use an adaptor with this compressor.
EXTENSION CORDS
Keep the extensions cord clear of the working
area. Position the cord so that it will not get
caught on lumber, tools, or other
obstructions while you are working with a
power tool.
Check the extension cords before each use.
Never use the tool with a damaged cord since
touching the damaged
area could cause
electrical shock, resulting in serious injury.
NOTE
As the distance from the supply outlet
increases, you must use a heavier gauge
extension cord. Using the extension cords
with inadequately sized wire causes a
serious drop in voltage, resulting in loss of
power and possible product damage. Refer
to the table below to determine the
required minimum wire size.
MINIMUM GAUGE FOR EXTENSION CORDS
(When using 220 volts only)
Ampere Rating Total Length Of Cord
More Than< >Less
Than
25ft. 50ft. 100ft. 150ft.
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not
Recommended
5

2. Key Parts Diagram
Read this owner's manual before operating your air compressor. Familiarize yourself with the
location and function of the controls and features. Save this manual for future reference.
Model #:
PC121812
Motor:
220V`, 60Hz, Universal
Running Horsepower:
1.8 HP
Input Power:
1700W
Tank Size:
12 Gallon / 45 Liters
Air Delivery:
4.0 CFM @ 90 PSI
Maximum Pressure:
175 PSI / 12 BAR
Pump Design:
Oil-free
Power Cord:
SJT 16AWG 3C X1.8m
Weight:
30 kg
3
3
6

3. Tool Compatibility Chart
RECOMMENDED TOOL USAGE
Refer to specific tool requirements
Inflation/Recreation
Air Brush
Caulking
Cleaning
Nailer/Stapler
Brad Nailer
Spray Gun (20-45 PSI)
Screwdriver
Grease Gun
Impact Wrench
Ratchet
Finish Nailer
Spray Gun (30-70 PSI)
Framing Nailer
Flooring Nailer
Air Drill
Sand Blaster
Cut-Off Tool
Air Hammer
Recommended Use Intermittent Use Not Recommended
SAVE THESE INSTRUCTIONS
Check the manufacturer’s maximum pressure rating for air tools and accessories. The regulator outlet
pressure must never exceed the maximum pressure rating.
7

4. Important Information
This air compressor is ideal for a wide range of jobsite
applications. The 6-gallon design provides optimum
pressure. It features a 1.8 HP universal motor and oil-
free pump. The procedures described in this manual are
solely for this 6-gallon air compressor at a maximum
pressure of 150 PSI.
Always ensure the use if appropriately matched air tools
with your air compressor. Be sure that the air
compressor being used can supply the appropriate
volume, pressure, and delivery rate of air to the tool(s)
without running continuously. Using tools or
combinations void the air compressor
guarantee/warranty.
5. Product Features
Electric Motor
The motor is used to power the pump. It is equipped
with a thermal overload protector. If the motor
overheats for any reason, the thermal overload
protector will shut down in order to prevent the motor
from being damaged.
Air Compressor Pump
The pump compresses the air and discharges it into the
tank via the piston that moves up and down in the
cylinder.
Safety Valve
This valve is used to prevent the compressor from
building too much pressure. If the pressure reaches the
preset level of the motor, it will automatically pop open.
You can also pull the ring on the valve to open manually.
Air Pressure Regulator
The regulator is used to adjust the pressure inside the
line to the tool that is being used. Turn the knob
clockwise to increase the pressure and counter-
clockwise to decrease the pressure.
Tank Pressure Gauge
The gauge measures the pressure level of the air that is
stored in the tank. It cannot be adjusted by the operator
and it does not indicate the pressure inside the line.
Tool Pressure Gauge
The gauge measures the regulated outlet pressure.
Air Outlet (Universal Coupler)
The outlet is connected to the 1/4” (6.4 mm) NPT air
hose.
Tank Drain
The tank drain is used to remove moisture from the air
tank after the compressor is shut off.
Air Tank
The tank is where the compressed air is stored.
Power Cord
This compressor should be used on a nominal 220V
grounded circuit. Use a power cord that is equipped with
a grounding plug. Verify that the compressor is plugged
into an outlet that has the same configuration as the
plug. Do not use an adaptor with this compressor.
6. Assembly
•Unpack the air compressor unit. Inspect the unit for
damage. If the unit has been damaged, contact the
retailer immediately.
•Check the air compressor’s identification label to
ensure that you have purchased the intended
model and that it has the required pressure rating
for its intended use.
6-1 Packaging Contents
DESCRIPTION
QTY
ILLUSTRATION
Air Compressor 1
Owner’s Manual 1
6-2 Positioning of the Air Compressor FIG.
A FIG. B
1. Position the air compressor (1) near an electrical outlet
(2) (FIG. A).
2. The compressor must be at least 12” (31cm) from any
wall (3) or obstruction, in a clean, well-ventilated area to
ensure sufficient air flow and cooling (FIG. A).
3. Place the air compressor on the floor or a hard, level
surface.
7. Operation
7-1 Before Starting
Check Safety Valve
Before starting compressor, pull the ring on the safety
valve to make sure that the safety valve operates freely.
NOTE
8

WARNING
WARNING
If the valve is stuck or does not operate smoothly,
contact a trained service technician (Fig. C).
7-2 Starting the Compressor
1. Set the power switch to the OFF position (Fig. D).
2. Turn the air pressure regulator knob counter-
clockwise until it stops (Fig. E).
3. Attach hose and accessories (Fig. F).
High pressure air could result in death or serious
injury. Never operate above maximum operating
pressure of the spray gun or tool.
Hot compressor surfaces could result in serious
injury. Allow the compressor to cool before
touching.
If the pump has been transported or turned upside
down (even partially), allow the pump to sit in a
normal, upright position (Fig. A) for approximately
10 minutes before starting.
4. Close the tank drain (1). Plug-in the power cord
(2) (Fig. G).
NOTE
9

WARNING
WARNING
5. Set the power switch to the ON position and allow
the tank pressure to build. Motor will stop when
tank pressure reaches cut-out pressure (Fig H).
7-3 Stopping the Compressor
1. Set the power switch (1) to the OFF position.
2. Unplug the power cord (2).
3. Reduce the pressure in the tank through the
outlet hose. Pulling the safety valve ring (3) and
keeping it open will also reduce the pressure in
the tank (Fig. I).
4. Set tank drain (4) (Fig. I) to OFF to ensure tank
is drained.
Risk of serious eye injury
from moisture and
debris. Always wear ANSI Z87.1 safety goggles
when opening tank drain.
High pressure air could result in death or
serious injury. Shut off unit, unplug and
release air pressure prior to servicing.
High pressure air containing water condensation
could result in minor or moderate injury. Do not
spray at any person.
7-4 Draining the Tank
1. Set the power switch to the O (OFF) position.
2. Turn air pressure regulator knob counter-
clockwise to set the outlet pressure to zero.
3. Pull and hold ring on safety valve, allowing air to
bleed from the tank until air pressure is
minimized.
4. Place a suitable container under the unit to catch
any water.
5. Slightly tilt unit and turn tank drain
counterclockwise to open.
6. After the water has been drained, close the tank
drain (clockwise). The air compressor can now be
stored.
CAUTION
10

WARNING
8. Maintenance and Storage
TASK DESCRIPTION
SERVICE
INTERNAL
Drain the tank
To prevent corrosion inside the tank, the condensation must be drained at the end
of every workday. Be sure to wear protective goggles. Relieve the air pressure in
the system and then open the drain valve on the bottom of the tank. Daily
Check the relief
valve
Pull the relief valve on the ring daily to ensure that it is operating properly and to
clear the valve of any possible obstructions.
Daily
Test for leakage Check all connections to see if tight. A small leak of any part (the tank, hoses, pipe
connections or transfer tubes) will reduce Monthly
Storage
Before storing the unit for a long period, use an air blow gun to clean all the dust
and debris from the compressor. Disconnect and coil the power cord. Pull the
pressure relief valve to release all pressure from the tank. Drain all moisture from
the tank. Cover the entire unit to protect it from moisture and dust.
Before
prolonged
storage
Always shut off and unplug the unit and relieve all air pressure from the system before performing.
11

9. Troubleshooting
PROBLEM
POSSIBLE CAUSE
SOLUTIONS
The motor will not
run or start
The power cord is not plugged in.
Plug the power cord into a grounded outlet.
The power switch is in the O (OFF)
position.
Set the power switch to the ON position.
The extension cord is the wrong
wire gauge or is too long.
Check extension cord information (page 6) for the
proper wire gauge and cord length.
The motor’s thermal overload
protection has tripped.
Turn the air compressor off, unplug the power cord
and wait until the motor has cooled down. Plug in the
power cord only after the motor has cooled down, and
wait for at least 5 minutes to make sure the thermal
overload protector has recovered.
A fuse has blown or a circuit
breaker has been tripped.
Replace the fuse or reset the circuit breaker.
Verify that the fuse has the proper amperage.
Check for low voltage conditions.
Disconnect any other electrical appliances from the
circuit or operate the compressor on a dedicated
circuit.
The air tank pressure exceeds the
preset power switch limit.
The motor will start automatically when the tank
pressure drops below the cut-in pressure.
The safety valve is stuck open.
Clean or replace the safety valve.
Electrical connections are loose.
Contact an authorized service center.
The motor, capacitor, or safety
valve is defective.
Contact an authorized service center.
The motor runs
continuously when
the power switch is in
the ON position.
The power switch does not shut off
the motor when the air compressor
reaches the cut-out pressure and
the safety valve activates.
Set the power switch to the OFF position. If the motor
does not shut off, unplug the air compressor. If the
power switch is defective, replace it.
The compressor’s capacity is not
enough.
Check the air requirements of the accessory that is
being used. If it is higher than the CFM (Cubic Feet
per Minute) and pressure supplied by the compressor
(page 7), a larger capacity air compressor is needed.
Most accessories are rated at 25% of actual CFM
while running continuously.
The regulator does
not regulate the
pressure.
The regulator or its internal parts
are dirty or damaged. Replace the regulator.
The pressure is low or
there is not enough
air.
There is a leak at one of the fittings.
Check the fittings with soapy water. Tighten or reseal
leaking fittings (apply plumber’s tape on threads). Do
not over tighten.
The tank drain is open.
Close the tank drain.
The air intake is restricted.
Clean or replace the air filter element.
Prolonged excessive use of air.
Decrease the amount of air used.
There is a hole in the air hose.
Check the air hose and replace it if necessary.
The tank leaks.
Replace the tank immediately. Do not attempt to
repair it.
The valve is leaking.
Check for worn parts and replace them if necessary.
There is moisture in
the discharge air.
There is condensation in the air
tank caused by a high level of
atmospheric humidity or because
the air compressor has not been
running long enough.
Drain the air tank after each use. Drain the air tank
more often in humid weather and use an air-line filter.
The compressor
overheats.
The ventilation is inadequate.
Relocate the compressor to an area with cool, dry and
well-circulated air.
Cooling surfaces are dirty.
Clean all cooling surfaces on the pump and the motor
thoroughly.
The valve is leaking.
Replace worn parts and reassemble using new
plumber's tape.
12

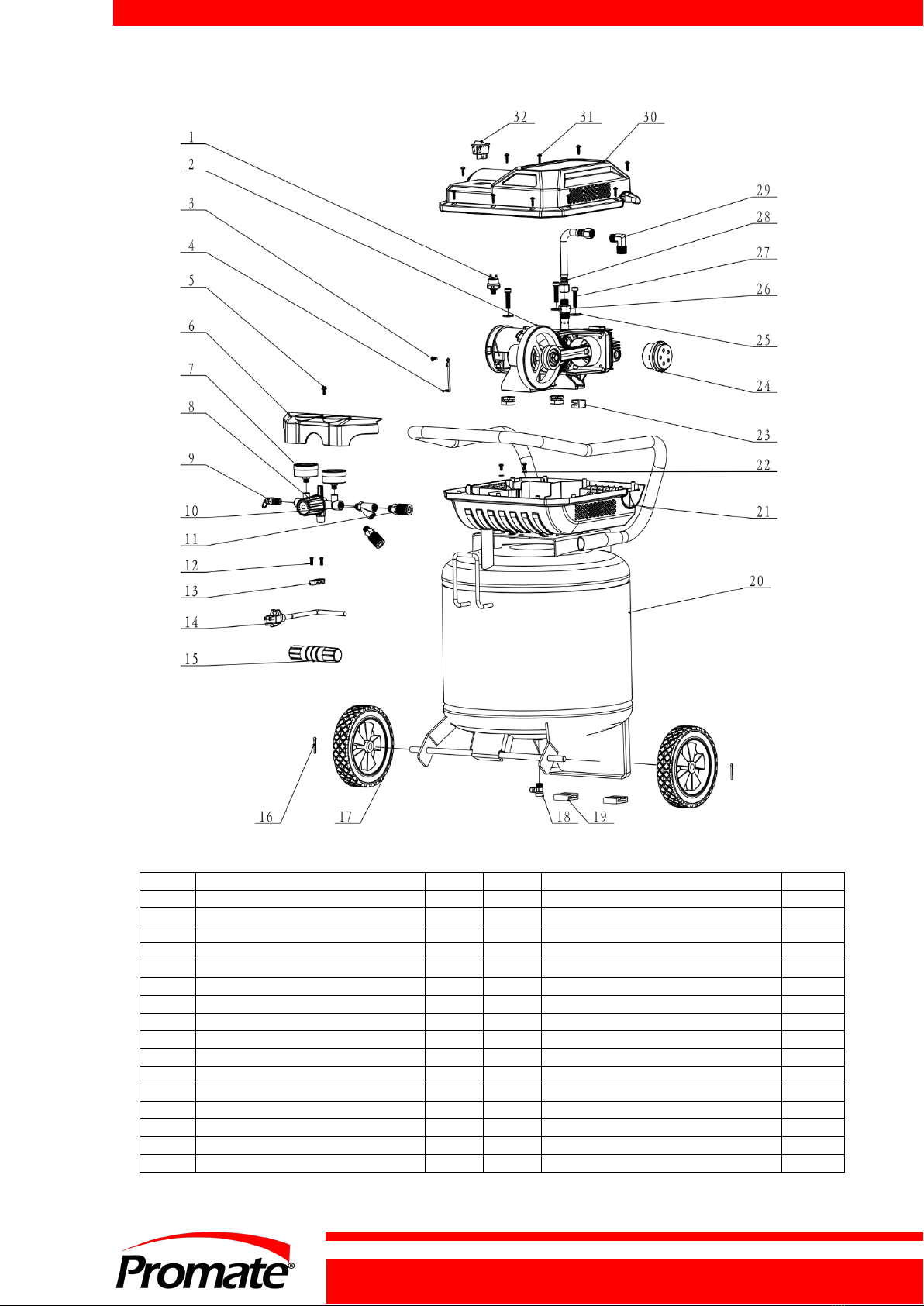

10. SERVICE INFORMATION
HOW TO ORDER REPLACEMENT
PARTS
Even quality-built equipment such as the
generator you have purchased will need
occasional replacement parts to maintain its
good condition over the years.
To order replacement parts and consumable
parts, please contact Promate Service (details
below) and be ready with the following
information:
1. Model No., Serial No. and all
specifications that are shown on
the Model No./Serial No. plate.
2. Part number or numbers as shown
in the Parts List section.
3. A brief description of the trouble
with the generator.
LIMITED WARRANTY
Warranty Coverage: Powertech Asia Pacific
Inc., (the Company) warrants to the original
retail customer that it will repair or replace,
free of charge, any parts found by the
Company or its authorized service
representative to be defective in material or
workmanship. This warranty covers the cost
of replacement parts and labor for defects in
material or workmanship.
Not Covered:
•Shipping/Handling charges for sending
the product to the Company or its
authorized service representative for
warranty service. Shipping/Handling
repaired or replaced products back to the
customer; these charges must be borne
by the customer.
•If a separate operator's manual and
engine warranty from the engine
manufacturer is included with this
product, only that warranty will apply to
the engine.
•Damage caused by abuse, accident, the
effects of corrosion, erosion and normal
wear and tear.
•Warranty is void if the customer fails to
install, maintain and operate the product
in accordance with the instructions and
recommendations of the Company set
forth in the owner's manual, or if the
product is used as rental equipment.
•The Company will not pay for repairs or
adjustments to the product, or for any
costs of labor performed without the
Company's prior authorization.
•Consumable parts such as battery, spark
plugs, and air cleaner.
Warranty Period: One (1) year from the date
of purchase on products used solely for
consumer applications; if a product is used for
business or commercial applications,
the warranty period will be limited to ninety
(90) days from the date of purchase.
For warranty service, the customer must
provide dated proof of purchase and must
notify the Company within the warranty
period.
EXCLUSIONS AND LIMITATIONS: THE
COMPANY MAKES NO OTHER WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED. IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND OF FITNESS FOR A
PARTICULAR PURPOSE, ARE HEREBY
DISCLAIMED. THE WARRANTY SERVICE
DESCRIBED ABOVE IS THE EXCLUSIVE
REMEDY UNDER THIS WARRANTY;
LIABILITY FOR INCIDENTAL AND
CONSEQUENTIAL DAMAGES IS EXCLUDED
TO THE EXTENT
PERMITTED BY LAW.
This warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state. Some states do not
allow a disclaimer of implied warranties or the
exclusion or limitation of incidental and
consequential damages, so the above
disclaimers and exclusions may not apply to
you.
CONTACT THE POWERTECH Asia Pacific Inc.,
PRODUCT SERVICE DEPARTMENT AT (02) 8 638 1569 | ([phone]
[e-mail] www.facebook.com/PromateServicePH/
13

Air Compressor Exploded View
NO.
Description
Qty
NO.
Description
Qty
1
Pressure Switch
1
17
Wheel
2
2
Motor Pump Assembly
1
18
Ball Valve
1
3
Screw M5x10
3
19
Rubber Foot
2
4
Ground Wire
1
20
Tank
1
5
Flange Bolt M5x12
1
21
Lower Cover
1
6
Control Panel
1
22
External Serrated Lock Washer φ5
2
7
Pressure Gauge
2
23
Cushion Pad
3
8
Pressure Regulator
1
24
Air Filter
1
9
Safety Valve
1
25
Flat Washers φ8
3
10
Tee Fitting
1
26
Check Valve
1
11
Quick Coupler
2
27
Hexagon Socket Bolt M8x35
3
12
Screw M5x14
2
28
Hose
1
13
Crimping Board
1
29
Elbow Fitting
1
14
Power Cord
1
30
Upper Cover
1
15
Handle Cover
1
31
Screw ST3.9x16F
10
16
Cotter Pin
2
32
Power Switch
1
14
