Promeba PS-350 User manual

USER GUIDE
EMERGENCY CHAIR PS-350
Review 06/19
Read the instruction
manual and store it for
future reference

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
3
01 INTRODUCTION
01.1 Using this manual 05
01.2 Meaning of Symbols 06
01.3 Serving request 06
01.5 Demolition 06
01.6 Characteristics 07
01.7 Technical data sheet 09
02 WARNINGS
02.1 General warnings 10
02.2 Specic warnings 13
02.3 Contradictions and side eects 15
02.4 Physical requirements of the operators 15
03 INSTALATION
03.1 Transporting and unpacking 16
03.2 Chair’s preparaion 17
04 OPERATING
04.1 General elements of evacuation chair PS-350 19
04.1.1 Armrests 20
04.1.2 Belts 20
04.1.3 Telescopic handles 21
04.1.4 Footrest 21
04.1.5 Front swivel wheels with brake 22
04.1.6 Transport handles 22
04.1.7 Two locking points device for the ambulance 23
04.1.8 Track anchor system 24
05 MOUNTING AND COMPONENTS
05.1 Main exploded view CHAIR PS-350 27
05.2 Exploded lower structure 28
05.3 Bill of materials exploded lower structure 29
05.4 Exploded seat+backrest strucucture 30
05.5 Bill of materials exploded seat+backrest strucucture 31
05.6 Exploded Footrest 32
05.7 Bill of materials exploded Footrest 33
05.8 Exploded handle 34
05.9 Bill of materials exploded handle 35
05.10 Sit-upon and backrest chair 34
05.11 Bill of materials Sit-upon and backrest chair 35
05.12 Exploded harness belt 10G chair PS-350 34
05.13 Bill of materials exploded harness belt 10G chair PS-350 35
06 GENERAL MAINTENANCE 37
07 LEGAL NOTICES 38
08 PRODUCT WARRANTY 39
09 TRAINING REGISTER 40
10 MAINTENANCE REGISTER 41
INDEX

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
5
01.1 Using this manual
This manual provides using and maintenance instruc-
tions of the product, as well as the way of xing minor
faults that could appear.
It is recommended before the operation of the product
to read carefully this manual in order to avoid damages
caused by a misuse.
Do not lose this document, it should be accessible to
any doubt that could appear by medical personnel.
Remember that a good use and maintenance are ne-
cessary for the proper operation of the product.
Each product incorporates an identication sticker with
the serial number and the model. Keep these numbers
so that they can be indicated to the dealer if necessary.
01 INTRODUCTION

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
6
01 INTRODUCTION
01.2 Meaning of Symbols
01.3 Serving request
For information of the correct interpretation of the instruction manual, the use, maintenance, insta-
llation and restoration of the product, please contact Promeba customer service T. 93 837 12 00, Fax
93082061008, email [email protected]om or write to PROMEBA, S.L. - Ctra C-16 Km 59.5 · 08650
Sallent (Barcelona) · SPAIN.
02.4 Demolition
When the devices are no longer suitable for use, if they have not been contaminated by any particular
agent, they can be disposed of as normal solid waste, otherwise, follow the current demolition regula-
tions.
General warning of
possible injuries
Read the user manual
This product is compliant
with the specications of
the Directive 93/42/CEE
ER-0687/1998
Certicate of Qua-
lity Management
System IQNet Certicate
QR Code
(Access Online Web)
Unlocked Locked

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
7
01 INTRODUCTION
01.5 Characteristics
1. Use for emergency situations in elderly people, public safety, hospitals, hotels, etc.
2. Foldable armrests.
3. Four wear resistant wheels.
4. Telescopic handles with the possibility of total extraction.
5. Seat and back with heat sealed seams for a great hygiene and easy to clean.
6. Two locking points device for the ambulance.

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
9
01 INTRODUCTION

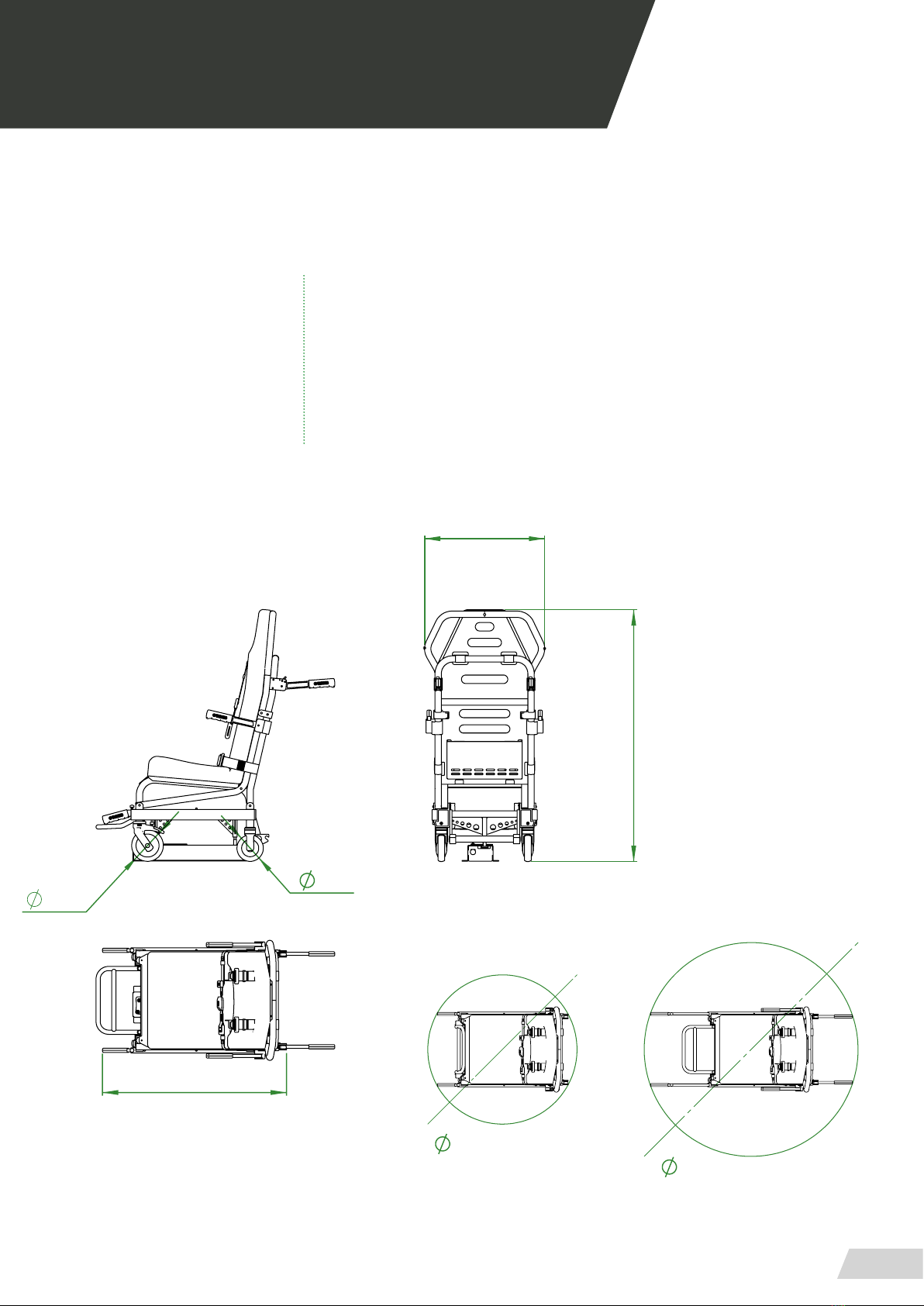

01.2 Technical data sheet
MEASURES AND FEATURES //
LENGHT 873 mm MAX. LOAD 180 Kg
WIDTH 570 mm WHEELS 150x32/125x32
HEIGHT 1194 mm HANDLES 4(2 Front extensible + 2 Rear)
*WEIGHT 18 Kg OPERATOR REQUIRED 2
*No mattress or belts
Weight of mattress and belts 2 Kg
150
125
1194
570
873
1426
995

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
10
02 WARNINGS
02.1 General warnings
·The product has to be used by trained personnel only, who must have specic training for the use of
this product and not for similar products.
·Training routines must be registered on a special register in which the names of the persons trained,
their trainers, the place and the date of the training are indicated. This registry, which will certify the
eligibility of the operators to use the Promeba product, must be retained for a period of 10 years after
the elimination of the product. This record will be made available to the competent authorities and/or
the manufacturer if requested.
·Promeba, S.L. is always at your disposal to plan the product formations.
·Before carrying out any type of operation on the product (training, installation, use), the operator
must carefully read the attached instructions, paying special attention to the correct safety precautions
and the procedures that must be followed for the installation and for the correct use.
·If you have any questions regarding the interpretation of these instructions, please contact Promeba,
S.L. for any kind of clarication.
·If the instructions belong to another device and not to the purchased device, inform the manufacturer
immediately and avoid the use of this device.
·Before each use of the device, the perfect functioning of the device must be veried, as specied in
the instruction manual. In case of detecting damages or anomalies that could inuence in some way
the correct functioning or safety of the device, the patient or the operator; the device must be imme-
diately removed from service and you must contact the manufacturer.
·In case of detecting any failure or incorrect functioning of the device, it must be replaced immediately
by a similar device in order to be able to guarantee the rescue procedures without any interruption.
·Regularly check the product, carry out the prescribed maintenance and respect the service life, as
indicated by the manufacturer in this manual.
·Do not allow people without training to help during the use of the device, because they could cause
damage to the patient or to themselves.
·It is totally forbidden to use the device in any other way than the one described in this manual.
·Do not alter or modify this device in any way; any modication of this device could cause malfunctions
and injuries to the patient and/or rescue personnel.
·Handle with care.
·The device must not be manipulated in any way (modication, adjustment, replacement). In such
cases all responsibility will be denied for any malfunctions or injuries caused by this device. In addition,
CE certication and product warranty will be considered void.

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
11
·All those who modify or have modied, prepared or have prepared medical devices in such way that
they no longer serve the purpose for which they were designed, or no longer provide the desired servi-
ce, must satisfy the valid conditions for the introduction of these in the market.
·Register and store with these instructions: lot number, place and date of purchase, rst date of use,
date of checks, name of operators and any other comments.
·Be sure to take all necessary precautions to avoid the dangers that may arise as a result of contact with
blood or body uids.
·Do not store the device under heavy objects that could cause structural damage.
·Store in a cool, dry, dark place and do not expose the device directly to the sun.
·Store and transport the product in its original packaging.
·The product must not be exposed or come into contact with any source of combustion or ammable
agents.
·Position and adjust the device being careful not to cause any obstruction to rescuers and/or any other
rescue equipment.
·When the product is being used, the assistance of qualied personnel must be guaranteed
·Attention: laboratory tests, post-production tests, instruction manuals cannot always consider all pos-
sible scenarios of use. This means that, in some cases, the performance of the product could have signi-
cantly dierent from results to date obtained. Instructions are continually updated and are under the
strict supervision of fully qualied personnel with the appropriate technical formation.
·In addition, both public and private services are obliged to inform the manufacturer of any measures
that should be adopted in order to take the necessary steps to guarantee the safety and health of pa-
tients and users of any medical device.
·As a distributor or end users of products manufactured and/or marketed by Promeba, S.L., it is strictly
required that you have a basic knowledge of any legal requirement that applies to the supplied devices,
for the countries in which they will end up (including laws and norms regarding technical specications
and/or safety requirements) and, therefore, it is also strictly required to have the necessary knowledge
to guarantee all aspects related to the total conformity of the products to the regulations in the corres-
ponding territory.
·Promptly notify Promeba, S.L. with respect to any revision that the manufacturer must carry out in
order to guarantee the conformity of the product to the legal specications of the territory (including
those resulting from rules and/or norms of other nature).
·Act, with due care and diligence, and help ensure compliance to general security requirements of all
devices marketed in the territory, providing end users with all the information necessary to perform
periodic checks of their devices, as specied in the instruction manual.
02 WARNINGS

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
12
·Actively contribute to the security controls of the products sold, communicating any relevant risk
analysis information both the manufacturer and to competent authorities so that the necessary mea-
sures can be taken promptly.
·You are aware that, in case of it does not comply with the above mentioned requirements, you will
be considered totally responsible for all damages that may occur. Therefore we expressly disclaim any
responsibility and/or liability for your non-compliance with the present regulatory provisions.
02 WARNINGS

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
13
02.2 Specic warnings
·Establish a maintenance program and periodic tests, identifying a reference employee. The person en-
trusted with the ordinary maintenance of the device must guarantee the basic requirements foreseen
by the manufacturer in the user manual.
·Use only accessories/spare parts original or approved by Promeba, S.L., in order to carry out any ope-
ration without altering or modifying the device; otherwise we assume no responsibility for the correct
operation or damage resulting from the device to the patient or the operator and the warranty will be
considered void, in accordance with the compliance of the Medical Device Directive 93/42/EEC.
·Always respect the maximum load capacity of the device, as indicated in this manual. The maximum
load capacity means the total weight distributed according to the human anatomy. When determi-
ning the load of the total weight on the product, the operator should consider the patient’s weight,
equipment and accessories. In addition, the operator must consider that the overall dimensions of the
patient do not reduce the functionality of the device.
·Never leave the patient without any assistance in the device, because he could be injured.
·The device and all its components, after being washed, should be allowed to dry completely before
storage.
·Lubrication must be carried out after cleaning and complete drying.
·Follow the procedures approved by the Emergency Medical Services for the immobilization and trans-
portation of the patient.
·Follow the procedures approved by the Emergency Medical Services for the positioning and transpor-
tation of the patient.
·Avoid contact with sharp objects.
·Do not use the device if it is pierced, torn or frayed.
·Make sure that, before lifting the device, operators have a rm grip on the device.
·Avoid pulling the device on rough surfaces.
·Do not lift by crane or other mechanical lifts.
·The device is a stretcher/chair for transporting patients and cannot be used as a stationing device.
First, practice with an empty stretcher/chair to get used to the way in which the stretcher/chair ma-
noeuvres.
·For the use of the device, at least two operators are needed in appropriate physical conditions; the-
refore, they must have strength, balance, coordination and common sense and must be trained on the
correct functioning of the device of the stretcher/chair.
02 WARNINGS

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
14
·For techniques for loading particularly heavy patients, for rescue operations on steep ground or in
unusual circumstances, the presence of more operators is recommended (not only two, as required
under standard conditions).
·The maximum weight sustained by each rescuer must comply with the requirements prescribed by
the law of the country, related to health and safety at work.
·Before each use, check the integrity of the belts and their hooks, as specied in the manual. In case of
malfunction or any damage that may compromise the function and safety of the device, the patient or
the operator, it is necessary to replace the belts.
·Make sure the belts are tight to the chassis of a stretcher/chair.
·Always immobilize the patient, using the straps supplied by the manufacturer; the lack of immobiliza-
tion can cause serious damage.
·Use the emergency chair only as described in this manual.
·Do not alter or modify the emergency chair arbitrarily to make it t into the ambulance: the modi-
cation can cause unpredictable functioning and damage to the patient and operators. In any case the
guarantee will be lost.
·Pay close attention to possible obstacles (water, ice, debris, etc.) on the route of the stretcher/chair,
because they could cause loss of balance for the operator and compromise the proper functioning of
the device. If you cannot set the path free from obstacles, choose an alternative path.
·For height gradients, the device must be raised, taking care to grasp the structure and not from the
banks/platforms.
·Condensation, water, ice and accumulations of dust can aect the correct functioning of the device,
which makes it unpredictable and causes a sudden change in the weight that operators have to carry.
·The transport chairs are certied for use with Promeba fastening systems, therefore, the use of belts
not approved by the manufacturer is prohibited. Fastening systems that have not been approved can
alter the structural and functional characteristics of the chairs.
·Replace the wheels with original parts, in case of failure to stop the device.
02 WARNINGS

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
15
02.3 Contradictions and side eects
The use of this device, if used as described in this manual, does not present any contradiction or colla-
teral eect.
02.4 Physical requirements of the operators
This product is intended only for use by specialized operators. The rescue team must have, at least, the
following requirements:
·Physical capacity to be able to operate the device.
·Being able to grasp the device rmly with both hands
·Strong back, arms and legs to lift, push and pull the device.
·Have a good muscular coordination.
02 WARNINGS
The operators must be trained to be able to transport eciently, eciently and safely.
For extremely heavy patient loading procedures, operations on dicult terrain and, in parti-
cular situations more operators may be needed (not only 2 as in normal conditions).
The capabilities of the various operators must be considered before determining the func-
tion they will have in the operation of the device.

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
16
03 INSTALATION
03.1 Transport and unpacking
First remove the packaging carefully so as not to dama-
ge the outside of the chair
1. Transport
Before transporting the product, make sure it is pro-
perly packed, making sure there are no risks of crashes,
bumps or falls during transport.
Keep the original packaging for use in case of any other
transport and storage. Damage to the product caused
during transportation and handling is not covered
by the warranty. Repairs or replacement of damaged
parts are the responsibility of the customer. The devi-
ce should be stored in a dry and cool place, away from
direct sunlight. It must not come into contact with che-
mical substances or agents that may cause damage
and reduce safety features.
Durante el almacenamiento, no coloque materiales pe-
sados sobre el dispositivo. El producto no debe consi-
derarse ni utilizarse como estante para ningún tipo de
material.
During storage, do not place heavy materials on the
device. The product must not be considered or used as
a shelf for any type of material.
· Always x the load, if it is necessary stack. you should
follow the diagram shown.
· Transport the level load and following all the precepts
and regulations regarding the transport of loads.
2. Unpacking
· Put the box on a at and stable surface, open the seal
carefully not to damage inside.
· Remove the product from the inside of the case as
shown in the chart below.
Each product has been thoroughly inspected when
leaving the factory.To ensure that the transport has not
deteriorated it, please inspect the exterior and interior
carefully, and in the event of any damage, contact the
installer immediately.
PACKING UNIT
RESPECT THE PACKAGING TRANSPORT POSITION
UNPACKING THE PRODUCT
ALWAYS USE FLAT SURFACE

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
17
03.2 Chair’s preparation
On receipt of the product it is advised:
·Remove the packaging and distribute the material such that all components are visible.
·Verify that all components / parts in the attached list are present.
The appliance must be checked before each use in order to detect any malfunction and / or damage
caused by transport and / or storage. In particular, check:
·General functionality of the device.
·Cleaning the device (remember that lack of cleanliness can cause the risk of cross-infection).
·Absence of cuts, holes, rips in the structure, including belts.
·Correct xing of all nuts, bolts and nuts.
·Correct xing of the belts.
·Correct attachment of the belts.
·State of use (moving parts, wheels, belts, covers)
·Integrity of belts and covers.
·Integrity of the components.
·Integrity of the handles.
·Lubrication of moving parts.
·State of use of the wheels and braking system.
·Operation of springs.
·The emergency vehicle is equipped with a fastening system dedicated to the Promeba
product.
·There are safety belts for the immobilization of the patient and they are intact and operating.
·The welds are intact, without cracks or breaks.
·No tube or sheet metal present curves or cracks
If the above conditions are met, the device can be considered ready for use; Otherwise, you must im-
mediately remove the device from the service and contact the manufacturer.
03 INSTALATION

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
19
03.1 General elements of CHAIR PS-350
1. Foldable armrests
2. Leag and chest belts with adjustable safety lock
3. Telescopic handles with the possibility of total extraction
4. Integrated folding footrest
5. Front swivel wheels with brake
6. Foldable transport handles
7. Two locking points device for the ambulance
8. Track anchor system
04 OPERATING
7
6
1
4
8
2
3
5
8

USER MANUAL // EMERGENCY CHAIR PS-350
Review 06/19
20
04 OPERATING
04.1.1 Armrests
The armrest has two positions:
1 Lifting for storage
(See in Figure 2)
2Lowered for use
(See in Figure 1)
- To lower the armrest, push it down until it stops.
- To lift the armrest, lift it until it stops.
Instructions for using the armrest:
·Keep the armrest raised when it is not in use.
·Keep the armrest clean, avoiding patient
contact with external uids.
04.1.2 Belts
Use patient restraint systems to help the patient in the
chair.
Follow these instructions to properly anchor the belts:
1Join the two buckles indicated in Figure 3, fo-
llowing the direction of the arrows.
2Pass the buckles through the hole in the hori-
zontal belt buckle, following the direction of the arrow.
3Close the system, following the direction of
the arrow until you see that it does not open.
Instructions for use of the belts:
· Make sure that they are well secured in their
respective anchor points, which can be observed in Fi-
gure 4.
· Use a minimum of two belts.
· A safety belt should be secured on the seat of
the chair to keep the patient on the chair.
FIGURE 1 - LOWERED ARMREST FIGURE 2 - LIFTED ARMREST
FIGURE 3 - CLOSURE BELTS FIGURE 4 - BELT POSITION
1
2
3
