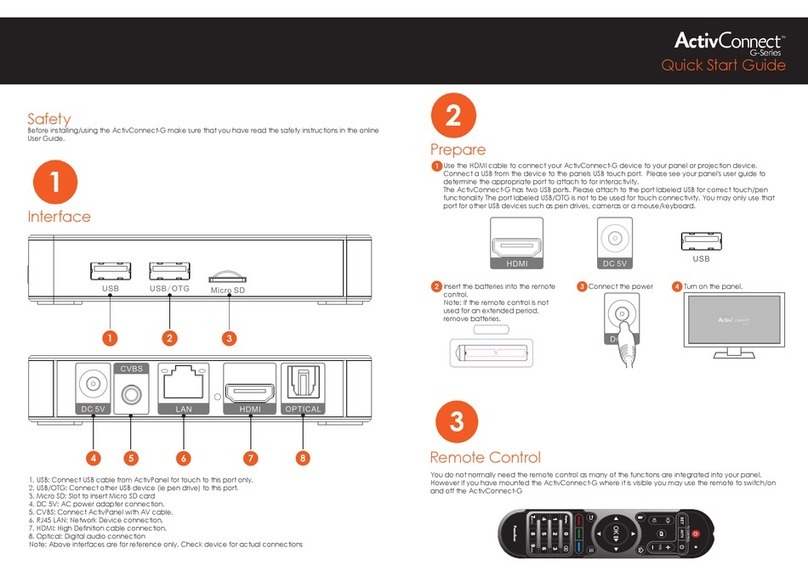

promethean ActivConnect G Series User manual

1. USB: Connect USB cable from ActivPanel for touch to this port only.
2. USB/OTG: Connect other USB device (ie pen drive) to this port.
3. Micro SD: Slot to insert Micro SD card.
4. DC 5V: AC power adapter connection.
5. CVBS: Connect ActivPanel with AV cable.
6. RJ45 LAN: Network Device connection.
7. HDMI: High Definition cable connection.
8. Optical: Digital audio connection.
Note: Above interfaces are for reference only. Check device for actual connections.
Interface
Safety
Prepare
Remote Control
You do not normally need the remote control as many of the functions are integrated into your panel.
However if you have mounted the ActivConnect G-Series where it is visible you may use the remote to switch
on and off the ActivConnect G-Series.
Before installing/using the ActivConnect G-Series make sure that you have read the safety instructions in the
online User Guide.
Use the HDMI cable to connect your ActivConnect G-Series device to your panel or projection device.
Connect a USB from the device to the panels USB touch port. Please see your panel's user guide to
determine the appropriate port to attach to for interactivity.
The ActivConnect G-Series has two USB ports. Please attach to the port labeled USB for correct
touch/pen functionality. The port labeled USB/OTG is not to be used for touch connectivity. You may only
use that port for other USB devices such as pen drives, cameras or a mouse/keyboard.
Turn on the panel.Connect the power.Insert the batteries into the remote
control.
Note: If the remote control is not
used for an extended period,
remove batteries.
Quick Start Guide

Troubleshooting
If your ActivConnect G-Series does not appear on the panel screen please check that the HDMI is
connected to the panel and that the correct source is selected on the panel.
If the touch does not work then please make sure that the USB is connected to the correct USB touch port of
the panel.
For example if the ActivConnect G-Series is connected to HDMI 2 then the USB cable coming from the
device should use be connected to USB2 on the panel.
If your panel only has one USB source please connect this to the one labeled USB-touch on the panel.
If the ActivConnect G-Series has gone into standby please touch the panel to wake it up.
The ActivConnect G-Series User Guide can be found at:
https://www.prometheanworld.com/activconnect-g-series-help
Please refer to Compliance and safety information prior to use. This can be found by searching for TP-2005 at:
https://support.prometheanworld.com
Further support can be found at:
support.prometheanworld.com
www.prometheankb.com
TP-2000-V02 ©2016 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product specifications are subject to change without notice.
