pronovost PUMA-48 Programming manual

OPERATOR'S / PARTS
MANUAL
Snowblowers
Models
PUMA-48 PUMA-54 PUMA-64 PUMA-72
PUMA-74 PUMA-84 PUMA-94
No. C870 06/07

Copyright © Les Machineries Pronovost Inc., 2007
All rights reserved.
Printed in Canada.

- 3 -
TABLE OF CONTENTS
Section Item Page
1 Introduction ................................................................................................................ 5
2 Safety .......................................................................................................................... 6
General Safety .................................................................................................. 6
Safety in operation............................................................................................ 6
Safety with Maintenance .................................................................................. 7
Safety in transport............................................................................................. 7
Safety in storage ............................................................................................... 7
3 Decals .......................................................................................................................... 8
Safety Decals .................................................................................................... 8
Maintenance Decals.......................................................................................... 9
4 Maintenance .............................................................................................................. 10
5 Storage ....................................................................................................................... 11
6 Specifications............................................................................................................. 12
7 Parts List ................................................................................................................... 13

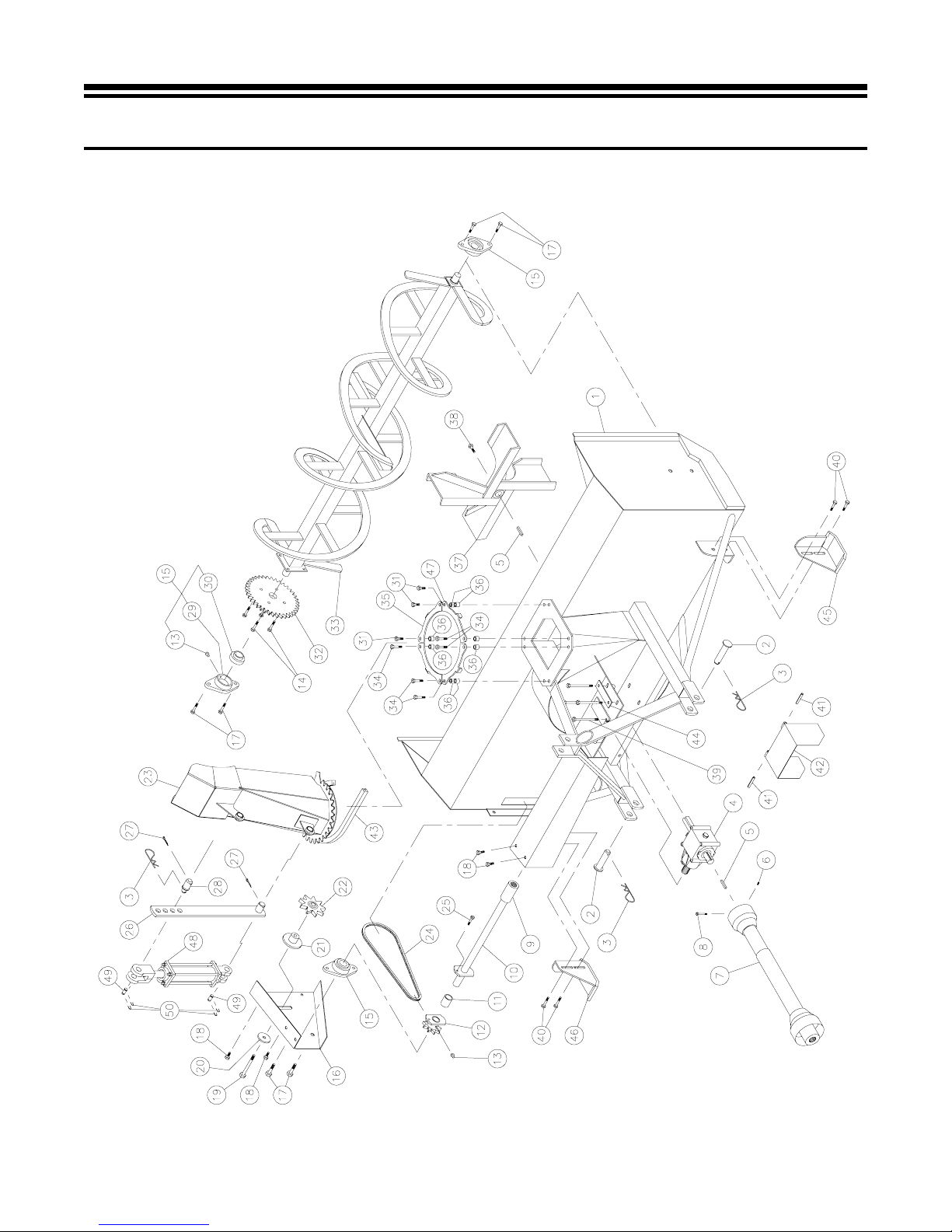

Snowblower PUMA-48 PUMA-54 PUMA-64 PUMA-72 ......................... 14
Snowblower PUMA-74 .................................................................................. 16
Snowblower PUMA-84 PUMA-94 ............................................................... 18

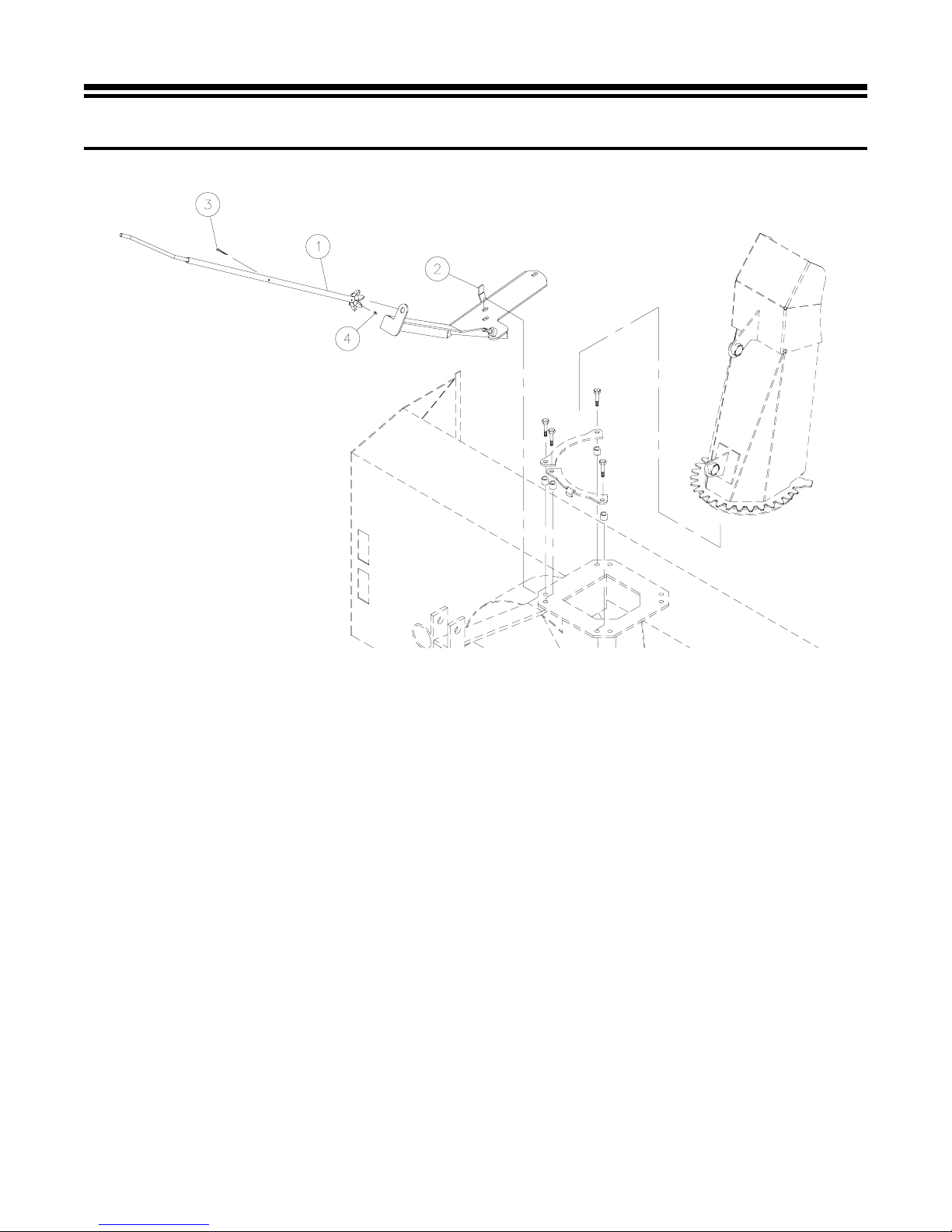

Manual Chute Kit MD-48-94 ......................................................................... 20
Hydraulic Chute Kit HRD-48-94.................................................................... 21
Hydraulic Orbit Chute Kit HRD-48-94 .......................................................... 22
P.T.O. Shaft 6545 ........................................................................................... 23
P.T.O. Shaft 6248-EG..................................................................................... 24
P.T.O. Shaft 8114-EG..................................................................................... 25
P.T.O. Shaft 8202 ........................................................................................... 26
Gear Box 6550................................................................................................ 27
Gear Box 6451................................................................................................ 28
Gear Box 8251................................................................................................ 29
Cylinder 25TR04 ............................................................................................ 30
Cylinder 25TR08 ............................................................................................ 31
Motor MLH-125-250-315 .............................................................................. 32
8 Torque chart ............................................................................................................. 33
9 Warranty ................................................................................................................... 34

- 5 -
INTRODUCTION
Your Snowblower was carefully designed and we are
confident it will meet your requirements in terms of
quality, performance and reliability.
This manual was prepared to assist you in the safe
operation of your new Snowblower. It contains
important information which will help you achieve
excellent returns with your Snowblower.
Please read this manual completely before operating
your Snowblower and keep it for future reference.
Before starting the machine, you or any other person
who will be operating the Snowblower must
familiarize yourself with the safety recommendations
and the operating instructions. Please read carefully
and be sure to understand and follow all
recommendations and procedures.
In this manual, the right and left sides are identified as
shown on Figure 1.
If you require additional information on your
Snowblower, please contact your PRONOVOST
Dealer.
NOW take a moment to enter the model, serial
number and the date of purchase of your Snowblower
in the space provided.
When ordering parts from your Dealer, please refer to
these numbers for a fast and efficient service. Use
PRONOVOST parts for replacement.
The model and serial numbers are on the name plate
shown on Fig. 1.
MODEL: "
SERIAL NO.: "
DATE OF PURCHASE: "
Figure 1
Right
Left

- 6 -
WHEN YOU SEE THIS SYMBOL
SAFETY
ATTENTION!
BE ALERT
YOUR SAFETY IS INVOLVED
This symbol «SAFETY ALERT» is used in this manual and
on the safety decals on the Snowblower. It warns you of the
possibility of danger. Carefully read, understand and follow
all safety recommendations before operating the
Snowblower.
1) Careful operation is the best assurance against acci-
dents. Carefully read this manual and follow all
recommendations before operating your Snowblower.
It is the owner’s responsibility to make sure that anyone
who will operate the Snowblower will read this manual
before operating the equipment.
2) Familiarize yourself with all controls and always be
ready to stop the Snowblower quickly in case of
emergency.
3) Never let a child operate the Snowblower.
4) Do not modify the Snowblower. Any non authorized
modification may affect the efficiency and/or safety of
the equipment.
5) Never operate the Snowblower with defective parts or if
damaged in any way. Have it repaired before operating.
6) Make sure all fasteners are in place and properly
secured or tightened. Refer to torque chart on page 33.
7) Avoid wearing loose fitting clothing when working with
the Snowblower. These could get entangled in moving
parts of the equipment and cause accidents.
GENERAL SAFETY
8) Prolonged exposure to noise may hamper hearing.
Protect yourself by wearing adequate protection
devices.
9) Hydraulic fluids under pressure can damage your skin.
Do not use your hands to locate a leak.
10) Before the beginning of the snow season, inspect all
areas where the Snowblower will be used and remove
any object which may cause an accident and/or damage
the equipment.
11) Never operate your Snowblower in poor visibility or
without proper lighting conditions.
SAFETY IN OPERATION
1) Be sure there are no obstructions around the equipment
and that no one stands near the equipment when in
operation.
2) Do not operate an engine in a confined or non ventilated
area.
3) Do not perform any adjustments, cleaning, maintenance
or repairs with the engine running. The engine must be
stopped and the P.T.O. disengaged. Preferably remove
the key from the ignition.
4) Wear adequate clothing when working in cold or windy
conditions.
5) Before operating, make sure the P.T.O. is properly
installed and secured.
6) Before starting-up the Snowblower, make sure the auger
and drum areas are free of ice.
7) Put P.T.O. control in neutral position before starting
engine.
8) Keep hands, feet and clothing away from moving parts
of the Snowblower. Stay away from the discharge chute.
9) Before unplugging the chute, always disengage the
P.T.O., stop the engine and relieve all hydraulic pressu-
res.

- 7 -
SAFETY (cont'd)
10) Do not operate in excessive inclined conditions. Be
careful when turning in slopes.
11) Never operate your Snowblower with missing guards or
without protective devices in place.
12) Do not operate your Snowblower near buildings,
windows or other vehicules without prior and proper
adjustment of the chute deflector.
13) Never aim discharge chute towards people or animals.
This may cause serious injuries.
14) Always reduce operating speed in slippery conditions.
15) Be careful when backing-up, make sure you have good
visibility.
16) Always be on the lookout for objects which may enter
theSnowblower.
17) If undue vibrations are felt, disengage the P.T.O., stop
the motor and look for the cause of the vibration.
Vibration is usually the indication of a problem.
18) At the end of the operation, disengage the P.T.O., lower
the Snowblower, put transmission in neutral, apply
parking brake, stop engine and remove the key from the
ignition.
SAFETY WITH MAINTENANCE
1) Perform the Snowblower maintenance according to
recommendations contained in this manual.
2) Stop engine and relieve all hydraulic pressures before
doing inspection, maintenance or repairs.
3) Never perform any work under the Snowblower while it
is supported only by the tractor's hydraulic system. It
must be completely supported by wooden blocks or
other safe means.
SAFETY IN TRANSPORT
1) On public roads, use proper safety lights and check
local regulations.
2) Be alert while driving on the road. Never carry
passengers.
3) Always disengage P.T.O. while moving from one area
of work to another.
4) The recommended road speed should be such as to
maintain full control over steering and braking.
5) Be careful while backing up, make sure you have good
visibility.
SAFETY IN STORAGE
1) Provide adequate supports to prevent any accidental
overturning of the Snowblower.
2) Do not let children play in the area where the
Snowblower is stored.

- 8 -
DECALS
SAFETY DECALS
The safety decals ara affixed wherever special safety
precautions are indicated. Locate them on the machine
and read them carefully. If a decal is damaged, lost or
illegible, install a new one. Each decal is shown and
identified with a part number.
Figure 2 Part no.: A102
Figure 4 Part no.: A107
Figure 3 Part no.: A101

- 9 -
Figure 5 Part no.: A108
DECALS (cont'd)
MAINTENANCE DECALS
The maintenance decals indicate the points requiring
lubrication. Refer to maintenance section for more
details.
Figure 6 Part no.: A 109
Figure 7 Part no.: A104
Figure 8 Part no.: A 106

- 10 -
4
MAINTENANCE
1) Wipe off all grease fittings with a clean cloth
before adding grease in order to avoid injecting
dirt and sand.
2) Repair or replace damaged grease fittings.
3) Lubricate all grease fittings every 8 hours of
operation.
4) Oil drive chain every 8 hours of operation.

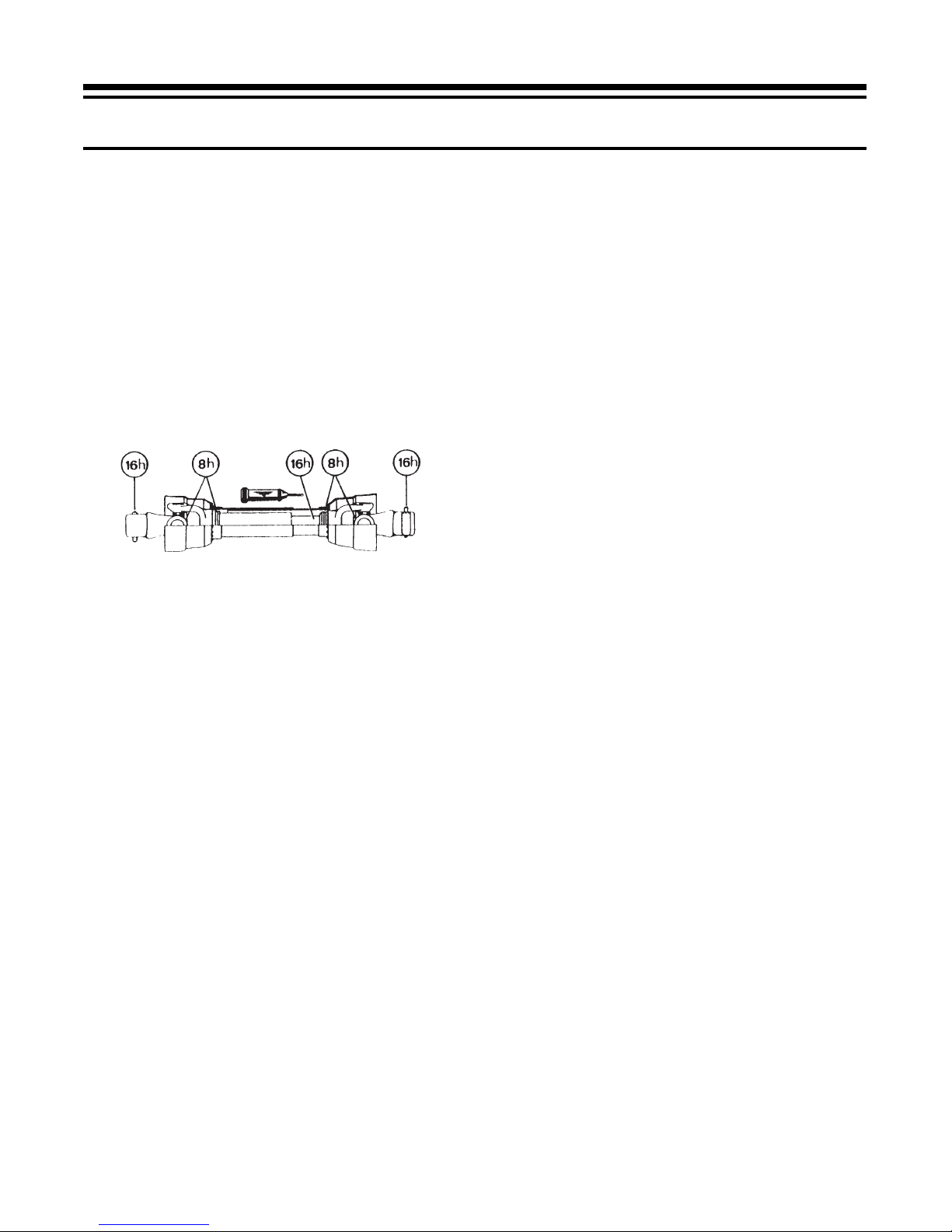

5) Lubricate P.T.O. shaft as indicated below:
Pull out the P.T.O. and lubricate between the two
tubes with low temperature grease. Drive line
tubes must slide easily even in cold weather. Clean
off old hardened grease and apply fresh grease as
needed.
6) Check oil level in gear box once a month. If
necessary add oil.
7) Check tension of drive chain every 24 hours of
operation and adjust if necessary.
8) Check for tightness of bearing collars every 48
hours of operation.
9) Change gearbox oil once a year. Use gear box oil
S.A.E. W90 rated API, class GL-5.
10) Check all nuts and bolts once a year. If necessary
use torque chart on page 33.
11) Always use Grade 2 shear bolts.
12) UHMW slides do not require lubrification except
at the end of the season in order to prevent corro-
sion of steel components that are in contact with
the UHMW material.

- 11 -
STORAGE
1) Store the Snowblower in a cool, dry place.
2) Support the Snowblower with wooden blocks.
3) Keep all piston rods in the retracted position. This
will assure better protection against the elements.
4) Clean your Snowblower.
5) Thoroughly inspect all parts of the Snowblower.
Replace or repair worn or defective parts.
6) Touch-up or repaint if necessary.
7) Lubricate all points before storage.

- 12 -
SPECIFICATIONS
Design and specifications subject to change without notice.
MODEL PUMA-48 PUMA-54 PUMA-64 PUMA-72 PUMA-74 PUMA-84 PUMA-94
Horse power recommended 16 - 25 16 - 25 18 - 25 25 - 40 40 - 75 50 - 75
Working width 48" 54" 64" 72" 74" 84" 94"
Cutting height 24½" 24½" 24½" 24½" 29" 34" 34"
Impeller diameter 20" 20" 20" 20" 22" 26" 26"
Depth of drum 6" 6" 6" 6" 8" 11" 11"
Impeller blades 4444444
Size of impeller shaft 1" 1" 1" 1" 1 1/4" 1 9/16" 1 9/16"
Impeller RPM 540 540 540 540 540 540 540
Main auger diameter 16" 16" 16" 16" 16" 19" 19"
Drive chain 50 50 50 50 60 60 60
Hitch category 11111&21&21&2
P.T.O. shaft No. 2 No. 2 No. 2 No. 2 No.4 No. 5 No. 6
Chute rotation on UHMW Standard Standard Standard Standard Standard Standard Standard
Adjustable skid shoes Standard Standard Standard Standard Standard Standard Standard
Weight (lbs) 355 362 382 399 680 920 945
18 - 25

- 13 -
PARTS LIST

- 14 -
SNOWBLOWERS PUMA-48 PUMA-54 PUMA-64 PUMA-72
170-02517R2

- 15 -
REF. PART # DESCRIPTION QTY
SNOWBLOWERS PUMA-48 PUMA-54 PUMA-64 PUMA-72 (cont'd)
54
64
72
1 120-04502 Frame 48" ........................................................................................... 1 - - -
1 120-00543 Frame 54" ........................................................................................... - 1 - -
1 120-00553 Frame 64" ........................................................................................... - - 1 -
1 120-02482 Frame 72" ........................................................................................... - - - 1
2 110-03331 Pin category 1 ...................................................................................... 2222
3 Std. Hitch pin clip 5/32" ............................................................................... 3333
4 6550 Gear box 1" ø x 1-15 splines .................................................................. 1111
5 140-03871 Key 1/4" x 1/4" x 1 5/8" lg ................................................................... 2222
6 323-32160 Hexagonal socket set screw 1/4"-20 x 3/8" lg ......................................... 1111
7 6545 P.T.O. shaft #2 - 1" ø x 1 3/8"-6 ............................................................ 1111
8 300-32370 Bolt 1/4" NC x 2 1/2" lg + nylon locknut ................................................ 1111
9 6565 Splined adaptor 1"-15 ........................................................................... 1111
10 110-22591 Auger drive shaft 18 1/4" lg overall (including #9) .................................... 1 - - -
10 110-02821 Auger drive shaft 21 1/4" lg overall (including #9) .................................... - 1 - -
10 110-02971 Auger drive shaft 26 1/4" lg overall (including #9) .................................... - - 1 -
10 110-20981 Auger drive shaft 30 1/4" lg overall (including #9) .................................... - - - 1
11 6566 Bushing 1" i.d. x 1 1/8" o.d. x 1 1/2" lg .................................................. 1111
12 6567 Sprocket # 50 + shearplate (including # 11 and # 13) .............................. 1111
13 Std. Grease fitting 1/4"-28 straighr ................................................................ 4444
14 300-36280 Bolt 3/8" NC x 1 1/4" lg + two-way locknut ........................................... 4444
15 UCFLD205-16 Bearing 1"ø + flange ............................................................................ 3333
16 130-03301 Chain guard .......................................................................................... 1111
17 300-40250 Bolt 1/2" NC x 1" lg + nylon locknut (thin) .............................................. 6666
18 300-36250 Bolt 3/8" NC x 1" lg + nylon locknut ...................................................... 4444
19 300-40400 Bolt 1/2" NC x 3" lg + nylon locknut ...................................................... 1111
20 378-40340 Flat washer 1/2" d.i. x 2" d.e. ................................................................ 1111
21 110-07732 Idler .................................................................................................... 1111
22 6604 Idler sprocket #50 ................................................................................. 1111
23 110-02893 Chute .................................................................................................. 1111
24 190-00501 Chain #50 x 50 1/2" lg ......................................................................... 1111
24 26A50 Connecting link #50 .............................................................................. 1111
24 59-50 Offset link #50 ..................................................................................... 1111
25 312-32250 Shear bolt 1/4" NC x 1" lg grade 2 + nylon locknut .................................. 1111
26 110-02981 Chute adjusting bar ............................................................................... 1111
27 Std. Cotter pin 5/32" x 1 1/2" ...................................................................... 2222
28 150-00641 Pin for chute adjusting bar ..................................................................... 1111
29 FLD205 Flange ................................................................................................. 3333
30 UC205-16 Bearing 1" ø ......................................................................................... 3333
31 300-36325 Bolt 3/8" NC x 1 3/4" lg + nylon locknut & flat washer ............................ 3333
32 6288 Sprocket 50A36 T 1" ø ......................................................................... 1111
33 110-22631 Auger PUMA-48 ................................................................................... 1 - - -
33 110-02941 Auger PUMA-54 ................................................................................... - 1 - -
33 110-02961 Auger PUMA-64 ................................................................................... - - 1 -
33 110-20991 Auger PUMA-72 ................................................................................... - - - 1
34 300-36340 Bolt 3/8" NC x 2" lg + nylon locknut + flat washer ................................. 5555
35 130-18392 Chute retaining bracket .......................................................................... 3333
36 160-07371 Spacer 11/16" o.d. x 7/16" i.d. x 5/8" lg ................................................ 8888
37 110-02871 Impeller 6" x 20" ø 4 blades T 1" ø ......................................................... 1111
38 329-34280 Impeller cap screw 5/16" x 1 1/4" lg + lock washer ................................. 1111
39 300-36520 Bolt 3/8" NC x 5" lg + nylon locknut ...................................................... 4444
40 300-38280 Bolt 7/16" NC x 1 1/4" lg + nylon locknut + flat washer .......................... 4444
41 Std. Roll pin 5/16" x 2" lg ............................................................................ 2222
42 110-12681 Hinged P.T.O. shroud ............................................................................ 1111
43 190-04081 U-shaped UHMW 32 9/16" lg ................................................................. 1111
44 140-11011 Back plate ............................................................................................ 3333
45 110-15341 Skid shoe (right side) ............................................................................. 1111
46 110-15342 Skid shoe (left side) ............................................................................... 1111
47 130-18393 Chute retaining bracket with chute stop ................................................... 1111
48 25TR04 Cylinder 2 1/2" dia. x 4" stroke .............................................................. opt.opt. opt. opt.
49 6004 Clevis pin 1" x 3 1/8" (2) ....................................................................... opt.opt. opt. opt.
50 Std. Hairpin cotter (4) .................................................................................. opt. opt. opt. opt.
48

- 16 -
SNOWBLOWERS PUMA-74
170-02529R2

- 17 -
SNOWBLOWERS PUMA-74 (cont'd)
REF. PART # DESCRIPTION QTY
1 120-00574 Frame 74" ....................................................................................................... 1
2 110-03341 Pin category 1 & 2 ........................................................................................... 2
3 Std. Hitch pin clip 5/32" .......................................................................................... 3
4 300-36550 Bolt 3/8" NC x 5 1/2" lg + nylon lock nut ........................................................... 4
5 6451 Gear box T281 ................................................................................................. 1
6 6248-EG P.T.O. shaft ..................................................................................................... 1
7 6466 Splined adaptor 1 1/4"-19 ................................................................................. 1
8 110-03113 Auger drive shaft 29 5/16" lg overall (including #7) .............................................. 1
9 6568 Bushing 1 1/4" i.d. x 1 7/16" o.d. x 2 1/2" lg ...................................................... 1
10 6569 Sprocket # 60 + shearplate (including #9 and #11) ............................................. 1
11 Std. Grease fitting 1/4"-28 straight ........................................................................... 8
12 UCFD207-20 Bearing 1 1/4" ø + flange & 2 grease fittings (straight) ........................................ 3
13 130-03612 Chain guard ..................................................................................................... 1
14 300-40310 Bolt 1/2" NC x 1 1/2" lg + nylon locknut ............................................................ 4
15 300-38250 Bolt 7/16" NC x 1" lg + nylon locknut ................................................................ 5
16 300-40430 Bolt 1/2" NC x 3 1/2" lg + nylon locknut ............................................................ 1
17 378-40340 Flat washer 1/2" d.i. x 2" d.e. ........................................................................... 1
18 110-07781 Idler ................................................................................................................1
19 8186 Idler sprocket #60 ............................................................................................ 1
20 110-03043 Chute .............................................................................................................. 1
21 190-00552 Chain #60 x 60 3/4" lg ..................................................................................... 1
21 26A60 Connecting link #60 .......................................................................................... 1
21 59-60 Offset link #60 ................................................................................................. 1
22 312-32250 Shear bolt 1/4" NC x 1" lg grade 2 + nylon locknut ............................................. 1
23 Std. Cotter pin 5/32" x 1 1/2" .................................................................................. 2
24 150-00641 Pin for chute adjusting bar ................................................................................. 1
25 110-02991 Chute adjusting bar ........................................................................................... 1
26 FD207 Flange for 2 grease fittings ................................................................................ 3
27 UC207-20 Bearing 1 1/4" ø ............................................................................................... 3
28 8021 Sprocket 60A38 T 1 1/4" ø ............................................................................... 1
29 110-03061 Auger PUMA-74 ............................................................................................... 1
30 300-36340 Bolt 3/8" NC x 2" lg + nylon locknut & flat washer.............................................. 3
31 300-36355 Bolt 3/8" NC x 2 1/4" lg + nylon locknut & flat washer ........................................ 5
32 130-31291 Chute retaining bracket ..................................................................................... 3
33 160-07371 Spacer 11/16" o.d. x 7/16" i.d. x 5/8" lg ............................................................ 8
34 6276 Key 1/4" x 1/4" x 1 3/4" lg ............................................................................... 1
35 110-03032 Impeller 8" x 22" ø 4 blades T 1 1/4" ø .............................................................. 1
36 300-36280 Impeller cap screw 3/8" x 1 1/4" lg (ass'd with locktite 242) + lock washer .......... 1
37 190-04091 U-shaped UHMW x 38 7/8" ............................................................................... 1
38 Std. Roll pin 5/16" x 2" lg ........................................................................................ 2
39 110-12721 Hinged P.T.O. shroud ........................................................................................ 1
40 300-40310 Bolt 1/2" NC x 1 1/2" lg + nylon locknut + flat washer ....................................... 4
41 110-15391 Skid shoe (right side) ........................................................................................ 1
42 110-15392 Skid shoe (left side) .......................................................................................... 1
43 140-11101 Back plate ....................................................................................................... 3
44 300-38310 Bolt 7/16" NC x 1 11/2" lg + two-way locknut ................................................... 4
45 130-31281 Chute retaining bracket with chute stop .............................................................. 1
46 300-38310 Bolt 7/16" NC x 1 1/2" lg + nylon locknut .......................................................... 8
47 25TR08 Cylinder 2 1/2" dia. x 8" stroke .......................................................................... opt.
48 6004 Clevis pin 1" x 3 1/8" (2) .................................................................................. opt.
49 Std. Hairpin cotter (4) .............................................................................................. opt.

- 18 -
SNOWBLOWERS PUMA-84 PUMA-94
170-02539R2

- 19 -
SNOWBLOWERS PUMA-84 PUMA-94 (cont'd)
REF. PART # DESCRIPTION QTY
1 120-00605 Frame 84" ...................................................................................................... 1 -
1 120-00815 Frame 94" ...................................................................................................... - 1
2 110-03341 Pin category 1 & 2 .......................................................................................... 2 2
3 Std. Hitch pin clip 5/32" ......................................................................................... 3 3
4 300-40250 Bolt 1/2" NC x 1" lg + lock washer ................................................................... 8 8
5 8251 Gear box T27D ............................................................................................... 1 1
6 8114-EG P.T.O. #5 ....................................................................................................... 1 -
6 8202 P.T.O. #6 ....................................................................................................... - 1
7 6466 Splined adaptor 1 1/4"-19 (welded) ................................................................... 1 1
8 110-03352 Auger drive shaft 31 3/16" lg overall (including #7) ............................................. 1 -
8 110-04282 Auger drive shaft 36 3/16" lg overall (including #7) ............................................. - 1
9 6568 Bushing 1 1/4" i.d. x 1 7/16" o.d. x 2 1/2" lg ..................................................... 1 1
10 6570 Sprocket # 60 + shearplate (including #9 and #11) ............................................. 1 1
11 Std. Grease fitting 1/4"-28 straight .......................................................................... 8 8
12 UCFD207-20 Bearing 1 1/4" ø + flange & 2 grease fitting ....................................................... 3 3
13 130-04031 Chain guard .................................................................................................... 1 1
14 300-40310 Bolt 1/2" NC x 1 1/2" lg + nylon locknut ........................................................... 4 4
15 300-38250 Bolt 7/16" NC x 1" lg + nylon locknut ............................................................... 5 5
16 300-40430 Bolt 1/2" NC x 3 1/2" lg + nylon locknut ........................................................... 1 1
17 378-40340 Flat washer 1/2" d.i. x 2" d.e. .......................................................................... 1 1
18 110-07781 Idler ............................................................................................................... 11
19 8186 Idler sprocket #60 ........................................................................................... 1 1
20 110-03183 Chute 84-94 ................................................................................................... 1 1
21 190-00581 Chain #60 x 70 3/8" lg .................................................................................... 1 1
21 26A60 Connecting link #60 ......................................................................................... 1 1
21 59-60 Offset link #60 ................................................................................................ 1 1
22 312-34280 Shear bolt 5/16" NC x 1¼" lg grade 2 + nylon locknut ....................................... 1 1
23 Std. Cotter pin 5/32" x 1 1/2" ................................................................................. 2 2
24 150-00641 Pin for chute adjusting bar ................................................................................ 1 1
25 110-02991 Chute adjusting bar .......................................................................................... 1 1
26 FD207 Flange for 2 grease fitting ................................................................................. 3 3
27 UC207-20 Bearing 1 1/4" ø .............................................................................................. 3 3
28 8021 Sprocket 60A38 T 1 1/4" ø .............................................................................. 1 1
29 110-03211 Auger PUMA-84 .............................................................................................. 1 -
29 110-04271 Auger PUMA-94 .............................................................................................. - 1
30 300-38340 Bolt 7/16" NC x 2" lg + nylon locknut & flat washer ........................................... 3 3
31 300-38350 Bolt 7/16" NC x 2 1/4" lg + nylon locknut & flat washer ..................................... 5 5
32 130-31311 Chute retaining bracket .................................................................................... 3 3
33 160-07401 Spacer ........................................................................................................... 8 8
34 8030 Key 3/8" x 3/8" x 3 1/2" lg .............................................................................. 1 1
35 110-03201 Impeller 11" x 26" ø 4 blades T 1 9/16" ø .......................................................... 1 1
36 300-44300 Bolt 5/8" NC x 1 3/4" lg + lock washer ............................................................. 1 1
37 190-04101 U-shaped UHMW x 51 7/16" ............................................................................ 1 1
38 Std. Roll pin 5/16" x 2" lg ....................................................................................... 2 2
39 110-12721 Hinged P.T.O. shroud ....................................................................................... 1 1
40 300-40310 Bolt 1/2" x 1 1/2" lg + nylon locknut + flat washer ........................................... 4 4
41 110-15391 Skid shoe (right side) ....................................................................................... 1 1
42 110-15392 Skid shoe (left side) ......................................................................................... 1 1
43 140-11021 Back plate ...................................................................................................... 3 3
44 300-38310 Bolt 7/16" NC x 1 1/2" lg + two-way locknut .................................................... 4 4
45 130-31301 Chute retaining bracket with chute stop ............................................................. 1 1
46 300-38310 Bolt 7/16" NC x 1 1/2" lg + nylon locknut ......................................................... 8 8
47 25TR08 Cylinder 2 1/2" dia. x 8" stroke ......................................................................... opt. opt.
48 6004 Clevis pin 1" x 3 1/8" (2) ................................................................................. opt.opt.
49 Std. Hairpin cotter (4) ............................................................................................. opt.opt.
PUMA-84
PUMA-94

- 20 -
MANUAL CHUTE KIT MD-4872, MD-74 and MD-8494
REF. PART # DESCRIPTION QTY
1 110-27702 Crank ............................................................................................. 1 - -
1 110-28441 Crank ............................................................................................. - 1 -
1 110-28271 Crank ............................................................................................. - - 1
2 110-27712 Base .............................................................................................. 1 - -
2 110-28382 Base .............................................................................................. - 1 -
2 110-28263 Base .............................................................................................. - - 1
3 Std. Roll pin 1/4" x 1 3/4" lg. ................................................................. 1 1 1
4 Std. Grease fitting 1/4"-28 straight ........................................................... 1 1 1
170-04301
MD-4872
MD-74
MD-8494
