PROSECUTOR 2000

(4 inch LCD)

TRUNK MOUNTED UNIT

Operation Manual

CAUTION!

RISK OF ELECTRICAL SHOCK!

DO NOT OPEN!

CAUTION! TO PREVENT ELECTRIC SHOCK, DO NOT

REMOVE COVER. NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

Please Read

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

DANGEROUS HIGH VOLTAGE IS PRESENT INSIDE THE EN-

CLOSURE. DO NOT OPEN THE CABINET. REFER SERVIC-

ING TO QUALIFIED PERSONAL ONLY.

CAUTIONS: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE

OF PLUG TO WIDE SLOT, FULLY INSERT.

NOTE: This equipment has been tested and found to comply with the

limits for class A digital device, pursuant of part 15 of the FCC

Rules. These limits are designed reasonable protection against

harmful interference when the equipment is operated in a com-

mercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions manual, may cause the harmful

interference to radio communications. Operations of this equip-

ment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at

his own expense.

USER-INSTALLER CAUTIONS: YOUR AUTHORITY TO OPERATE THIS FCC VERIFIED EQUIP-

MENT COULD BE VOIDED IF YOU MAKE CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THIS PARTY RESPONSIBLE FOR COMPLIANCE TO PART 15 OF THE FCC

RULES.

Table of Contents

FOREWORD.......................................................................4

FEATURE & SPECIFICATION........................ .................... 5

INSTRUCTION IN BRIEF.................................................... 8

INSTALLATION.................................................................. 11

CONNECTIONS..................................................................14

BASIC OPERATIONS......................................................... 15

PROGRAMMING................................................................16

WARRANTY INFORMATION.............................................. 23

Foreword

We thank you for your purchase of the PROSECUTOR 2000 SYSTEM (Trunk Mounted Unit).

You have purchased a high quality system that will provide you with many years of trouble free

service.

Should you have any question about the system, or any problems, please call (800)- 482-9211

or fax (281)-443-9079. We service all components of the system in house as well as through our

ever-growing Dealer Base

This guide will provide the user with enough information to operate the PROSECUTOR 2000

properly and effectively. As you read through this guide, if you have any questions, ideas, or

suggestions about the system or the guide itself, please feel free to call us at your convenience.

Thank You

ProTex, Inc.

1617 East Richey Road.

Houston, Texas 77073-3512

Features & Specifications

CONTROL HEAD

CAMERA

WIRELESS MICRO-

PHONE

VIDEO RECORDER

VAULT

WIRING HARNESS

OPERATION MANUAL

Features

System Features

• Smallest Trunk VAULT Available

• 16 X optical Zoom Low Light Auto Focus Camera, 1.0 Lux, 8X Digital Zoom

• Easy to use over head controls

• Programmable Industrial Grade VCR with proprietary RS-232 Controller

• Environmentally Controlled VCR .

• Record activation by body transmitter control

• Backseat Microphone Included

• Record Over Protection

• Radar Gun Interface included as Standard Equipment

• On-screen Time and Date Stamp with Title

• Manual and Automatic Operation

• Camera Position can easily be adjusted via Windshield Bracket

• Backseat Camera available

Camera

• Model AVE-8002

• Hi-Resolution More than 450 TV Lines – Solid State

• Optics Lens - X16 Zoom (f=3.9-63mm)

• Min. Illuminance 1.0 Lux

• White Balance Auto/Preset/Manual

• Digital Zoom X8

• Operating Temp. 0 deg.C - 40 deg. C

• Power 12V(2V / 4W

• Dimension 2.65”W X 2.56”H X 4.4”D

• Regulation FCC – Class A

• Focus Auto/Near/Manual/Wide

• Back Light Compensation

Control Head

• 4 inch color TFT LCD monitor.

• Durable membrane switch with backlight.

• Both LCD monitor and switch backlight can be turned off for “quiet” operation.

• Audio volume control and LCD brightness control

• LED output indicating both audio and recording are functional.

• Constructed with 18 gauge steel. Dimension 11x6.25x3 inches.

Vault

• Constructed with 14-gauge steel, lockable and tamper resistant

• Dimensions: 11.5”W X 6.5”H X 16”D

• Bracket mounted in trunk

• Non-reflective black powder coated matte finish

• Tamper resistant locking door

• Environmentally Controlled

• Specialty Radar Interface ready

• Dual Microphone Capability (optional)

• Shielded antenna input

Features & Specifications

VCR

• Industrial grade VHS format Mobile recorder

• Operating Voltage 8.5V to 15V DC / 15W

• Operating Temp 0 to 40 (C (32 to 108 (F)

• Recording Method Dual-head

• Recording time 8 hour (with T-160 tape)

• FFW/REW Time < 5 minutes using T-120 tape.

• Horizontal Resolution > 250 lines

• On-screen display Time/date, Title, 3 indicators, tape time, VCR status, Radar

Gun Readout and programming menu when selected

• RS-232 interface to most Radar and Laser speed measuring devices

• Automatic search for the last recorded portion of tape before recording

• Recording can be started with Audio transmitter, Siren signal, or Light signal

• Recording can be activated with Overhead Controls

Audio Transmitter and Receiver

• Transmitter dimension 3.5” X 2.5” X 1”

• Lavaliere wireless microphone system made by Shure

• Frequencies in VHF range – currently 8

• Working range - 300ft

• Battery life – 18 to 20 hour with 9V alkaline battery

• Wind-screen and tie clip

• Holster – forward cantered; optional patent leather or basket weave

• Audio receiver mounted inside the vault

• Shielded antenna mounted on trunk– ¼ wave whip design

Wiring Harness

• Control cable 25-conductor shielded with DB-25 connector

• Power cable 16 gauge stranded – fused to battery

• Radar interface 2-conductor shielded with DB-9 connector (optional)

• Antenna Shielded 75 coax terminated via BNC to chassis of vault

Features & Specifications

Instructions in Brief

Control Head

1234

1. AUDIO ON

The Audio Light will be ON when the wire less micro-

phone is turned ON.

2. LOW TAPE

The Low Tape Light is the warning that the tape is about

to END.

3. OUT TAPE

The Out Tape light indicates that this is the end of the

tape.

4. RECORD

The Record light indicates that the VCR is in Recording

mode.

5. ZOOM IN

Press this button to Zoom In the image of the front cam-

era.

6. ZOOM OUT

Press this button to Zoom Out the image of the front

camera.

7. NEAR FOCUS

Press this button to focus the objects.

8. FAR FOCUS

Press this button to focus the objects.

9. STOP

Press this button to STOP the tape.

10. REWIND

Press this button to Rewind the tape while the VCR is

in the stop mode or Press in Play mode to do a reverse

picture search.

11. PLAY

Press this button to start the play back mode.

12. F.F.

Press this button to Fast Forward the tape while VCR

is in the stop mode or Press in Play mode to do a for-

ward picture search.

13. RECORD

Press this button to start the recording. The light on

the Record button (No. 4) will be on when the VCR is in

the record mode.

14. IR REMOTE SENSOR

Point the IR remote toward the sensor.

15. POWER

Press to turn the power on and off.

16. LCD DISPLAY

This Displays the live images of the camera or recorded

images off of the VCR.

17. SPEAKERS

Plays the live sound from the microphone or from the

VCR.

18. BRIGHTNESS

This controls the brightness of the LCD display.

19. VOLUME/ MONITOR CONTROL

Move this knob clockwise or counter clockwise to con-

trol the Speaker’s volume. You can also control the

LCD monitor and control head’s display light by this

knob.

20. CAMERA INPUT

Connect the front camera to this connector.

21. CONTROL

DB-25 connector for control head interfacing with vault.

22. INTERFACE

connector for interfacing with siren and white light bar.

23. LED

This LED will turn ON when the VCR receives the Record

and Audio signal from the control head. This will help

the officer determine the control head record status from

outside the vehicle.

24. BSET

You can select the front or rear camera/ microphone by

switching the BSET switch.

Vault

1. Antenna Connector

2. Power Connector

3. Rear Camera & microphone connector

4. DB-9 Connector for Radar Gun

5. Vault Control Connector

6. 3 Amp Circuit Breaker

IR Remote Control

POWER REC

PAUSE/

STILL SP/EP STOP

PLAY

REW F.F

TRACKING

POWER

Don’t use this button. The VCR power is controlled by

the internal microprocessor. The VCR will automati-

cally power up when 12VDC is applied to the VCR.

REC

Press these two (2) buttons simultaneously to manu-

ally start recording.

PAUSE/STILL

Press during recording to pause recording. Press dur-

ing the playback to freeze the picture.

Caution: If this button is held for 6 seconds then it will

master reset the VCR and clear all the programming to

factory default.

SP/EP

Don’t use this button. Recording speed can only be set

in the on screen programming mode.

STOP

Press this button to stop a running tape. Alternatively

press and hold that button for 3 to 5 seconds to access

the programming mode.

PLAY

Press this button to start the play back mode.

REW

Press to rewind the tape during the stop mode and to

reverse picture search in play back mode.

FAST FORWARD

Press to fast forward the tape during the stop mode,

and forward picture search in the play back mode. In

programming mode use this button to access the menu

selection.

TRACKING

Use (+) or (-) button to manually adjust the tracking of

the picture. In the programming mode use these but-

tons to move the cursor upward or downward.

Installation

To properly install the Prosecutor 2000 System, please read and perform each of the following steps in order.

Preparation

Disconnect the car battery cables. Remove the lower half of the rear seat. Remove the kick panel and trim strips on

front and rear passenger side of the car. Remove or loosen the lower half of the trim on the door post between the front

and the rear door enough to get cables under.

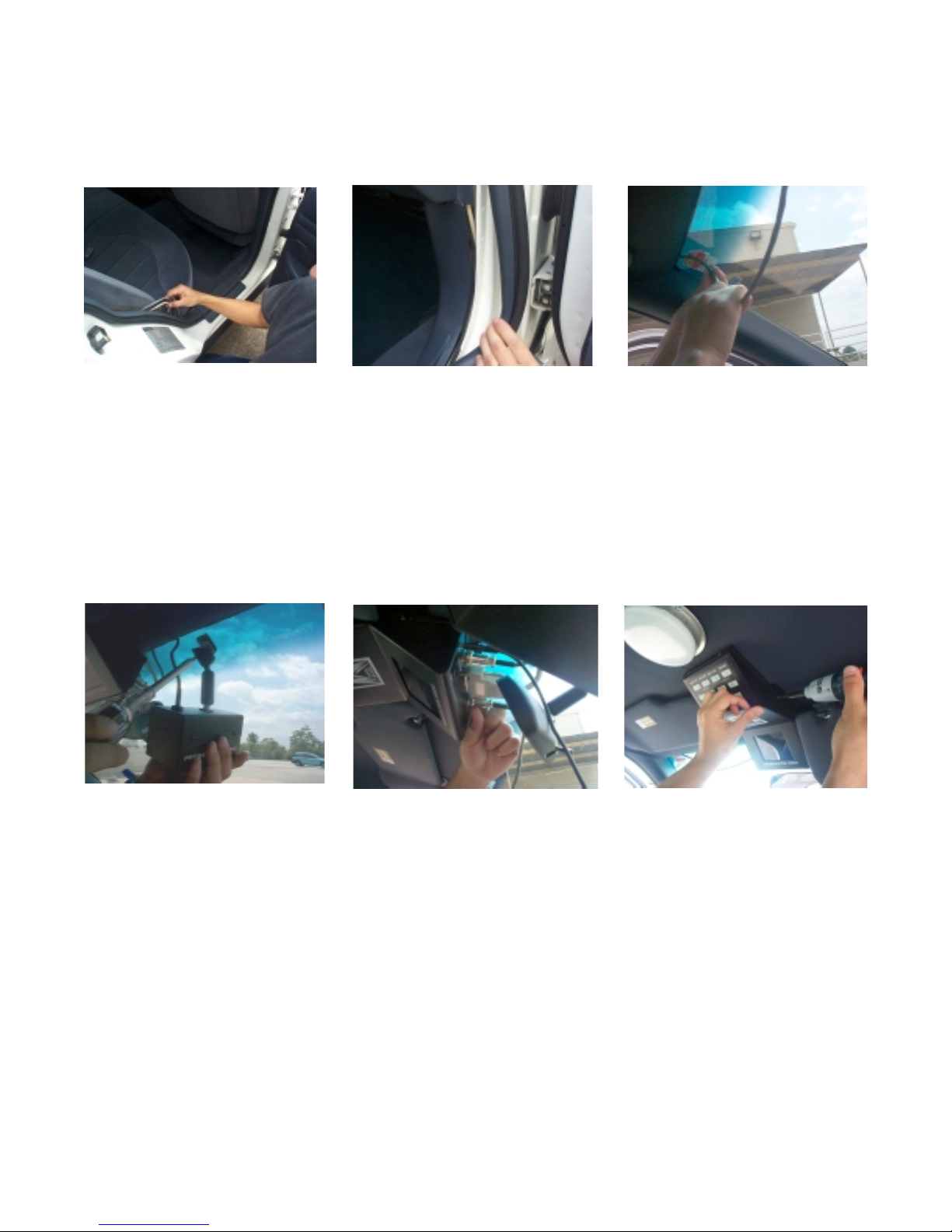

Camera Mount

Remove the mount foot from the camera mount. If you are using a windshield mounted camera, mount the foot to the

window by following the directions on the included adhesive package, making sure to follow the instructions exactly.

If you are not mounting the camera to the windshield, follow the directions on the adhesive package and mount the foot

in the desired location, paying special attention not to obstruct air bag deployment. Allow adhesive to set until the end

of the installation before mounting the camera.

LED

The LED wire connection will hook into the rear of the Control head. Place the LED cable somewhere on the front

dashboard, making the LED end visible outside the front windshield of the vehicle. (On the driver side of the

windshield is recommended. This way the cable can be placed up the side panel and run across the edge of the

headliner to the rear connection of the control head.)

Trunk Unit Mount

Place the unit in the desired location of the trunk. Make sure that the unit can be unlocked and opened easily, and

tapes can be loaded and ejected conveniently.

Unlock the unit and remove the base plate. Pay attention to the location of the gas tank. If this is a Crown Victoria

installation, use the mounting brackets.

Note: If the unit is going to be mounted on the shelf next to the spare tire, special care must be taken to avoid drilling

into the gas tank and the mounting brackets must be used.

Assembly of the mounting brackets

to the base plate of vault

Mounting of the mounting brackets

with base plate of vault attached

Completed assembly of brackets

and base plate of vault

Checking accessibility of vault and

tape insertion

Trunk Mounting Cont.

Connect the Control Console cable , rear Camera and

Mic cable, Antenna cable and the Power cable to the

rear of the vault. Bundle the cables to create a service

loop so that the vault can easily be unlocked, removed

from the base plate and cables disconnected.

Control Console

Remove the control head mounting plate from the control console (4 screws on front). Remove the sun visors inner

attachments (closest to the rear view mirror).Position the control

mounting plate between the sun visors such that when the control

box is attached, the monitor can be viewed from driver’s position.

Align the hole over the sun visor’s inner attachment holes and rein-

stall the sun visor attachments, making sure the control head moun-

ting plate is captured by the attachments. If additional support is

desired (requires making holes in headliner), 3/4 inch self-drilling

screws can be used to attach the mounting plate to the secondary

metal under the headliner. Wait to mount the control box until the

end of the installation.

Note: If you have a ticket light (round light) added to your vehicle, you

have to use the ticket light adapter.

To determine wether or not you need the ticket light adapter, position the control box behind the light. You should

have at least 2 inches between the control box and window, but still be able to get to the monitor controls on top of the

control box. Most Ford Crown Victoria’s will not need this, most Chevy Caprices will.

Antenna Mount

This is a common lip antenna. Position the antenna at the desired location on top of the trunk. For mounting see the

instructions enclosed with the antenna.

Note: If the Radio Frequency Interface is significant, a permanent 1/4 inch wave VHF antenna may be needed to

mount through the fender of trunk.

Rear Camera & Microphone

Position the camera and microphone to the desired location at the rear of the vehicle. For mounting, see the

instructions enclosed with the Rear Camera.

Interface Cable

This is the gray cable with a 4-pin connector on one end and the orange, black, blue, and white wires on the other end.

Route the interface cable from the control head to the fuse box. Start at the center of the headliner, to the driver side

of the central cable, leaving about 4 inches of the 4 pin plug end of the cable hanging down. Route across, under edge

of the headliner, down the door to the fuse box. Attach the orange wire to switched 12 V. Extend white wire to the

light box wire that gets 12 V when the overhead lights are activated. Attach the blue wire (+) and the black wire (-

) to the siren. If the siren is AC instead of DC, you can use the same connections.

Note: For AC-The Blue wire is Hot, the Black wire is Neutral.

DB-25 Control Cable

This is the 25 foot DB-25 male to DB-25 male cable. Connect one side of the cable to the control head and other to

the vault. Route the cable through the backseat to the front of the car, up the front door post, along the front edge of

the headliner, to the middle of car. Leave about 4 inches hanging from the headliner. (Pictures of cables being routed

located on next page with Power Cable routing)

Attaching the Control head mounting plate

between the sun visors.

Attaching the cables to the

rear of the vault.

Power Cable

This is the gray cable with red and black wires on one end and a 4 pin connector on the other end. Verify the 4-pin

connector is connected to the vault in the trunk. Route the cable through the rear seat panel, under the back seat and

carpet, to the battery area of the car (routing through the firewall to the battery is preferred). Secure the red wire to +12

V (through the firewall to the battery is the best way). Connect the black wire to chassis ground.

Final Assembly

Attach the front camera to the camera mount and attach the camera cable to the control box. Also, attach the control

cable , interface cable and LED cable to the control box. Securing the cables out of sight in the headliner, mount the

control box to the back plate using the 2 screws that were previously removed. Secure vault to base plate and lock in

place. Verify cables are properly routed and are not pinched or in a bind.

Reinstall previously removed panel, trim, seats and other hardware. Reconnect car battery cables.

Power up the system

Attach completing the installation assembly, turn on the volume/monitor control switch. If the light on the POWER

does not turn on, check all the system connections and fuse in the power cable near the car battery. If the “POWER”

light is illuminated on the control console, the system can be turned on by using one of the following methods:

Control console activation - Press the “POWER” button on the control console.

Microphone activation - Place the remote microphone transmitter power switch in the “ON” position. The green LED

will illuminate on the microphone transmitter and the system will be powered up.

Power up the wireless receiver

The audio receiver powers up automatically when the power cable is connected to the battery and the control cable is

connected to the control console.

View of DB-25 and Power Cables coming

from trunk, positioned behind the rear

passenger side seat, heading toward

front passenger seat. Note: cables go

under carpet.

View of DB-25 located on front

passenger side, under trim, heading

upward toward headliner. Note: Power

Cable will go through firewall towards

battery.

View of DB-25 Cable, under headliner,

heading toward control console.

View of DB-25, Interface, LED,

Camera and Power Cables being

connected to Control Console.

View of camera being attached to

windshield mount. Note: Cable of

camera goes upwards into headliner.

View of control console being mounted with

wires already attached to connections

Connections

RED

BLACK

(TO

ANTENNA)

RADAR

GUN

(TO LED)

CONTROL CABLE RADAR GUN CABLE

REAR MIC

FRONT CAMERA

IN TRUNK UNIT

CONTROL HEAD

INTERFACE CABLE

BLUE SIREN (+)

WHITE LIGHTBAR +12 V

BLACK SIREN (-)

ORANGE IGNITION +12 V

POWER UP THE SYSTEM

Complete the installation of the “In Trunk system” as de-

scribe in the previous section. Turn On the volume/moni-

tor control switch. If the light on the Power does not turn

on, check all the system connections. If Light on the

POWER is on then you can turn on the system using one

of the following methods:

1. From Control Head:

Press the “POWER” button on the control head and it will

turn “ON” the system

2. Microphone Activation:

Place the Microphone/Transmitter power switch in the “ON”

position, the green LED will come on the Microphone/

Transmitter and the system will automatically turn on.

POWER UP THE WIRELESS RECEIVER

The audio receiver powers up automatically when the power

cable connects to the battery and the control cable con-

nects with the control head.

Note:The wireless receiver consumes 140 mA of current.

We recommend to disconnect the Control cable from the

Control head if the vehicle is not used for more than a

week.

INSERT CASSETTE

First power up the system, then insert the tape into the

cassette compartment until the VCR pulls the cassette

in.

Note: Do not force the tape in the mechanism or this will

damage the VCR. If the input voltage is less than 12

VDC, then VCR will not accept the cassette.

START RECORDING

You can start recording by either pressing the control

head’s “RECORD” button or pressing the record buttons

on the IR remote control. When the VCR is in the Record

mode the light on the VCR’s RECORD button will be ON.

You can also program the VCR to power up in the Record

mode.

Note: See the Record Setting under the programming for

more details.

Basic Operations

STOP RECORDING

Press the “STOP” button on the control head or press the

“STOP” button on the IR Remote control to terminate the

recording.

EJECTING THE TAPE

Press the Stop/Eject button on the VCR once to stop the

recording and press it again to eject the cassette. When

the cassette approaches the end of the tape, a “LOW

TAPE” light will illuminate on the control head. When the

end of the tape is reached, the control head will begin

“beeping”, and the “OUT TAPE” light will illuminate on the

control head. You can press the “STOP” button from the

control head, or use the IR Remote Control, or eject the

cassette from the VCR to stop the beeping. A “CASS

OUT” message will appear on the LCD display acknowl-

edging that the Cassette is out of the VCR.

Programming

ACCESSING MAIN MENU

To access the on screen programming press the “STOP”

button of the remote control for about 5 seconds. The

following programming menu will be appear on the moni-

tor of the control head LCD.

Main Menu

Set Time/Date

Titler

Messages

Record Setting

D isp lay S e tting

Rader Gun Inteface

Master Reset

Exit

TIME & DATE SETUP

An Internal clock generates the time and date that is

super imposed on the LCD display. After the clock is

set, the date and time modes are displayed on the moni-

tor screen (live picture).

Display Time & Date on Screen

1 Under the “Display Time & Date” menu place

the cursor in front of T/D display and press the

“ F.F” button of the remote control.

2 Press the “+” or “-” button to select “ON” or

“OFF”.

3 Press the “F.F.” button again to make your

selection.

4 To exit out of the Display Time & Date, place

cursor in front of “Exit” and press the “F.F.”

button.

5 Exit out of all of the menus to activate above

your selection.

Time / Date

T/D Display ON

Time Format 12 Hour

Date Format MM/DD/YY

Set Time/Date

Reset Time/Date

Exit

Selecting Time Format

1 Place the cursor in front of “Time Format” and

press and release the “F.F” button.

2 The cursor will start blinking.

3 Now push the “+” or “-” button to select either

the “12” or “24” time display modes.

4 After selecting the desired mode press and

release the “F.F.” button.

5 Exit all of the menus to activate your selec-

tion.

In this section we discuss some of the powerful pro-

gramming features of the “in trunk system”. The pro-

gramming mode can only be accessed by using the IR

remote control. The following table shows some of the

IR- Remote button functions used in the programming

mode.

Things to Note:

“STOP”- Press and hold the remote control’s “Stop”

button for 5 seconds to access the mail menu

“F.F.” - Press this button to enter or exit any selection

“+” - Press this button to move the cursor up

“-” - Press this button to move the cursor down

Selecting Date Format

1 Under the “Time & Date” menu place the cursor

in front of “Date Format” and press the “ F.F”

button.

2 The cursor will start blinking.

3 Chose the format from the selection yy/mm/dd

or mm/dd/yy or dd/mm/yy by pressing either

the “+” or “-” button.

4 Exit of all the menus to activate your

selection.

Set Time & Date

1 Under the “Time & Date” menu, place the cur-

sor in front of the “Set Time/Date” and press

the “F.F.” button.

2 The “Time and Date” window will pop up on the

screen as shown in the figure below.

1:11:37P 1/01/98TH

3 By pressing the “+” or “-” button you can change

the Time or Date.

4 Press the “REW” and “F.F.” button to move the

cursor either left or right side.

5 After setting the Time and/or Date press the

“STOP” button.

6 Exit all of the menus to activate your selection.

Reset Time & Date

1 Under the Time & Date menu select “Reset

Time/Date”.

3 Press and release the “F.F.” button.

4 It will reset the time and date to the factory

default settings.

5 Exit all of the menus to activate your selec-

tion.

TITLER

You can program up to a 20 character title on the screen.

Follow the following steps to program the title on the

screen. The default title is ”PROSECUTOR 2000”.

1 Press the “STOP” button of the remote control

to access the main menu.

2 Place the cursor in front of the title using the

“+” or “-” button then press and release “F.F.”

button to accept the selection.

3 Use the “+” or “-” button to select an alphanu-

meric character.

4 Use the “F.F.” button to enter next character or

use “REW” button to edit a previously entered

character.

5 You can enter up to 20 characters in a title.

6 After entering the title press and release the

“STOP” button to exit out of the title editing

mode.

7 Exit all of the menus to activate your selection.

THINGS TO KNOW

"-" button moves the alphabet in ascending order and

numerics in descending orider.

"+" button moves the alphabet in descending order and

numerics in ascending order.

"F.F." button moves the cursor toward the right position.

":REW " back space.

"S T O P " E xits o ut o f the e d iting m o d e

MESSAGES

The trunk system has two message inputs, each mes-

sage can display up to 10 characters. These mes-

sages are activated on the LCD display when the “in

trunk system” gets a signal from the interface cable (if

siren or lights are on). See the Installation section for

the connections (pin-outs) of the interface cable. By

default the “SRN” message appears on the screen when

the siren is on. Similarly, the “LTS” message appears

on the screen when the lights are turned on. The mes-

sage “Record” comes on when an input is received

(Lights or Sirens) by the VCR and the VCR begins re-

cording.

1 Press and hold the “Stop” button of the IR re-

mote control for 5 seconds and the main menu

will pop up on the screen.

2 Place the cursor in front of “Message” using

the “+” or “-” button.

Set M essage

M essage 1

M essage 1 R eco rd O N

M essage 2

M essage 2 R eco rd O N

M essage 3

M essage 3 R eco rd O N

Exit

3 To make a selection press the “F.F.” button,

and the above menu will pop up on the screen.

4 Place the cursor in front of the message that

you want to change and press the “F.F.” but-

ton.

5 A blinking cursor will appear the screen.

6 Enter the letter or numeric character, using the

“+” or “-” buttons.

7 After entering the first letter press the “F.F.” but-

ton to move the cursor to the next place.

8 Again use the “+” or “-” button to select the

next letter.

9 Repeat steps 6 to 8 until you enter the com-

plete title.

10 After entering the title press the “Stop” button,

it will return you to the Message sub menu.

11 After entering the title, place the cursor in front

of Message “1 Record” and press the “F.F.” but-

ton.

12 Press the “+” or “-” buttons to turn the message

recording ON or OFF.

13 Enter message 2 the same way message 1

was entered.

14 Exit all of the menus to activate your selection.

RECORD SETTINGS

Access the sub menu of the Record Setting by placing

the arrow next to Record setting and press the “F.F.”

button. The following sub menu will appear:

Recording Setting

Recycle Rec OFF

Rec-over Protect OFF

Power-up Record OFF

Alarm Rec Dwell 3min

Exit

RECYCLE RECORD

If you turn on this feature, at the end of the tape, the

VCR will automatically rewind the tape and record over

previous recorded information.

REC OVER PROTECT

If you turn on this feature, the VCR will NOT record over

previous recorded information. Instead it will search the

tape to find the end of the recording and begin the new

recording there.

POWER-UP REC

If you turn on this feature, the VCR will begin recording

as soon as the VCR is powered up.

Note: A tape must be in the VCR to begin “Power-Up

Rec”.

The default for these 3 settings (Recycle Record, Record

over and Power-up Record) is “OFF”. To change any or

all settings to “ON”, place the arrow beside the item,

press the “F.F.” button, and the arrow will start blinking.

Press the “–” or “+” button to switch between ON or

OFF. Make your choice and press “F.F.” to save the

selection and return to the sub menu.

ALM REC DWELL’s

Alarm Dwell’s default setting is 1 minute; the settings

available are: 0, 1, 2, 5, 10, 15, 20, and 30 minutes.

The setting you choose will be the minimum recording

time after the Alarm Record Signal goes from high to

low, or active to inactive. To change the default settings

of alarm Record Dwell, place your cursor in front of Alarm

Rec Dwell under the Record settings menu and press

and release the “F.F.” button. Use the “+” or “-” key to

select the required time. After making the selection

press the “F.F.” button and it will return you to the Record

settings menu.

TAPE SPEED

The default setting for this feature is T120/EP in NTSC

mode and T180/SP in the PAL mode. Consult the fol-

lowing table for correct mode of recording. An EP set-

ting will triple the number of minutes of recording time,

i.e. 3 x a 120 or 160 min. tape. An SP setting enables

the exact number of minutes of recording time, as stated

on the tape (usually labeled T120 or T160).

When you are finished with the sub-menu, move the

arrow to EXIT and press the “F.F” button. to return to the

main menu.

TYPE RECORDING

MODE SYSTEM RECORDING

TIME

T120 SP NTSC 2 hrs

T120 EP NTSC 6 hrs

T160 SP NTSC 3 hrs

T160 EP NTSC 8 hrs

T180 EP NTSC 9 hrs

E180 SP PAL 3 hrs

E180 LP PAL 6 hrs

E240 SP PAL 4 hrs

E240 LP PAL 8 hrs

DISPLAY SETTINGS

The VCR adds alphanumeric information to the video

signal from the camera and sends it to the VCR for

recording or to the monitor to display. The display set-

tings let you select the position, the gray scale and the

format of the text. Following are the options in display

settings.

Display Format

The display format displays alphanumeric information

either on the top or bottom of the screen. To set the

display use the following instructions.

1 From the remote control press the “STOP” but-

ton for 5 seconds, the main menu will pop up

on the screen.

2 Under the main menu move the cursor in front

of “Display Setting” and press the “F.F.” button.

3 The “Display Setting” menu will pop up on the

screen as shown in the figure below.

Display Setting

Display Format Bottom

Horizontal Position

Vertical Position

Gray Scale/ Background

VCR Status

Input Voltage

Temprature

Exit

4 Under the Display setting menu place the cur-

sor in front of “display Format” using the “+” or

“-” button.

5 To select a display format press the “F.F.” but-

ton.

6 Now choose either “Top” or “Bottom” using the

“+” or “-” button.

7 Press the “F.F.” button to chose your selec-

tion.

8 Exit all of the menus to activate your selection.

Horizontal Position

Horizontal position sets the alphanumeric text position

horizontally. Follow the steps below to set the Horizon-

tal position.

1 Under the display setting menu place your cur-

sor in front of “Horizontal Position”.

2 Press the “F.F.” button to select the horizontal

position.

3 A small box will pop up on the screen.

4 Press the “+” or “-” button to select the appro-

priate position.

5 After selecting the position press the “F.F” but-

ton

6 Exit all of the menus to activate your selection.

Vertical Position

Vertical position sets the alphanumeric text position ver-

tically. If the Display Format is set on “TOP” then the

vertical position lets you choose the position from the

top of the screen to the middle of the screen. If the

display format is set to the bottom then the vertical

position can be moved from the middle of the screen to

the bottom of the screen. Follow the steps below to set

the vertical position.

1 Under the Display setting place the cursor in

front of vertical position.

2 Press the “F.F.” button to select “vertical posi-

tion”.

3 A small box will pop up on the screen.

4 Press the “+” or “-” button to select the appro-

priate vertical position.

5 After selecting the position press the “F.F.” but-

ton.

6 Exit all of the menus to activate your selection.

Gray Scale / Background

Gray Scale/ Background color sets the gray scale and

background color of the alphanumeric text on the dis-

play. Follow the procedure below to set the gray scale

or background color.

Tape Counter

The tape counter displays the time left to record . To

turn on the Tape counter follow the instructions below.

1 Under the Display setting place the cursor in

front of tape counter.

2 Press the “F.F.” button to select “Tape counter”.

3 Press the “+” or “-” button to turn the VCR Sta-

tus either “ON” or “OFF”.

4 After making the selection press the “F.F.” but-

ton.

5 Exit all of the menus to activate the selection.

VCR Status

VCR Status displays all the VCR operating modes on

the screen. Follow the procedure below to turn the

VCR Status On/Off.

1 Under the Display setting place the cursor in

front of VCR Status.

2 Press the “F.F.” button to select “VCR Status”.

3 Press the “+” or “-” button to turn VCR Status

either “ON” or “OFF”.

4 After making the selection press the “F.F.” but-

ton again.

5 Exit all of the menus to activate the selection.

1 Under the Display setting place the cursor in

front of gray scale/back ground color.

2 Press the “F.F.” button to select “gray scale/

background color”.

3 A small box will pop up on the screen.

4 Press the “+” or “-” button to select the appro-

priate gray scale or background color.

5 After selecting the gray scale or background

color press the “F.F.” button.

6 Exit all of the menus to activate your selection.

Table of contents

Protex Prosecutor 2000 AVE-8002 User manual

Popular Car Video System manuals by other brands
