INSTALLATION INSTRUCTIONS
95-9612B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision
• Includes Axxess interface for retaining CAN data information
• Includes Axxess interface for retaining the fiber-optic MOST-25® amp
• Includes Axxess interface for retaining steering wheel control functionality
• Painted matte black

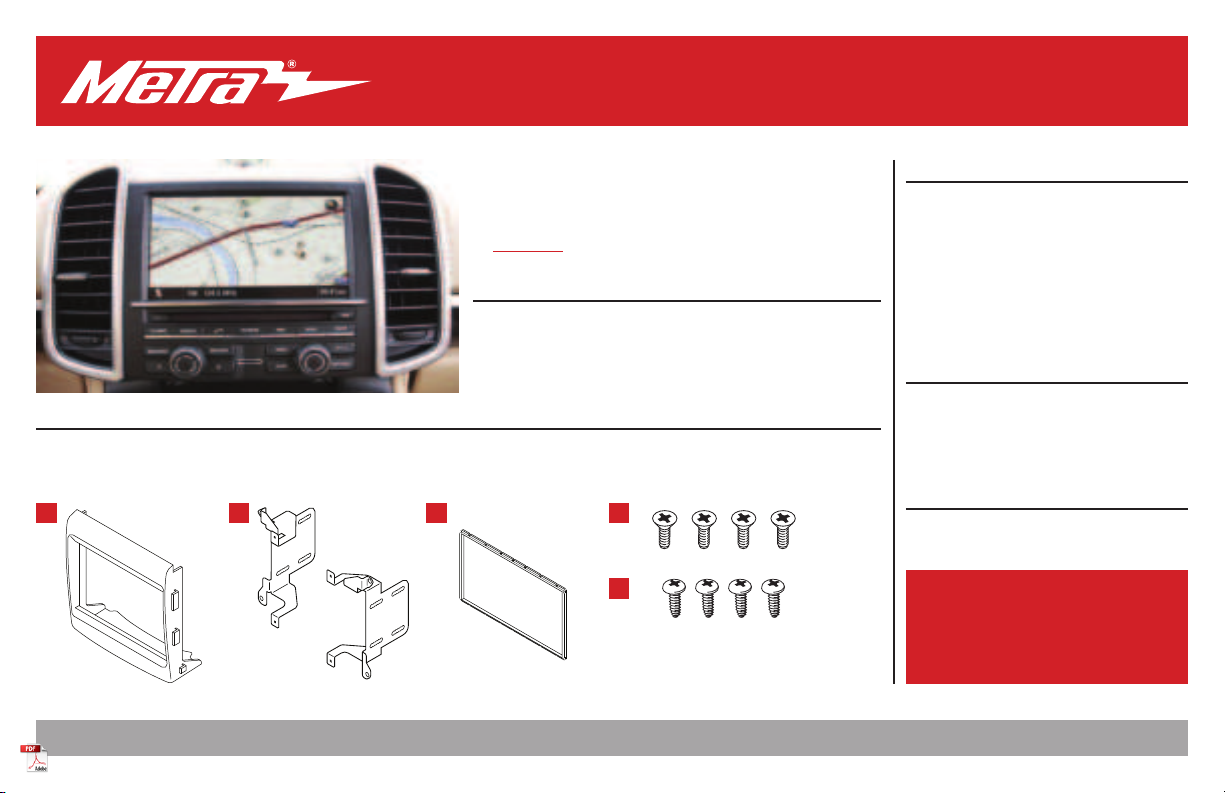

KIT COMPONENTS
• A) Radio bezel • B) Radio brackets • C) ISO DDIN trim ring •
D) Phillips machine-thread screws (4) • E) Phillips standard-thread screws (4)
• F) Axxess interface (not shown) • G) Axxess MOST-25® interface (not shown) • H) Axxess SWC interface (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Thin flat-blade screwdriver • T-27 Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
Axxess Interface Installation ..............................4-6
Final Assembly .......................................................7
User Guide .......................................................... 7-11
A B C
E
D
Porsche Cayenne (958)*† 2011-2016
* For amplified vehicles with OEM parking sensors and graphics on vehicle screen
† With fiber optic MOST-25® amp
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
WIRING & ANTENNA CONNETIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit

386-257-1187
|
MetraOnline.com
2

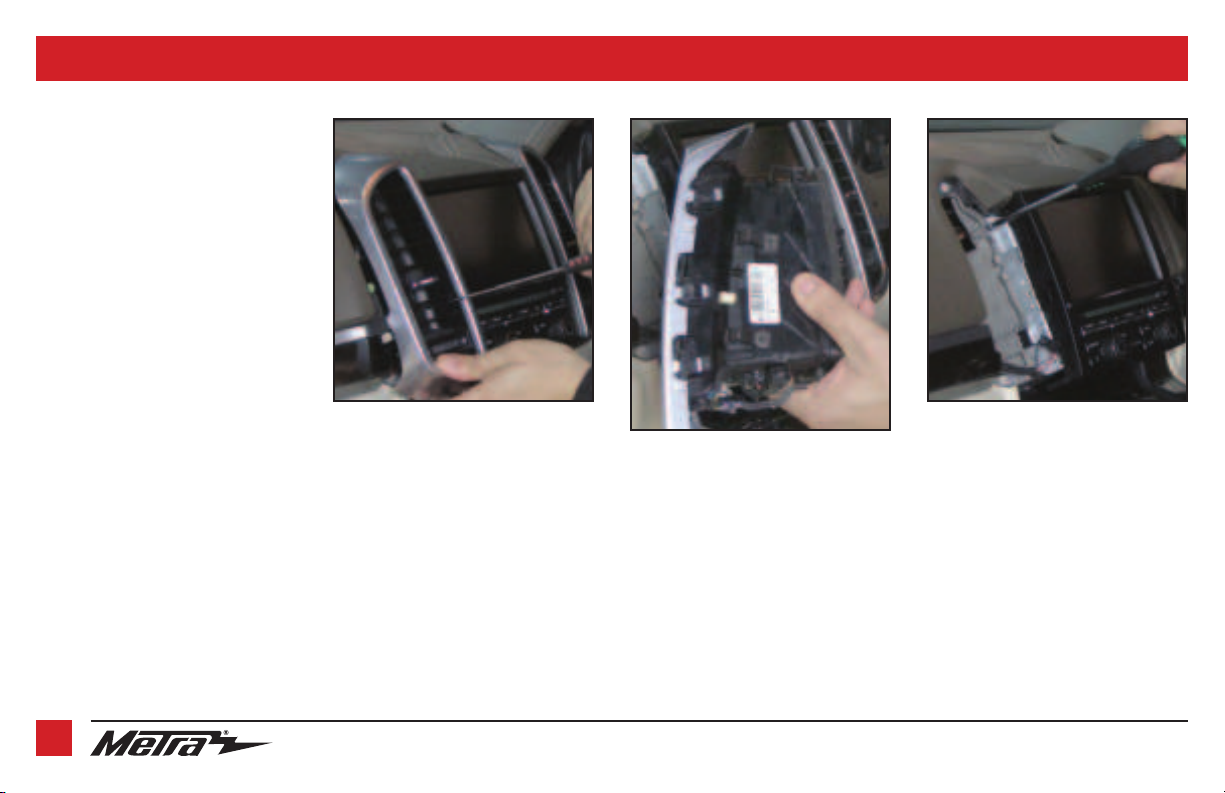

1. Unclip, unplug and remove the center
a/c vents. There are (6) clips † on each
vent that secure it to the dash. To
release the clips, insert a thin flat-blade
screwdriver into the vents, then push
on the clips outward. Release the
outermost clips first. (Figure A)
†
The clips are located: (1) top, (1) bottom,
(2) each side. (Figure B)
2. Remove (4) T-27 Torx screws securing
the radio. Slide the radio out, then
unplug and remove. (Figure C)
Continue to Kit Assembly
DASH DISASSEMBLY
(Figure A)
(Figure B)
(Figure C)

REV. 08/19/2020 INST95-9612B 3

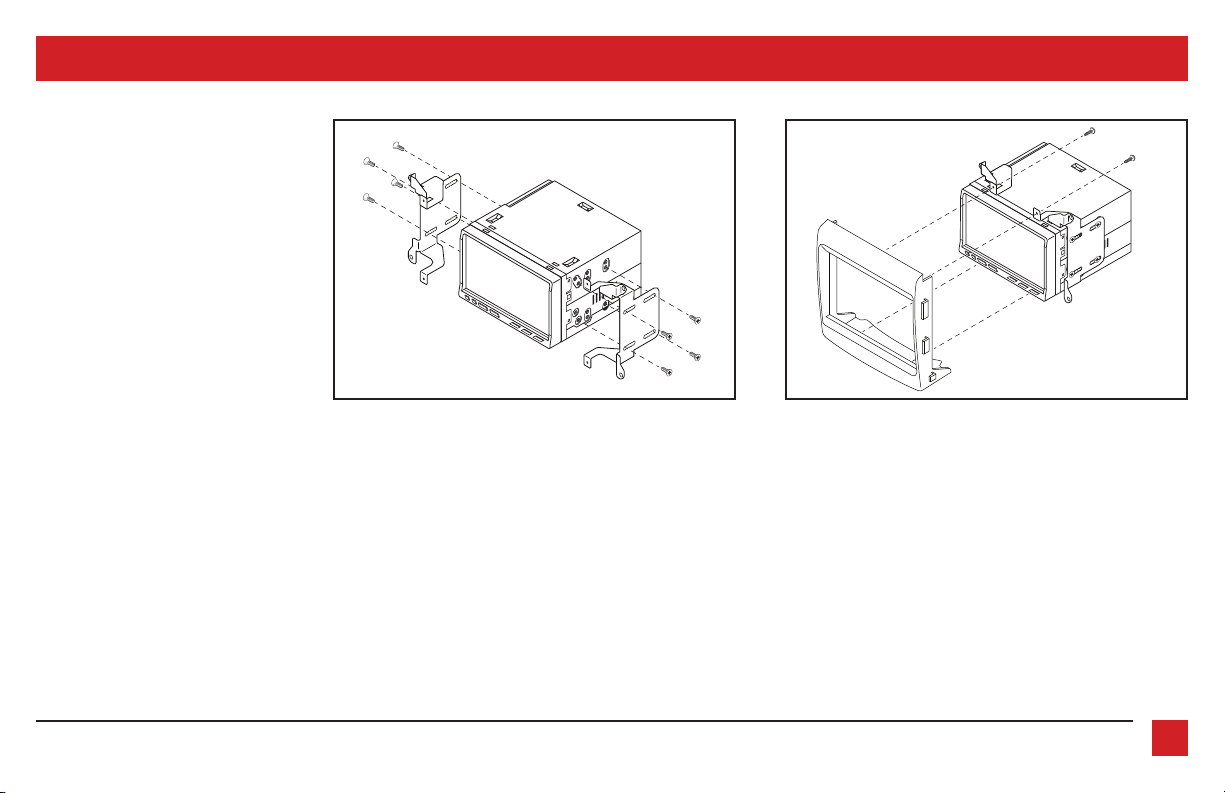

KIT ASSEMBLY
1. Secure the radio brackets to the radio
using screws supplied with the radio.
(Figure A)
Note: There are (4) Phillips machine-
thread screws provided in case the
radio doesn’t come with screws.
2. Place the radio bezel over the radio
assembly, then secure using (4) Phillips
standard-thread screws provided.
(Figure B)
Note: An ISO DDIN trim plate is
provided for smaller nose radios which
produce a gap around the radio.
Continue to Axxess
Interface Installation
(Figure B)(Figure A)

386-257-1187
|
MetraOnline.com
4
AXXESS INTERFACE INSTALLATION
• Provides accessory power
• Provides illumination, parking, brake, reverse, and speed sense outputs
• Retains audio controls on the steering wheel
• Retains parking sensor audio
• Retains parking sensor graphics †
• Retains the factory backup camera
• Retains the factory AUX-IN jack and USB port
• Designed for models with a fiber-optic MOST-25® amplifier
• Retains balance and fade
• Micro-B USB updatable
† Through the backup camera input from the aftermarket radio
INTERFACE FEATURES
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip ties
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• 9612 interface
• SWC interface
• MOST-25® amp interface
• 9612 harness (labeled LEAD 1548)
• SWC harness (labeled LEAD 1214)
• USB harness
• 3.5mm adapter
• Antenna adapter
Connections ................................................................................................................................... 5
Installation ....................................................................................................................................6
Programming ................................................................................................................................ 6
User Guide ..................................................................................................................................7-11
INTERFACE COMPONENTS
TABLE OF CONTENTS

REV. 08/19/2020 INST95-9612B 5
From the SWC harness to the aftermarket radio:
• Parrot: Connect the AX-SWC-PARROT (sold separately) to the 3.5mm jack, then to the radio.
• For the radio listed below: Connect the 3.5mm adapter to the 3.5mm jack.
• Eclipse: Brown - Brown/White / Brown/White - Brown
• Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
• Metra OE: Key 1 (Gray) - Brown
• Universal “2 or 3 wire” radio*: Key-A or SWC-1 Brown /
Key-B or SWC-2 Brown/White
Note: After programming, assign SWC buttons within menu.
• XITE: SWC-2 - Brown
• For all other radios: Connect the 3.5mm jack to the radio.
• Connect the Red wire to accessory power.
• Connect the Yellow RCA jack labeled “To Reverse Camera Input (Radio)”, to the backup camera input. ‡
‡ Mandatory connection to retain parking sensor graphics
From the 9612 harness to the aftermarket radio, connect the:
• Black wire to the ground wire.
• Yellow wire to the battery wire
• Red wire to the accessory wire.
Note: There will also be a Red accessory wire on the SWC harness to connect.
• Blue wire to the power antenna wire.
• Blue/White wire to the amp turn on wire.
• Orange wire to the illumination wire. †
• Brown wire to the mute wire. †
• Blue/Pink wire to the speed sense wire.
• Green/Purple wire to the reverse wire. †
• Light Green wire to the parking brake wire. †
• Yellow RCA jack to the Yellow RCA jack from the SWC harness labeled “To Reverse Camera” ‡
• Red & White RCA jacks labeled “Front Left” and “Front Right” to the full range front
amplifier output jacks.
• Red & White RCA jacks labeled “AUX Left” and “AUX Right” to the audio AUX-IN jacks. †
•
Disregard the following (8) wires:
Gray, Gray/Black, Green, Green/Black, Purple, Purple/Black, White, White/Black.
† If applicable
‡ Mandatory connection to retain parking sensor graphics
CONNECTIONS

386-257-1187
|
MetraOnline.com
6
I N S TAL L ATI O N PROGRAMMING
With the ignition switch in the off position, connect the:
1. SWC harness to the SWC interface, then to the 9612 interface.
2. 9612 harness to the MOST25® interface.
a. Remove the dust cover from fiber-optic port in the MOST25® interface.
b. Insert the factory fiber-optic cable into the MOST25® interface.
3. 9612 harness to the 9612 interface, then to the wiring harness in the vehicle.
4. USB harness to the radio, then to the wiring harness in the vehicle.
5. Locate the factory antenna connector in the dash and complete all necessary connections
to the radio. Use the antenna adapter provided to adapt the factory antenna to the
aftermarket radio.
1. Open the driver’s door and keep open during the programming process.
2. Press and hold the Volume Up button on the steering wheel. For models with a scroll wheel,
scroll up quickly.
3. Cycle the ignition switch on.
4. The LED in the SWC interface will quickly flash Green and Red. (a)
5. The LED will go out, then flash Green while the interface programs itself to the vehicle. (b)
6. The LED will go out again, then flash Red up to 22 times while the interface programs itself
to the radio. (c)
7. Once programmed the LED will go out briefly, then turn solid Red. (d)
8. Release from holding the Volume Up button. Test all functions of the installation for proper
operation. (e)
(a) If the LED doesn’t flash, press the reset button for 3 seconds to reset the interface.
(b)
There will be a series of 7 Green flashes, some short, some long. The long flashes represent
the wires connected to the interface. The 3rd, 4th, 5th, and 6th flashes should be longer .
(c) The number of flashes identify the radio installed. Refer to the SWC interface Radio
Troubleshooting document available from axxessinterfaces.com for more information.
(d) If the LED didn’t turn solid Red, press the reset button for 3 seconds to start the process
over again, then resume from step 3.
(e) Refer to the SWC interface documents available from axxessinterfaces.com for
customizing the SWC buttons.

REV. 08/19/2020 INST95-9612B 7
1. Slide the radio assembly into the dash, then secure using the
factory screws.
2. Reassemble the dash in reverse order of disassembly to complete
the installation.

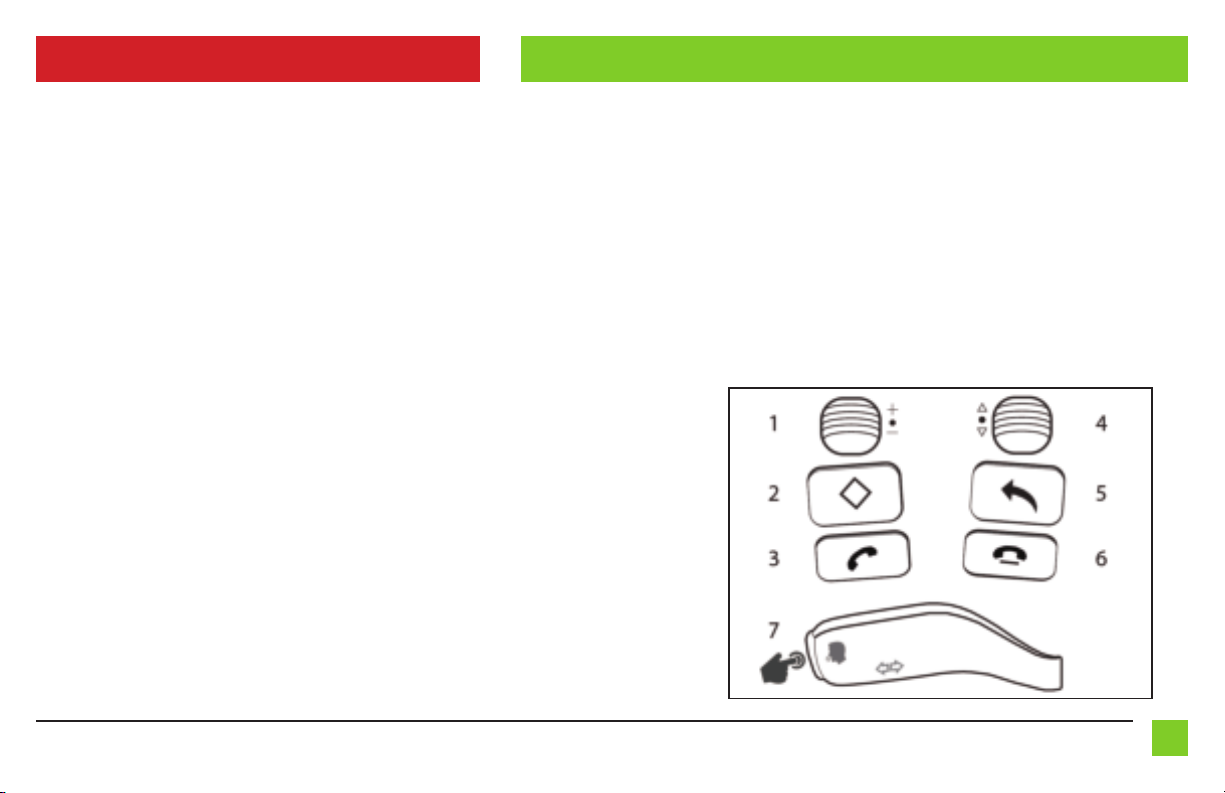

FINAL ASSEMBLY USER GUIDE
In Normal Mode
1. Volume Up (Scroll Up) / Volume Down (Scroll Down)
Mute (Short Press) / Enter Infodapter Menu (Long Press)
2. Programmable Function (Short Press) *
Programmable Function (Long Press)
3. Pick Up
4. Instrument Cluster NAV
5. Instrument Cluster NAV
6. Hang Up
7. Source (Short Press)
Voice Assist (Long Press)
* Only available when using
OEM camera
Continued on the next page
In Infodapter Mode
1. Menu Up (Scroll Up) / Menu Down (Scroll Down)
Select Menu Item (Short Press)
Exit Infodapter Menu (Long Press)
Buttons 2-7 function as above
In Parking Mode (when camera is active)
1. Camera/Parking Graphics Toggle (Long Press)
Steering Wheel Control Functionality

386-257-1187
|
MetraOnline.com
8
USER GUIDE (CONT)
The diamond button on the steering wheel can be programmed
to perform a specific radio function within the Infodapter menus
on both a long and short press.
Function options include: Source, Track +, Track +, DSC + and DSC -
To assign a function to the button, enter the Infodapter menu and go into the
‘Preferences’ sub-menu. From here, select the desired button function against the
‘Diamond Short Press’ and ‘Diamond Long Press’ options.
Note: If you wish to use the diamond button as described above, ensure that the
button is set to any radio function in the vehicle’s OEM instrument cluster menu.
If you do not wish to use the button for this purpose, ensure that both short and
long press options are set to ‘None’ in the Infodapter Preferences sub menu.
Press and hold Button 1 to enter the Infodapter
menu and navigate through the various options and
settings below:
Programmable Button * Infodapter Menu
Continued on the next page
* Only available when using OEM camera

REV. 08/19/2020 INST95-9612B 9
USER GUIDE (CONT)
Infodapter Menu (Cont)
Preferences
- Camera Connected - (None/Generic/OEM)
Choose the style of camera connected to the
vehicle (if applicable)
- Camera Active * - (OEM/Reverse)
Choose if the camera image appears on the
display at times triggered by the Porsche
system, or only when reverse gear is active
- RVC Grid Lines * - (Yes/No)
Rear view camera guidelines On/Off
- Reverse Priority ** - (Park Assist/Camera)
Choose if the display shows the parking
graphics or reversing camera image on screen.
Note: This can also be changed instantly via the
steering wheel controls for faster switching. See
“In Parking Mode” (when camera is active) for
more information.
- Camera Delay ** - (0 - 20) -
Increase camera delay to prevent ‘rolling’ effect
on screen when switching between video inputs
-
◊
Short Press - (None/SRC/TRK+/TRK-/DSK+/DSK-)
Select short press function for the Diamond button on the steering
wheel controls
-
◊
Long Press - (None/SRC/TRK+/TRK-/DSK+/DSK-)
Select long press function for the Diamond button on the steering
wheel controls
- Park Brake Source - (PRNDM/Speed/Brake/Always On)
Set Park Brake output to activate when park brake is on (Brake),
when speed is less than 2mph (Speed), when gear shifter is set to
‘Park’ (PRNDM) or to remain on at all times (Always On)
- Restore Factory Settings (Yes/No)
Select Yes to return all Infodapter settings to factory defaults
Language
- Select language - (English/French/German/etc)
Version
- View software version screen
Continued on the next page
* Only available when using OEM camera
** Only available when using OEM or
aftermarket camera

386-257-1187
|
MetraOnline.com
10
OEM Parking Sensor Graphics
The Infodapter interface will automatically generate a replication of the OEM front/rear parking sensor graphics based on
the vehicle’s data. These graphics have been designed to exactly replicate Porsche’s original as closely as possible to retain
the OEM feel of the system.
Switching Between Camera & Graphic Display Modes
To toggle between the reversing camera and the parking graphics when one of them is active on screen, hold down Button 1
while the camera or graphics are active. This setting can also be changed by the ‘Reverse Priority’ setting in the preferences
sub-menu.
USER GUIDE (CONT)

REV. 08/19/2020 INST95-9612B 11

The World’s Best Kits.®metraonline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 08/19/20 INST95-9612B
INSTALLATION INSTRUCTIONS
95-9612B
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
If you are having difficulties with the installation
of this product, contact our Tech Support line
either by phone at 386-257-1187, or email at
[e-mail]. Before
doing so, look over the instruction booklet a
second time and ensure that the installation was
performed exactly as the instruction booklet
is stated. Have the vehicle apart and ready to
perform troubleshooting steps before contacting
Metra/Axxess Tech Support.
