Kenwood DDX5034M User manual

MONITOR WITH DVD RECEIVER
DDX5034
DDX5034M
INSTRUCTION MANUAL
© B64-4267-00/00 (MW/M2W/XW)
This instruction manual is used to describe 4 models listed below.
Model availability and features (functions) may differ depending on the country
and sales area.
• Type X (Oceanian: DVD Region Code 4 area)
• Type M (Other country: DVD Region Code 3 area)
• Type M2(DDX5034M: DVD Region Code 2 area)
B64-4267-0000.indb1B64-4267-0000.indb1 08.10.307:16:13PM08.10.307:16:13PM

2 DDX5034/DDX5034M
Contents

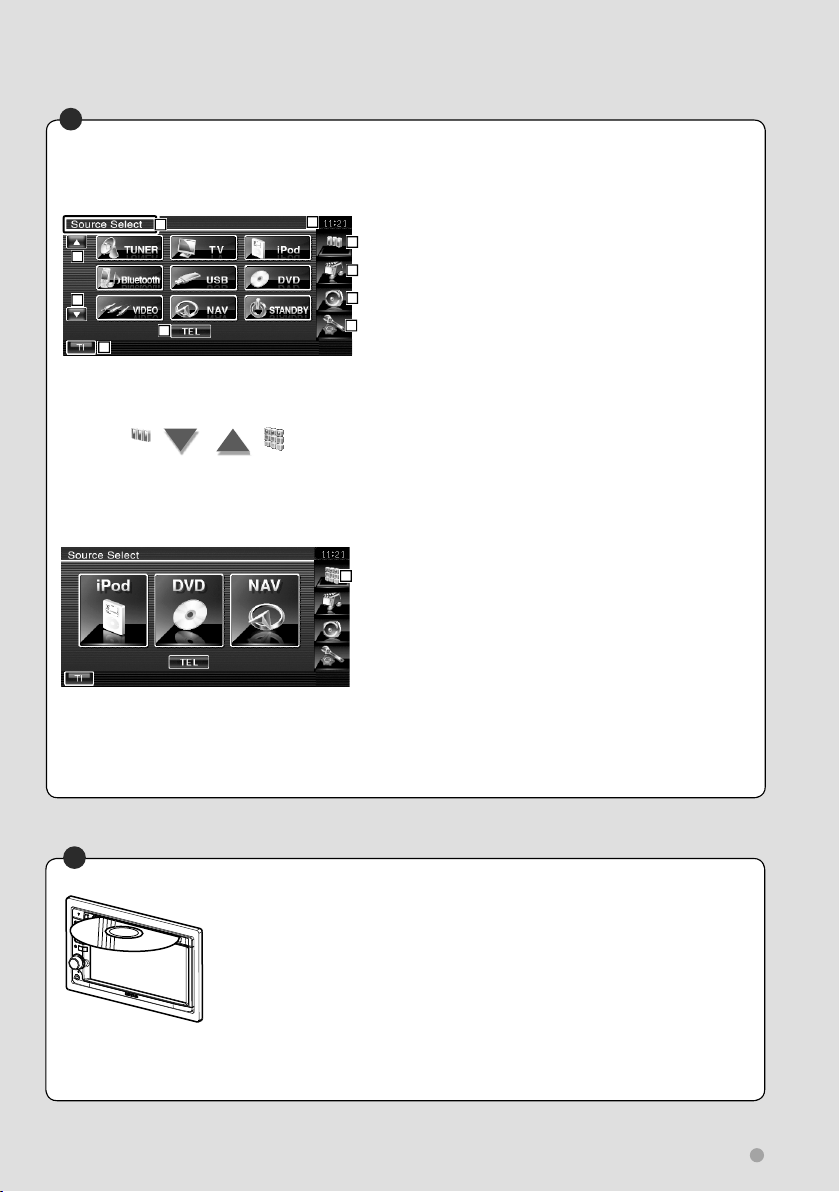

Basic Operations 10
Radio Listening 26
Functions While Displaying the Control Screen
26
Seek Mode 27
Auto Memory 28
Manual Memory 28
Radio Text (Function of Type M/Type M2) 29
Traffic Information
(Function of Type M/Type M2) 29
Search for Program Type
(Function of Type M/Type M2) 30
Set Station Name
(Function of Type X) 30
Frequency Step Setting
(Function of Type X) 30
Video File/Picture File Watching 23
Function During Playback Screen 23
Functions When Displaying the Easy Control
Panel 24
Functions While Displaying the Control Screen
24
Picture Control 25
How to read this manual 4
Before Use 6
Notes 7

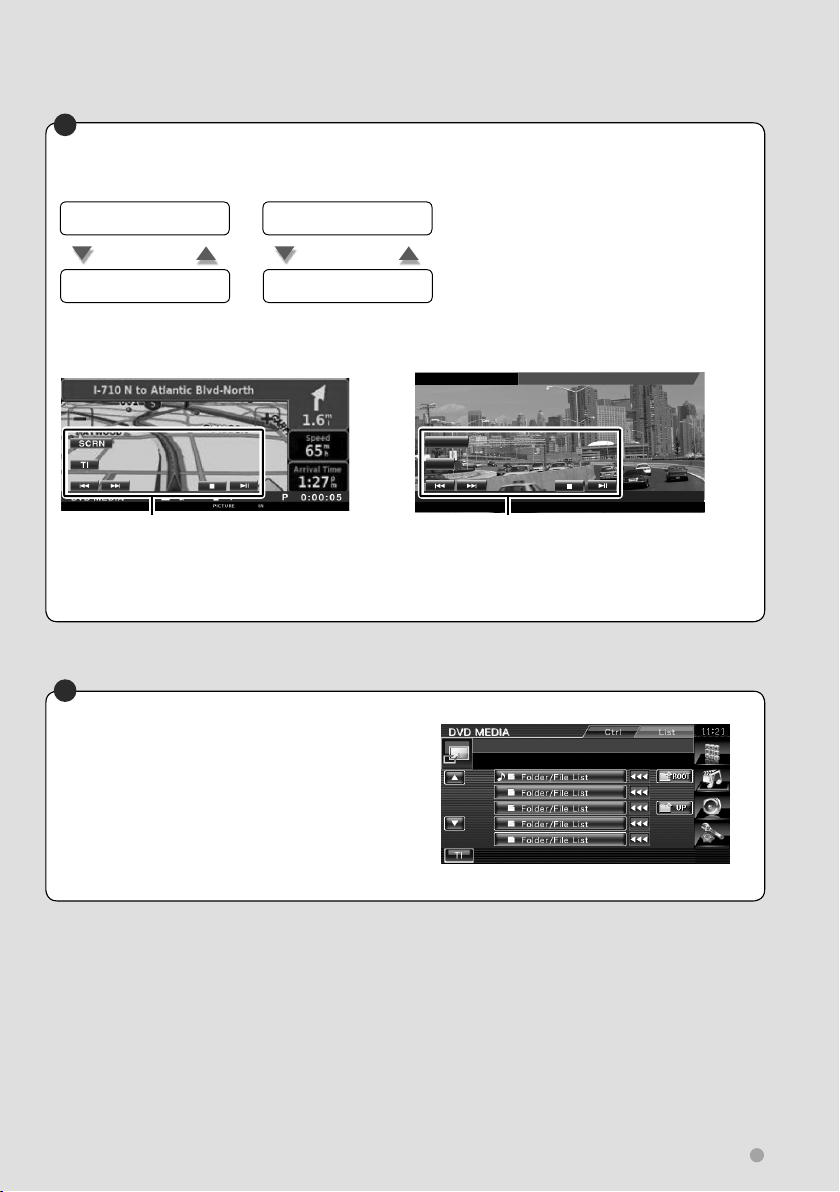

Navigation Control 14
Using the Navigation System 14
Control of Other Sources While Displaying the
Navigation Screen 14
Music Disc & Audio File Listening 21
Functions While Displaying the Control Screen
21
iPod Control 31
Connecting an iPod 31
Functions When Displaying the Easy Control
Panel 31
Functions While Displaying the Control Screen
32

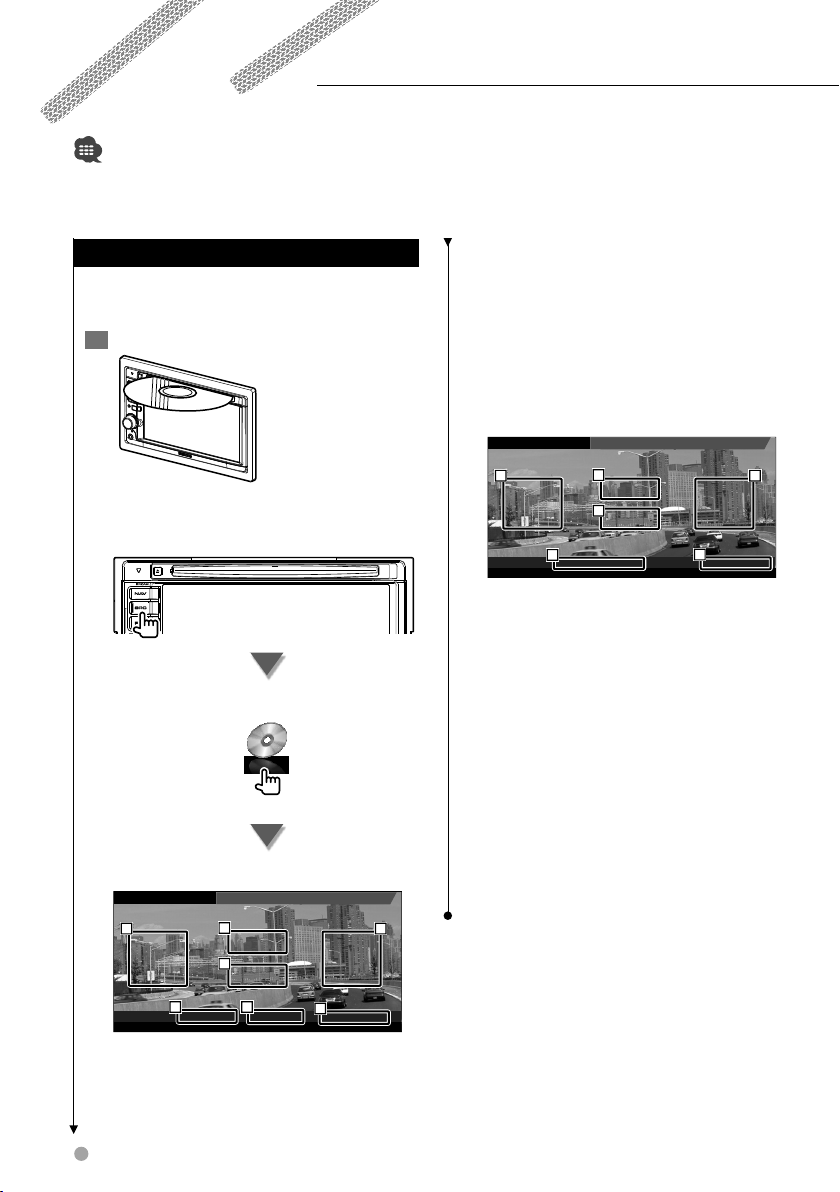

Watching DVD/VCD 16
Functions During the Playback Screen 16
Functions When Displaying the Easy Control
Panel 17
Functions While Displaying the Control Screen
17
DVD Disc Menu 18

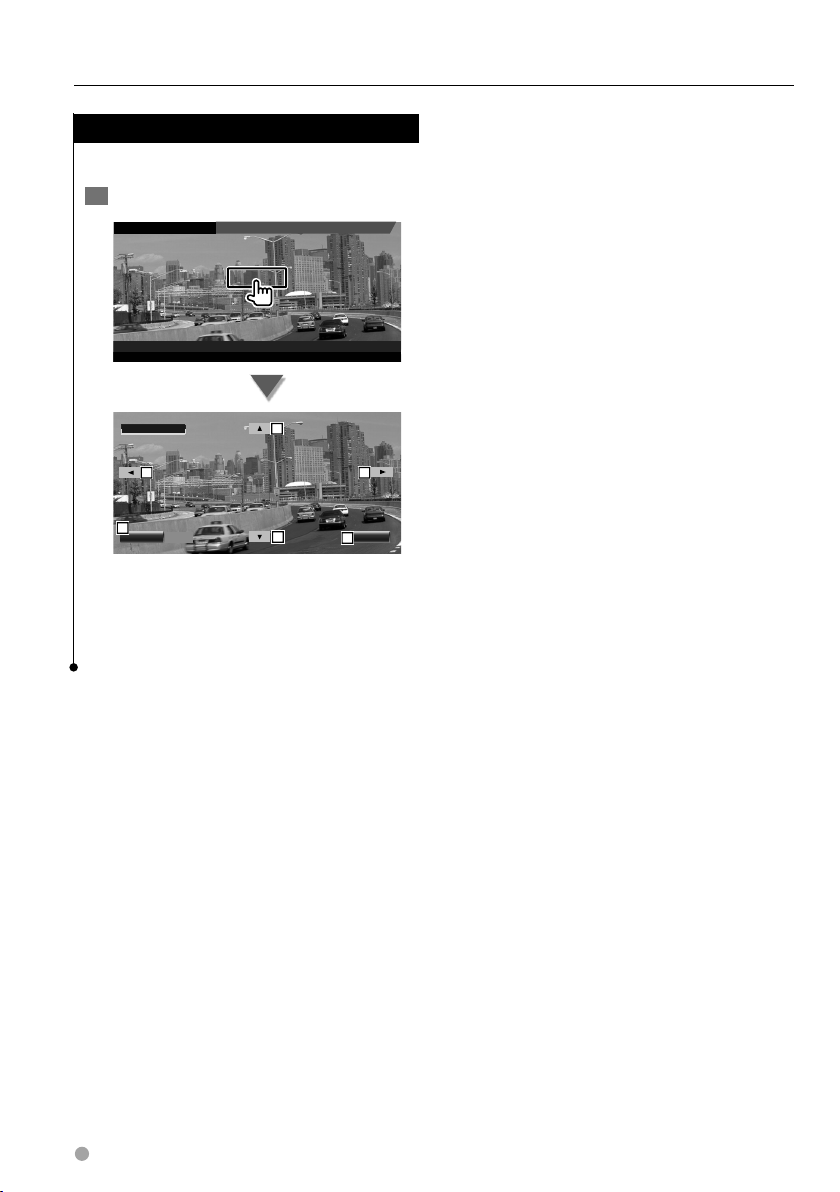

VCD Zoom Control 20
USB Device Control 34
Functions When Displaying the Easy Control
Panel 34
Functions While displaying the Control Screen
34
Folder Select 36
TV Watching 37
Function During TV Screen 37
Functions When Displaying the Easy Control
Panel 37
Functions While Displaying the Control Screen
38
Seek Mode 39
Auto Memory 39
Manual Memory 40
Set Station Name 40
Bluetooth Audio Control 41
Functions While Displaying the Control Screen
41
B64-4267-0000.indb2B64-4267-0000.indb2 08.10.307:16:15PM08.10.307:16:15PM

English 3
Setup Menu 56
Setup Menu 56
Audio Setup 56
Crossover Network Setup 57
DVD Setup 57
Language Setup 58
Parental Level Setup 59
DivX Setup 60
System Setup 60
Panel Color Coordinate 61
AV Interface Setup 62
User Interface 64
Direct Source Button Setup 65
Entering Background 66
Background Delete 66
Background Select 67
Touch Panel Adjustment 67
Clock Setup 68
Monitor Setup 68
Security Code Setup 70
Deactivating Security Code 71
iPod Setup 71
TV Setup (Function of Type M/Type M2 (PAL
TV Type Area only)/ Type X) 72
RDS Setup (Function of Type M/Type M2) 72
Bluetooth Setup 73
Registering Bluetooth Unit 73
Registering Bluetooth Unit PIN Code 74
Registering Special Bluetooth Unit 75
Bluetooth Unit Connection 75
Deleting Bluetooth Unit 76
Software Information 76
Setup Memory 77
DVD Language Codes 86
Help? Troubleshooting 88
Help? Error 89
Specifications 90
Audio Control 78
Audio Control Menu 78
Audio Control 78
Equalizer Control 79
Tone Setup 79
Zone Control 80
Muting Audio Volume upon
Reception of Phone Call 42
Muting Audio Volume upon Reception of
Phone Call 42
Character Entry 43
How to Use the Character Entry Screen 43
Screen Control 44
Screen Control 44
Hands Free Unit Control 45
Control Screen Function 45
When Received a Call 46
Calling by Entering a Phone Number 46
Quick Dialing 47
Controlling Tone-based Services 47
Calling by Phonebook 48
Making a Call Using Outgoing/Incoming Call
Records 49
Calling by Voice Recognition 50
Setting Up the Hands-Free Phone 51
Voice Registration 52
Key Word Voice Registration 53
Phone Number Preset 54
SMS (Short Message Service) 55
Remote Controller 81
Battery installation 81
Remote Controller mode switch 81
Common operations (AUD mode) 82
DVD/VCD/CD/Audio files (DVD mode) 83
TV (TV mode) 84
Radio (AUD mode) 85
B64-4267-0000.indb3B64-4267-0000.indb3 08.10.307:16:16PM08.10.307:16:16PM

Seek Mode
Sets a station selection.
The mode is switched in following order each
time you touch the button.
Display Setting
"AUTO1" Tunes in a station with good reception
automatically.
"AUTO2" Tunes in stations in memory one after another.
"MANU" Switches to the next frequency manually.
Manual Memory
Stores the current receiving station in memory.
1 Select a station you wish to store in
memory
2 Store in memory
Next page 3
4 DDX5034/DDX5034M

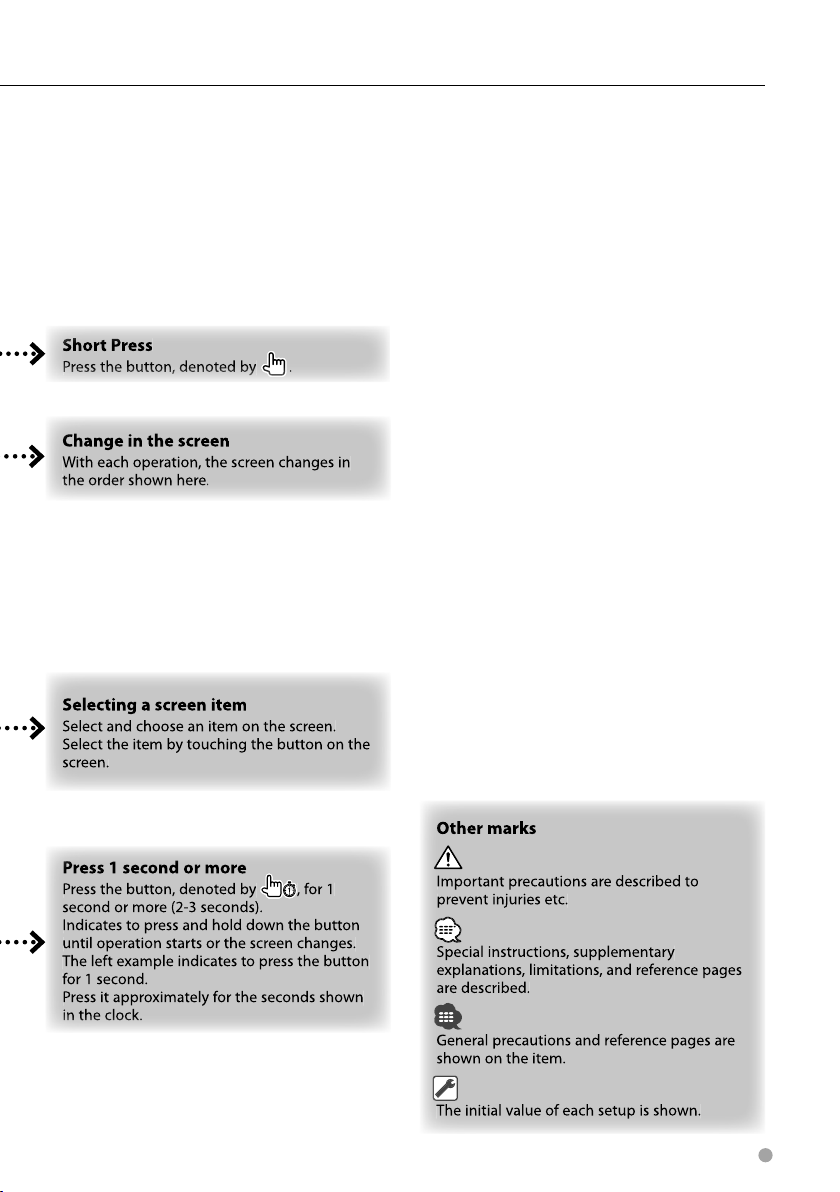

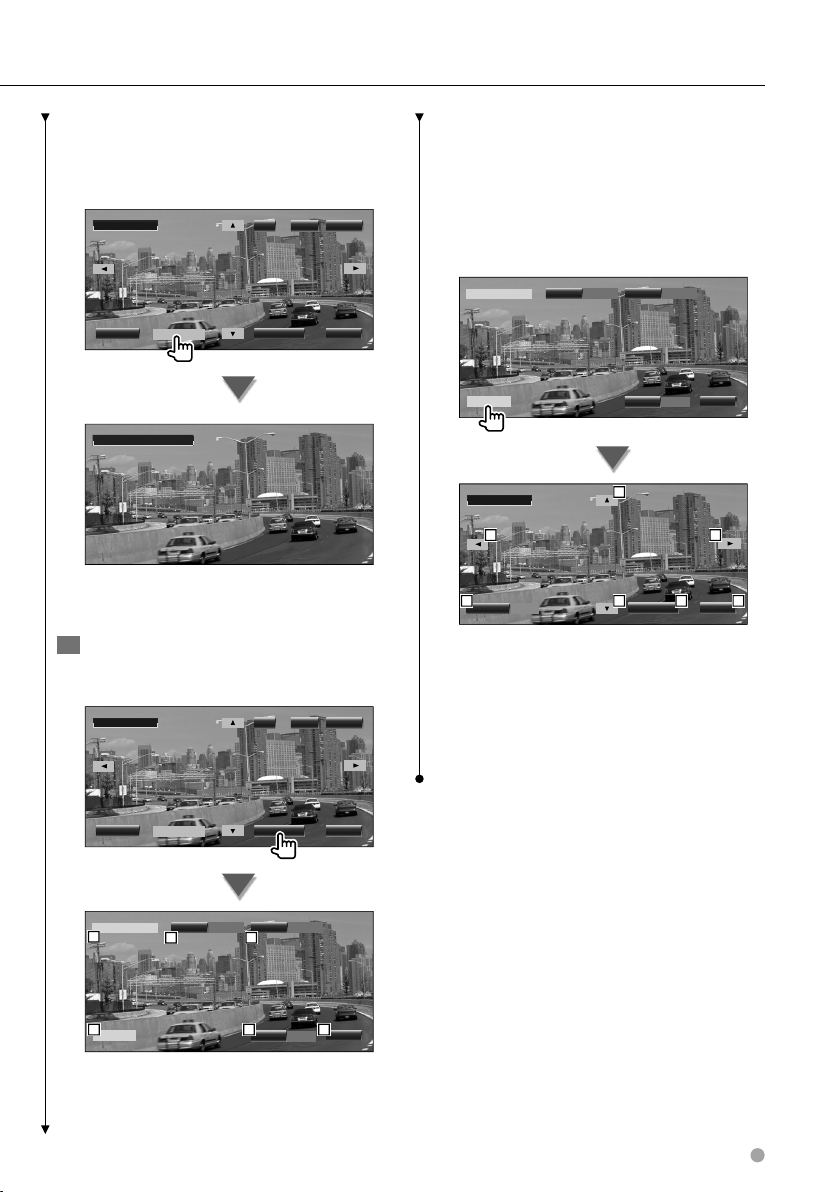

How to read this manual
This manual uses illustrations to explain its
operations.
The displays and panels shown in this manual
are examples used to provide clear explanations
of the operations.
For this reason, they may be different from the
actual displays or panels used, or some display
patterns may be different.
The above operation example with the mark
differs from the actual operation.
B64-4267-0000.indb4B64-4267-0000.indb4 08.10.307:16:17PM08.10.307:16:17PM

English 5
B64-4267-0000.indb5B64-4267-0000.indb5 08.10.307:16:19PM08.10.307:16:19PM

6 DDX5034/DDX5034M
2WARNING
To prevent injury or fire, take the following
precautions:
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools) inside
the unit.
• Do not watch or fix your eyes on the unit’s display
when you are driving for any extended period.

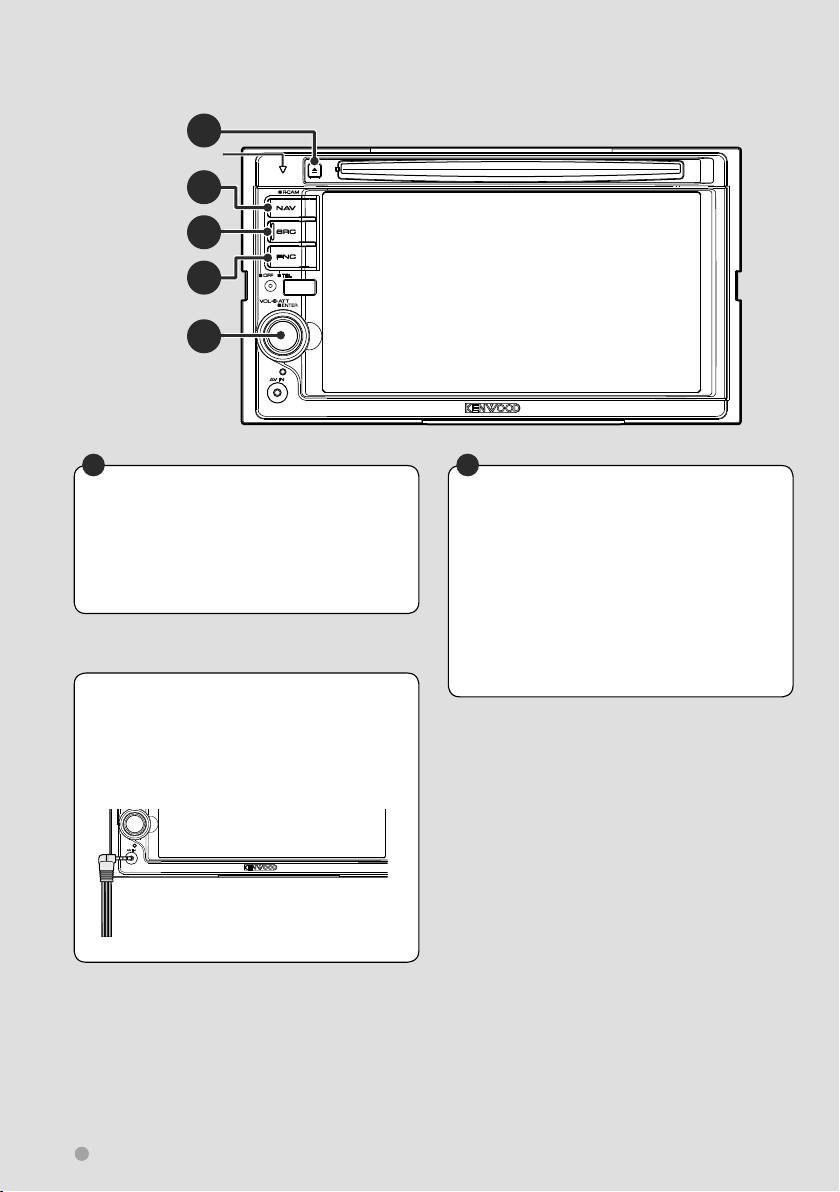

How to reset your unit
• If the unit or the connected unit (disc auto
changer, etc.) fails to operate properly, press the
Reset button. The unit returns to factory settings
when the Reset button is pressed.
• Remove the USB device before pressing the Reset
button. Pressing the Reset button with the USB
device installed can damage the data contained in
the USB device. For how to remove the USB device,
see <Playing a USB device> (page 10).
Reset button
Cleaning the Unit
If the faceplate of this unit is stained, wipe it with a
dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain off
with a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
¤
• Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with a hard cloth
or using a volatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
disc player of the unit. Called lens fogging, this
condensation on the lens may not allow discs to play.
In such a situation, remove the disc and wait for the
condensation to evaporate. If the unit still does not
operate normally after a while, consult your Kenwood
dealer.
Before Use
Handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with
tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull them out
horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with a
ballpoint pen etc.
Discs that cannot be used
• Discs that are not round cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
• This unit can only play the CDs with .
This unit may not correctly play discs which do not
have the mark.
• You cannot play a CD-R or CD-RW that has not
been finalized. (For the finalization process refer to
your CD-R/CD-RW writing software, and your CD-
R/CD-RW recorder instruction manual.)
• If you try to load a 3-inch-disc with its adapter into
the unit, the adapter might separate from the disc
and damage the unit.
Other notes
• If you experience problems during installation,
consult your Kenwood dealer.
• When you purchase optional accessories, check
with your Kenwood dealer to make sure that they
work with your model and in your area.
• The characters conforming to ISO 8859-1 character
set can be displayed.
• The RDS or RBDS feature won’t work where the
service is not supported by any broadcasting
station.
B64-4267-0000.indb6B64-4267-0000.indb6 08.10.307:16:20PM08.10.307:16:20PM

English 7
Navigation units that can be connected to
this unit
• KNA-G420AT
• KNA-G430TH
• KNA-G430
• KNA-G431
Update the navigation software to the latest
version. For how to update the software, refer to the
instruction manual of the navigation unit.
iPod/iPhone models that can be connected
to this unit
Made for
• iPod nano (1st generation)
• iPod nano (2nd generation)
• iPod nano (3rd generation)
• iPod nano (4th generation)
• iPod with video
• iPod classic
• iPod touch (1st generation)
• iPod touch (2nd generation)
Works with
• iPhone
• iPhone 3G
• Update iPod/iPhone software to the latest version.
• You can control an iPod/iPhone from this unit by
connecting an iPod/iPhone (commercial product)
with Dock connector using an optional accessory
iPod connection cable (KCA-iP301V). The word
"iPod" appearing in this manual indicates the iPod/
iPhone connected with the KCA-iP301V (optional
accessory).
• By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable (KCA-
iP301V), you can supply power to your iPod/iPhone
as well as charge it while playing music. However,
the power of this unit must be on.
Bluetooth unit that can be connected to
this unit
• KCA-BT200
TV tuner that can be connected to this unit
• KTC-V300P
List of playable discs
Disc
types
Standard Support Remark
DVD DVD Video ‡
DVD Audio ×
DVD-R ‡
MP3/WMA/AAC/JPEG/
MPEG/DivX Playback
Multi-border/Multisession/
(Playback depends on
authoring conditions)
Compatible with 8-cm (3
inch) discs
DVD-RW ‡
DVD+R ‡
DVD+RW ‡
DVD-R DL (Dual layer) ‡Only video format
DVD+R DL (Double layer) ‡
DVD-RAM ×
CD Music CD ‡CD-TEXT/8-cm (3 inch)
discs supported.
CD-ROM ‡MP3/WMA/AAC/JPEG/
DivX playback
Multisession supported
Packet write not supported.
CD-R ‡
CD-RW ‡
DTS-CD ‡
Video CD (VCD) ‡
Super video CD ×
Photo CD ×
CD-EXTRA %Only music CD session can
be played.
HDCD %Sound quality of normal
CD music
CCCD ×
Others Dualdisc ×
Super audio CD %Only CD layer can be
played.
‡: Playback is possible.
%: Playback is partly possible.
× : Playback is impossible.
⁄
• When buying DRM enabled contents, check the
Registration Code in the <DivX Setup> (page 60).
Registration Code changes each time a file with the
displayed Registration Code is played to protect against
copying.
Use of "DualDisc"
When playing a "DualDisc" on this unit, the surface
of the disc that is not played may be scratched
while the disc is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may be impossible.
(A "DualDisc" is a disc with one surface containing
DVD standard signals and the other surface
containing music CD signals.)
Notes
B64-4267-0000.indb7B64-4267-0000.indb7 08.10.307:16:22PM08.10.307:16:22PM

8 DDX5034/DDX5034M
About Audio files
• Playable Audio file
AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)
⁄
• If music of normal CD and other playback systems are
recorded in the same disc, only the playback system
recorded at the first setout is played.
• Playable disc media
CD-R/RW/ROM, DVD±R/RW
• Playable disc file format
ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device
USB mass storage class, iPod with KCA-iP301V
• Playable USB device file system
FAT16, FAT32
Although the audio files are complied with the standards
listed above, the play maybe impossible depending on
the types or conditions of media or device.

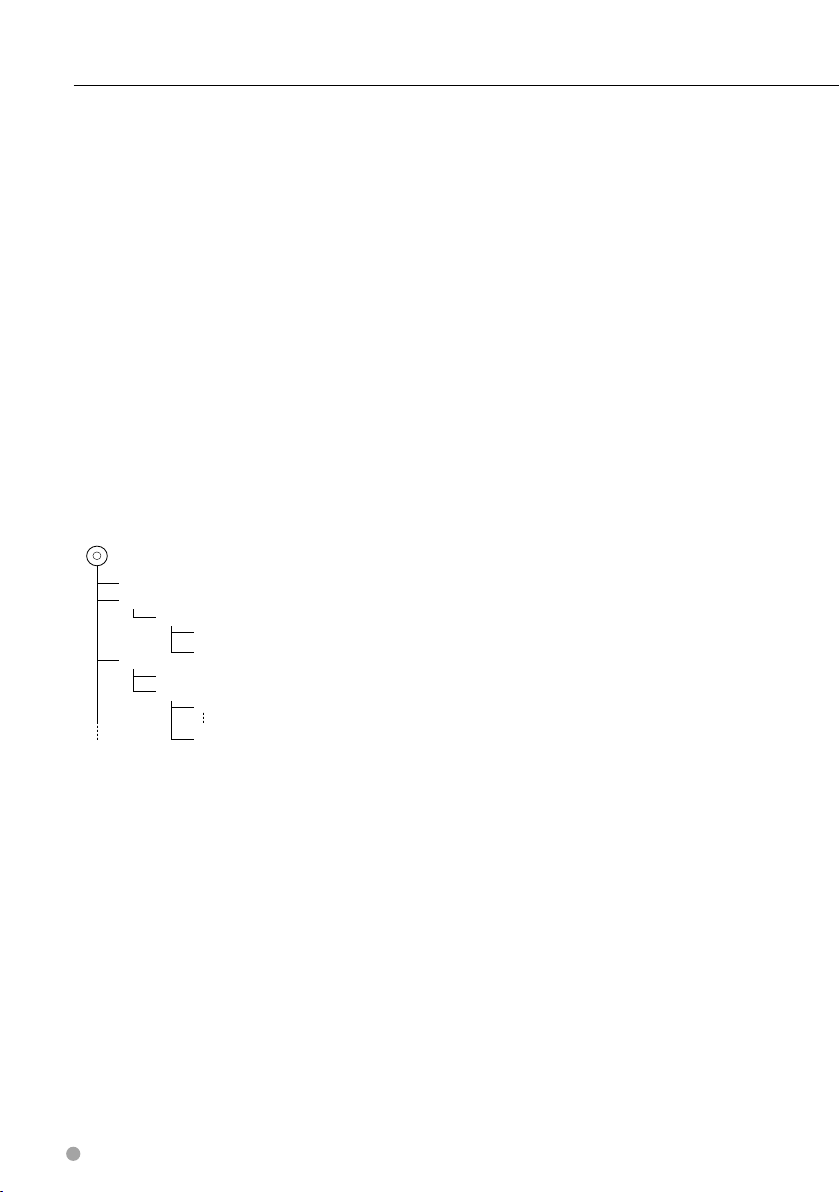

• Playing order of the Audio file
In the example of folder/file tree shown below, the
files are played in the order from ①to ⑩.
CD
v

()
<: Folder
v: Audio 

v

v
v
v.
 v
Folder
Audio file
An online manual about audio files is put on the
site, www.kenwood.com/audiofile/. On this online
manual, detailed information and notes which are
not written in this manual are provided. Make sure
to read through the online manual as well.
About Video files
• Acceptable video files
MPEG1, MPEG2, DivX
• Extensions
mpg, mpeg, divx, div, avi
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, VCD, mass-storage-
class USB device, iPod with KCA-iP301V
Acceptable discs, disc formats, USB device file system,
file and folder names and playing order are the same
as those for audio files. See <About Audio files>.
Notes
About Picture files
• Acceptable picture files
JPEG
• Extensions
jpg, jpeg
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device
Acceptable discs, disc formats, USB device file system,
file and folder names and playing order are the same
as those for audio files. See <About Audio files>.
About USB device
• In this manual, the word "USB device" is used for
flash memories and digital audio players which
have USB terminals.
• When the USB device is connected to this unit,
it can be charged up provided that this unit is
powered.
• Install the USB device in the place where it will not
prevent you from driving your vehicle properly.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this unit.
The files can be erased depending on the operating
conditions of the USB device.
We shall have no compensation for any damage
arising out of erasure of the stored data.
• No USB device comes with this unit. You need to
purchase a commercially available USB device.
• When connecting the USB device, usage of the CA-
U1EX (option) is recommended.
Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
Connecting a cable whose total length is longer
than 5 m can result in abnormal playback.
B64-4267-0000.indb8B64-4267-0000.indb8 08.10.307:16:22PM08.10.307:16:22PM

English 9

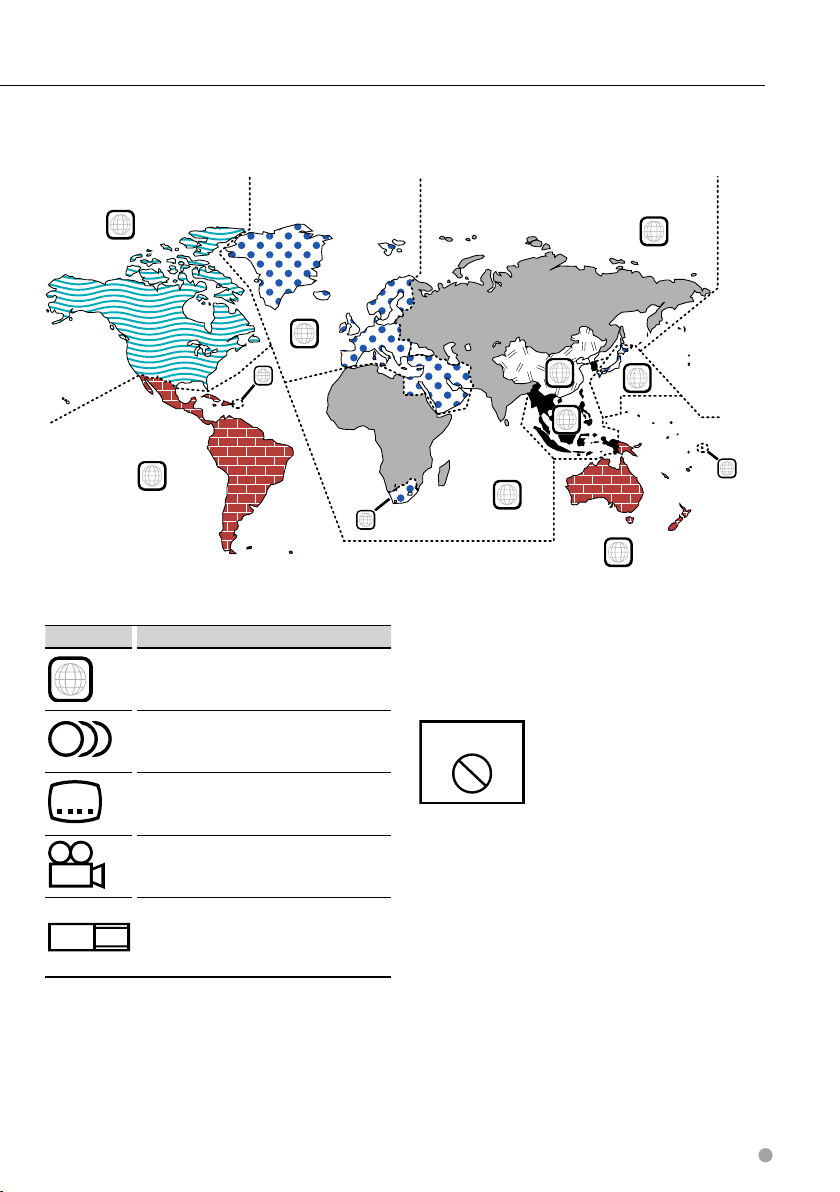

Region codes in the world
The DVD players are given a region code according to the country or area it is marketed, as shown in the
following map.
Operation regulatory marks
With this DVD, some functions of this unit such as the
play function may be restricted depending on the
location where the DVD is playing. In this case, the
following marks will appear on the screen. For more
information, refer to the disc manual.
禁止マーク
Prohibition Mark
Discs with limited period of use
Do not leave discs with a limited period of use in this
unit. If you load an already expired disc, you may not
be able to remove it from this unit.
1
2
4
1
5
4
5
2
1
2
6
3
DVD disc marks
Symbol Description
ALL
Indicates a region number. The discs with this mark can
be played with any DVD player.
8
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie.You can
select a favorite language.
32
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The left mark
indicates that a wide image picture (16:9) is displayed
on a standardTV set screen (4:3) with a black band at
both the top and bottom of the screen (letter box).
B64-4267-0000.indb9B64-4267-0000.indb9 08.10.307:16:23PM08.10.307:16:23PM

C
E
B
D
A
10 DDX5034/DDX5034M
Basic Operations
Adjusts the volume
Turn it either way to adjust the volume.
E
Attenuates the volume
Press it to attenuate the volume.
Press it again to cancel muting.
E
Turns power ON/OFF
Press the button to turn on the power.
When the button is pressed and held down for
1 second or more, the power is turned off.
C
Switches to the Navigation system
Press the button to switch the display to the
navigation system screen.
B
Playing a USB device
When connecting a USB device, playback starts automatically.
Removing the USB device
Press on the USB control screen to enter the USB suspend mode, and then remove the USB
device. See <USB Device Control> (page 34).
¤
• Removing the USB device before entering the USB suspend mode may result in damaging the data in the USB device.
⁄
• If the USB source is selected when a USB device is not connected, "No Device"
is displayed.
• When the playback is stopped and then restarted, the playback will start from
the point where it was stopped at the last time. Even if the USB is removed
and connected again, the playback will start from the last stopped point
unless the contents in the USB device is changed.
• Make sure that the USB device is connected firmly.
SI indicator
B64-4267-0000.indb10B64-4267-0000.indb10 08.10.307:16:24PM08.10.307:16:24PM

English 11
Playing a disc
When you load a disc into disc loading slot, the disc starts playing.
If a menu appears, when playing a video disc, select the desired item.
⁄
• See <List of playable discs> (page 7) for a list of supported discs and formats.
Removing a disc
Press [0] (Eject) button.
A
Selecting a source
Press it to display the source select screen. Touch the source button to select the source.
Full Source Select screen
2
1
1
4
5
6
7
8
9
3
Favorite Source Select screen
10
C
1Scrolls the source display.
2Displays the Hands Free screen. (page 45)
3Press for at least 2 seconds to erase the buttons. Touch
the screen to redisplay the buttons.
⁄
• The displayed source depends on the type of device
connected. In addition, you cannot press the button of
currently unavailable source.
The following buttons are always displayed on the
source select screen and source control screen.
4Displays the Source Select screen.
The display switches between Favorite Source Select
screen and Full Source Select screen by touching the
button.
5Displays Source Control screen.
6Displays the Audio Control Menu screen. (page 78)
7Displays the Setup Menu screen. (page 56)
8Clock display
9Turns the traffic information function On or Off. (page
29) (Function of Type M/Type M2)
⁄
• If a Bluetooth Unit is not connected, [TEL] will not appear.
pDisplays the Full Source Select screen.
⁄
• For how to register the frequently used source buttons to
Favorite Source Select screen,see <Direct Source Button
Setup> (page 65).
B64-4267-0000.indb11B64-4267-0000.indb11 08.10.307:16:25PM08.10.307:16:25PM

C
E
B
D
A
12 DDX5034/DDX5034M
Basic Operations
Switches to the rear view
Press it for more than 1 second to switch to
rear view.
Press it again for more than 1 second to
resume the normal display.
⁄
• Functions of the [NAV] button can be changed to
Display Off function. See <System Setup> (page 60)
for the function setting of the [NAV] button.
B
Switches to the Hands Free control
Press it for more than 1 second to the Hands
Free control screen.
Press it again for more than 1 second to
resume the normal display.
D
SI indicator
Playing an external player
Connect an external player such as a digital
audio player to AV IN jack. Use of the optional
cable CA-C3AV is recommended for connecting
an external player.
B64-4267-0000.indb12B64-4267-0000.indb12 08.10.307:16:27PM08.10.307:16:27PM

English 13
Switching the function screen
The function control screen switches in the following order each time you press the button.
Navigation screen
Easy Control buttons
appear.
[FNC] button
Picture or Video playback
screen
Easy Control buttons
appear.
[FNC] button
Navigation screen Picture or Video playback screen
Easy Control button
Mode:Full AV–OUT:AV–IN
T 0:00:05
Title
1
Chap
1
DVD VIDEO
DVD VIDEO
IN
SCRN
TI
Easy Control button
⁄
• For the functions of Easy Control buttons, see <Control of Other Sources While Displaying the Navigation Screen> (page
14).
D
Scrolls the list and makes a selection
When the list screen of a source control screen is
displayed, press it for more than 1 second to enter list
control mode.
Turn it either way to scroll the list. Press it to make a
selection.
Press it again for more than 1 second to return to the
volume control mode.
E
Example: List screen of DVD MEDIA source
B64-4267-0000.indb13B64-4267-0000.indb13 08.10.307:16:28PM08.10.307:16:28PM

14 DDX5034/DDX5034M
Using the Navigation System
Displays the navigation system screen and makes
the navigation function available.
1 Displaying the navigation screen
2 Setting the navigation system function
Touch the navigation system button displayed
on the screen. See the included NAVIGATION
SYSTEM's INSTRUCTION MANUAL for
information on using the navigation system.
⁄
• You can set the navigation system function when
nothing else is displayed on the screen. If anything else,
such as Easy control panel is displayed, erase it first.
• An optional navigation system needs to be connected.
See <Navigation unit that can be connected to this unit>
(page 7) for connectable navigation units.
Navigation Control
Control of Other Sources While Displaying
the Navigation Screen
Selected source can be controlled while
displaying navigation screen.
1 Display the easy control buttons
When "DVD" is selected:
334 5
1
2
6
1Displays the Screen Control screen.
See <Screen Control> (page 44).
2Turns the traffic information function On or
Off.(Function of Type M/Type M2)
3During DVD play :
Selects a chapter.
During VCD play :
Selects a scene (when PBC is On) or a track
(when PBC is Off ).
During CD play :
Selects music.
During Audio file, Video file, or Picture file
play :
Selects a file.
4Stops playing.
When pressed twice, the disc is played from
its beginning when you play it in the next
time. (DVD play only)
5Plays or pauses.
6When touched this area, the source control
screen appears.
Sets and controls the navigation system function.
B64-4267-0000.indb14B64-4267-0000.indb14 08.10.307:16:29PM08.10.307:16:29PM

English 15
When "USB" or "iPod" is selected:
7 7 8
9
7During iPod play :
Searches Music or Video.
During USB play :
Selects a file.
8Plays or pauses.
9When touched this area, the source control
screen appears.
When "TUNER" is selected:
10 10 11
11
12
pTunes in a station.
qSwitches the band (to AM or FM 1/2/3).
wWhen touched this area, the source control
screen appears.
When "TV" is selected:
13 13
16
14 15
eSelects a channel.
Use the <Seek Mode> (page 39) to change
the channel tuning sequence.
rSwitches to TV1 or TV2.
tSwitches the Seek mode. See <Seek Mode>
(page 39).
yWhen touched this area, the source control
screen appears.
When "Bluetooth" is selected:
17 17
20
18 19
uSelects a file.
iPlays.
oPauses.
;When touched this area, the source control
screen appears.
⁄
• The Easy Control buttons are hidden when you touch the
central part of the screen.
B64-4267-0000.indb15B64-4267-0000.indb15 08.10.307:16:32PM08.10.307:16:32PM

16 DDX5034/DDX5034M
Watching DVD/VCD
You can play DVD/VCD using various functions.
•For the basic method of how to watch DVD/VCD, see <Basic Operations> (page 10).
•Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch>
(page 81).
Functions During the Playback Screen
Basic functions are available even when the
playback screen is displayed.
1 Display the playback screen
or
[DVD] button on the "Source Select" screen
DVD playback screen
Mode:Full AV–OUT:AV–IN
T 0:00:05
Title
1
Chap
1
DVD VIDEO
DVD VIDEO
1 2 3
5 4
6
7
1Title Number Display
2Chapter Number Display
3Play Time Display
4Forward Chapter Search Area
Selects the next chapter.
5Backward Chapter Search Area
Selects the previous chapter.
6DVD Disc Menu Control Buttons Area
Displays the Disc Menu Control buttons
(page 18).
7Information Display Button Area
VCD playback screen
Mode:Full
P 0:05
Scene
3
DVD VCD
DVD VCD
AV–OUT:AV–IN
PBC VER2 ST IN AF
89
11 10
12
13
8Scene/Track Number Display
9Play time Display
pForward Scene/Track Search Area
Selects the next scene (when PBC is On) or
track (when PBC is Off ).
qBackward Scene/Track Search Area
Selects the previous scene (when PBC is On)
or track (when PBC is Off ).
wZoom Control Button Area
Displays the Zoom Control buttons (page
20).
eInformation Display Button Area
⁄
• The information display is cleared automatically after
approximately 5 seconds. Also, the information can be
displayed automatically when it is updated.
B64-4267-0000.indb16B64-4267-0000.indb16 08.10.307:16:32PM08.10.307:16:32PM

English 17
Functions When Displaying the Easy
Control Panel
Displays the basic operation buttons on the
screen.
1 While the source is playing, press the [FNC]
button
Mode:Full AV–OUT:AV–IN
T 0:00:05
Title
1
Chap
1
DVD VIDEO
DVD VIDEO
IN
SCRN
TI
2
13 1
1Chapter Search (during DVD play)
Searches for a chapter.
Scene/Track Search (during VCD play)
Selects a scene (when PBC is On) or a track
(when PBC is Off ).
2Stops playing.
When pressed twice, the disc is played from
its beginning when you play it in the next
time.
3Plays or pauses.
⁄
• When the navigation screen is displayed, press the [NAV]
button to switch to the source playback screen.
• The Easy Control Panel is hidden when you touch a
central part of the monitor.
Functions While Displaying the Control
Screen
Switches to the source control screen to use
various playback functions.
1 While the source is playing, press the [FNC]
button
Mode:Full AV–OUT:AV–IN
T 0:00:05
Title
1
Chap
1
DVD VIDEO
DVD VIDEO
IN
SCRN
TI
When playing a DVD
12
6
788
10
9
11 10
12 12
13 14
345
16
15
When playing a VCD
17 18 19
1Switches to the playback screen.
2Title Number Display (during DVD play)
3Chapter/Scene/Track Number Display
4Play Mode Display
5Play Time Display
6Volume Label Display
When is appeared, the text display is
scrolled by pressing it.
7Ejects the disc.
8Fast Forwards or Fast Backwards.
Next page 3
B64-4267-0000.indb17B64-4267-0000.indb17 08.10.307:16:36PM08.10.307:16:36PM

18 DDX5034/DDX5034M
Watching DVD/VCD
9Stops playing.
When pressed twice, the disc is played from
its beginning when you play it in the next
time.
pSelects a chapter, a scene or a track.
When the VCD is paused, touch this button
to start single-frame stepping.
qPlays or pauses.
wSlow Forwards or Backwards. (during DVD
play)
eSwitches the Repeat Play operations in the
following sequence.
DVD: Title Repeat, Chapter Repeat, Repeat
Off
VCD: Track Repeat, Repeat Off (Available
when the PBC is off )
rSwitches the play time display in the
following sequence.
DVD: Chapter, Title, remaining titles
VCD: Track, disc, remaining discs (Effective
only when the PBC function is off )
tFunction Indicator
yAppears when a disc is inserted.
uTurns the PBC function of VCD On or Off.
(only when VCD Ver 2.0 is in use)
iAppears when PBC is On.
oVCD version indicator
DVD Disc Menu
Selects an option from the DVD Disc Menu.
1 Display the Disc Menu Control screen
Mode:Full AV–OUT:AV–IN
T 0:00:05
Title
1
Chap
1
DVD VIDEO
DVD VIDEO
Ente rEnte r Canc e lCanc e l
TopTop
Highlight
MenuMenu
M enuCtrl M enuCtrl
Ex i tEx i t
ReturnReturn
1
6
8
5
72 34
3
33
1Calls the Menu.
2Returns to the Disc Menu screen.
3Selects a menu option.
4Enters your menu selection.
5Returns to the previous menu screen.
6Displays the Top Menu.
7Highlight Control.
8Clears the Disc Menu Control.
B64-4267-0000.indb18B64-4267-0000.indb18 08.10.307:16:39PM08.10.307:16:39PM

English 19
Highlight Control
You can select a chapter and title for the DVD
Menu screen. When you touch the screen, you
can select the DVD menu.
Ente rEnte r Canc e lCanc e l
TopTop
Highlight
MenuMenu
M enuCtrl M enuCtrl
Ex i tEx i t
ReturnReturn
Hi gh l i ght On
⁄
• To cancel Highlight Control, press [FNC] button.
2 Select Disc Menu options
Disc Menu
Ente rEnte r Canc e lCanc e l
TopTop
Highlight
MenuMenu
M enuCtrl M enuCtrl
Ex i tEx i t
ReturnReturn
1/1
ZoomZoom
SUB
Audio
Angle
1/2
M enuCtrl M enuCtrl
Ex i tEx i t
3/ 3
9
1413 10
11 12
9Calls the Menu Control.
pSwitches the picture angle.
(during program playback only)
qSwitches the subtitle language.
(during program playback only)
wSwitches the voice language.
(during program playback only)
eDisplays the Zoom Control screen.
rClears the Disc Menu Control.
Zoom Control
1/1
ZoomZoom
SUB
Audio
Angle
1/2
M enuCtrl M enuCtrl
Ex i tEx i t
3/ 3
x2 Canc e lCanc e l
ZoomCtrlZoomCtrl
ZoomZoom Ex i tEx i t
15
16
16
16 16
17 18
tChanges the zoom ratio at 4 levels (2 times,
3 times, 4 times, or off) each time you
touch.
yScrolls the screen in the direction you
touch.
uReturns to the Disc Menu Control screen.
iClears the Disc Menu Control.
B64-4267-0000.indb19B64-4267-0000.indb19 08.10.307:16:40PM08.10.307:16:40PM

20 DDX5034/DDX5034M
Watching DVD/VCD
VCD Zoom Control
Displays an enlarged VCD screen.
1 Display the Zoom Control screen
Mode:Full
P 0:05
Scene
3
DVD VCD
DVD VCD
AV–OUT:AV–IN
PBC VER2 ST IN AF
x2
ZoomCtrlZoomCtrl
ZoomZoom Ex i tEx i t
1
2
2
2
23
1Changes the zoom ratio at 2 levels (2 times
or off ) each time you touch.
2Scrolls the screen in the direction you
touch.
3Clears the Zoom Control button.
B64-4267-0000.indb20B64-4267-0000.indb20 08.10.307:16:44PM08.10.307:16:44PM
