PWI-AC90LE | PWI-AC120LE
User’s Manual

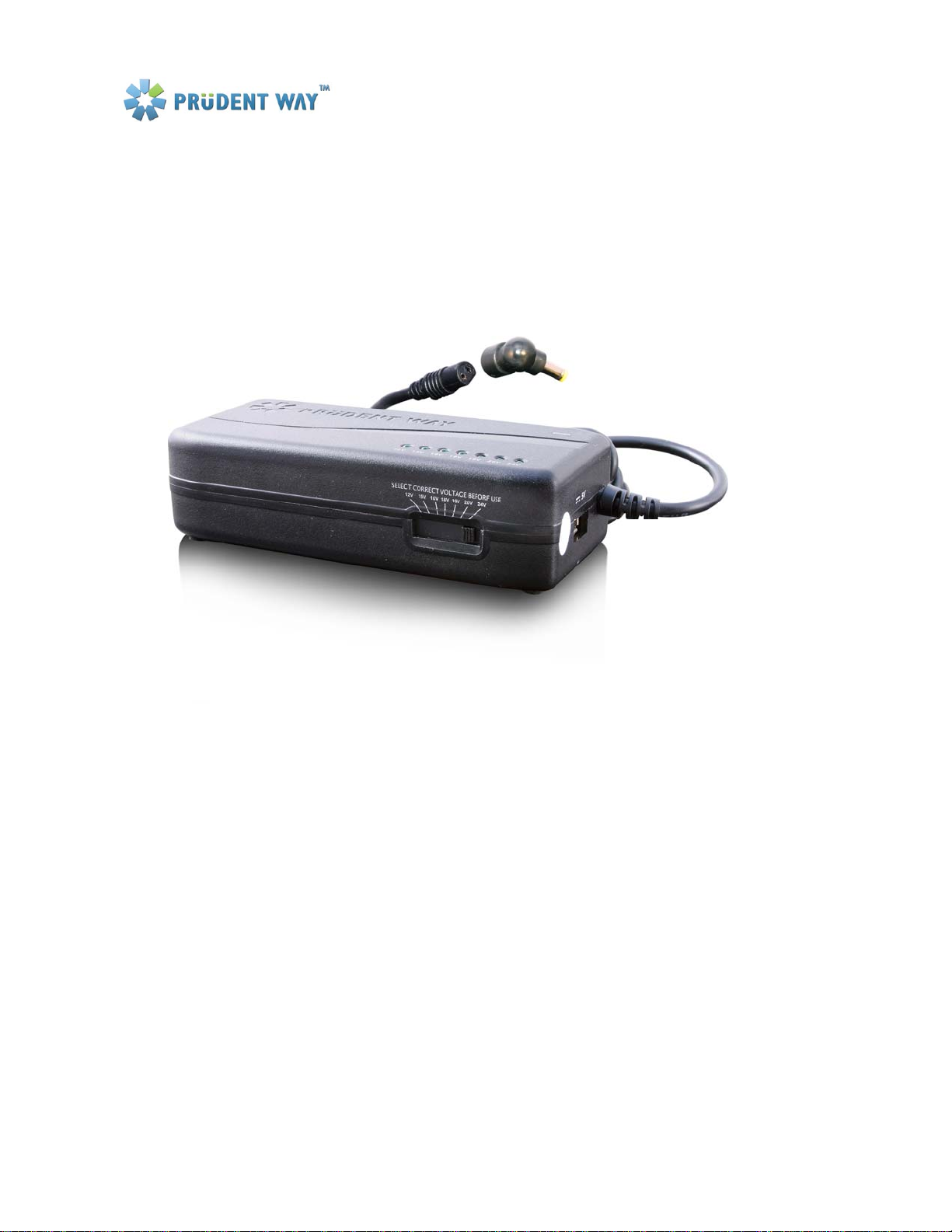

Prudent Way Universal Notebook & LCD AC Power Adapter
PWI-AC90LE, PWI-AC120LE

Prudent Way Universal Notebook and LCD AC Power Adapter User’s Manual
Model: PWI-AC90LE, PWI-AC120LE
- 1 -
Table of Contents
1. Major Features ……….……………………………………………………..2
2. Safety & Warning ……………………………………………………….…..2
3. Contents….……….…………………………………………….…………….2
4. Using Prudent Way Universal Notebook & LCD AC Power Adapter……3
5. Product Specification………………………………………………………...4

Prudent Way Universal Notebook and LCD AC Power Adapter User’s Manual
Model: PWI-AC90LE, PWI-AC120LE
- 2 -
Thank you for choosing Prudent Way Universal Notebook & LCD AC Power Adapter. Please take the time to read all
instructions in this user manual carefully before using the Adapter. Please note that failure to follow the proper
instructions may cause fire, electric shock, injury, or damage to electronic devices.
We sincerely hope that you find this quality Adapter provides you with many years of good service.
1. Major Features
•100-240V AC input provides worldwide power conversion capability.
•Adjustable 12-24V output design fits specific notebook models and LCDs needs.
•13 pieces of tip connector for use with most major LCD and notebook brands such as IBM, Dell, Toshiba,
Compaq, Asus, Acer, HP, Sony and More1.
•Extra USB port built in for PDAs, Cell Phones, MP3 Players and more*.
•RoHS compliancy is friendly to environment.
•High efficiency & full power protection.
•Digital LED Light
2. Safety & Warning
Please read the following information carefully before using the power adapter!
! This power adapter is for indoor use only.
! This power adapter is for use with information technology equipment.
8DO NOT disassemble this Adapter. There are HAZARDOUS VOLTAGES inside the power adapter.
Disassembling the Adapter may expose you to high voltage or other risks. Incorrectly reassembly may cause
electronic shock the next time when the device is used. Warranty will be voided by doing so.
8DO NOT expose the Adapter and related information technology equipment to water or moist, dusty or
extreme temperature environment such as direct sunlight, heat sensitive material or any heat generated
sources such as a radiator, stove, or car.
8DO NOT block the ventilation. The ventilation is designed to protect the Adapter from overheating.
8DO NOT place the Adapter in a built-in installation, or on a surface such as a bed, sofa, or rug.
8DO NOT use wet hands to plug or unplug the power cord to avoid electric shock.
9DO follow all warnings and instructions marked on the product.
9DO grab the plug instead of cord when you remove the power cord from the wall outlet.
9DO remove any power sources from this Adapter before attempting any cleaning to avoid electrical shock.
Use a dry cloth only.
9DO place the power cable properly so it will not be steeped on or tripped over.
9DO unplug the Adapter and contact the dealer from which it was purchased when:
oThe Adapter is damaged.
oThe Adapter does not perform properly.
oThe Adapter has been exposed to water.
3. Contents
PWI-AC90LE PWI-AC120LE
AC power adapter 90-watt 120-watt
13 tip connectors 99
Input and output cables 99
User manual 99

Prudent Way Universal Notebook and LCD AC Power Adapter User’s Manual
Model: PWI-AC90LE, PWI-AC120LE
- 3 -
4. Using your Prudent Way Universal AC Power Adapter For Notebook & LCD
For notebook computer:
Picture 1
Step 1. Read the Safety and Warning information above.
Step 2. Please refer to your notebook computer user manual
or check on the back of the notebook computer to
find the correct input voltage requirement for
your notebook computer. To select proper input
voltage (12V, 15V, 16V, 18V (18/18.5V), 19V
(19/19.5V), 20V (20/20.5V), and 24V) on the Adapter
to fit your notebook computer need (Picture 1),
please manually move the voltage selection
switch located on the right bottom of the adapter.
The LED indicator (on the right top of the
adapter) will show the voltage that you have
manually selected.
Picture 2
Step 3. Choose correct tip connector to fit your notebook
power socket and connect it to the Adapter output
cable (Picture 2).
For more detail info about tip selections, please
visit http://www.prudentway.com check
UNIVERSAL ADAPTERS.
Warning: DO NOT plug Tip L to HP Laptops.
Note! Each tip connector has a special 2-pin design with
only one pluggable direction to make sure you do not plug
the tip connector to the wrong direction on the adapter
output cable and cause damage to your notebook. If you
experience difficulty to plug the tip connector to the holes
on the output cable, please check if you plug it to the wrong
direction.
Picture 3
Step 4. Connect the tip connector to the power socket of
your notebook (Picture 3).
Step 5. Connect the Adapter input power cable to the AC
socket of the Adapter (Picture 4). Then plug the
other end of AC power cable to the wall outlet
(Picture 5).
Step 6. Turn on and use your notebook.
For devices with USB interfaces such as MP3, cell
phones, iPod, iPhone, iPad and more: Picture 4
Step 1. Read the Safety and Warning information above.
Step 2. Please connect the USB Type A cable provided by
your USB device company to the USB port of the
Adapter.
Step 3. Follow Step 5 as stated above.
Step 4. Turn on and use your USB device.
For LCDs: Please follow the same steps as you use for notebook
computer. Most LCDs use 12V.
Picture 5

Prudent Way Universal Notebook and LCD AC Power Adapter User’s Manual
Model: PWI-AC90LE, PWI-AC120LE
- 4 -
6*4.4
(Pin 1.0) 6.3*3.0 5.5*2.5 5.5*2.1 5.5*1.7 4.8*1.7 4.0*1.7 Samsung 5.5*3.0 Dell-3pin TOSHIBA- 4pin
Lenovo
IBM
7.9*5.5
(Pin 0.8)
Dell
7.4*5.0
(Pin 0.6)
HP
7.4*5.0
(Pin 0.6)
ABCDEFGHIJKLM
5. Product Specification
PWI-AC90LE PWI-AC120LE
FEATURES
Output Power (Max.) 90W 120W
Overload Protection Yes Yes
Short Circuit Protection Yes Yes
Line Regulation +/- 5% +/- 5%
Load Regulation +/- 5% +/- 5%
Switching Mode Universal switching-mode power adapter for notebook
and LCDs Universal switching-mode power adapter for notebook and LCDs
Special Connectors
13 pieces tip connector including 3-pin connector for Dell
notebook*, 4pin TOSHIBA & IBM, 7.4x5mm for Dell,
7.4x5mm for HP.
13 pieces tip connector including 3-pin connector for Dell
notebook*, 4pin TOSHIBA & IBM, 7.4x5mm for Dell,
7.4x5mm for HP.
Efficiency > 87% (TYP) > 87% (TYP)
Fanless yes yes
DIMMENSIONS
Unit Size 5.25” x 2.4” x 1.5” 5.25” x 2.4” x 1.5”
Net Weight 1 lb 1 lb
OUTPUT
Output Voltage (0/+0.8V No
Load) 12V/15V/16V/18V/19V/20V/24V DC12V-24V 12V/15V/16V/18V/19V/20V/24V DC12V-24V
USB Port: 5V USB Port: 5V
PWI-AC 90: Output Voltage (-
0.6/+0.6V @rating load)
PWI-AC120: Output Voltage (+/-
5% @typical +/- 0.8V)
12V/15V/16V/18V/19V/20V/24V DC12V-24V
12V/15V/16V/18V/19V/20V/24V DC12V-24V
USB Port: 5V USB Port: 5V
Output Current 12V/15V/16V/18V/19V/[email protected](max) 12V/15V/16V/18V/19V/20V@6Amp(max)
24V @ 3.75AMP (max) 24V @ 5AMP(max)
USB Port: 2 AMP @ 5V USB Port: 2 AMP @ 5V
INPUT
Rated Input Voltage (50 - 60 Hz)
A
C120V or AC230V
A
C120V or AC230V
Vibration Input Voltage Range
(47-63Hz)
A
C100V-240V
A
C100V-240V
Input Rated Current 2.2AMP 2.2AMP
Input Power 102VA 135VA
ENVIRONMENTAL
Operating Temp. 0 to 40℃0 to 40℃
Humidity 20% to 80% 20% to 80%
RoHS Compliant Yes Yes

Prudent Way Universal Notebook and LCD AC Power Adapter User’s Manual
Model: PWI-AC90LE, PWI-AC120LE
- 5 -
For feedback about this product, please contact
Prudent Way Inc
Toll Free: [phone]
Email: [e-mail]
For support or general inquiry, please contact
Prudent Way Inc
Toll Free: [phone]
Email: [e-mail]
Made in China
1All listing of brand names are registered trademarks of their respective companies.
2Certification
