PS FURNITURE Rollers PBLFT30RDEB Series User manual

PAGE 1
Bottom of table with
(11) pre-drilled
mounting holes.
Align hinge mechanism iwth
pre-drilled holes on table bottom
and attach using a 5/16” nut
driver to install (11) provided
#12-24 x 3/4” drill tip screws into
pre-drilled holes.
Table Bottom

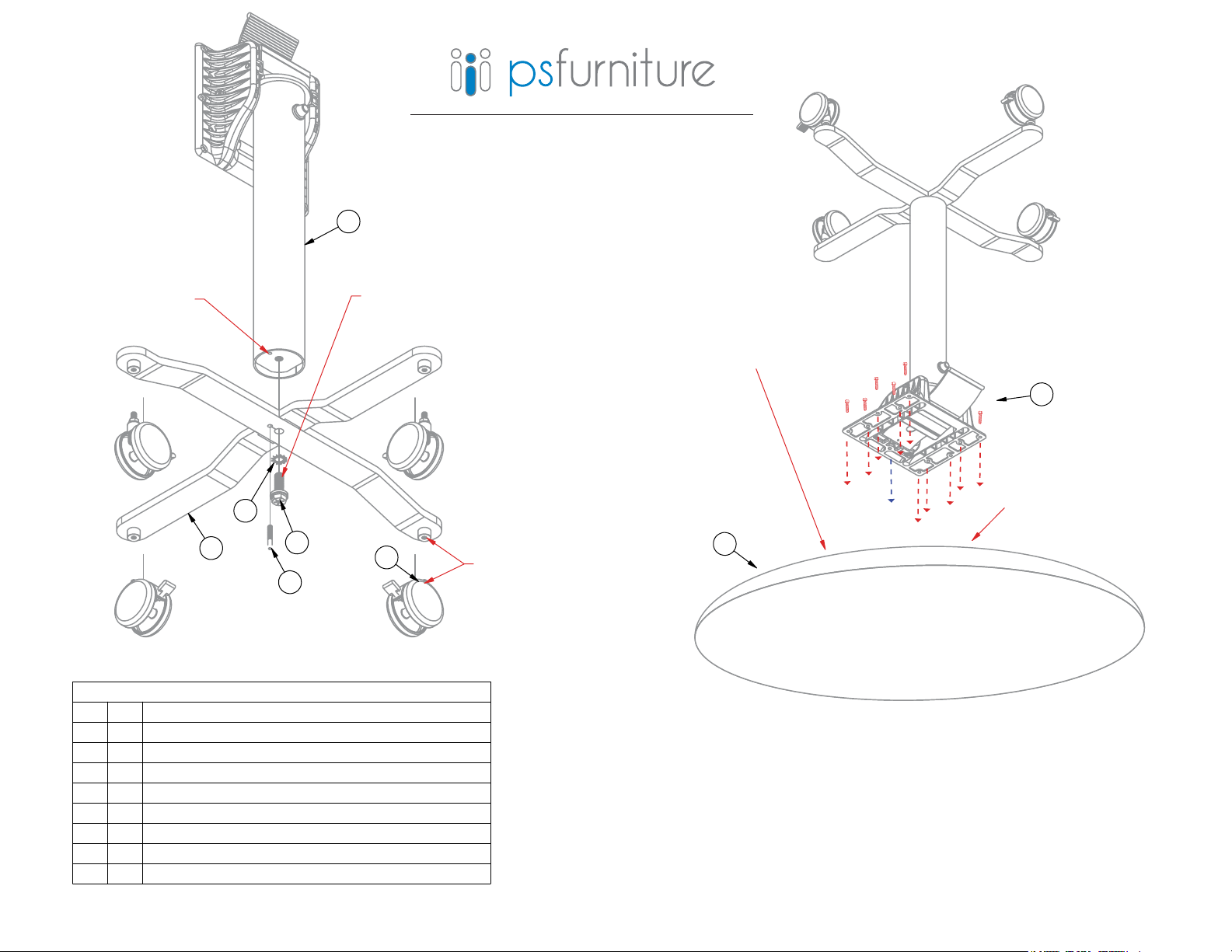

STEP 1: Attache Rollers™Portable Table Top to the Genufold (see page 2 for next steps).
Rollers™Portable Table
Assembly Instructions
X 11

Parts List
Description
QtySeq
317 Column Assembly - Nesting X-Base
11
317N Mainbar Wldt
12
1/2 X 1 1/2 Flange Head Bolt
13
3" DIA Locking Caster - 1/2" Stem
44
Star Washer
15
1/4"-20 X 1 1/2" Button Head Socket Cap Screw
1
6
12-14 x 3/4" Self-Drilling, Self-Tapping Hex-Head Screws
117
Table Top
1
8
1
248
3
1) Install bolt thru star washer and 9/16" hole in mainbar
2) Thread into strap in bottom of column
3) Torque to 75 ft lbs.
5
6
7
(4) Thread caster (or leveler)
stem into insert on bottom of
mainbar and tighten snug with
an open end wrench
Thread 1/4-20 screw
into tapped hole in
mainbar
1) Place table top face-down
on a clean, level surface.
2) Install 11 hex head 12-14 x
3/4” screws into pre-drilled holes
using a 12mm hex hed nut driver
to secure base to table top.
Rollers™
1.800.762.0415 | psfurniture.com
©PS2019-14348
PAGE 2
