PSA Products LIFSAIR User manual

LIFESAVER
LIF5800/2, LIF5800RL/2, LIF5800ACF,
LIFHA240, LIFCO240
1
LIFESAVER SMOKE ALARM
ISOLATION RELAY
Model: LIFSAIR
SPECIFICATION:
Operating Voltage 5V – 10V DC
Secondary Contacts Normally Open
Normally Closed
(change-over contacts)
Secondary Contact Rating 240V AC 50Hz @ 5Amps
30V DC @ 5Amps
Contact Switching Time Delay
(one smoke alarm connected)
4 seconds once activated
Minimum cable size 1mm2Neutral
1mm2Switch line
24
3
Operating Temperature 0o- 50oC
OPERATION.
COMPATIBLE SMOKE/HEAT/CO ALARMS
INSTALLATION.
Warning: A combination of the N.O. and N.C. contacts is
not permissible and will not operate.

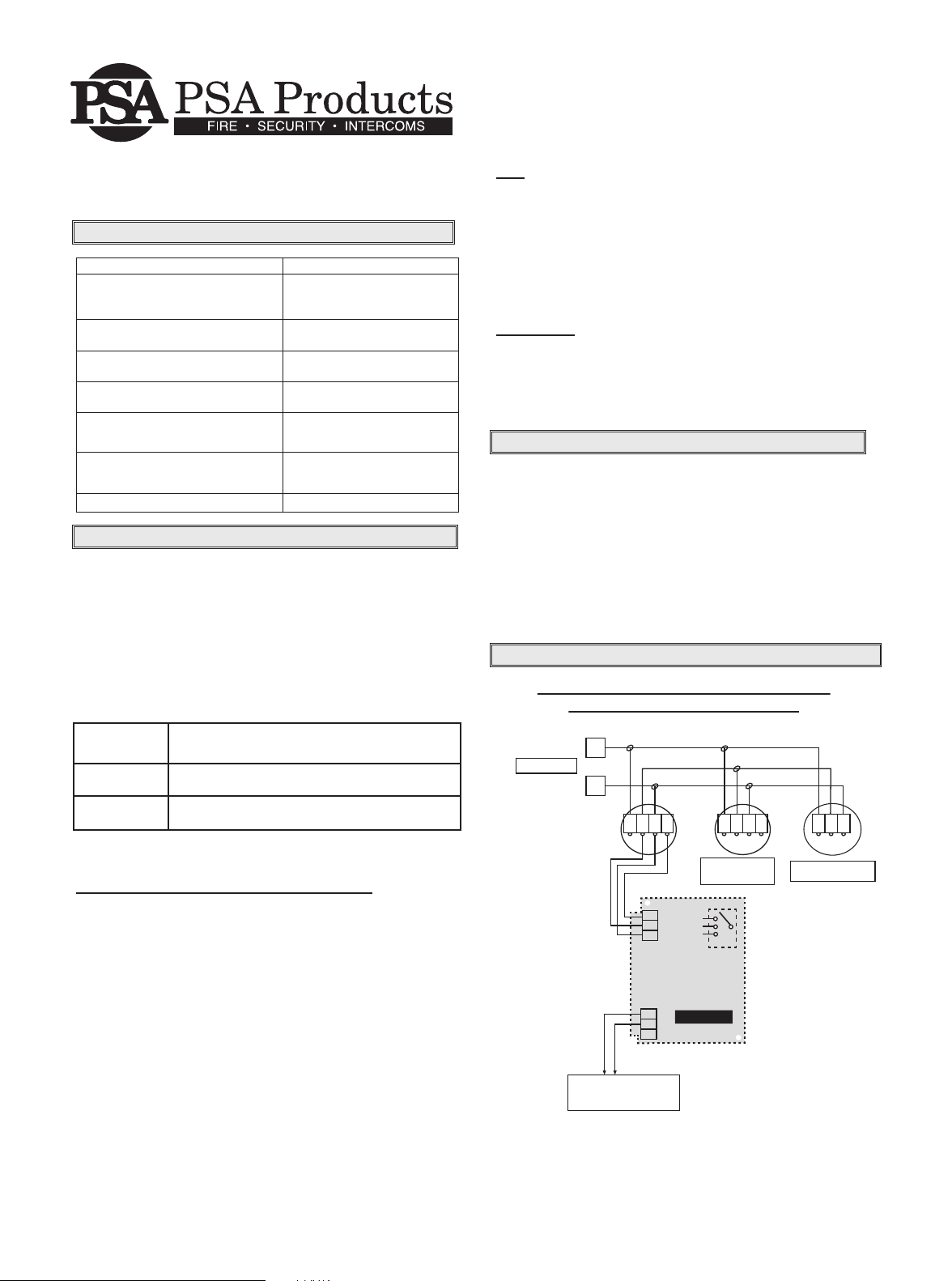

WIRING DIAGRAM
Figure 1: Connecting to Auxiliary Devices
with 9V output from smoke alarm
The LIFSAIR Smoke Alarm Isolation Relay is a device
designed to provide compatible 240VAC Smoke/Heat/CO with
a set of Normally Closed (NC) and Normally Open (NO)
change over contacts. This permits the Smoke Alarm to
trigger auxiliary devices such as strobe lights, sirens, bells,
burglar and fire alarm panels, activate emergency lights,
shutting down air conditioners or releasing magnetic door
holders.
General:
The LIFSAIR requires no earthing conductor as it is double
insulated. It must be suitably fixed in position and protected
from mechanical damage. If the output terminals are
connected to low voltage (240V) circuits, the associated
wiring must be installed in accordance with the relevant
requirements of the SAA Wiring Rules, AS/NZS 3000.
This device is intended and designed only for use with the
following smoke alarms and devices;
Note: Only smoke alarm LIF5800/2 and LIF5800RL/2 have
9VDC output.
The Isolation Relay LIFSAIR is triggered once the Smoke
Alarm activates and sends a signal down the switch line.
Note there will be a 4 second delay before the relay operates
the LIFSAIR’s Normally Open and Normally Closed contacts.
This is to help prevent any unnecessary false alarms from the
smoke alarm.
In the above case the changeover contacts of the relay,
connected to the output terminals may be used to make or
break an external E.L.V. or L.V. circuit operating at up to
240VAC 5A or 30VDC 5A
.
WARNING: Under no circumstances must an insulation
resistance test be carried out between the input conductors of this
LIFSAIR. such a test could cause irreparable damage to the
internal circuitry of the device and make it inoperative and
further, the warranty would be void under this condition.
By installing the LIFSAIR in this manner it will allow you to
operate such devices such as sirens, strobes, bells, lights, air
conditioners or any devices which do not exceed 240VAC @ 5
Amps.
WARNING: Use with other smoke alarms may damage this
device and the smoke alarm(s) and could create a definite
shock risk and would not be covered by any warranty.
The Isolation Relay LIFSAIR must be installed by a
Licensed Electrician.
Wiring from the Smoke Alarm N and S terminals must be
correctly connected to the LIFSAIR N and S terminals.
Incorrect wiring will short and damage the isolation
relay and the Smoke Alarm and will void warranty.
Maximum number of
interconnected smoke alarms to a
single LIFSAIR unit
Maximum number of LIFSAIR
relay connected to one smoke
alarm
The LIFSAIR will operate in the absence of mains power
and only operates when the detector is in alarm state.
This isolation relay has a 3 selectable modes of operation.
SM latching Relay Relay stay latched or activated while smoke
and /or heat alarm in alarm condition
Relay activate momentarily for 2 seconds when the smoke
and /or heat alarm in alarm condition
When CO relay is selected, the relay will latch only
when CO alarm is in alarm condition.
SM Pulse Relay
CO Relay
SM pulse
SWTICH
SM latching
CO
240V SUPPLY
LIF5800 SERIES
SMOKE ALARM CO/ HEAT ALARM
LIFSAIR
NO
C
NC
GND
S
9V
To sirens, sounders,
lights and auxiliary
devices.
A
A S N 9
N
A S N 9 A S N

PSA Products Pty Ltd (ABN: 99 076 468 703) of 17 Millicent
Street, Burwood 3125 Victoria, Australia warrants this
product for a period of 12 months from the date of purchase,
as reflected on the Authorised Reseller's or Distributor’s
invoice / receipt provided to you. PSA Products Pty Ltd will
repair or replace the product (at the option of PSA Products)
due to any manufacturing defect, at the cost of PSA Products
Pty Ltd (excluding any labour costs relating to removal or
re-installation of product, and transport costs).
This warranty shall not apply to the product if it has been
damaged, modified, abused or altered after the date of
purchase, or if it fails to operate due to improper maintenance.
To the extent permitted by law, the liability of PSA Products
Pty Ltd arising from the sale or under the terms of this limited
warranty shall not in any case exceed the cost of replacement
and subject to this clause. In no case shall PSA Products Pty
Ltd be liable for consequential loss or damages resulting from
the failure of the product or breach of this, or: Any other
warranty, express or implied, loss or damage caused by failure
to abide by the instructions supplied in the leaflets.
To the extent permitted by law, PSA Products Pty Ltd., makes
no warranty, expressed or implied, written or oral, including
that of merchantability or fitness for any particular purpose,
with respect to the consumer replaceable battery if any.
This warranty is provided in addition to other rights and
remedies you have under law:
Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not
amount to a major failure. What constitutes a major failure is
set out in the Australian Consumer Law.
To make a claim under warranty, take the product (with a
proof of purchase) to the store where you purchased the
product or contact PSA Products Pty Ltd.
Phone [phone]. or Email:
[email protected] with details, proof of purchase
or expense claim in writing.
Figure 2: Connection of LIFSAIR without
using 9V input.
Please note: If the LIFSAIR is used without connecting
the 9V input, then only one isolation relay can be used in a
interconnected system. If the 9V is connected, then multiple
LIFSAIR can be used on one interconnected system.
Interconnected system using a CO alarm must use the 9V
output from the smoke alarm.
1. Secondary Contacts NO and NC are activated
by smoke alarm interconnect switch wire
2. Contacts are rated 240V AC 5Amps
SM pulse
SWTICH
SM latching
CO
9V
Figure 1a:
2
TECHNICAL NOTE
The wiring connecting the module with the external device
is not supervised. Be sure to test the operation of all the
devices controlling the module or controlled by the module.
Devices controlled by the module can be tested by pushing
the test button on the alarms and verifying that the
controlled device responds in the desired manner. Devices
controlling the module can be tested by activating the
device and verifying that all of the interconnected alarms
enter alarm.
WARRANTY.
Another Quality Product by:
PSA Products Pty Ltd
17 Millicent Street, Burwood
Victoria 3125 Australia
Telephone: [phone]
Facsimile: [phone]
e-mail: [e-mail]
web-site: www.psaproducts.com.au
1201-7203-01
SM pulse
SWTICH
SM latching
CO
240V SUPPLY
SMOKE / HEAT ALARM
LIFSAIR
NO
C
NC
GND
S
9V
TO SECURITY PANEL OR
OTHER CONTROLLED
DEVICES.
A
A S N
N
A S N A S N
Normally Close
Relay:
Detector input:
Common
Normally Open
9VDC input
Switch line
GND/N
Pulse
Latching
CO latching
Settings:
