The PSA LIFESAVER 5800ACF is a low profile AC/DC
powered photoelectric smoke alarm that operates on
a 240V power source with a non-removeable 10 year
lithium battery backup. This advanced smoke alarm
has the ability to function as a stand alone unit or in an
interconnected system. The PSA Lifesaver 5800ACF is
compatible with other PSA Lifesaver smoke alarms, heat
alarm, carbon monoxide alarm and ancillary devices.
This alarm uses photoelectric sensing technology.
Photoelectric sensing alarms may detect visible
particles (associated with smoldering fires) sooner
than ionisation alarms. Ionisation sensing alarms may
detect invisible fire particles (associated with flaming
fires) sooner than photoelectric alarms.
PSA Lifesaver model 5800ACF is a 240VAC powered
alarm with a 10 year lithium battery to provide
continuous protection during a power failure and
includes a quick connect power harness to make
installation simple.
FEATURES:
• Low profile flush mount design
• Photoelectric Sensing Technology.
• 240VAC with sealed 10 year lithium battery backup,
no longer need to change battery.
• One button Test and Hush feature.
- Large easy design button to Test alarm operation
and Hush to silence nuisance alarms.
• Two LEDs.
- Green LED indicates AC condition.
- Red LED indicates alarm condition.
• Alarm memory.
• Dual insect screens over outer perimeter and
inner sensor chamber to reduce nuisance alarm.
• 90mm cut-out, down-light style mounting
for quick and easy installation.
240VAC WITH
10 YEAR BATTERY BACKUP
FLUSH DESIGN
PHOTOELECTRIC SMOKE ALARM

1300 772 776 [email protected]
psaproducts.com.au
FIRE •SECURITY •INTERCOMS
ARCHITECTURAL AND
ENGINEERING SPECIFICATIONS
The smoke alarm shall be PSA Lifesaver model LIF5800ACF. It shall
be powered by a 240VAC, 50Hz source along with a fixed non-
removeable 10 year lithium battery backup. The unit shall incorporate
photoelectric sensing technology with insect screen protection. The
temperature operation range shall be between 0ºC and 40ºC and
the humidity operating range shall be up to 93% relative humidity.
The smoke alarm shall be low profile mounted designed with an
installed dimension of 110mm wide x 28.5mm high. The electrical
connection (to the alarm) shall be made with a plug-in connector.
A maximum of 24 PSA Lifesaver devices can be interconnected in a
multiple station arrangement.
The alarm shall include a test button that will electronically simulate
the presence of smoke and cause the unit to go into alarm. This
sequence tests the unit’s electronics, battery and horn to ensure
proper operation. The unit shall include a piezoelectric horn that is
rated at 85 decibels at 3 metres. Single button operates both Hush
and alarm test for easy operation and less confusion. The unit shall
also include a low battery warning utilizing a brief alarm chirp
every 43 seconds for a minimum of seven (7) days. The unit shall
incorporate red and green LED indicators. The green LED indicates
the power status of the alarm. The red LED is a visual indicator of
alarm and warning chirps.
Standby Condition: The green LED will be lit if on AC power or
off if on battery backup. Alarm Condition: When the alarm senses
products of combustion and enters alarm the red LED will blink
in unison with the sounder. The flashing red LEDs and pulsating
alarm will continue until the air is cleared. Should the units is in an
interconnected system, it will sound an alarm and flash the red LED
and the green LED will remain at is standby state. Alarm Memory:
This smoke alarm is equipped with an alarm memory, which provides
an audible indication when an alarm has been activated. Pressing the
Test button on the initiating unit will give rapid beeping indicating the
unit is the initiator. It resets when the button is released.
Hush Mode: The Hush mode will be over ridden if there is heavy
presence of smoke particles in the air. The unit shall at a minimum
meet the requirements of AS3786:2014 and is Activfire listed. It shall
also include a 10 year manufacture’s limited warranty.
INSTALLATION OF THE SMOKE ALARM
The PSA Lifesaver 5800ACF is easy to install by drilling a 90mm
hole into the plaster ceiling. The unit is fitted with spring toggle
clips to secure the smoke alarm behind the ceiling. The unit is
connected to the power using a supplied 4 pin power connector
and lead with terminal block for safe and easy installation. A
mounting adapting ring is provided.
SPECIFICATIONS
Compatible with All PSA Lifesaver range of smoke alarms,
heat alarm, CO alarm and auxiliary devices.
Detection Method Photoelectric sensing technology
Operation Stand-alone or interconnect up to 24 units
Power Requirement 240V AC 50Hz sine wave supply.
Power Backup Non-removeable 10 year lithium battery
Rating 4mA max per alarm
Alarm sound 85dB at 3m
Low battery
indication
Sounds a chirp at 43 second intervals, in
addition to red LED flashing
Alarm duration As long as smoke is present, unit
automatically resets when smoke clears
Alarm indication Audible alarm, 3 long beeps repeating.
Flashing red LED every 0.5 seconds.
Temperature Range 0ºC to 40ºC
Humidity Range Up to 93% relative humidity (RH)
Size 110mm Wide x 73mm High.
28.5mm High installed.
Wiring Quick connect 4 pin plug
LED Green, power indicator
Red, alarm indicator
Warranty 10 years
Compliance
Activfire Approved and listed
to AS3786:2014
Australian standards certified product.
Australian Electrical Authority Approval. RCM
LIFESAVER 5800ACF
*Refer to Installation and User Manual for further information and programming.
Due to PSA commitment to continual product improvement, specification may change without notice.

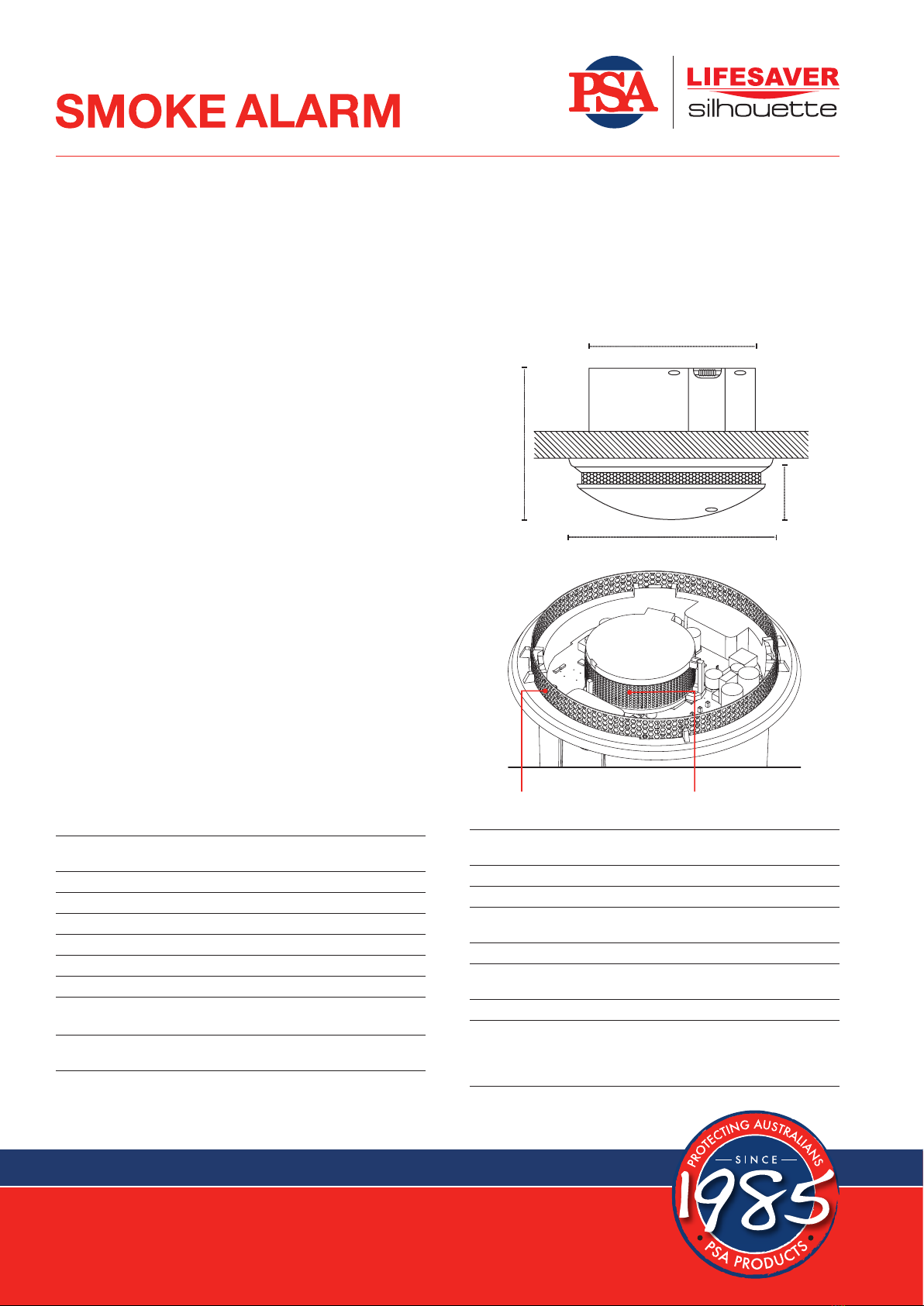

110mm
28.5mm
73mm
90mm cut-out hole
Outside Insect Screen Inside Insect Screen
