Pule PSPVC6 User manual
6ChannelHighPowerStereoSpeakerSelector
PSPVC6
with Volume Control
www.PyleUSA.com
2
Read all documentations carefully before operating the equipment.
Retain this manual for future reference.
Congratulations for purchasing the PSPVC6 6 Channel High Power Stereo Speaker
Selector. It lets you connect up to six separate pairs of speakers to your stereo
receiver/amplier. The control center is especially convenient if you have speaker
sets in dierent rooms and want to turn them on and o independently. You can
enjoy the convenience and exibility of listening to multiple speaker pairs
simultaneously.
The control center lets you use one to six sets of speakers at a time, and is designed
to operate with a stereo receiver/amplier that has a maximum of 100 watts per
channel, and with speaker systems that have a minimum impedance of 8 ohms (see
"Impedance Chart" on page 4)
PREPARATIONS
• Use the PYLE PRO Speaker Selectors only with ampliers rated at 100 watts per
channel or less.
• Your PYLE PRO Speaker Selector is designed to accept any size cable up to 14 gauge
non-terminated speaker wire. If you're using non-terminated speaker wire, do not
use any speaker wire that is larger than 14 gauge. The lower the gauge number, the
larger the cable (e.g., 12 gauge is larger in actual physical size than 14 gauge).
• Do not hook the outputs of one selector into the inputs of another speaker
selector together.
• Before you connect the AC power source, make sure you set ALL speakers ON/OFF
to OFF
• Left and right "commons" are isolated to work with all types of ampliers
• Auto transformer impedance protection.
www.PyleUSA.com
3

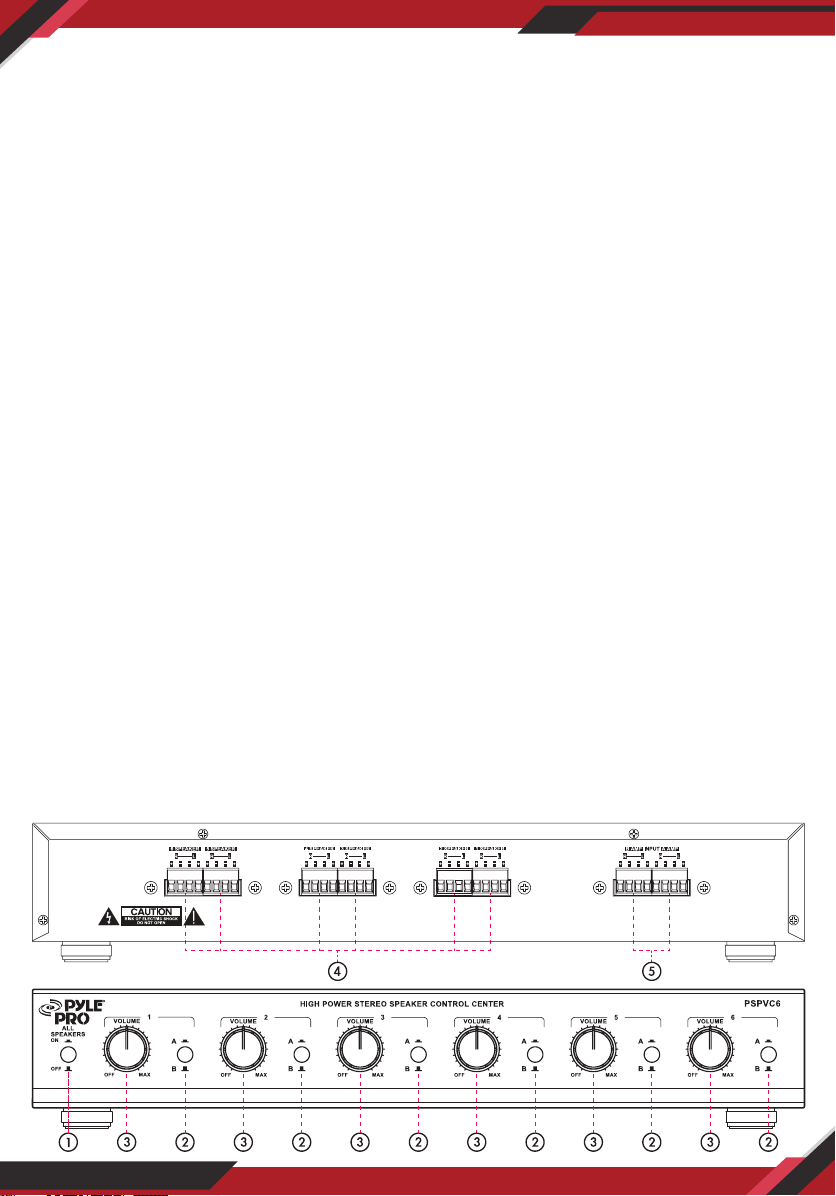

OPERATION
1. Speakers ON/OFF Button: Press button to turn ON all speaker pairs.
Press button again turn OFF.
2. Amplier A/B Selector Button: Press button to select amplier A and B.
3. Volume Controls: Turn the control knob clockwise to increase the volume and
counter-clockwise to decrease or o.
4. Speaker Connections: The control center divides the power from your receiver/
amplier dierently to its speaker terminals. (This is especially noticeable when
you connect only one pair of speakers. If you connect more than one pair of speakers,
see "Impedance Chart" on page 4 to selector the best terminals to connect.)
For the best performance, make the connections based on how frequently you use
each set of speakers.
Cautions:
To avoid damaging your speakers or receiver/amplier:
• Be sure your receiver/amplier's power is turned o before you make the
connections.
• Never let the speaker wire's bare ends touch each other or the adjacent terminals
on the control center.
• Do not connect more than one pair of sepakers to each set of terminals.
5. Amplier Connections: Connect the speaker output of your receiver or amplier
(100 watts max). lf you are using a second amplier, connect it to the B amp terminal.
Maximum Amplier input
• 100W RMS
• 150W AVG
Maximum Output per Speaker
• 18W RMS
• 50W AVG
• 100W PEAK
• 4 or 16 OHMS LOAD
Insert the speaker’s positive (+) wires in the positive terminals, and negative (-) wires
into the negative terminals, according to the respective L (left) and R (right) terminals.
www.PyleUSA.com
4

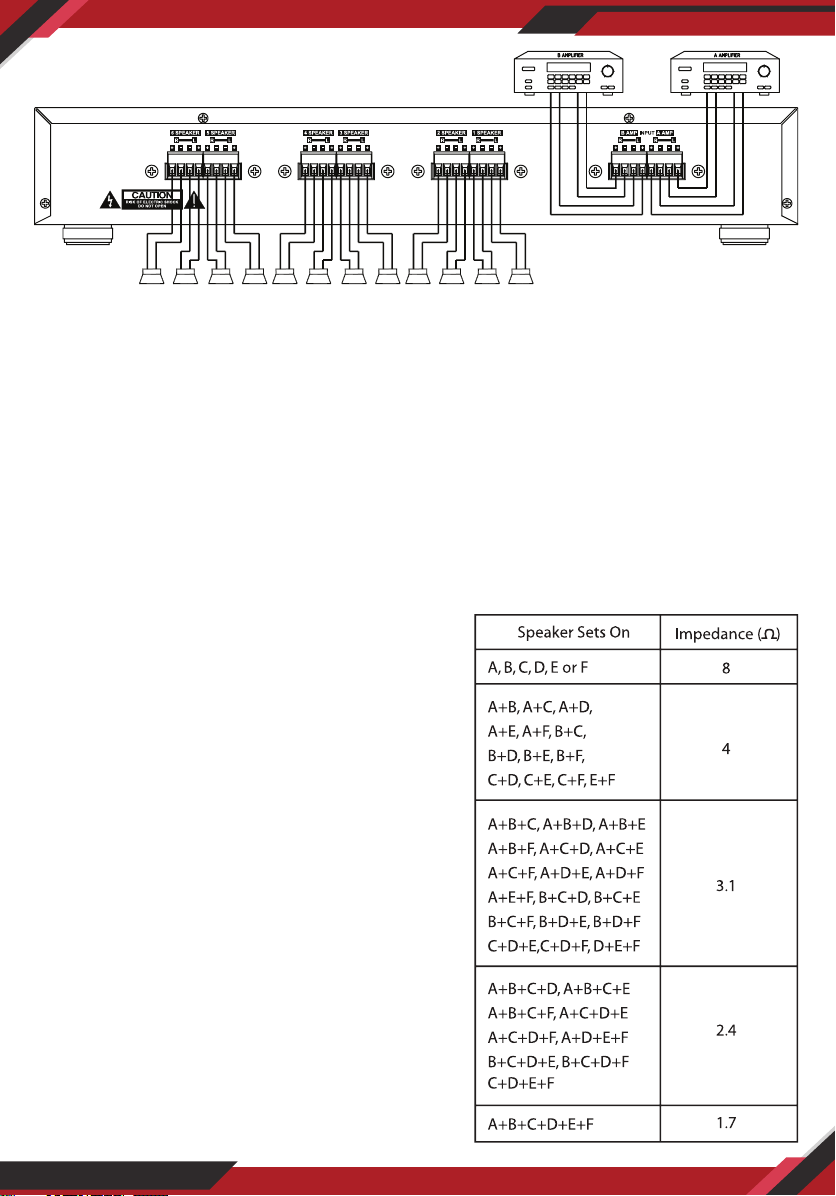

Insert your receiver/amplier's positive (+) wires into the positive terminals, and
negative (-) wires in the negative terminals.
Notes:
• lf your receiver/amplier has more than one set of speaker terminal (A and B),
connect only one or the other to the control center.
• For the best results, we recommend 14-gauge, two conductor speaker wire
(not supplied) for most connections. If you plan to locate the speakers further than
80 feet from the control center, use a heavier gauge of wire.
IMPEDANCE CHART
Impedance is a measurement of the load
placed on your receiver/amplier by the
speakers. The load placed on your receiver/
amplier from the control center will vary
depending on how many pairs of speakers
you turn ON at one time, and on which
speakers you turn ON.
The chart below shows the impedance for
all possible combinations of 8-ohm speakers.
www.PyleUSA.com
5
Features:
• Multi-Channel High Powered Amplier
• Up to 6 Separate Speaker Pairs to your Stereo System
• Accepts Speaker Wires Up to 14- Gauge
• Protection Circuitry Keeps it Running Smoothly
• Individual Speaker Volume Control
• Support Two Stereo Ampliers
• Rugged & Durable Housing Construction, Cabinet Heatsink
• Control Powered 6 Channel Amplier
• Plug and Play Easy Install
What’s in the Box:
• High Power Stereo Speaker Selector
Technical Specs:
• Power Output: 6 x 100 Watts
• Amplier Design: 6-Channel
• Minimum Impedance: 8 Ohms
• Frequency Response: 20Hz - 20KHz
• Signal to Noise Ratio: >81dB
• Channel Separation: 80 dB
• Crosstalk between Channels: 50 dB
• Speaker Terminal Wire Size: 14-22 gauge
• Max. Amplier Input: 100W RMS, 150W AVG
• Max. Output per Speaker: 18W RMS, 50W AVG
• Product Dimension (L x W x H): 6.29'' x 16.92'' x 3.03'' -inches
This products can expose you to a chemical or group of checmicals, which
may include ”Nickel Carbonate” which is known in the state of California to
cause cancer, birth defects, or other reproductive harm. For more info, go to
https://www.p65warnings.ca.gov/.
