Optimus IT-100 User manual

9I056 27/11/2011

R+D Department
IT-100 v1.2 4
DTMF telephone interface
IT-100
VERY IMPORTANT!
The telephone connection must be made with an analog exchange extension or an analog outside line.
The dialling system must use DTMF tones.
Contents
1. GENERAL INFORMATION ..........................................................................................................4
2. FRONT VIEW ..........................................................................................................................4
3. REAR VIEW ............................................................................................................................5
4. BLOCK DIAGRAM ....................................................................................................................6
5. CONFIGURATION ....................................................................................................................7
6. OPERATION............................................................................................................................9
7. TECHNICAL SPECIFICATIONS ................................................................................................. 10
8. DOCUMENT VERSION TRACKING ............................................................................................ 11
9. WALL MOUNTING KIT: Z-110 (not included)............................................................................. 11
10. DIN RAIL MOUNTING KIT: Z-111 (not included)...................................................................... 12
11. SINGLE MOUNTING KIT: Z-112 (not included) ........................................................................ 13
12. DOUBLE MOUNTING KIT: Z-113 (not included) ....................................................................... 13
13. GUARANTEE ....................................................................................................................... 14
1. GENERAL INFORMATION
The IT-100 is an independent (stand-alone) DTMF telephone interface. It provides access to the P.A.
system from the telephony installation.
2. FRONT VIEW
(1) CONFIG. LINE INDICATOR: Yellow LED.
Slow blink: Module in standby mode (READY).
Fast blink: Starts to blink when the CONFIG.
button is pressed. This indicates that the
module is in configuration mode. Once the
module answers, the LED remains
permanently lit.
Permanently lit: This indicates that the
module is broadcasting a message or the
configuration parameters are being entered
from a telephone call.
(2) PRIORITY: Yellow LED indicating priority
(on standby turned off). It lights when a
telephone call is made.
(3) VOLUME: Front volume control. (If the rear
VOLUME BYPASS jumper is ON, this volume does
not work).
(4) ON LED: Blue LED indicating module is on.
(5) POWER SWITCH: ON/OFF switch

R+D Department
IT-100 v1.2 5
DTMF telephone interface
IT-100
3. REAR VIEW
(1) POWER SUPPLY FUSE: 0.5A fuse (250V AC)
(2) CONNECTION TO THE 230V AC MAINS SUPPLY: Male socket CEE22. For connection to the mains
supply by means of the cable supplied together with the module.
(3) GROUND TO CHASSIS CONNECTION: In all Public Address installations it is very important that
there is one single point of connection between the signal ground connection and the mains supply
ground contact.
If the Public Address installation is composed of several equipment units, their chassis will probably be
joined, either by means of the ground terminal of the mains connection, or because they are fitted in a
rack cabinet.
If the ground connections are also joined by the signal circuits, it is advisable to remove the jumper
between the ground connection and the chassis from all the units except one.
(4) SURETY PAGING: Paging security relay. Switches when a telephone call is made.
(5) VOLUME BYPASS:
(6) AUDIO OUTPUT: Audio output. It has a priority contact.
VOLUME BYPASS OFF
Front volume control enabled
(Default configuration)
VOLUME BYPASS ON
Front volume control disabled

R+D Department
IT-100 v1.2 6
DTMF telephone interface
IT-100
(7) DIPSWITCH: Configures the audio output level.
AUDIO LEVEL
SWITCH
1
2
3
4
-60dB
ON
OFF
OFF
OFF
-20dB
OFF
ON
OFF
OFF
0dB
OFF
OFF
ON
OFF
+4dB
OFF
OFF
OFF
ON
(8) CONFIG. BUTTON: This is used to configure the internal parameters of the telephone module.
(9) CONFIG. LED:
Slow blink: Module in standby mode (READY).
Fast blink: Starts to blink when the CONFIG. button is pressed. This indicates that the module is in
configuration mode. Once the module answers, the LED remains permanently lit.
Permanently lit: This indicates that the module is broadcasting a message or the configuration
parameters are being entered from a telephone call.
(10) PHONE LINE IN:
RJ-11 connector.
Analog telephone line
connection.
(11) INPUT LEVEL
ADJUST: Posterior
audio level adjustment
of the telephone
module.
(12) JUMPER: Ground
to chassis connection.
4. BLOCK
DIAGRAM
Factory setup configuration

R+D Department
IT-100 v1.2 7
DTMF telephone interface
IT-100
5. CONFIGURATION
The configuration defines the mode in which we communicate with the module by means of DTMF tones
of a telephone call. Access to this configuration is gained by pressing the “CONFIG.” button on the
module and making a call through the telephone connection. Once the module answers, 10 digits must
be entered. Each digit configures a different parameter.
5.1. CONFIGURATION PARAMETERS
The programmable parameters are:
Digit / Parameter
Description
Values
1
First digit of the password
0 to 9
2
Second digit of the password
0 to 9
3
Third digit of the password
0 to 9
4
Number of call tones before module answers
1 to 9
5
Parameter not used
0 to 9
6
Parameter not used
0 to 9
7
Parameter not used
0 to 9
8
Hang-up tone detection time
0 to 9
9
Noise gate (0, deactivated / 1, activated)
0 to 1
10
Maximum message time
0 to 9
Parameters 5, 6 and 7 are not used and any number key can be pressed.
PARAMETERS 1, 2 and 3: PASSWORD
These establish the three digits of the password:
P1
P2
P3
DESCRIPTION
0
0
0
Without password: the call is made and the module answers after the dial tones configured.
X
X
X
The password is X X X: the call is made, the module answers and the password must be keyed in from
the telephone.
If the password is correct, three tones will be heard and the message can be broadcast.
PARAMETER 4: CALL TONES
This configures the number of call tones after which the module will answer when a call is made to
broadcast a message (between 1 and 9).
N.B.: In the case of the configuration call, the module always answers after two call tones.
PARAMETER 5: Parameter not used.
Press any number key.
PARAMETER 6: Parameter not used.
Press any number key.
PARAMETER 7: Parameter not used.
Press any number key.

R+D Department
IT-100 v1.2 8
DTMF telephone interface
IT-100
PARAMETER 8: Hang-up tone detection time.
Depending on the type of exchange or the quality of the telephone line, the module could mistake a tone
of voice for the hang-up tone. If this occurs, increase this parameter so that a longer detection time is
programmed.
Values of 0 to 9 are admitted, increasing the hang-up tone detection time by 25 ms with each value (0 =
disabled, 1 = 25 ms … 9 = 225 ms).
PARAMETER 9: NOISE GATE
Through this parameter, the noise gate available on this telephone interface can be activated (dial 1) or
deactivated (dial 0).
PARAMETER 10: COMMUNICATION TIME
This determines the maximum communication time. Once this time has elapsed, the module will hang up
automatically.
P10
MAXIMUM COMMUNICATION TIME
0
8 seconds
1
15 seconds
2
30 seconds
3
45 seconds
4
60 seconds
5
75 seconds
6
90 seconds
7
105 seconds
8
120 seconds
9
900 seconds (15 minutes)
5.2. FACTORY DEFAULT SETTINGS
The module is factory configured as follows:
0
0
0
2
0
0
0
4
0
2
PASSWORD
ANSWER ON
2nd CALL TONE
-----
-----
-----
Detection of
hang-up
tone
Noise gate
deactivated
MAX. TIME
30 s.
ATTENTION: By assigning a 0 to this parameter, the automatic hang-up function is deactivated; in
this case, if the telephone hangs up and the communication time (parameter 10) has not ended, the
hang-up tone will be heard over the Public Address system until this time has elapsed.
To avoid this, the system includes the function of forcing hang-up by pressing key 1. When 1
is pressed, independently of the values assigned to parameter 8 (hang-up tone detection time) and to
parameter 10 (communication time), the telephone hangs up.

R+D Department
IT-100 v1.2 9
DTMF telephone interface
IT-100
5.3. CALL CONFIGURATION PROCESS
To change the parameters, it is necessary to make a configuration call as described below:
1. Press the CONFIG. button on the rear panel of the module. The CONFIG. LED will start to blink quickly.
The user has approximately 25 seconds to make the call and send the configuration parameters.
2. Dial the telephone number (or extension) corresponding to the IT-100 telephone adaptor from a tone
dial telephone. The unit will answer on the second call tone, the CONFIG. LED will remain lit and three
different tones will be heard through the telephone receiver.
3. Key in the 10 digits corresponding to the 10 configuration parameters. 3 identical tones will be heard
through the telephone receiver to confirm reception of the configuration and the CONFIG. LED will
change to READY mode (slow blink).
4. Hang up the telephone.
6. OPERATION
Once the IT-100 telephone adaptor has been configured by following the steps described in the previous
sections, access can be gained to the PA system from the telephone by dialling the number corresponding
to the telephone line connected to the module.
6.1. BROADCAST OF A MESSAGE WITHOUT A PASSWORD
1. Pick up the telephone.
2. Dial the telephone number corresponding to the telephone interface.
3. Wait for the module to answer after the established call tones (from 1 to 9 depending on the
configuration).
4. The module answers, emits a series of short tones, and then a long tone is heard, indicating that the
message can now be broadcast.
5. To end the message, hang up the telephone or press key 1. By default, the system will hang up
automatically once the communication time defined when the telephone interface is configured has
elapsed.
6.2. BROADCAST OF A MESSAGE WITH A PASSWORD
1. Pick up the telephone.
2. Dial the telephone number corresponding to the telephone interface.
3. Wait for the module to answer after the established call tones (from 1 to 9 depending on the
configuration).
4. The module answers and emits a series of short tones.
5. Enter the three digits corresponding to the password and then a long tone will be heard, indicating
that the message can now be broadcast.
6. At the end of the message, hang up the telephone or press key 1. By default, the system will hang up
automatically once the communication time defined when the telephone interface is configured has
elapsed.

R+D Department
IT-100 v1.2 10
DTMF telephone interface
IT-100
6.3. CONFIGURATION EXAMPLE AND SENDING AN ANNOUNCEMENT
We will define the following configuration:
1
2
3
2
0
0
0
4
0
2
PASSWORD 123
ANSWER
AFTER 2
CALL TONES
- - -
- - -
- - -
Detection of
hang-up
tone
NOISE GATE
DEACTIVATED
MAXIMUM
TIME 30 s.
CONFIGURATION
1. Press the CONFIG. button on the rear panel of the module. The CONFIG. LED will start to blink
quickly.
2. Dial the telephone number corresponding to the telephone interface. When the module answers, the
CONFIG. LED will remain lit and THREE DIFFERENT TONES will be heard.
3. Enter the ten digits (parameters) of the intended configuration (in this case 1 2 3 2 0 0 0 4 0 2).
4. THREE IDENTICAL TONES will be heard, confirming that programming has been completed correctly,
and then the telephone module hangs up automatically.
5. Hang up the telephone. The CONFIG. LED blinks slowly again, indicating that the system is now
configured.
N.B.: The user has approximately 25 seconds to make the call and send the configuration parameters.
SENDING AN ANNOUNCEMENT
1. To broadcast an announcement, pick up the telephone and call the number corresponding to the
telephone module.
2. After 2 call tones, the module answers and the CONFIG. LED stops blinking and remains lit.
3. After a series of consecutive identical tones, enter the three digits corresponding to the password (1,
2, 3).
4. A long tone will be heard. Speak after this tone. You have 30 seconds to broadcast the
announcement.
5. To end the announcement, hang up the telephone or press key 1.
7. TECHNICAL SPECIFICATIONS
Power supply
230 V AC 50/60 Hz
Consumption
On standby: 15 mA (230V AC) 3.5 W
During a call: 20 mA (230V AC) 4.6 W
Type of dialling
DTMF tones
Weight
1.9 kg
Dimensions
213 x 44 x 235 mm
Rack units
1
Finishes
Chassis: iron painted black RAL 9005
Cover: black skinplate
Accessories
Z-113 Double mounting kit (0,33 Kg)
Z-112 Single mounting kit (0,4 Kg)
Z-111 DIN rail mounting kit (0,1 Kg)
Z-110 Wall mounting kit: (0,24 kg)

R+D Department
IT-100 v1.2 11
DTMF telephone interface
IT-100
8. DOCUMENT VERSION TRACKING
Reference system
Type of Document
Confidentiality
N/A
Analogue systems
Installation and operation guide
Rev
Date
Modifications Content
Written by:
1.1
April 11
Pagination and spelling corrections
R+D Department
1.2
December 11
Table Parameter 10, page 8. Maximum Communication Time for P10 = 9 is 900
seconds
R+D Department
Approved By
Function
Date
Ferran Gironès i Puig
R+D Director
04/2011
9. WALL MOUNTING KIT: Z-110 (not included)
OPTION A
OPTION B

R+D Department
IT-100 v1.2 12
DTMF telephone interface
IT-100

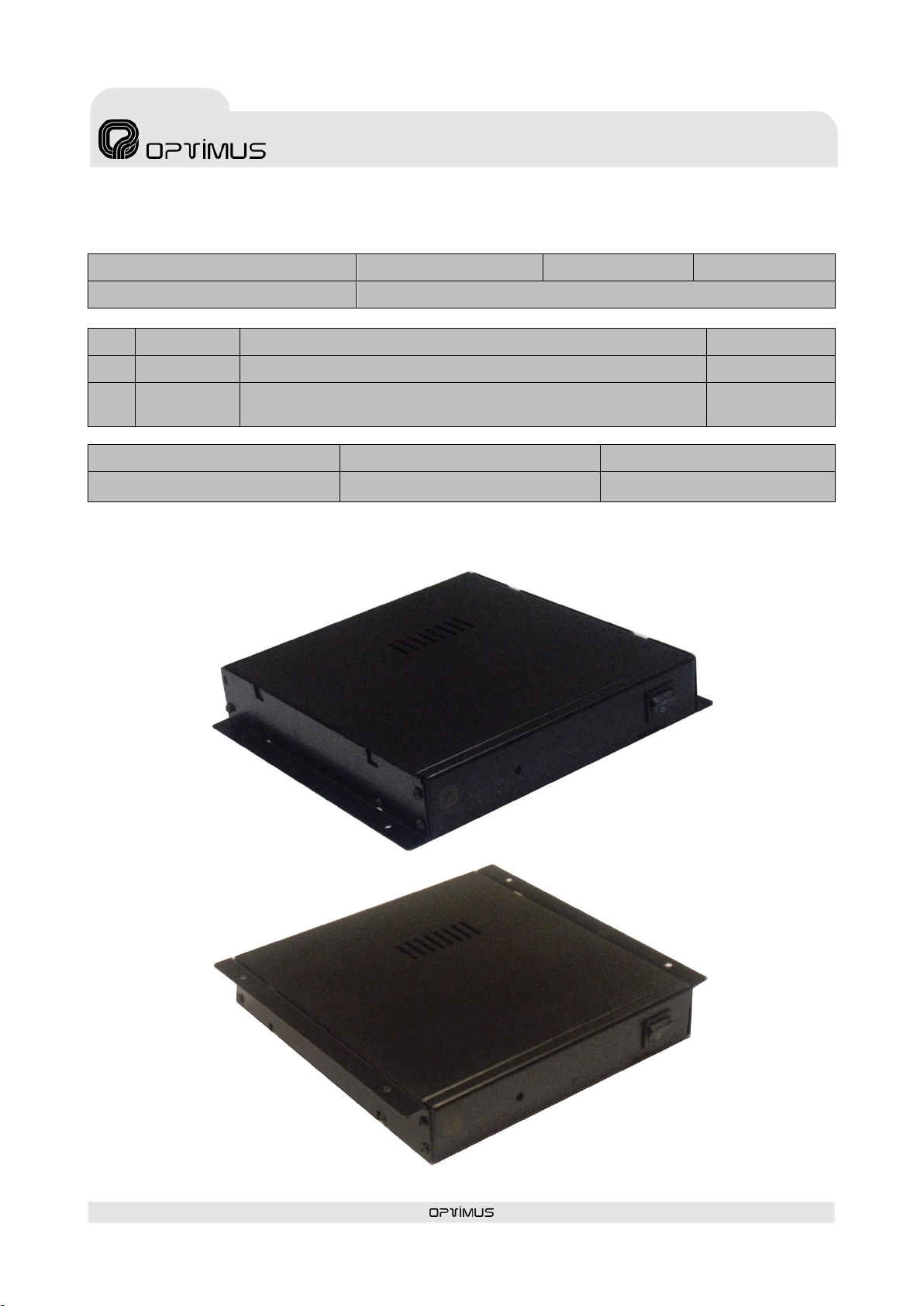

10. DIN RAIL MOUNTING KIT: Z-111 (not included)
VIEW OF UNDERSIDE
VIEW OF TOP

R+D Department
IT-100 v1.2 13
DTMF telephone interface
IT-100

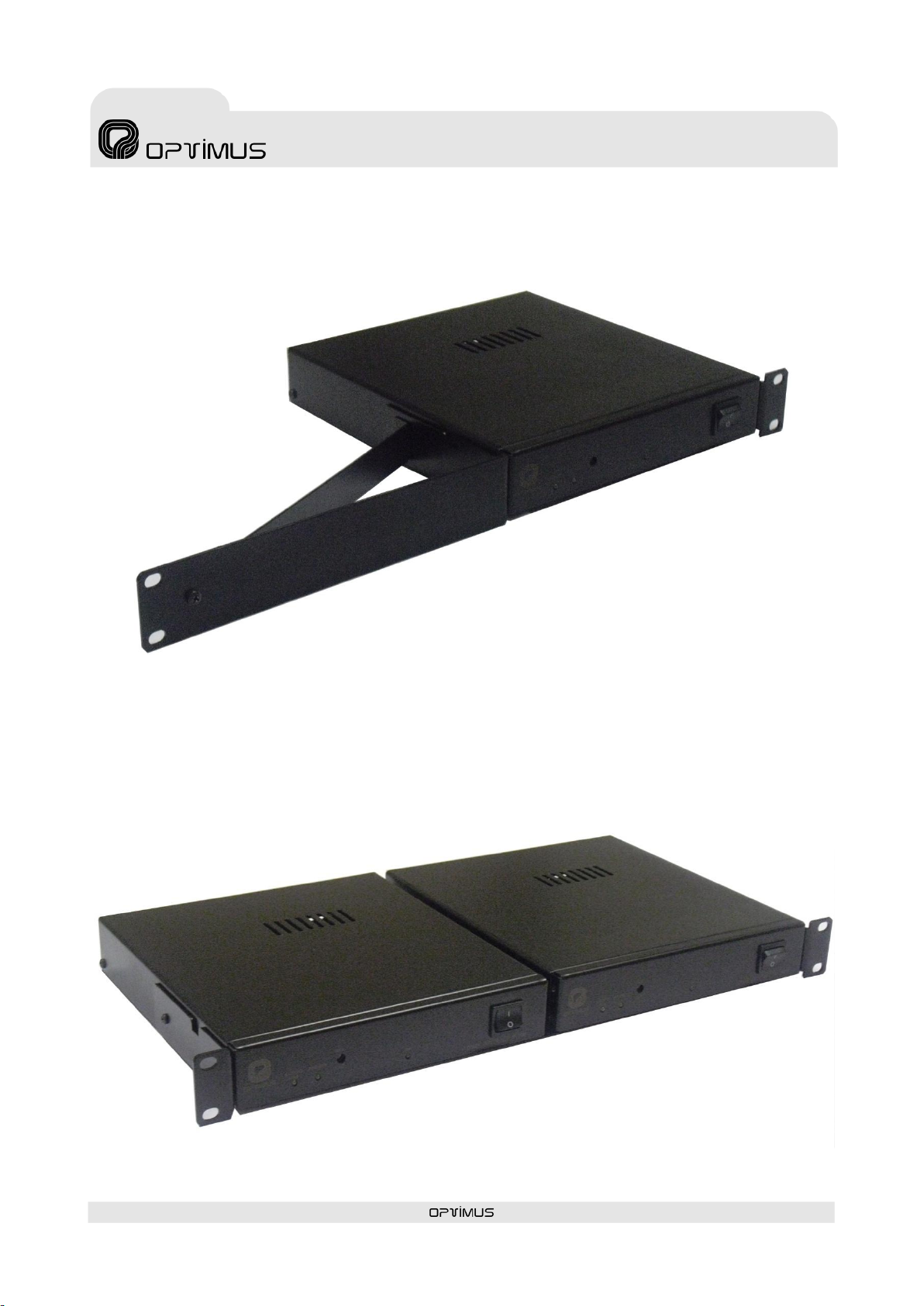

11. SINGLE MOUNTING KIT: Z-112 (not included)
12. DOUBLE MOUNTING KIT: Z-113 (not included)

R+D Department
IT-100 v1.2 14
DTMF telephone interface
IT-100
13. GUARANTEE
1. GUARANTEE CERTIFICATE
1. OPTIMUS S.A. guarantees that its products are free from material and
manufacturing defects when they are first delivered to the purchaser.
2. In accordance with the conditions outlined here, OPTIMUS S.A.
guarantees its products for two (2) years from the date on which the
purchaser acquires the product. If, within this guarantee period, defects
appear which are not due to factors outlined in section 2, OPTIMUS S.A.
shall replace or repair the unit using equivalent, new or reconstructed
replacement parts, as it deems fit. If replacement parts are applied which
improve the unit, OPTIMUS S.A. reserves the right to charge the client for
the additional cost of these components.
3. No guarantee benefits shall be provided other than those cited here.
4. In order to claim the guarantee rights, it shall be an essential
requirement to present the original purchase invoice or the guarantee
certificate.
2. GUARANTEE PROVISIONS
1. In the event that the product had to be modified or adapted to
comply with local requirements concerning technical specifications or
safety, and if the country in question is not the country for which the
product was originally designed and manufactured, defects are not
considered to be material or manufacturing defects. Furthermore, the
guarantee does not cover the execution of these modifications or
adaptations, regardless of whether or not they have been carried out
correctly.
Nor shall OPTIMUS S.A. be responsible for any costs under this guarantee
for these types of modifications.
2. The guarantee shall not entitle the purchaser to inspection or free
maintenance or repair of the unit, particularly if the defects are due to
inappropriate use. Nor do the guarantee rights cover defects in wearing
parts that become worn as a result of normal wear and tear. Wearing
parts are, in particular, potentiometers, switches/keys, and similar parts.
3. The guarantee does not cover defects in the equipment unit caused
by:
Abuse or incorrect use of the unit for purposes other than those for
which it is intended, in non-compliance with the service and
maintenance instructions specified in the Manual and/or Technical
Instructions for the unit.
Connection or use of the product in a manner that does not
correspond to the technical or safety requirements of the country in
which the unit is used.
Installation in conditions other than those indicated in the Manual
and/or Technical Instructions.
Deficiency or interruptions in the electricity supply or installation
defects which imply use in abnormal conditions.
Damage caused by other equipment units that are connected to the
product.
The use or installation of Software (programmes), interfaces, parts or
supplies not provided and/or not authorized by OPTIMUS S.A.
Failure to use the original packaging for transportation.
Damage caused by force majeure or other causes not attributable to
OPTIMUS S.A.
4. The following elements are not covered by this guarantee:
All plastic surfaces and all parts exposed to outdoor conditions which
have been scratched or damaged as a result of normal or abnormal
use.
Breakages, knocks, damage due to a fall or scratches caused by
moving the unit in any way.
Damage caused by tests, use, maintenance, installation or
inappropriate adjustments, or as a result of any alteration or
modification of any kind not carried out by a Service Authorized by
OPTIMUS S.A. in compliance with this guarantee.
Damage to persons or property that might be caused by the improper
use of the equipment, including lack of maintenance.
5. The guarantee shall not be valid whenever the following is observed:
Amendments or corrections made to the details of the guarantee
certificate or purchase invoice.
Failure to produce the original invoice or the absence of a date on
this.
Absence of the serial or batch number on the equipment.
6. In the case of personal computers, the guarantee will not cover the
elimination of computer viruses, the restoration of programmes damaged
by these or the reinstallation of the disk following its deletion.
7. The rights of this guarantee are invalidated if the product has been
repaired or opened by staff unauthorized by OPTIMUS S.A. or by the client
himself.
8. If OPTIMUS S.A. were to establish before the client that the damage
affecting the unit does not entitle a claim to be made under the
guarantee, the costs of checking the equipment incurred by OPTIMUS S.A.
shall be borne by the client.
9. Products not covered by the guarantee shall only be repaired once
payment has been effected by the client. In the event that the guarantee
rights do not apply, OPTIMUS S.A. shall duly inform the client. If, within a
period of 6 weeks from this communication, no written repair order is
received from the client confirming acceptance of the costs, OPTIMUS S.A.
shall return the unit in question to the client. In this case, the transport
and packaging costs shall be invoiced separately and payment shall be
made on delivery. In the event that a repair order is sent by the client,
confirming that he assumes the costs of repair, the transport and
packaging costs shall be invoiced additionally, and also separately.
10. If the equipment needs to be transferred to the Authorized Service
Centre, transportation shall be effected by the responsible party according
to the guarantee, who will also bear the freight and insurance costs.
11. In the event of a defect, OPTIMUS S.A. guarantees that the repair
and/or replacement of parts so that the unit operates correctly will be
made within a period of no more than 30 days. Nevertheless, OPTIMUS
S.A. would like to clarify that the normal period does not exceed 30 days.
12. All parts or products replaced as part of the guarantee services shall
become the property of OPTIMUS S.A.
3. TRANSFER OF GUARANTEE
The guarantee is solely awarded to the original purchaser (principal client)
and is not transferable. With the exception of OPTIMUS S.A., no third
party (dealers, etc.) is authorized to award additional guarantees on
behalf of OPTIMUS S.A.
4. CLAIMS FOR DAMAGE
In the event that OPTIMUS S.A. cannot provide a suitable guarantee
service, the purchaser shall not be entitled to claim any indemnity for
damages arising. The responsibility held by OPTIMUS S.A. is limited in all
cases to the invoicing price of the product.
5. RELATION WITH OTHER GUARANTEE RIGHTS AND NATIONAL
LAW
1. This guarantee does not affect the rights of the purchaser with respect
to the vendor arising from the contract of sale accomplished.
2. These conditions of the guarantee provided by OPTIMUS S.A. are valid
as long as they do not contradict the corresponding national law on
guarantee provisions.
3. OPTIMUS S.A. guarantees that this product complies with the safety
regulations in force in the country.
THIS LIMITED GUARANTEE DECLARATION IS THE EXCLUSIVE GUARANTEE
OFFERED BY OPTIMUS S.A. ALL OTHER EXPLICIT OR IMPLICIT
GUARANTEES ARE EXCLUDED, AND THIS ALSO APPLIES TO GUARANTEES
OF MARKETABILITY AND SUITABILITY FOR A PARTICULAR PURPOSE.
(EXCEPT WHEN THESE GUARANTEES ARE REQUIRED BY AN APPLICABLE
LAW). NO GUARANTEE, EITHER EXPLICIT OR IMPLICIT, SHALL BE
APPLIED ONCE THE GUARANTEE PERIOD HAS EXPIRED
OPTIMUS S.A.
After-Sales Service
C/ Barcelona 101
17003 - GIRONA
Tel. [phone]
Fax. [phone]
e-mail:[email protected] 1999/44/CE
