Pure Glow XPG170 User manual

1
Installation and Maintenance Instructions
XPG170 Electric Fires
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND
RETAIN FOR FUTURE REFERENCE
Your PUREGLOW electric fire has been made with great care. Here are some instructions
including cleaning and maintenance, which will help you keep your fire in good condition
for many years. If you experience any parts or service problems contact either your
retailer or PUREGLOW LIMITED.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
This is an amendment to the standard and now applies to all EN60335 items.
PUREGLOW LIMITED
Stour Vale Road
Lye, Stourbridge, DY9 8PP
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.pureglowltd.co.uk

2
YOUR FIRE
XPG fires are visual effect fires with LED lighting and remote control. They are available
with several different fascia trims and frets.
The general fitting instructions refer to all models.
SECTION 1: UNPACKING, ELECTRICAL INSTALLATION AND
GENERAL SAFETY
GENERAL
Unpack the fire carefully and retain the packaging for possible future use, for example in
the event of moving home or returning the fire for repair to your supplier. Remove any
plastic protection film and transit tape.
The fire incorporates an effect which can be used with or without heating so that the
comforting effect may be enjoyed at any time of the year; using the flame effect only
requires minimal electricity.
Before connecting the heater check that the supply voltage is the same as that stated on
the heater.
Please note: When used in a very quiet environment, where background noise is very
low, it may be possible to hear a sound which is related to the operation of the visual
effect; this is normal and should not be a cause for concern.
ELECTRICAL INSTALLATION
THIS APPLIANCE MUST BE EARTHED
Check that the voltage stamped on the rating label of your fire is the same as your house
electricity supply which must be AC (alternating current).
The mains cord of the fire has a UK type plug fitted with a 13amp fuse. When replacing a
fuse, use a 13amp fuse approved to BS 1362. The fuse cover of a moulded on plug must
be refitted when changing the fuse; should it be lost the plug must not be used until the
correct replacement fuse cover is obtained from your service agent or the plug is
replaced.
The wires in the mains supply cord are coloured in accordance with the following code:
Green and Yellow = Earth, Blue = Neutral, Brown = Live.
If your fire is fitted with a moulded on mains plug which is not suitable for the socket
outlets in your home, the plug must be cut off and an appropriate one fitted.
Note: A plug cut off from a flexible cord will give a shock hazard if inserted in a 13 amp
socket elsewhere in the house. To avoid this it should be disposed of immediately.
If you are fitting an alternative type of plug then the colours of the wires in the mains cord
may not correspond with the identifying markings on the plug terminals. In this case
proceed as follows:
The wire which is coloured Green/Yellow must be connected to the terminal in the plug
which is marked by the letter E or by the earth symbol or coloured Green or Green/
Yellow. The wire which is coloured Blue must be connected to the terminal in the plug
which is marked by the letter N or coloured Black. The wire which is coloured Brown must
be connected to the terminal in the plug which is marked by the letter L or coloured Red.
All Fires must be connected to a readily accessible isolating socket regardless of
whether they are free standing or fixed into a surround; fixed installations must
also be fused.

3
 Always install the fire so that the isolation socket is readily accessible.
 Do not cover or hang clothes, towels etc. over or near the heater as this could
cause overheating and possible damage.
 The heater should not be used immediately below a socket outlet.
 Do not use in the immediate surroundings of a bath, shower or swimming pool.
 Do not use this heater with an external programme controller, thermal control,
timer or any other device which switches the heater on automatically as a fire
risk may occur if the heater has been accidentally covered or moved.
HARD WIRING THE FIRE
IF DESIRED THE FIRE CAN BE HARD WIRED TO A SWITCHED FUSED ISOLATOR;
IF A SWITCH FUSED ISOLATOR IS USED ENSURE THAT THE FUSE IN THE
ISOLATOR IS FITTED WITH A FUSE RATED AT 13AMP TO BS1362.
It is recommended that this work be undertaken by a competent engineer
Note: If the fire is hard wired ensure that the mains lead can be unplugged from the
appliance to assist removal.
FIREPLACE INSTALLATION
THIS FIRE MUST BE INSTALLED IN A FIREPLACE OPENING AND SECURED USING
APPROPRIATE WALL FIXINGS
Your PUREGLOW fire is designed to fit a standard 16”(410mm) fireplace opening. Before
installing, thoroughly clean the fireplace and ensure debris and dust cannot enter the fire
from the chimney; ensure the fire stands on a smooth level surface.
Position the fire in the opening and mark through the fixing flanges fixed to the fire
the 4 off fixing points. Remove the fire if necessary , drill & fit appropriate wall
fixings. Re-fit fire to the opening and secure to opening using 4 off appropriate
screws.
PLEASE NOTE:
If you are fixing the fire to Marble, Granite or similar, it is preferable to fix with
either a suitable double sided adhesive tape or a Silicon based sealant/adhesive.
PLEASE NOTE:
When installing this appliance in an existing chimney, we recommend that:
1. You have your chimney cleaned by a competent chimney sweep
2. Your chimney flue is blocked off correctly
This procedure is important to reduce heat losses and prevent any chimney up
draught affecting the operation of your inset fire.

4
SECTION 2: CONTROLS
REMOTE OPERATION
On first use insert the batteries into the remote control handset—see battery replacement
section. With the mains supply connected to the fire and switched on the fire can be
operated.
Care
DO NOT drop - DO NOT immerse in liquids - DO NOT leave flat batteries in the unit -
Clean only with a dry cloth.
As this product operates using infra-red, ensure there is a clear line of sight between the
handset and the appliance for it to operate effectively.
By pressing the ON/OFF button the operational features of
the fire are enabled; if you then press the LAMP button the
Visual effect will operate; if you then press the HEAT 1 but-
ton the 1kW heat setting will operate together with the Visual
effect; if you then press the HEAT 2 button the 2kW heat
setting will operate together with the Visual effect. From here
if you press a different button it will go back to that status - if
you press the O/OFF button it will turn the fire off. Please
note that it is possible to miss out steps once the operational
features are enabled e.g. if you press the ON/OFF button
then the HEAT2 button the fire will go straight to 2kW togeth-
er with the Visual effect.
NOTE: Each function is accompanied by an audible beep.
MANUAL OVER-RIDE OPERATION
If the Remote handset is mislaid or the batteries run out the fire can be operated manually
by use of the membrane pad situated next to the thermostat. With the mains supply con-
nected to the fire and switched on the fire can be operated.
By pressing the ON/OFF FUNCTION button the features of the
fire can be used. This is a single touch button and when pressed
sequences through the available functions.
NOTE: Each function is accompanied by an audible beep.
LED DISPLAY EXPLANATION
Red LED on LHS of pad illuminated: Fire in standby mode. (not
illuminated when other functions in use or fire is off)
Green LED on RHS of pad flashes 5 times then goes out: Visual
effect on.
Amber LED on RHS of pad flashes 5 times then goes out: Visual effect + 1kW on.
Red LED on RHS of pad flashes 5 times then goes out: Visual effect + 2kW on.
THERMOSTAT
The thermostat enables the room temperature to be controlled around a pre-set level and
can be used when the 1Kw or 2Kw switches are on. To set the thermostat, first set the
control at position 9 then turn on the heating elements and heat the room to the desired
temperature. When this temperature has been reached reduce the setting by turning the
control anti-clockwise towards a lower figure until you hear the thermostat click off and the
heat from the fan stops. When the room temperature drops the thermostat will turn the
selected heat setting on the fire back on again.
The thermostat control is designed to operate at room temperatures of 0 – 40oC.
At very low temperatures (approx. 6°C) the thermostat will NOT turn the fire off until the
temperature rises above approx. 8°C.
Push
button
Standby
Indicator Function
Indicator
OFF / FUNCTION

5
SECTION 3: MAINTENANCE AND CLEANING
DISCONNECT THE FIRE FROM THE SUPPLY BEFORE CLEANING OR CARRYING
OUT ANY MAINTENANCE CLEANING
Warning: If the air inlet becomes covered with dust the fire may cut out. This is a safety
feature. Refer to Safety Cut-out information for further action.
IMPORTANT NOTICE.
Your electric heater operates using a rotary fan. Due to the
working nature of this fan it is inevitable that a build-up of Lint
or general house dust (i.e.) carpet fibres or animal fur etc. will
from time to time accumulate around the inlet and outlet
grills. Therefore it is recommended that regular cleaning of
this area is undertaken using a standard vacuum cleaner
attachment See Fig 1.
For safety reasons please ensure that the fire is switched off
and has had time to cool down before cleaning.
Note that the frame/fret must be removed prior to cleaning.
GENERAL CLEANING
The fire should be cleaned with an antistatic cloth to prevent dust being attracted to the
high gloss surfaces of the fire - do not use polish... For difficult to remove marks such as
finger marks it is recommended that a slightly damp chamois leather is used.
Care should be taken when cleaning around metal parts, non-painted metal parts may
have sharp edges.
DECORATIVE PARTS—DO NOT USE ABRASIVE CLEANERS.
Under no circumstances use an abrasive cleaner on bright surfaces; such use will
cause permanent damage to the appearance of your fire.
It is important to take care when cleaning; dusting or wiping with a clean damp cloth is
recommended in order to preserve the finish.
FUEL EFFECT
Clean with a vacuum cleaner attachment or a soft brush.
VISUAL EFFECT
No maintenance is necessary on the Visual effect, illumination is by LED’s
which should not require any attention for the life of the fire except for
damage to the LED’s or failure of the LED power supply — in this case the
fire must be returned to Pureglow Ltd for replacement.
REMOTE HANDSET BATTERY REPLACEMENT
To replace the batteries in the remote handset remove the battery
compartment cover and remove the batteries. Replace the batteries with
either rechargeable or non rechargeable batteries of type : AAA , MN2400,
LR23, UM4.
DO NOT MIX Rechargeable and Non rechargeable batteries.
Fig.1
Inlet
Outlet

6
SECTION 4: IMPORTANT INFORMATION
To avoid risk of explosion, never throw batteries into a fire or expose batteries to any
strong heat sources.
DO NOT SWALLOW. If a battery is swallowed you should seek immediate medical
attention.
DO NOT dispose of this battery in your normal household waste; once the battery has
reached the end of it’s life it should be taken to a recycling centre.
Please contact your local authority for details of recycling schemes in your area.
SAFETY CUT- OUT
The heating element is fitted with a cut-out which will switch the fire off if it overheats.
Should this occur follow the points below:
1. Switch the fire off at the wall outlet
2. Ensure that there are no obstructions in or around the air inlet see Fig 1
3. After approximately 5 minutes switch the fire on.
(The thermal cut-out will take approximately 5 minutes to reset once activated—do not
switch the fire on until the above checks have been completed.
4. If the fault persists contact your retailer or Pure Glow Ltd Customer Service on the
telephone numbers provided at the beginning of these instructions.
SECTION 5: FITTING THE CASTINGS

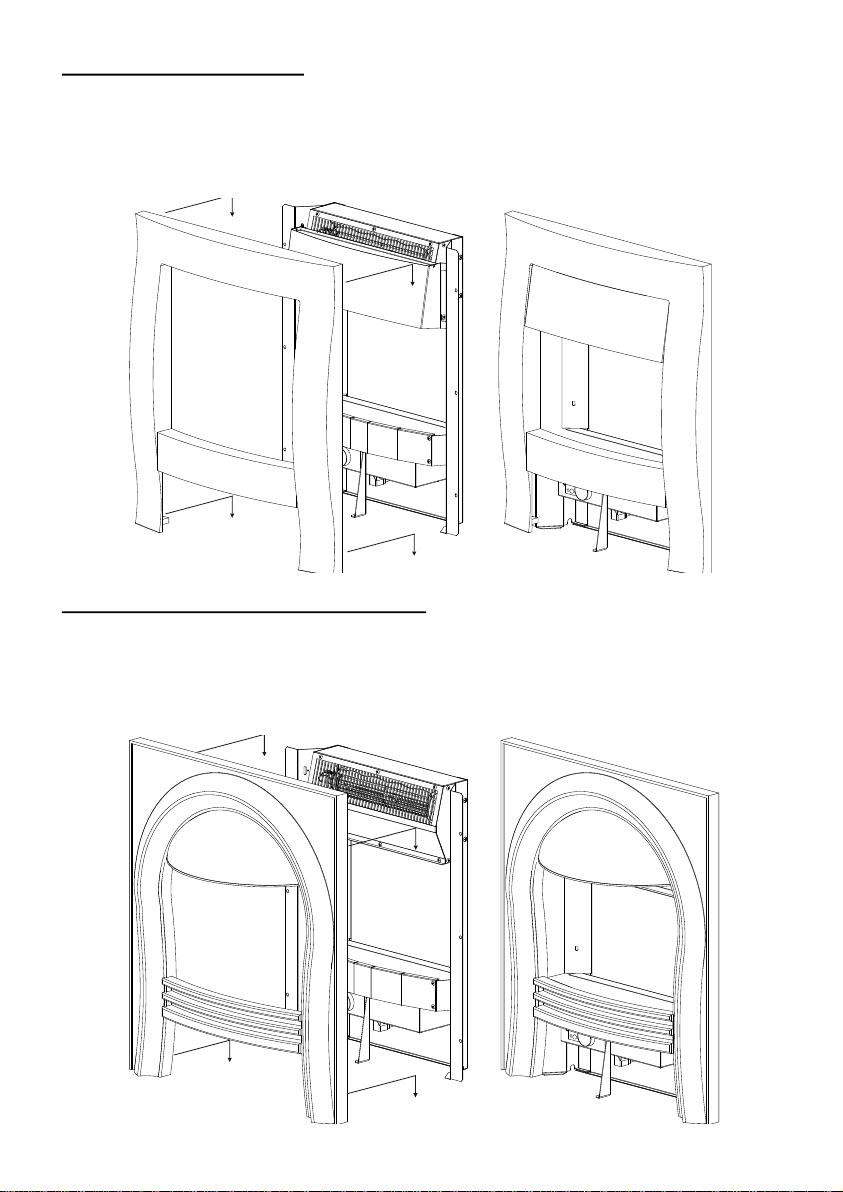

FITTING THE FASCIA CASTING & ASHPAN
The fascia castings are attached to the fire with 4 magnets; these magnets are positioned
on the mounting rails located on the rear of the casting as shown in Fig 2 below.
MAGNETS
Fig.2
MAGNETS

7
ZARA / CARMEN CASTINGS
The casting complete with magnets are positioned as shown in Fig 3 below and moved
towards the fire back so as to align with the canopy but slightly raised off the hearth (to
avoid scratching the hearth); it is moved back until the magnets attach to the fire back
flanges then moved down onto the hearth as shown in Fig 4, the ashpan and fuel bed can
now be fitted (see Section 6 for fuel bed layout).
ANNABELLE / CHLOE / JULIET CASTINGS
The casting complete with magnets is positioned as shown in Fig 5 below and moved
towards the fire back so as to align equally either side but slightly raised off the hearth (to
avoid scratching the hearth); it is moved back until the magnets attach to the fire back
flanges then moved down onto the hearth as shown in Fig 6, the ashpan and fuel bed can
now be fitted (see Section 6 for fuel bed layout).
Fig.3 Fig.4
Fig.5 Fig.6

8
SECTION 5 CTD: FITTING THE CANOPY & FRAME
FITTING THE CANOPY
If the Fire is supplied without the canopy fitted then
it should be fitted prior to installing into the Fireplace
as shown by the diagram right.
The 4 Tabs (2 each side) line up with slots either
side of the Fire back; insert the Tabs into the slots—
it may be necessary to spring the side flanges of the
fire out slightly to do this. When the Tabs have been
inserted into the slots the Tabs should be bent over
so that the holes in the Tabs line up with the holes
in the side flanges of the Fire, then fix with the 4x
self tapping screws provided.
FITTING THE FRAME
When the Canopy has been fitted or if the
Fire was supplied with the Canopy fitted the
Fire back should be fitted to the Fireplace
using suitable fixings (Double sided tape or
Silicon sealant should be used if fitted to a
Marble or similar Fireplace).
If the Fire is to be fixed to the Fireplace then
the Stability bracket (shown in the middle at
the base of the fire) can be removed by
removing the 2x self tapping screws that hold
it in place. If the Fire is to be freestanding
then the bracket must be left in place (or fitted
if not already fitted) to prevent the fire from
tipping over accidentally.
When the Fire back is in place the Frame is
fitted by lining it up with the Canopy and
gently sliding back until the Magnets fitted to
the Frame connect with the Flanges of the
Fire back
NOTE: Care should be taken not to scratch
the hearth of the fireplace.

9
The fire should now look like the diagram (right), now the
fret can be fitted.
NOTE: The stability bracket shown is only required if the
fire is NOT fixed into the fireplace
FITTING THE FRET
The fret is fitted as shown on the diagram (right), care
should be taken when positioning the fret to make sure
that the fireplace hearth is not damaged.
The fret shown is one of the possible options available,
there are several more designs available (details on
request).

10
OFF / FUNCTION
Fig.7
SECTION 6: FUEL BEDS.
The Fire is supplied with the Fuel bed and back panel fitted, when the fire has been fitted
into the Fireplace all that is required to complete the installation is to remove the transit
tape which holds the Fuel bed and back panel in place during transit and fitting.

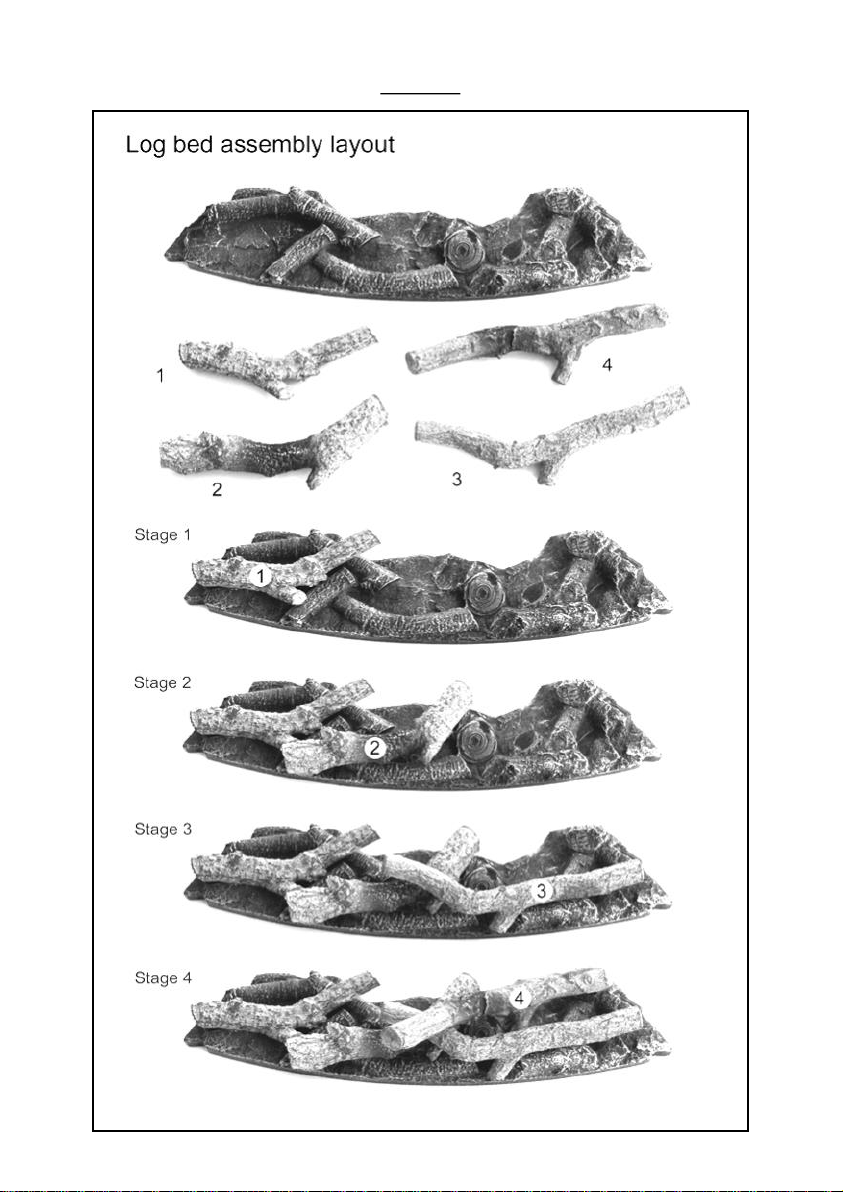

The Log bed is also supplied with loose logs that are laid out after the above is complete,
see ‘Log bed assembly layout’ for details.
Please ensure that the remote sensor is never obstructed as this will affect the
performance of the remote control unit when operating the fire.
COAL BED
REMOTE SENSOR
FUEL BEDS—SEE BELOW

11
LOG BED

12
FUEL BED / REAR PANEL RETENTION
Removal of the log/coal fuel bed and rear panel:
1. Ensure the fire is switched off
2. Carefully remove individual logs from the log bed (note: the coals are fixed to the
coal bed and are not intended to be removed individually)
3. Loosen fuel bed locater screws allowing tabs to rotate down
4. Remove the fuel bed
5. Bend rear panel location tabs forward to release the ceramic panel (brick or reed
dependant on model)
6. Remove panel by sliding forward from the bottom edge
7. Replacement is the reverse of removal
Fuel bed
location
screws
Rear panel
location tabs

13
SECTION 7: FREESTANDING SPACER FRAME.

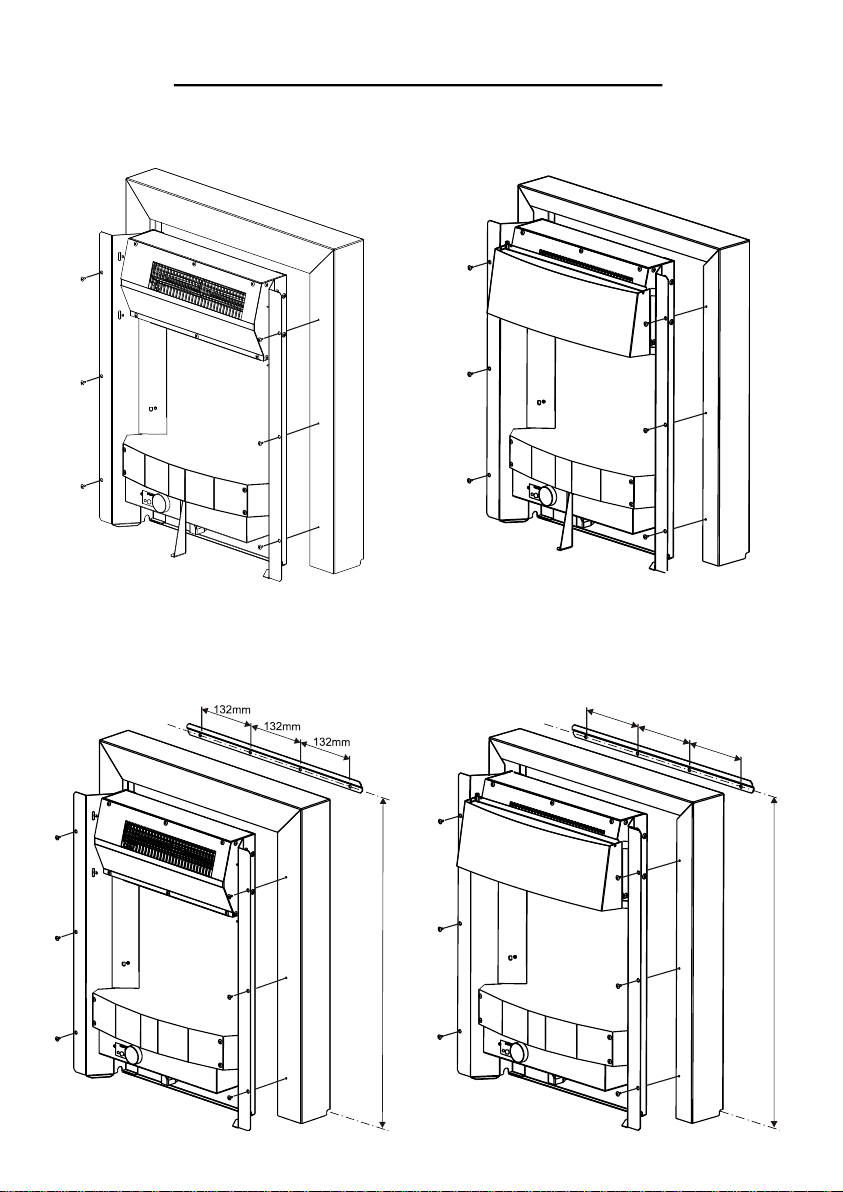

The Spacer frame is fitted using the included 6-off self tapping screws as shown below.
MODELS WITHOUT CANOPY MODELS WITH CANOPY
THE FIRE CAN ONLY BE USED AS SHOWN ABOVE WITH THE STABILITY BRACKET INSTALLED
WHERE POSSIBLE THE FIRE SHOULD BE INSTALLED AS SHOWN BELOW USING THE WALL HANGER
BRACKET. THE WALL HANGER BRACKET SHOULD BE FIXED TO THE WALL USING SUITABLE FIXINGS AS
SHOWN BELOW—NOTE: THE FIXING HEIGHT OF THE WALL HANGER BRACKET FROM THE FLOOR IS
MODEL DEPENDANT.
602mm
572mm
132mm
132mm
132mm
STABILITY BRACKET STABILITY BRACKET

14
SHORT PARTS LIST
Short Parts List Item Part Number Quantity per Fire
Remote Control Kit I00942 1
Remote Control Battery AAA or equivalent I00572 1 pack of 2
Mains Cord UK Plug MAINS CORD: If the mains supply
cord is damaged it must be replaced by a competent
electrician or similarly qualified person.
I00467 1
Log fuel bed XPG170LB 1
Coal fuel bed (includes coal set) XPG170CS 1
Log Set (x4 individual logs) XPG170LS 1
Brick ceramic back panel XPG170BB 1
Reed ceramic back panel XPG170RB 1
TECHNICAL SPECIFICATION
Frequency 50Hz
Voltage 220 ~240v A.C.
Power Input 2024w
Remote Control Infra Red Control: Maximum range 5 metres.
The Symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should
not be disposed of with other household or commercial waste at the end of its working life. The Waste of Electrical and Electronic
Equipment (WEEE) Directive (2002/96/EC) has been put in place to recycle products using best available recovery and recycling
techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.
Product Disposal Instructions: When you have no further use for it, please remove any batteries and dispose of them
and the product as per your local authorities recycling processes. For more information please contact your local authority o r the
retailer where the product was purchased.
Product Disposal Instructions for Business users: This product should not be mixed with other commercial waste for
disposal.
DISPOSAL INFORMATION
SPARES:
Only genuine spares should be used, and these can normally be obtained from your re-
tailer. If you have any problems contact PUREGLOW Ltd at the address on the front of
these instructions. Below is a list of the most common parts.

15
Date of Purchase
Retailer name and address
Your name and address
Enclosed original sales invoice.
YES NO
GUARANTEE
This product is guaranteed against faulty parts or workmanship for 3 years from the date
of purchase.
To validate the guarantee the product must be returned to the retailer or supplier for
repair or replacement with this sheet completed with the detail requested. (Please do not
send a photocopy).
Pure Glow Limited are not responsible for any cost incurred by the customer in returning
the product to the seller.
When making a claim under warranty you must provide the above details or your
warranty may be invalid. Return this information to your dealer or contact Pure
Glow Limited.
Pure Glow Limited reserves the right to refuse warranty for any product returned
that does not have valid proof of date of purchase:
Please return your original sales invoice with any returned product.
This guarantee does not affect your statutory rights.

16
Part No I01448 issue A
Packing list
Model Type Pureglow XPG 2kW
Mains Lead
Batteries
Remote
Handset
Packed By
Affix Second Data
Label HERE
Date
Log bed +
Logs x4
Coal bed
Back panel
brick/reed
Packed By Date
