Pure Reliability Pilot 1200 Wash User manual

PILOT 1200 WASH
PR290 1
This product manual contains important information about the safe installation
and use of this projector. Please read and follow these instructions carefully
and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
No. 571, Yingbin Road, Dashi Panyu, Guangzhou, 511430 China
http://www.prlighting.com

P ilot 1200 wash EN .doc
2 / 16
SAFE USAGE OF THE PROJECTOR 3
INSTALLING THE PROJECTOR 4
FITTING THE LAMP 4
POWER SUPPLY – MAINS 5
CONTROL CONNECTIONS 5
DMX TERMINATOR 6
SETUP OPTIONSPROJECTOR CONFIGURATION 6
TO SET THE DMX START ADDRESS 6
FUNCTIONS DISPLAY 7
DMX CONTROL CHANNEL FUNCTIONS 9
LED DISPLAY 10
CHANGING BELTS 10
MAINTENANCE 11
LUBRICATION 11
KEEPING THE PROJECTOR CLEAN 11
TROUBLESHOOTING 12
TECHNICAL DATA 13
ELECTRICAL DIAGRAM 14
COMPONENT ORDER CODES 15
Please note that as part of our ongoing commitment to continuous product development, specifications are
subject to change without notice. Whilst every care is taken in the preparation of this manual we reserve the
right to change specifications in the co urse of product improvement. The publishers cannot be held responsible
for the accuracy of the information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or
the unit are in good condition before installation and use. Should there be any damage caused by transportation,
consult your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the
manufacturer and / or dealer.
THESE ITEMS ARE PACKED TOGETHER WITH THE PROJECTOR
G clamps (2 PCS)
XLR cable with 3pin plug and socket (1 PCS)
Safety cords ( 2 PCS)
This manual ( 1 PCS)
Ωclamps(Options)(2PCS)
Thank you for purchasing the PILOT 1200 WASH , PR2901.
This product manual contains important information about the safe installation and use of
this projector. Please read and follow these instructions carefully and keep this manual in a
safe place for future reference.
PILOT 1200 WASH is an innovative projector with an elegant housing, w hich complies to CE
norms and standards and uses international protocol DMX 512.
The projector uses PHLIPS MSR 1200 SA/DE discharge lamp and high quality optical
system, which produces soft and beautiful light beam. The projector features effects of
strobe, rainbow and CYM, so it is suitable for applications in TV station, discotheque ,
singing and dancing stage, nightclub, etc.
ACCESSORIES
INDEX
INTRODUCTION

P ilot 1200 wash EN .doc
3 / 16
When unpacking and before disposing of the carton check there is no transportation
damag e before using the unit . Should there be any damage caused by transportation,
consult your dealer and do not use the unit.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away
from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water
or any other liquids.
The projector is not designed or intended to be mounted on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified
personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from
adjacent wall surfaces. Be sure that no ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 5 m. 5 m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation
conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the powercord is never crimped or damaged by sharp edges. Never let the
powercord come into contact with other cables. Only handle the powercord by the plug.
Never pull out the plug by tugging the powercord.
Keep the lamp clean. Do not touch the lamp glass with bare hand.
The projector should always be installed with a secondary safety fixing. A safety cord is
supplied for this; it should be attached as shown in “ installing the projector ” section.
The lamp used in this projector is a PHLIPS MSR 1200 SA/DE discharge lamp. After
switching off don ’ t attempt to restart the projector until lamp has cooled, this will require
approx 15 minutes. Switching the lamp on and off at short intervals will reduce the life of
both the lamp and the projector. But occasional breaks will prolong the life of the lamp and
projector.
Never run the projector without a lamp.
There is no user serviceable parts inside the projector, do not open the housing and never
operate the projector with the covers removed.
Always disconnect from the mains, when the device is not in use or before cleaning it
or before attempting any maintenance work.
If you have any questions, don ’ t hesitate to consult your dealer or manufac tu rer.
SAFE USAGE OF THE PROJECTOR

P ilot 1200 wash EN .doc
4 / 16
256
106
Topass2SAFETYCORDS
through4HOLESforsafety!
WARNING
WAR NI NG
throu gh4 H OLES  f o r s a f e t y !
To pa ss 2 S AF ET Y C O RD S
COR D
SAF E TY
HOL E
CLAMPS
(2PCS)
HANDLES
(2PCS)
SAFETYCORDS
(2PCS)
SAFETYCORD
PASSINGTHROUGH
4HOLESFOR
HOLE
SAFETY
CORD
Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the
underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the
structure and fasten the screws attached to each clamp. (Read the WARNING on the
underside of the base as shown above) To pass 2 SAFETY CORDS through 4 HOLES for
safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping
whilst functioning. Always ensure that the structure that you are going to mount the
projector is secure and is strong enough to support a weight of PILOT 1200 WASH.
WARNING: 1. Unlock the PAN and TILT before the 1
st
application of projector for safety.
2. The projector MUST be lifted or carried by the HANDLES instead of clamps.
TILTLOCK
PSTBULB
2SPRINGPLATES
2NUTS
Lock tilt before fitting/replacing the lamp.
Loosen 2 M5 screws and open one of the rear covers, you can see the structure as shown
in the figure above.
Loosen 2 nuts at the both ends of lamp and take out the wornout lamp. Suggest to free one
end after another.
Fit new lamp and fasten 2 nuts at the both ends of lamp. Notes: don ’ t touch the bulb of the
new lamp with bare hand so as not to influence the beam output; the PST (pumping stem tip
off) on the bulb facing the rear cover with fans perpendicularly and bein g not in the beam ’ s
way is a must and aids cooling.
Close the rear cover and fasten 2 M5 screws.
WARNING: The MSR series are highpressure lamps with external igniters ( ). Care
should always be taken when handling these lamps. Always read the manufacturers
"Instructions for use" enclosed with the lamp.
FITTING THE LAMP
INSTALLING THE PROJECTOR

P ilot 1200 wash EN .doc
5 / 16
Connect the power cord as follows:
L (live) =brown
E (earth) = yellow/green
N (neutral) = blue
Use the plug provided to connect the mains power to the projector paying attention to the
voltage and frequency marked on the panel of the projector. It is recommended that each
projector be supplied separately so that they may be individually switched on or off.
IMPORTANT
It is essential that each projector is correctly earthed and the electrical installation
conforms to all relevant standards. Power consumption of the PILOT 12 00 WASH is
1380 W.

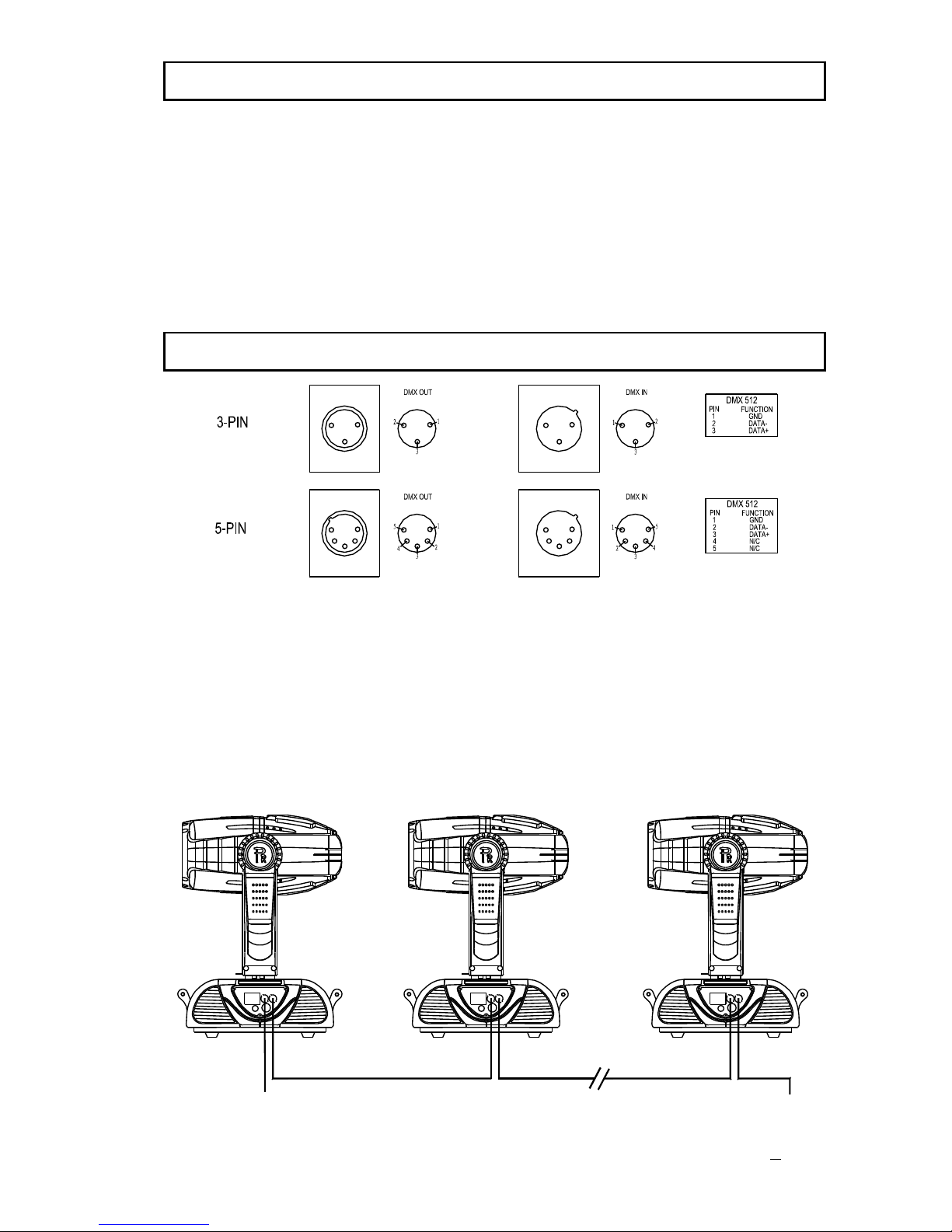

Connection between controller and projector and between one projector and another must
be made with 2 corescreened cable, with each core having at least a 0.5mm diameter.
Connection to and from the projector is via cannon 3 pin (which are included with t he
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure
above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the
plug or each other. The body of the plug is not connected in any way. The PILOT 1200
WASH accepts digital control signals in protocol DMX512 (1990).
Connect the controller ’ s output to the first fixture ’ s input, and connect the first fixture ’ s
output to the second fixture ’ s input and connect the rest fixtures in the same way.
Eventually connect the last fixture ’ s output to a DMX terminator as shown in the figure
below.
DMXOUTDMXINDMXOUTDMXIN
TERMINATORDMXINFROMCONTROLLER
DMXIN DMXOUT
POWER SUPPLY  MAINS
CONTROL CONNECT ION S

P ilot 1200 wash EN .doc
6 / 16
In the Controller mode, at the last fixture in the chain , the DMX output has to be connected
with a DMX terminator. This prevents electrical noise from disturbing and corrupting the
DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected
across pins 2 and 3, which is then plugged into the output socket on the last projector in the
chain. The connections are illustrated below.
UP
Projector configuration can be set conveniently via pressbutton switch and digital display.
Turn the projector on and the digital display will show DMX address you set and save last
time and it can be reset and saved again as you please.
Press the button ENTER and hold it 5 seconds, the yellow LED is on, which means the
panel is unlocked.
Press the button UP or DOWN if you want to browse through the various Setup Options.
Press the button ENTER to s ave your settings or enter the next menu. Press the button UP
or DOWN to shift the display between and or change the address.
Press the button FUNC , it will return to the upper menu one by one.
Each PILOT 1200 WASH must be given a DMX start address so that the correct projector
responds to the correct control signals. This DMX start address is the channel number from
which the projector starts to “ listen ” to the digital control information being sent out from the
controller.
When ext. channels enabled, the PILOT 1200 WASH has 14 channels, so set the No. 1
projector ’ s address 001, No. 2 projector ’ s address 015, No. 3 projector ’ s address 029, No.
4 projector ’ s address 043, and so on.
When ext. channels disabled, the PILOT 1200 WASH has 11 channels, so set the No. 1
projector ’ s address 001, No. 2 projector ’ s address 012, No. 3 projector ’ s address 023, No.
4 projector ’ s address 034, and so on.
Launch the projector. Press the button FUNC to .
Press the button ENTER , it will display .
Press the button UP or DOWN , you can set the address.
P ress the button ENTER to confirm.
DMX TERMINATOR CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX OUT
socket on the last unit in the chain.
DMX TERMINATOR
SETUP OPTIONS  PROJECTOR CONFIGURATION
TO SET THE DMX START ADDRESS

P ilot 1200 wash EN .doc
7 / 16
Press the button FUNC , it will return to the upper menu one by one.
FUNCTIONS DISPLAY
CYMINVERTON
SETPAN&TILTSWAP(Default:OFF)
PAN&TILTSWAPOFF
PAN&TILTSWAPON
SETDIMMERINVERT(Default:OFF)
DIMMERINVERTOFF
DIMMERINVERTON
SETZOOMINVERT(Default:OFF)
ZOOMINVERTOFF
ZOOMINVERTON
SETCYMINVERT(Default:OFF)
CYMINVERTOFF
SETADDR.(Default:001)
ADDR.001
RESETMENU
RESETORNOT
CONFIG.MENU
SETDMXEXT.CHANNEL(Default :ON)
DMXEXT.CHANNELENABLED
SETLAMPCONTROLMODE(Default:CTRL)
BYDMXSIGNALEXISTINGORNOT
BYCONTROLCHANNEL
BYLAMPMENU
OPTIONMENU
SETCOLOURFILTERS(Default :STEP)
LINEARROTATIONENABLED
LINEARROTATIONDISABLED
SETROTATIONOFPAN(Default:OFF)
REVERSEROTATION
FORWARDROTATION
RESET(Default :OFF)
DISABLED
ENABLEDANDLOADALLDEFAULTS
DMXEXT.CHANNELDISABLED
DMXCONTROLCHANNELDISABLED
DMXCONTROLCHANNELENABLED
SETDMXCONTROLCHANNEL(Default :ON)
FORWARDROTATION
REVERSEROTATION
SETROTATIONOFTILT(Default:OFF)
(CONTINUE)

P ilot 1200 wash EN .doc
8 / 16
DISPLAYMENU(Default:ON)
LCDOFPANELDISPLAYMODE
LCDISDARK
LCDISON
LCDISOFFAFTERDELY
DISPLAYHEAD'STEMPERATUER
RESERVED
EXITTESTMODEANDRESET
SELFTESTMODE
INFORMATIONMENU
DISPLAYLAMP'SUSINGTIMEORSETTO0
DISPLAYLAMP'SUSINGTIME
SETTO0ORNOT
DISPLAYPROJECTOR'SUSINGTIME(CANNOTRESET)
DISPLAYTEMPERATURE
DISPLAYMAINPCB'STEMPERATUER
DISPLAYDRIVERPCB Ⅰ'STEMPERATURE
DISPLAYPAN&TILTDRIVERPCB'STEMPERATURE
TESTMENU
DEBUGMODE(Default:OFF)
EXITDEBUGMODEANDRESET
ACCESSDEBUGMODE
LAMPMENU (Default :STAT )
DISPLAYSTATEOFLAMP
ON
OFF
DISPLAYPOWERPCB'SPROGRAMVER.
DISPLAYMOTORDRIVERPCB Ⅰ'SPROGRAMVER.
DISPLAYMAINPCB'SPROGRAMVER.
DISPLAYPROGRAMVERSION
DISPLAYPROJECTOR'SUSINGTIME
DISPLAYDRIVERPCB Ⅱ'STEMPERATURE
DISPLAYMOTORDRIVERPCB Ⅱ'SPROGRAMVER.
DISPLAYPAN&TILTDRIVERPCB'SPROGRAMVER.
(END)
SELFTESTMODE(Default:OFF)
SELFTESTMODE
RESERVED

P ilot 1200 wash EN .doc
9 / 16
The PILOT 1200 WASH uses 14 DMX channels. They are listed in the following table.
ITEM
CHANNEL
DMX
DESCRIPTION
1
Strobe
000010
Shuttering
011020
White
021034
Strobe 1
035048
Strobe 2
049062
Strobe 3
063076
Strobe 4
077090
Strobe 5
091104
Strobe 6
105118
Strobe 7
119132
Strobe 8
133146
Strobe 9
147160
Strobe 10
161174
Strobe 11
175188
Strobe 12
189202
Strobe 13
203216
Strobe 14
217230
Strobe 15
231244
Strobe 16
245255
White
2
Iris / Dimmer
000255
0=wholly open ; 255=wholly closed
3
Zoom
000255
Zooming with spot from large to small
4
Colour Wheel
000016
White. Note: stay 5 seconds while
DMX value is 5, 6or 7, the function
reset perform
017034
Colour filter 1
035052
Colour filter 2
053070
Colour filter 3
071088
Colour filter 4
089106
Colour filter 5
107127
White
128133
Rotation speed 1
134139
Rotation speed 2
140145
Rotation speed 3
146151
Rotation speed 4
152157
Rotation speed 5
158163
Rotation speed 6
164169
Rotation speed 7
170175
Rotation speed 8
176181
Rotation speed 9
182187
Rotation speed 10
188195
Stop rotating
196201
Reverse rotation speed 1
202207
Reverse rotation speed 2
208213
Reverse rotation speed 3
214219
Reverse rotation speed 4
220225
Reverse rotation speed 5
226231
Reverse rotation speed 6
232237
Reverse rotation speed 7
238243
Reverse rotation speed 8
244249
Reverse rotation speed 9
DMX CONTROL CHANNEL FUNCTIONS

P ilot 1200 wash EN .doc
10 / 16
250255
Reverse rotation speed 10
5
Pan
000255
Pan rotation
6
Tilt
000255
Tilt rotation
7
CYMCyan
000 127
Cyan enter gradually
128187
Cyan from light to dark
188197
Stop
198255
Cyan from dark to light
8
CYMYellow
000 127
Yellow enter gradually
128187
Yellow from light to dark
188197
Stop
198255
Yellow from dark to light
9
CYMMagenta
000 127
Magenta enter gradually
128187
Magenta from light to dark
188197
Stop
198255
Magenta from dark to light
10
E ffect W heel
000 042
White
043084
Effect 1
085127
Effect 2
128255
Fresnel effect index
11
Pan & Tilt Speed
000255
From slow to fast
12
Pan Fine
000255
Pan rotation in 16 Bit precision
13
Tilt Fine
000255
Tilt rotation in 16 Bit precision
14
Control
(when ext.
channels disabled,
this channel
performed by
channel 11)
000048
Reserved
049080
Reset
081112
Reserved
113144
Lamp off 10 seconds later
145223
Reserved
224255
Lamp on

P ilot 1200 wash EN .doc
11 / 16
Green: ON —— DMX signal OK or Slave;
OFF —— No DMX signal;
Flash —— DMX error;
Red: Medium flash —— Menu mode;
Fast flash —— software, cpu error;
Both ON: Address mode,
Flash in turn: Master mode .
Pan ’ s belts
Free 2 screws on Pan assembly ’ s
maintenance door and open the door;
change the belts; close the door and fasten
the screws.
Tilt ’ s belts
The common users replacing the belts is not
recommended.
If the projector ’ s lens becomes damaged or broken it should be replaced. If the lamp
becomes damaged or deformed in any way it must be replaced. If the light from the lamp
appears dim this would normally indicate that it is reaching the end of its life an d it should
be changed at once, aged lamps run to the extremity of their life might explode. If the
projector does not function, check the fuses on the power socket of the projector, they
should only be replaced by fuses of the same specification . Should these be damaged call a
qualified technician before replacement. The projector has thermal protection device that
will switch off the projector in case of overheating, should either of these operate, check
that the fans are not blocked, and if the y are dirty clean them before switching on the
projector again. Check that the fans are operational, if not call a qualified technician.
Any maintenance work should only be carried out by qualified technicians.
To ensure linear motion of the lens, it is recommended that the 3 shafts for the focusing
lens holder be lubricated periodically, preferably every two months. Use only high quality,
hightemperature resistant grease instead of any type of oil.
To ensure the reliability of the projector it should be kept clean. It is recommended that the
fans should be cleaned every 15 days. The lens and dichroic colour filters should also be
regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent on
dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke
or particularly dirty surroundings can cause greater accumulation of dirt on the unit ’ s optics.
A soft cloth and typical glass cleaning products should be used in cle aning. It is
recommended to clean the external optics at least once every 20 days and clean the
internal optics at least once every 30 / 60 days.
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic
colour filters or housing of the apparatus.
MAINTENANCE
KEEPING THE PROJECTOR CLEAN
LED DISPLAY
LUBRICATION
CHANGING BELTS
BASE
SCREWS
OPENTHEDOORPANASSEMBLY'S
MAINTENANCEDOOR

P ilot 1200 wash EN .doc
12 / 16
LIGHT OUTPUT
33 ° lux
15 ° lux
2704209503800
11.8m8.88m5.92m2.96m0m33 ° DIAMETER
15 ° DIAMETER
DISTANCE
5m
5m4m
2m
4m
2m
0m
1m
1m
3m
3m
0m
0m
1.3m
5m
2.6m
10m
3.9m
15m
5.2m
20m
22800 5700 2500 1420
PROBLEM
POSSIBLE CAUSE
ACTION
The projector doesn ’ t
switch on
The power supply is not
present
The lamp doesn ’ t work
Check the fuse on the power
socket.
Replace the lamp.
The lamp comes on but
the projector doesn ’ t
respond to the controller
Wrong DMX configuration
and/or start address
 Defective DMX cable
Make sure that the projector is
correctly configurated.
Replace or repair the DMX
cable.
The projector only
functions intermittently
The fan has failed
Make sure the fan is working
and not dirty.
Defective projection
The lens is broken
Dust or grease on lenses
Check the lenses are not
broken.
Remove dust or grease from
the lenses.
The projected image
appears to have a halo
Installation of the lamp is
not correct
Dust or grease
contamination on the
optics.
Make sure the lamp is installed
correctly.
Carefully clean the optical
group lenses and the projector
components.
The beam appears dim
Dust or grease
contamination on the
optics.
The lamp is at the end of
its life
Check the optics is clean.
Replace with a new lamp of the
specified type and rating.
TROUBLESHOOTING

P ilot 1200 wash EN .doc
13 / 16
VOLTAGES: 200/220/230/245V AC, 50Hz or 60Hz
POWER CONSUMPTION:
1380W
LAMP: Type: PHILIPS MSR 1200 SA/DE or OSRAM HMI 1200 W/S
Colour Temperature: 6000 º K
Socket: SFc104, double ends
Manufacturers Rated Lamp Life: 750 Hours
COLOURS:
Linear CYM colour mixing system from 0100% with macro function
1 colour wheel with 5 Dichroic colours plus white
bicolour and bidirectional rainbow effects, linear and nonlinear colour
shifting
EFFECTS:
White, 1 CTO ( 6000 ° K3200 ° K) , 1 frost and 1 fresnel lens
DIMMER:
Large diameter iris, 0100% linearly adjustable
STROBE:
Double shutter blades , 0.3 – 6 F.P.S.
HEAD MOVEMENT:
Pan 540 º , Tilt 270 º
BEAM ANGLE:
15 º 33 º linearly adjustable
CONTROL:
DMX512, 11 Channels plus 3 16Bit HI precision channels
R UNNING MODE :
DMX Controller
OTHER FUNCTIONS:
Forward and reverse rotation of PAN & TILT
PAN & TILT rotation in 16 Bit precision
PAN & TILT Speed, adjustable
Remote reset
Lamp ON/OFF, remote or controlled by panel
Display the using time of lamp and luminaire
HOUSING:
Metal and composite plastic (IP20)
WEIGHT:
42 Kg.

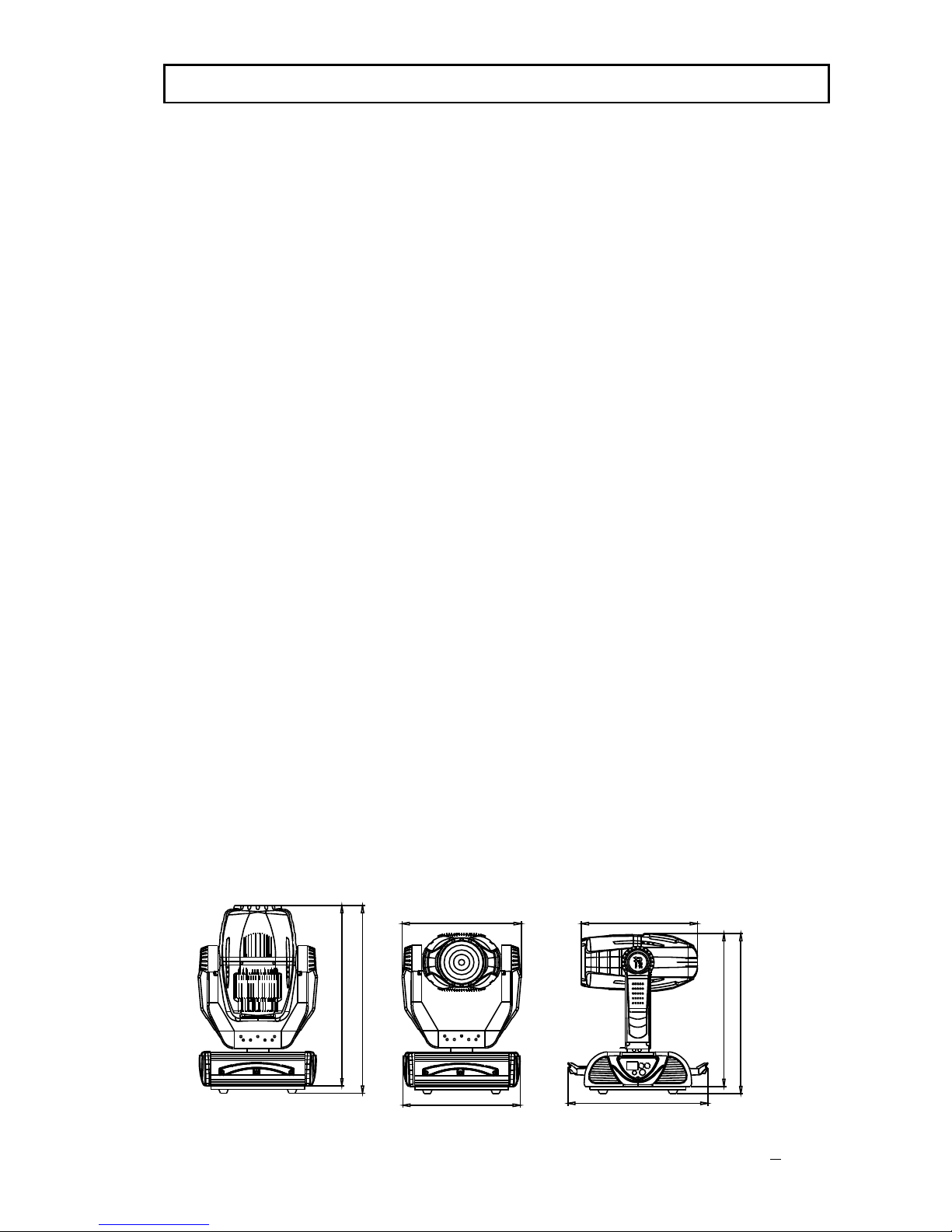

SIZES:
TECHNICAL DATA
640
670
580
790
760
520
490
485

P ilot 1200 wash EN .doc
14 / 16
ELECTRICAL DIAGRAM

P ilot 1200 wash EN .doc
15 / 16
NAME
PART NO.
QUANTITY
REMARK
TRANSFORMER
0400300 61
1
220/230V
040030054
1
200/240
THERMOSTAT
1900100 35
1
KSD020 120 ℃/1 5 A/250V
CAPACITOR
140010043
1
70 µ F/370V
BALLAST
040070059
2
230V/5060Hz, 575W
IGNITOR
04009003 6
1
575~1200W 3~5KV
LAMP
1000500 54
1
MSR 1200W SA/DE
FUSE
270041044
1
T 15a/250V 6.35*32
PAN&TILT DRIVE BELT
290151221
4
HTD4593M6
FAN IN BODY
03006003 1
1
KDE240 8 PTB6 24VDC
FAN ON THE REAR
COVER
030060039
2
NMB BG0903B054000T0
FAN IN BASE
030060048
2
AD0924HBA70GL
PAN MOTOR
030040089
23HS2039L 6.35x25
TILT MOTOR
030040089
2
23HS2039L 6.35x25
CYMMAGENTA MOTOR
030040094
1
17HD001335L 5*20
CYMYELLOW MOTOR
030040094
1
17HD001335L 5*20
ZOOM MOTOR
030040094
2
17HD001335L 5*20
CYMCYAN MOTOR
030040112
1
17HD001338L 5*15
STROBE MOTOR
030040112
2
17HD001338L 5*15
IRIS MOTOR
030040112
1
17HD001338L 5*15
EFFECT WHEEL
030040112
1
17HD001338L 5*15
PAN&TILT DRIVE PCB
230020091
1
MOTOR DRIVER PCB I
230020120
1
MOTOR DRIVER PCB Ⅱ
230020121
1
DIGITAL PCB
230020122
1
POWER PCB
230020098
1
COMPONENT ORDER CODES

P ilot 1200 wash EN .doc
16 / 16
PR LIGHTING LTD.
N o. 571, Yingbin Road, Dashi, Panyu, Guangzhou, China
PostCode : 511430
TEL: +8620  8478 1888
FAX : +8620  8478 6023
P/N: 3210 10231
Last Revision : 07 : 0 5 : 2006
