Pure Reliability PILOT 250 User manual

PILOT 250
PR-2250
This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep this
manual in a safe place for future reference.
PEARL RIVER LIGHT & ACOUSTICS INDUSTRIAL LTD.
Yingbin Road, Dashi Panyu, Guangzhou, 511430 China
http://www.pr-lighting.com

INDEX
SECTION PAGE
SAFE USAGE OF THE PROJECTOR 3
INSTALLINGTHEPROJECTOR 4
FITTINGTHELAMP 4
POWER SUPPLY – MAINS 5
CONTROL CONNECTIONS 5
XLRCONNECTORS 5
5-PIN AND 3-PIN CONVERSION 5
DMXTERMINATOR 6
SETUP OPTIONS – PROJECTOR CONFIGURATION 6
SETUPOPTIONSTABLE 7
PROJECTOR DMX START ADDRESS 8
DMX CONTROL CHANNEL FUNCTIONS 8
STAND-ALONEMODE 9
CHANGINGTHEGOBOS 10
MAINTENANCE 10
LUBRICATION 10
KEEPING THE PROJECTOR CLEAN 11
TROUBLESHOOTING 11
TECHNICAL DATA 12
ELECTRICALDIAGRAM 13
COMPONENT ORDER CODES 14
CHANGING OPERATING VOLTAGE AND FREQUENCY 15
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change
without notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the
course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any
consequence arising from them.
Every apparatus is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the
apparatus is in good condition before your installation and use. Should there be any damage caused by transportation, consult
your dealer and do not use the apparatus. But any damage caused by improper use will not be assumed by the manufacturer
and / or dealer.
THESE ITEMS ARE PACKED TOGETHER WITH THE PROJECTOR
ACCESSORIES
Mounting Bracket (2 PCS)
M8x25 screw for mounting brackets (4 PCS)
Power-cord (1 PCS), XLR plug (1 PCS), XLR socket (1 PCS), Safety cord (1 PCS)
Spare gobos (4 PCS)
This manual (1 PCS)
INTRODUCTION
Thank you for purchasing our product PILOT 250, PR-2250.
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future
reference.
The PILOT 250 is an innovative projector with an elegant housing, which is made from high intensity
and heat–resistant complex plastic. The product complies to CE norms and standards and uses
international protocol DMX 512. It can be used as a stand-alone unit or linked to a controller, so it is
suitable for many different applications.
The PILOT 250 features 9 colours plus white on the colour wheel, 2 gobo wheels, one with 7
indexable, interchangeable rotating gobos, one with 7 interchangeable fixed gobos. DMX controlled
focus, a 3 facet rotating prism and 3 beam angles. The prism channel also has pre-programmed
“macros” giving automated selection of prism and gobo combinations for easy programming and
operation. The pan and tilt motor speeds are adjustable, the lamp may be switched on and off
remotely and the unit may also be reset remotely. The pan and tilt have encoder wheels allowing auto
position correction. A 2 blade shutter provides dimming and strobe effects.
PILOT250manualEN.doc
2/16

SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton check there is no transportation damage before
using the projector. Should there be any transportation damage keep the carton, consult your dealer
and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or
metallic objects.
The projector is not designed or intended to be mounted directly on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 3m. 3m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any dimmer pack.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-
cord come into contact with other cables. Only handle the power-cord by the plug. Never pull out the
plug by tugging the power-cord.
Keep the lamp clean. Do not touch the lamp glass with bare hands.
The projector should always be installed with a secondary safety fixing. A safety cord is supplied for
this, it should be attached as shown in the “installing the projector” section.
The lamp used in this projector is an MSD 250W discharge lamp. After being switched off don’t
attempt to restart the projector until the lamp has cooled, this will require approx 10 to15 minutes.
Switching the lamp on and off at short intervals will reduce the life of both the lamp and the projector.
Never run the projector without a lamp.
There are no user serviceable parts inside the projector, do not open the housing and never operate
the projector with the covers removed.
Always disconnect from the mains, when the device is not in use, or before cleaning it,
or before attempting any maintenance work.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
PILOT250manualEN.doc
3/16

INSTALLING THE PROJECTOR
280mm
BRACKET
106mm
BRACKET
BRACKET
BRACKET
Pass safety fixing
through these holes
The projector should be mounted via its bracket using 2 x M12 bolts. The brackets attach to the
underside of the projector with 4 x M8x25 bolts provided. Always ensure that the projector is firmly
anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure to which
you are attaching the projector is secure and is able to support a weight of 19Kg for each PILOT 250.
For safety the projector should have a secondary fixing with a safety chain through the holes on the
underside of the unit.
WARNING: The projector should NEVER be lifted or carried by the yoke.
FITTING THE LAMP
LAMP ACCESS
HATCH
SCREW
A,B AND C.
LAMP ALIGNMENT SCREWS
LOOSEN THE 2 x M4 SCREWS
LAMP BRACKET
PULL OUT THE LAMP BRACKET
TO ACCESS THE LAMP
LAMP
Undo the screw on the lamp access hatch, and then remove the hatch as shown in the above figure.
Undo the 2 x M4 screws (one on each side of the lamp bracket) and then pull out the lamp bracket
with the old lamp.
Pull out the old lamp and then plug in the new lamp. Do not touch the glass of the lamp with bare
hands.
Replace the lamp bracket and fasten the screws, then replace the lamp access hatch and fasten the
screw.
The MSD series are high pressure lamps with external igniters ( ). Care should always be taken
when handling these lamps. Always read the manufacturers "Instructions for use" enclosed with the
lamp.
PILOT250manualEN.doc
4/16

POWER SUPPLY - MAINS
FUSE F6.3A/250V
FUSE HOLDER
5mm x 20mm
LEN
L = BROWN
E = GREEN/YELLOW
N = BLUE
Use the plug provided to connect the mains power to the projector paying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector is supplied
separately so that they may be individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards. Power consumption of the PILOT 250 is 410W at 220V.
To change the voltage and/or frequency of the Pilot 250, see the details at the back of this manual.
CONTROL CONNECTIONS
DMX IN
12
3
1
2
3
DMX OUT DMX 512
PIN FUNCTION
1
2
3
GND
DATA -
DATA +
Connection between controller and projector and between one projector and another must be made
with 2 core screened cable, with each core having at least a 0.5mm diameter. Connection to and from
the projector is via cannon 3 pin XLR plugs and sockets which are included with the projector. The
XLR's are connected as shown in the figure above.
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the
second fixture’s input. The rest may be deduced by analogy. Eventually connect the last fixture’s
output to a DMX terminator as shown in the figure below.
Note, care should be taken to ensure that none of the connections touch the body of the plug or each
other. The body of the plug is not connected in any way. The PILOT 250 accepts digital control signals
in standard DMX512 (1990) format.
DMX OUT DMX OUTDMX IN DMX IN DMX OUT
TERMINATORDMX IN FROM
CONTROLLER
No. 1 No. 2 No. n
PILOT 250 uses 3-pin XLR plug / socket. If your controller uses 5-pin XLR plug / socket, you should
convert 5-pin plug / socket into 3-pin socket / plug as shown below.
5 PIN PLUG
Pin 1: GND (Screen)
Pin 2: Signal (data -)
Pin 3: Signal (data +)
Pin 4: N/C
Pin 5: N/C
3 PIN SOCKET
Pin 1: GND (Screen)
Pin 2: Signal (data -)
Pin 3: Signal (data +)
5 PIN SOCKET
Pin 1: GND (Screen)
Pin 2: Signal (data -)
Pin 3: Signal (data +)
Pin 4: N/C
Pin 5: N/C
3 PIN PLUG
Pin 1: GND (Screen)
Pin 2: Signal (data -)
Pin 3: Signal (data +)
When a DMX 512 signal is received the LED located near the digital display will illuminate green.
When not receiving a DMX signal the green and red LEDs will be off, and if the green LED flashes, it
means that the DMX signal is not correct.
PILOT250manualEN.doc
5/16

DMX TERMINATOR
In Controller mode or Master/Slave mode, the DMX output has to be connected with a DMX terminator
at the last fixture in the chain. This prevents electrical noise from disturbing and corrupting the DMX
control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected across pins 2
and 3, which is then plugged into the output socket on the last projector in the chain. The connections
are illustrated below.
PIN 3
PIN 2
DMX TERMINATOR CONNECTION
Connect a 120Ω(OHM) resistor across
pins 2 and 3 in an XLR plug and insert
into the DMX OUT socket on the last
unit in the chain.
SETUP OPTIONS – PROJECTOR CONFIGURATION
FUNC ENTERUPDOWN
With the touch-switches and the digital display screen, the DMX start
address can be easily set and the various setup options may be
configured.
After the projector is switched on, the projector will reset automatically
and then the display will show the DMX start address (if you have
already set the DMX start address and saved it, the screen will display
the last setting).
To set or browse through the various Setup Options, press the UP or DOWN button.
Press the ENTER button to confirm your modification or enter a sub-option where available.
Press the UP or DOWN button to modify the settings or values.
Press the ENTER button to confirm your modification.
For example, if you want to set the display intensity (brightness) to 100%, press the UP or DOWN
buttons to select (display intensity).
Press the ENTER button to enter the value setting sub-options, and press the UP or DOWN buttons
to show (100%) in the display, and then press the ENTER button to save and exit.
The display is now set to an intensity of 100%, maximum brightness.
At any time pressing the FUNC button will return you to the previous level without saving any changes
that may have been made.
See the following Setup Options Table for a full listing of all available option settings.
PILOT250manualEN.doc
6/16

SETUP OPTIONS TABLE
RESET
HOT LAMP, FAIL TO START
LAMP DAMAGED, FAIL TO START
ADDRESS SETTING
LAMP ON/OFF
LAMP ON
LAMP OFF
RESET
FAN SPEED ADJUST
HIGH SPEED
LOW SPEED
SELF TEST
RUN SELF TEST
DISPLAY BRIGHTNESS ADJUST
25%
50%
75%
100%
UNIT TEMPERATURE DISPLAY
38ºC
MANUAL OPERATION
STROBE (0-255)
TILT MOVEMENT (0-255)
PAN MOVEMENT (0-255)
PAN/TILT SPEED (0-255)
FOCUS (0-255)
PRISM (0-255)
EFFECTS WHEEL (0-255)
GOBO ROTATION (0-255)
GOBO WHEEL ROTATION (0-255)
FIXED GOBO WHEEL (0-255)
COLOUR WHEEL (0-255)
DIMMER (0-255)
CONTROLLER OPERATED SOFT RESET
ON
OFF
LAMP ON/OFF AND RESET FROM CONTROLLER
ON
OFF
FIXED GOBO WHEEL LINEAR MOVEMENT
ON
OFF
COLOUR WHEEL LINEAR MOVEMENT
ON
OFF
UNIT OPERATING TIME
1 HOUR
LAMP OPERATING TIME
1 HOUR
INVERT TILT MOVEMENT
ON
OFF
INVERT PAN MOVEMENT
ON
OFF
16 BIT RESOLUTION
ON
OFF
Note, to reset the Lamp Operating Time displayed, for example when you change a lamp, simply
press and hold the DOWN button for more than one second while the Lamp Operating Time is being
shown in the display.
PILOT250manualEN.doc
7/16

PROJECTOR DMX START ADDRESS
Each PILOT 250 must be given a DMX start address so that the correct projector responds to the
correct control signals. This DMX start address is the DMX channel number from which the projector
starts to “listen” to the digital control information being sent out from the controller. The PILOT 250 has
15 channels, so set the No. 1 projector’s address to 001, No. 2 projector’s address to 016, No. 3
projector’s address to 031, No. 4 projector’s address to 046, and so on.
With the touch-switches and the digital display, the DMX start address can be easily set.
Press either the UP or DOWN button to select the current DMX start address, the display
may show a different number after the if a different DMX start address has already been set.
Then press the ENTER button.
The will start flashing, then press the UP or DOWN button to set the desired DMX start address
number.
Finally, press the ENTER button to save and exit.
At any time pressing the FUNC button will return you to the previous level without saving any changes
that may have been made.
DMX CONTROL CHANNEL FUNCTIONS
The PILOT 250 uses 12, 14 or 15 DMX channels depending on the setup options that have been
selected. They are listed in the following table.
CHANNEL DMX VALUES DESCRIPTION
0-9 Black
10-249 Strobe from slow to fast (max. 9.3 F.P.S.）
1 STROBE
250-255 Open
2 DIMMER 0-255 Linear Dimming from black to full open (0-100%)
0-9 White (5-7 for 5 secs.)= Soft reset – See Note
10-19 White + Colour 1
20-29 Colour 1
30-39 Colour 1 + Colour 2
40-49 Colour 2
50-59 Colour 2 + Colour 3
60-69 Colour 3
70-79 Colour 3 + Colour 4
80-89 Colour 4
90-99 Colour 4 + Colour 5
100-109 Colour 5
110-119 Colour 5 + Colour 6
120-129 Colour 6
130-139 Colour 6 + Colour 7
140-149 Colour 7
150-159 Colour 7 + Colour 8
160-169 Colour 8
170-179 Colour 8 + Colour 9
180-189 Colour 9
190-199 Colour 9 + White
200-225 Forward rotation from fast to slow (rainbow effect)
226-229 Stop
3
COLOUR WHEEL
230-255 Reverse rotation from slow to fast (rainbow effect)
0-24 Open/clear
25-49 GOBO 1
50-74 GOBO 2
75-99 GOBO 3
100-124 GOBO 4
125-149 GOBO 5
150-174 GOBO 6
175-199 GOBO 7
4
FIXED-GOBO
WHEEL
200-255 Rotate from slow to fast till scrolling effect
5 PAN 0-255 Pan movement (0°-540°)
6 TILT 0-255 Tilt movement (0°-265°)
7 FOCUS 0-255 Focus
0-31 Open/clear8
ROTATING-GOBO 32-63 GOBO 1
PILOT250manualEN.doc
8/16

64-95 GOBO 2
96-127 GOBO 3
128-159 GOBO 4
160-191 GOBO 5
192-223 GOBO 6
WHEEL
224-255 GOBO 7
0-149 Step rotation in anti-clockwise direction (0-540°)
150-153 Stop (Position in 540°)
154-201 Rotate from slow to fast in clockwise direction
202-207 Stop
9
GOBO ROTATION
208-255 Rotate from slow to fast in anti-clockwise direction
0-7 No prism (white)
8-15 Prism static
16-106 Rotate from fast to slow in anti-clockwise direction
107-110 Stop
111-199 Rotate from slow to fast in clockwise direction
200-204 Rotate slowly in anti-clockwise direction
205-209 Macro 1
210-214 Macro 2
215-219 Macro 3
220-224 Macro 4
225-229 Macro 5
230-234 Macro 6
235-239 Macro 7
240-244 Macro 8
245-249 Macro 9
10
PRISM
250-255 Macro 10
0-50 White
51-101 Effect 1 (15.6°)
102-152 Effect 2 (19.5°)
153-203 Colour temperature glass 1 (3200°K)
11
EFFECT WHEEL
204-255 Colour temperature glass 2 (7800°K)
12 X/Y SPEED 0-255 Pan and tilt movement from slow to fast
13 PAN 16Bit 0-255 Pan 16Bit resolution
14 TILT 16Bit 0-255 Tilt 16Bit resolution
0-109 Not used
110-119 Lamp off
120-159 Not used
160-179 Lamp on (It can’t be on until after 10 minutes of lamp off)
180-219 Not used
220-239 Reset
15
LAMP CONTROL
AND RESET
240-255 Not used
NOTE:
1. After turning the lamp off, the “L. Hot” characters may be appeared on the display screen meaning
the lamp should be cooled for 10 minutes before it can restart. If the lamp is still not lit after being
switched on, the luminaire will attempt to restart the lamp automatically at intervals of 10 minutes. After
8 times of restarting, if the lamp is still off, it means the lamp is damaged and the “L. Err” appears on
the display screen.
2. The speed of fans may be adjusted automatically in relation to the temperature inside the luminaire.
3. Channels 13 and 14 – high resolution Pan and Tilt, are only available if the 16 Bit Resolution option
has been set to ON in the setup options of the projector.
4. Channel 15 - Lamp Control and Reset is only available if the appropriate options have been set to
ON in the setup options of the projector.
Soft Reset – If the option rErE is set to OFF this reset function will be available on channel 3, the
colour channel. If the DMX value sent on this channel (3) stays in the range from 5 to 7 for more than
5 seconds, the projector will start a reset sequence (Remote Requested Soft Reset). The electronics
are re-started and all motors moved to their home positions exactly as they do when the power is first
switched on but the lamp is not switched off in this sequence, although the beam will be blacked out.
Press the UP or DOWN button to select (self test), and then press ENTER button to confirm
it. The projector will run in stand-alone mode automatically with a programme that has been factory set.
STAND-ALONE MODE
PILOT250manualEN.doc
9/16

CHANGING THE GOBOS
ROTATING GOBO
RETAINING SPRING
ROTATING GOBO WHEEL FIXED GOBO WHEEL
GOBO HOLDER
SLIDE GOBO IN & OUT
FROM SIDE OF WHEEL
FIXED GOBO
Unscrew the four (4) M4 bolts from the head cover, then carefully lift off the plastic cover
Using a small screwdriver remove the rotating gobo retaining spring or push out the fixed gobo directly
by hand. NOTE: the fixed gobos slide out from the edge of the wheel.
Insert the new gobo (or a glass gobo) into position as shown in the figure above. For rotating gobos,
remember to re-insert the retaining spring.
Mount the cover again and retighten the 4 M4 screws.
MAINTENANCE
If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes
damaged or deformed in any way it must be replaced. If the light from the lamp appears dim this would
normally indicate that it is reaching the end of its life and it should be changed at once, old lamps run
to the extremity of their life can explode. If the projector does not function, check the fuses on the
power socket of the projector, they should only be replaced by fuses of the same specified value
6.3A/250V (fast blow, 5mmx20mm). On the main PCB inside the projector there are also 3 fuses rated
6.3A/250V (2 PCS) and 4A/250V (1 PCS) (fast blow, 5mmx20mm). Should these be damaged call a
qualified technician before replacement. The projector has a thermal protection device that will switch
off the projector in case of overheating, should either of these operate, check that the fans are not
blocked, and if they are dirty clean them before switching on the projector again. Check that the fans
are operational, if not call a qualified technician.
Any maintenance work should only be carried out by qualified technicians.
LUBRICATION
To ensure the continued smooth rotation of the rotating gobos and linear motion of the lens for
focusing, it is recommended that the bearings for the rotating gobos and the 2 shafts for the focusing
lens holder are lubricated periodically, preferably every two months. Use only high working
temperature low viscosity oil. When lubricating the bearings, a syringe with a fine needle is the easiest
way to introduce the oil to the bearings around each gobo. Do not over lubricate as this will cause
spillage when the wheel rotates.
PILOT250manualEN.doc
10/16

KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should
be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to
maintain an optimum light output. Do NOT use any type of solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth
and typical glass cleaning products should be used in cleaning. It is recommended to clean the
external optics at least once every 20 days and clean the internal optics at least once every 30 / 60
days.
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror,
dichroic colour filters or housing of the apparatus.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE ACTION
The projector doesn’t switch
on
-The power supply is not
present
-The lamp is not working
Check the fuse on the power socket.
Replace the lamp.
The lamp comes on but the
projector doesn’t respond to
the controller
-Wrong DMX configuration
and/or start address
- Defective DMX cable
Make sure that the projector is
correctly configured.
Replace or repair the DMX cable.
The projector only functions
intermittently
-The fan has failed Make sure the fan is working and not
dirty.
Defective projection -The lens is broken
-Dust or grease on lenses
Check the lenses are not broken.
Remove dust or grease from the
lenses.
The projected image
appears to have a halo
-Installation of the lamp is not
correct
-Dust or grease contamination
on the optics.
Make sure the lamp is installed
correctly.
Carefully clean the optical group
lenses and the projector
components.
The beam appears dim -Dust or grease contamination
on the optics.
-The lamp is at the end of its
life
Check the optics are clean.
Replace with a new lamp of the
specified type and rating.

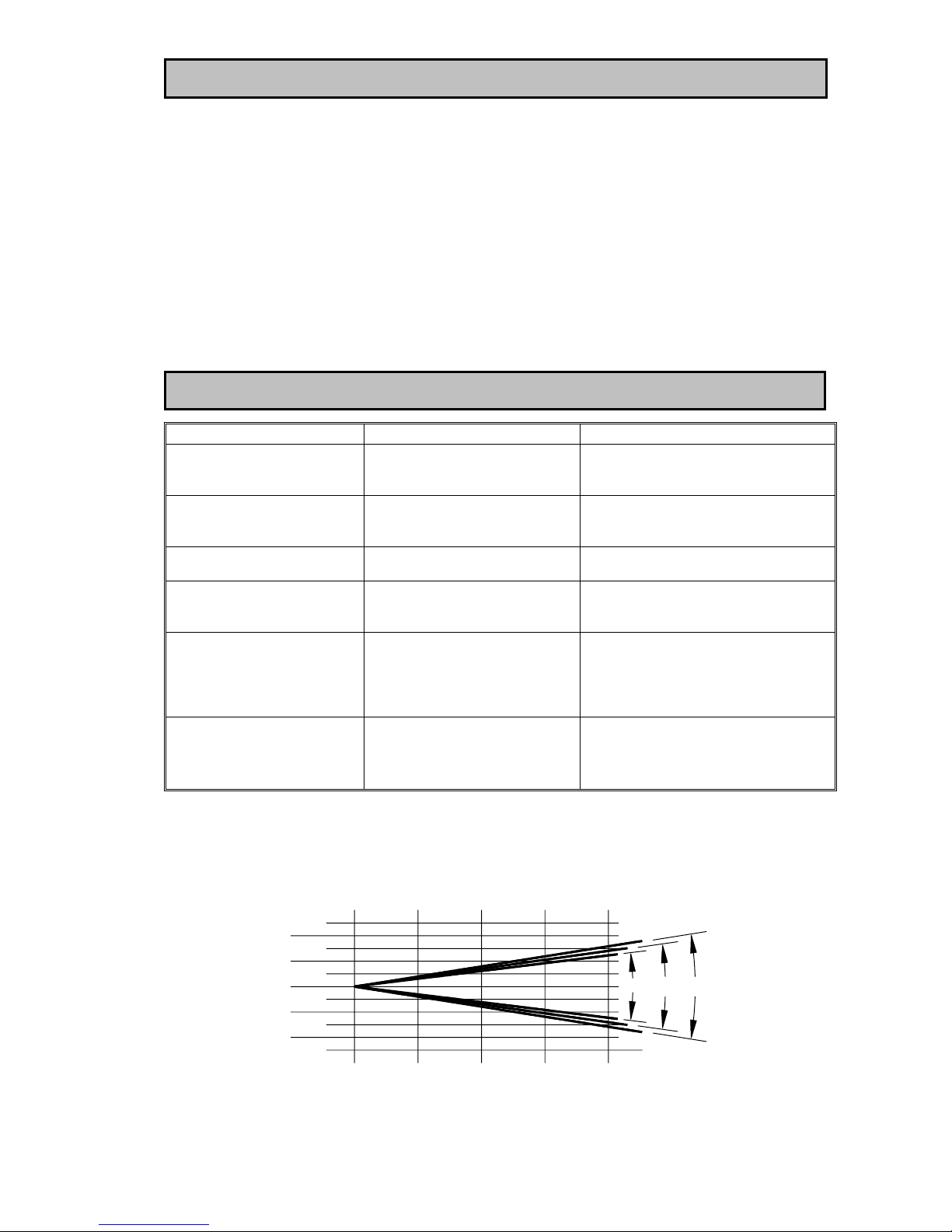

LIGHT OUTPUT
19.5º
17º
15.6º
LUX
LUX
LUX
1420
1750
2100
440
497
665
195
221
295
110
124
166
5m
5m
4m
4m
3m
3m
2m
2m
1m
1m
0m
DISTANCE (m) 0 5 10 15 20
DIAMETER (m)
19.5º
17º
15.6º
DIAMETER (m)
DIAMETER (m)
Ø1.2 Ø2.5 Ø3.7 Ø4.9
Ø1.4 Ø2.8 Ø4.2 Ø5.6
Ø1.6 Ø3.2 Ø4.8 Ø6.3
19.5º17º15.6º
PILOT250manualEN.doc
11/16

TECHNICAL DATA
VOLTAGES: 100/120/200/220/230/240V AC, 50Hz or 60Hz To Order.
POWER CONSUMPTION:
410W @ 220V
LAMP: Type : MSD 250W discharge lamp.
Colour Temperature: 6700ºK
Socket: GY9.5 (Single end)
Manufacturers Rated Lamp Life: 2000 Hours
COLOURS:
9 Dichroic colours plus white and variable speed Rainbow effect
COLOUR TEMPERATURE CORRECTION:
2 Colour temperature correction filters
GOBOS: Gobo Wheel 1
7 interchangeable, indexable rotating gobos plus clear
Gobo Wheel 2
7 interchangeable, fixed gobos plus clear
Gobo diameter: 27.8mm
Gobo image diameter: 23mm
SHUTTER/STROBE: 2 Blade shutter for dimmer
Shutter for blackout and strobe 1 – 9.3 F.P.S.
PRISMS: 1X3 Facet variable speed, bi-directionally rotating prism
FOCUS: DMX controlled focus
HEAD MOVEMENT:
Pan 540º Tilt 265º with auto position correction (encoders)
BEAM ANGLES:
15.6º, 17º, 19.5º
CONTROL:
DMX512:
12 Channels plus 2 for Hi Res. Pan and Tilt and 1 for DMX Lamp control
MOTORS:
12 Stepper motors
OTHER POINTS OF NOTE:
X,Y, Motor speed adjustable
Lamp On/Off control via DMX
Display shows lamp and projector hours
Adjustable fan speed
HOUSING:
Metal and composite plastic (IP20)
DIMENSIONS:
See drawings below.
WEIGHT:
19Kg.
PACKED DIMENSIONS:
450mm LONG x 450mm WIDE x 610mm HIGH
PACKED WEIGHT:
21Kg.
PILOT250manualEN.doc
12/16
305
370
460
480 395
310
515
530

ELECTRICAL DIAGRAM
COLOUR
WHEEL WHEEL
GOBO GOBO
ROTATION FOCUS
ROTATING
EFFECT
WHEEL
MOTOR 8 MOTOR 10 MOTOR 11MOTOR 9 MOTOR 12
COLOUR
WHEEL
SENSOR
+6V
GND
SENS
ROTATING
GOBO
SENSOR
EFFECTS
WHEEL
SENSOR
+15V
+30V
GND
MICROPROCESSOR
P/N: 230040124
D1 D2 D3 D4 D5
D1 - D5 = DRIVER CHIPS P/N: 170050010
DRIVER PCB 1
(UPPER POSITION)
SHUTTER 1 PRISM WHEEL
GOBO
FIXED
ROTATION
MOTOR 3 MOTOR 5 MOTOR 6MOTOR 4 MOTOR 7
+6V
GND
SENS
+15V
+30V
GND
MICROPROCESSOR
P/N: 230040125
D6 D7 D8 D9 D
D6 - D10 = DRIVER CHIPS P/N: 170050010
DRIVER PCB 2
(LOWER POSITION)
GOBO
WHEEL
SENSOR
FIXED
PRISM
SHUTTER 2
10
UPPER FAN LOWER FAN
DC 12V DC 12V
+ - + -
TILT
LAMP
SENSOR
ENCODER
SENSOR
PAN
ENCODER
SENSOR
MOTOR 1 MOTOR 2
X-C
Y-C
T-L
TILT PAN
TILT PAN
+15V
+30V GND FAN
AC20Vx2 AC12V
+-~~~
~
GND
F6.3A F6.3A F4A
250V 250V 250V
FUSES
LAMP
MAIN PCB
MICROPROCESSOR
P/N: 230040147
DMX IN DMX OUT
REAR SIDE
REAR SIDE
3
2
1
DISPLAY PCB
BALLAST
60Hz
50Hz THERMOSTAT
IGNITOR
LAMP
CAPACITOR
60µF AC370V
TRANSFORMER
~240V
~230V
~220V
~200V
~120V
~100V
0V
BLUE
BLACK
BLUE
BROWN
BROWN
RED
BLACK
FUSE
T6.3A 250V
(SLOW)
L
N
E
DMX-PUT
IC
1
IC
2
IC
3
IC 4 IC
5IC
6
IC
7
IC 8
PILOT250manualEN.doc
13/16

COMPONENT ORDER CODES
NAME PART NO. REMARK
TRANSFORMER 040030037 100V/120V/230V/60Hz
THERMOSTAT 190010054
95℃/10A/250V
CAPACITOR 140010018 60µF/370V
BALLAST 040070053 230V/50-60Hz, 250W/3.6A
IGNITOR 040090016 230V/50-60Hz, 4-5KV 300W
LOWER FAN 030060001 DC12V/2.6W
UPPER FAN 030060008 12V 0.43A
LAMP 100050018 MSD 250
MOTOR 1 (TILT)
MOTOR 2 (PAN) 030040052 23HS0015L
MOTOR 3 (SHUTTER BLADE 1) 030040056 17HS0002-45L
MOTOR 4 (PRISM) 030040045 42BYGH023A-01B(JB)
MOTOR 5 (PRISM ROTATION) 030040080 17HS0002-48L
MOTOR 6 (FIXED GOBO WHEEL) 030040024 17HS0002-03L
MOTOR 7 (SHUTTER BLADE 2) 030040056 17HS0002-45L
MOTOR 8 (COLOUR WHEEL) 030040023 23HS0002-38L
MOTOR 9 (ROTATING GOBO WHEEL) 030040056 17HS0002-45L
MOTOR 10 (GOBO ROTATION) 030040080 17HS0002-48L
MOTOR 11 (FOCUS) 030040056 17HS0002-45L
MOTOR 12 (EFFECTS WHEEL) 030040080 17HS0002-48L
PAN DRIVE BELT 290151223 HTD426-3M-8
TILT DRIVE BELT 290151222 HTD339-3M-8
IC 1 – MAIN PCB 170030015 LOGIC CHIP
IC 2 – MAIN PCB 170110004 DRIVER CHIP
IC 3 – MAIN PCB 170110004 DRIVER CHIP
IC 4 – MAIN PCB 170050002 AMPLIFIER CHIP
IC 5 – MAIN PCB 170050001 AMPLIFIER CHIP
IC 6 – MAIN PCB 170170037 D/A CONVERSION CHIP
IC 7 – MAIN PCB 170170037 D/A CONVERSION CHIP
IC 8 – MAIN PCB 170170012 DMX CHIP
D1 TO D10 ON DRIVER PCB’s 1 AND 2 170050010 DRIVER CHIPS
MICROPROCESSOR ON DRIVER PCB1 230040124 MICROPROCESSOR
MICROPROCESSOR ON DRIVER PCB2 230040125 MICROPROCESSOR
MICROPROCESSOR ON MAIN PCB 230040147 MICROPROCESSOR
FOR OTHER CHIPS SEE DRAWINGS
CHIP ORDER CODES
PILOT250manualEN.doc
14/16
170170053
D/A CONVERSION
CHIP
170170053
D/A CONVERSION
CHIP
170170053
D/A CONVERSION
CHIP
170170053
D/A CONVERSION
CHIP
170170053
D/A CONVERSION
CHIP
170170054
DMX CHIP
REAR OF DRIVER PCBs 1 AND 2
DISPLAY PCB DISPLAY PCB
(DISPLAY SIDE) (REAR)
230040135
DISPLAY CHIP
170040036
EEPROM
CHIP 170170054
DMX CHIP
170170054
DMX CHIP

Changing the operating voltage and/or frequency
To be carried out by qualified engineers only
The power input settings of the Pilot 250 may be changed to suit the supply in the area that the unit is
to be operated. The voltage and frequency is pre-set at the factory and will be marked on the exterior
of the unit.
Any error or mistake in setting the frequency or voltage of the projector may seriously damage the unit.
Open the base of the projector by undoing the four screws on the top of the base and the 8 screws on
the underside.
To Change the Voltage
Locate the transformer, select the appropriate voltage from 100V, 120V, 200V, 220V, 230V and 245V
according to the local supply voltage. The voltages are marked on the transformer. Move only the
incoming power cable that was connected to the factory set voltage as marked on the projector. Under
NO circumstances should you move the cable attached to the 0V connection.
It is strongly recommended that you immediately mark the new voltage on the projector so that it may
not be mistaken for the factory set voltage.
OUTPUT BROWN
BLUE
BLUE
BLACK
SIDE INPUT
BROWN BLACK GREEN RED WHITE YELLOW BLUE
0V 100V 120V 200V 220V 230V 245V
To Change the Frequency
Locate the ballast in the base of the projector, and select the required frequency from 50Hz or 60Hz by
moving the cable to the appropriate position. The ballast will be labeled to show the connections.
Never move or disconnect the cable attached to the connector marked “Ph”.
50Hz 60Hz Ph
It is strongly recommended that you immediately mark the new frequency on the projector so that it
may not be mistaken for the factory set frequency.
Once finished with the settings, re-assemble the base of the projector and covers.
PILOT250manualEN.doc
15/16

PEARL RIVER LIGHT & ACOUSTICS INDUSTRIAL LTD.
Yingbin Road, Dashi, Panyu, Guangzhou, China
Post-Code: 511430
TEL: [phone]
FAX: [phone]
P/N: 321010049
Last Revision: 10:06:2003
PILOT250manualEN.doc
16/16
