PW90CT MANUAL
Congratulations on your choice of the Pure Water Technology PW90CT Water Dispenser. The
PW90CT model dispenses highly filtered hot and cold water. The Pure Water Technology
PW90CT Water Dispenser provides exceptional quality and great tasting water with every use.
INTRODUCTION
Carefully read and follow all instructions to ensure proper and efficient operation of your Pure
Water Technology Water Dispenser. Contact your Authorized Pure Water Technology Dealer if
you have any questions.
Pure Water Technology and Authorized Pure Water Technology Dealers employ trained
service personnel who are experienced in the installation, function, and repair of this
equipment. This publication is written for use by these qualified individuals. Pure Water
Technology encourages users to learn about products, however, we believe that product
knowledge and service is best obtained by consulting your Authorized Pure Water Technology
Dealer.
Pure Water Technology Water Dispensers should be combined with selected water treatment
components to create a system specifically tailored for each application by trained and qualified
personnel.
Products manufactured and marketed by Pure Water Technology and its affiliates are
protected by patents issued or pending in the United States and other countries.
Pure Water Technology reserves the right to change the specifications referred to in this
literature at any time, without prior notice. Changes or modifications not expressly approved by
Pure Water Technology could void the warranty and user’s authority to operate the
equipment.

PW90CT Manual Page 3 - Revision: 7-6-2023
TABLE OF CONTENTS
USER GUIDE
 Safety Alert Symbols ................................................................ 4
 Safety Precautions ................................................................... 4
 Features and Benefits .............................................................. 6
 Certifications ............................................................................ 7
 Model Designations, Consumables, & General Specs ............. 8
 Shipping Specifications ............................................................ 9
 Receiving Your Equipment ..................................................... 10
 Control Panel & Operating Instructions ................................. 11
 PW90CT Programming Presets .............................................. 12
 Warranty ............................................................................... 13
SERVICE GUIDE
 Service Requirements ............................................................ 14
 PW90CT Parts Diagram…………………… .................................... 15
 Flow Diagram ......................................................................... 20
 Electrical Diagram .................................................................. 21
INSTALLATION GUIDE
 Pre-Installation Procedures ................................................... 22
 Notes on Installation .............................................................. 23
 Filter Flushing Procedure ....................................................... 24
 Installation ............................................................................. 28
 PM Guide ............................................................................... 31
 Final Inspection ...................................................................... 33
MAINTENANCE
 Preventative Maintenance .................................................... 34
 System Inspection .................................................................. 35
 Warranty Procedure .............................................................. 35
TROUBLESHOOTING
 Troubleshooting Guide .......................................................... 36

PW90CT Manual Page 4 - Revision: 7-6-2023
SAFETY ALERT SYMBOLS
Read and follow all safety information carefully. The signal words used in this manual are
selected as shown below and based on an assessment of the degree of potential injury or
damage (severe or minor) and the occurrence of injury (occurs or has the potential to occur)
when the warning is ignored:
DANGER!
Indicates a situation which, when not avoided, results in death or severe injury.
WARNING!
Indicates a situation which, when not avoided, has the potential to result in death or
severe injury; and/or severe property damage.
CAUTION!
Indicates a situation which, when not avoided, results in or has the potential to result
in minor injury; and/or minor property damage.
SAFETY PRECAUTIONS
Basic safety precautions should be followed, including the following:
Ensure all Local, State, and Federal Laws and Codes including health and safety guidelines are
met when installing Pure Water Technology Equipment. Only qualified service technicians
should attempt installation and service of Pure Water Technology Equipment. Always read the
entire operating instructions before using the appliance and save these instructions for future
use.
DANGER! This product can cause death or severe injury if incorrectly operated, installed or
maintained. The installation, maintenance, sanitizing and any repair must be performed by
qualified persons trained by Pure Water Technology International or their approved
distributors only. Do not remove any panel or cover to protect against electrical shock and
exposure to UV radiation.
DANGER! ELECTRICAL SHOCK HAZARD. Always use a dedicated and properly grounded
outlet. Unit should be protected by ground-fault circuit interrupter (GFCI) or residual current
device (RCD) having a rated residual operating current not exceeding 30mA. Use only Pure
Water Technology supplied power cord. Never use extension cords or power strips to connect
unit. Do not use if the power supply cord is damaged. Always unplug from power supply prior
to servicing.
WARNING! AUTHORIZED USE ONLY. This appliance is to be used for its intended purpose as
described in this manual. Untrained individuals who use this manual assume the risk of any
resulting property damage or personal injury. This appliance can’t be used by children and
persons with reduced physical, sensory, or mental capabilities or lack of experience.
WARNING! DO NOT OPERATE IF DAMAGED. Unplug and isolate water supply if abnormal
conditions exist. Contact Pure Water Technology or authorized dealer for repair, service, and
installation to avoid hazards.
WARNING! HOT WATER. Unit produces Hot Water in excess of 80oC (175oF). Water above
52oC (125oF) can cause severe burns or scalding. Keep unauthorized people and children
away from the unit to avoid accidental dispensing of hot water.

PW90CT Manual Page 5 - Revision: 7-6-2023
WARNING! CONNECT TO POTABLE WATER SUPPLY. This system is to be used for water only
and is NOT intended for use where water is microbiologically unsafe or with water of
unknown quality without adequate disinfection before or after the system.
WARNING! TIP HAZARD. Dispenser could tip or fall causing serious injury if installed with a
base. Always install unit on a firm, flat, and level surface and secure unit to cabinet, wall, or
floor if needed and secure to the base, if applicable. Never place heavy items on top of unit
and never climb, stand, or hang on unit or storage cabinet to prevent injury and damage.
WARNING! UNIT IS HEAVY. TWO PERSON LIFT REQUIRED. Transport unit empty and always
use material handling equipment or two people with proper lifting technique to reduce injury
risk.
WARNING! STORE AND TRANSPORT UNIT EMPTY. ALWAYS SANITIZE BEFORE USE.
The unit must be completely drained before storing to avoid stagnation and reduce
microbiological contamination (potential bacterial growth). Always sanitize before use to
eliminate any potential microbiological contaminates.
CAUTION! INDOOR USE ONLY. Intended for Household Use. Never expose to direct
sunlight, heat sources, or ambient air temperature above 37°C (100°F) or below 2°C (35°F).
Install indoors and keep unit away from excessive humidity or rain. Never expose to freezing
temperatures. Ensure there is adequate clearance around the unit to allow refrigeration
system condenser to dissipate heat. Warmer environments require more clearance around
the unit. Minimum clearance around all surfaces of the machine is 2-inches. Installs where
the ambient temperature exceeds 27°C (80°F), require a minimum of 4-inches clearance for
proper heat dissipation and efficient operation.
CAUTION! USE A WATER PRESSURE REGULATOR. Pure Water Technology will not be
responsible for injury or damage caused by excessive water pressure. Input or feed pressure
must be 60 psi to 70 psi. Be aware of any potential pressure surges caused by
building/municipal pumping stations. Failure to comply will void all warranties. The
manufacturer accepts no liability for damage caused by excessive water pressure.
CAUTION! USE UV STABILIZED SUPPLY LINES. Feed the unit with a potable ambient or
cold-water supply only. Feed water over 37°C (100°F) can damage the treatment
components. Water block devices and external leak detectors are strongly recommended.
Locate the unit as close to the water supply and the electrical connections as possible.
Immediately isolate or close water supply valve and contact service representative if leak is
noticed.
WARNING! REFRIGERANT SYSTEM. This system is manufactured with 134A refrigerant.
Repairs to the refrigeration system must be performed by a certified refrigeration technician
only.
CAUTION! DO NOT PLACE HEAVY ITEM OR WATER CONTAINER ON TOP OF UNIT. Water
may leak into the electrical system causing a fire hazard. Heavy items may fall off causing
injury.
Contact Pure Water Technology for assistance or help finding an Authorized Service
Representative.

PW90CT Manual Page 6 - Revision: 7-6-2023
PW90CT FEATURES AND BENEFITS
Hot and Cold Water
The PW90CT Water Dispenser comes standard with Hot and Cold to meet customer demands.
Water Capacity and Production
The PW90CT Water Dispenser holds 0.5 gallons (1.9L) of Hot Water and 1 gallons (3.8L) of Cold
Water.
Large Dispense Area with Recessed Faucet
10.7-inch dispense height with recessed faucet to protect from cross-contamination.
Leak Prevention
PW90CT Water Dispensers are supplied with a leak stop device to cut off the water supply in
the case of a water leak or overfill AND a leak detection sensor to alert the user in this event.
Touch-free Sensor Dispensing
Touch-free Sensors are used to activate select and dispensing functions.
Drip Tray with Drain Connection
Unit comes with a high-capacity Drip Tray with an optional drain connection.
RO Water Filtration
The Pure Water Technology PW90CT uses a multi-stage RO filtration configuration for great
tasting water.
Anti-Microbial Surfaces
The Pure Water Technology PW90CTs control panel is made of material with anti-microbial
additives to maintain cleanliness.
Activated Oxygen Self-Cleaning
The Pure Water Technology PW90CT uses advanced technology to circulate ozone gas (O3)
through the water tanks and lines to keep them clean and maintain freshness.
Active TDS Monitoring
The Pure Water Technology PW90CT uses dual TDS probes that monitor the incoming and
production water TDS levels to ensure great tasting water.

PW90CT Manual Page 7 - Revision: 7-6-2023
CERTIFICATIONS
PW90CT Water Dispensers have been tested and certified to rigorous NSF and UL Standards.
We believe that performance testing and certifications validate Pure Water Technology as a
world-leader in Water Dispensers.
Pure Water Technology PW90CT Component Certifications Include:
UL399 – Certified Drinking Water Cooler
Intertek Labs (ETL) Certified the PW90CT Water Dispenser to ANSI/UL 399
Standard for Drinking Water Coolers.
CSA C22.2 No. 120 CSA Standard for Refrigeration Equipment
NSF / ANSI 372 – Drinking Water System Components – Lead Content
Drinking Water System Components for low Lead Content.

PW90CT Manual Page 8 - Revision: 7-6-2023
MODEL/PART DESIGNATIONS
BRAND NAME DESCRIPTION MODEL -
PART NUMBER
PW90CT PW90CT – Hot & Cold Countertop PW90CT-(R or M)
WSPW9CRB0B######
CONSUMABLES
FILTER REPLACEMENT FREQUENCY PART NUMBER
SEDIMENT FILTER 6-12 MONTHS EN1100-0001
POST-CARBON FILTER 6-12 MONTHS EN1100-0007
RO MEMBRANE TEST TDS REDUCTION AT 12 MONTHS EN1100-0004
PRE-CARBON FILTER 6-12 MONTHS EN1100-0002
BOOST FILTER (OPTIONAL) 6-12 MONTHS EN1100-0011
AIR FILTER 3 YEARS FE0049A
SPECIFICATIONS
ITEM PW90CT
Water Connection ¼” Quick Connect
Recommended Service
Water Pressure 60-70psi (4.2-4.9kgf/cm2)
Rate Voltage AC 120V/60Hz or 220V/50Hz
Power Consumption 1.1A (132W) Cold Water; 2.2A (262W) Hot Water; 3.3Amps Total
Power Cord 1.9m (6.3ft)
IP Class IPX1
Climate Class N Class (32°C +/- 1°C) (89.6°F +/- 33.8°F)
Safety Device Overheating protector. Water Leak Detection. Leak Stop Device. Fuse.
Hot Tank Capacity 0.5gal (1.9L)
Cold Tank Capacity 1gal (3.8L)
Environmental Temperature Max: 90°F (32°C) Min: 35°F (2°C)
Source Water Temperature Max: 90°F (32.2°C) Min: 40°F(4.5°C)
Relative Humidity 55% at 78°F(25.5°C)
Refrigerant Gas R134a (1.05oz +/-0.03oz)
R134a Pressures 200psi (13.8bar) High Side, 88psi (6.1bar) Low Side

PW90CT Manual Page 9 - Revision: 7-6-2023

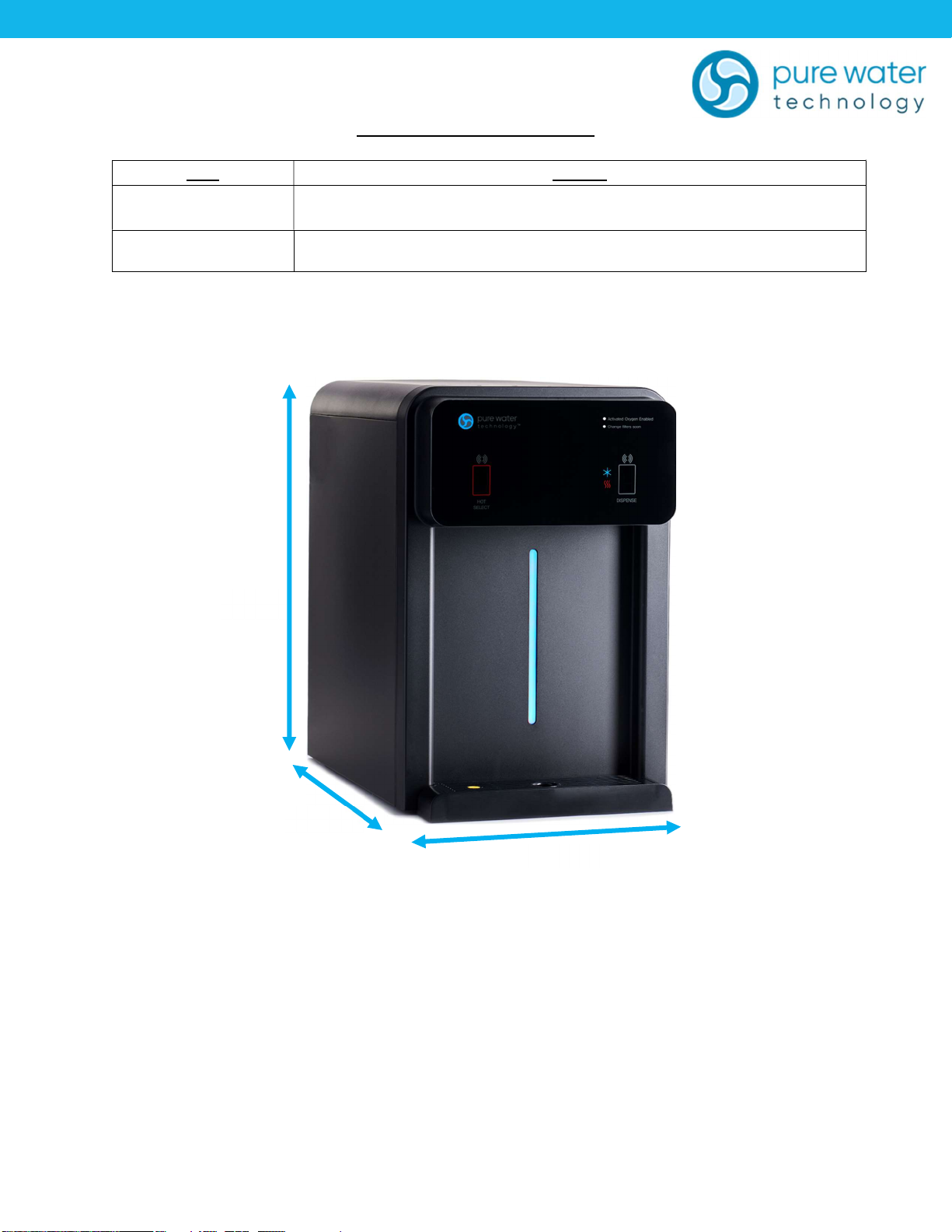

SHIPPING SPECIFICATIONS
ITEM PW90CT
Width/Depth/Height 297mm W x 495mm D x 452.1mm H
11.7” W x 19.5” D x 17.8” H
Weight (dry) 46.3lbs (21kg)
1
1.7
”
17.8”
19.5”

PW90CT Manual Page 10 - Revision: 7-6-2023
RECEIVING YOUR EQUIPMENT
Upon receipt of your equipment, you should check the following:
1. Are the systems still on the pallet?
2. Confirm the number of boxes you are signing for.
3. Is there any obvious damage to the product or the boxes?
If there are any discrepancies or any obvious damage to the equipment or boxes, please note it
on the “Bill of Lading” and/or refuse the shipment.
After receiving the equipment from the carrier, remove packaging and inspect for any hidden
freight damage. If freight damage has occurred, call the freight company and customer service
[phone] to report the damage. Photograph all damages to be submitted with the claim.
THIS MUST BE DONE WITHIN FIVE BUSINESS DAYS OF DELIVERY. If not reported within 3
business days, Pure Water Technology and/or carrier will not be responsible for replacement or
repair.

PW90CT Manual Page 11 - Revision: 7-6-2023

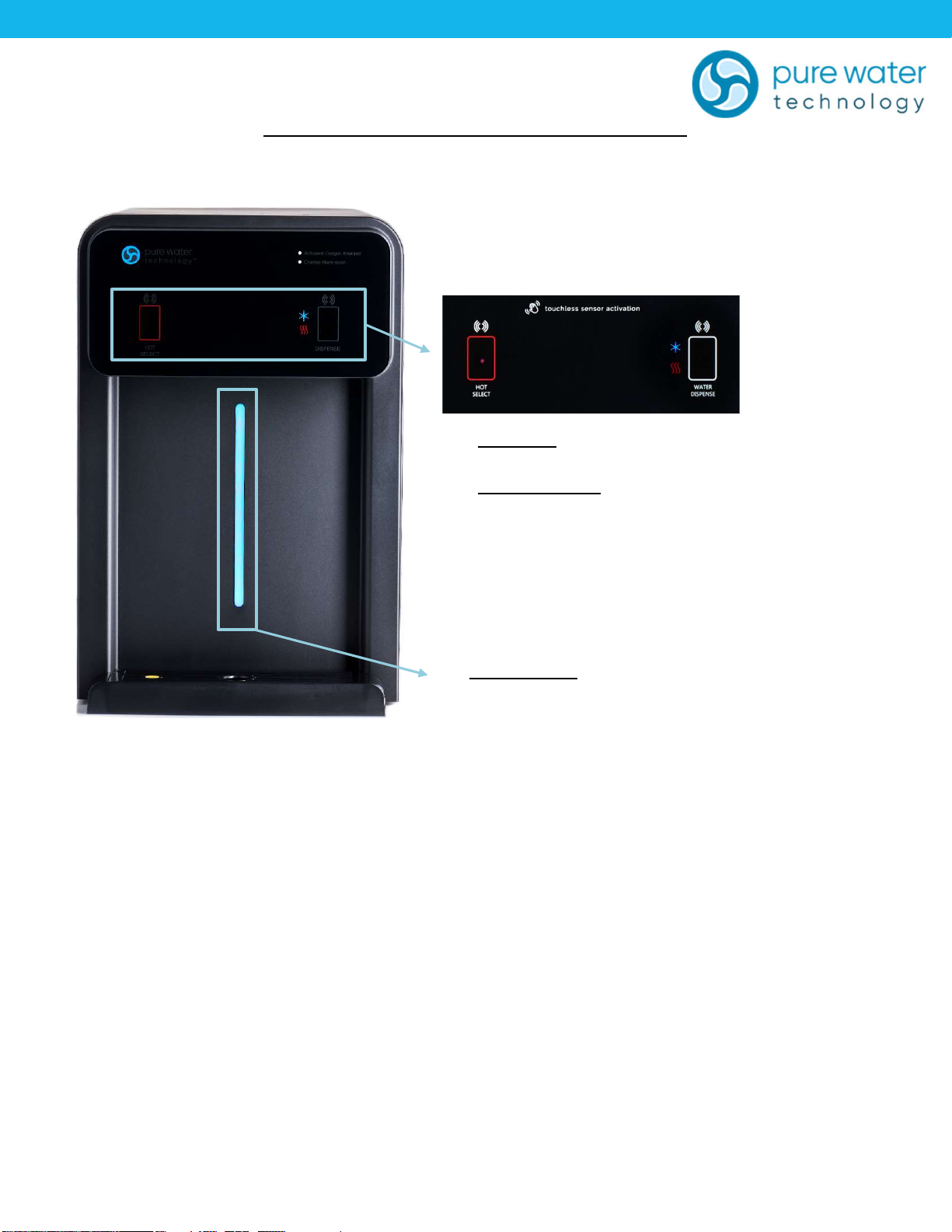

CONTROL PANEL & OPERATING INSTRUCTIONS
Hot Select: This touch sensor is used to select the
hot water option.
Water Dispense: This touch sensor is used to
dispense the selected water temperature (default is
cold water). The Icons to the left of the sensor will
illuminate the currently selected temperature.
 Dispense LED: The Dispense LED will illuminate blue
for cold water and red for hot water.

PW90CT Manual Page 12 - Revision: 7-6-2023
PW90CT PROGRAMMING PRESETS

PW90CT Manual Page 13 - Revision: 7-6-2023
PWT MANUFACTURED WATER DISPENSER LIMITED WARRANTY
*Refer to your dealer agreement for warranty terms.
General Provision and Exclusions:
This warranty only applies in the fifty (50) United States and Canada. This warranty does not apply,
and no agreement, whether written or implied, shall be applicable if the affixed serial number is
removed, defaced, or obliterated. This warranty does not apply to the filters after exposure to
water. Refer to service manual for filter requirements and expected performance. This warranty
does not apply if parts used as original or replacement equipment, including filters, are not
obtained, or authorized through PURE WATER TECHNOLOGY, and such unauthorized usage shall
void this warranty. This warranty does not apply to any wetted parts that become inoperative due
to lime, scale, or other water quality conditions. This warranty does not apply to any machine or
components that become inoperable due to a failure by Dealer/Distributor or the end-user to
satisfy standards or regulations adopted by any governmental agency. This warranty does not cover
performance, failure or damages of any part resulting from external causes such as alterations,
abuse, misuse, misapplication, neglect, accident, installation, operation contrary to printed
material, corrosion or acts of God.
This warranty only applies to the operative components of the machine and does not apply to the
exterior shell or frame to which the shell is attached and the appearance of the machine.
This warranty and any applicable industry certifications for this machine are automatically voided if
the machine is altered, modified, or combined with any other machine, equipment, or device.
Alteration or modification of the machine may cause serious flooding and/or hazardous electrical
shock or fire Except as set forth herein, PURE WATER TECHNOLOGY makes no other warranty,
guarantee or agreement expressed, implied or statutory, including any implied of merchantability
or fitness for a particular purpose.
The foregoing is in lieu of all other agreements expired or statutory and all other obligations or
liabilities of PURE WATER TECHNOLOGY. PURE WATER TECHNOLOGY does not assume or authorize
any person to assume any obligations of liability in connection with this product. In no event will
PURE WATER TECHNOLOGY be liable for special, incidental, consequential, or punitive damages, or
for any delay in the performance of this warranty agreement due to causes beyond its control.
Export Warranty:
The PURE WATER TECHNOLOGY export warranty shall apply to all area outside of the Continental
limits of the United States and Canada. The export warranty shall mirror the domestic warranty set
forth above in all respects except that a) the export warranty shall be limited to the Initial Term and
there is no coverage for the additional warranty through the first year and b) the Dealer/Distributor
shall be responsible for all transportation charges to implement the repairs.
ALL WARRANTY REPAIRS SUBJECT TO PRIOR APPROVAL BY PURE WATER TECHNOLOGY’S SERVICE
DEPARTMENT IN ORDER TO VALIDATE THAT THE DEFECTIVE COMPONENT IS STILL UNDER
WARRANTY.

PW90CT Manual Page 14 - Revision: 7-6-2023
SERVICE REQUIREMENTS
WARNING! Read and understand the contents of this manual before attempting to
service the PW90CT Water Dispenser. Failure to follow the instructions in this manual
could result in death, serious personal injury, or severe property damage. Only trained
and qualified technicians should attempt to install, maintain, or service Pure Water
Technology Equipment.
1. Visually inspect all electrical and water connections for signs of wear or damage.
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. Unplug before inspection and service.
WARNING! ULTRAVIOLET RADIATION. Protect your skin and eyes against ultraviolet
rays. Never look directly at an operating UV light. Disconnect before removing UV Lamp.
CAUTION! UV LIGHTS ARE HAZARDOUS. Lamps are considered Hazardous Waste and
must be disposed of accordingly. Refer to Product MSDS sheet for details.
2. Ensure there is adequate (minimum of 5”) clearance around the PW90CT Water Dispenser
and clean the condenser grill to provide efficient cooling system operation.
3. Sanitize the unit per instructions in the sanitization procedures.
WARNING! SANITIZER MAY CONTAIN HAZARDOUS CHEMICALS. Use of proper personal
protective equipment such as rubber gloves and eye protection are required.
4. Clean and sanitize external surfaces of the PW90CT Water Dispenser. Use soap and water
or chemicals that are compatible with ABS plastic and will not damage or degrade the
product surfaces.
5. Remove and clean the Faucet. Replace as needed.
6. Flush in filters per instructions, and change filters on predetermined schedule, commonly
every 12 months for standard filters.

PW90CT Manual Page 15 - Revision: 7-6-2023

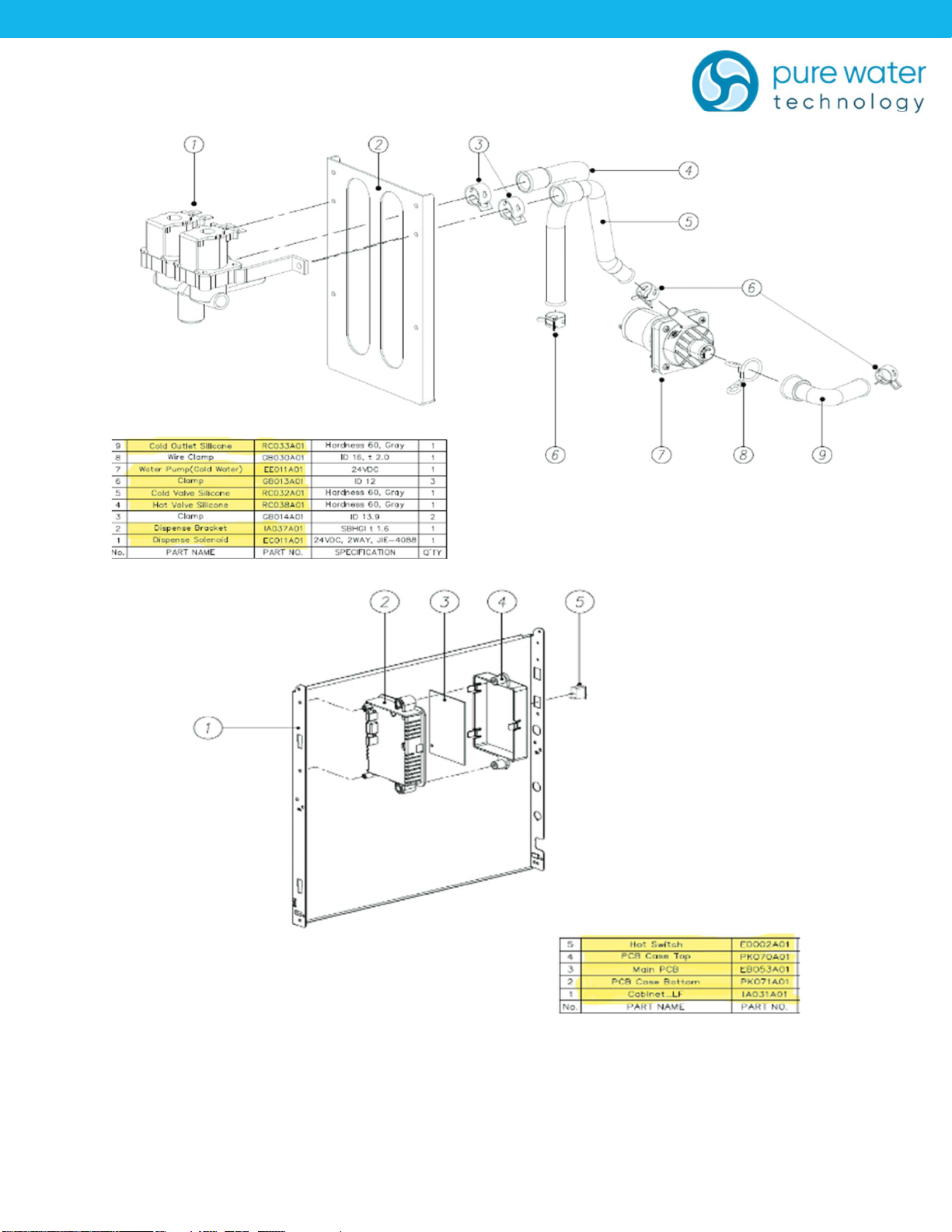

PW90CT PARTS DIAGRAM
Ex: [PART NUMBER] DESCRIPTION

PW90CT Manual Page 16 - Revision: 7-6-2023

PW90CT Manual Page 17 - Revision: 7-6-2023

PW90CT Manual Page 18 - Revision: 7-6-2023

PW90CT Manual Page 19 - Revision: 7-6-2023

PW90CT Manual Page 20 - Revision: 7-6-2023

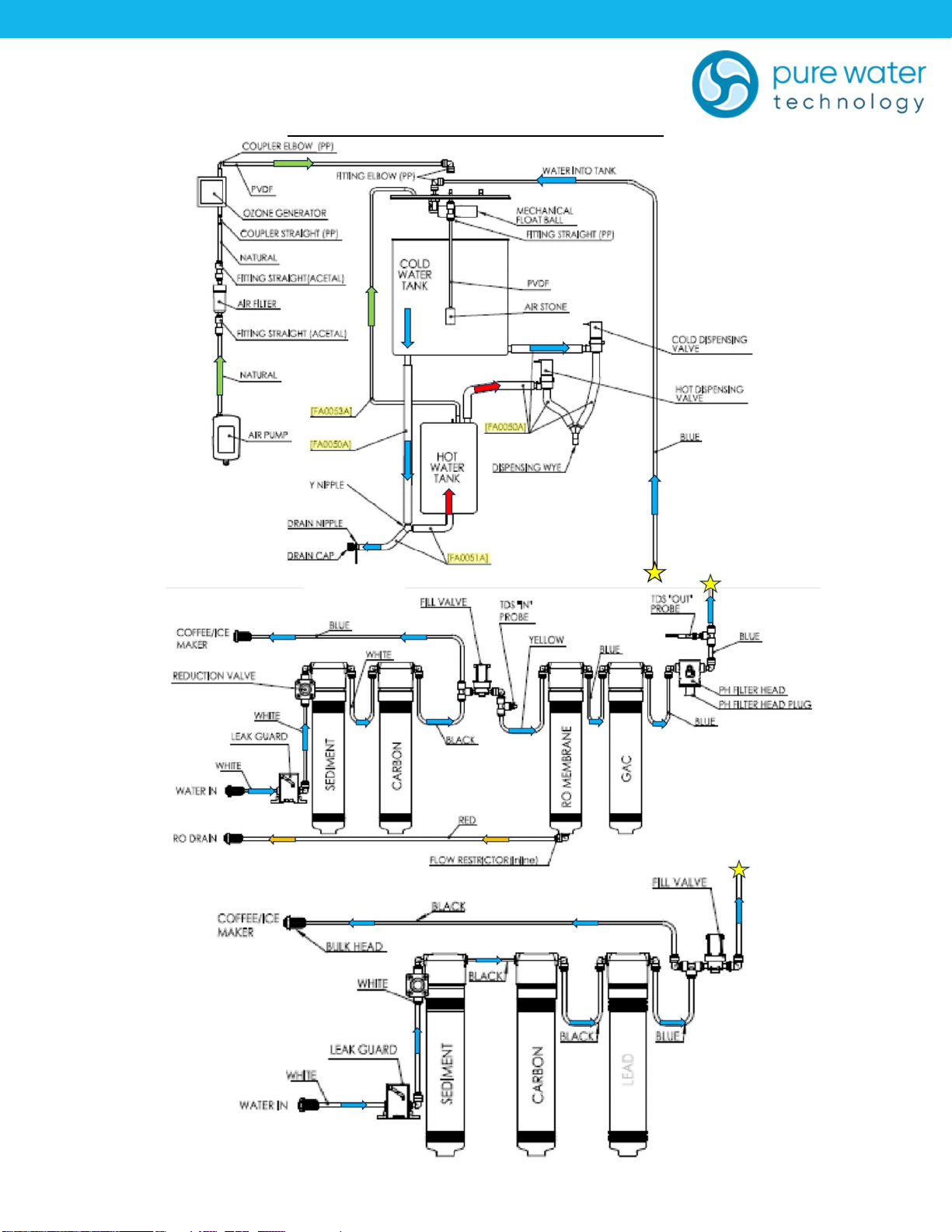

PW90CT WATER FLOW DIAGRAM (R & M)
