PURE Evoke D1 User manual

Evoke D1

ES
EN
ES
NL
IT
DA/NO
FR
DE
1
Thank you for choosing Evoke D1. This manual will help you get your product
up and running in no time and explains how to get the best out of all its great
features. If you need any further assistance, please visit the support pages on
our website at support-uk.pure.com.
Evoke D1

2
Safety information
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Keep the unit away from heat sources such as radiators, heaters or other appliances that produce heat.
6. Do not expose the unit to direct sunlight.
7. Do not use the unit near water.
8. Avoid objects or liquids getting into the unit.
9. Do not remove screws from or open the unit casing.
10. Fit the mains adaptor to an easily accessible socket, located near the radio and ONLY use the mains power adapter
supplied by Pure.
11. Should not be immersed in water, used in shower or bathroom if plugged into the mains.
ChargePAK B1 safety instructions
1. Read the instructions for ChargePAK use in this document.
2. Only use your ChargePAK with original Pure products.
3. Store ChargePAK in a cool, dry place at normal room temperature. Remove from devices that will be stored unused for
extended periods.
4. Do not puncture, modify, drop, throw, or cause other unnecessary shocks to your ChargePAK. May present a risk of fire,
explosion, or chemical burn if mistreated.
5. Do not dispose of ChargePAK in a fire or incinerator, or leave in hot places such as a motor car under direct sunlight. Do
not store near oven, stove, or other heat source.
6. Do not connect ChargePAK directly to an electrical source, such as a building outlet or automobile power-point. Do not
place into a microwave oven, or any other high-pressure container.
7. Do not immerse ChargePAK in water or otherwise expose it to liquids.
8. Do not short circuit ChargePAK.
9. Do not use or charge a ChargePAK that appears to be leaking, discoloured, rusty, deformed; emitting an odour; or is
otherwise abnormal.
10. Do not touch a leaking ChargePAK directly; wear protective material to remove and dispose of it properly immediately.
11. Do not store where children may have access.
12. Dispose of ChargePAK as per normal rechargeable batteries according to the local laws and regulations of your region.
Some batteries may be recycled, and may be accepted for disposal at your local recycling centre.
Damage to hearing can occur with consistent exposure to high volume when using headphones. Always check the
volume level before inserting headphones into your ears.
Use of headphones while operating a vehicle is not recommended and is illegal in some areas. Stop listening to your
Evoke if you find it distracting while operating any type of vehicle or performing any other activity that requires your
full attention.

3
EN
Contents
4 Introduction
4 Front panel controls
4 Display
5 Rear panel
6 Getting started
6 Quick set up
7 Using your Evoke
7 Selecting digital radio
7 Selecting FM radio
7 Pausing and controlling scrolling text
8 Storing and selecting presets
8 To quick-store a station to a preset button
(1–3)
8 To store a station to the preset list (1–10)
8 To recall a preset when listening to digital
radio or FM radio
9 Setting the alarm and sleep timer
9 Setting the alarm
9 Cancelling a sounding alarm
9 Snoozing a sounding alarm
9 Disabling an alarm
10 Setting the sleep timer
10 Options and settings
10 General settings
11 Digital radio settings
11 FM settings
11 Audio settings
11 Display settings
12 Clock settings
13 Appendix
13 Installing the ChargePAK B1
14 Technical specifications

4
PURE LCD
PURE LCD

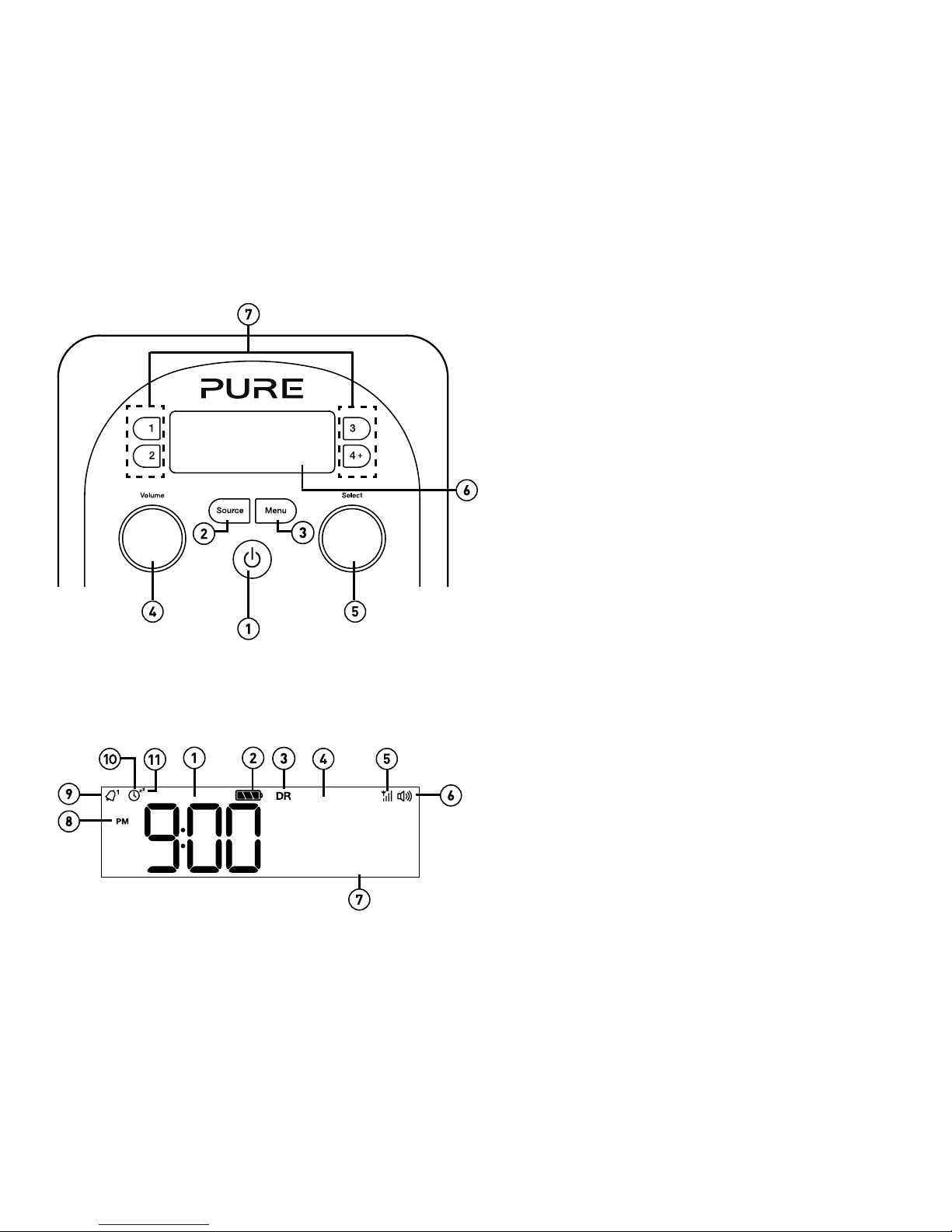

Front panel controls
Introduction
1. Standby:On/standby switch (mains powered) or on/
off switch (ChargePAK powered).
2. Source: Press to switch between Digital radio, FM
radio and Auxiliary input.
3. Menu:Press to access setup options.
4. Volume: Turn to adjust volume. Push to mute and
un-mute.
5. Select:Turn and press to browse and select radio
stations (see page 7), select and adjust menu
options or pause and control scrolling text (see
page 7).
6. Display: See below for more information on the
display options.
7. Presets 1 - 4+: Store up to 10 digital or 10 FM radio
preset stations.
Display
1. Current time.
2. ChargePAK indicator.
3. Source indicator.
4. Displays station name.
5. Signal strength.
6. Volume/mute indicator.
7. Displays date, scrolling text, settings and station
information (see page 12).
8. AM/PM indicator.
9. Alarm set indicator (see page 9).
10. Sleep and kitchen timer indicator (see page 10).
11. Alarm snooze indicator (see page 9).
BBC R1
NEWSBEAT

5
EN
Rear panel
1. 5.5V DC input connection for supplied mains
adapter.
2. 3.5mm stereo headphone socket.
3. 3.5mm auxiliary input connection for an iPod,
MP3 player, etc.
4. Mini-B type USB connector for USB software
updates.
5. Compartment for ChargePAK B1 rechargeable
battery (sold separately).
6. Telescopic antenna.

6
Getting started
Note: If you have a ChargePAK B1 rechargeable battery (sold separately) fit it now before plugging Evoke in.
See page 13 for more information.
1
Quick set up
• Unclip the aerial and fully extend it (steps A and B).
• Insert the jack of the supplied mains adapter into the socket on the rear of the radio (C).
• Plug the mains adapter into the mains supply (D) and press the Standby ( ) button.
5.5V DC
D
C
A
B
Select Select
2Select your language when prompted. Turn the Select dial to select a language (ENGLISH/FRENCH/
GERMAN/ITALIAN/SPANISH) and push to confirm.
Wait for the radio to complete an Autotune for all available stations. When the Autotune is complete, a
station will be selected.
3
LANGUAGE
ENGLISH
LANGUAGE
ENGLISH
SCAN 15
******
1min
BBC R1
TUNING
BBC R1
NEWSBEAT

7
EN
Using your Evoke
Selecting digital radio
Press Source to switch to digital radio.
Changing digital stations
1. Turn the Select dial to the station you want to listen to.
2. Push the Select dial to tune into the station.
Selecting FM radio
Press Source to switch to FM radio.
Seek tuning
Turn and release the Select dial right or left to seek to the next or
previous FM radio station that has a strong signal.
Manual tuning
1. Change the FM radio tuning mode to ‘ MANUAL ’ (see page 11).
2. Turn the Select dial right or left to step up or down 0.05 MHz.
Using the auxiliary input
1. Connect the line out or headphone socket of your auxiliary device to
the Aux In socket on your Evoke using a suitable cable.
2. Press Source to switch to auxiliary input.
3. The Auxiliary input screen will display and Evoke will play any audio
that is playing on the auxiliary device.
Pausing and controlling scrolling text
1. When ‘Scrolling text’ information is displayed in either digital or FM
radio, push the Select dial to pause the scrolling text.
2. Turn the Select dial to scroll forwards and backwards through the
text. To exit push the Select dial again.
DR
FM
AUX
BBC R1
NEWSBEAT
STATIONS
BBC R6
88\65
16-6-15
SCANNING
88\65
BBC R2
PICK OF
16-6-15
AUX

8
To quick-store a station to a preset button (1–3)
Tune to the digital or FM radio station you want to store. Press and hold one of the
numbered preset buttons (1to 3) for two seconds to save the current station as a
preset. You can save over existing presets.
To store a station to the preset list (1–10)
1. Tune to the digital radio or FM radio station you want to store.
2. Press and release the 4+ button to view the numerical list of stored presets, then
turn the Select dial to choose any preset number between 1 and 10. You can
overwrite existing presets.
3. Press and hold the Select dial until you see the ‘PRESET STORED’ message.
To recall a preset when listening to digital radio or
FM radio
To tune to presets 1 to 3, press the corresponding numbered button on Evoke (1to 3).
To access the full list of presets (from 1 to 10):
1. Press and release the 4+ button.
2. Turn the Select dial right or left to scroll through the list of presets and push the
Select dial to tune to the selected preset.
Store up to 10 digital and 10 FM radio stations for quick access.
Storing and selecting presets
BBC R1
NEWSBEAT
PRESET 2
STORED
PRESET
EMPTY
RECALL
2 BBC R1
BBC R1
NEWSBEAT

9
EN
Setting the alarm and sleep timer
The alarm in Evoke switches the radio on (if in standby) and tunes to a digital or FM radio station or sounds a tone.
Note: The alarm function does not work when Evoke is being powered by the ChargePAK B1.
Setting the alarm
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘ALARM’.
3. Turn and press the Select dial to choose ‘ON’.
4. Turn and press the Select dial to set the hour for the alarm. Repeat to set the
minutes for the alarm.
5. Turn and press the Select dial to specify one of the following alarm repeat
options: ‘ONCE’, ‘DAILY’, ‘WEEKDAYS’, ‘WEEKENDS’, ‘SATURDAY’ or ‘SUNDAY’
and press the Select dial to confirm.
6. Turn and press the Select dial to specify ‘FM’, ‘DAB’ or ‘TONE’. If you are
specifying a tone alarm, skip to step 9.
7. Turn and press the Select dial to specify which station should be played when the
alarm goes off. You have the option of selecting one of your preset stations or you
can select ‘LAST USED’ to select the station that you were last listening to.
8. Turn and press the Select dial to set the volume that the radio will play at when
the alarm sounds.
9. The alarm icon will appear on the display to show that the alarm is set.
Cancelling a sounding alarm
To cancel a sounding tone alarm, press either the Menu or Source button, or push the
Select dial.
Note: If you have set up your alarm to tune into a radio station, you can only cancel the
alarm by pressing the
Standby () button.
the latest news
BBC Radio 2
PM
DR
ALARM
ON
DAB
ALARM
ON TIME
7-00 AM
REPEAT
DAILY
SOURCE
TONE
ALARM
SAVED
BBC R1
NEWSBEAT
Snoozing a sounding alarm
To snooze a sounding alarm, press either the 1, 2, 3or 4+ preset number buttons .
Disabling an alarm
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘ALARM’.
3. Turn and press the Select dial to choose ‘OFF’.
4. The alarm icon on the display will disappear.

10
Setting the sleep timer
The sleep timer can be set to switch Evoke off after a period of time.
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘SLEEP’.
3. Turn and press the Select dial to set the timer for up to 90 minutes or choose
‘OFF’ to cancel.
4. The sleep timer icon will appear on the display to show that the sleep timer is set.
the latest news
BBC Radio 2
PM
DR
SLEEP
30 MINS
BBC R1
NEWSBEAT
Options and settings
General settings
Changing the language
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘SETTINGS’.
3. Turn and press the Select dial to choose ‘LANGUAGE’.
4. Turn and press the Select dial to select a menu language from ‘ENGLISH’, ‘FRENCH’, ‘GERMAN’, ‘ITALIAN’ or ’SPANISH’.
Factory reset
Resetting your Evoke removes all presets, stored stations, alarms and resets all other options to default settings.
1. Press the Menu button.
2. Turn and press the Select dial to ‘SETTINGS’.
3. Turn and press the Select dial to ‘RESET’.
4. Turn and press the Select dial to confirm that you want to reset the Evoke to default settings.
Version
To display the software version:
1. Press the Menu button.
2. Turn and press the Select dial to ‘SETTINGS’.
3. Turn and press the Select dial to ‘VERSION’.
Update
Contact Pure technical support (http://support-uk.pure.com) for more information on how to update Evoke to the latest
software version.

11
EN
Digital radio settings
Autotune
You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones.
Note: Autotune is only available when you have selected ‘Digital’ as the radio source.
To carry out an autotune:
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘AUTOTUNE’. The number of stations found will be displayed during the autotune.
When the autotune has finished, Evoke will tune to the last station that you were listening to.
FM settings
FM stereo option
You can choose between ‘STEREO’ or ‘MONO’ reception when listening to FM radio. You may want to choose ‘STEREO‘ if
listening using headphones.
Note: The FM stereo option is only available when you have selected ‘FM’ as the radio source.
To change between stereo or mono reception:
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘FM STEREO’.
3. Turn and press the Select dial to choose between ‘STEREO’ or ‘MONO’ FM reception.
FM tuning mode
Press the Menu button and turn and press the Select dial to choose ‘TUNE’. Choose from the following two modes:
SEEK: When you turn the Select dial, the radio tunes to the next station with a good signal.
MANUAL:When you turn the Select dial, the radio tunes up or down the FM radio frequency range by 0.05 MHz.
Audio settings
To adjust the bass and treble settings:
1. Press the Menu button.
2. Turn and press the Select dial to choose ‘AUDIO’.
3. Turn and press the Select dial to choose ‘ BASS ’ or ‘ TREBLE ’.
4. Turn and press the Select dial to set the level from ‘-6’ (low) to ‘+6’ (high).
Display settings
Changing the backlight brightness level
1. Press the Menu button and turn and press the Select dial to choose ‘ DISPLAY ’.
2. Turn and press the Select dial to choose ‘ BACKLIGHT ’.
3. Turn and press the Select dial to adjust the brightness level when Evoke’s display is ‘ ACTIVE’ or in ‘ STANDBY ’.
4. Turn and press the Select dial to select ‘ LEVEL ’.
5. Turn and press the Select dial to set a brightness level between ‘ 1 ’ (dim) and ‘ 5 ’ (bright).

12
Changing the duration that the backlight is illuminated
1. Press the Menu button and turn and press the Select dial to choose ‘ DISPLAY ’.
2. Turn and press the Select dial to choose ‘ BACKLIGHT ’.
3. Turn and press the Select dial to adjust the duration the backlight is illuminated for when Evoke’s display is ‘ ACTIVE ‘ or in
‘
STANDBY ’.
4. Turn and press the Select dial to select ‘ DURATION ’.
5. Turn and press the Select dial to choose one of the following option s:
ON: The backlight will always be illuminated at your preferred brightness level.
TIMED: The backlight will always be illuminated at your preferred brightness level when a button is pressed and then
switch off after 7 seconds of inactivity.
Changing the information shown on the display
1. Press the Menu button and turn and press the Select dial to choose ‘DISPLAY’.
2. Press Menu and turn and press the Select dial to choose ‘INFORMATION’.
3. Turn and press the Select dial to choose one of the following options:
TEXT: Provided by the broadcaster.
STRENGTH: The clear block indicates signal strength for reliable reception.
DATE: Displays the current date.
QUALITY: (Digital radio only) Signal quality, from ‘0’ (low) to ‘100’ (high).
Changing the time format
1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.
2. Turn and press the Select dial to choose ‘12/24 HOUR’. Repeat to set the required time format.
Changing the date format
1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.
2. Turn and press the Select dial to choose ‘FORMAT’. Repeat to set the required date format.
Clock settings
Setting the time and date
The time and date on Evoke are automatically set by the FM or digital radio signal. If the time/date does not update automatically,
you can manually set it using this option.
Note: Any time or date updates received by an FM or a digital broadcast will override manual settings, if clock synchronization is
enabled (see the following page for more information).
Setting the time and date manually
1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.
2. Turn and press the Select dial to choose ‘TIME/DATE’.
3. Turn and press the Select dial to set the hour. Repeat to adjust the minutes.
4. Turn and press the Select dial to set the day of the month. Repeat to set the month and year.

13
EN
Clock synchronization options
You can select the radio sources that you want to use for setting the time. By default, Evoke uses both the FM and digital
radio signals to synchronize the time.
To specify the synchronization options:
1. Press the Menu button and turn and press the Select dial to choose ‘CLOCK’.
2. Turn and press the Select dial to choose ‘SYNC TO’.
3. Turn and press the Select dial to choose the required clock synchronization option.
Changing the alarm snooze time
1. Press the Menu button and press the Select dial to choose ‘CLOCK’.
2. Turn and press the Select dial to choose ‘SNOOZE’.
3. Turn and press the Select dial to choose a snooze time between 5 and 59 minutes.
Appendix
1. Switch Evoke off and disconnect from the mains
power supply.
2. Open the battery compartment.
3. Insert the ChargePAK connector plug into the socket
in the compartment. Line up the ridges on the
plug with the slots in the socket to ensure correct
orientation. Do not force the plug.
4. Insert ChargePAK into the battery compartment, logo
side out.
5. Replace the battery cover and connect Evoke to the
mains.
6. ChargePAK will begin charging.
Note: If you are charging ChargePAK for the first
time or after an extended period of inactivity it is
recommended that it is charged for around 24 hours
to ensure full battery power. If ChargePAK is flat there
may be a slight delay before the battery charging
indicator is displayed.
5.5V DC
ChargePAKB1
ChargePAKB1
Installing the ChargePAK B1

14
Radio:
Digital radio (DAB/DAB+/DMB-R), FM radio 87.5-108 MHz
Audio:
1.6W RMS. Full-range 3” drive unit.
Input Connectors:
5.5V DC power adaptor socket (230V supplied), Mini USB
connector for product updates, 3.5mm Line-in for auxiliary
devices
Output Connectors:
3.5mm stereo headphone socket.
Power:
230V AC to 5.5V (1.0A) DC external power adapter optional
ChargePAK B1.
Power Consumption:
Standby: 0.7W, Active: 1.6W
Dimensions:
115 mm wide x 180 mm high x 120 mm deep
Approvals:
CE marked. Compliant with the EMC and Low Voltage
Directives (2004/108/EC and 2006/95/EC) ETSI EN
300 401 compliant.
Australian C-Tick N1600 and Electrical Safety.
Technical specifications
Warranty information
Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the
course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or
design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification
or repair not authorised by us. Should you have a problem with your unit please contact your supplier or contact Pure Support at
http://support-uk.pure.com.
Disclaimer
Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims
any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to
revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or
organization of such revisions or changes.
Trademarks
Evoke D1, ChargePAK, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered
trademarks of Imagination Technologies Limited.
Copyright
Copyright © 2015 Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted,
transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical,
magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited.
Version 1 August 2015.
Disposal of Waste Electrical & Electronic Equipment
This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it
should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product, please contact your local council office, your household
waste disposal service or the shop where you purchased the product.

Vielen Dank, dass Sie sich für das Evoke D1 entschieden haben. Dieses
Handbuch hilft Ihnen, Ihr Produkt in kürzester Zeit in Betrieb zu nehmen. Sie
erfahren hier, wie Sie all seine großartigen Funktionen optimal nutzen können.
Wenn Sie weitere Hilfe benötigen, besuchen Sie unsere Support-Seiten auf
unserer Website unter support-uk.pure.com.
Evoke D1
EN
ES
NL
IT
DA/NO
FR
1
DE

2
Informationen zur Sicherheit
1. WARNUNG! Verwenden Sie das mitgelieferte Netzteil (Modellnummer KSAA0550100W1UV-1) nicht zur Stromversorgung eines anderen
Geräts; dies könnte Schäden verursachen.
2. Verwenden Sie nur die im Benutzerhandbuch bzw. den Benutzeranleitungen aufgelisteten Netzteile (im Lieferumfang von Modell
KSAA0550100W1UV-1 enthalten).
3. Verbinden Sie den Netzadapter mit einer gut erreichbaren Steckdose in der Nähe des Radios und verwenden Sie NUR den mitgelieferten
Netzadapter.
4. WARNUNG! Setzen Sie das Gerät nicht Regen oder Feuchtigkeit aus, um das Risiko eines Brandes oder elektrischen Schlags zu verringern.
Das Gerät darf nicht mit Tropfen oder Spritzern in Berührung kommen, und es sollten keine mit Flüssigkeiten gefüllten Gegenstände, z. B.
Vasen, auf das Gerät gestellt werden.
5. ACHTUNG! Bei einem unsachgemäßen Austausch des Akkus besteht Explosionsgefahr. Tauschen Sie den Akku nur gegen einen
baugleichen oder gleichwertigen Akku aus.
6. WARNUNG! Die Batterien bzw. der Akku-Pack dürfen nicht extremer Hitze wie direkter Sonneneinstrahlung, Feuer oder ähnlichen Einflüssen
ausgesetzt werden.
7. WARNUNG! Der direkte Netzadapter dient als Trennvorrichtung. Diese Trennvorrichtung muss immer betriebsbereit sein.
8. Achten Sie auf einen ausreichenden Abstand des Radios zu allen Wärmequellen wie Heizkörpern, Heizlüftern und anderen Geräten, die
Wärme erzeugen.
9. Setzen Sie das Gerät nicht direkter Sonneneinstrahlung aus.
10. Nutzen Sie das Radio nicht in der Nähe von Wasser.
11. Lassen Sie keine Objekte oder Flüssigkeiten in das Radio eindringen.
12. Lösen Sie keine Schrauben vom Gehäuse des Radios.
13. Schalten Sie das Radio immer aus und trennen Sie es vom Netz, bevor Sie ein ChargePAK einsetzen oder entnehmen.
14. Das Gerät darf nicht in Wasser getaucht oder in der Dusche oder im Badezimmer verwendet werden, wenn es an den Netzstrom
angeschlossen ist.
15. Das Markierungsetikett ist an der Außenseite oder unten am Gerät.
16. Die Belüftungsschlitze des Geräts dürfen nicht etwa mit Papier, Decken oder Vorhängen blockiert werden.
17. Stellen Sie keine offenen Flammen, beispielsweise angezündete kerzen, auf das Gerät.
18. Das Gerät ist für den Gebrauch in moderaten Klimazonen bestimmt.
ChargePAK B1 Sicherheitshinweise
1. Lesen Sie die Anleitungen zur Verwendung des ChargePAK in diesem Dokument.
2. Verwenden Sie Ihren ChargePAK nur mit original Pure-Produkten.
3. Lagern Sie den ChargePAK an einem kühlen, trockenen Ort bei Zimmertemperatur. Nehmen Sie ihn aus dem Gerät heraus, wenn dieses
längere Zeit nicht benutzt wird.
4. Achten Sie darauf, dass der ChargePAK nicht mit spitzen Gegenständen bearbeitet, verändert, fallen gelassen, geworfen oder unnötigen
Erschütterungen ausgesetzt wird. Eine falsche Behandlung des ChargePAKs kann zur Gefahr von Brand, Explosion und chemischen
Verbrennungen führen.
5. Entsorgen Sie den ChargePAK nicht in einem Feuer oder in einer Verbrennungsanlage, und lassen Sie ihn nicht an heißen Stellen, wie z. B.
direkt unter einem Fahrzeugmotor oder unter direkter Sonneneinstrahlung, liegen. Lagern Sie ihn nicht in der Nähe von Öfen, Herden oder
anderen Wärmequellen.
6. Schließen Sie den ChargePAK nicht direkt an eine elektrische Stromquelle an (z. B. eine Netzsteckdose oder eine Stromversorgung im
Kraftfahrzeug). Legen Sie ihn nicht in ein Mikrowellengerät oder in einen Hochdruckbehälter.
7. Tauchen Sie den ChargePAK nicht in Wasser ein oder setzen ihn Flüssigkeiten aus.
8. Schließen Sie den ChargePAK nicht kurz.
9. Verwenden Sie den ChargePAK nicht, wenn er leckt bzw. verfärbt, rostig oder deformiert ist, merkwürdig riecht oder Ihnen anderweitig
ungewöhnlich vorkommt.
10. Fassen Sie einen ChargePAK mit einem Leck nicht direkt an; verwenden Sie Schutzmaterial, um ihn herauszunehmen, und entsorgen Sie ihn
sofort ordnungsgemäß.
11. Lagern Sie ihn nicht an Stellen, die für Kinder zugänglich sind.
12. Entsorgen Sie den ChargePAK gemäß den örtlich geltenden Vorschriften für normale Akkus. Manche Akkus können wiederaufbereitet
werden; sie werden daher eventuell von Ihrer lokalen Recycling-Stelle zur Entsorgung angenommen.
13. Sie sollten auf die Umweltaspekte bei der Batterieentsorgung achten.

Inhalt
4 Einführung
4 Bedienelemente an der Vorderseite
4 Anzeige
5 Rückseite
6 Erste Schritte
6 Schnellstart
7 Verwendung Ihres Evoke
7 Auswahl Digitalradiobetrieb
7 Auswahl UKW-Radiobetrieb
7 Lauftext unterbrechen und kontrollieren
7 Verwendung des AUX-Eingangs
8 Speichern und Auswahl von
Speicherplätzen
8 Schnellspeichern eines Senders auf
einem der Speicherplätze (1–3)
8 Speichern eines Senders in der
Voreinstellungsliste (1–10)
8 Aufruf eines gespeicherten Senders beim
Empfang von Digitalradio oder UKW
9 Einstellen des Alarm- und Sleep-
Timers
9 Einstellen des Weckers
9 Abbrechen eines Alarmtons
9 Schlummerfunktion verwenden
9 Deaktivieren eines Alarms
10 Einstellen des Sleep-Timers
10 Optionen und Einstellungen
10 Allgemeine Einstellungen
11 Digitalradio-Einstellungen
11 UKW-Einstellungen
11 Audio-Einstellungen
12 Anzeigeeinstellungen
12 Einstellungen der Uhr
14 Anhang
14 Installation des ChargePAK B1
14 Technische Daten
3
DE

Bedienelemente an der Vorderseite
Einführung
1. Standby:Ein-/Standby-Schalter (bei Netzbetrieb)
oder Ein-/Aus-Schalter (bei Betrieb über ChargePAK).
2. Source (Quelle): Drücken Sie diese Taste zum
Umschalten zwischen Digitalradio, UKW-Radio und
AUX-Eingang.
3. Menu (Menü): Drücken Sie diese Taste zum Aufrufen
von Einstellungsoptionen.
4. Volume (Lautstärke): Drehen Sie den Regler, um die
Lautstärke einzustellen. Drücken Sie auf den Regler,
um die Lautstärke stummzuschalten oder wieder
einzuschalten.
5. Select (Auswahl): Drehen und drücken Sie
zum Suchen und Auswählen von Radiosendern
(sieheSeite 7), zum Auswählen und Anpassen
von Menüoptionen sowie zum Anhalten und
Steuern von Lauftext (siehe Seite 7).
6. Anzeige: Weitere Informationen zu den
Anzeigeoptionen finden Sie weiter unten.
7. Speicherplätze 1 - 4+: Sie können bis zu 10 digitale
oder 10 UKW-Sender speichern.

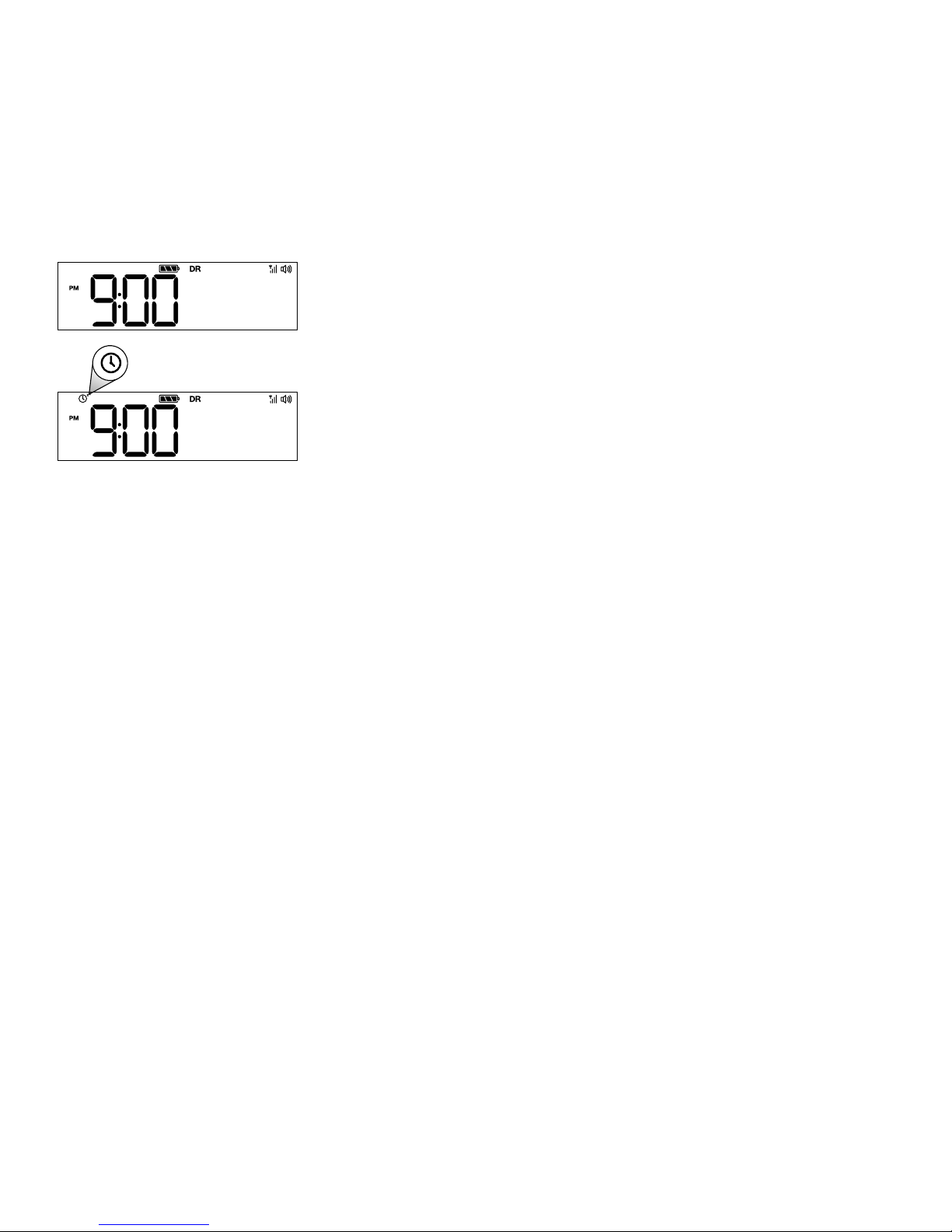

Anzeige
1. Aktuelle Zeit.
2. ChargePAK-Anzeige.
3. Quellenanzeige.
4. Senderanzeige.
5. Signalstärke.
6. Anzeige Lautstärke/Stummschaltung.
7. Anzeige Datum, Lauftext, Einstellungen und
Senderdaten (siehe Seite 12).
8. AM/PM-Anzeige.
9. Anzeige Weckereinstellung (siehe Seite 9).
10. Anzeige Sleep- und Küchen-Timer (siehe Seite 10).
11. Anzeige Schlummeralarm (siehe Seite 9).
PURE LCD
PURE LCD
BBC R1
NEWSBEAT
PURE LCD
PURE LCD
BBC R1
NEWSBEAT
PURE LCD
PURE LCD
BBC R1
NEWSBEAT
PURE LCD
PURE LCD
NDR 1
Gespräch
4
