PureTools PT-MA-HD88UHD User manual

User Manual
PT-MA-HD88UHD
User Manual
8x8 Matrix Switcher 4K (60Hz 4:4:4) HDR
Model PT-MA-HD88UHD
Designed in Germany
© 2017 PureLink GmbH All rights reserved. VersionV1.0

User Manual
PT-MA-HD88UHD
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual are for reference only. Different model layouts and specifications are subject
to the physical product.
This manual is for operation instructions only, not for any maintenance usage.
In the constant effort to improve our product, we reserve the right to make changes in
functions or parameters without prior notice or obligation.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

User Manual
PT-MA-HD88UHD
REACH | 1907/2006/EU
ROHS | 2011/65/EU
PureLink hereby declares that this product PureTools PT-MA-HD88UHD complies
with Directives 1907/2006/EU und 2011/65/EU.
EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)
PureLink GmbH hereby declares that this product PureTools PT-MA-HD88UHD
complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU
Declaration of Conformity is available at the following Internet address:
http://www.purelink.de/ce/4251364706817_CE.pdf

User Manual
PT-MA-HD88UHD
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing
material for possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the
module immediately.
Do not twist or pull by force ends of the optical cable. It can cause
malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the
power to the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

User Manual
PT-MA-HD88UHD
Contents
1. Introduction..................................................................................................................................1
1.1 Introduction to PT-MA-HD88UHD ................................................................................1
1.2 Feature................................................................................................................................1
1.3 Package List .......................................................................................................................2
2. Panel Description........................................................................................................................3
2.1 Front Panel.........................................................................................................................3
2.2 Rear Panel ..........................................................................................................................4
3. System Connection.....................................................................................................................5
3.1 Usage Precaution..............................................................................................................5
3.2 Connection Diagram........................................................................................................5
3.3 Connection Procedure ....................................................................................................6
3.4 System Application..........................................................................................................6
4. Panel Button Control ..................................................................................................................7
4.1 Connection Switching .....................................................................................................7
4.2 Connection Inquiry ..........................................................................................................7
4.3 EDID Configuration ..........................................................................................................8
5. IR Control.......................................................................................................................................9
6. RS232 Control........................................................................................................................... 10
6.1 RS232 Control Software ...............................................................................................10
6.2 RS232 Communication Command .............................................................................12
6.2.1 System Command.............................................................................................. 12
6.2.2 Lock/unlock Command..................................................................................... 13
6.2.3 Switching Command......................................................................................... 13
6.2.4 Scene Command ................................................................................................ 15
6.2.5 EDID Configuration ........................................................................................... 16
6.2.6 Enable/disable Digital Audio.......................................................................... 17

User Manual
PT-MA-HD88UHD
7. TCP/IP Control........................................................................................................................... 18
7.1 Control Mode...................................................................................................................18
7.2 TCP/IP Communication Software Control ................................................................20
7.3 GUI Control.......................................................................................................................22
7.3.1 Scene Setting...................................................................................................... 24
7.3.2 Connection Switching....................................................................................... 25
7.3.3 EDID Configuration ........................................................................................... 26
7.3.4 Audio Output ...................................................................................................... 28
7.3.5 Status Setting ..................................................................................................... 29
7.3.6 Network Configuration..................................................................................... 32
7.3.7 Password Modification..................................................................................... 33
7.4 TCP/IP Configuration.....................................................................................................33
7.5 GUI Update.......................................................................................................................34
8. Firmware Upgrade through USB port .................................................................................. 35
9. Specification.............................................................................................................................. 36
10. Panel Drawing......................................................................................................................... 37
11. Troubleshooting & Maintenance ....................................................................................... 38
12. After-Sales Service ................................................................................................................ 40

User Manual
PT-MA-HD88UHD
1
1. Introduction
1.1 Introduction to PT-MA-HD88UHD
This product is a professional 4K 8x8 HDMI2.0 Matrix Switcher with 8 HDMI inputs, 8
HDMI outputs, and 8 SPDIF audio outputs, which is designed for switching four
HDMI2.0 and HDCP2.2 compliant signals. It also provides powerful EDID management
to ensure reliable AV distribution and routing.
You can control the unit via the front panel, IR, RS232, TCP/IP and GUI.
1.2 Feature
8 SPDIF ports provide de-embedded HDMI audio output;
Supports 4Kx2K@60Hz 4:4:4 & 1080p 3D signals;
Supports HDMI 2.0, HDCP2.2 compatible, and is backward compatible to the
earlier versions;
Transmits 4Kx2K@60Hz 4:4:4 signal up to 16.4 feet (5m) via HDMI port;
Provides powerful EDID management, built-in EDID can be invoked via DIP
switcher on rear panel, RS232 command or GUI;
Controllable via front panel button, IR, RS232, TCP/IP or GUI;
LCD screen shows real-time I/O connection status;
Convenient firmware upgrade through Micro USB port;
Easy installation with rack-mounting design.

User Manual
PT-MA-HD88UHD
2
1.3 Package List
1 x 8x8 HDMI2.0 Matrix Switcher
2 x Mounting Ears
6 x Screws
4 x Plastic Cushions
1 x IR Remote
1 x IR Receiver
1 x Power Adaptor(DC 24V 2.71A)
1 x User Manual
Note: Confirm if the product and the accessories are all included, if not, please contact
with your dealers.

User Manual
PT-MA-HD88UHD
3
2. Panel Description
2.1 Front Panel
Figure 2- 1 Front Panel
No.
Name
Description
①
Firmware
Micro USB port for updating firmware.
②
Power Indicator
Illuminates red when power on;
Turns green in standby mode;
Blinks red when upgrading.
③
IR sensor
Built-in IR sensor, receive IR signal sent from IR
remote.
④
LCD Screen
Displays real-time operation status.
⑤
INPUT selector button
Total 8 input selector buttons, press one of
buttons to switch input source.
⑥
OUTPUT selector button
Total 8 output selector buttons, press the
buttons to select output channel.
1 2 4 6
35

User Manual
PT-MA-HD88UHD
4

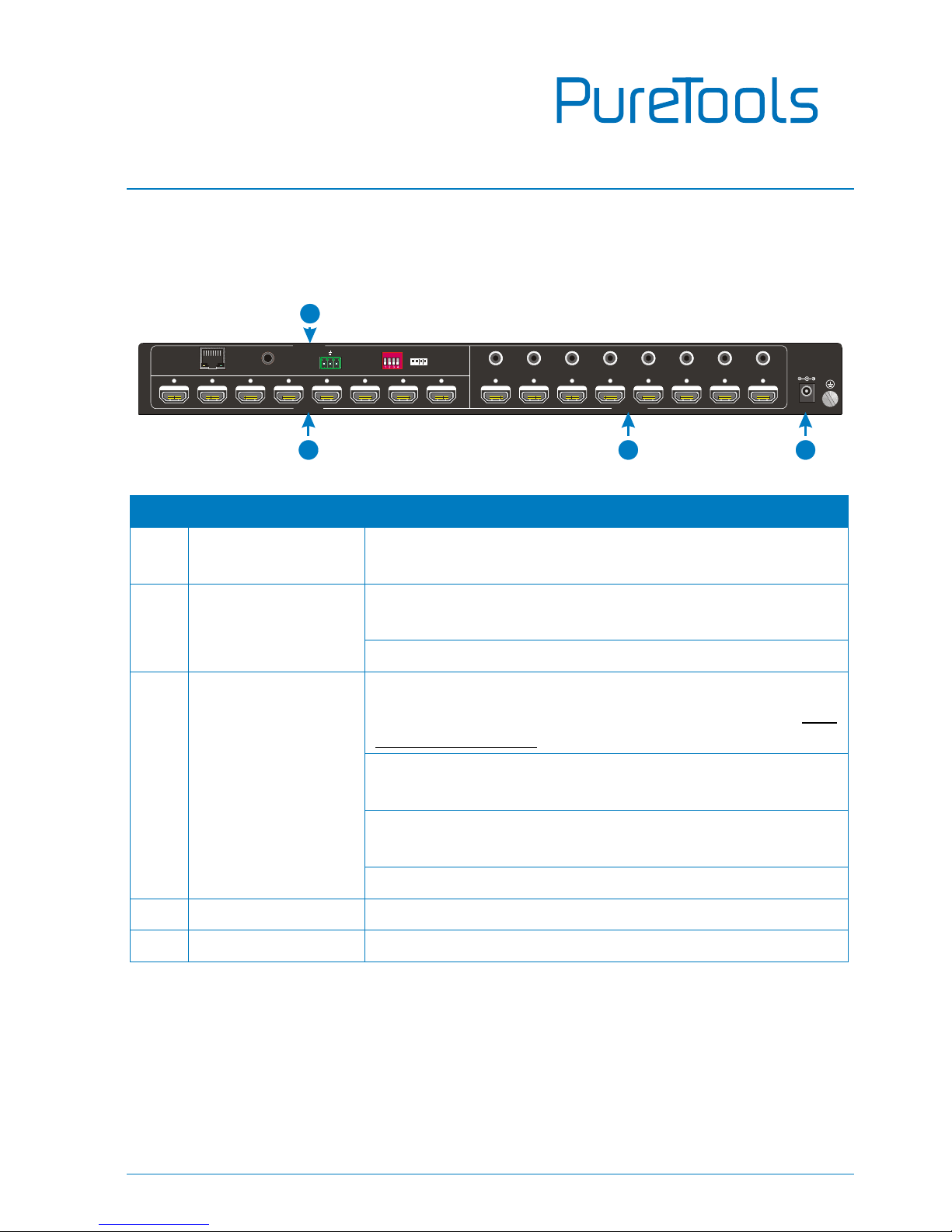

2.2 Rear Panel
Figure 2- 2 Rear Panel
No.
Name
Description
①
INPUTS
HDMI input ports, 8 in total, connect with HDMI
sources.
②
OUTPUTS
SPDIF: audio output ports for de-embedded HDMI
audio, 8 in total.
HDMI: 8 in total, connect with HDMI displays.
③
Control

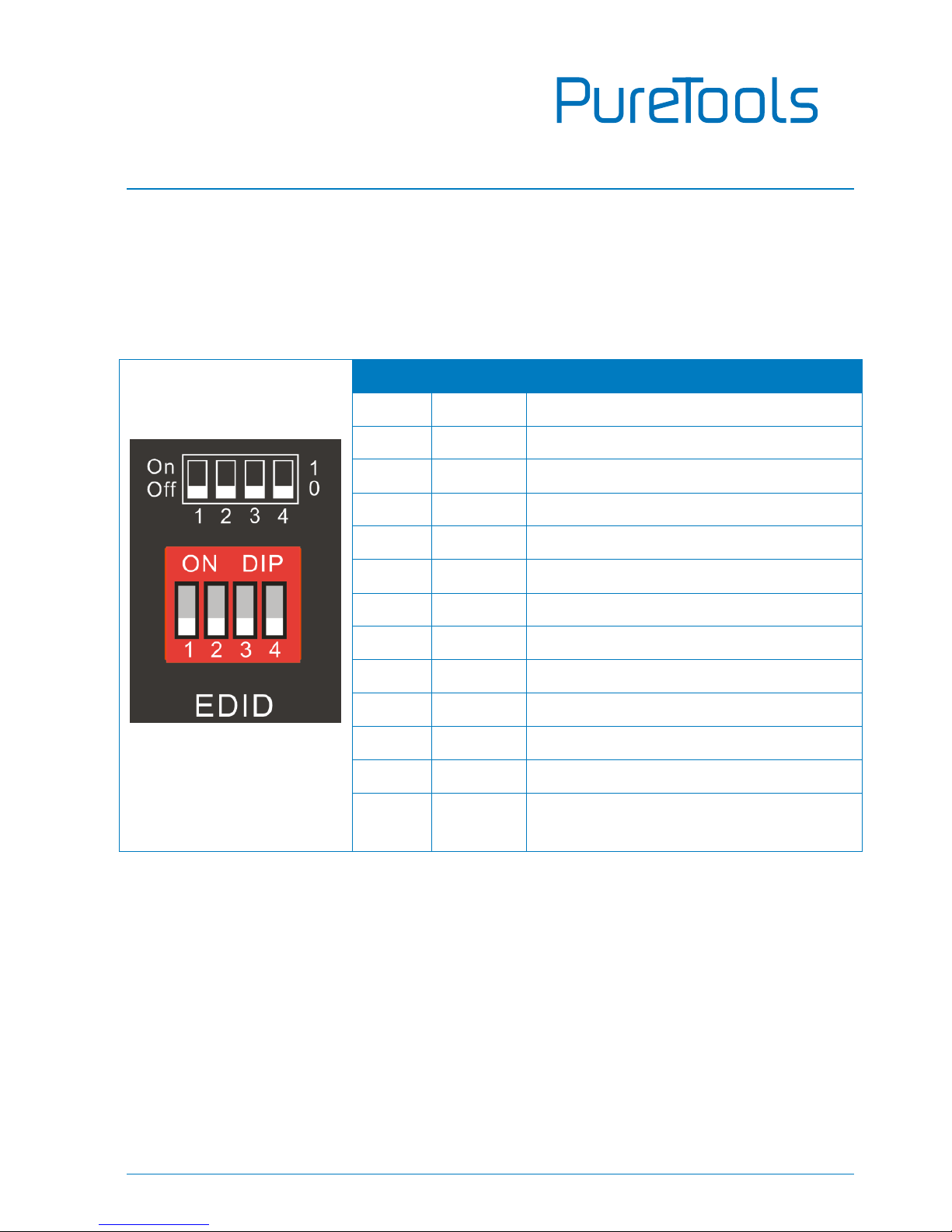

EDID: 4-pin EDID DIP switchers to set EDID data, “1”
stands for “On”, “0”stands for “Off”. Refer to 4. 2
EDID Configurarion for more detials.
RS232: Serial control port, connect with control
device.
IR IN: Connects with external IR receiver for using the
IR remote to control the Matrix Switcher.
TCP/IP: TCP/IP port for unit control.
④
DC 24V
Connect with 24VDC 2.71A power adaptor.
⑤
Ground
Connect to ground.
Note: Pictures shown in this manual are for reference only.
ON DIP
TCP/IP IR IN RS232
Tx Rx
On
Off 1 2 34
1
0
EDID
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
SPDIFSPDIFSPDIFSPDIFSPDIFSPDIFSPDIFSPDIF
DC 24V
INPUTS OUTPUTS
CONTROL
124
3

User Manual
PT-MA-HD88UHD
5
3. System Connection
3.1 Usage Precaution
System should be installed in a clean environment, preferably at ambient
temperature or within given working temperature range (see page 36 for limits).
All of the power switches, plugs, sockets and power cords should be insulated.
All devices should be connected before power on.
3.2 Connection Diagram
Figure 3- 1 Connection diagram
ON DIP
TCP/IP IR IN RS232
Tx Rx
On
Off 1 2 3 4
1
0
EDID
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
SPDIFSPDIFSPDIFSPDIFSPDIFSPDIFSPDIFSPDIF
DC 24V
INPUTS OUTPUTS
CONTROL
Central Control System
Router
Speaker
DVD Laptop
Laptop
HDTV
INPUTS
OUTPUTS
MENU
123
4 5 6
7 8
1 2 3
4 5 6
7 8
ALL EDID
CLEAR ENTER
Projector
HDMI:
IR Control:
RS232:
Ethernet:
Audio:

User Manual
PT-MA-HD88UHD
6
3.3 Connection Procedure
Step1. Connect HDMI sources (e.g. DVD/PS4/Laptop) to HDMI input ports with HDMI
cables;
Step2. Connect HDMI displays (e.g. HDTV/Projector) to HDMI output ports with HDMI
cables;
Step3. Connect speakers/ amplifiers to the SPDIF audio outputs with Toslink cables;
Step4.Connect the RS232 ports of the control device (e.g. Central Control System, PC)
and the Matrix Switcher to enable serial control.
Step5. Insert an IR receiver to the IR IN port to control this switcher via IR Remote.
Step6. Connect the TCP/IP ports of the control device (e.g. Laptop) and the Matrix
Switcher to enable TCP/IP control.
Step7. Plug a 24VDC power adapter to the DC24V power port.

When connecting to HDMI2.0 sources, make sure the HDMI cable is compliant
with HDMI2.0 to ensure reliable transmission;
Connect amplifiers that are capable to decode HDMI audio to the SPDIF ports,
or there will be no output on the amplifiers.
3.4 System Application
As its good performance in control and transmission, the Matrix Switcher can be
widely used in computer realm, monitoring, large screen displaying, conference
system, television education and bank securities institutions etc.

User Manual
PT-MA-HD88UHD
7
4. Panel Button Control
4.1 Connection Switching
The front panel features four input selection buttons and four output selection
buttons for switching I/O connection.
①To convert one input to an output:
Example: Input 1 to Output 3
→Press INPUTS 1 + OUTPUTS 3
INPUT: OUTPUT:
②To convert an input to several outputs:
Example: Convert Input 2 to Output 3 and 4
→Press INPUTS 2 + OUTPUTS 3 + OUTPUTS 4
INPUT: OUTPUT:
Note: Indicators of the pressed buttons will blink green for three times if the conversion
is done, then it will be off. If the conversion failed, they will be off immediately.
4.2 Connection Inquiry
Press OUTPUTS button 1, 2, 3, 4,5,6,7 or 8 to inquiry its corresponding input, and then
the indicator of the input button will turn green.

User Manual
PT-MA-HD88UHD
8
4.3 EDID Configuration
The rear panel boasts a 4-pin EDID DIP switcher to manage EDID. The EDID data and
its corresponding DIP switcher status are shown in the below list.
DIP Switcher
NO.
Status
EDID
0
0000
Pass though (default)
1
0001
720P 2D Pass-through CH
2
0010
720P 3D Pass-through CH
3
0011
1080P 2D Pass-through CH
4
0100
1080P 3D Pass-through CH
5
0101
4K@30HZ Pass-through CH
6
0110
4K@30HZ 2.0CH
7
0111
4K@30HZ 7.1CH
8
1000
4K@60HZ 4:2:0 Pass-through CH
9
1001
4K@60HZ 4:2:0 7.1CH
10
1010
4K@60HZ 4:4:4 Pass-through CH
11
1011
4K@60HZ 4:4:4 7.1CH
-
1111
Enable Software EDID management
mode: RS232 control or GUI control.

User Manual
PT-MA-HD88UHD
9
5. IR Control
The Matrix Switcher features one built-in IR receiver to receive IR signal from IR
remote to enable IR control. If the external IR receiver or other IR control device need
to be used, the IR IN port on rear panel can be connected.
①Standby button:
Press it to enter/ exit standby mode.
②INPUTS:
Input channel selection buttons, same with the
corresponding front panel buttons
③OUTPUTS:
Output channel selection buttons, same with the
corresponding front panel buttons.
④Menu buttons:
ALL: Select all inputs/outputs.
To convert an input to all outputs:
Example: Input 1 to all Outputs:
→Press INPUTS 1 + ALL + ENTER
EDID management button:
1) One input port learns the EDID data from one
output port.
Example: Input 2 learns EDID data from output 4:
→Press EDID + INPUTS 2 + OUTPUTS 4+ ENTER
2) All input ports learn EDID data from one output
port.
Example: All input ports learn EDID data from output 3:
→Press EDID + ALL + OUTPUTS 3 + ENTER
CLEAR: Withdraw button.
ENTER: Confirm operation.
INPUTS
OUTPUTS
MENU
1 2 3
456
7 8
1 2 3
456
7 8
ALL EDID
CLEAR ENTER
1
2
3
4

User Manual
PT-MA-HD88UHD
10
6. RS232 Control
6.1 RS232 Control Software
Installation Copy the control software file to the computer connected with the
Matrix Switcher.
Uninstallation Delete all the control software files in corresponding file path.
Basic Settings
Firstly, connect the Matrix Switcher with necessary input devices and output devices.
Then, connect it with a PC installed RS232 control software. Double-click the
software icon to run this software.
Here we take the software CommWatch.exe as example. The icon is showed as below:

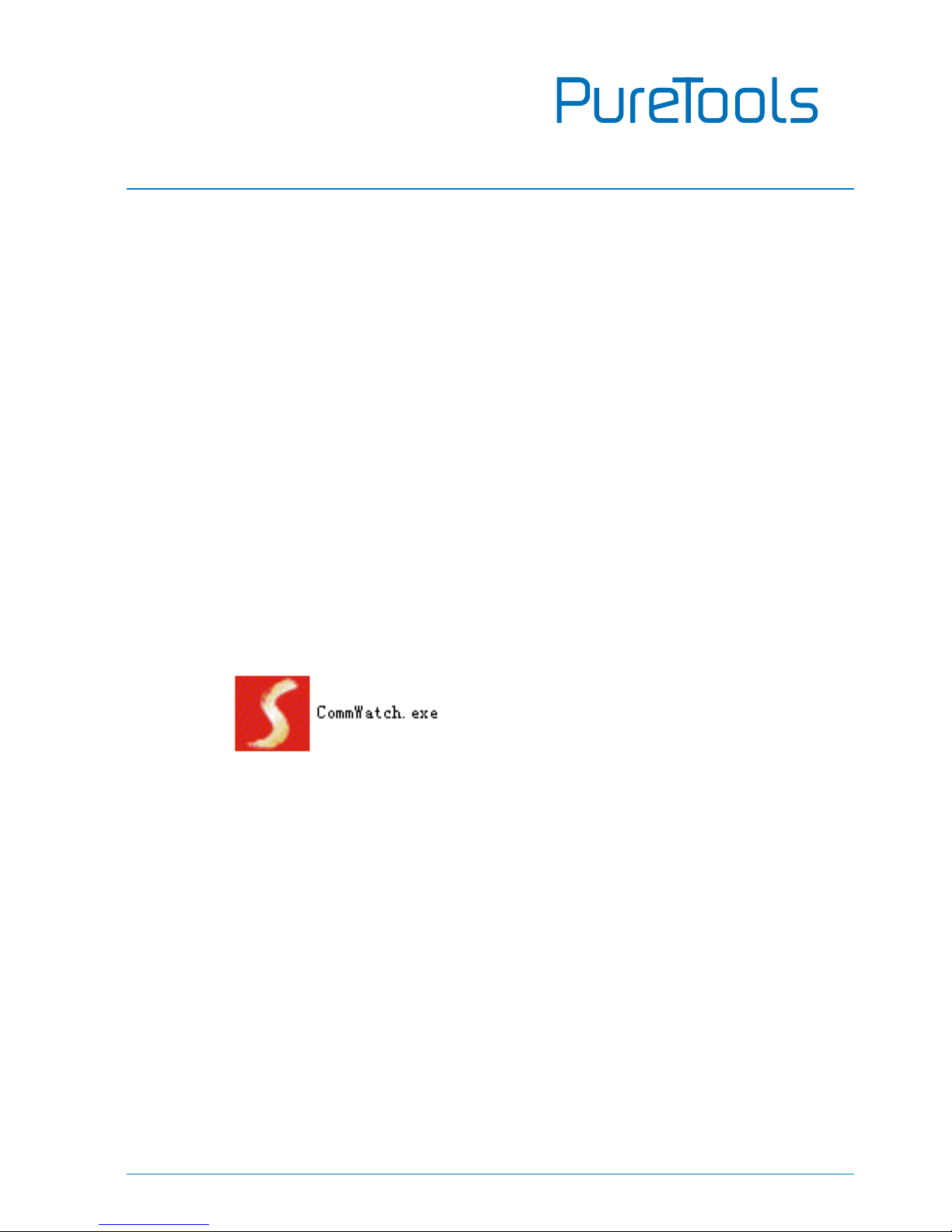

Figure 6-1 Icon of CommWatch

User Manual
PT-MA-HD88UHD
11
The interface of the control software is showed as below:

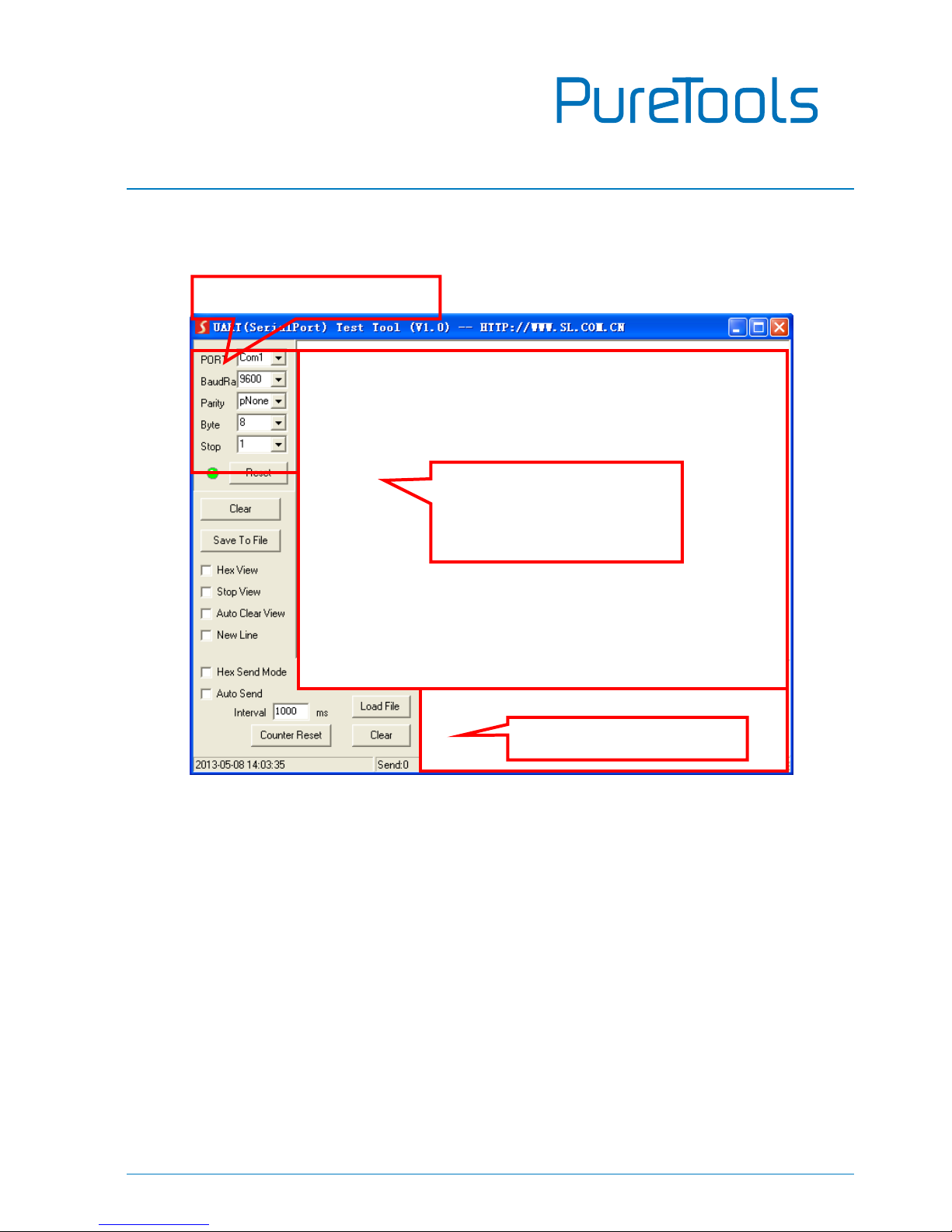

Figure 6-2 Control Interface of CommWatch
Set the parameters (baud rate, data bit, stop bit and parity bit) correctly to ensure
reliable RS232 control.
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Parameter Configuration
area
Monitoring area, indicates
whether the command
sent works.
Command Sending area

User Manual
PT-MA-HD88UHD
12
6.2 RS232 Communication Command

Case-sensitive.
“[“, “]”in the commands are for easy recognition only and not necessary in real
operations. Other symbols including “.”, “,”, “/”, “%”, “;”, “^”. are parts of the
commands.
Feedbacks listed in the column “Feedback Example”are only for reference,
feedbacks may vary according to different operations.
Dial the EDID switcher to “1111”before sending commands pertaining to
software EDID management (with grey background)
6.2.1 System Command
Command
Function
Feedback Example
/*Type;
Query the model.
XXXXX
/^Version;
Query the version of firmware
VX.X.X
Demo.
Switch to the “demo” mode, convert
input and output in turn like1B1,
1B2, …4B3, 4B4, 1B1… and so on .The
switching interval is 2 seconds.
Demo Mode
AV:01->01
AV:01->02
AV:01->03
AV:01->04
AV:02->01
…
Normal Mode
Undo.
To cancel the current operation.
Undo Ok!
PWON.
Work in normal mode.
PWON
PWOFF.
Enter into standby mode, send the
“PWON.” to start.
PWOFF

User Manual
PT-MA-HD88UHD
13
Command
Function
Feedback Example
STANDBY.
Enter into standby mode, press other
buttons or send other commands to
start.)
STANDBY
%9962.
Query the power status
STANDBY/PWOFF/
PWON
%9964.
Query the IP address.
IP:XXX.XXX.X.XXX
%0911.
Reset to factory default.
Factory Default
6.2.2 Lock/unlock Command
Command
Function
Feedback Example
/%Lock;
Lock the front panel buttons.
System Locked!
/%Unlock;
Unlock the front panel buttons.
System Unlock!
%9961.
Query the system locking status.
System Locked/
Unlock!
6.2.3 Switching Command
Command
Function
Feedback Example
[x]All.
Transfer signals from the input
channel [x] to all output channels
X To All. (X=01~08)
All#.
Transfer all input signals to the
corresponding output channels
respectively like 1->1, 2->2…
All Through.
All$.
Switch off all the output channels.
All Closed.
[x]#.
Transfer signals from the input
channel [x] to the output channel [x].
X Through. (X=01~08)
[x]$.
Switch off the output channel [x].
X Closed. (X=01~08)
[x]@.
Switch on the output channel [x].
X Open. (X=01~08)

User Manual
PT-MA-HD88UHD
14
Command
Function
Feedback Example
All@.
Switch on all output channels.
All Open.
Out 01 02 03 04
In 01 01 01 01
Out 05 06 07 08
In 01 01 01 01
[x1]V[x2].
Switch the input channel [x1] to one or
several output channels ([x2], separate
output channels with comma).
AV: X1-> X2
(X1/X2=01~08)
Status[x].
Query the I/O connection status of
output [x]
AV: Y-> X
(X=01~08, Y=01~08)
Status.
Query the input channel to the output
channels one by one.
AV:01->01
AV:01->02
AV:01->03
AV:01->04
AV:01->05
AV:01->06
AV:01->07
AV:01->08
%9971.
Query the connection status of the
inputs.
In 01 02 03 04
Connect Y N Y Y
In 05 06 07 08
Connect Y Y Y N
%9972.
Query the connection status of the
outputs.
Out 01 02 03 04
Connect Y Y Y Y
Out 05 06 07 08
Connect Y Y Y Y
