STATUS
INSTALLATION GUIDE
300-95 R1.00

1
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
CONTENTS
General Information ..........................................................................................2
Diagram...............................................................................................................2
Status Installation ...............................................................................................3
Operation and Troubleshooting.......................................................................5
Battery Health LED Information .....................................................................6
Limited Commercial Warranty Policy.............................................................8

2
e Status is a battery status indicator. It uses a screen to show numeric
battery voltage and state of charge, and also has an LED that turns green,
yellow/amber, or red to indicate battery health. A quick glance at the Status
controller assures the driver or technician that the batteries are ready to go,
or alerts the driver that the batteries need maintenance.
GENERAL INFORMATION
DIAGRAM

3
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
STATUS 12 VOLT INSTALLATION GUIDE
STATUS INSTALLATION

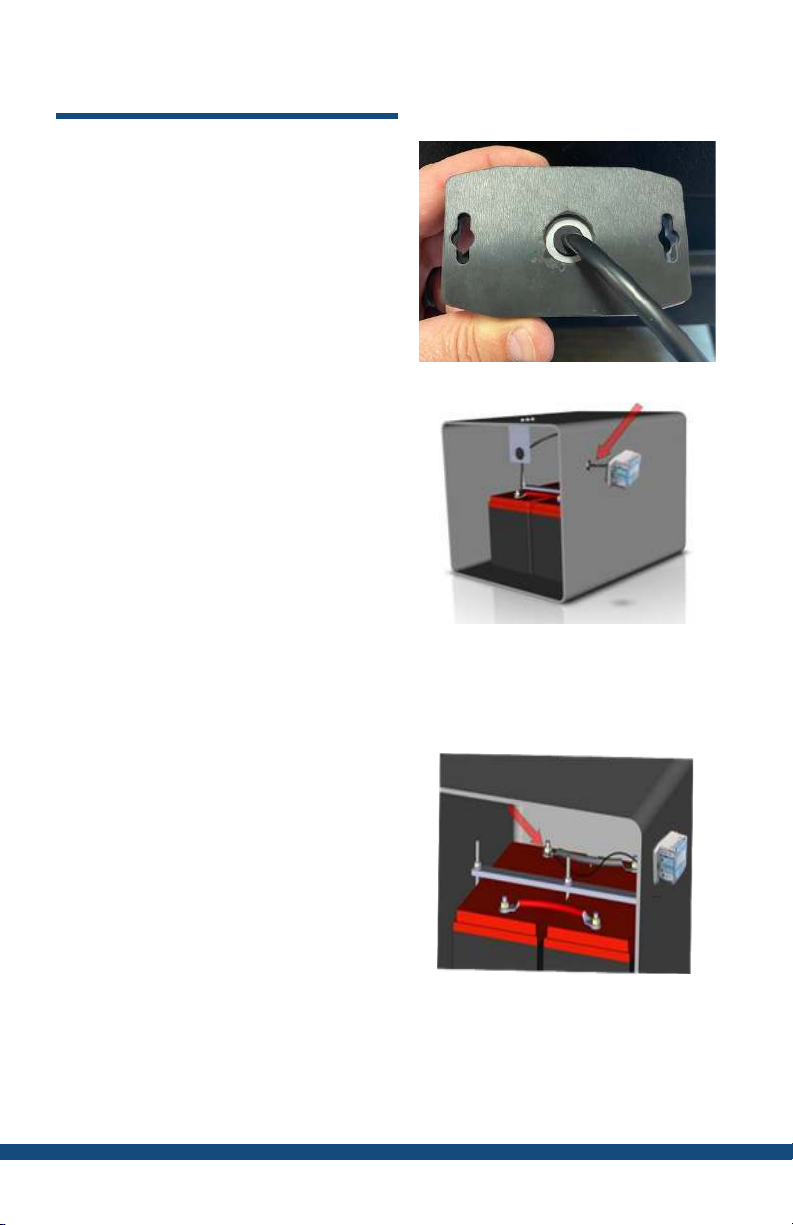

Step 1: Install the supplied rubber
gasket to the back of the Status.
Step 2: Route the wires of the Status
with the in-line fuse holder into
the battery box through a 1.06
inch hole.
Step 3: Secure the Status to the
battery box using the supplied
stainless steel hardware.
Note: e minimum hole size is 1.06 inches if there is not a pre-drilled hole in
the battery box.

4
Step 4: Connect the battery negative
wire to the negative post on the
battery. Tighten battery nut.
Installation Complete.
Step 5: Connect the positive wire
with the in-line fuse to the positive
post on the battery. Tighten
battery nut.

5
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
STATUS 12 VOLT INSTALLATION GUIDE

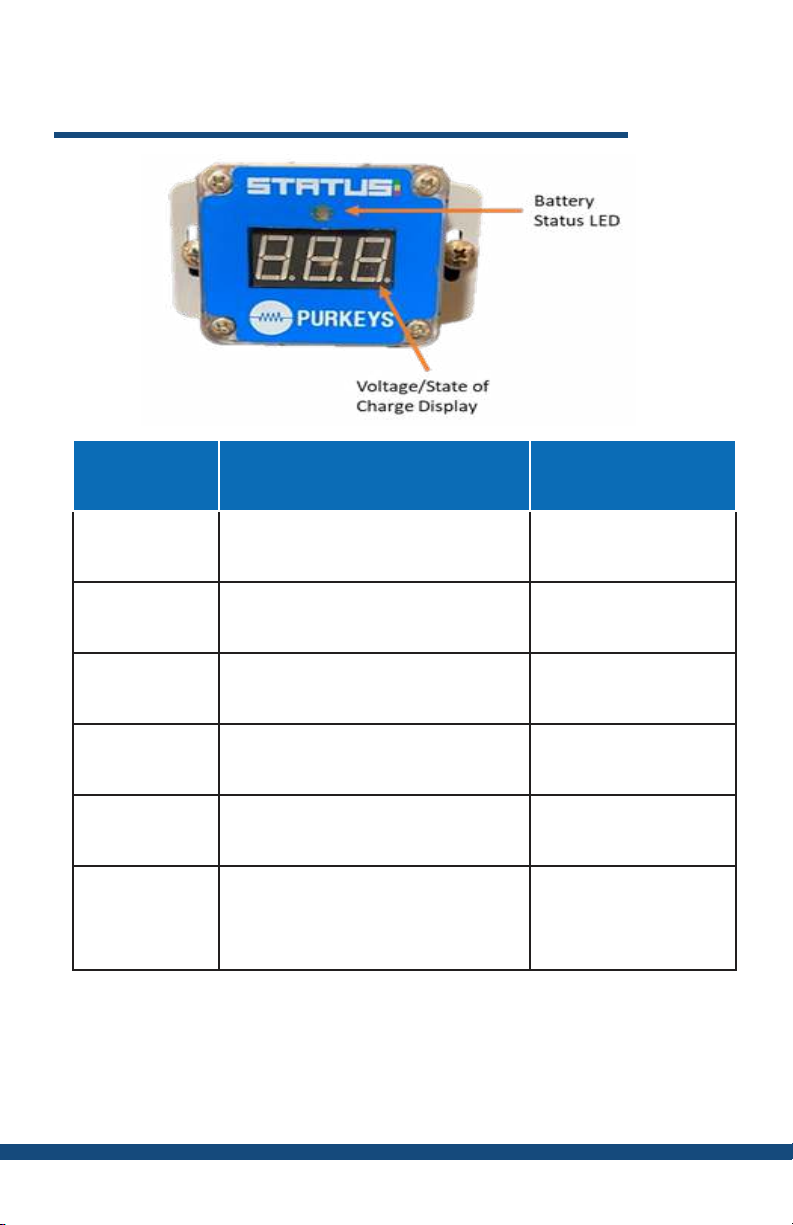

OPERATION AND TROUBLESHOOTING
LED Condition Action Needed
Solid Green Good voltage: 12.6 V and 14.9 V None
Yellow/Amber 12.4 V - 12.5 V Charge batteries soon
Red Batteries in low state of charge
(between 11.3 V and 12.3 V) Charge batteries
Slow Flashing
Red
Batteries extremely low (below
11.2 V)
Charge and test
batteries
Fast Flashing
Red Overcharging (above 15 V) Inspect the charging system
No LED
Open circuit from battery
positive and Status or
disconnected ground in battery
box
Repair circuit by
repairing the wire or
replacing the fuse

6
BATTERY HEALTH LED INFORMATION
Voltage (displayed) SOC % (displayed) LED Color
11.2 V LO Slow Flashing Red
11.3 V 10% Red
11.4 V 15% Red
11.5 V 20% Red
11.6 V 25% Red
11.7 V 30% Red
11.8 V 35% Red
11.9 V 40% Red
12.0 V 45% Red
12.1 V 50% Red
12.2 V 60% Red
12.3 V 70% Red
12.4 V 75% Yellow/Amber
12.5 V 80% Yellow/Amber
12.6 V 95% Green
12.7 V 100% Green
12.8 V – 14.9V 100% Green
>15V HI Fast Flashing Red
