Purkeys OneConnect User manual

ONECONNECT™
WITH INTERIOR LIGHT CONTROL
INSTALLATION GUIDE
300-43 Doc 1.00

1
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
CONTENTS
General Information .................................................................................... 2
OneConnect Nosebox Installation............................................................. 2
7-Way Installation ........................................................................................ 3
Interior Light Installation............................................................................ 5
Momentary Switch (Optional) ................................................................... 6
Conguring Timer and LVD ...................................................................... 7
LED Logic...................................................................................................... 8
Part List.......................................................................................................... 9
Limited Commercial Warranty Policy..................................................... 13

2
e Purkeys OneConnect™ nosebox connects power from the tractor to the
trailer electrical system and allows the driver to control the interior lights
with the touch of a button. It is available in the following congurations:
• 7-way
• 7-way and dual pole
• Dual pole
• Dual pole and single pole
GENERAL INFORMATION
ONECONNECT NOSEBOX INSTALLATION

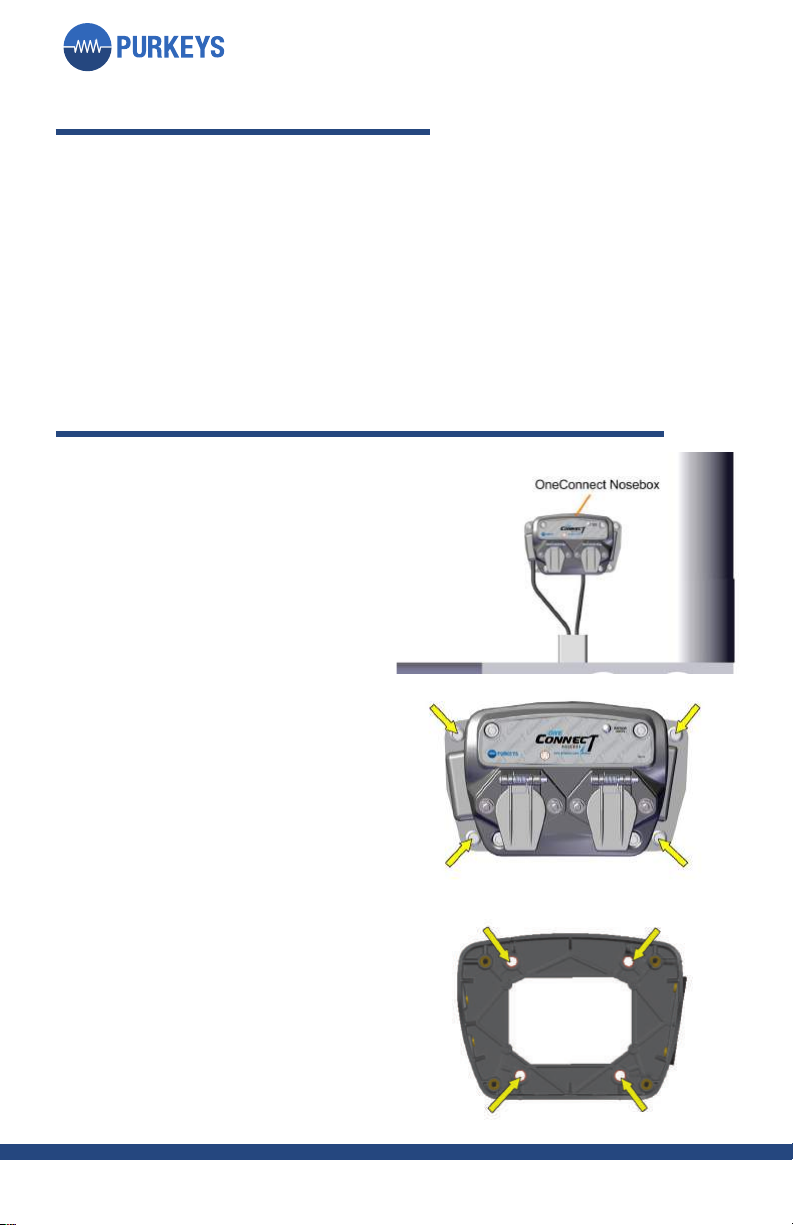

Step 1: Using the supplied mounting
screws, mount the OneConnect
nosebox at the front of the trailer,
using the mounting holes on the
plate.
Note: e mounting plate can be
removed if space is an issue or if
a standard bolt pattern is wanted.
Simply remove the plate and
mount the nosebox to the trailer
using the supplied mounting
screws and the standard bolt holes
inside the nosebox.

3
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
ONECONNECT WITH INTERIOR LIGHT CONTROL
SAE J560 7-way
replaceable
receptacle
P
7 way bullet pin or ring
terminal connections
DETAIL P
SCALE 1 : 1.5
Ground (white)
Tail (brown)
Aux (blue)
Right (green)
Stop (red)
Left (yellow)
Lamps (black)
REV:
Drawn By:
Tolerance:
.X .25"
.XX .030"
.XXX .005"
Date:
BASIC 7 WAY FOR DATA SHEET
Scale:
1:4
Page 3of4
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
PURKEYS. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF PURKEYS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
Eng Appr:
Date:
All dimensions are in inches
unless otherwise specified.
Part #:
3rd Angle
Weight:
-
3/15/2019
DRAFT
PD009447
7-WAY INSTALLATION
SAE J560 7-way
replaceable
receptacle
P
7 way bullet pin or ring
terminal connections
DETAIL P
SCALE 1 : 1.5
Ground (white)
Tail (brown)
Aux (blue)
Right (green)
Stop (red)
Left (yellow)
Lamps (black)
REV:
Drawn By:
Tolerance:
.X .25"
.XX .030"
.XXX .005"
Date:
BASIC 7 WAY FOR DATA SHEET
Scale:
1:4
Page 3of4
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
PURKEYS. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF PURKEYS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
Eng Appr:
Date:
All dimensions are in inches
unless otherwise specified.
Part #:
3rd Angle
Weight:
-
3/15/2019
DRAFT
PD009447
Route the 7-way harness through the liquid-tight grommet on the bottom
side of the nosebox. Use either bullet pin or ring terminal connections to
connect the 7-way harness to the nosebox:
• For bullet pin connections – Place the correct wire onto the bullet pin
connection. e color and name for each circuit is indicated on the
circuit board and correlates with the wire color on the 7-way harness.
• For ring terminal connections – Remove the bullet pin from the circuit
board, place the ring terminal onto the threaded stud (do not remove
the jam nut), and reinstall the bullet pin connector onto the threaded
stud. Torque the bullet pin on the ring terminal to 25 lb-in. e color
and name for each circuit is indicated on the circuit board and correlates
with the wire color on the 7-way harness.
Note: See the following diagrams for the 7-way connections of each nosebox
conguration.
Diagrams: 7-way Receptacle Only

4
SAE J560 7 way
replaceable
receptacle
Replaceable dual
pole receptacle
P
7 way bullet pin or ring
terminal connections Dual pole
positive
connection
Dual pole
negative
connection
DETAIL P
SCALE 1 : 1.5
Ground (white)
Tail (brown)
Aux (blue)
Right (green)
Stop (red)
Left (yellow)
Lamps (black)
REV:
Drawn By:
Tolerance:
.X .25"
.XX .030"
.XXX .005"
Date:
BASIC 7 WAY FOR DATA SHEET
Scale:
1:4
Page 3of4
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
PURKEYS. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF PURKEYS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
Eng Appr:
Date:
All dimensions are in inches
unless otherwise specified.
Part #:
3rd Angle
Weight:
-
3/15/2019
DRAFT
PD009448
Diagrams: 7-way/Dual Pole Receptacles
SAE J560 7 way
replaceable
receptacle
Replaceable dual
pole receptacle
P
7 way bullet pin or ring
terminal connections Dual pole
positive
connection
Dual pole
negative
connection
DETAIL P
SCALE 1 : 1.5
Ground (white)
Tail (brown)
Aux (blue)
Right (green)
Stop (red)
Left (yellow)
Lamps (black)
REV:
Drawn By:
Tolerance:
.X .25"
.XX .030"
.XXX .005"
Date:
BASIC 7 WAY FOR DATA SHEET
Scale:
1:4
Page 3of4
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
PURKEYS. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF PURKEYS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
Eng Appr:
Date:
All dimensions are in inches
unless otherwise specified.
Part #:
3rd Angle
Weight:
-
3/15/2019
DRAFT
PD009448

5
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
ONECONNECT WITH INTERIOR LIGHT CONTROL
INTERIOR LIGHT INSTALLATION
Interior Light Installation Complete.
A
DETAIL A
SCALE 1 : 2
2 X 7-way
positive (AUX)
Telematics
Interior lights
switch
Interior lights
positive
3 X Ground
x
INTERPRET THIS DRAWING IN ACCORDANCE WITH ASME 1.
Y14.100-2004
SEE SEPARATE PARTS LIST FOR PARTS 2.
REMOVE ALL BURRS 3.
BREAK SHARP CORNERS 4.
WEIGHT: - 5.
MATERIAL: 6.
MATERIAL FINISH: 7.
MATERIAL COLOR: 8.
TOLERANCES UNLESS OTHERWISE SPECIFIED:
IF ENGLISH AND METRIC SPECIFIED - ENGLISH [METRIC]
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF PURKEYS. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF PURKEYS IS PROHIBITED.
ENGLISH
.X
.030
.XX
.010
.XXX
.005
METRIC
.X
.25
.XX
.13
.XXX
.013
LOWELL, ARKANSAS 72745
DRAFT
3RD ANGLE
Peer Review Checklist:
Decal(s) (Buy Sticker) •
Decal(s) included •
No overlap •
Correct tolerancing •
Label(s) (Make Sticker) •
Label(s)iIncluded •
No overlap •
Correct tolerancing •
Serial # (if needed) •
Appropriate location •
Correct tolerancing •
Correct sticker type •
Work Order Barcode •
Appropriate location •
Correct tolerancing •
Correct sticker type •
Overall dimensions •
Critical dimensions •
Wire lengths •
Appropriate tolerances on each sheet •
Correct units are selected •
Tolerances are appropriate •
Weight •
Weight includes everything in drawing •
Units are shown •
Important features •
Complete title block (Based on PDM data card) •
Description is accurate •
Part number is correct •
Project name is correct •
Drawing number is correct •
Revision is correct •
Drawn By shows correct name and date •
Appropriate notes are included •
First page shows entire part •
BOM page(s) are complete and reflect •
manufacturing process
Last page shows complete revision history •
TECHNICAL DRAWING
Technical Drawing Checklists
- 2018/12/11
800-90 10130 - LIGHT CONTROL FOR ONECONNECT
PROJECT PART #
CAGE:
DRAWN BY
REVIEWED BY
ENG APPR.
Q.A. APPR.
DATE NAME
DESCRIPTION:
SIZE
B
DWG. NO. REV
SCALE: 1:4
5/20/2019
SHEET 3 OF 7
PD009777
ONECONNECT, 7-WAY
W/LIGHTS
A A
B B
C C
D D
E E
F F
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Q.A. Approval Checklist:
Overall dimensions •
Wire lengths •
Complete title block •
Description is accurate •
Part number is correct •
Project name is correct •
Drawing number is correct •
Revision is correct •
Drawn By , Reviewed By , and Eng. Appr show •
correct names and dates
Tolerance units is selected on each sheet •
First page shows entire part •
BOM complete •
Last page shows complete revision history •
Watermark has been removed •
Engineering Approval Checklist:
Correct Decal(s) and Label(s) •
Correct graphic •
All labels needed are shown •
Serial # (if needed) •
Appropriate location •
Correct tolerancing •
Correct sticker type •
Work Order Barcode •
Appropriate location •
Correct tolerancing •
Correct sticker type •
Overall dimensions •
Critical dimensions •
Wire lengths •
Weight •
Weight includes everything in drawing •
Units are shown •
Important engineering/manufacturing/customer •
features
Appropriate notes are included •
First page shows entire part •
Last page shows complete revision history •
Reviewed By shows correct name and date •
BOM pages reflect correct manufacturing steps •
NOTES:
### Be sure to press F7 to complete a spell check before you submit for Peer Review. ###
Step 1: Terminate the Interior Light positive wire with a #10 ring terminal and
connect to the Interior Lights Positive (see Figure 1).
Step 2: Terminate the Interior Light negative wire with a #10 ring terminal
and connect to Ground (see Figure 1).
Figure 1
NOTE: Not every model includes all the pins shown, as pin availability
varies by model.

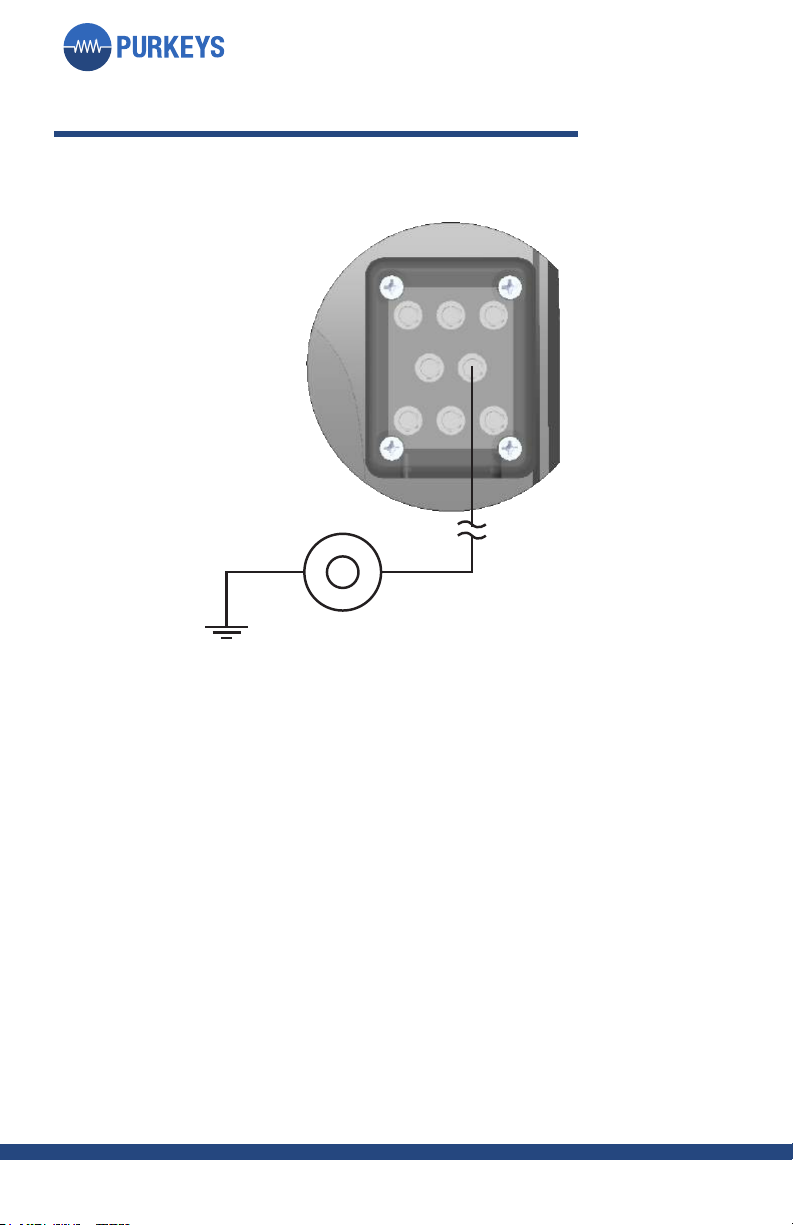

To make the harness connections on the outside of the nosebox:

6
Momentary
Switch
If your trailer is being spec’d with a momentary switch at the back of the
trailer, wire the circuit as shown below using a #10 ring terminal.
MOMENTARY SWITCH (OPTIONAL)

7
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
ONECONNECT WITH INTERIOR LIGHT CONTROL

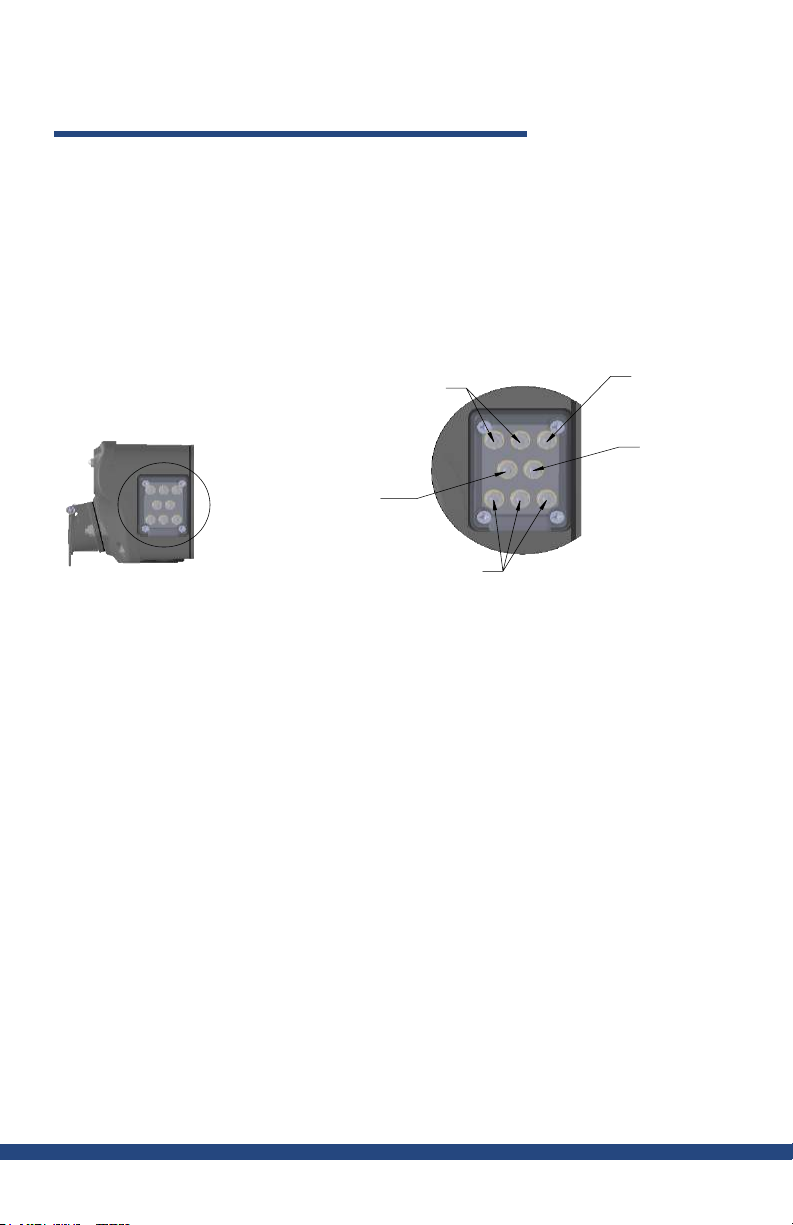

CONFIGURING TIMER AND LVD
Low Voltage Warning (Pin 1)
OFF (default) 12.2 V
ON 12.4 V
Once the OneConnect installation is complete, refer to the information below
to change timer or low voltage disconnect settings.
Light Timeout Duration
Timer 1 (Pin 2) Timer 0 (Pin 3) Light Duration
OFF (default) OFF (default) 15 minutes
OFF ON 30 minutes
ON OFF 60 minutes
ON ON 90 minutes

8
Note: All fault indication LEDs will remain on for 30 seconds.
LED LOGIC
*LEDs and trailer lights will ash as a warning to indicate when the trailer
lights will shut o.
• If there are 3 minutes le before the trailer lights turn o, the LED and
trailer lights will ash 3 times.
• If there are 2 minutes le before the trailer lights turn o, the lights will
ash twice.
• If there is only 1 minute le before the trailer lights turn o, the lights
will ash once.
If the ashing lights are white, the time for the trailer lights to be on has
almost reached its limit.
If the ashing lights are orange, the battery voltage is low and the lights will
be shut o to protect the batteries.
LED STATUS
White Solid Lights are on*
Orange Solid Low voltage*
Yellow Solid Over current
Purple Solid Short circuit

9
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
ONECONNECT WITH INTERIOR LIGHT CONTROL

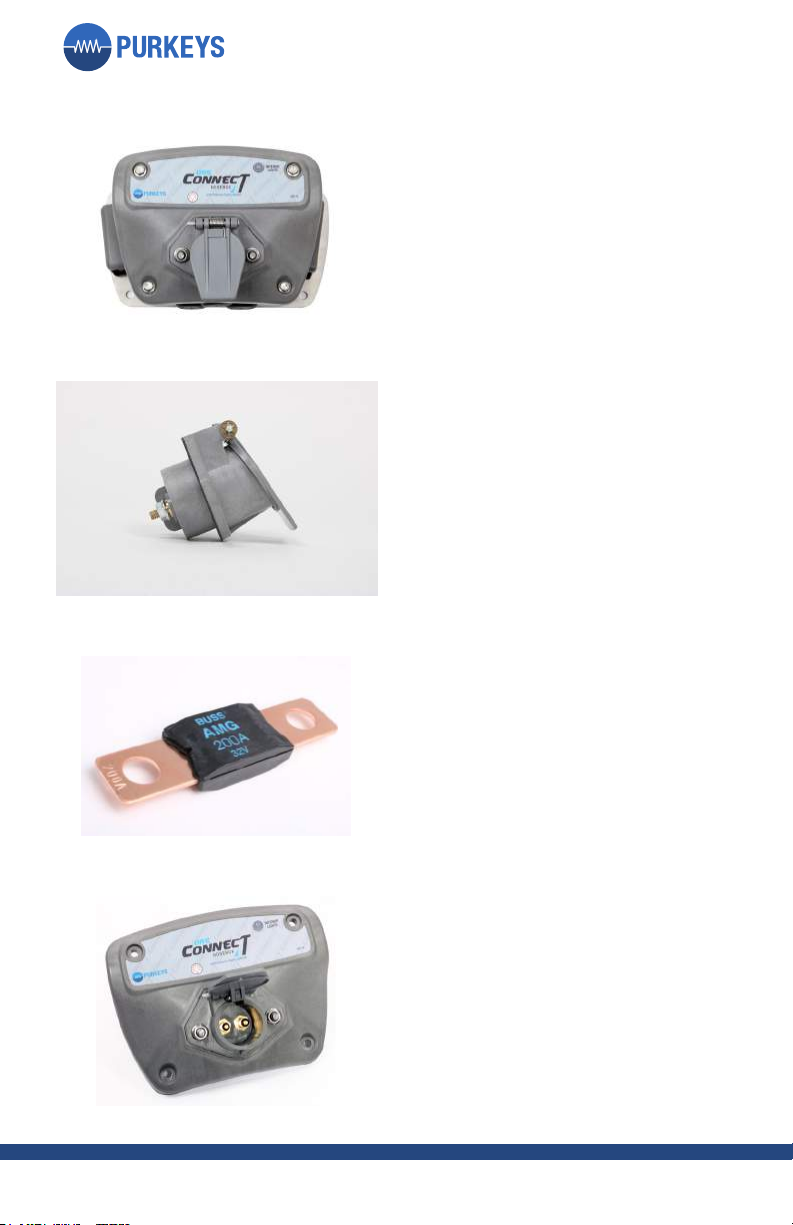

PART LIST
Part#: ONECONNECT-1 LC
OneConnect, 7-way with Light
Control
Part#: NB00041
Receptacle, Nylon 7-way with #10-32
Studs - Solid Pins
Part#: 800-86
OneConnect, 7-Way with Lights Lid
Part#: 900-9
Nosebox, 7-Way Receptacle and
Support PCBA Replacement Kit for
Single Lid

10
Part#: F00026
Fuse, 200 AMP Mega
Part#: ONECONNECT-2 LC
OneConnect, Dual Pole with Light
Control
Part#: NB00048
Receptacle, Nylon Dual Pole
Part#: 800-88
OneConnect, Dual Pole with Lights
Lid

11
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
ONECONNECT WITH INTERIOR LIGHT CONTROL
Part#: 800-87
OneConnect, 7-way/dual pole with
lights lid
Part#: ONECONNECT-4 LC
OneConnect, Dual/Single Pole Combo
with Light Control
Part#: 900-10
Nosebox, 7-Way Receptacle, and
Support PCBA Replacment Kit for
Dual Lid
Part#: ONECONNECT-3 LC
OneConnect, 7-way with Dual Pole
with Light Control

12
Part#: NB00053
Receptacle, Nylon Single Pole
Part#: 800-89
OneConnect, Single Pole/Dual Pole
with Lights Lid
Part # 300-43
Guide, Installation, OneConnect with
Interior Light Control
Part#: H-00522
Harness, 50  Interior Light Source

13
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
ONECONNECT WITH INTERIOR LIGHT CONTROL
LIMITED COMMERCIAL WARRANTY POLICY
Purkeys Fleet Electric, Inc. (hereaer “Purkeys”), warrants each product to be free of defects
in material or workmanship under normal use and service. is warranty is for the benet of
Original Equipment Manufacturers, Dealers, Warehouse Distributors, Fleets, or other End
Users (hereaer “Customers”) and covers products manufactured by Purkeys and sold new to
Customers either directly by Purkeys or by its authorized dealers, distributors, or agents. e
length of the Warranty Period is 36 months.
e warranty period commences on the in-service or install date and is not transferable.
Failure to provide the in-service or install date on the warranty claim form will cause the
warranty period to begin on the date the part was manufactured or date of sale recorded on the
original sales invoice, whichever is earlier.
A completed warranty claim form should accompany all parts submitted to Purkeys for
consideration for repair or replacement under warranty. e submitted claim form should
contain all of the information required. Lack of a properly or fully completed claim form will
result in delay or denial of warranty claim. Claims must be submitted no later than 30 days
aer part is removed.
is warranty does not apply if, in sole judgement of Purkeys, the product has been damaged
or subjected to accident, faulty repair, improper adjustment, improper installation or wiring,
neglect, misuse, or alteration or if the product failure is caused by defects in peripheral vehicle
components or components attached to the Product or failure of a part not manufactured by
Purkeys.
is warranty shall not apply if any Purkeys product is used for a purpose for which it is not
designed or is in any way altered without the specic prior written consent of Purkeys. ANY
Product alleged by a Customer to be defective must be inspected by Purkeys as a part of the
warranty claims process in order to conrm that the part has failed as a result of a defect in
material or workmanship.
Transportation for products and parts submitted to Purkeys for warranty consideration must
be prepaid by Customer. Repaired or replaced products and or components will be returned to
Customer pre-paid by Customer or “freight collect” to the address provided by Customer in the
warranty claim form. No charge will be made for labor or material in eecting such repairs.
e Warranty provided by Purkeys hereunder is specically limited to repair or replacement
of the Product as Purkeys deems most appropriate in its sole discretion. Purkeys neither
assumes nor authorizes any other person to assume on its behalf any other warranty or
liabilities in connection with Purkeys products. e Warranty does not apply to fuses or other
“consumable” or maintenance items which are or may be a part of any Purkeys product.
THIS WARRANTY DOES NOT APPLY TO LOSS OF VEHICLE OR EQUIPMENT, LOSS OF
TIME, INCONVENIENCE, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES.
PURKEYS SPECIFICALLY DISCLAIMS AND SHALL NOT BE LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES arising out of or from the use of Purkeys products by the
Customer.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, INCLUDING
COMMON LAW WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, AND ANY OTHER EXPRESS OR IMPLIED WARRANTIES. ALL
OTHER SUCH WARRANTIES ARE SPECIFICALLY DISCLAIMED.
is Limited Commercial Warranty supersedes all previous Warranty Policies issued by
Purkeys and any of its suppliers.
