Push Video AVN805 User manual

n805_system_V1.1
AVN805
MEGAPIXEL
NETWORK CAMERA SERIES
OPERATION GUIDE
Please read instructions thoroughly before operation and retain it for future reference.

FW: 2033-1095-1001
IMPORTANT SAFEGUARD
All lead-free products offered by the company comply with the requirements of the
European law on the Restriction of Hazardous Substances (RoHS) directive, which means
our manufacture processes and products are strictly “lead-free” and without the hazardous
substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product
must be collected separately at the product end-of-life. This applies to your product and
any peripherals marked with this symbol. Do not dispose of these products as unsorted
municipal waste. Contact your local dealer for procedures for recycling this equipment.
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device mat not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Trademark Acknowledgements
iPad® & iPhone® are the registered trademarks of Apple Inc.
Android™ is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.
Microsoft®, Windows® & Internet Explorer® are registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Disclaimer
We reserve the right to revise or remove any content in this manual at any time. We do not warrant or assume
any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of
this manual is subject to change without notice.
This product doesn’t have a standby / off mode.

FW: 2033-1095-1001
MPEG4 Licensing
THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING
MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY
MPEG LA TO PROVIDE MPEG4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL INTERNAL
AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM.
GPL Licensing
This product contains codes which are developed by Third-Party-Companies and which
are subject to the GNU General Public License (“GPL”) or the GNU Lesser Public License
(“LGPL”).
The GPL Code used in this product is released without warranty and is subject to the
copyright of the corresponding author.
Further source codes which are subject to the GPL-licenses are available upon request.
We are pleased to provide our modifications to the Linux Kernel, as well as a few new
commands, and some tools to get you into the code. The codes are provided on the FTP
site, and please download them from the following site or you can refer to your distributor:
http://download.dvrtw.com.tw/GPL/076D_Series/arm-linux-2.6.tar.gz

TABLE OF CONTENTS
1. OVERVIEW......................................................................................................................................... 1
1.1 Product Features....................................................................................................................................... 1
1.2 Package Content....................................................................................................................................... 1
1.3 Cable Overview......................................................................................................................................... 1
1.4 Reset Default ............................................................................................................................................ 2
2. CAMERA ACCESS WITH INTERNET EXPLORER............................................................................ 3
2.1 Camera Login............................................................................................................................................ 3
2.2 Control Panel Overview ............................................................................................................................ 3
2.3 Digital PTZ (DPTZ) Operations ................................................................................................................. 5
2.4 Event Record Search & Playback ............................................................................................................. 6
3. CAMERA CONFIGURATIONS............................................................................................................ 7
3.1 System configuration menu....................................................................................................................... 7
3.2 Network ..................................................................................................................................................... 8
3.2.1 Network ............................................................................................................................................................8
3.2.2 DDNS ...............................................................................................................................................................8
3.2.3 SNTP................................................................................................................................................................8
3.2.4 FTP...................................................................................................................................................................8
3.2.5 MAIL .................................................................................................................................................................9
3.2.6 Filter .................................................................................................................................................................9
3.2.7 UPnP ..............................................................................................................................................................10
3.3 Camera ................................................................................................................................................... 10
3.3.1 Camera...........................................................................................................................................................10
3.3.2 Preset ............................................................................................................................................................. 11
3.3.3 Cruise .............................................................................................................................................................12
3.3.4 Color...............................................................................................................................................................13
3.4 Record Timer........................................................................................................................................... 13
3.4.1 Record............................................................................................................................................................13
3.4.2 Record Timer..................................................................................................................................................14
3.5 Storage.................................................................................................................................................... 14
3.5.1 Memory ..........................................................................................................................................................14
3.6 Trigger ..................................................................................................................................................... 14
3.6.1 Trigger ............................................................................................................................................................14
3.6.2 Push Video .....................................................................................................................................................16
3.7 General ................................................................................................................................................... 16
3.7.1 General...........................................................................................................................................................16
3.7.2 Time................................................................................................................................................................17
3.7.3 Server Log......................................................................................................................................................17
3.7.4 Online .............................................................................................................................................................18
3.7.5 Account...........................................................................................................................................................18
3.7.6 Maintenance...................................................................................................................................................19
APPENDIX 1 PRODUCT SPECIFICATIONS........................................................................................ 20
APPENDIX 2 BIT RATE TABLE FOR REFERENCE ............................................................................ 21
APPENDIX 3 Q&A ................................................................................................................................ 23

1
1. OVERVIEW
1.1 Product Features
Easy network setup with your iPhone / iPad
1.3 Megapixel live MOS sensor with HDTV 720p quality, allowing users to
notice minor details more easily
Memory storage built-in for video recording
Push Video support to send an event notification to your iPhone, iPad and Android mobile devices immediately once the
specified event type is triggered, and play video recording once you confirm the receipt.
External alarm I/O device connection
Remote Surveillance
-- Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system
12 IR LEDs built-in for night surveillance
Special and stylish design, suitable for discreet monitoring
1.2 Package Content
□Network camera □Cable □Screws & Wall Plugs
□Quick Setup with iPhone / iPad □Adapter
1.3 Cable Overview
GND (Black)
Alarm-out (Pink)
Alarm-in (Yellow)
Color Cable Description
-- Power cable Connect to DC12V power supply.
Note: The power adapter is optional.
-- RJ45 network cable Connect it to the supplied RJ45 cable extender adapter for cable extension, and prepare another
RJ45 network cable with suitable length for your connection.
Black GND Ground wire, used for reset default or external device connection.
Yellow Alarm-in Reserved for connecting to an external alarm device. For details, please refer the user manual
of your alarm device.
Pink Alarm-out Reserved for connecting to an external alarm device.
For details, please refer the user manual of your alarm
device.

2
1.4 Reset Default
1. Push to remove the white cover from the camera. 2. Insert and slightly push the clip to the reset button,
and hold till the camera is rebooted.
Note: This operation will restore all configurations to factory default values, including network setup.

3
2. CAMERA ACCESS WITH INTERNET EXPLORER
This network camera can be accessed via Microsoft® Internet Explorer® and iPhone / iPad / Android mobile devices
with our self-developed program “EagleEyes” installed depending on different using situations.
Note: For details about accessing network cameras via iPhone / iPad / Android mobile devices, please
refer to http://www.eagleeyescctv.com.
Before using the camera, make sure you have configured the network settings, and the network connection is fine.
For network configurations, please refer to:
“Quick Setup With iPhone / iPad” supplied with your camera if you’re using iPhone / iPad, and your network
environment is wireless.
“ADVANCED NETWORK SETUP” downloadable from www.surveillance-download.com/user/n805.swf if your network
environment is not wireless.
2.1 Camera Login
Step1: Open your web browser, and key in http://ipaddress:portnum in the URL address box.
For example, for the IP address 60.121.46.236 and port No. 888, please key in ”http://60.121.46.236:888” into
the URL address box, and press “Enter”.
Step2: In the login page, key in the user name and password, and enter the security code from the image below if any.
Then, click “LOGIN”.
Step3: The wizard is then started.
‧ To skip the wizard and directly access the camera live view, click “Close”.
‧ To directly access the camera live view without starting the wizard for the login next time, check “Do not start wizard at login”.
Note: If you’re prompted to install “VLC player”, “Software” and “H264 Streaming Viewer”, please
agree to proceed the installation.
Step5: When the login is successful, the live view is shown.
2.2 Control Panel Overview
Note: The buttons available depend on the user level used to log in.

4
Function Icon User Level Description
Live
Supervisor / Power User
/ Normal User / Guest Switch to the live view page.
DPTZ
Supervisor / Power User
/ Normal User
Switch to the DPTZ configuration page.
For details, please refer to “2.3 Digital PTZ (DPTZ) Operations” at page
5.
Backup Supervisor / Power User
Enter the event record list for video playback.
For details, please refer to “2.4 Event Record Search & Playback’ at page
6.
Config. Supervisor / Power User
Switch to the system configuration page, and the functions available for
“Supervisor” and “Power User” are different.
For details, please refer to “3.1 System configuration menu” at page 7.
Select the image player from the drop-down list:Live player -- Supervisor / Power User
/ Normal User / Guest ActiveX
QuickTime
QuickTime is Apple Inc.’s multimedia software. You need to have
QuickTime installed in your operating system before selecting “QuickTime”.
When it is selected, you will be promoted to enter the user name and
password to access the camera.
VLC
Quality -- Supervisor / Power User
/ Normal User
Click & drag the slider to select the video quality:
BASIC / NORMAL / HIGH / BEST.
Select the image resolution from the drop list:
SXGA (1280 x 1024) SXVGA (1280 x 960)
720P (1280 x 720) VGA (640 x 480)
QVGA (320 x 240)
Resolution -- Supervisor / Power User
/ Normal User
When Push Video is on, the live resolution will be fixed to VGA.
Live View Size: Supervisor / Power User
/ Normal User
Normal Size The current live view size is the same as the selected resolution.
Fit to screen The selected resolution is resized to fit into the current live view size.
This icon doesn’t work when the selected resolution is VGA or QVGA.
Scale
Click and hold the movable square on the left bottom corner of the live
view to move
This icon appears only when the selected resolution is larger than the current
live view size.
CIF Resize The QVGA resolution is resized to fit into the current live view size.
This icon appears only when the selected resolution is QVGA (CIF).
Snapshot
Supervisor / Power User
/ Normal User
Click to take a snapshot of the current view, and save to the location
specified in “Config.” “Camera” “Camera” “Snapshot Path”.
Flip
Supervisor / Power User
/ Normal User Click to rotate the image 1800when necessary.
Full Screen
Supervisor / Power User
/ Normal User
Click to display the image in full screen.
To exit the full screen mode, press “Esc” on your keyboard.
DPTZ
Supervisor / Power User
/ Normal User Click to enable digital PTZ functions.
Alarm Out
Supervisor / Power User
/ Normal User
Click to force your alarm-out device to work. For example, when your
alarm device is a buzzer, click this button and your buzzer will start to
sound even if there’s no alarm event.
Before using this function, make sure your alarm-out device is connected
properly to this camera and also configured well in “Trigger”
 “Trigger”.

5
2.3 Digital PTZ (DPTZ) Operations
This camera has PTZ capability, i.e. digital PTZ (hereafter called “DPTZ”), for wide area monitoring.
STEP1: Click “DPTZ” to show the DPTZ control panel.
STEP2: Select the functions when needed:
ICON FUNCTION DESCRIPTION
There are several display resolutions available. When the selected resolution is out of your current live
view support, a part of your surveillance area might get covered on the screen, and you need to
manually move on the screen to check the covered part.
:This shows the selected resolution is scaled to fit in the current live view size. Click to restore the
scaled resolution to its original size.
/ Fit to screen /
Original size
:This shows the live view resolution is in its original size.
Take snapshots Click to take a snapshot of the current view, and save to the location specified in “Config.” “Camera”
“Camera” “Snapshot Path”.
Click to activate the auto mode of the camera. The auto mode could be “Sequence” or “Auto Pan”
specified in “Config.” “Camera” “Cruise” “Active Mode”.
Note: This function is available only when DPTZ is enabled.
Sequence: Move to several preset points accordingly and regularly specified in “Config.” “Camera”
“Cruise” “Active Mode” “Sequence”.
Note: Preset points are set in “Config.” “Camera” “Preset”.
Enable Auto mode
Auto Pan: Pan automatically and horizontally.
Enable DPTZ
Click to activate the digital PTZ function. When this function is enabled, the following operations are
available:
Auto mode
Move up / down / left / right after digital zoom-in.
/ Zoom in / out Click to zoom in / out the image.
/ Max. zoom in / out Click to zoom in / out the image.

6

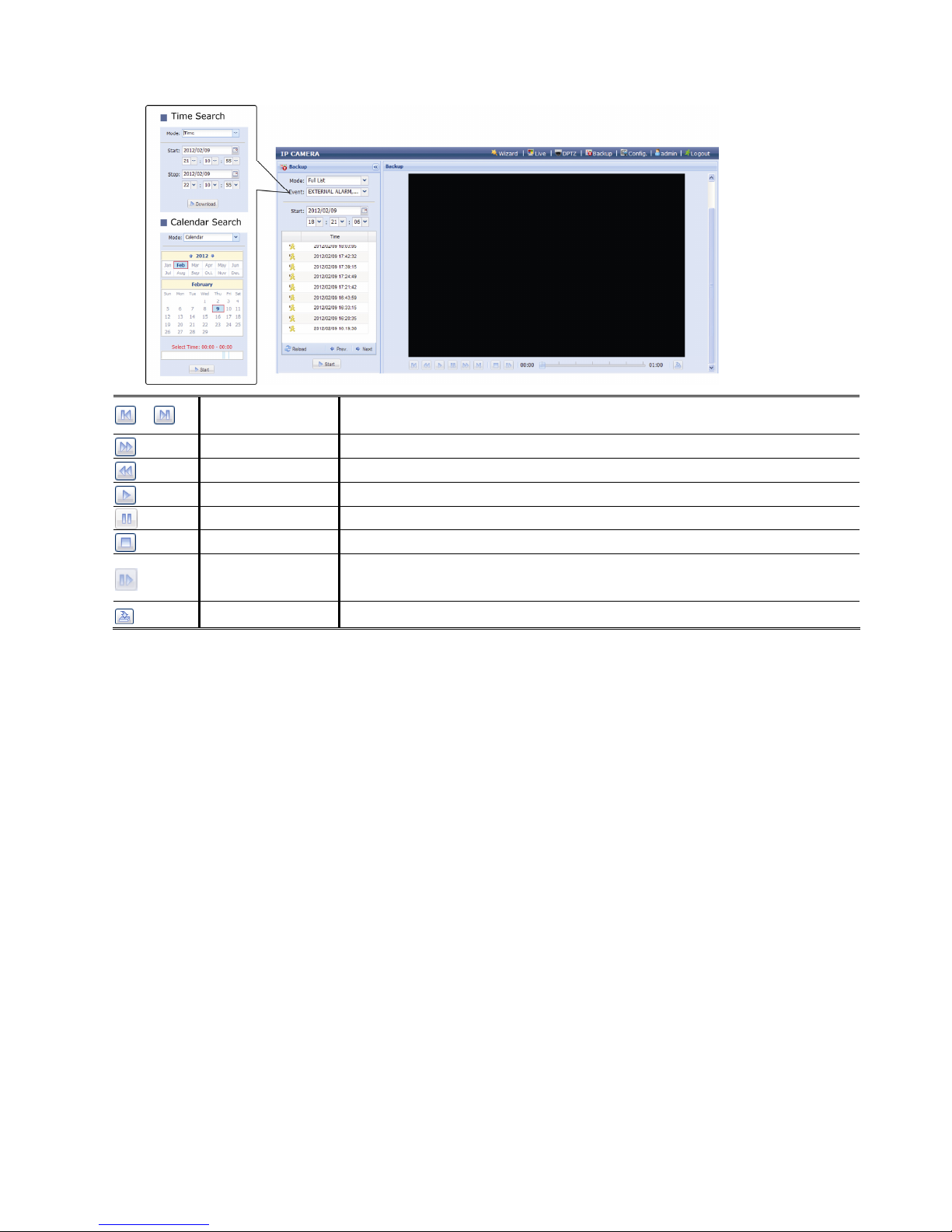

2.4 Event Record Search & Playback
/ Previous / Next Hour Click to jump to the next / previous time interval in an hour, for example, 11:00 ~ 12:00 or 14:00
~ 15:00, and start playing the earliest event video clip recorded during this whole hour.
Fast Forward Increase the speed for fast forward. Click to get 2X, 4X, 8X, 16X & 32X speed forward eventually.
Fast Rewind Increase the speed for fast forward. Click to get 2X, 4X, 8X, 16X & 32X speed rewind eventually.
Play Click to play the current video clip.
Pause Click to pause the video playback.
Stop Click to stop the video playback.
Step
In the pause mode, click to get one frame forward.
Download Click to download the current video clip to the specified path in your PC.

7
3. CAMERA CONFIGURATIONS
Users can further configure this network camera by accessing via Internet Explorer.
Note: You need to be “Supervisor” or “Power User” to enter the system configuration page. If not,
please re-log into the camera with the supervisor user level.
3.1 System configuration menu
Click “Config.” to enter the configuration page.
Note: You need to be “Supervisor” or “Power User” to enter the system configuration page, and the
functions available for these two user levels are different. If you’re not either of these two user
levels, please re-log into the camera with one of them.
The functions are categorized into six menus: Network, Camera, Record Timer, Storage, Trigger and General.
For details about “Network”, please refer to “3.2 Network” at page 8.
For details about “Camera”, please refer to “3.3 Camera” at page 10.
For details about “Record Timer”, please refer to “3.4 Record Timer” at page 13.
For details about “Storage”, please refer to “3.5 Storage”’ at page 14.
For details about “Trigger”, please refer to “3.6 Trigger” at page 14.
For details about “General”, please refer to “3.7 General” at page 16.
Main Menu Sub-Menu Reference
Network Network Configure network settings.
DDNS Enter DDNS information when the network type is PPPOE or DHCP.
SNTP Synchronize your camera time with the networked computer systems.
FTP Enter the FTP information for event notifications when “FTP” is chosen in “Trigger” →
“Trigger”.
Mail Enter Email information for event notifications when “Email” is chosen in “Trigger” →“Trigger”.
Filter Choose to permit or block the IP address(es) which can access this camera.
UpnP Allow this camera to be detected among devices within the same network area for easy and
quick usage.
Camera Camera
1. Set the camera title.
2. Specify the snapshot path.
3. Select the streaming settings based on your network environment.
Preset Set the preset points for the DPTZ function.
Cruise Set the cruise mode when the auto mode is enabled: Sequence or Auto Pan.

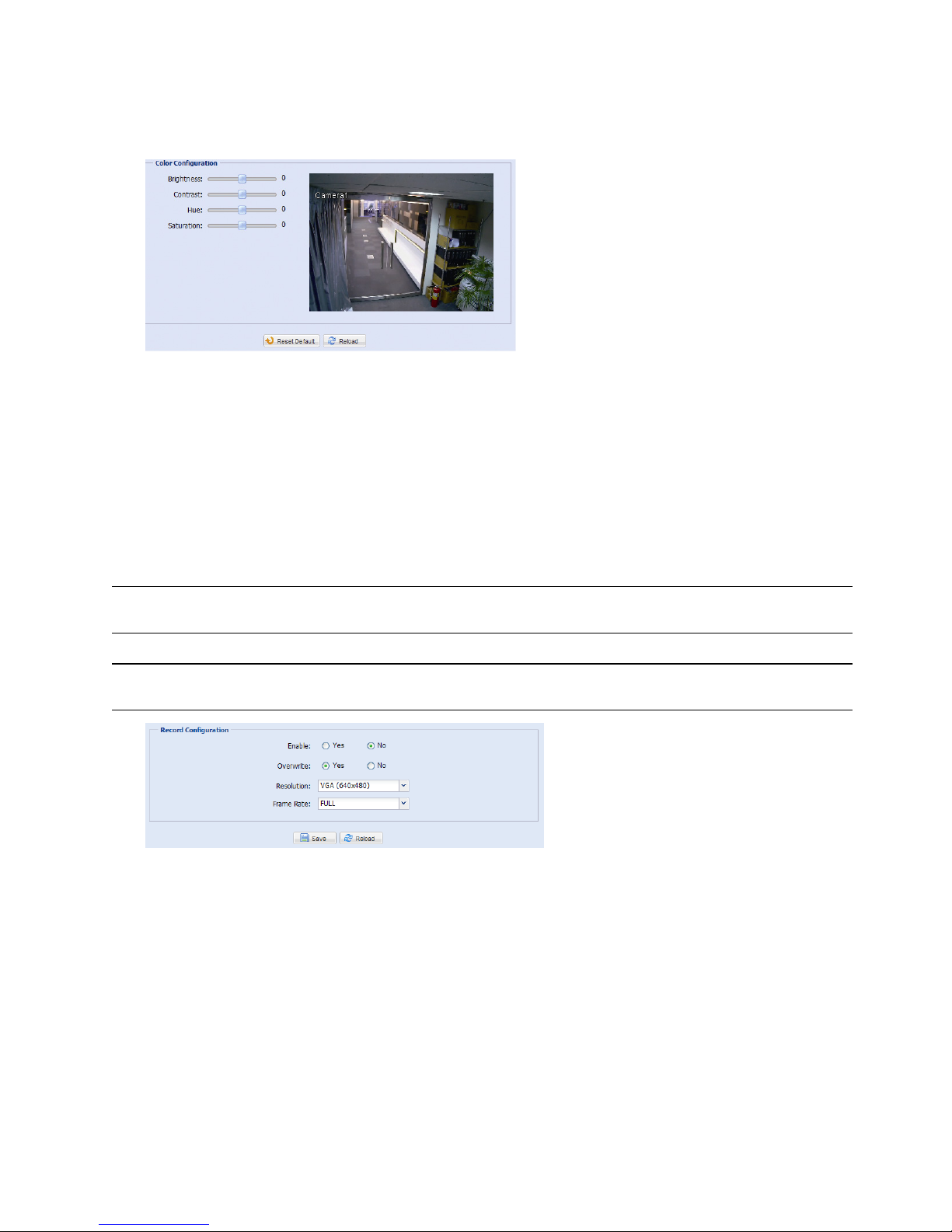

Color Adjust the color performance.
Record Timer Record Configure the record function.

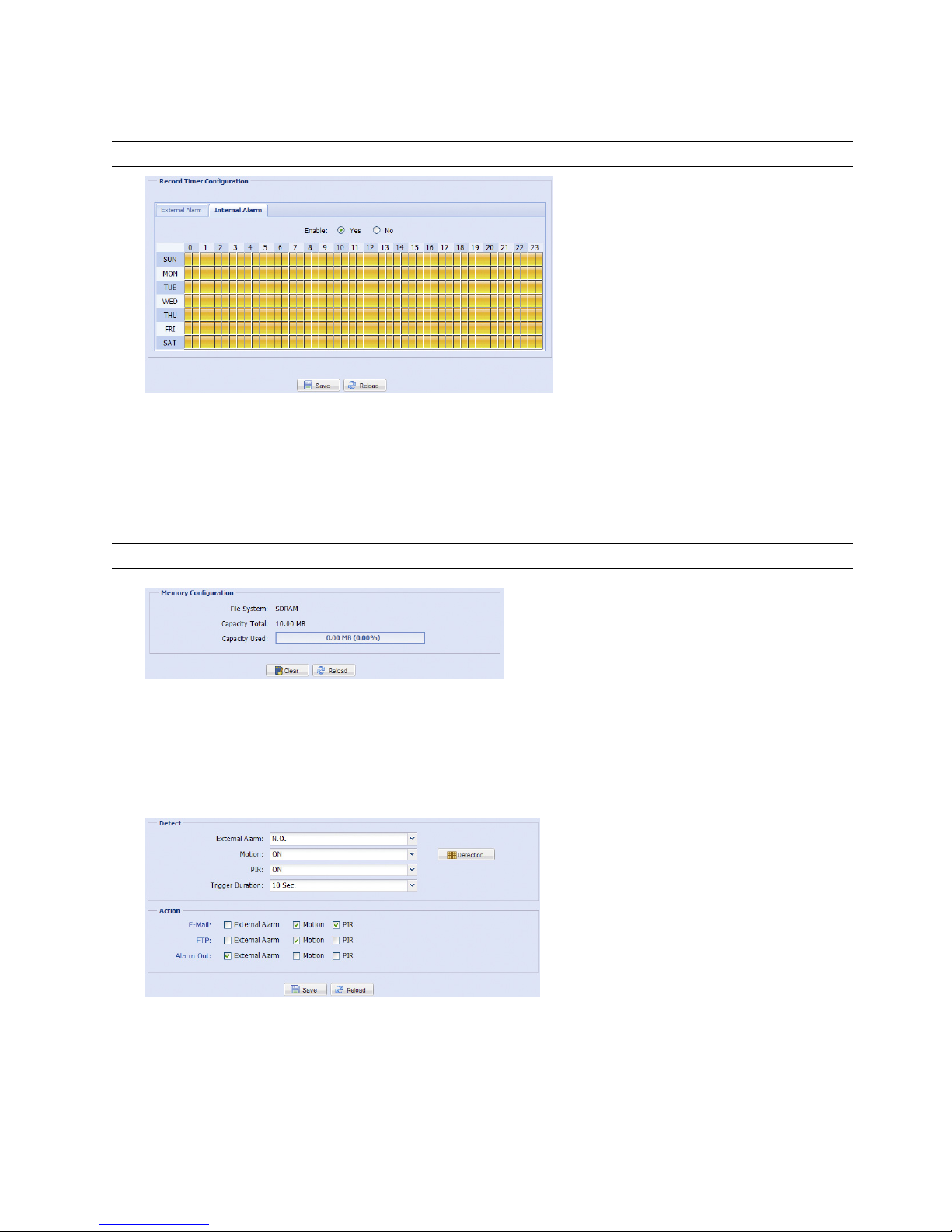

Record Timer Schedule the PIR and external alarm recording.
Storage Memory Check the current storage capacity and clear all recorded data when needed.
Trigger Trigger Configure how the camera reacts for any event.
Push Video Set Push Video rules.
General General
1. Select the language of the web browser.
2. Check the MAC address of the camera.
3. Lock camera access after the specified time.
Time Set daylight saving time and the current time.
Server Log
Available for Supervisor only.
Check the system event logs.
Online Available for Supervisor only.
Check the current online user(s).
Account
Available for Supervisor only.
1. Create a new user account with different access privilege.
2. Modify or delete an existing user account.
Maintenance
Available for Supervisor only.
1. Check the current firmware version and upgrade your camera.
2. Copy system configurations.
3. Download the video player to play the recorded data.

8
3.2 Network
3.2.1 Network
You can set the network configuration of the network camera depending on your network type.
For details, please refer to “Advanced Network Setup” from www.surveillance-download.com/user/n805.swf.
3.2.2 DDNS
Select “On” when the selected network type in “Network” is “PPPOE” or “DHCP”.
For details, please refer to “Advanced Network Setup” from www.surveillance-download.com/user/n805.swf.
3.2.3 SNTP
SNTP (Simple Network Time Protocol) is used to synchronize your camera time with the networked computer
systems.
Function Description
GMT Once users choose the time zone, the network camera will adjust the local area time of the system
automatically.
NTP Server Simply use the default SNTP server (For example, tock.stdtime.gov.tw) or change to another server with
which users are familiar.
Sync Click and the network camera will synchronize the time with the network time.
3.2.4 FTP
Enter the detailed FTP information and click “Save” to confirm. The information you set here will be applied
when “FTP” is selected in “Trigger” →“Trigger”.

9
3.2.5 MAIL
Enter the detailed e-mail information and click “Save” to confirm. The information you set here will be applied
when “Email” is selected in “Trigger” →“Trigger”.
Function Description
SMTP Server Enter the SMTP server address provided from your e-mail system supplier.
Port Enter the port number provided from your e-mail system supplier. If this column is left blank, the e-mail server will use
port 25 to send e-mails.
Mail From Enter the name of the sender.
Verify Password Some mail servers are required to verify the password. Please enter the “user name” and “password”.
E-Mail Address List Add the e-mail address(s) of the assigned recipient(s).
3.2.6 Filter
Choose to permit or block the IP address(es) which can access this camera, and click “Save” to confirm.
Function Description
Filter Configuration
Error Count Set the maximum count for login failure. When the maximum count is reached, the IP address trying to access the
network camera will be locked.
Error Lock Time Set the lock time in minutes when the maximum count of error login for an IP address is reached.
Echo Request Select “Non-Block” to allow other users to use the ping command to detect the IP address of your network camera, or
“Block” to deny the ping command request.
IP/MAC Filter Configuration
IP/MAC Filter Choose to enable or disable the filter function.
IP/MAC Filter Policy If “Enable” is selected, choose whether you want to permit (Allow) or block (Deny) the IP address list below.
IP/MAC Filter Rules
Rule ‧ To add an item to the IP address list, key in the IP address in “Rule”, and click “Add”.
‧ To remove an existing item in the IP address list, click the item you want to remove, and click “Delete”.

10
3.2.7 UPnP
“UPnP” stands for “Universal Plug and Play”, which allows devices to connect seamlessly in the home and
corporate environments and simplify installation of computer components.
Check “Enable” to allow the network camera to be detected among devices within the same network area, and
set the identification name of the camera in “Friendly name”.
When this function is activated, the other PC within the same domain as this camera will be able to search this
camera in “Network Neighbor” with the identification name set in “Friendly name”. Double-click it to quickly open
the web browser for camera access.
Port Mapping
This function can eliminate the need to additionally access the router for port forwarding.
For details, please refer to “Advanced Network Setup” from www.surveillance-download.com/user/n805.swf.
Note: Before using this function, make sure your router supports UPnP, and this function is enabled. If
not, please access your router additionally for port forwarding.
When “Port Mapping” is set to “Enable”, the system will automatically assign an IP address or port number for
you if no IP address or port number is entered.
Note: When the configurations are saved successfully, you’ll see a message indicating the IP address
and port number assigned to this network camera.
3.3 Camera
3.3.1 Camera
Adjust the camera parameters if necessary.
Item Description
Title Enter the title for the camera with up to 15 alphabetic characters.
Snapshot Path Specify the location to save the snapshot pictures.
Environment Select the current environment for the camera to automatically adjust itself to produce the images suitable for the
selected environment.
Frame Rate The frame rate allowed to each viewer can be adjusted to adapt to the bandwidth on the network.

11
Item Description
Set the desired image frame rate to the maximum (FULL) or to a specified frame rate (1/2; 1/3; 1/4; 1/5; 1/10;
1/15).
The actual frame rate depends on the actual network connection, and may be lower than the specified one.
Power Line Frequency Select only when your camera video keeps flashing.
Stream Format Select the stream format to Single H.264 / Single MPEG-4 / Single Motion JPEG / Multi-Mode.
Note: Motion detection is not supported when the stream format is set to Motion JPEG.
MPEG4 / MJPEG Resolution Select the video resolution when the stream format is set to “MPEG4” or “MJPEG”.
The options are: VGA (640 x 480), QVGA (320 x 240), and QCIF (176 x 144).
IR Control Select “AUTO” to automatically enable IR LEDs at night or in the dark environment, or “OFF” to disable this
function.
Note: This camera is designed for indoor use. Color shift might occur at daytime because this model doesn’t
support ICR (IR Cut Filter Removal) to remove excessive infrared light in the environment.
OSD Select “ON” to show the camera title on the live view, or “OFF” to hide the camera title.
Slow Shutter Level This function is used to extend the exposure time for clearer images when the light is not sufficient.
Select 1 ~ 5 to extend the exposure time based on your current light condition. The larger the value, the longer
the exposure time, and the less the fps.
0 means function off.
3.3.2 Preset
Note: Before using this function, make sure the DPTZ function is enabled.
You can set new preset points (up to 16) or check existing points here.
How to set a new preset point
Step1: Click DPTZ icon.
Step2: Move to the point with proper ratio that suits your need.
To zoom in / out, you may:
- Click (zoom in) / (zoom out).
- Move the cursor to the preview screen, and roll the mouse wheel up (zoom-in) and down (zoom-out).
- Click any point on the preview screen to get a 5X image.
- Draw a square from the top left to bottom right or bottom right to top left to switch among 1x, 3x and 5x images.
Step3: In “Current Position”, give a name to this point, and click “Add”.
How to check an existing preset point
In “Available Positions”, select the name of the point you want to check from the drop-down list, and click “Goto”.
You will see the camera view on the right side moving to the point it’s recorded.
How to delete an existing preset point
In “Available Positions”, select the name of the point you want to check from the drop-down list, and click
“Remove”.

12

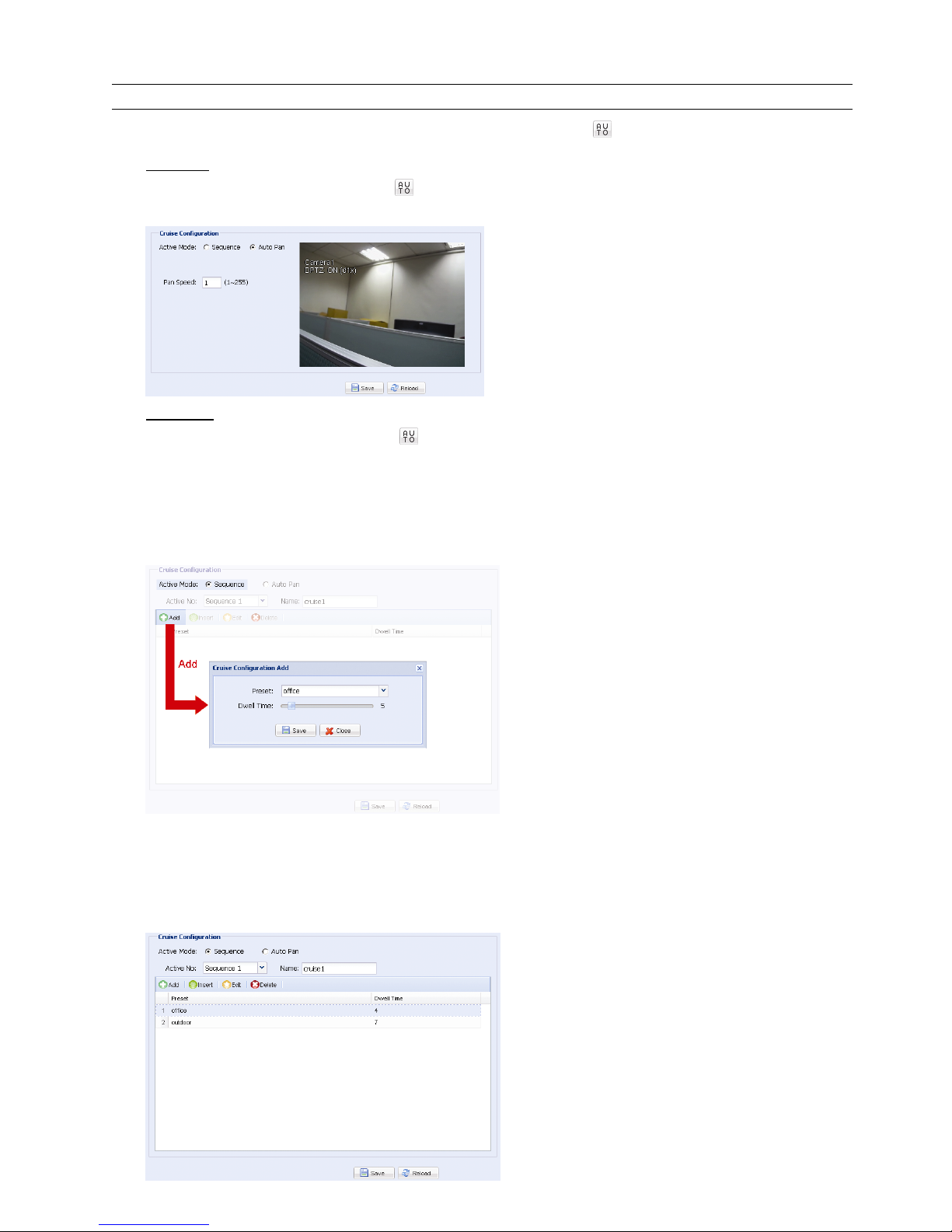

3.3.3 Cruise
Note: Before using this function, make sure you have finished setting several preset points.
Here defines how the auto mode of the camera is going to work when is selected: Sequence or Auto Pan.
Auto Pan
When “Auto Pan” is selected here and is clicked on the DPTZ page, the camera will start panning in the 5x
zoom-in ratio.
Sequence
When “Sequence” is selected here and is clicked on the live view page, the camera will start patrolling each
preset point defined in “Sequence”.
Step1: Click “Add” to choose a preset point from the drop-down list, and select the duration to stay at this point
from 1 ~ 60 seconds.
Then, click “Save” to confirm.
Step2: Click “Add” again to add more preset points.
To modify the existing preset point setting, click “Edit”. To insert a preset point before the selected point,
click “Insert”. To remove the added preset point, click “Delete”.
Step3: When all the points are added, click “Save” to confirm.

13
3.3.4 Color
Adjust the color performance from Brightness, Contract, Hue and Saturation. Click and drag the slider to preview
the color change on the right side of ths page and adjust the image color.
To restore the default values, click “Reset Default”.
3.4 Record Timer
3.4.1 Record
In “Record Configuration”, you can:
Enable or disable all the record functions, such as manual record, motion record and alarm record. When
“Enable” is set to “No”, all record functions are disabled even if you enable any of them in other configuration
pages.
Select if the data should be overwritten when the memory storage is full.
Select the video resolution for event recording.
Note: The higher resolution you choose, the more accuracy and higher image quality the recording will
be, but the faster the memory storage is consumed and become full.
Select the frame rate for event recording.
Note: The higher frame rate you choose, the more fluency the recording will be, but the faster the
memory storage is consumed and become full.

14
3.4.2 Record Timer
To schedule alarm or human detection recording, click “External Alarm” or “Internal Alarm” to enable the
recording, and select the time for recording.
Note: The timer must be enabled for the record function to work properly.
3.5 Storage
3.5.1 Memory
In “Memory”, you can check the remaining capacity of flash memory storage, or clear all recorded data saved if
needed.
Note: The recorded data will be removed also when you reset or reboot this camera.
3.6 Trigger
3.6.1 Trigger
You can configure how this camera reacts when there’s an alarm, motion or PIR event.

15
Detect
Item Description
External Alarm Set “N.O.” or “N.C.” depending on the configuration of your alarm-in device.
Motion Enable (ON) or disable (OFF) motion detection.
Motion detection is not supported when the stream format is Motion JPEG.
When “Enable” is selected, click “Detection” to enter the motion detection area setting page as follows:
Level of Sensitivity:
Set the detection sensitivity from 1 ~ 10.
Area Setting:
Set the motion detection area by selecting the area grids with your mouse. Pink grids represent the area that is not being
detected while the transparent grids are the area under detection. You can set multiple areas under detection.
Click “Clear All” to set the whole area undetected.
Click “Select All” to set the whole area under detection.
PIR Enable (ON) or disable (OFF) PIR detection.
For Push Video to work properly, make sure this function is enabled.
Trigger Duration Set the duration time for trigger recording (5 / 10 / 20 / 40 seconds).
Action
Here defines how the camera delivers alerts to you for any event.
Item Description
E-Mail Select the event type you want to receive E-mail notifications when it occurs.
Then, click the title “E-Mail” to configure the record time from 1 ~ 5 seconds.
The camera will send the captured video clip to the E-mail address(s) assigned in “Network” “Mail” once the selected
event type occurs.
FTP Select the event type you want to receive FTP notifications when it occurs.
Then, click the title “FTP” to configure the record time from 1 ~ 5 seconds.
The camera will upload the captured video clip to the FTP site assigned in “Network” “Mail” once the selected event
type occurs.
Alarm Out Select the event type you want to trigger the alarm-out device to work when it occurs.
Then, click the title “Alarm Out” to configure the trigger rule.

16
3.6.2 Push Video
“Push Video” is an active notification system, different from traditional FTP and Email notification methods.
Note: For Push Video to work properly, make sure the record function is on in “Record” “Record”, and
the record timer for the internal alarm or external alarm (depending on the alarm type you have)
is on in “Record” “Record Timer”.
Item Description
Guard Select to enable or disable Push Video. This function can also be enabled from your iPhone or Android mobile devices.
When this function is enabled, the image resolution is fixed to “VGA”.
Slow Shutter Lock Select to fix the slow shutter level to level 2 (Enable) or remain the current slow shutter level (Disable) when Push Video
is enabled.
When this function is enabled, it could ensure Push Video recording to get clear images when the environment is dark.
This function is set to “Enable” by default.
Guard Rule Select the rule to enable Push Video from “External Alarm”, “Internal Alarm”, or “Internal Alarm OR External Alarm”.
External Alarm – The alarm device additionally connected to your camera
Internal Alarm – The human detection function built in this camera
This function is set to “Internal Alarm OR External Alarm” by default.
Record Frame Rate Select the frame rate for Push Video recording.
SMS Text Define the context when you receive the Push Video message on your iPhone or Android mobile device. Up to 28
characters are allowed.
3.7 General
3.7.1 General
In “General”, you can select the UI language, and check the MAC address of your camera.
To lock camera access when it’s not used after the specified time, select “5 MIN”, “15 MIN” or “30 MIN” from the
drop-down list of “Auto Lock Time”, or select “NEVER” to disable this function.
Note: When the camera access is locked after the specified time, to resume camera access, please
enter the password.
