Puxing PX-558 User manual

Introduction
Thank you for purchasing PUXING Series Radio. The Series radios provide cost
effective communica- tions for businesses, they are the perfect communications
solution for all of todays fast-paced industries. Please read this guide carefully so
you know how to properly operate the radio before use.

1.CONTENTS
i
Cautions………………………………………….
Check equipment…………………………………
Battery pac
k
………………………………………
Charging…………………………………………...
Maintenance………………………………………
Start………………………………………………..
Install/remove battery…………………………
Install antenna…………………………………
Install belt clip………………………………..
Install speaker/microphone…………………….
Install the cover over the speaker/microphone jacks
Controls……………………………………………
Operations and settings………………………
Busy channel lockout……………………………
V
ox sensitivity………………………………….
TX powe
r
……………………………………………..
Squelch level…………………………………….
1
2
3
4
5
6-8
6-7
7
7
8
8
9
10-16
10
10
10
10
Beep setting…………………………………
Channel annunciation………………………
Time out time
r
………………………………
CTCSS / DCS…………………………………...
W
ide/narrow ban
d
…………………………..
Emergency call……………………………….
Battery save…………………………………
End roge
r
……………………………………..
Squelch tail elimination…………………
Low battery warning………………………
Cable clone………………………………..
PTT ID transmit mode…………………….
Flank key functions……………………
Troubleshooting guide……………………
Main techology data………………………
10
11
11
11
11
11
12
12
12
12
12-13
13
13-16
17
18
CAUTIONS 01
■Do not expose the transceiver to long periods of direct sunlight, nor place
it close to heating appliances.
01.CAUTIONS
■Before use this transceiver may need get local government authorization.
■DO NOT operate the transceiver without a proper antenna attached, as this
m
ay damage the transceive
r
and may also exceed exposure limits.
■Refer service to qualified technicians only.
■Turn off the transceiver while taking on fuel or while parked in a gasoline
service station.
■If it appears that the transceiver diffuses peculiar smell or smoke, please
shut off its power immediately, then contact with the nearest dealer.
■Don’t keep the transceiver transmitting too long .It may be too hot to hurt body or
damage the transceiver itself.
■Please turn off the transceiver before entering the inflammable and explosive
environment.

0
3.BATTERY PACK
POW FULL
BATTERY PACK 03
02.CHECK EQUIPMENT
CHECK EQUIPMENT
Welcome to use our transceiver. Please check if any damage to the packing box before use. Carefully
unpacks the transceiver. We recommend that you identify the items listed in the following table. If any
items are missing or have been damaged during shipment, please inform the seller.

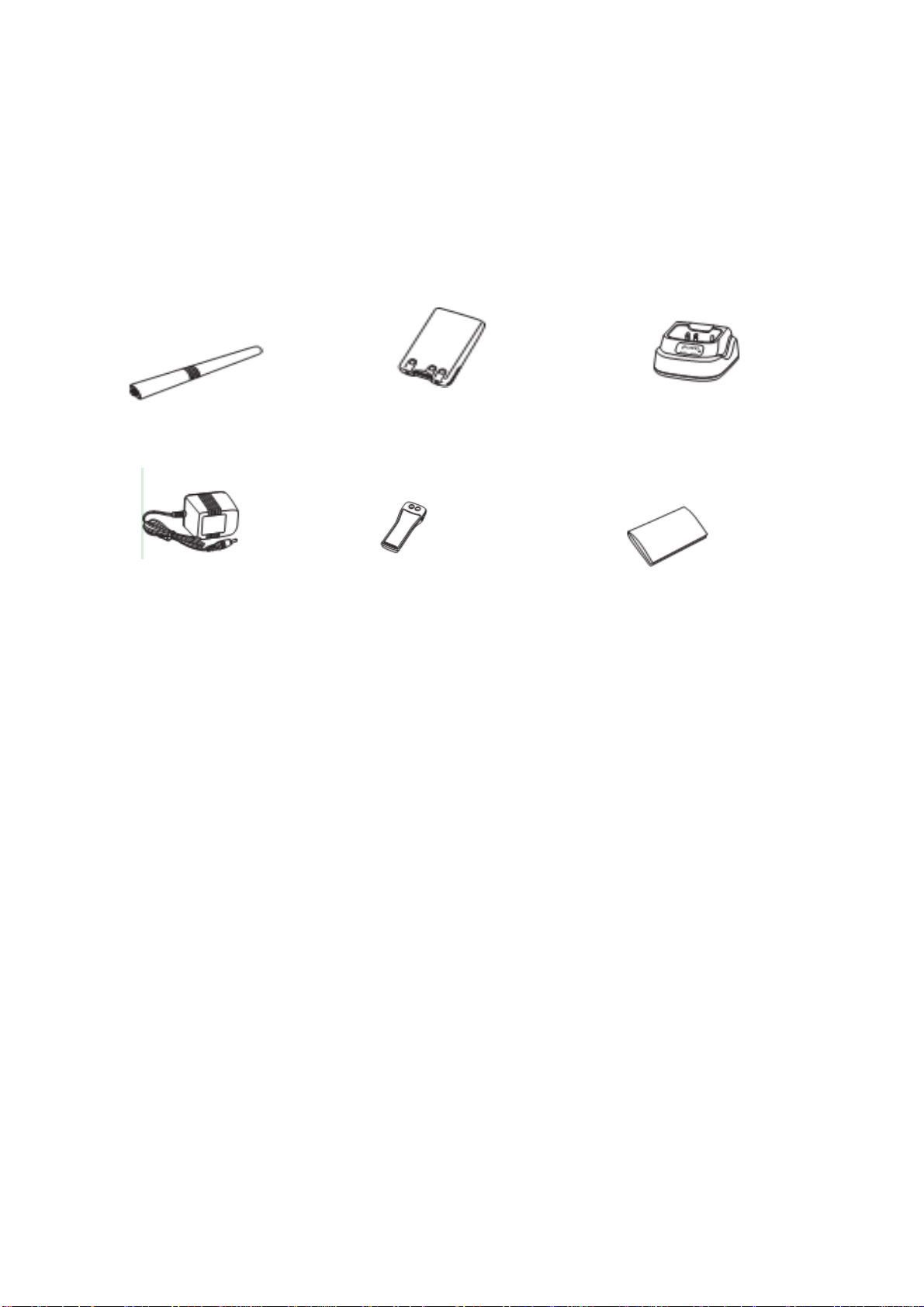

SUPPLIED ACCESSORIES
ANTENNA
Li-ion BATTERY
CHARGER
ADAPTOR
BELT CLIP
USERS’ MANUAL
CHARGING THE BATTERY PACK
The battery pack is not charged at the factory; charge it before use.
Initially charging the battery pack after purchase or extended storage will not bring
the battery pack to its normal operating capacity. After repeating the
charge/discharge cycle two or three times, the capacity will increase to best status
You should charge or change the battery pack if the battery’s power is weak.
CAUTION:
●Use the original battery pack only. It is likely to explode or hurt your body if you use other battery.
●Don’t short-circuit the terminals or put it in fire. Don’t attempt to open the unit.
●The ambient temperature should be between 0* to 40* while charging is in progress.
●Charging beyond this range may not fully charge the battery.
●Always switch OFF the transceiver equipped with a battery pack before charging. Using the
transceiver while charging, it will interfere with correct charging.
●Don’t cut off the power or take off the battery during the charging process or else it will interfere with
correct charging.
●The battery pack life is over when its operating time decreases even though it is fully and correctly
charged. Replace the battery pack.
●Don’t recharge the battery pack if it is already fully charged or it will short the life of the battery.
●Don’t charge the battery pack or transceiver while it is wet. Please wipe up it first to avoid danger.

04.CHARGING
04CHARGING
■Put the DC plug of the transformer into the DC socket of the charger unit.
■Connected the supplied transformer to the AC jack
■Slide the battery or the transceiver with a battery pack into the charger.
■Make sure the battery pack contacts are in contact with the charging terminals, and the
charger LED is on, it begins to charge.
■After charging the supplied battery pack for 4 hours, remove it or the transceiver equippe
d
with it from the charger. The charger light turns to green automatically after charging is
completed.
CAUTION:
●It is abnormal in case of the charger glisteningly before sliding the battery pack into the
charger.
●Don’t replace the battery pack until the indicator light is stable.
●Make sure contact well, LED indicates red when it is charging, if LED always blinking the
battery pack is damaged or over the environment temperature. MAINTENANCE 05
Charging Operation
If the transceiver indicator displays , it means the battery pack is out of power ,
p
lease charge it. Please always use the original charger. The charger’s indicator shows
the charging status below.
Please charge the battery pack as follow:
05.MAINTENANCE
■Don’t carry the transceiver by the antenna or microphone directly.
■Use a soft, clean, dry cloth to clean the transceiver.
■Please cover the speaker/microphone jacks with the supplied cover when the transceiver is
not in used.
■The keypad, knobs and case will become dirty after long use; you can use the soft detergen
t
and cloth to clean it.

06.START
Don't disassemble the case of the battery.
START 07
mic
PX-55
8
MIC
Don't short circuit the battery charger contacts or threw the battery into fire.
Match the top of the battery pack with the corresponding grooves
on the radio.
Push the battery onto the bottom of the radio, buckle the safety lock.
07. START
To remove the battery pack, lift the safety lock and pull the
b
atter
y
p
ack awa
y
from the radio.
INSTALLANTENNA
INSTALLBELTCLIP
When necessary, you can install the belt clip to the back of the radio.
N
ote:
Without installing the belt clip, the installing area will become hot due
to continuous communication or put in hot environment. You should
remove the belt clip first before disassemble the battery pack.
Hold the radio, screw the antenna into the connector on the top of the radio.
Hold the antenna and turn it clockwise until being tight.
N
ote:
Don't use the antenna as handle, keychain or speaker/microphone hook, it will damage
the antenna and affect the function of the radio.
INSTALL/REMOVE BATTERY
The average use time of the battery pack is 10 hours.
It calculated as 5% TX time, 5% RX time and 90% standby time.

08. START
MIC
INSTALL SPEAKER/MICROPHONE
Insert the speaker/microphone plugs into the
speaker/microphone jack.
N
ote:
The radio is not entirely waterproof when use the
speaker/microphone
INSTALL THE COVER OVER THE SPEAKER/MICROPHONE JACKS
If not use a speaker/microphone, please use the screw to
install the cover over the speaker/microphone jack.
09. CONTROLS

10.OPERATIONS AND SETTINGS
10
OPERATIONS AND SETTINGS 11
BUSY CHANNEL LOCKOUT
This function can prevent other two way radio from disturbing.There are two choices for customer to select in the
p
rogramming software.
◆CARRIER: It is not allowed to transmit or make other operation while the radio is receiving.
◆CTCSS/DCS: While receiving signal, the radio is not allowed to transmit when the CTCSS/DCS received is
different; and it is allowed to transmit if both carrier and CTCSS/DCS are the same.
VOX SENSITIVITY
You can use programming software to select the level of the VOX sensitivity (1-9 levels).
TX POWER
You can choose the high power or low power for each channel by programming software.
SQUELCH LEVEL
You can use programming software to adjust the squelch level (0-9 levels).
BEEPSETTING
You can hear a beep sound when turn on the radio or press a key. You can use programming
softw are to open or close this function.
11. OPERATIONS AND SETTINGS
Channel annunciation
When turn on the radio it will report the current channel,using programming software to set Chinese-
En
g
lish re
p
ort and turn off.
TIME OUT TIMER (TOT)
TOT is used to prevent any user from using a channel for a long time. It will damage the radio
if tran- smit for a long time.
EMERGENCY CALL
In case of emergency, press emergency key the radio will sound alert tone and also send alert.
CTCSS/DCS
You can use the programming software to set the CTCSS/DCS for each channel. There are 50 groups
of CTCSS and 105 groups of DCS for you to select.
WIDE/NARROW BAND
You can use the programming software to set the wide/narrow band for each channel.

12. OPERATIONS AND SETTINGS
OPERATIONS AND SETTINGS
BATTERY SAVE
This function can decrease power consumption when no signal is received. and no operation is
p
erfo- rmed.
You can use programming software to open or close this function.
END ROGER
It's prompting signal transmit finshed. You can use programming software to open or close this
function.
SQUELCH TALL ELIMINATION
It can elimianate the end roger beep. For wearing headphone users, tail elimination is ver
y
clearly. You can use programming software to set this function.
LOW BATTERY WARNING
Low battery warning alerts you that the battery should be recharged or replaced. While
transmitting or receiving, the LED will blink red if the battery is low. it will remind "Low
Voltage" at interval 30 seconds, if turn off the voice function, sound "DU DU DU" prompt.
13. OPERATIONS AND SETTINGS
CABLE CLONE
Step:
1. Use cable to connect Master unit to slave unit, and turn on the slave unit. Press and hold
p
rogra
m
- mable Side Key 2 to turn ON master unit, LED flash Orange twice into clone statue.
2. Press PTT of Master unit to transmit the data and Slave unit begin to receive data from Maste
r
unit
3. During cable cloning Master unit blink red and Slave unit blink Green
4. When cloning completed, slave unit restart automatically.
5. Switch to next slave unit and power on, press side key 2 of master unit to clone.
6. Power off master unit to exit.
◆During data transmission, if no data received 3 seconds Master unit flash Red (0.5s ON, 0.5S
OFF)
PTT ID TRANSMIT MODE
1. Press PTT to send. 2. Release PTT to end. 3. Both. 4. OFF
◆OFF: Press PTT or release it will not send ANI code.
◆PRE-ONLY: Press PTT to send the ANI.
◆POST-ONLY: Release PTT to send the ANI.
◆BOTH: Both press and release PTT to send ANI.
THE SIDE KEY CAN BE PROGRAMMED THE FUNCTIONS AS FOLLOW,
1. NONE 2. MONITOR 3. SCAN ON/OFF 4. HIGH/LOW POWER
5. TALK AROUND 6. REVERSE 7. PRIORITY SCAN 8. VOX ON/OFF

14
. OPERATIONS AND SETTINGS
14OPERATIONS AND SETTINGS
OPERATIONS AND SETTINGS
15
side key 2 and side key 3 can be programmable.
1) NONE
◆No function to be set
2) MONITOR
◆If press the monitor key, it can detect if the channel is busy, it can ignore all the interference codes
temporarily and receive weak signal.
3) SCAN ON/OFF
◆Scan ON: The radio will scan from the current channel.
◆Scan OFF: To press the side key again.You can exit.
◆Press the key to switch High/Low Power Switch.
4) HIGH/ LOW POWER
5) TALK AROUND
◆Talk around allows you to communicate directly with other radios without the repeater. When using talk around,
the transmitting frequency is same with receive frequency.
Press talk around key (programmed key) to enter this function and press it again to exit.
6) REVERSE
◆Transmitting frequency can reverse with receiving frequency.Codes will reverse too.
Press frequency reverse key (programmed key) to enter this function and press it again to exit.
15. OPERATIONS AND SETTINGS
7) PRIORITY SCAN
◆Set priority channel: open the programming software, and select the priority channel (1-16 optio- nal).
Suppose channel 6 was selected.
◆Programming side key: program one of the side key to be priority channel function.
Press the programmed side key to enter the priority scan mode, the radio will scan like this: 6-1,6-2, 6-3....
◆Turn off PRI: press PRI on/off key to exit
8) VOX ON/OFF
Radio will transmit when detects voice, without press PTT key.
Use VOX earpiece or radio micphone to talk hands-free, operation as follows:
◆Programming the VOX ON/OFF key.
◆Press the side key to open this function.
◆To communicate by earphone you should plug the earphone before turning on the radio.
◆Speak to VOX earpiece or radio micphone to send the voice.
◆Press this side key again to exit

16. OPERATIONS AND SETTINGS
TROUBLESHOOTING
Solution
17
17.TROUBLESHOOTING
Problem
Solution
No Power
◆The battery pack may be dead.Recharge or
replace it.
17
◆The battery pack may not be installed
correctly.
Remove it and install it again.
pi Battery power dies shortly after charging
◆The battery pack life is finished. Replace
the batterypack with a new one.
Cannot talk to or hear other members in
your group
◆Make sure you are using the same
frequency and CTCSS/DCS tone as the other
members in your group.
◆Other group members may be too far away.
Make sure
you are within the range of the other radios.
Other voices (besides group members)
are present on the channel.
◆Change the CTCSS/DCS tone. Be sure to
change the CTCSS/DCS on all radios in
your group.
Caution:
1) When use VOX by earpiece, press the PTT key to exit.
2) If use PTT/VOX earpiece, It is not allowed to switch to VOX directly during PTT call.
Because it
will transmit without ending.
Please switch to PTT to return to normal.

18. Main technology data
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Main technology data
Frequency Range
Operating Temperature -20ºC+ 55ºC
Number Of Channel 16
Channel Spacing 12.5kHz
Operating Voltage 7.4V DC
Size 110mmX50mmX35mm(without antenna)
Weight About 226.7g(with battery)
Output Power ＜5W
Modulation Distortion <=5%
Spurious Radiation <=7.5uW
Sensitivity <=-120dBm
Co-channel Rejection >=-8dB
Audio Distortion <=5%
138-174MHz
Analog:12.5kHz
Digital:6.25kHz

ICWaring
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exemptsdelicence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs,
il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communicationsatisfaisante.
RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled environment
exposure limits always adhere to the following procedures.
Guidelines:
Do not remove the RF Exposure Label from the device.
User awareness instructions should accompany device when transferred to other users.
Do not use this device if the operational requirements described herein are not met.

Operating Instructions:
Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the
Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of
the time, orless, is important because this radio generates measurable RF energy exposure only
when transmitting (in terms of measuring for standards compliance).
Hold the radio in a vertical position in front of face with the microphone (and the other parts of
the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keeping the
radio at the proper distance is important because RF exposures decrease with distance from the
antenna. Antenna should be kept away from eyes.
When worn on the body, always place the radio in a Xiamen Puxing Electronics Science&
Technology Co., Ltd approved clip, holder, holster, case, or body harness for this product.
Using approved body-worn accessories is important because the use of Xiamen Puxing Electronics
Science&Technology Co., Ltd or other manufacturer’s non-approved accessories may result in
exposure levels, which exceed the FCC’s occupational/controlled environment RF exposure limits.
If you are not using a body-worn accessory and are not using the radio in the intended use position
in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm (one inch) from
the body when transmitting. Keeping the radio at the proper distance is important because RF
exposures decrease with increasing distance from the antenna.
Use only Xiamen Puxing Electronics Science&Technology Co., Ltd approved supplied or replacement
antennas, batteries, and accessories. Use of non-manufacturer-nameapproved antennas, batteries, and
accessories may exceed the FCC RF exposure guidelines.
