Puzer Eeva User manual

USER MANUAL
PUZER EEVA
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
www.puzer. Puzer central vacuum cleaner - Genuinely Finnish!
PLEASE READ THIS MANUAL BEFORE
USING THE VACUUM CLEANER
The stylish and small central vacuum cleaner of the Puzer collection
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Puzer Eeva

Important safety instructions
PLEASE KEEP THIS MANUAL FOR FUTURE USE
NB! Read all the safety instructions and
warnings before using your central vacuum
cleaner.
• This central vacuum cleaner is designed
for vacuuming in dry areas do not use it
for vacuuming liquid.
• Do not vacuum near smoke, glowing embers,
re or hot ashes.
• Do not vacuum in areas that may contain
burning or easily ammable liquids and gases.
• Always pull out the plug before changing the lter or
dust bag, and before servicing.
• When you pull out the plug, pull by the plug,
never pull the cord.
• The outlet and the plug shall be in a clearly visible
place.
• Do not mount the vacuum cleaner into too
narrow a place. The minimum dimensions in a
cupboard installation are (W x D x H) 470 x 570
x 700.
• Do not vacuum sharp objects, such as glass or
needles as they may get stuck in the pipework.
• Do not cover the central unit.
• Always comply with the instructions in this manual.
• The servicing of the vacuum cleaner must only
be carried out by an authorized servicing compa-
ny. Use only spare parts and accessories recom-
mended by the manufacturer. Never try to make
any alterations into the vacuum cleaner.
• Never use a central vacuum cleaner with a faulty
electrical wire. The central vacuum cleaner has a
special wire that should always be replaced with
a wire of the same type. They can be purchased
at authorised repair shops.
• Remember that the central vacuum cleaner
is not a toy.
• Never vacuum without a dust bag.
• Always pull out the hose from the suction outlet
after you nish vacuuming.
!
CONTENTS
Safety instructions
The features of the Puzer Eeva circuit board
Troubleshooting
Maintenance and changing the dust bag
Using the system
Mounting the central unit
Specications
The benets of a central vacuum cleaner
2
8
7
6
5
4
3
9
2

TECHNICAL SPECIFICATIONS
Puzer Eeva central vacuum cleaner
Motor power max.
Air power max.
Vacuum max.
Suction power max.
Noise level min.
Height / required space
Width / depth
Overheat protectors
Fuse (automatic)
Operating voltage min – max
IP class
Volume of the container
1200 W
165 m3/h
28 kPa
550 W
60 dB(A)
33/40 cm
46/22 cm
is
10 A (slow)
V 50Hz 210-244
IPX0
8l
Puzer Eeva is a small but effective central vacuum cleaner. The stylish and small design of
Eeva suits both for small and medium-sized homes. Eeva is an excellent choice also for a
row house. When Eeva entered the market, it was the world’s rst central vacuum cleaner
designed for a dustbag. The air ow going through the dust bag packs the dust tightly and
the volume of Eeva’s 8 l dust bag corresponds to the container volume of 60 l in a traditional
central vacuum cleaner.
3

MOUNTING THE CENTRAL VACUUM CLEANER
INFORMATION
In case you need any help with planning and installing your central
vacuum system, please contact the dealer or the manufacturer in
the following address.
Manufacturing and marketing:
KP-TEKNO OY
Masalantie 365, 02430 Masala
tel.[phone], fax [phone]
e-mail: puzer@puzer., www.puzer.
There are detailed instructions on how to mount the Puzer dust piping system and
suction outlets. These instructions are included in your piping system delivery.
1
2

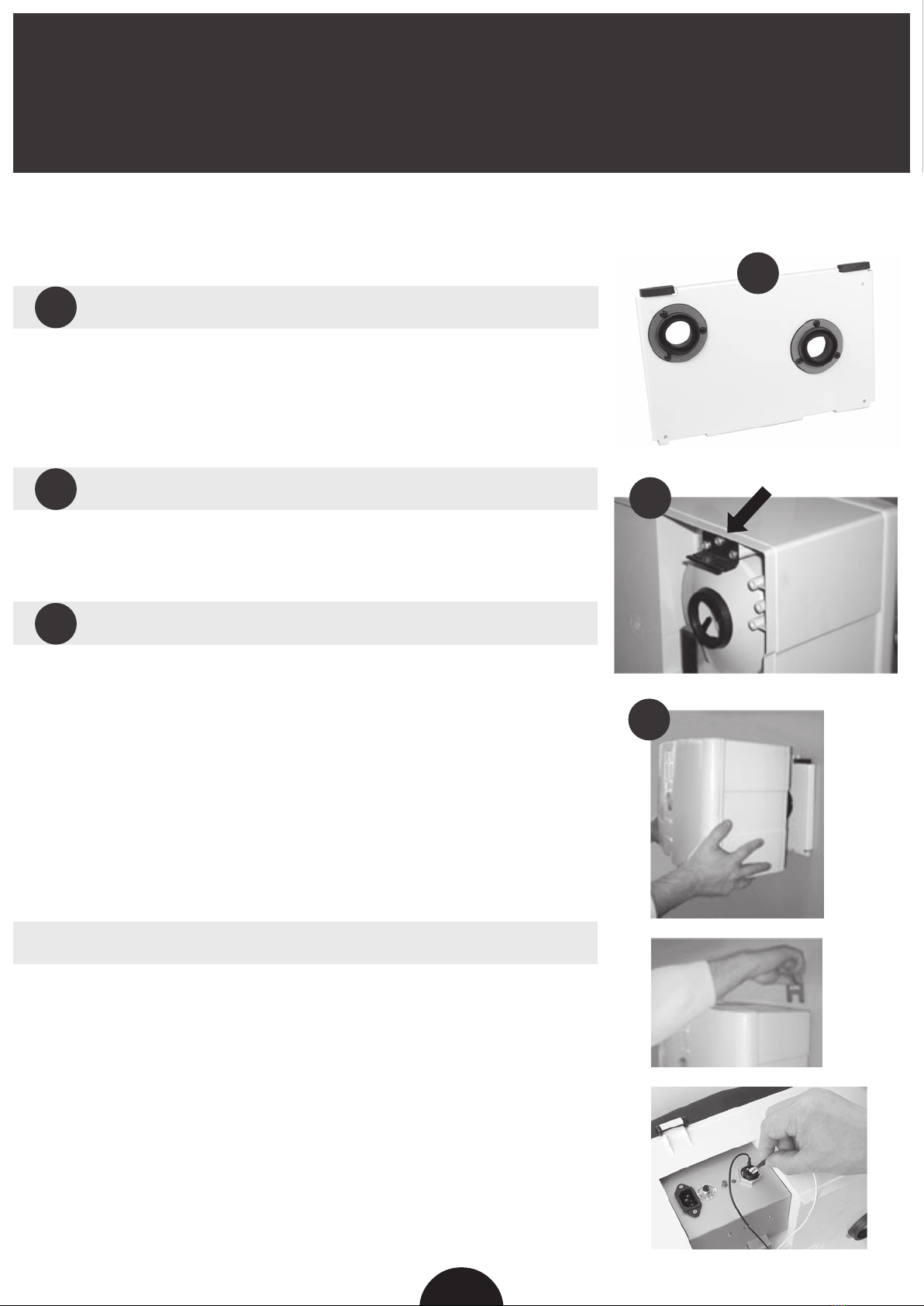

MOUNTING THE CENTRAL UNIT INTO THE WALL BRACKET
The wall rack is installed to the wall by four fastening points.
Use special brackets designed for ingot and gypsum board
walls. Special surface mounting irons are handy when doing
surface and post mounting.
MOUNTING THE CENTRAL UNIT TO THE WALL BRACKET
The central unit is fastened to the wall rack with the hanging
hooks in the machine.
ASSEMBLING THE CENTRAL UNIT
Push the machine to the wall racket supporting with slightly
with your hand and pressing backward.
Check that the hanging hooks of the machine are evenly on
the rubbers of the wall rack. Put the latches of the hanging
hooks to their correct places.
Connect the light connector from the circuit board to the
weak current wire coming from the suction outlet. Fasten the
electric conductor to the circuit board and wall outlet - now the
vacuum cleaner is ready to use.
1
2
3
3
4

USING THE SYSTEM
THE OPERATION PRINCIPLES OF THE CENTRAL
VACUUM CLEANER
When the user connects into the system by con-
necting the suction hose to the wall outlet, an elec-
tronic signal from the wall outlet is sent to the cent-
ral unit to start the system. The central unit starts,
and the vacuum created by the system causes suc-
tion in the pipings.
The central unit stays on, until the hose is pulled out
from the suction outlet. The vacuum cleaner can be
equipped with a hose featuring a handle switch to
start the vacuum.
1
Vacuuming construction or
gypsum dust
is strictly forbidden
without a pre-separator.
!
Pre-separator
2
Wealt box

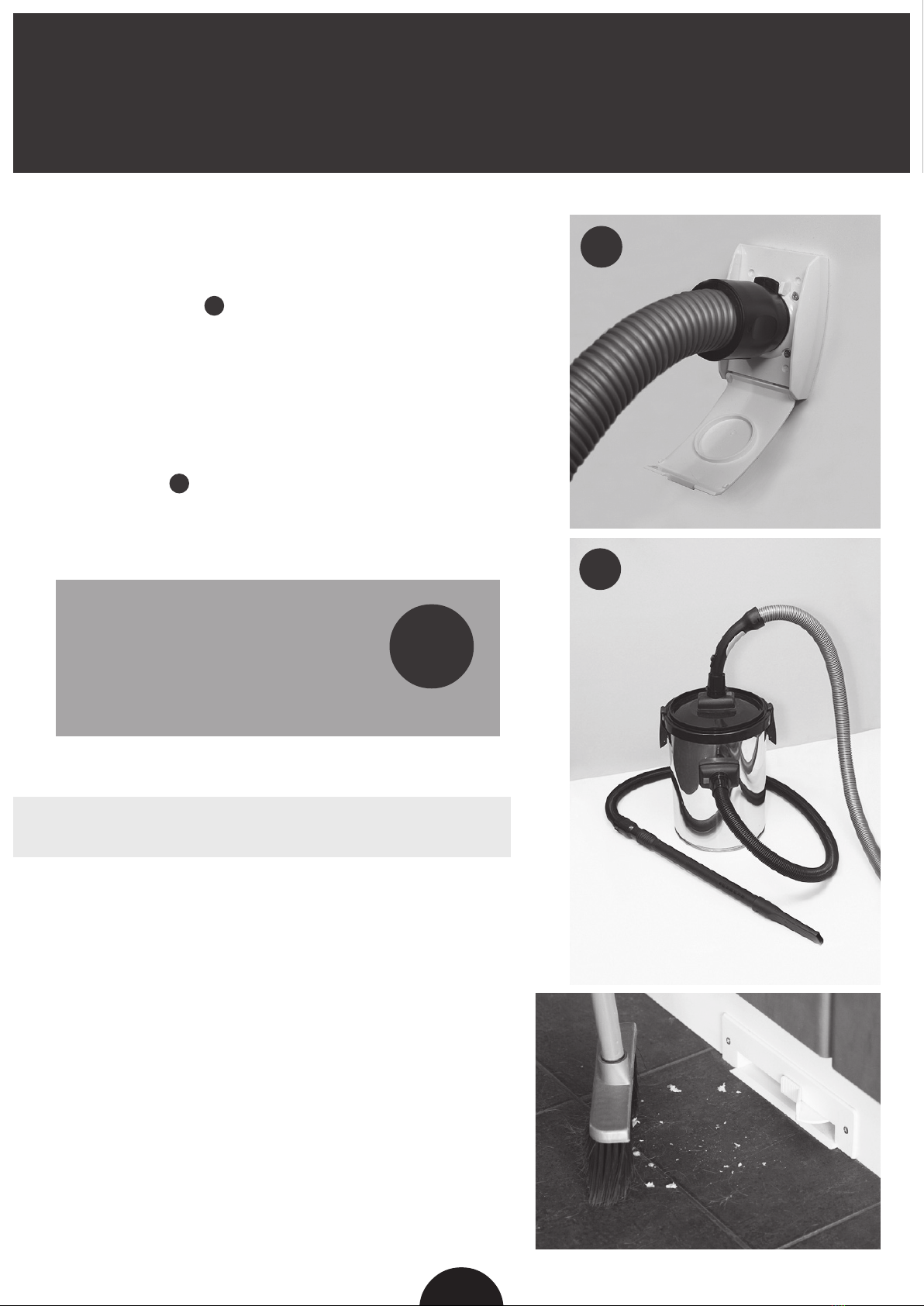

Puzer Central Vacuum Cleaner is easy to use. If
you are using a suction hose with a handle switch
feature, push the hose to the suction inlet as shown
in the image ( 1). Now you can start and stop the
system with the handle of the suction hose. If you
are using a suction hose without a handle switch
feature, the system starts when you connect the
suction hose to the suction inlet. The central vac-
uum cleaner is designed for traditional vacuuming
of household dust and litter. When vacuuming an
area that is very dusty or wet, a pre-separator must
be used. ( 2).
5

MAINTENANCE AND CHANGING THE DUST BAG
1. Pull the dust bag rack directly out of the mac-
hine. Support the machine body with your hand
when necessary if the rack feels tight.
2. Fold the tab to its place to prevent the dust
from spreading to the environment. Remove the
bag from the holder.
3. Place the new bag into the rack. Place the
cardboard collar of the dustbag to the slot of the
ange in the rack. Push the rack with the dust
bag to the machine. Make sure by feeling with
your hand through the bag that the pipe of the
machine is pressed inside the bag. In case the
rack is not correctly positioned, the cover of the
vacuum cleaner will not be closed.
COARSE FILTER
A coarse lter operates as the last barrier protect-
ingthemotor.Incasethedustbag is damaged for
some reason, the dust bag will prevent the dust
from getting inside the motor. It can be cleaned
by rinsing under running water. After cleaning,
make sure that the lter is dry before you use the
vacuum cleaner.
1
2
3
THE DUST BAG IS CHANGED IN THE FOLLOWING WAY:
6

7
Model:
Product number:
Serial number/ date:
Date of purchase:
KEEP THE RECEIPT
TROUBLESHOOTING
THE VACUUM CLEANER DOES NOT START
- Is the central unit connected to the mains?
- Is the wall socket supplied with electricity?
- Is the low voltage cable connected to the central
vacuum cleaner?
- Have you got the right hose? Original hoses have the
right contactors
- Does the vacuum cleaner start, if you try another suc-
tion outlet? If the vacuum cleaner starts, the fault is in
the electrical connections of the suction outlet. Detach
the outlet and check the wiring connections.
- The vacuum cleaner is equipped with a overheat pro-
tection function which may have tripped. Wait for ten
minutes until the vacuum cleaner cools down.
If the protection function comes on again, contact an
authorized service company.
-Has theautomaticfuseofthe vacuumcleaner tripped?
Press it and restart.
- Check whether the abiko terminals are attached
to the circuit board.
- The main fuse shall be of 10A
NOTE:
230 V ELECTRICAL WORK CAN ONLY BE CARRIED OUT
BYA PROFESSIONAL WHO ISAWARE OF ALL THE SAFETY REGULATIONS.
LOW SUCTION
- Are all the suction outlets properly tted?
- Has something got stuck in the suction outlet?
- Is the dust bag full?
- Is the cover properly placed?
- Are the suction pipes blocked?
- Is the hose blocked?
- Is there a leak in the pipework?
- Are the O rings of the suction outlet in their place?
SERVICE AND SPARE PARTS
If your vacuum cleaner needs servicing or
spare parts, please mention the technical
data on the type shield. The shield is locat-
ed inside the machine by the dust bag. Write
down the information below. That way they
are always within reach.
The guarantee of the central unit is 5 years.
The symbol marked to the
product or package indicates
that this product must not
be handled as household
waste. Instead, the product
shall be submitted to a suitable recycling
point that takes care of the recycling of
electrical and electronic equipment. The
appropriate disposal of this product helps
to prevent any harmful effects on the
environment and health, which may be
caused by the inappropriate handling of
this product. More exact information on
the recycling of this product can be found
in the local municipal ofce, household
waste service or the place where you
have purchased the product.
7

FEATURES OF THE PUZER EEVA CIRCUIT BOARD
1 - SOFT START
ThestartpeakislimitedwithaTRICrelay,thiswaythestartpowerisdeliveredtothemotorwithadelayof1
second. The start voltage is signicantly smaller and the stress of the fuses, network and motor decreases.
2 - LOW VOLTAGE LED AUTOPOLARITY *2
The green light in the machine of the pendant is always one when the voltage is connected.
(i.e. the plug is in the outlet)
3 - OPERATION HOUR COUNTER *3
By using EEPROM technology (erasable programmable ROM), the card registers two two types
of time, which can be checked by the user only by looking at two separate LEDs located in the
protective board of the circuit board. a. Short time b. Total time
4 - SELF CHECK
When the mains cable is connected, the circuit board performs a
self check. When everything is ok,
the LED blinks quickly for a few seconds.
5 - SHUT OFF DELAY
The shut off has a two (2) second delay
so that the pipe work and hose are surely emptied
after the switch off.
6 - RESET/DEMO SWITCH *6
Performs the following operations:
*3 *6 *7
*2
TIME USED LED COLOUR MEANS OPERATION
15 hours Slow green blinking The vacuum cleaner has been
used 15 hours since the last
receipt
Change/check the dustbag and
press the receipt button for 5
seconds
0-399 hours Green Less than 400 operation hours -
400 - 499 Orange Over 400 operation hours -
Over 500 hours Red Over 500 operation hours -
Function Operation Result
Test/demo Press and release the switch in less
than 5 seconds. The card performs a self check and goes through all the phases of the
previous table (see table 1)
Partial reset Press the switch for over 5 seconds
when the motor is not running. The system will reset the 15 hours’ countdown and the blinking LED
(3) returns to the continuously on
mode.
Total reset Press the switch over 30 seconds
when the engine is running. The system reset the total time calculation.
7 - AUTOMATIC FUSE*7
The circuit board is equipped with an automatic fuse, (the button with the text “circuit breaker”).
The reset takes place by pushing the button.
8

Puzer - central vacuum cleaner
and dust-free environment are important parts of the wellbeing
of your family.
Every person values clean air at home. The traditional
vacuum cleaner is not sufcient to make your home
properly clean - the ne dust in the exhaust air will re-
main oating in the indoor air and will settle again. The
Puzer central vacuum cleaner is more effective. Puzer
removes even the smallest micro dust in your home
and it is quiet and easy to use.
PUZER-CENTRAL VACUUM CLEANER TAKES THE
EXHAUST AIR OUTSIDE
The fact is that the dust lter of a traditional vacuum
cleaner cannot be made so tight that it would collect
also the tiny micro particles in the indoor air. Why
should you remove the micro particles by vacuuming?
People allergic to dust know the answer.
Without a doubt - the micro dust will make the allergy
symptoms appear. For healthy persons, fresh, dust-
free inside air means a cozier home environment, and
quality of life.
Ilmari Lindgren, an adjunct professor working in the
Helsinki University’s Skin and Allergy Hospital, con-
ducted a research on the effect of vacuuming on the
amount of dust in the indoor air. Lindgren’s research
shows that using a conventional vacuum cleaner sig-
nicantly increases the number of the smallest and
most dangerous micro dust particles in the air. How-
ever, when using the Puzer Central Vacuum Cleaner
the number of dust particles decreases, which results
in cleaner air. Already after one month of vacuuming
with Puzer, indoor air becomes as dustless as clean
air outside.
It is so silent that you can hardly believe your ears.
You only need to attach the hose to the suction outlet
and the Puzer Central Vacuum Cleaner is ready to use!
The central unit of the vacuum cleaner is installed in a
cleaning cupboard or in a storage room, which means
that there is no need to pull the vacuum cleaner around
the house, and in the same time you can forget about
bumping the vacuum cleaner into furniture, and suffer-
ing from that annoying noise associated with the con-
ventional vacuum cleaners. Central vacuum cleaners
are silent to use so it is possible to continue a normal
conversation or watch TV when the unit is on.
Easy to install to new and old houses – you can do
it yourself.
Puzer is a central vacuum cleaner designed in a way
that it is easy to install to a house, even after the build-
ing is ready. The installation of the whole system takes
only a few hours. Most houses have hollow cored
non-bearing walls made of panels. The installation of
the piping system away from sight is most often fast
and easy in this kind of structure. The piping can al-
ternatively go through storage rooms and other such
areas. Moving from one room to another is possible via
attic, foundation structure, or even via outer wall.
INVESTMENT IN CLEANER HOME
The open-minded have already seen the outstanding
benets of the system. Installing a central vacuuming
system is customary in new houses nowadays.
Manufacturing and marketing:
KP-TEKNO OY
Masalantie 365, 02430 Masala
tel.[phone], fax [phone]
e-mail: puzer@puzer., www.puzer.
www.puzer. Puzer central vacuum cleaner - Genuinely Finnish!
9
