Pyramis FSN 195 INOX Operation manual

User Information
Οδηγίες για το χρήστη
Manual de utilizare
Инструкция за употреба
Gebrauchsanleitung
Návod k použití
Návod k obsluze
FSN 195 INOX
FSO 185 INOX
EN EL RO BG DE PL CZ

3
In the interest of your safety and to ensure the correct use, before installing and
rst using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety. For the safety of life and property
keep the precautions of these user’s instructions as the facturer is not responsible
for damages caused mission.
Children and vulnerable people safety
This appliance can be used by children aged from 8 and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given super vision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children aged from 3 to 8 years are allowed to load and unload this appliance.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged from
8 years and above and supervised.
 Keep all packaging well away from children. There is risk of suocation.
If you are discarding the appliance pull the plug out of the socket, cut the connection ca-
ble (as close to the appliance as you can) and remove the door to prevent playing children
to suer electric shock or to close themselves into it.
If this appliance featuring magnetic door seals is to replace an older appliance having a
spring lock (latch) on the door or lid, be sure to make that spring lack unusable before
you discard the old appliance. This will prevent it from becoming a death trap for a child.
General Safety
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in struc-
ture, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of
refrigerating appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time because
it could be very hot.1)
WARNING! When positioning the appliance, ensure the supply cord is not trapped or dam-
aged.
WARNING! Do not locate multiple portable socket-outlets or power suppliers at the rear of
the appliance.
1) If there is a light in the compartment.
Safety Information
EΝ

4
 Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental compatibility, which is nevertheless ammable.
During transportation and installation of the appliance, be certain that none of the co
mponents of the refrigerant circuit become damaged.
- Avoid open ames and sources of ignition
- Thoroughly ventilate the room in which the appliance is situated
 It is dangerous to alter the specications or modify this product in any way. Any damage
to the cord may cause a short circuit, re and/or electric shock.
This appliance is intended to be used in household and similar applications such as
- Sta kitchen areas in shops, oces and other working environments
- Farm houses and by clients in hotels, motels and other residential type environments
- Bed and breakfast type environments
- Catering and similar non-retail applications.
WARNING! Any electrical components (plug, power cord, compressor and etc). must be
replaced by a certied service agent or qualied service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable
only with the appliance supplied. This “special use lamp” is not usable for domestic light-
ing1).
Power cord must not be lengthened.
 Make sure that the power plug is not squashed or damaged by the back of the appliance.
Squashed or damaged power plug may overheat and cause a re.
Make sure that you can come to the mains plug of the appliance.
Do not pull the mains cable.
If the power plug socket is loose, do not insert the power plug. There is a risk of electric
shock or re.
You must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it.
 Do not remove nor touch items from the freezer compartment if you hands are damp/wet,
as this could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.2)
Store pre-packed frozen food in accordance with the frozen food manufacturers instructions 2).
Appliance’s manufactures storage recommendations should be strictly adhered to. Refer
to relevant instructions.
 Do not place carbonated of zzy drinks in the freezer compartment as it creates pressure
on the container, which may cause it to explode, resulting in damage to the appliance.2)
Ice lollies can cause frost burns if consumed straight from the appliance.2)
Safety Information
1) If there is a light in the compartment.
2) If there is a freezer compartment.

5
Safety Information
To avoid contamination of food, please respect the following instructions
 Opening the door for long periods can cause a signicant increase of the temperature in
the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
 Clean water tanks if they have not been used for 48h ush the water system connected
to a water supply if water has not been drawn for 5 days.
 Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
Two-star frozen food compartments (if they are presented in the appliance) are suitable
for storing pre-frozen food, storing or making ice-cream and making ice cubes.
One-, two- and three-star compartments (if they are presented in the appliance) are not
suitable for the freezing of fresh food.
 If the appliance is left empty for long periods, switch o, defrost, clean, dry and leave the
door open to prevent mount developing within the appliance.
Care and cleaning
 Before maintenance, switch o the appliance and disconnect the mains plug from the
mains socket.
Do not clean the appliance with metal objects.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.2)
Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
If the drain is blocked, water will collect in the bottom of the appliance.3)
Installation
Important! For electrical connection carefully follow the instructions given in specic paragraphs.
Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
It is advisable to wait at least four hours before connecting the appliance to allow the oil
to ow back in the compressor.
 Adequate air circulation should be around the appliance, lacking this leads to overheat-
ing. To achieve sucient ventilation follow the instructions relevant to installation.
Wherever possible the spacers of the product should be against a wall to avoid touching
or catching warm parts (compressor, con-denser) to prevent possible burn.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance.
Service
 Any electrical work required to do the servicing of the appliance should be carried out by
a qualied electrician or competent person.
This product must be serviced by an authorized service center, and only genuine spare
parts must be used.
2) If there is a freezer compartment.
3) If there is a fresh food storage compartment.

6
Energy saving
Don’t put hot food in the appliance
Don’t pack foods close together as this prevents air circulating
Make sure food don’t touch the back of the comparment(s)
 If electricity goes o, don’t open the door(s)
 Don’t open the door(s) frequently
Don’t keep the door(s) open for too long time
Don’t set the thermostat on exceeding cold temperatures
All accessories, such as drawers, shelves, balconies should be kept there for lower en-
ergy consumption
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either
its refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains ammable gases: the ap-
pliance shall be disposed according to the appliance regulations to obtain from your local
authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials
used on this appliance marked by the symbol are recyclable.
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it should be taken to the appropriate col-
lection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative conse-
quences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact your local council, your household waste
disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in a suitable collection containers to recycle it.
Disposal of the appliance
1.Disconnect the mains plug from the mains socket.
2.Cut o the mains cable and discard it.
WARNING! During using, service and disposal the appliance, please pay atten-
tion to symbol similar as left side, which is located on rear of appliance (rear pan-
el or compressor) and with yellow or orange color. It’s risk of re warning symbol.
There are ammable materials in refrigerant pipes and compressor. Please be far
away from re source during using, service and disposal installation.
Safety Information

7
Crisper
FridgeShelvesFridge
Balconies
Fresh convertible box
Crisper Cover
Freezer Drawers
Leveling Feet

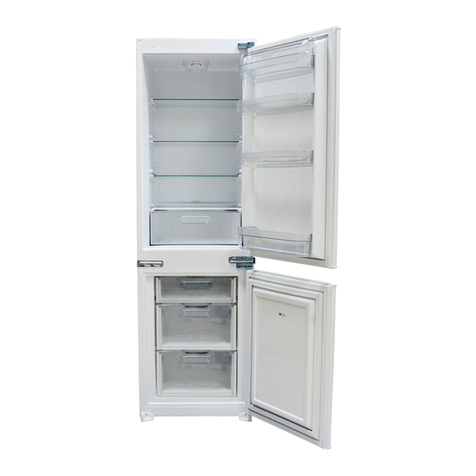

Overview
*Note: Above picture is for reference only. Real appliance probably is dierent.

8
Space Requirement
Select a location without direct exposure to sunlight.
Select a location with enough space for the refrigerator doors to open easily.
 Select a location with level (or nearly level) ooring.
 Allow sucient space to install the refrigerator on a at surface.
Allow clearance to the right, left, back and top when installing. This will help reduce power
consumption and keep your energy bills lower.
Keep at lest 50mm gap at two sides and back.
Positioning
Install this appliance at a location where the ambient temperature corre sponds to the cli-
mate class indicated on the rating plate of the appliance: for refrigerating appliances with
climate class:
- Extended temperate: this refrigerating appliance is intended to be used at ambient tem-
peratures ranging from 10 °C to 32 °C (SN)
- Temperate: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C (N)
- Subtropical: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 38 °C (ST)
- Tropical: this refrigerating appliance is intended to be used at ambient temperatures rang-
ing from 16 °C to 43 °C (T)
Location
The appliance should be installed well away from sources of heat such as radiators, boilers,
direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To
ensure best performance, if the appliance is positioned below an overhanging wall unit, the
minimum distance between the top of the cabi-net and the wall unit must be at least 50
mm. Ideally, however, the appliance should not be positioned below overhanging wall units.
Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet. This
refrigerating appliance is not intended to be used as a built-in appliance.
WARNING! It must be possible to disconnect the appliance from the mains power supply
the plug must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate corre-
spond to your domestic power supply. The appliance must be earthed. The power supply
cable plug is provided with a contact for this purpose. If the domestic power supply sock-
et is not earthed, connect the appliance to a separate earth in compliance with current
regulations, consulting a qualied electrician.The manufacturer declines all responsibility
if the above safety precautions are not observed.This appliance complies with the E.E.C.
Directives.
Installation

9
Installation
Door Reversibility
Before reversing the door, please be prepared below tools and material: straight screwdriv-
er, cross screwdriver, spanner and the components included in the poly bag:
Left Door Hinge Cover x 1 Left Aid-Closer on Upper Door x 1 Left Aid-Closer on Lower Door x 1
1.Unscrew top hinge cover and disconnect connectors of door switch and harness
2. Unscrew top hinge
3. Remove the pin with a screwdriver and lp the hinge bracket. Then ret the pin to hinge bracket
un
un
screw
screw
screw
screw
4. Move door switch from right hinge cover to left hinge cover in accessary bag

10
Installation
5. Detach cover in top of upper door and move harness from right side to left side, then replace the
cover
6. Move top left cover to right side
7. Take o the upper door, take out the screw from the middle hinge by cross screwdriver, take o
the lower door
8. Move the hinge hole covers from left side to right side

11
Installation
5. Detach cover in top of upper door and move harness from right side to left side, then replace the
cover
6. Move top left cover to right side
7. Take o the upper door, take out the screw from the middle hinge by cross screwdriver, take o
the lower door
8. Move the hinge hole covers from left side to right side
9. Unscrew bottom hinge. Then remove the adjustable feet from both side
10. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it
unscrewscrew
11. Ret the bracket tting the bottom hinge pin. Replace both adjustable feet
12. Remove aid-closers from bottom of upper and lower doors, then take new aid-closers from
accessary bag and install them to left side

12
Installation
13. Detach the Fridge and the Freezer door gaskets and then attach them after rotating
14. Install the lower door, adjust and x the middle hinge onto the cabinet
15. Replace upper door, please ensure the door align with the cabinet to make sure door gasket
seal the cabinet tightly. Then connect door with cabinet by tightly xed top hinge
16. Connect harnesses from door and cabinet. Then replace top hinge cover. Before screw the
cover, connect terminals of door switch

13
Installation
13. Detach the Fridge and the Freezer door gaskets and then attach them after rotating
14. Install the lower door, adjust and x the middle hinge onto the cabinet
15. Replace upper door, please ensure the door align with the cabinet to make sure door gasket
seal the cabinet tightly. Then connect door with cabinet by tightly xed top hinge
16. Connect harnesses from door and cabinet. Then replace top hinge cover. Before screw the
cover, connect terminals of door switch
Install door external handle (if external handle is present)
Space Requirement
Keep enough space of door open.
Keep at least 50mm gap at two sides and back.
F
FN2-451 FN2-471
A 600 600
B 685 685
C 1850 1950
D min=50 min=50
E min=50 min=50
F min=50 min=50
G 1200 1200
H 1285 1285
L 13501350
Levelling the unit
To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors
and magnetic seal alignments will not be covered properly.

14
User Interface
FRIDGEFRIDGE
FREEZERFREEZER
MODEMODE
3’S3’S
1. Using the control panel
1
2
A
B
C
3
1.1 Key Operation (A & B & C)
:Temperature control of fridge compartment
This key is available in user dened mode and SUPER mode, not available in ECO
mode and VACATION mode. Short touching this key to select fridge temperature.
:Temperature control of freezer compartment. This key is available in user dened mode
and VACATION mode, not available in SUPER mode and ECO mode. Short touching
this key to select freezer temperature.
:Running mode select / Locking / Unlocking. Keep touching this key for 3s to lock
or unlock the control panel. In “Unlocking”status, short touching this key to select
running mode (ECO mode / VACATION mode / SUPER mode / user dended mode).
1.2 Display (1 & 2)
1.Setting temperature display of fridge compartment. This area will display setting temper-
ature of fridge compartment. If E0,E1,E2,E3,E5 displays in this area, please call service.
2.Setting temperature display of freezer compartment. This area will display setting temper-
ature of freezer compartment.
1.3 Indicators (3 & 4 & 5 & 6)
3.ECO mode indicator. This light is on when ECO mode is selected.
4.VACATION mode indicator. This light is on when VACATION mode is selected.
5.SUPER mode indicator. This light is on when SUPER mode is selected.
6.Locking / Unlocking indicator. This light is on when control panel is locked.
2. Illustion of the key
2.1 Operation and display
Control panel will be 100% lit up for 3s, which operates exactly as per the setting before
the power o. After that,operations are available.
Before your operation, make sure the control panel is in unlocking status.
 In locking status, locking indicator will ash for 3s when you short touching any operation
key, but operations are not available.
Control panel will be locked 25s after the last operation.
 Control panel will 100% light o 2 minutes after the last operation.

15
User Interface
Control panel will be lit up once the door of fridge compartment is opened.
Control panel will be lit up once short touching operation keys.
There will be a prompt beep for any key operation.
2.2 Temperature setting of fridge compartment
 In user dened mode or SUPER mode, short touch FRIDGEFRIDGE key consecutively, setting
temperature of rdge compartment will display in a circle from 20C to 80C.
 Setting temperature will be conrmed after 5s of ashing of the indicator.
2.3 Temperature setting of freezer compartment
 In user dened mode, short touching FREEZERFREEZER consecutively, setting temperature of fridge
compartment will display in a circle from -140C to -220C
 Setting temperature will be conrmed after 5s of ashing of the indicator.
2.4 Temperature setting recommendation
Temperature setting recommendation
Environment Temperature Fridge Compartment Freezer Compartment
Summer
Normal
Winter
2.5 Temperature control of fresh zone
Temperature of the fresh can be adjusted according to
the type of storage food.
Push the knob upward from the bottom, temperature
in the fresh zone will be gradually decreased.
When the knob is placed at the “CRISPER” position,
the fresh zone can be functioned as a crisper zone and
maintain the appropriate temperature and humidity for
fruits and vegetable.
When the knob is placed at the “FRESH” position, it
is suitable for short-term storage of sh or other fresh
food. The food will keep fresh but not frozen which
makes it the best choice for storing fresh food.
 Tips: When you choose “FRESH” function, it is rec-
ommended to set the refrigerator temperature below
4°C . and preserved lead-time no more than 3 days ,
in order to keep the best freshness.

16
User Interface
2.6 ECO mode
Activate ECO mode:
Short touching MODEMODE
3’S3’S key consecutively,when (ECO mode indicator) is lit up, ECO
mode is selected.
 After 5s of ashing of ECO mode indicator,ECO mode will be activated.
 When ECO mode is activated, fridge / freezer temperature will be set automatically
to 5oC / -18oC.
In ECO mode, if you set fridge or freezer temperature by manual, ECO mode indicator
will ash for 3s, fridge and freezer temperature setting operations are not workable.
Quit from ECO mode:
Short touch MODEMODE
3’S3’S key, when ECO mode indicator is light o, the appliance quits.
2.7 VACATION mode
Activate VACATION mode:
Short touching MODEMODE
3’S3’S key consecutively,when (VACATION mode indicator) is lit up,
VACATION mode is selected.
 After 5s of ashing of VACATION mode indicator,VACATION mode will be activated.
When VACATION mode is activated, fridge temperature will be set automatically to
17oC, setting temperature of freezer compartment is available.
In VACATION mode, if you set fridge temperature by manual, VACATION mode indica-
tor will ash for 3s, fridge temperature setting operation is not workable.
Quit from VACATION mode:
Short touch MODEMODE
3’S3’S key, when VACATION mode indicator is light o, the appliance
quits from mode.
2.8 SUPER mode
It is advisable to set SUPER mode 24 hours ahead, if lots of foods need to be frozen in one time.
Activate SUPER mode:
Short touching MODEMODE
3’S3’S key consecutively,when (SUPER mode indicator) is lit up,
SUPER mode is selected.
 After 5s of ashing of SUPER mode indicator, SUPER mode will be activated.
When SUPER mode is activated, freezer temperature will be set automatically to-
25oC, setting temperature of fridge compartment is available.
In SUPER mode, if you set freezer temperature by manual, SUPER mode indicator will
ash for 3s, freezer temperature setting operation is not workable.
Quit from SUPER mode:
Short touch MODEMODE
3’S3’S key, when SUPER mode indicator is light o, the appliance quits
from SUPER mode.
WARNING!!! In SUPER mode, the appliance will keep running under heavy load, noise level
will be slightly higher than normal condition.

17
Daily Use
2.9 User dened mode
Short touch MODEMODE
3’S3’S key until ECO mode indicator / VACATION mode indicator /SUPER
mode indicator are all light o, user dened mode is activated.
 In user dened mode, users can set fridge temperature and freezer temperature by
manual.
2.10 Door opening alarm function
If fridge door keeps open for 60s, door opening alarm will arise.
First use
Cleaning the interior
Before using the appliance for the rst time, wash the interior and all internal accessories
with lukewarm water and some neutral soap so as to remove the typical smell of a brand
new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the nish.
Daily use
Position dierent food in dierent compartments according to be below table
Refrigerator compartments Type of food
Door or balconies of fridge
compartment
• Foods with natural preservatives, such as jams,juices,
drinks, condiments.
• Do not store perishable foods.
Crisper drawer (salad
drawer)
• Fruits, herbs and vegetables should be placed separately in the
crisper bin.
• Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – middle • Dairy products, eggs.
Fridge shelf – top • Foods that do not need cooking, such as ready-to-eat
foods, deli meats, leftovers.
Freezer drawer(s)/shelf
• Foods for long-term storage.
• Bottom drawer/shelf for raw meat, poultry, sh.
• Middle drawer/shelf for frozen vegetables, chips.
• Top drawer/shelf for ice cream, frozen fruit, frozen baked
goods.
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and
deep-frozen food for a long time.
Place the fresh food to be frozen in the bottom compartment.
The maximum amount of food that can be frozen in 24 hours is specied on the rating plate.
 The freezing process lasts 24 hours: during this period do not add other food to be frozen.

18
Daily UseDaily Use
Storing frozen food
When rst starting-up or after a period out of use. Before putting the product in the com-
partment let the appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been o for longer
than the value shown in the technical characteristics chart under “rising time”, the defrosted
food must be consumed quickly or cooked immediately and then re-frozen (after cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or
at room temperature, depending on the time available for this operation. Small pieces may
even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.
Accessories
Movable shelves
The walls of the refrigerator are equipped with a series of runners so that the shelves can
be positioned as desired.
Positioning the door balconies
Door balconies can be disassembled for cleaning. To make the disassembling as follows:
gradually pull the balcony in the direction of the arrows until it comes free, after cleaning,
reposition it.
Disassemble the bottom drawer
1.Pull out the bottom drawer to stopper position.
2.Lift up the front of drawer.
3.Pull out the bottom drawer.
Helpful hints and tips
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
 The maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate.
The freezing process takes 24 hours. No further food to be frozen should be added during
this period.
 Only freeze top quality, fresh and thoroughly cleaned, foodstus.
Prepare food in small portions to enable it to be rapidly and completely frozen and to
make it possible subsequently to thaw only the quantity required.
Wrap up the food in aluminium foil or polythene and make sure that the packages are
airtight.
Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a
rise in temperature of the latter.
Lean foods store better and longer than fatty ones; salt reduces the storage life of food.
Water ices, if consumed immediately after removal from the freezer compartment, can
possibly cause the skin to be freeze burnt.
It is advisable to show the freezing in date on each individual pack to enable you removal
from the freezer compartment, can possibly cause the skin to be freeze burnt.
It is advisable to show the freezing in date on each individual pack to enable you to keep
tab of the storage time.

19
Daily Use
Disassemble the bottom drawer
1.Pull out the bottom drawer to stopper position.
2.Lift up the front of drawer.
3.Pull out the bottom drawer.
Helpful hints and tips
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
 The maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate.
The freezing process takes 24 hours. No further food to be frozen should be added during
this period.
 Only freeze top quality, fresh and thoroughly cleaned, foodstus.
Prepare food in small portions to enable it to be rapidly and completely frozen and to
make it possible subsequently to thaw only the quantity required.
Wrap up the food in aluminium foil or polythene and make sure that the packages are
airtight.
Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a
rise in temperature of the latter.
Lean foods store better and longer than fatty ones; salt reduces the storage life of food.
Water ices, if consumed immediately after removal from the freezer compartment, can
possibly cause the skin to be freeze burnt.
It is advisable to show the freezing in date on each individual pack to enable you removal
from the freezer compartment, can possibly cause the skin to be freeze burnt.
It is advisable to show the freezing in date on each individual pack to enable you to keep
tab of the storage time.

20
Daily Use
Hints for storage of frozen food
To obtain the best performance from this appliance, you should make sure that the commercially
frozen foodstus were adequately stored by the retailer, be sure that frozen foodstus are trans-
ferred from the food store to the freezer in the shortest possible time, not open the door frequent-
ly or leave it open longer than absolutely necessary. Once defrosted, food deteriorates rapidly
and cannot be refrozen. Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
 Do not store warm food or evaporating liquids in the refrigerator.
 Do cover or wrap the food, particularly if it has a strong avour.
Hints for refrigeration
Useful hints:
 Make (all types): wrap in polythene bags and place on the glass shelves above the veg-
etable drawer.
For safety, store in this way only one or two days at the most.
 Cooked foods, cold dishes, etc.: these should be covered and may be placed on any self.
 Fruit and vegetables: these should be thoroughly cleaned and placed in the special draw-
er(s) provided.
 Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminum foil or polythene bags to exclude as much air as possible.
 Milk bottle: these should have a cap and should be stored in the balconies on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.
Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be cleaned
regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance o and remove the plug from the
mains, or switch o or turn out the circuit breaker or fuse. Never clean the appliance with
a steam cleaner. Moisture could accumulate in electrical components, danger of electrical
shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry be-
fore it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or
the juice form orange peel, butyric acid, cleanser that contain acetic acid.
Do not allow such substances to come into contact the appliance parts.
Do not use any abrasive cleaners.
Remove the food from the freezer. Store them in a cool place, well covered.
 Switch the appliance o and remove the plug from the mains, or switch o or turn out the
circuit breaker of fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm water. After
cleaning wipe with fresh water and rub dry.
After everything is dry place appliance back into service.
