Pyramis IC3320 A+ User manual
EN BUILT IN REFRIGERATOR
Fridge - Freezer
User Manual
RO COMBİNA FRİGORİFİCA
İNCORPORABİLA
Manual de utilizare
IC3320 A+
EN - 1 -
Index
INSTRUCTIONS PREALABLES ............................................................... 2
General warnings ........................................................................................2
Safety warnings ...........................................................................................5
Installing and operating your fridge .............................................................5
Before Using your Fridge.............................................................................6
HOW TO OPERATE THE APPLIANCE..................................................... 7
Thermostat Setting ......................................................................................7
Warnings about Temperature Adjustments..................................................7
Accessories .................................................................................................8

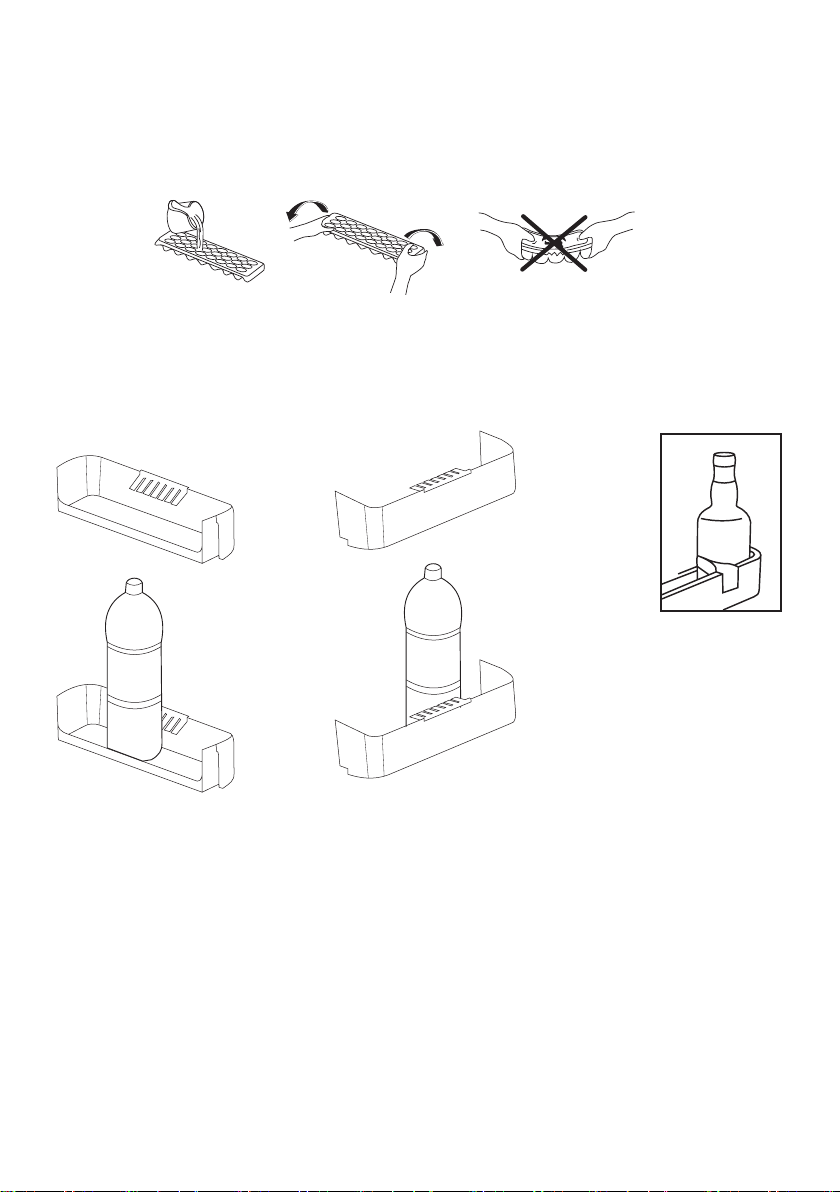

Ice tray .......................................................................................................................8
Bottle holder (In some models) ..................................................................................8
FOOD STORAGE IN THE APPLIANCE.................................................... 9
Refrigerator Compartment...........................................................................9
Freezer Compartment .................................................................................9
CLEANING AND MAINTENANCE .......................................................... 10

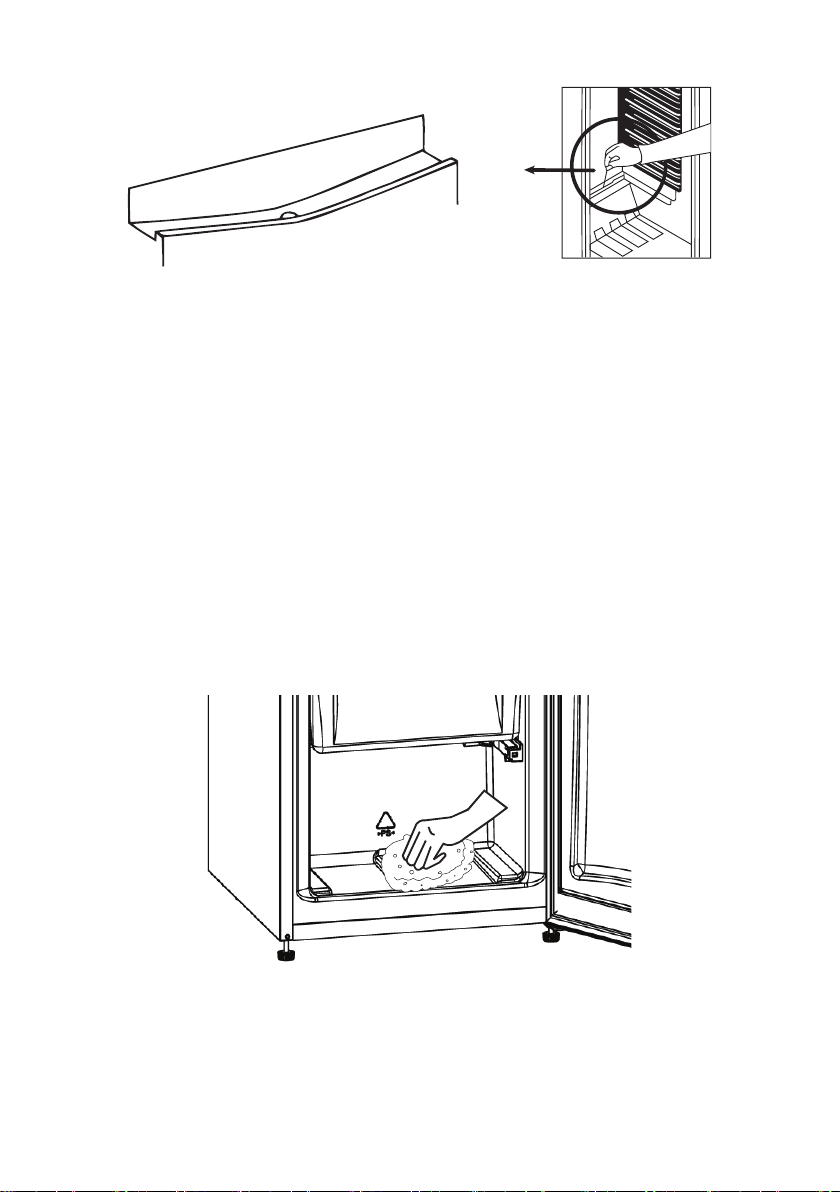

Defrosting the Refrigerator Compartment ................................................. 11
Defrosting the Freezer Compartment ........................................................ 11
Replacing the Refrigerator Light Bulb........................................................12
SHIPMENT AND REPOSITIONING......................................................... 12
BEFORE CALLING YOU'RE AFTER SALES SERVICE ........................ 12
Tips for saving energy ...............................................................................14

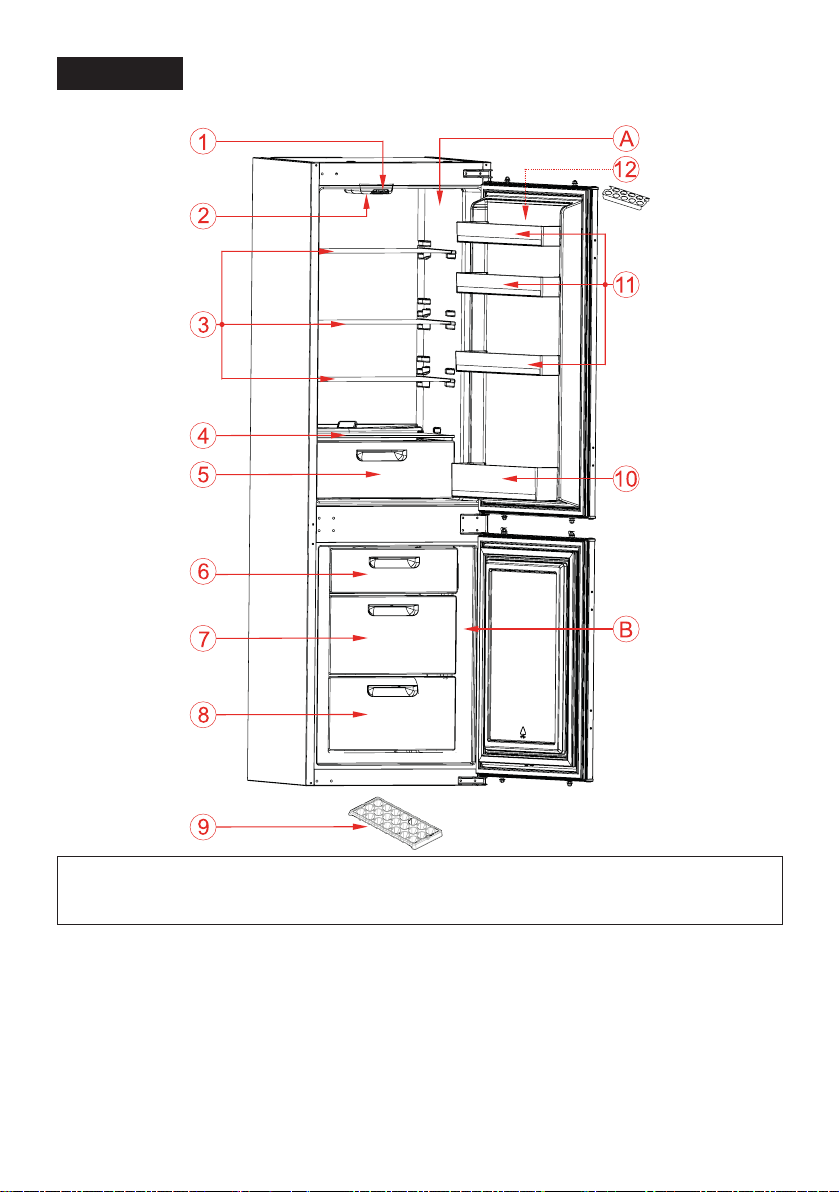

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ................. 15

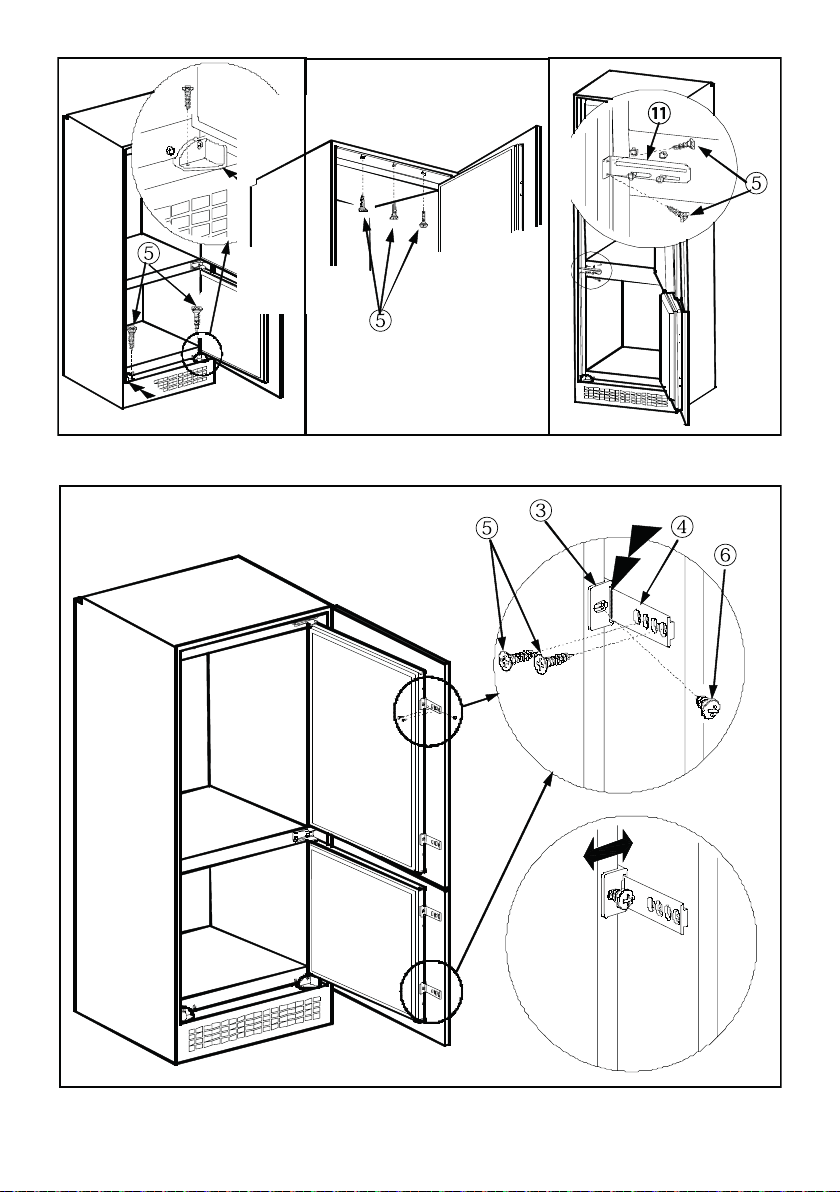

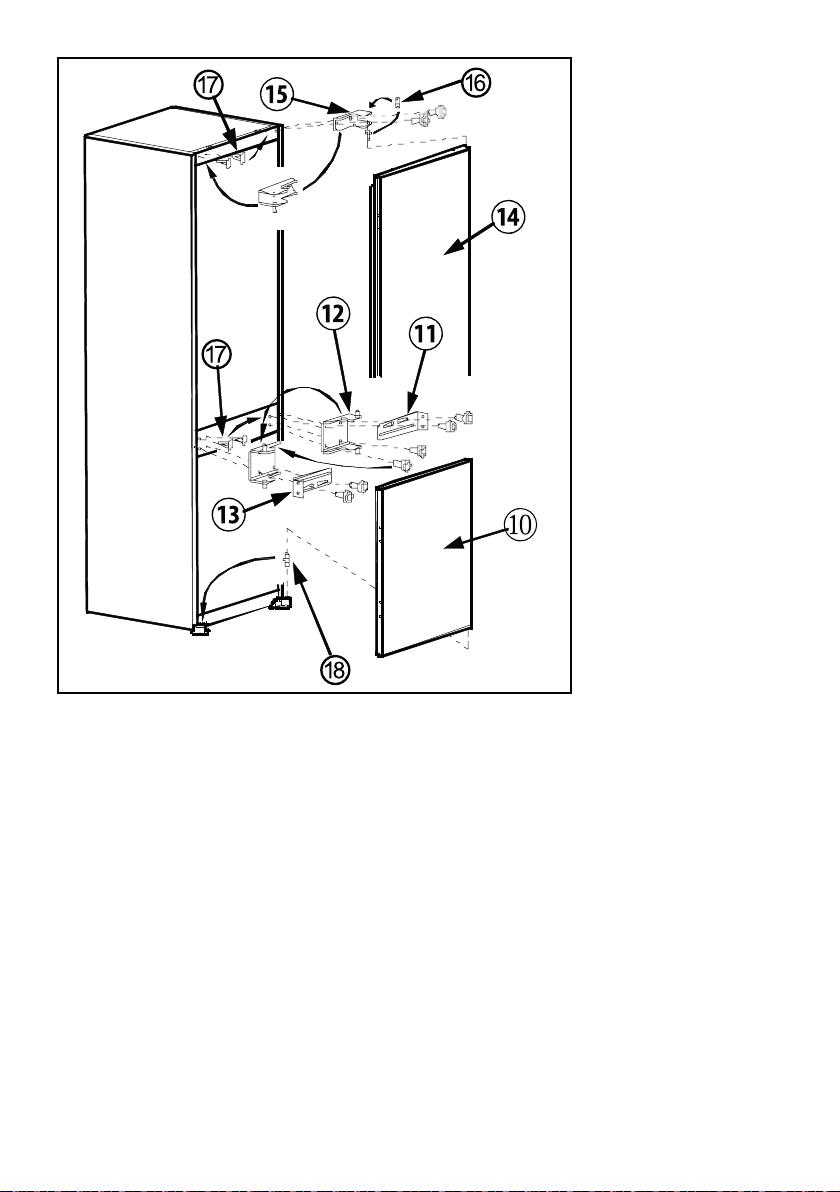

Installation instructions and door reversibility ............................................16
EN - 2 -
INSTRUCTIONS PREALABLESPART - 1.
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the
appliance, unless they are of the type recommended by the
manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the
appliance, it must be xed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn
this information from the label on the cooler- you should
be careful during shipment and installation to prevent your
appliance’s cooler elements from being damaged. Although
R600a is an environmentally friendly and natural gas. As it is
explosive, in the event of a leak due to damage to the cooler
elements, move your fridge from open ame or heat sources
and ventilate the room where the appliance is located for a
few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
• This appliance is intended to be used in household and
similar applications such as;
- staff kitchen areas in shops, ofces and other working
environments;
EN - 3 -
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with
a specially grounded socket of 16 amperes. If there is no
such socket in your house, please have it installed by an
authorized electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazard
involved. Children shall not play with the appliance. Cleaning
and user maintenance, shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualied persons in
order to avoid a hazard.
EN - 4 -
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm the environment when you are discarding your old fridges.
• Please ask your municipal authority about the disposal of the WEEE
for the reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and
for the specied purposes. It is not suitable for commercial or common use. Such use
will cause the guarantee of the appliance to be cancelled and our company will not be
responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
EN - 5 -

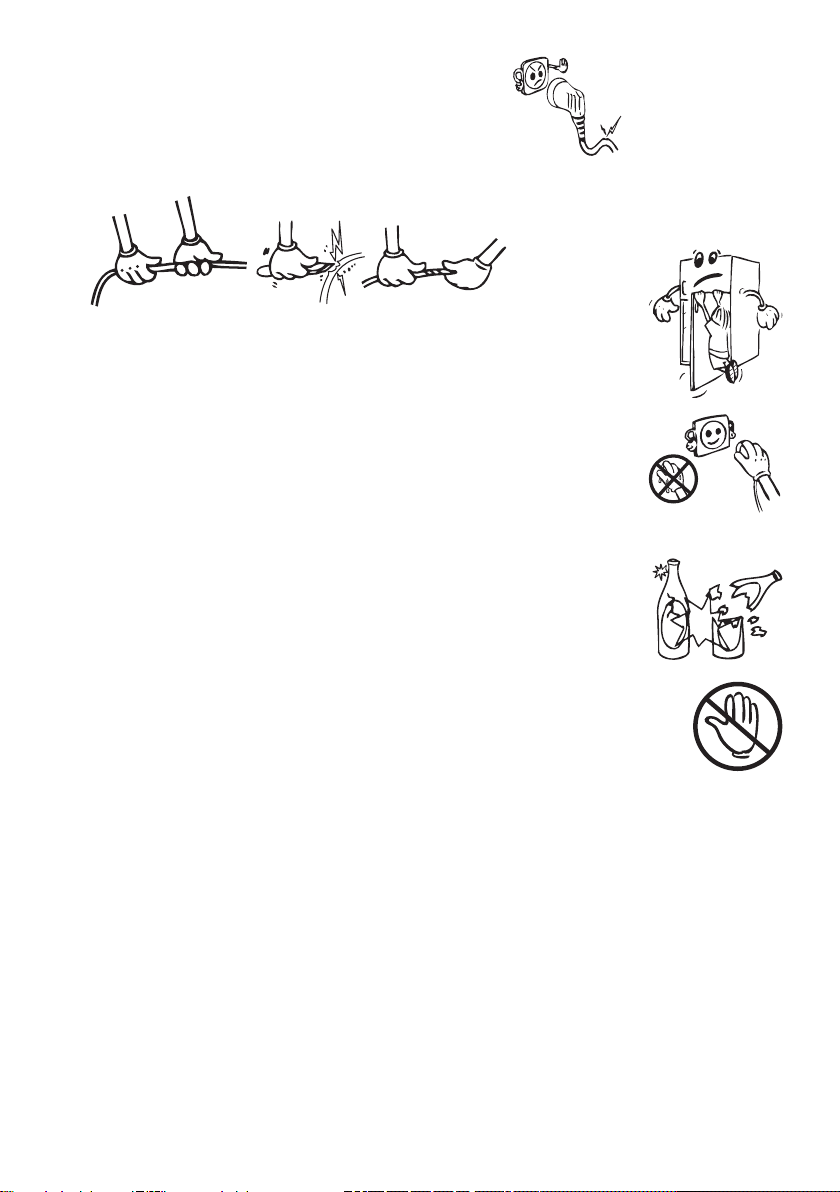

Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not twist and bend the cables, and keep them away from hot surfaces.
• After installation make sure that the power cable is not trapped
underneath appliance.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands
to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
• Do not place explosive or ammable material in your fridge for
your safety. Place drinks with higher alcohol amount vertically and
by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it,
ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream
and ice cubes immediately after you take them out of the freezer
department!
• Do not re-freeze the frozen goods after being melted. This may
cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the
performance of your fridge.
• Do not operate any electrical appliances inside the refrigerator or freezer.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odor when you rst switch on the appliance. It will disappear after the
appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the
nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efcient ground connection. If the socket has
no ground contact or the plug does not match, we suggest you to call an authorized
electrician for assistance.
EN - 6 -
• The appliance must be connected with a properly installed fused socket. Power supply
(AC) and voltage at the operating point must with the details on the name plate of the
appliance (name plate is located on the inside left of the appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your fridge should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heaters, and
should be at least 5 cm away from electrical ovens.
• When your fridge is placed next to a deep freezer, there should be at least 2 cm between
them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before
use (See Cleaning and Maintenance).

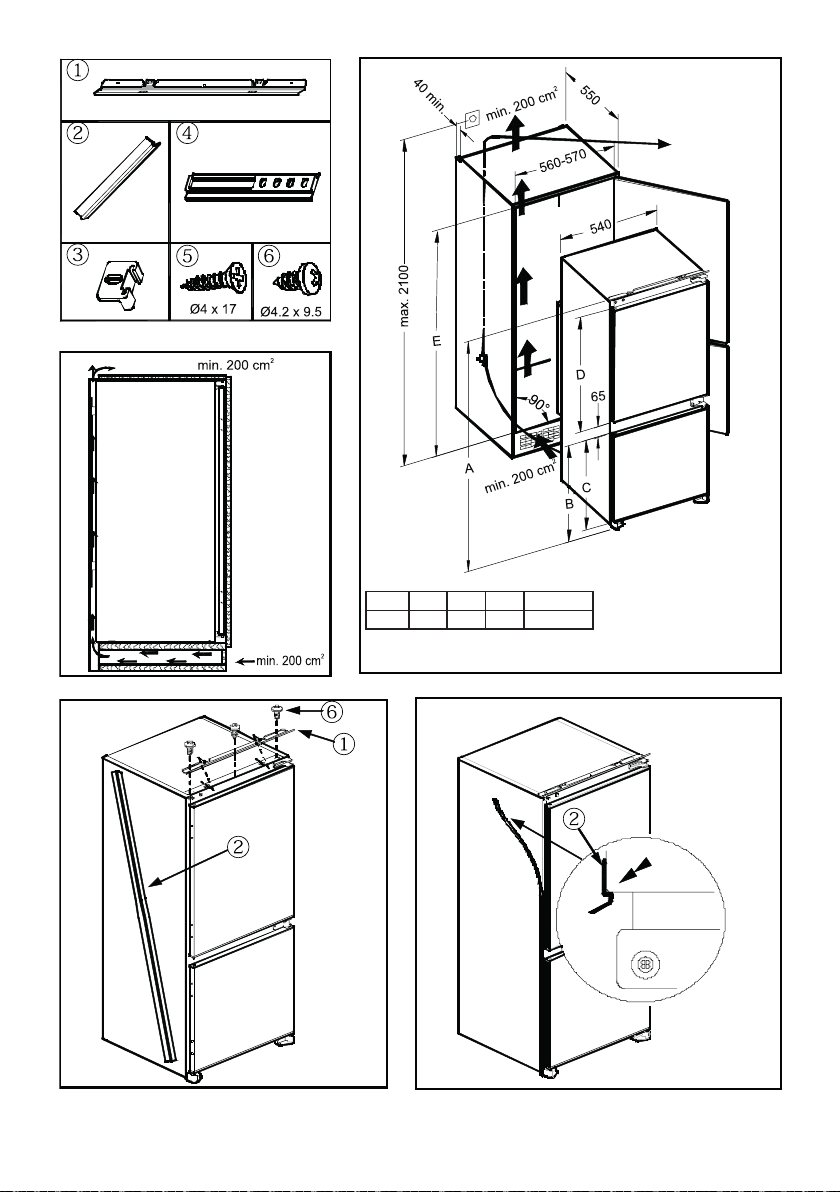

• Installation procedure into the kitchen unit is given in the The
installation procedure into the kitchen unit is given in the Installation
Manual. This product is intended to be used in proper kitchen units
only.
• The adjustable front legs should be adjusted to an appropriate height to allow your
freezer to operate in a stable and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be done before placing food in the
freezer.
• Before using your fridge, wipe all parts with warm water added
with a tea spoonful of sodium bicarbonate, and then rinse with
clean water and dry. Place all parts after cleaning.
• Install the distance adjustment plastic (the part with white vanes
at the rear) by turning it 90° as shown in the gure to prevent the
condenser from touching the wall.
Before Using your Fridge
• When it is operated for the rst time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to allow
efcient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the rst time; the smell will fade
away when your fridge starts to cool.
EN - 7 -
Thermostat Setting
HOW TO OPERATE THE APPLIANCEPART - 2.
Freezer thermostat automatically regulates the inside temperature of the compartments. By
rotating the knob from position 1 to 5, colder temperatures can be obtained.
Freezer & Refrigerator Thermostat Setting;
1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob
between minimum and medium position.
3 – 4 : For long-term storage of food in the freezer compartment, you can set knob medium
position.
5 : For freezing the fresh food. The appliance will work longer. So after you get the cold
condition you must position to previous position.
Warnings about Temperature Adjustments
• It is not recommended that you operate your fridge in environments colder than 10°C in
terms of its efciency.
• Temperature adjustments should be made according to the frequency of door openings
and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled. Do not open doors
of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your
fridge, when you take the plug off and then plug it on again to operate it or when an
energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
Thermostat knob
EN - 8 -
Accessories
Ice tray
• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
Bottle holder (In some models)
In order to prevent bottles from slipping or falling over you can use the bottle holder. It also
helps prevent noise when you open or close the door.
All written and visual descriptions in the accessories may vary according to the
appliance model.
EN - 9 -
Refrigerator Compartment
Refrigerator compartment is used for storing fresh food for few days.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf
just above the vegetable bin, where the air is colder.
• You can put the fruits and vegetables into crisper without packing.
• To avoid the cold air escaping, try not to open the door too often, and not leave the door
open for a long time.
Freezer Compartment
Freezer compartment is used for freezing fresh foods and for storing frozen foods for the
period of time indicated on packaging, and for making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging
should be air tight and shouldn’t leak. Special freezer bags, aluminum foil (heavy grade,
in doubt double wrap), polythene bags and plastic containers are ideal.
• Do not allow the fresh food to be frozen to come into contact with the already frozen
food.
• Always mark the date and the content on the pack and do not exceed the stated storage
time.
• In case of a power failure or malfunction, the freezer compartment will maintain a
sufciently low temperature for food storage. However, avoid opening the freezer door
to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is
indicated on the name plate ( see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products; ensure that the packaging is
not damaged.
• The storage time and the recommended temperature for storing frozen foods are
indicated on the packaging. For storing and using, follow the manufacturer’s instructions.
If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible
in order to consume or to freeze once again.
• Storage: If you want to use the maximum net capacity, you can remove the drawers and
store the items directly on the cooling tubes. This will enable you to make use of the
entire volume of the compartment.
FOOD STORAGE IN THE APPLIANCEPART - 3.
EN - 10 -
CLEANING AND MAINTENANCEPART - 4.
• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge
using warm and soapy water.
• Remove the parts individually and clean with soapy
water. Do not wash in washing machine.
• Never use ammable, explosive or corrosive material like thinner,
gas, acid for cleaning.
• You should clean the condenser with broom at least once
a year in order to provide energy saving and increase the
productivity.
Make sure that your fridge is unplugged while cleaning.
EN - 11 -
Defrosting the Refrigerator Compartment
• Defrosting occurs automatically in refrigerator compartment during operation; the defrost
water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with
defrost drain plug to prevent the water from collecting on the bottom of the refrigerator
instead of owing out.
• You can also pour ½ glass of the water to drain hole to clean inside.
Defrosting the Freezer Compartment
• The frost, which covers the shelves of the freezer compartment, should be removed
periodically.
• Do not use sharp metal objects for this operation. They could puncture the refrigerator
circuit and cause irreparable damage to the unit. Use the plastic scraper provided.
• When there is more than 5 mm of frost on the shelves, defrosting must be done.
• Before defrosting operation, place the frozen food in a cool place after wrapping them in
sheets of newspaper in order to obtain its temperature steady for long time.
• To accelerate the defrosting process place one or more basins of warm water in the
freezer compartment.
• Dry the inside of the compartment with a sponge or a clean cloth.
• Once the unit has been defrosted, place the food into freezer and remember to consume
them in a short period of time.
EN - 12 -
Replacing the Refrigerator Light Bulb
1.Unplug the unit from the power supply,
2.Remove the refrigerator light cover (A) by
pressing the hooks placed on both sides of the
cover.
3.Change the light bulb (B) with a new one (not
more than 15 W).
4.Place the light cover in its place and plug the
unit.
• Please keep the packaging if the appliance will be moved in the future.
• In transportation the appliance should be tied with a strong rope. The rules written on the
corrugated box must be applied while transporting.
• Before transporting or changing an old
installation position, all the moving objects
(i.e. shelves, crisper …) should be taken
out or xed with bands in order to prevent
movement.
Carry your fridge in the upright position.
SHIPMENT AND REPOSITIONINGPART - 5.
BEFORE CALLING YOU'RE AFTER SALES
SERVICE
PART - 6.
If your refrigerator is not working properly, it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check that;
• There is no power,
• The fuse has not blow in the plug,
• The fuse box for the house to ensure this has not tripped.
What to do if your appliance performs poorly;
Check that;
• You have overloaded the appliance ,
• The thermostat setting is “1” position (if so set the thermostat dial suitable value)
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
EN - 13 -
If there is noise;
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If these
sounds are different check that;
• The appliance is well levelled
• Nothing is touching the rear.
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator,
Check that;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of cooling effectiveness.
Climate class Ambient Temperature (oC)
TBetween 16 and 43 oC
ST Between 16 and 38 oC
NBetween 16 and 32 oC
SN Between 10 and 32 oC
Recommendations
• The compressor protection thermal fuse will cutout after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not stabilised.
This is quite normal, and the fridge will restart after 4 or 5 minutes.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or
icing may occur on the rear surface of your fridge due to the operation of the compressor
in specied intervals. This is normal. There is no need to perform a defrosting operation
unless the icing is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat
to “ ” position. After defrosting, clean your fridge and leave the door open to prevent
humidity and smell.
• If there is still a problem with your refrigerator although you have followed the instructions
in this book, please consult you're nearest authorized service center.
• The appliance you have purchased is designed for home type use and can be used only
at home and for the stated purposes. It is not suitable for commercial or common use. If
the consumer use the appliance in a way that does not comply with these features, we
emphasise that the producer and the dealer shall not be responsible for any repair and
failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Department of the Industry
(the period for retaining parts required for the proper functioning of the appliance) is 10
years.
EN - 14 -
Tips for saving energy
1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and not
near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow warm food and drinks to cool down outside the appliance.
3– When thawing frozen food, place it in the refrigerator compartment. The low
temperature of the frozen food will help to cool the refrigerator compartment when it is
thawing. So it reduces the energy requirements.
4– When placing, drinks and liquids they must be covered. Otherwise humidity increases
at the appliance. Therefore the working time gets longer. Also covering drinks and
liquids helps preserve the smell and taste.
5– When placing food and drinks, open the appliance door as briey as possible.
6– Keep the covers closed of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.
Conformity Information
• This equipment is designed for use at an ambient temperature within the 16°C - 32°C
range.
• The appliance is designed in compliance with the , IEC60335-1 / IEC60335-2-24,
2004/108/EC standards.
EN - 15 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART - 7.
A) Refrigerator compartment
B) Freezer compartment
1) Thermostat knob
2) Refrigerator lamp & cover
3) Refrigerator shelves
4) Crisper shelf
5) Crisper
6) Freezer room cover
7) Freezer comp. drawer
8) Freezer comp. bottom drawer
9) Ice box
10) Bottle shelf
11) Door shelves
12) Egg holder
EN - 16 -
Installation instructions and door reversibility
Installation
! Before installation, read the instructions carefully.
! Fit the refrigerator/freezer in stable kitchen units only.
! If necessary, reverse the door according to instructions.
! Check the installation dimensions according to g.C. The position of the joint between
the unit doors must be level with the position of the joint between the appliance doors.
1.See g.A for the necessary attachment components.
2.Insert trimap1into slot and screw by screws6. (g.D)
3.Pass the power cord through ventilation shaft and position it so that the appliance could
be easily plugged in once it has been installed. (g.B - g.C)
4.Take out the trim gasket2 located on the side panel of the appliance and stick it on
reverse side of the door hinges of the appliance. (g.D - g.E)
5.Raise appliance and slide into kitchen unit. Push appliance to the reverse side of door
hinges providing that trim gasket2 covers space between appliance and the kitchen unit.
6.Align front feet with front surface of kitchen unit. (g.F)
7.Screw the front feet by using screws5. (g.F)
8.Screw trimap1 to kitchen unit using screws5. (g.G)
9.Screw xingbracket11, as leaned to kitchen unit by using screws5. Repeat this for the
opposite side. (g.H)
10. Screw guides3to appliance doors with screws6. Lean appliance doors to unit door as it
is opened at right angle. Slide rails4into guides3aligning the groove. Screw the rails4to
the unit doors with screws5. (g.J)
11. Set 1~2 mm gap on handle side between unit itself and unit doors by adjusting guides3.
That is vital for appliance performance. (g.J)
EN - 17 -
Figure A
Figure B Figure C
Figure D Figure E
A B C D E
1770 722 684 934 1770-1790
mm
EN - 18 -
Figure F Figure G Figure H
Figure J
EN - 19 -
Door reversing
1.Unscrew upper door hinge15 and take upper door14 to safe place.
2.Unscrew door hinge pin16 and screw it to opposite side rmly and take to safe place.
3.Unscrew middle door hinge12 and take lower door10 to safe place. Screw back xing
bracket11 to original position without middle door hinge12.
4.Take door lower pin18 to opposite side.
5.Take hole plugs17 to empty holes on opposite side.
6.Place lower door10 over door lower pin18 and close onto cabinet.
7.Unscrew xingbracket13. Position middle door hinge12 onto lower door10. Place xing
bracket11 onto middle door hinge12 and screw together onto cabinet rmly.
8.Place upper door14 over middle door hinge12 and position upper door hinge15 over
upper door14 and then screw upper door hinge15 rmly onto opposite side of original
position.
Figure K
Table of contents
Languages:
Other Pyramis Refrigerator manuals
