In the interest of your safety and to ensure the correct use, before installing and
rst using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety. For the safety of life and property
keep the precautions of these user’s instructions as the facturer is not responsible
for damages caused mission.
Children and vulnerable people safety
This appliance can be used by children aged from 8 and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given super vision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children aged from 3 to 8 years are allowed to load and unload this appliance.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged from
8 years and above and supervised.
Keep all packaging well away from children. There is risk of suocation.
If you are discarding the appliance pull the plug out of the socket, cut the connection ca-
ble (as close to the appliance as you can) and remove the door to prevent playing children
to suer electric shock or to close themselves into it.
If this appliance featuring magnetic door seals is to replace an older appliance having a
spring lock (latch) on the door or lid, be sure to make that spring lack unusable before
you discard the old appliance. This will prevent it from becoming a death trap for a child.
General Safety
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in struc-
ture, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of
refrigerating appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for a long period of time because
it could be very hot.1)
WARNING! When positioning the appliance, ensure the supply cord is not trapped or dam-
aged.
WARNING! Do not locate multiple portable socket-outlets or power suppliers at the rear of
the appliance.
1) If there is a light in the compartment.
Safety Information
EΝ
4
Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental compatibility, which is nevertheless ammable.
During transportation and installation of the appliance, be certain that none of the co
mponents of the refrigerant circuit become damaged.
- Avoid open ames and sources of ignition
- Thoroughly ventilate the room in which the appliance is situated
It is dangerous to alter the specications or modify this product in any way. Any damage
to the cord may cause a short circuit, re and/or electric shock.
This appliance is intended to be used in household and similar applications such as
- Sta kitchen areas in shops, oces and other working environments
- Farm houses and by clients in hotels, motels and other residential type environments
- Bed and breakfast type environments
- Catering and similar non-retail applications.
WARNING! Any electrical components (plug, power cord, compressor and etc). must be
replaced by a certied service agent or qualied service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable
only with the appliance supplied. This “special use lamp” is not usable for domestic light-
ing1).
Power cord must not be lengthened.
Make sure that the power plug is not squashed or damaged by the back of the appliance.
Squashed or damaged power plug may overheat and cause a re.
Make sure that you can come to the mains plug of the appliance.
Do not pull the mains cable.
If the power plug socket is loose, do not insert the power plug. There is a risk of electric
shock or re.
You must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if you hands are damp/wet,
as this could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.2)
Store pre-packed frozen food in accordance with the frozen food manufacturers instructions 2).
Appliance’s manufactures storage recommendations should be strictly adhered to. Refer
to relevant instructions.
Do not place carbonated of zzy drinks in the freezer compartment as it creates pressure
on the container, which may cause it to explode, resulting in damage to the appliance.2)
Ice lollies can cause frost burns if consumed straight from the appliance.2)
Safety Information
1) If there is a light in the compartment.
2) If there is a freezer compartment.
5
Safety Information
To avoid contamination of food, please respect the following instructions
Opening the door for long periods can cause a signicant increase of the temperature in
the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48h ush the water system connected
to a water supply if water has not been drawn for 5 days.
Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
Two-star frozen food compartments (if they are presented in the appliance) are suitable
for storing pre-frozen food, storing or making ice-cream and making ice cubes.
One-, two- and three-star compartments (if they are presented in the appliance) are not
suitable for the freezing of fresh food.
If the appliance is left empty for long periods, switch o, defrost, clean, dry and leave the
door open to prevent mount developing within the appliance.
Care and cleaning
Before maintenance, switch o the appliance and disconnect the mains plug from the
mains socket.
Do not clean the appliance with metal objects.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.2)
Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
If the drain is blocked, water will collect in the bottom of the appliance.3)
Installation
Important! For electrical connection carefully follow the instructions given in specic paragraphs.
Unpack the appliance and check if there are damages on it. Do not connect the appliance
if it is damaged. Report possible damages immediately to the place you bought it. In that
case retain packing.
It is advisable to wait at least four hours before connecting the appliance to allow the oil
to ow back in the compressor.
Adequate air circulation should be around the appliance, lacking this leads to overheat-
ing. To achieve sucient ventilation follow the instructions relevant to installation.
Wherever possible the spacers of the product should be against a wall to avoid touching
or catching warm parts (compressor, con-denser) to prevent possible burn.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance.
Service
Any electrical work required to do the servicing of the appliance should be carried out by
a qualied electrician or competent person.
This product must be serviced by an authorized service center, and only genuine spare
parts must be used.
2) If there is a freezer compartment.
3) If there is a fresh food storage compartment.
6
Energy saving
Don’t put hot food in the appliance
Don’t pack foods close together as this prevents air circulating
Make sure food don’t touch the back of the comparment(s)
If electricity goes o, don’t open the door(s)
Don’t open the door(s) frequently
Don’t keep the door(s) open for too long time
Don’t set the thermostat on exceeding cold temperatures
All accessories, such as drawers, shelves, balconies should be kept there for lower en-
ergy consumption
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either
its refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains ammable gases: the ap-
pliance shall be disposed according to the appliance regulations to obtain from your local
authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials
used on this appliance marked by the symbol are recyclable.
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it should be taken to the appropriate col-
lection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative conse-
quences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact your local council, your household waste
disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in a suitable collection containers to recycle it.
Disposal of the appliance
1.Disconnect the mains plug from the mains socket.
2.Cut o the mains cable and discard it.
WARNING! During using, service and disposal the appliance, please pay atten-
tion to symbol similar as left side, which is located on rear of appliance (rear pan-
el or compressor) and with yellow or orange color. It’s risk of re warning symbol.
There are ammable materials in refrigerant pipes and compressor. Please be far
away from re source during using, service and disposal installation.
Safety Information
7

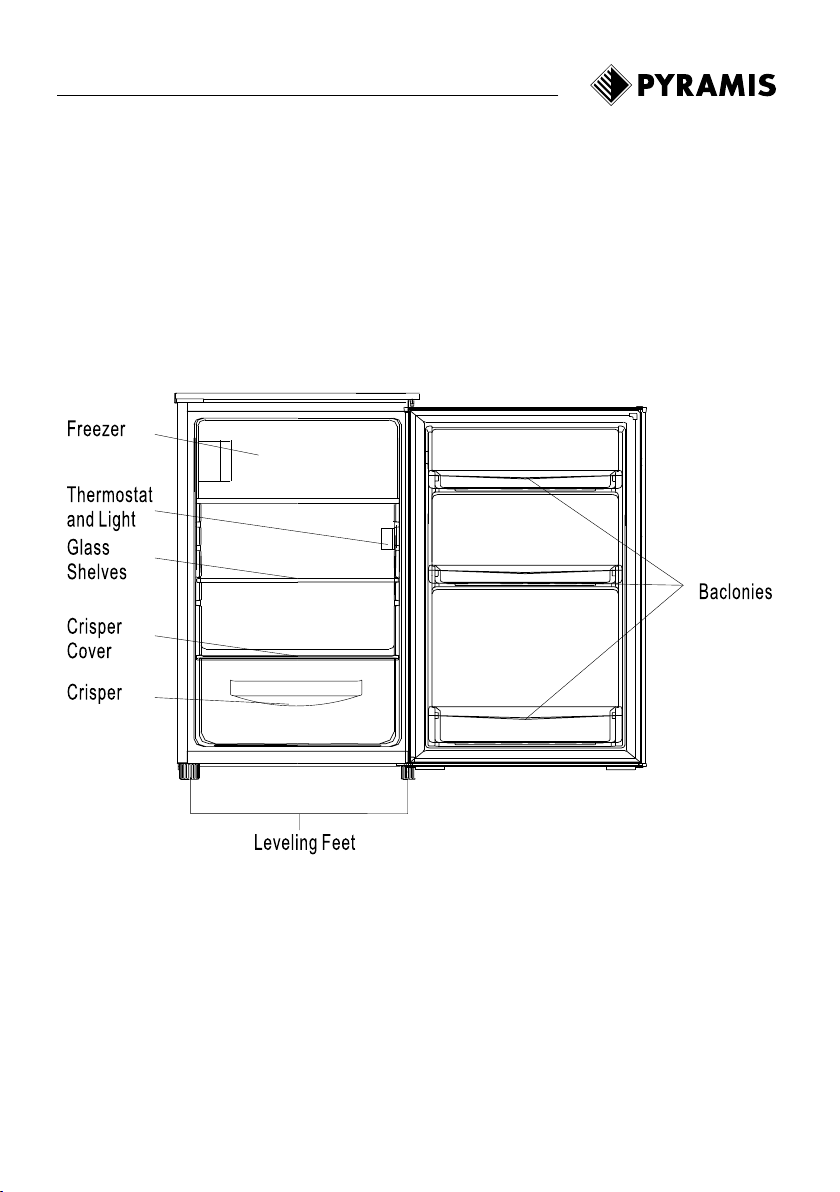

Overview
*Note: Above picture is for reference only. Real appliance probably is dierent.
8
Positioning
Install this appliance at a location where the ambient temperature corre sponds to the cli-
mate class indicated on the rating plate of the appliance: for refrigerating appliances with
climate class:
- Extended temperate: this refrigerating appliance is intended to be used at ambient tem-
peratures ranging from 10 °C to 32 °C (SN)
- Temperate: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C (N)
- Subtropical: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 38 °C (ST)
- Tropical: this refrigerating appliance is intended to be used at ambient temperatures rang-
ing from 16 °C to 43 °C (T)
Location
The appliance should be installed well away from sources of heat such as radiators, boilers,
direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To
ensure best performance, if the appliance is positioned below an overhanging wall unit, the
minimum distance between the top of the cabi-net and the wall unit must be at least 50
mm. Ideally, however, the appliance should not be positioned below overhanging wall units.
Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet. This
refrigerating appliance is not intended to be used as a built-in appliance.
WARNING! It must be possible to disconnect the appliance from the mains power supply
the plug must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate corre-
spond to your domestic power supply. The appliance must be earthed. The power supply
cable plug is provided with a contact for this purpose. If the domestic power supply sock-
et is not earthed, connect the appliance to a separate earth in compliance with current
regulations, consulting a qualied electrician.The manufacturer declines all responsibility
if the above safety precautions are not observed.This appliance complies with the E.E.C.
Directives.
Installation
9
Installation
Door Reversibility
Tools required: Phillips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
Ensure the unit is unplugged and empty.
To take the door o, it is necessary to tilt the unit backwards. You should rest the unit on
something solid so that it will not slip during the door reversing process.
All parts removed must be saved to do the reinstallation of the door.
Do not lay the unit at as this may damage the coolant system.
It’ s better that 2 people handle the unit during assembly.

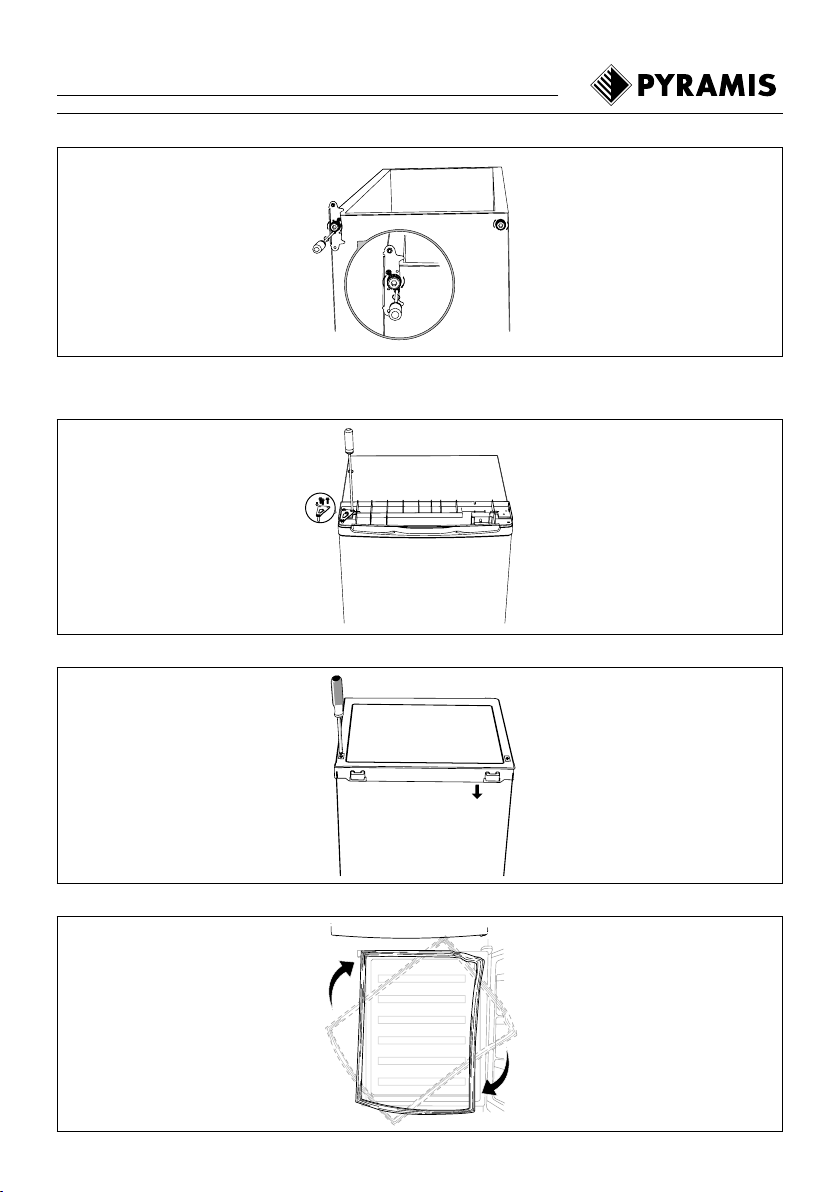

1. Remove two screws at rear side of top cover.
2. Remove top cover and place it aside.
3. Unscrew top hinge and then remove door and place it on a soft pad to avoid scratch.
4. Unscrew bottom hinge of freezer door. Then remove the door and place it on a soft
pad to avoid scratch.
10
Installation
5. Move door holder from left side to right side.
6. Move hinge hole cover from left side to right side.
7. Rotate freezer door and place hinge side at left side. And then x the door by holder.
8. Unscrew bottom hinge. Then remove the adjustable feet from both side.
9. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
11
Installation
10. Ret the bracket tting the bottom hinge pin. Replace both adjustable feet.
11. Place the door back on. Ensure the door is aligned horizontally and vertically so that
the seals are closed on all sides before nally tightening the top hinge.
12. Put the top cover and x it with 2 screws on the back.
13. Detach the Fridge and the freezer door gaskets and then attach them after rotating.
12
Installation
Install door external handle (if external handle is present)
Space Requirement
Keep enough space of door open.
Keep at least 50mm gap at two sides and back.
EF1-16
A 550
B 580
C 850
D min=50
E min=50
F min=50
G 940
H1180
Levelling the unit
To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and
magnetic seal alignments will not be covered properly.
13
Daily Use
First use
Cleaning the interior
Before using the appliance for the rst time, wash the interior and all internal accessories
with lukewarm water and some neutral soap so as to remove the typical smell of a brand
new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the nish.
Temperature Setting
Plug on your appliance. The internal temperature is
controlled by a thermostat. There are 8 settings . 1 is
warmest setting and 7 is coldest setting and O is o.
The appliance may not operate at the correct temperature
if it is in a particularly hot or if you open the door often.
Daily use
Position dierent food in dierent compartments according to be below table
Refrigerator compartments Type of food
Door or balconies
• Foods with natural preservatives, such as jams,juices,
drinks, condiments.
• Do not store perishable foods.
Crisper drawer
• Fruits, herbs and vegetables should be placed separately in the
crisper bin.
• Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf
• Dairy products, eggs.
• Foods that do not need cooking, such as ready-to-eat
foods, deli meats, leftovers.
Freezer Compartment
• Foods for long-term storage.
• Bottom drawer/shelf for raw meat, poultry, sh.
• Middle drawer/shelf for frozen vegetables, chips.
• Top drawer/shelf for ice cream, frozen fruit, frozen baked
goods.
This refrigerating appliance is not suitable for freezing foodstus.
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and
deep-frozen food for a long time.
Place the fresh food to be frozen in the bottom compartment.
The maximum amount of food that can be frozen in 24 hours is specied on the rating plate.
14
Daily Use
The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storing frozen food
When rst starting-up or after a period out of use. Before putting the product in the com-
partment let the appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been o for longer
than the value shown in the technical characteristics chart under “rising time”, the defrosted
food must be consumed quickly or cooked immediately and then re-frozen (after cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or
at room temperature, depending on the time available for this operation. Small pieces may
even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.
Ice-cube
This appliance may be equipped with one or more ice-cube to produce ice.
Temperature setting recommendation
Environment temperature Freezer compartment Fridge compartment
Summer /
Set on 2~4
Normal /
Set on 4~5
Winter /
Set on 5~6
Information above give users recommendation of temperature setting.
15
Daily Use
Impact on Food Storage
Under Recommended setting, the best storage time of fridge is no more than 3 days.
Under Recommended setting, the best storage time of freezer is no more than 1 month.
The best storage time may reduce under other settings.
Accessories
Movable shelves
The walls of the refrigerator are equipped with a series of runners so that the shelves can
be positioned as desired.
Positioning the door balconies
Door balconies can be disassembled for cleaning. To make the disassembling as follows:
gradually pull the balcony in the direction of the arrows until it comes free, after cleaning,
reposition it.
Helpful hints and tips
To help you make the most of the freezing process, here are some important hints:
Prepare food in small portions to enable it to be rapidly and completely cooled and to
make it possible subsequently to thaw only the quantity required.
Wrap up the food in aluminium foil or polythene and make sure that the packages are
16
Daily Use
airtight
Do not allow fresh unfrozen food to touch food which is already frozen thus avoiding a rise
in temperature of the latter
Lean foods store better and longer than fatty ones, salt reduces the storage life of food
Water ices if consumed immediately after removal from the freezer compartment, can
possibly cause the skin to be freeze burnt
It is advisable to show the freezing in date on each individual pack to enable you removal
from the freezer compartment, can possibly cause the skin to be freeze burnt
It is advisable to show the freezing in date on each individual pack to enable you to keep
tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
Make sure that the commercially frozen foodstus were adequately stored by the retailer
Be sure that frozen foodstus are transferred from the food store to the freezer in the shortest
possible time
Not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
Do not store warm food or evaporating liquids in the refrigerator
Do cover or wrap the food particularly if it has a strong avour
Make (all types): wrap in polythene bags and place on the glass shelves above the veg-
etable drawer.
For safety store in this way only one or two days at the most.
Cooked foods cold dishes etc…: these should be covered and may be placed on any
shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special draw-
er(s) provided.
Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminum foil or polythene bags to exclude as much air as possible.
Milk bottle: these should have a cap and should be stored in the balconies on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.
17
Daily Use
Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be cleaned
regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance o and remove the plug from the
mains, or switch o or turn out the circuit breaker or fuse. Never clean the appliance with
a steam cleaner. Moisture could accumulate in electrical components, danger of electrical
shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry be-
fore it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or
the juice form orange peel, butyric acid, cleanser that contain acetic acid.
Do not allow such substances to come into contact the appliance parts.
Do not use any abrasive cleaners.
Remove the food from the freezer. Store them in a cool place, well covered.
Switch the appliance o and remove the plug from the mains, or switch o or turn out the
circuit breaker of fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm water. After
cleaning wipe with fresh water and rub dry.
After everything is dry place appliance back into service.
Defrosting of the freezer
The freezer compartment however will become progressively covered with frost. This
should be removed. Never use sharp metal tools to scrape o frost from the evaporator as
you could damage it.
However when the ice becomes very thick on the inner liner complete defrosting should be
carried out as fellows:
Pull out the plug from the socket.
Remove all stored food wrap it in several layers of newspaper and put it in a cool place.
Keep the door open and placing a basin underneath of the appliance to collect the defrost
water.
When defrosting is completed dry the interior thoroughly.
Replace the plug in the power socket to run the appliance again.
18
Daily Use
Replace the lamp
The internal light is a LED type. To replace the lamp, please contact qualied technician.
Error codes
If there is an error, the LED will ash a several times as indicated in the table below.
Cause Interior lighting LED ashes
Failure of temperature control knob 1x
Failure of defrost temperature sensor 2x
19
Daily Use
Troubleshooting
Caution! Before troubleshooting, disconnect the power supply. Only a qualied electrician
of competent person must do the troubleshooting that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulation).
Problem Possible cause Solution
Appliance does not
work
Temperature regulation knob is set at coldest Set the knob at other switch on the
appliance
Mains plug is not plugged in or is loose Insert mains plug
Fuse has blown or is defective Check fuse, replace if necessary
Socket is defective Mains malfunctions are to be correct-
ed by an electrician
Appliance freezes or
cools too much
Temperature is set too cold or the appliance
runs at coldest
Turn the temperature regulator to a
warmer setting temporarily
The food is not frozen
enough
Temperature is not properly adjusted Please look in the initial Temperature
Setting section
Door was open for an extended period Open the door only as long as
necessary
A large quantity of warm food was placed in
the appliance within the last 24 hours
Turn the temperature regulation to a
colder setting temporarily
The appliance is near a heat source Please look in the installation location
section
Heavy build up of
frost on the door seal Door seal is not air tight
Carefully warm the leaking sections of
the door seal with a hair dryer (on a
cool setting). At the same time shape
the warmed door seal by hand such
that it sits correctly
Unusual noises
Appliance is not level Re-adjust the feet
The appliance is touching the wall or other
objects Move the appliance slightly
A component, e.g. a pipe, on the rear of the
appliance is touching another part of the appli-
ance or the wall
If necessary, carefully bend the com-
ponent out of the way
Water on the oor Water drain hole is blocked See the Cleaning and Care section
Side panels are hot It’s normal. Heat exchange parts are in the sides Take gloves to touch sides if needed
If the malfunction shows again, contact the Service Center. These data are necessary to
help you quickly and correctly.
20
GUARANTEE CARD
Name: ...............................................................................................................
Product Purchase Date: ...................................................................................
Product Serial Number: ....................................................................................
Store of Purchase: ............................................................................................
Dear Customer,
Congratulations on purchasing yet another top quality PYRAMIS product. In order to guarantee the pre-
mium quality standards of this product, the nest materials were used and quality control monitoring was
carried out at every stage of the production process. To ensure you obtain a lifetime of good service, please
read the product speci cations and follow all advice in the instruction manual carefully.
ATTENTION
This guarantee card must be completed and kept in good condition by the purchaser so as to be shown on
demand to a quali ed technician. The following guarantee is valid for 24 months for the motor (compressor)
and the rest of inner parts. If a defective appliance operation possibly resulting from manufacturing defects
is established and acknowledged within this guarantee period, the company will undertake to restore the
appliance to proper working order in accordance with manufacturing speci cations. The appliance shall be
repaired or any faulty part thereof will be replaced at no cost to the consumer for repair work, spare parts
or transportation of the appliance to company laboratories.
GUARANTEE TERMS
1. The appliance must be correctly installed by an authorised technician, in accordance with the installa-
tion instructions and the information given in the appliance speci cations table and local restrictions.
2. This appliance is for domestic use only. All work relating to installation and connection of the appliance
to mains power, operation and routine maintenance must be carried out in full compliance with the
instructions contained in the Installation and Operation Manual.
3. Purchase date is proved on production of a veri ed purchase voucher (invoice or retail sales receipt), on
which the purchase date, dealer name and appliance identity particulars (type, product manufacturing
number) must be clearly visible.
4. The appliance must not be repaired, serviced, altered, disassembled or tampered with by an unauthor-
ised technician.
5. Any replaced faulty appliance or replaced part shall become the property of the company. The guaran-
tee period shall not be extended as a result of repairs.
6. Replacement of the appliance shall only be approved by the company in cases where proper reparation
of the damage proves impossible.
GUARANTEE RESTRICTIONS
The guarantee does not cover:
1. Technician callout for damage resulting from incorrect transportation, installation or operation, negli-
gence or use of non-approved parts.
2. Detachable parts made of metal, and any other parts requiring replacement on account of wear and tear
(i.e. glass shelves, lamps).
3. Damage resulting from negligence or carelessness.
4. Damage resulting from failure to follow appliance operation instructions.
5. Damage caused by operation of the appliance other than as indicated.
APPLIANCE TYPE - PRODUCTION PARTICULARS
For your guarantee to be valid, it is essential that you record the product serial number.
This is printed in the centre of the sticker which is placed on the inside of the freezer door, at the left.
PYRAMIS METALLOURGIA Α.Ε.
17th km Old National Road Thessaloniki - Serres | P.O. Box 10 278, 54110 | Thessaloniki, Greece
Τel.: +30 23940 56751 | Fax.: +30 23940 56745 | [email protected] | www.pyramisgroup.com
Table of contents
Languages:
Other Pyramis Refrigerator manuals
