Q Acoustics Q B12 User manual

PB 1
Q B12
OWNER’S MANUAL

2 3
Designed and engineered in the United Kingdom.
EN ENGLISH 01
DE GERMAN 19
ES SPANISH 36
FR FRENCH 53
IT ITALIAN 70
NL DUTCH 87
PL POLISH 104
PT PORTUGUESE 121
RU RUSSIAN 138
SV SWEDISH 155
ZH CHINESE 172

2 3
ENGLISH (EN)

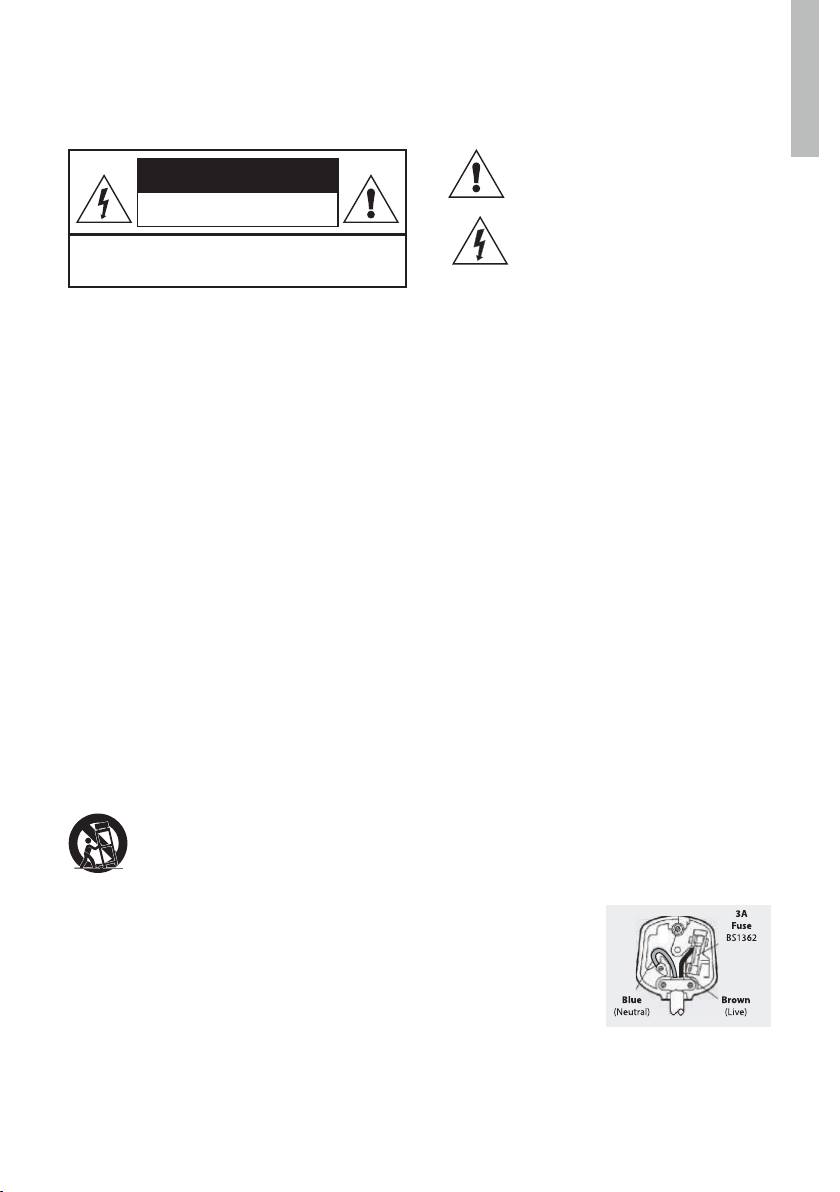

Important Safety Information and Warnings
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCETHE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-REMOVABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wider
blade or the third prong are provided for your safety. If
the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Use only attachments/accessories specied by the
manufacturer. Use only with a cart, stand, tripod,
bracket, or table specied by the manufacturer, or sold
with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
Warning: To reduce the risk of re or electrical shock, do
not expose this product to rain or moisture. The product
must not be exposed to dripping and splashing and
no object lled with liquids such as a vase of owers
should be placed on the product.
No naked ame sources such as candles should be
placed on the product.
Warning: The mains power switch for the subwoofer is
the device used to disconnect the unit from the mains
supply. This switch is located on the rear panel. To
permit free access to this switch, the apparatus must be
located in an open area without any obstructions, and
the switch must be freely operable.
Caution: Changes or modications not expressly
approved by the manufacturer could void the user’s
authority to operate this device.
Service: Equipment for servicing should be returned
to the supplying dealer, or to the service agent for your
area. The addresses of the main Service Agents for the
UK are listed in this manual.
Third parties: In the unlikely event that you pass this
product on to a third party, include these operating
instructions with the product.
Important notice to UK users
The appliance cord is terminated with a UK approved
mains plug tted with a 3A fuse. If the fuse needs to be
replaced, an ASTA or BSI approved BS1362 fuse rated
at 3A must be used. If you need to change the mains
plug, remove the fuse and dispose of this plug safely
immediately after cutting it from the cord.
Connecting a mains plug
The wires in the mains lead are coloured in accordance
with the code: Blue: NEUTRAL; Brown: LIVE.
As these colours may not correspond to the coloured
markings identifying the terminals in your plug, proceed
as follows:
The BLUE wire must be connected to the terminal
marked with the letter N or coloured BLUE or BLACK.
The BROWN wire must be connected to the terminal
marked with the letter L
or coloured BROWN or
RED.
To completely disconnect
this apparatus from the
AC Mains, disconnect the
power supply cord plug
from the AC receptacle.
Where the MAINS plug or
an appliance coupler is used as the disconnect device,
the disconnect device shall remain readily operable.

4 5
Introduction
Thank you for purchasing Q Acoustics.
This manual is intended to take you through setup and installation and will help provide optimum
performance from the product.
Please read the instructions, important safety information and warnings carefully before installation
and use, to ensure the safe and satisfactory operation of this product.
The Q Acoustics Q B12 subwoofer is designed to meet the highest expectations of dedicated
2-channel audiophiles and discerning movie enthusiasts. It features a dedicated class D power
amplier and 305mm (12 inch) driver.
In the carton you will nd:
- Q B12 Subwoofer
- Owner’s manual.
- A mains power cord or cords to suit the country of sale.
- 4 spikes, locking nuts and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon
as possible.
We hope you enjoy the Q Acoustics experience.
For any additional info not contained within this manual, support questions and/or requests, please
visit our on-line Knowledge Base Portal at www.qacoustics.co.uk/faqs
ENGLISH (EN)

4 5
Thread the locking nut onto the spike and screw all four spikes into the threaded inserts on the
subwoofer. If you have a wood or stone oor push a spike protector over each spike before turning
the speaker upright. When the speaker is the right way up adjust all the spikes until the loudspeaker
is level and stable.
ENGLISH (EN)
Preparation
Lift the speaker from the carton by holding the cabinet. Do not touch
the driver unit or use the protective bag to lift it. The Q B12 is very heavy
- get assistance to lift it if necessary.
Spikes are sharp. Exercise care!
Never place a spiked loudspeaker where it can cause damage!
Always move your loudspeakers by lifting them - never drag them!

6 7
Positioning
Bass frequencies are substantially omni-directional. Although this means that you can position
the subwoofer almost anywhere, the stereo image will still benet from positioning the subwoofer
in line with the front loudspeakers and as central to the listening position as possible. This may
not be feasible in a multichannel system. If you place the subwoofer too close to a wall the bass
will be reinforced, therefore in some locations the bass may be boomy and indistinct.
The POWER Switch is the means of disconnecting this apparatus from the mains supply and is
mounted on the control panel.
When positioning the subwoofer ensure the oor is sound with no loose oorboards etc. The
air movement from the subwoofer at high volumes is substantial - do not place it close to soft
furnishings or objects that may rattle. Do not place objects of any kind on the unit.
ENGLISH (EN)
All the loudspeakers may be operated close to TV monitors with no ill-
effects with the exception of the Q B12 which should not be operated
within 500mm of TV screens monitors or other magnetically sensitive
equipment. Plasma and LCD screens are unaffected.

6 7

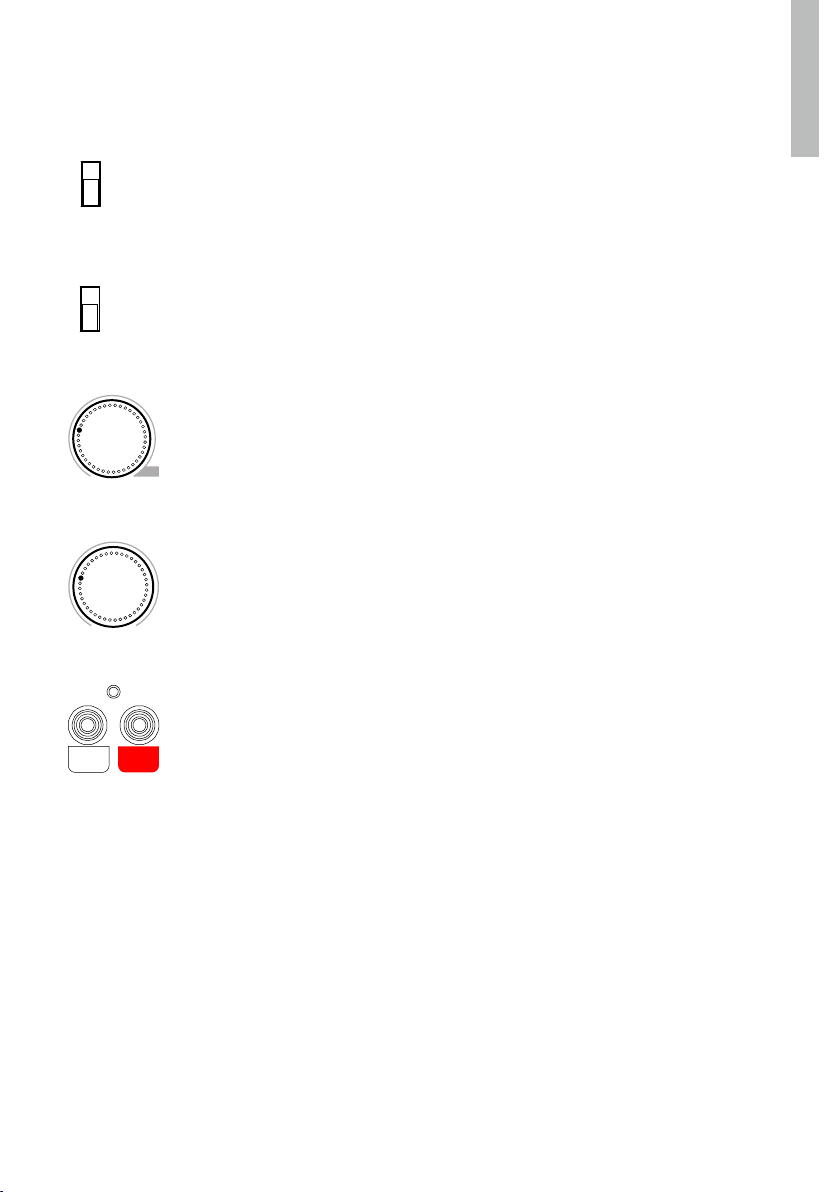

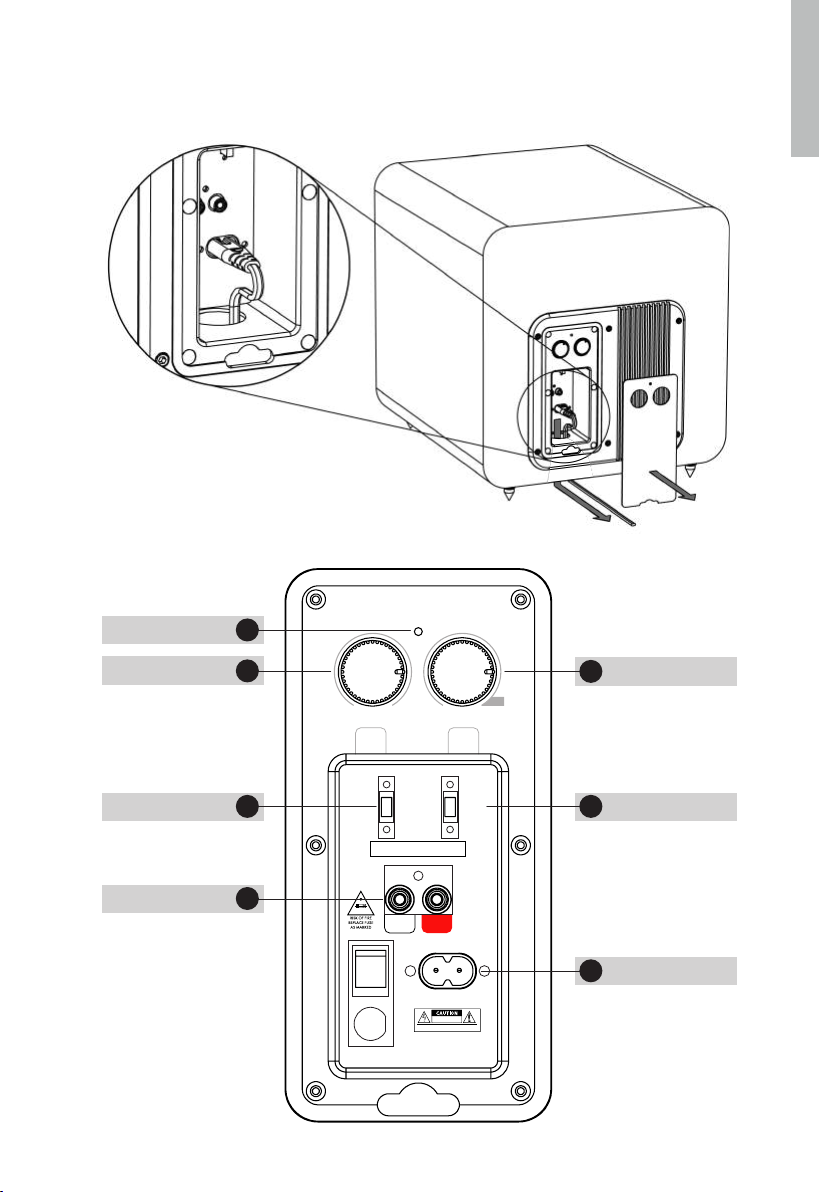

Controls and Connections
ENGLISH (EN)
LEVEL CROSSOVER
15060
01 0 AV
• 0o
PHASE
• 180o
• AUTO
• ON
MADE IN CHINA
DESIGNED IN THE UNITED KINGDOM
• 0o
PHASE
• 180o
ON •
AUTO •
RIGHT
LEFT /
MONO
POWER
ON
OFF
SERIAL NUMBER
CAUTION:
TOREDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER(OR BACK). NO USER-SERVICABLE PARTS INSIDE
REFER SERVICING TOQUALIFIED SERVICE PERSONNEL.
RISKOF EL ECTRIAL SHOCK
WARNING:SHOCK HAZARD - DO NOT OPEN.
AVIS:RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
DO NO OPEN
1
2
3
4
5
6
7
Status
CROSSOVER
PHASE
AC Power Input
LEVEL
AUTO/ON
Line Level Input

8 9
Controls and Connections
ENGLISH (EN)
LEVEL
CROSSOVER
15060
AV
• 0o
PHASE
• 180o
• ON
• AUTO
RIGHT
LEFT /
MONO
With this switch set to AUTO, when not in use the subwoofer shuts down to
save power and switches on when it senses a signal. This can be over-ridden
by switching ON.
The Phase Switch (2) changes the phase of the subwoofer so that it works in
phase with the rest of the speakers in the system. Place the subwoofer more
than 1 metre away from the front speakers and switch the phase between 0°
and 180°. When the subwoofer sounds louder and fuller then it is in phase.
The Crossover Control (3) changes the pitch at which the subwoofer starts to
work. It is recommended that the crossover point is set to the ‘AV’ setting on
the dial when used with a Q Acoustics system. If you are using the subwoofer
with a non Q Acoustics system then you can change the crossover point to suit
your system.
The Level Control (4) increases or decreases the volume of your subwoofer in
relation to the other speakers in the system. Start with the volume at 0 on the
dial then turn it up slowly until you can hear it. The subwoofer should be heard
as part of the overall sound and not overpower the rest of the system. There is
no rule for setting the volume on your subwoofer so experiment with different
music and lms to set it to your tastes.
The Line Level Input-LFE (6) is Q Acoustics preferred AV connection to the
amplier.
Connect the subwoofer to the output on your AV amplier or DVD player. Use R
and L if your amplier output is split left and right.
1 10
AV

8 9

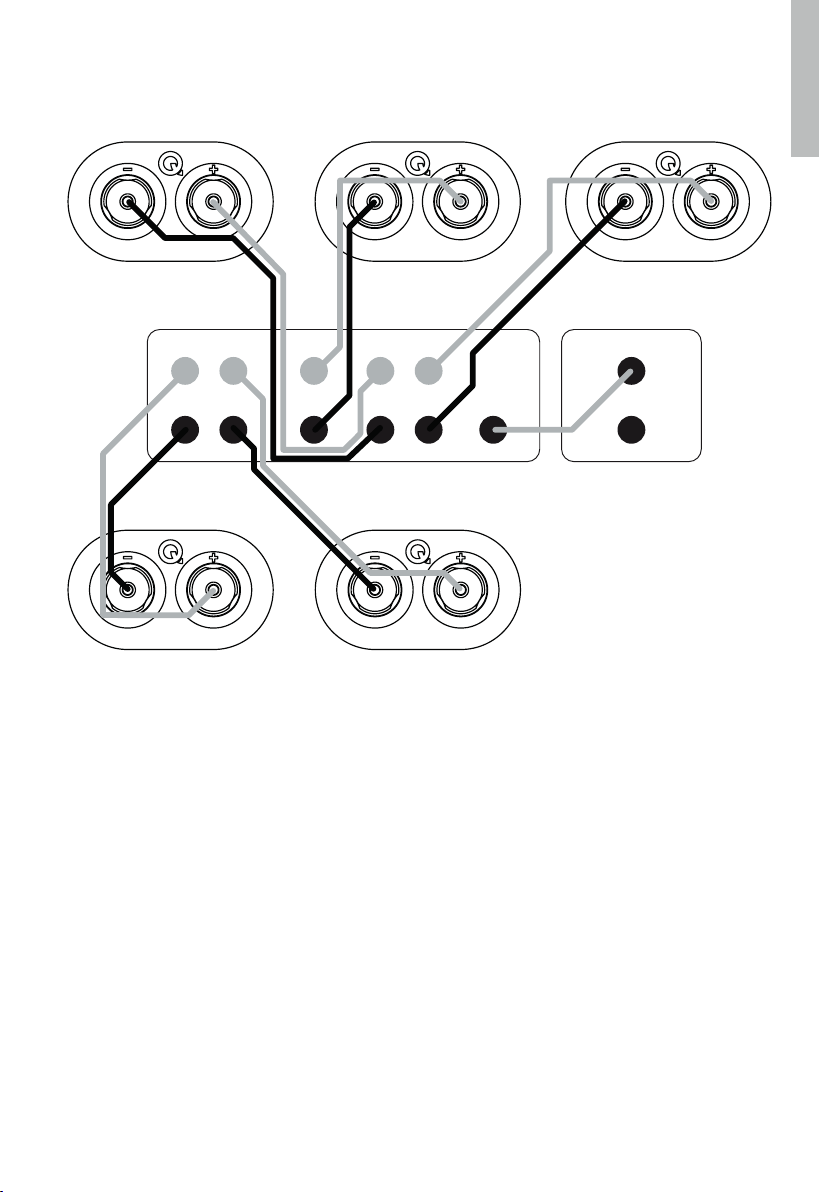

Multi-Channel AV System
ENGLISH (EN)
For Stereo System connection, see next section.
Connections

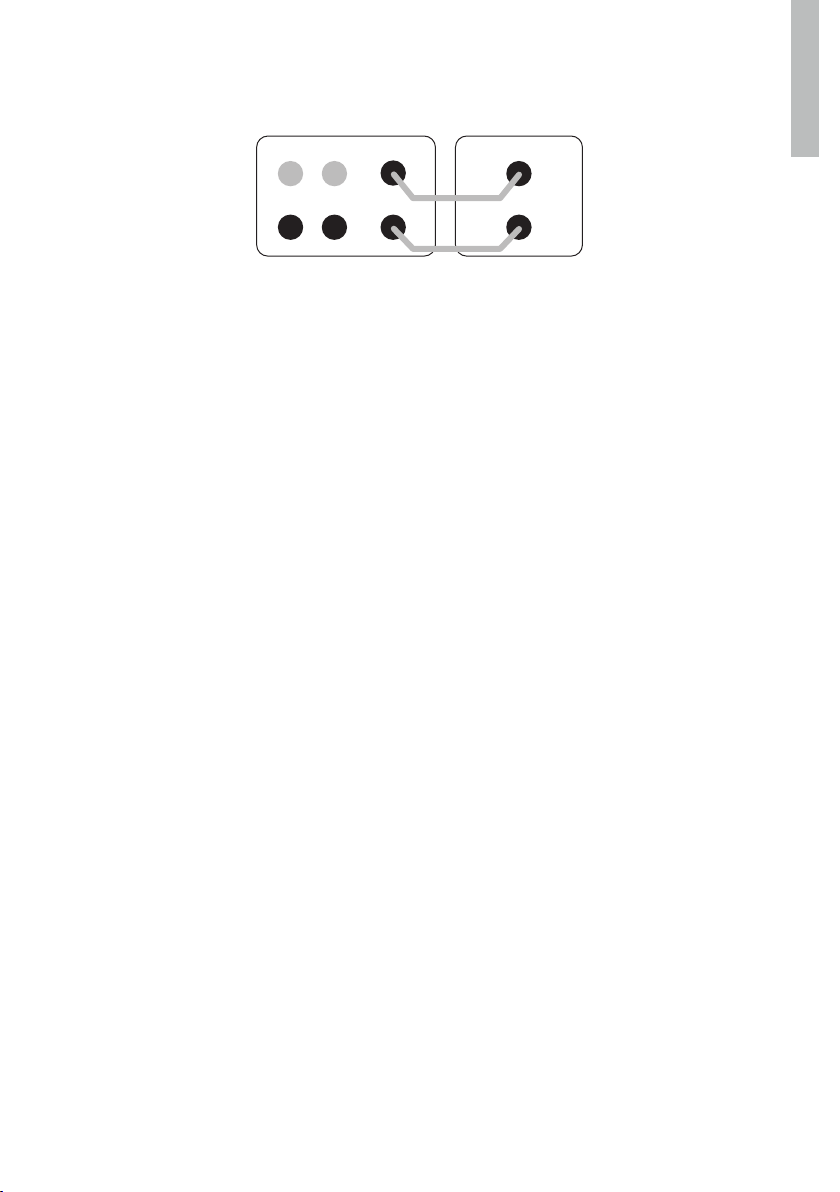

For a typical AV system set-up you will need a single RCA phono interconnect. As this cable is
likely to be quite long, make sure you get a good quality fully screened cable. Your Q Acoustics
dealer will be happy to supply you with a suitable interconnect.
Connect the SUBWOOFER OUTPUT on the AV amplier to the L/Mono Line input on the
subwoofer, pushing the plugs rmly home to ensure a good contact.
Setting Up
Check that all system connections are properly and securely made. Ensure that the subwoofer
is switched off.
Set the controls to the following default settings:
Level Approximately half
Crossover Fully clockwise (AV setting)
Phase invert 0°
Auto on AUTO or ON
Plug the supplied power cord into the subwoofer and then into an AC supply socket. Switch on
the power at the supply socket and then switch the POWER switch on the subwoofer to ‘ON’. The
Status light on the subwoofer amplier panel will glow and the subwoofer is operational.
Check the settings on your AV amplier to make sure that the subwoofer is set to ‘ON’ or ‘YES’.
The subwoofer level on the AV amplier should be set at its default position or 0dB. You should
already have set the speaker sizes and positions for all the other speakers in your system. If
you have the option to set the crossover frequency on the other channels make sure this is set
appropriately to your speakers. Finally, set the distance (or delay) setting that is correct for the
subwoofer position you have chosen.
REAR LS
RIGHT LEFT
FRONT LS
RIGHT LEFT
CENTRE LS
AV AMPLIFIER
+
-
+
-
SUB OUT
+
-
SUBWOOFER
LINE IN
LEFT /
MONO
RIGHT

10 11
ENGLISH (EN)
Play some stereo music you are familiar with and experiment with the PHASE setting and LEVEL
controls until you hear a seamless blend between the front speakers and the subwoofer. If you
can hear the subwoofer standing out it’s too loud!
Always bear in mind that the human ear’s sensitivity to bass varies enormously with the volume
level, hence the need for a wide range of programme material and sound levels.
Many Home Theatre ampliers have distance settings which build in a time delay depending on
the distance of the speaker from the optimum listening position; the sweet spot. The location of
the subwoofer is one of the most important aspects of any Home Theatre system, therefore getting
these settings correct will give a signicant improvement to the system’s overall performance.
Do not adjust to more than +/-0.5m from the original measured distance. If it has not been
possible to discern any improvement in the tone, try swapping the PHASE switch position on the
Q B12 and repeat the exercise. Then re-check the sound with some stereo music again to make
sure an improvement has been noticed.
If the Q B12 is subsequently moved relative to the other speakers reset the amplier’s subwoofer
distance setting to the new value and repeat the exercise. Once you are happy the optimum
setting has been achieved the sound should be full, warm and integrated, with no individual
speaker being dominant.
If the subwoofer is triggered on by appliances switching on and off, re-route the input signal cable
before taking further measures.
Multi-Channel AV System

10 11
When running loudspeaker cables be especially careful not to run them across open oor areas
where they could be a source of danger. Run loudspeaker cables around room boundaries
whenever possible. Line level signal cables should be run away from mains cables. Never run line
level signal cables parallel to power cables especially on long runs.
If the subwoofer is triggered on by appliances switching on and off, re-route the input signal cable
before taking further measures.
FRONT RIGHT CENTRE FRONT LEFT
SURROUND RIGHT SURROUND LEFT
Multi-Channel AV System
ENGLISH (EN)
REAR LS
RIGHT LEFT
FRONT LS
RIGHT LEFT
AV AMPLIFIER
+
-
+
-
SUB OUT
+
-
S
UBW
OO
FER
LINE IN
LEFT /
MONO
RIGHT
CENTRE LS

12 13
ENGLISH (EN)
Placement: The Front and
Centre speakers should be
in line. If this is not possible,
consult your processor
manual for guidance on
adjusting relative centre /
front delay times. If you have
a 5.1 system, the listening
seat can be closer to the rear
wall. As always, be prepared
to experiment.
Bass Management:
AV processors offer the
choice of ‘Large’ or ‘Small’
for the speakers. If you
choose ‘Large’ the speaker
receives the full frequency.
Choose ‘Small’ and the bass
is sent to the Subwoofer. We
recommend you choose
’Small’ for bookshelf speakers
wherever they are used in the
system. The oorstanding
should be set to ‘Large’. The
subwoofer option should be
enabled (set to ‘ON’ or ‘YES’)
Levels: When the basic system parameters have been established, put your processor into the
‘setup’ routine. Set up each individual speaker so that the level is the same at the listening position
as all the others. If your processor enables you to adjust the delay times, follow the instructions
closely as this will profoundly affect the nal result. When you play a movie you may think the rear
channels are too soft - they aren’t! You may however have to adjust the subwoofer level both at
the processor and at the subwoofer. Once set, do not re-adjust these levels.
LFE: The LFE channel sends all the bass sound effects to the subwoofer. If speakers are set to
‘Small’ , system bass from those channels is also sent to the subwoofer. If you play the system at
extreme levels and / or have the subwoofer level set too high you may overdrive the subwoofer
with unpleasant sonic results. If this occurs, reduce the level immediately.
Phase: If your speakers are incorrectly wired the bass will be blurred and thin. In this case, check
the wiring carefully. If your speaker wire has a tracer along one core, consistently use the striped
core to connect all the positive (RED) terminals. In this way the system will always be in phase.
Always follow the instructions in your AV processor manual!
Above is the Dolby Labs recommended layout for 7.1systems. The 6.1 layout
is the same except a single central speaker replaces the two back units. The
5.1 layout has no back speakers
0º
-3
0
2
º
º
2
9
0
º-
1
10
º
1
5
0
º
-
1
3
5
º

12 13
ENGLISH (EN)
Connect a good quality stereo RCA phono lead to the L and R inputs on the Q B12 and connect
the other end to the PRE OUT sockets on the rear of the amplier. The subwoofer will automatically
add the L and R signals together so that no information is missed.
If you wish to use two subwoofers then you can run a single RCA phono cable to each subwoofer
and thus have a stereo subwoofer system. Ensure that the L output on the amplier goes to the
left hand side subwoofer and R to the right hand side to preserve the stereo image of the main
speakers. The subwoofers will need to be placed close to their respective main speakers and the
set-up will need to be done separately for each subwoofer.
Stereo System
FRONT LS
RIGHT LEFT
STEREO AMPLIFIER
L
R
PRE OUT
+
-
SUBWOOFER
LINE IN
LEFT /
MONO
RIGHT

14 15
ENGLISH (EN)
Setting Up
Check that all system connections are properly and securely made. Ensure that the subwoofer is
switched off. Set the controls to the following default settings:
Level Approximately half
Crossover Minimum (50Hz) for large oorstanders and halfway (100Hz) for
bookshelf or small speakers
Phase invert 0°
Auto on AUTO or ON
Plug the supplied power cord into the subwoofer and then into the AC supply socket. Switch on
the power at the supply socket and then switch the POWER switch on the subwoofer to ‘ON’. The
Status light on the subwoofer amplier panel will glow and the subwoofer is operational.
Play some music you are familiar with and experiment with the PHASE setting and LEVEL control
until you hear a good blend between the front speakers and the subwoofer. If you can hear the
subwoofer standing out it’s too loud!
Always bear in mind that the human ear’s sensitivity to bass varies enormously with the volume
level, hence the need for a wide range of programme material and sound levels. Once you are
happy with the sound you can then ne tune the performance by using the remaining controls.
CROSSOVER: The crossover control determines the frequency above which your subwoofer
output begins to diminish. This should be set so that it corresponds with the frequency your main
speakers begin to produce a strong output by themselves. The adjustment allows for a smooth
handing over between subwoofer and main speaker output. If this setting is too low there will be
a ‘hole’ in the sound where certain frequencies are weak, conversely if it is too high there will be
an exaggeration of certain frequencies producing an overpowering bass. You can get an idea of
the correct setting from your main speakers’ specication sheet. Look for the lowest frequency
that the speaker produces (the “-3dB point”) under the “Frequency Response” heading. Room
positioning has a dramatic effect on low frequency reproduction of both the subwoofer and your
main speakers so don’t be worried if you nd you require a setting which does not correlate with
the specied low frequency point of your main speakers.
Stereo System

14 15
Aftercare
Cabinet Care
Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning
materials. Never use abrasives of any kind.
The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used,
apply the cleaner onto the cloth rst and not directly onto the product. Test a small area rst, as some
cleaning products may damage the nish. Avoid products that are abrasive, or contain acid or alkaline
agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may
result.
Grilles
Grilles should only be cleaned using a soft brush when necessary.
Drive Units
Do not touch the drive units as they are easily damaged when exposed.
ENGLISH (EN)

16 17
ENGLISH (EN)
Warranty
Q Acoustics subwoofers are warranted free of defects in materials and workmanship for a period
of 1 year from the date of purchase. During the warranty period Q Acoustics will, at its option,
repair or replace any product found to be faulty after inspection by the company or its appointed
distributor or agent.
Misuse and fair wear and tear are not covered by warranty.
Goods for repair should in the rst instance be returned to the supplying dealer. If this is not
possible contact Q Acoustics or their appointed distributor for your area to determine the correct
warranty procedure. If possible, the original packaging should be used to return the product as
damage sustained during transit to the repair centre is not covered by the warranty. The warranty
does not in any way affect your legal rights.
Warranty can be extended to 2 years by registering your product at
www.qacoustics.co.uk/register.
For service information contact: [email protected]
Q Acoustics
Woodside 2, Dunmow Rd
Bishops Stortford, Herts, UK
CM23 5RG

16 17
ENGLISH (EN)
Specications
Active Subwoofer
Enclosure type:
Bass unit (mm):
Peak Amplier Power:
Continuous Amplier Power:
Frequency range:
Cabinet dimensions (WxHxD):
Weight:
Q B12
Innite bafe
305 mm High-excursion driver (12.0 in)
440W
220W
28 Hz - 300 Hz
400 x 400 x 446 mm (15.7 x 15.7 x 17.6 in)
426 mm (16.8 in) incl. spikes
21.5 kg (47.4 lbs)

18 PB
ENGLISH (EN)
Our policy is one of continuous product improvement.
We reserve the right to change the designs and specications without notice.
This document contains information that is subject to change without notice

PB 19
Q B12
Benutzerhandbuch

20 21
DEUTSCH (DE)
Wichtige Sicherheits- und Warnhinweise
WICHTIGE INFORMATIONEN – BITTE AUFMERKSAM LESEN.
Dieses Symbol weist darauf hin, dass
die zu diesem Produkt gehörigen
Dokumente wichtige Anweisungen zur
Bedienung und Wartung enthalten.
Dieses Symbol weist auf eine gefährliche
Spannung hin, die eine Gefahr von
elektrischem Schlag mit sich bringt.
GEFAHR EINES ELEKTRISCHEN
SCHLAGS
NICHT ÖFFNEN
VORSICHT:
UM DIE GEFAHR EINES ELEKTRISCHEN SCHLAGS ZU MINIMIEREN, DARF
DIE ABDECKUNG (ODER RÜCKSEITE) NICHT ABGENOMMENWERDEN.
KEINE VOM BENUTZER ZUWARTENDEN TEILE IM INNEREN.
WARTUNGSARBEITEN NURVON QUALIFIZIERTEM
FACHPERSONAL DURCHFÜHREN LASSEN.
Lesen Sie diese Anleitung durch.
Bewahren Sie diese Anleitung auf.
Beachten Sie alle Sicherheitshinweise.
Befolgen Sie alle Anweisungen.
Verwenden Sie dieses Gerät nicht in der Nähe von Wasser.
Reinigen Sie das Gerät nur mit einem trockenen Tuch.
Blockieren Sie keine Belüftungsöffnungen.
Gemäß den Anweisungen des Herstellers installieren.
Installieren Sie das Gerät nicht in der Nähe von Wärmequellen
wie Heizkörpern, Heizregistern, Öfen oder anderen
wärmeerzeugenden Geräten (einschließlich Verstärkern).
Umgehen Sie auf keinen Fall die durch einen verpolungssicheren
oder geerdeten Stecker gebotene Sicherheit. Ein polarisierter
Stecker hat zwei Kontakte unterschiedlicher Breite. Ein geerdeter
Stecker hat zwei Kontakte und einen dritten Erdungskontakt.
Der breitere Stromkontakt bzw. der Erdungskontakt dient Ihrer
Sicherheit. Falls der mitgelieferte Schutzkontaktstecker nicht in
Ihre Steckdose passt, lassen Sie diese von einem qualizierten
Elektriker austauschen.
Nicht auf das Netzkabel treten und Netzkabel nicht einklemmen,
insbesondere an der Steckerbuchse, Steckdose und am
Austrittspunkt des Kabels aus dem Gerät.
Verwenden Sie ausschließlich das vom Hersteller angegebene
Zubehör. Verwenden Sie zum Aufstellen oder Aufhängen der
Lautsprecher ausschließlich die vom Hersteller angegebenen
oder mitgelieferten Gerätewagen, Ständer, Stative, Halterungen
oder Tische.
Achten Sie beim Verwenden eines Gerätewagens darauf, dass
der Wagen mit dem Gerät beim Transport nicht
umkippt.
Trennen Sie das Gerät bei einem Gewitter oder bei
längerer Nichtverwendung vom Netz.
Wartungsarbeiten nur von qualiziertem Fachpersonal
durchführen lassen. Eine Wartung ist dann erforderlich, wenn das
Gerät in irgendeiner Weise beschädigt wurde, d. h. das Netzkabel
oder der Netzstecker beschädigt wurde, Flüssigkeit auf oder
in das Gerät gelangt ist, das Gerät Regen oder Feuchtigkeit
ausgesetzt war, nicht normal funktioniert oder heruntergefallen ist.
Achtung: Um die Gefahr eines Brandes oder elektrischen
Schlags zu verringern, schützen Sie dieses Gerät vor Regen
und Feuchtigkeit. Das Produkt muss vor Tropf- und Spritzwasser
geschützt werden und es dürfen keine mit Flüssigkeit gefüllten
Gegenstände (z. B. Blumenvase) auf dem Gerät abgestellt
werden.
Stellen Sie kein offenes Licht, wie z. B. brennende Kerzen, auf
das Gerät.
Achtung: Der Netzschalter des Subwoofers wird zur Trennung
des Geräts von der Stromversorgung verwendet. Der Schalter
bendet sich auf der Geräterückseite. Um ungehinderten Zugang
zum Schalter zu gewährleisten, muss das Gerät in einem offenen
Bereich aufgestellt werden, in dem der Schalter frei betätigt
werden kann.
Vorsicht: Änderungen oder Modikationen, die nicht ausdrücklich
vom Hersteller genehmigt wurden, können zum Erlöschen der
Betriebsgenehmigung führen.
Wartung: Für Wartungsarbeiten sollte das Gerät an den
ursprünglichen Händler oder den Kundendienst für Ihre Region
zurückgegeben werden. Die wichtigsten Kundendienstadressen
sind in diesem Benutzerhandbuch aufgelistet.
Dritte: In dem unwahrscheinlichen Fall, dass Sie dieses
Produkt an einen Dritten weitergeben, geben Sie auch diese
Betriebsanleitung weiter.
Wichtiger Hinweis für Nutzer in Großbritannien
Das Gerätekabel ist mit einem zugelassenen Netzstecker mit
einer 3-A-Sicherung ausgestattet. Wenn die Sicherung ersetzt
werden muss, muss eine ASTA- oder BSI-zugelassene, auf 3 A
ausgelegte BS1362-Sicherung verwendet werden. Falls Sie den
Netzstecker auswechseln müssen, entfernen Sie die Sicherung
und entsorgen Sie den Netzstecker sofort, nachdem Sie diesen
vom Kabel abgetrennt haben.
Anschließen des Netzsteckers
Die Drähte im Netzkabel sind wie folgt farblich codiert: blau:
NEUTRAL; braun: STROMFÜHREND.
Da diese Farben unter Umständen nicht mit der Farbcodierung
der Anschlussklemmen in Ihrem Netzstecker übereinstimmen,
gehen Sie wie folgt vor:
Der BLAUE Draht muss mit der Klemme verbunden werden,
die mit dem Buchstaben N
markiert oder BLAU bzw.
SCHWARZ farbcodiert ist. Der
BRAUNE Draht muss mit der
Klemme verbunden werden,
die mit dem Buchstaben L
markiert oder BRAUN bzw.
ROT farbcodiert ist.
Um das Gerät komplett vom
AC-Stromnetz zu trennen, ziehen Sie das Netzkabel aus der AC-
Netzsteckdose.
Werden der Netzstecker oder ein Gerätekoppler zum Trennen des
Geräts vom Stromnetz verwendet, so müssen diese immer gut
zugänglich sein.
