QHYCCD QHY4040 User manual

QHY4040
Scienfitic CMOS Camera
User Manual
REV 1.0

Contents
01 PACKAGE CONTENTS...............................................................................................3
02 SOFTWARE INSTALLATION......................................................................................4
04 INTERFACE INTODUCTION.......................................................................................5
05 USE QHY4040 IN SHARPCAP....................................................................................5
06 USE QHY4040 WITH ASCOM ....................................................................................7
07 USE QHY168M IN EZCAP_QT.................................................................................10
09 FAQ ...........................................................................................................................13
10 OHY4040 MECHANICAL SIZE..................................................................................16
11 SPECIFICATIONS.....................................................................................................17

QHY4040
3
01 Package Contents
3.0 USB cable
1
Power cable with locker
1
12V AC Power Adapter
1*
Silicon gel tube and slicon gel
1
M54 to 2inch T-ring
1
Center/tilt adjust ring
1
Camera Cover
1
Warrentee Card
1
Driver Download Card
1
Test Report
1
Camera body
1
* The 12V power adapter is depend on the area/country. Some country/area has no this item.

QHY4040
4
02 Software Installation
1.Download and install camera system driver (link)
（The driver for Windows10 can be installed directly; when installing the driver for Win7 system, please
check the driver installation instructions first）
2.Download and install the ASCOM platform (link)
3.Download and install the ASCOM driver (link)
As you most probably want to use your QHY168M as an expose camera, please download the Capture
version. If you want to use it as a guide camera, please download the Guide version.
4.QHY4040 uses the SharCAP software as the default video display and capture software. Please download
and install SharpCap，QHY4040 can work in SharpCap 2.9 or higher version. You may need to use the last
QHYCCD sdk (QHYCCD.DLL) in the sharpcap. Please go to the QHYCCD SDK download page to download it
and read how to replace the QHYCCD.DLL in sharpcap.
Note that for the latest version of SharpCap, QHY600 also needs the latest qhyccd.dll, for which QHYCCD
has written the SharpCap patch, please download and install it. You can also download from QHYCCD SDK
page to obtain it. The original filename qhyccd_x64.dll. You can rename it to qhyccd.dll and overwrite the
old file in SharpCAP X64 folder.
5. Connect the 12V power supply for QHY4040. Then connect the USB3.0 cable between QHY4040 and
computer. Please make sure you are connected on the computer USB3.0 port. The QHY4040 cannot work
under USB2.0 port underthe live video mode (in single frame mode it works) due to the high data bandwidth.
Please make sure the 12V is connected otherwise the camera maybe not get reconginzed by computer.
When first connecting , the windows will report new device found and looking for the driver. You can click
"ignore obtain driver from windows" to get it faster. The computer will looking for the driver in local disk.
Since the QHY4040 system driver is installed before. So it should find it and start to install hardware. After
successfully installed, you can see QHY5IIISeries_IO in the hardware manager.

QHY4040
5
04 Interface Intoduction
On front of the camera, you can connect the center/tilt adjust ring. The ring has M54/0.75 female thread. On
backside of the camera there is the 12V DC power input port and USB3.0 port. On the side of the front part
of the camera, there is a silicon gel tube socket.
05 Use QHY4040 in SharpCap
1. Connect 12V power cable and USB3.0 cable.
2. Run SharpCap software. And select the QHY4040 in the "camera" menu. If everthing is ok, the video
image will appear on the display window and you will see the frame rate on left bottom of the software.
3. Turn on SharpCap. If If you cannot findtheQHY4040 in the"camera" menu, you can try "re-scan" camera
in this menu.
4. Adjust offset. You can cover the lens and check the image. The image maybe not very dark. You need
to adjust the offset. You can open the histogram window to help you to find a suitable offset. Normally
speaking, you need to adjust the offset and let the background peak in the histogram to visible, above
zero and near to zero. It is best to keep the whole peak is above zero.
5. By check the “LX” mode, you can expand the exposure time in the exposure time progress bar. You can
try some longer exposre and you will see some hot pixel appears; you can set the cooler and cooling
the cmos sensor and reduce the dark current. The hot pixel will become less. The following picture is a
typical picture of -10C, 10sec exposure and gain = 50.

QHY4040
6
6. The following adjust tools is for temperature regular control. When set to Auto , you can set the target
temerpature. The QHY4040 has maxium -35C delta T below ambinet. You can set a suitable target
temperature according the enviroment temperature. Please reserver some degree to avoid the camera
working in just -35 delta T, otherwise when enviroment get higher , you can not get the target temperature
and cause the dark frame calibration has problems. When set Auto off, you can set the cooler power to
adjust the TEC power. The range is 0% to 100%. In this mode, the sensor temeperature is not regulated.
Just the power is constant
Before using the cooler, it is best to read the "how to protect the cooler" in the FAQ.

QHY4040
7
06 Use QHY4040 with ASCOM
With the ASCOM driver support, the QHY4040 can works in many software, which support ascom
interface. Please note QHY4040 will use the 16-bit mode under ascom and use the single frame mode
under ASCOM. Currentlyit does not support the ASCOM VIDEO DRIVER. The ADC inQHY4040 is12bit.
So for 16bit format, the bit alignment is MSB alignment. It will patch four zero in last four bit. It means the
0-4095 will be mapped to 0-65535 by multiple 16.
MAXIMDL
1. First you have to make sure that both ASCOM Platform and ASCOM driver have been installed. If
not, please install it first.
2. Start MAXIMDL
3. Follow the instructions shown below to finish the setup

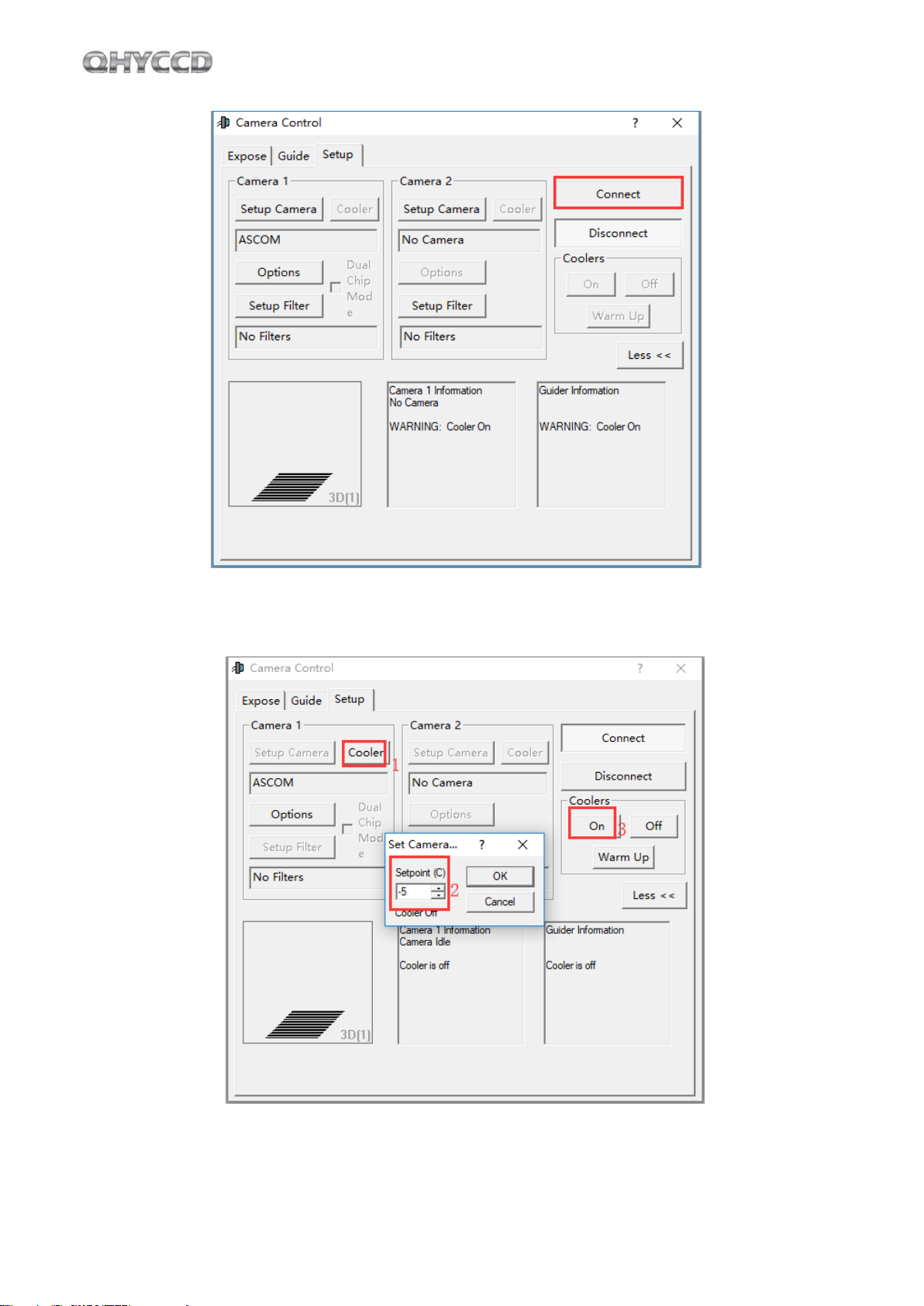

Need to click Connect before shooting.

QHY4040
8
After connecting the software, follow the steps to set the cooling temperature.

QHY4040
9
Click "Start" to capture one frame.

QHY4040
10
07 Use QHY168M in EZCAP_QT
EZCAP_QT (V0.1.51.18)is a software made by QHYCCD. This software has both windows, linux and
MAC/OS version. This software created with the opensource QT software. This software can be modified
if you want the source code. It has the basic capture function and working in single frame mode.
1. Install EZCAP_QT software.
2. Connect your QHY4040 to 12V power supply. Connect your QHY4040 to your computer with USB3.0
cable.
3. Run EZCAP_QT. Select “Connect” in Menu->Camera. If the camera is successfully connected. The
title of EZCAP_QT will display the camera firmware version and the camera ID as shown below
You can change the language of the software at menu->language.
4. Inmenu->camera setting->temperaturesetting, youcanset thepowerandtarget temperature.In AUTO
mode, you can set the target temperature. And in manual, you can set the TEC power percent. It may
need some minutes to get the temperature to target.

QHY4040
11
5. One left of the software there is some TAB. You can use the preview TAB to do some preview. And you can
select an area in the preview image area and use the focus TAB to do focusing. And then use the Capture
TAB to capturethe image

QHY4040
12
7. There is a planner in the EZCAP_QT. You can do a sequence capture with this planner.

QHY4040
13
09 FAQ
1. How to avoid camera stuck?
If the camera is stuck all the time, it may be caused by a variety of reasons, you can follow the prompts
below to check.
1) Whether your computer is configured with a VIA chipset or some type of motherboard, it does not appear
on SharpCap (but works on ASCOM). In this case, you need to turn on the camera's DDR buffer.
2) Is your computer and equatorial device leaking? This may cause leakage current to be transferred from
the computer to the camera through GND. This may affect USB transmission, loss of data packets, and
camera jam. You need to make sure the computer and the equatorial mount are well grounded.
3) Is the voltage of the USB interface high enough? Some computers have a USB interface voltage of less
than 5V. This may cause the camera to get stuck. In this case, you can choose to connect the computer to
the camera by using the USB3.0 Hub with power supply, which ensures that the camera gets 5V.
4) Is the CPU usage too high? If the CPU usage is too high, it will cause many frames to be lost and the
camera will be stuck. You can increase the USB traffic value to lower the FPS for more stable image
transmission.
5) Is the USB cable securely connected? Sometimes problems with the connection of the camera to the
USB cable and problems with the connection of the computer to the USB cable can result in loss of signal
and jamming of the camera. Especially when the USB cable is moving. In this case, you can try applying
some silicone oil to the USB connector and the socket section. This will make the USB connection more
stable.
6) Avoid static electricity. Sometimes static electricity carried on the human body can cause the camera to
become stuck. Before touching the camera, you can touch the computer case to discharge static electricity.
7) Some computers have a front USB interface that is not suitable for high-speed data transmission
(because they are connected to the motherboard through a cable, which makes signal integrity worse). If
you find that the camera is stuck when the front USB port is in use, you can try connecting the camera to
its rear USB port (they are directly connected to the motherboard's chipset).
2. How to clean the CMOS sensor and optical window?
If you find dust on the CMOS sensor, you can first unscrew the front half of the QHY4040 and then clean
the CMOS sensor with the cleaning kit for the SLR camera sensor. Because the QHY4040 CMOS sensor
has an AR coating, care must be taken during the cleaning process.
The glass window has an infrared filter coating and an anti-reflection coating. Therefore, care must be taken
during the cleaning process. You can also use the SLR cleaning tool or lens paper for cleaning. Note that
the force should not be too large, because the coating is very fragile and can be easily scratched.
3.QHY4040's glow suppression function guarantees zero glow in the picture.
4. What is the camera's built-in DDR buffer? What are its advantages?
QHY4040 has a built-in 128MB DDRII image buffer. It has two advantages:
It can buffer the entire image to avoid loss during USB transfer. Because once the CMOS sensor starts to
work, it will continuously expose, output images, and start and end again. However, the computer will
temporarily suspend the USB transmission due to the multi-tasking characteristics of the operating system.
If the pause time is too long, the buffer with a small storage capacity in the USB will be full, resulting in the
loss of upcoming data. It may also cause a part of the data of a frame to be lost to form a bad frame. For
short exposures, this may not cause much of a problem, but for long exposures, this means losing one long
exposure image. The 128MB DDRII buffer can solve this problem by storing and transmitting the entire
frame of image. No data is lost even if USB transfer is paused for a long time.
Another advantage is that when using some computers that are not fast or support USB 3.0, it will make the
video images more delicate and smooth. These computers cannot perform high-speed data transmission
well, data will often be lost. Buffer, which can buffer a lot of image data and send it to the computer. Even if
USB3.0 often suspends transmission, it will guarantee that data will not be lost. There are options in
SharpCap to turn DDR buffering on or off. The current version of the ASCOM driver has been working in
DDR mode.
5.How to protect the refrigerator?
The QHY4040 refrigerator can achieve an ambient temperature difference of nearly 35 ° C. You should

QHY4040
14
avoid thermal shock during use. The so-called thermal shock refers to the internal strong stress that the
refrigerator must withstand due to the principle of thermal expansion and contraction when the temperature
of the refrigerator suddenly rises or falls. The thermal shock of distance will shorten the life of the refrigerator
It even completely damages the refrigerator.
Therefore, when you start to use the refrigerator to adjust the temperature of the CMOS, you should avoid
turning the refrigerator on to the maximum power in one click, and you should gradually increase the power
of the refrigerator. Before disconnecting the power, if the power of the refrigerator is relatively high, you
should also gradually reduce the power of the refrigerator before disconnecting the power.
6. When the camera runs for a period of time with the DDR mode turned on, the frame rate drops
to 0.
Some users report that the frame rate of their cameras with DDR modules dropped to zero after running on
SharpCap for a period of time; such problems are caused by the high output rate of the CMOS chip and the
slow reception rate of the computer. Once the CMOS sensor starts to work, it will continuously expose,
output images, and start and end again and again, without stopping. If the computer suspends USB
transmission too frequently due to the operating system, it will cause DDR data to overflow, causing bad
frames to continue to occur. None of the images entering the DDR is complete, so the frame rate is zero.
Solution:
The first method is to replace a better computer. For a computer with poor performance, we recommend
replacing it to ensure that the camera runs normally.
The second method is to turn off the DDR mode in SharpCap, but for computers with poor performance,
this method may not be effective due to its slower data transmission speed.
7. How to avoid horizontal noise in QHY4040
When the camera is connected to a USB port with high noise, a horizontal noise image will appear. Replace
the USB interface and get a clean image when the camera is on a good USB port. Click for details
8. Camera maintenance
Dry Camera CMOS Cavity
The CMOS sensor is located in a CMOS cavity. There is a hole in the side of the front of the QHY4040
camera. If there is moisture in the CMOS cavity that causes the sensor glass to fog, you can connect a
silicone tube through this hole to dry it.
Please put an effective silica gel desiccant in the silicone rod and make surethere is cotton inside to prevent
the silicone from entering the CMOS cavity.
9.How to prevent fogging of optical window of CMOS sealed cavity
If the ambient humidity is very high, the optical window of the CMOS sealed cavity may have condensation
problems. The QHY4040 has a built-in heating plate to heat it to prevent fogging. In most cases, its effect
is very obvious. If the fogging problem persists, try this:
1. Avoid directing the camera to the ground. The density of the cold air is greater than the density of the hot
air. If the camera is facing down to the ground, the cold air will more easily contact the glass and cause it to
cool down and condense.
2. Increase the temperature of the CMOS sensor. You can increase the temperature of the CMOS sensor
slightly to prevent fogging of the glass.
3. Check whether the heating plate is working. If the heating plate is not working, the glass will be easily
fogged. Generally, the temperature of the heating plate can reach 65-70 ° C in a 25 ° C environment. If it is
not so hot, it may be because the heating plate is damaged, you can contact us to replace the heating plate.
10. Regarding external trigger control, QHY4040 hardware supports external trigger function. If
necessary, please contact QHYCCD to install this function before purchasing.

QHY4040
15
11. Speer settings in SharpCap
When the camera is at a high speed, the image may be out of phase. Try lowering the Speed to solve the
problem.
In the software's Speed setting, the number of steps will appear at 0 frames and cannot be displayed. See
the table below to set the Speed.
8bit Speed
0
1
2
3
4
Use DDR
Buffer Off
Yes
Yes
Yes
Yes
Yes
Use DDR
Buffer On
Yes
Yes
Yes
No
No
16bit Speed
0
1
2
3
4
Use DDR
Buffer Off
Yes
No
No
No
No
Use DDR
Buffer On
Yes
No
No
No
No

QHY4040
16
10 OHY4040 Mechanical Size

QHY4040
17
11 Specifications
Model
QHY4040U3FSI (In STOCK)
QHY4040U3G20FSI (Available in the end of 2019)
QHY4040U3G20BSI（Avaliable in winter of 2020 ）
CMOS Sensor
Gpixel Gense4040 FSI version
Pixel Size
9.0um x 9.0um
Sensor Surface Glass
Clear Glass
CMOS Chamber Optic window
glass
AR+AR multiple layer coating anti-reflection glass
Effective Pixel Area
4096 x 4096
Effective Pixels
16.8 Megapixels
Effective Image Area
36.9mm x 36.9mm
Fullwell
Pixel >70ke. For single high gain channel max fullwell is 26ke @
gain 0
AD Sample Depth
Single 12-bit output
12-bit/8-bit output
Note: Due to the limitation of USB3.0 transfer speed.The current
USB3.0 version of QHY4040 only supports single A/D channels. For
dual A/D channels please wait for the QHY4040 10GigaE version.
It will be avalible at the end of 2019.
Sensor Size
36.9mm*36.9mm
Full Frame Rate
20FPS@4096*4096 8bit (Clock Speed 4)
18FPS@4096*4096 8bit (Clock Speed 3)
16FPS@4096*4096 8bit (Clock Speed 2)
12FPS@4096*4096 8bit (Clock Speed 1)
8FPS@4096*4096 8bit (Clock Speed 0)
8FPS@4096*4096 12bit (Clock Speed 0)
Readout Noise
Typical 4e- @ Gain31 (16.5x）
Dark Current
0.05e/pixel/sec @ -15C
Exposure Time Range
20us - 600sec
Shutter Type
Electric Rolling Shutter
Computer Interface
USB3.0 (in QHY4040U3) (In stock)
10GigaE Fiber (in QHY4040U3G20) (Under development)
Built-in Image Buffer
128MByte (512Mb) DDR2 memory in QHY4040FSI-USB3
2GByte (8Gb) DDR3 memory in QHY4040FSI-10G

QHY4040
18
Non-volatile memory / On camera
storage
Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible
space
for stellar ROI frames for analysis of exoplanet investigation,
occultations, atmospheric seeing messurement, focus , optic analysis
etc. Support 100*100 image x 10rames 50*50 image x40frames.
25*25 image x160frames 10*10 image * 1000 frames （total frame
numbers is based on 8bit image）
Exposure Ending Hardware Pulse
Output
Yes. With the Trig-Out signal in the camera
GPIO
Four High Speed FPGA Controlled GPIO . Can be used for high
precise GPS timestamp socket. Or the Electric Shutter on/off
waveform output for GPS Card. Or Multiple Camera Synchronized
Port and so on.
Cooling System
Dual Stage TE Cooler（-35C below ambient）
Fan Cooling / Water Cooling
Default setup is fan cooling. QHYCCD also supply the water cooling
version.
Anti-Dew Heater
Yes
Telescope Interface
M54/0.75 female thread on the fast installer/center adjust ring
Optic Window Type
AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length
17.5mm（±0.2）
Weigth
TBD
