Qlightec ST45 User manual

PB 1

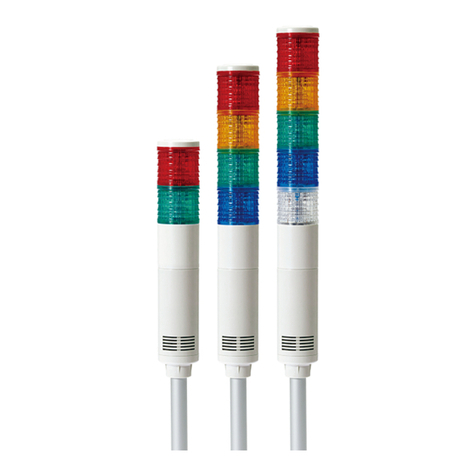

LED Steady/Flashing Tower Lights
ST45/ ST56/ ST80
23 44
85dB
6030
90dB
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Please scan the QR code for more
detailed product information.
www.qlight.com

2 3
ST45/ 56L
-3-110/220 -RAG -LW18
[Model number] [Layer count] [Voltage] [Color] [Mounting option]
| | | | |
• ST45/ 56L
• ST45/ 56L-BZ
• ST45/ 56L-WS
• ST45/ 56L-WM
• ST45/ 56L-WA
• ST45/ 56LF
• ST45/ 56LF-BZ
• ST45/ 56LF-WS
• ST45/ 56LF-WM
• ST45/ 56LF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB18 - LW18
- QZ18 - SZ18
- QL18 - SL18
- QLA18
ST56EL
-3-110/220 -RAG -LW18
[Model number] [Layer count] [Voltage] [Color] [Mounting option]
| | | | |
• ST56EL
• ST56EL-BZ
• ST56EL-WS
• ST56EL-WM
• ST56EL-WA
• ST56ELF
• ST56ELF-BZ
• ST56ELF-WS
• ST56ELF-WM
• ST56ELF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB18 - LW18
- QZ18 - SZ18
- QL18 - SL18
- QLA18
ST80L
-3-110/220 -RAG -LW24
[Model number] [Layer count] [Voltage] [Color] [Mounting option]
| | | | |
• ST80L
• ST80L-BZ
• ST80L-WS
• ST80L-WM
• ST80L-WA
• ST80LF
• ST80LF-BZ
• ST80LF-WS
• ST80LF-WM
• ST80LF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB24 - LW24
- QZ24 - SZ24
- QL24 - SL24
- QLA24
ST80EL
-3-110/220 -RAG -LW24
[Model number] [Layer count] [Voltage] [Color] [Mounting option]
| | | | |
• ST80EL
• ST80EL-BZ
• ST80EL-WS
• ST80EL-WM
• ST80EL-WA
• ST80ELF
• ST80ELF-BZ
• ST80ELF-WS
• ST80ELF-WM
• ST80ELF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
• (Blank)
- Standard type
• Mounting type
- LB24 - LW24
- QZ24 - SZ24
- QL24 - SL24
- QLA24
ST45/ 56ML
-3-110/220 -RAG
[Model number] [Layer count] [Voltage] [Color]
| | | |
• ST45/ 56ML
• ST45/ 56ML-BZ
• ST45/ 56ML-WS
• ST45/ 56ML-WM
• ST45/ 56ML-WA
• ST45/ 56MLF
• ST45/ 56MLF-BZ
• ST45/ 56MLF-WS
• ST45/ 56MLF-WM
• ST45/ 56MLF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
ST56MEL
-3-110/220 -RAG
[Model number] [Layer count] [Voltage] [Color]
| | | |
• ST56MEL
• ST56MEL-BZ
• ST56MEL-WS
• ST56MEL-WM
• ST56MEL-WA
• ST56MELF
• ST56MELF-BZ
• ST56MELF-WS
• ST56MELF-WM
• ST56MELF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
ST80ML
-3-110/220 -RAG
[Model number] [Layer count] [Voltage] [Color]
| | | |
• ST80ML
• ST80ML-BZ
• ST80ML-WS
• ST80ML-WM
• ST80ML-WA
• ST80MLF
• ST80MLF-BZ
• ST80MLF-WS
• ST80MLF-WM
• ST80MLF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
ST80MEL
-3-110/220 -RAG
[Model number] [Layer count] [Voltage] [Color]
| | | |
• ST80MEL
• ST80MEL-BZ
• ST80MEL-WS
• ST80MEL-WM
• ST80MEL-WA
• ST80MELF
• ST80MELF-BZ
• ST80MELF-WS
• ST80MELF-WM
• ST80MELF-WA
• 1-1 Layer
• 2-2Layers
• 3-3 Layers
• 4-4 Layers
• 5-5 Layers
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
W-White
Ordering Specications

2 3
Model number Layer
count
Voltage Current Certicate Weight Color
* ST45ML
* ST45ML-BZ
ST45ML-WS
ST45ML-WM
ST45ML-WA
* ST45MLF
* ST45MLF-BZ
ST45MLF-WS
ST45MLF-WM
ST45MLF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.040A
0.040A
0.024A
0.012A
0.19kg
0.19kg
0.25kg
0.25kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.080A
0.080A
0.026A
0.013A
0.21kg
0.21kg
0.29kg
0.29kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.120A
0.120A
0.028A
0.014A
0.25kg
0.25kg
0.34kg
0.34kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.160A
0.160A
0.031A
0.015A
0.30kg
0.30kg
0.38kg
0.38kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.200A
0.200A
0.033A
0.016A
0.34kg
0.34kg
0.42kg
0.42kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST56MEL
* ST56MEL-BZ
ST56MEL-WS
ST56MEL-WM
ST56MEL-WA
* ST56MELF
* ST56MELF-BZ
ST56MELF-WS
ST56MELF-WM
ST56MELF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.060A
0.040A
0.044A
0.022A
0.26kg
0.26kg
0.42kg
0.42kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.120A
0.080A
0.048A
0.024A
0.32kg
0.32kg
0.48kg
0.48kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.180A
0.120A
0.053A
0.026A
0.37kg
0.37kg
0.54kg
0.54kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.240A
0.160A
0.057A
0.028A
0.43kg
0.43kg
0.59kg
0.59kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.300A
0.200A
0.062A
0.031A
0.49kg
0.49kg
0.65kg
0.65kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST56ML
* ST56ML-BZ
ST56ML-WS
ST56ML-WM
ST56ML-WA
* ST56MLF
* ST56MLF-BZ
ST56MLF-WS
ST56MLF-WM
ST56MLF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.120A
0.080A
0.048A
0.024A
0.22kg
0.22kg
0.45kg
0.45kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.240A
0.160A
0.057A
0.028A
0.30kg
0.30kg
0.53kg
0.53kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.360A
0.240A
0.066A
0.033A
0.38kg
0.38kg
0.61kg
0.61kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.480A
0.320A
0.075A
0.037A
0.46kg
0.46kg
0.70kg
0.70kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.600A
0.400A
0.082A
0.041A
0.54kg
0.54kg
0.78kg
0.78kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST45L
* ST45L-BZ
ST45L-WS
ST45L-WM
ST45L-WA
* ST45LF
* ST45LF-BZ
ST45LF-WS
ST45LF-WM
ST45LF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.040A
0.040A
0.024A
0.012A
0.35kg
0.35kg
0.45kg
0.45kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.080A
0.080A
0.026A
0.013A
0.39kg
0.39kg
0.49kg
0.49kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.120A
0.120A
0.028A
0.014A
0.44kg
0.44kg
0.54kg
0.54kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.160A
0.160A
0.031A
0.015A
0.48kg
0.48kg
0.58kg
0.58kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.200A
0.200A
0.033A
0.016A
0.52kg
0.52kg
0.62kg
0.62kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST56EL
* ST56EL-BZ
ST56EL-WS
ST56EL-WM
ST56EL-WA
* ST56ELF
* ST56ELF-BZ
ST56ELF-WS
ST56ELF-WM
ST56ELF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.060A
0.040A
0.044A
0.022A
0.41kg
0.41kg
0.57kg
0.57kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.120A
0.080A
0.048A
0.024A
0.47kg
0.47kg
0.62kg
0.62kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.180A
0.120A
0.053A
0.026A
0.52kg
0.52kg
0.68kg
0.68kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.240A
0.160A
0.057A
0.028A
0.58kg
0.58kg
0.74kg
0.74kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.300A
0.200A
0.062A
0.031A
0.63kg
0.63kg
0.75kg
0.75kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST56L
* ST56L-BZ
ST56L-WS
ST56L-WM
ST56L-WA
* ST56LF
* ST56LF-BZ
ST56LF-WS
ST56LF-WM
ST56LF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.120A
0.080A
0.048A
0.024A
0.44kg
0.44kg
0.60kg
0.60kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.240A
0.160A
0.057A
0.028A
0.52kg
0.52kg
0.68kg
0.68kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.360A
0.240A
0.066A
0.033A
0.60kg
0.60kg
0.76kg
0.76kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.480A
0.320A
0.075A
0.037A
0.68kg
0.68kg
0.84kg
0.84kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.600A
0.400A
0.082A
0.041A
0.77kg
0.77kg
0.93kg
0.93kg
R-Red
A-Amber
G-Green
B-Blue
W-White
• ST45ML
• ST56MEL
• ST56ML
• ST45L
• ST56EL
• ST56L
Product Specications
※Models with an asterisk mark (*) have certication.
※CE compliant : DC24V, DC12V/24V(ST56EL, ST56MEL)
※UL listed : DC24V

4 5
• Signal/ Audible line current(Per each layer)
Model number Layer
count
Voltage Current Certicate Weight Color
* ST80ML
* ST80ML-BZ
ST80ML-WS
ST80ML-WM
ST80ML-WA
ST80MLF
ST80MLF-BZ
ST80MLF-WS
ST80MLF-WM
ST80MLF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.160A
0.080A
0.055A
0.027A
0.40kg
0.40kg
0.64kg
0.64kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.320A
0.160A
0.064A
0.032A
0.54kg
0.54kg
0.78kg
0.78kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.480A
0.240A
0.073A
0.036A
0.68kg
0.68kg
0.92kg
0.92kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.640A
0.320A
0.084A
0.042A
0.83kg
0.83kg
1.06kg
1.06kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.800A
0.400A
0.093A
0.046A
0.97kg
0.97kg
1.20kg
1.20kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST80MEL
* ST80MEL-BZ
ST80MEL-WS
ST80MEL-WM
ST80MEL-WA
ST80MELF
ST80MELF-BZ
ST80MELF-WS
ST80MELF-WM
ST80MELF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.080A
0.040A
0.046A
0.023A
0.36kg
0.36kg
0.59kg
0.59kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.160A
0.080A
0.051A
0.025A
0.45kg
0.45kg
0.68kg
0.68kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.240A
0.120A
0.057A
0.028A
0.55kg
0.55kg
0.76kg
0.76kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.320A
0.160A
0.064A
0.032A
0.64kg
0.64kg
0.87kg
0.87kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.400A
0.200A
0.071A
0.035A
0.73kg
0.73kg
0.96kg
0.96kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST80L
* ST80L-BZ
ST80L-WS
ST80L-WM
ST80L-WA
ST80LF
ST80LF-BZ
ST80LF-WS
ST80LF-WM
ST80LF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.160A
0.080A
0.055A
0.027A
0.62kg
0.62kg
0.86kg
0.86kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.320A
0.160A
0.064A
0.032A
0.77kg
0.77kg
1.00kg
1.00kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.480A
0.240A
0.073A
0.036A
0.91kg
0.91kg
1.14kg
1.14kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.640A
0.320A
0.084A
0.042A
1.05kg
1.05kg
1.29kg
1.29kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.800A
0.400A
0.093A
0.046A
1.19kg
1.19kg
1.14kg
1.14kg
R-Red
A-Amber
G-Green
B-Blue
W-White
Model number Layer
count
Voltage Current Certicate Weight Color
* ST80EL
* ST80EL-BZ
ST80EL-WS
ST80EL-WM
ST80EL-WA
ST80ELF
ST80ELF-BZ
ST80ELF-WS
ST80ELF-WM
ST80ELF-WA
1
AC/DC12V
AC/DC24V
AC110V
AC220V
0.080A
0.040A
0.046A
0.023A
0.58kg
0.58kg
0.81kg
0.81kg
R-Red
2
AC/DC12V
AC/DC24V
AC110V
AC220V
0.160A
0.080A
0.051A
0.025A
0.67kg
0.67kg
0.91kg
0.91kg
R-Red
G-Green
3
AC/DC12V
AC/DC24V
AC110V
AC220V
0.240A
0.120A
0.057A
0.028A
0.77kg
0.77kg
1.00kg
1.00kg
R-Red
A-Amber
G-Green
4
AC/DC12V
AC/DC24V
AC110V
AC220V
0.320A
0.160A
0.064A
0.032A
0.86kg
0.86kg
1.09kg
1.09kg
R-Red
A-Amber
G-Green
B-Blue
5
AC/DC12V
AC/DC24V
AC110V
AC220V
0.400A
0.200A
0.071A
0.035A
0.95kg
0.95kg
1.19kg
1.19kg
R-Red
A-Amber
G-Green
B-Blue
W-White
• ST80ML
• ST80MEL
• ST80L
• ST80EL
Model number Current AC/DC12V AC/DC24V AC110V AC220V
ST45ML
ST45L
Signal line current 0.040A 0.040A 0.024A 0.012A
Audible line current 0.016A 0.031A 0.027A 0.030A
ST56MEL
ST56EL
Signal line current 0.060A 0.040A 0.044A 0.022A
Audible line current 0.016A 0.031A 0.027A 0.030A
ST56ML
ST56L
Signal line current 0.120A 0.080A 0.048A 0.024A
Audible line current 0.016A 0.031A 0.027A 0.030A
ST80MEL
ST80EL
Signal line current 0.080A 0.040A 0.046A 0.023A
Audible line current 0.016A 0.031A 0.027A 0.030A
ST80ML
ST80L
Signal line current 0.160A 0.080A 0.055A 0.027A
Audible line current 0.016A 0.031A 0.027A 0.030A
Product Specications
※Models with an asterisk mark (*) have certication.
※CE compliant : DC24V, DC12V/24V(ST80EL, ST80EL)
※UL listed : DC24V

4 5
L
200 164
L
200 118
L
200 72
150
L
104
L
58
L
40 8
40 8
40 840 8
40 8
40 8
12
12
12
360°/3-M4 BOLT
PCD30
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
L
200 186 40 8
L
200 140 40 826
26
L
40 8
L
40 8
186
12
152
12
M18x1.5 THREAD M18x1.5 THREAD
Ø45
Ø45
Ø45
Ø45
Ø45
Ø18
Ø18Ø18
Ø18
Ø18
Ø45Ø45
Ø45Ø45 Ø45
ST45ML : AC/DC
ST45ML-BZ : DC
ST45MLF : DC
ST45ML-BZ : AC
ST45MLF : AC
ST45MLF-BZ : DC
ST45MLF-BZ : AC
ST45L : AC/DC
ST45L-BZ : DC
ST45LF : DC
ST45L-BZ : AC
ST45LF : AC
ST45LF-BZ : DC
ST45LF-BZ : AC
ST45L-W
Ӂ
: DC
ST45LF-W
Ӂ
: DC
ST45L-W
Ӂ
: AC
ST45LF-W
Ӂ
: AC
ST45ML-W
Ӂ
: DC
ST45MLF-W
Ӂ
: DC
ST45ML-W
Ӂ
: AC
ST45MLF-W
Ӂ
: AC
LAYER
1
2
3
4
5
L
106
146
186
226
266
LAYER
1
2
3
4
5
L
152
192
232
272
312
LAYER
1
2
3
4
5
L
198
238
278
318
358
LAYER
1
2
3
4
5
L
320
360
400
440
480
LAYER
1
2
3
4
5
L
366
406
446
486
526
LAYER
1
2
3
4
5
L
414
454
494
534
574
LAYER
1
2
3
4
5
L
200
240
280
320
360
LAYER
1
2
3
4
5
L
460
500
540
580
620
LAYER
1
2
3
4
5
L
234
274
314
354
394
LAYER
1
2
3
4
5
L
412
452
492
532
572
Ø8 CABLE ENTRY
360°/3-M4 BOLT
PCD30
Ø8 CABLE ENTRY
• ST45ML/ ST45L
Dimensions
(Units : mm)

6 7
ST56MEL : AC/DC
ST56MEL-BZ : DC
ST56MELF : DC
ST56MEL-BZ : AC
ST56MELF-BZ : AC/DC
ST56MELF : AC
LAYER
1
2
3
4
5
L
127
167
207
247
287
LAYER
1
2
3
4
5
L
192
232
272
312
352
LAYER
1
2
3
4
5
L
257
297
337
377
417
LAYER
1
2
3
4
5
L
192
232
272
312
352
ST56MEL-WӁ: AC
ST56MELF-WӁ: AC
ST56MEL-WӁ: DC
ST56MELF-WӁ: DC
ST56ML : AC/DC
ST56ML-BZ : DC
ST56ML-BZ : AC
ST56MLF-BZ : AC/DC ST56ML-WӁ: AC
ST56MLF-WӁ: AC
ST56ML-WӁ: DC
ST56MLF-WӁ: DC
10
40
65
200
L
10
40
77
12
L
142 L10
40
12
130
L
26
200 26
20026
77
12 142
L
26 65
200
L
26 130200 L
10
70
L12
10
70
10
70 1070
12
142
L
26 130200
L
1070
1070
12
207
L
1070
L
26 195
200 10
70
207
L
10
40
12
195
L
142 L1040
12
130L
20026
1040
10
40
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
M18x1.5 THREAD
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD40
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD40
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD40
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD40
Ø56 Ø56 Ø56 Ø56
Ø56
Ø18
Ø18
Ø18
Ø18
Ø56 Ø56
Ø56
Ø56 Ø56 Ø56
Ø56
Ø56
Ø56
Ø56
Ø56
LAYER
1
2
3
4
5
L
341
381
421
461
501
LAYER
1
2
3
4
5
L
406
446
486
526
566
LAYER
1
2
3
4
5
L
471
511
551
591
631
LAYER
1
2
3
4
5
L
406
446
486
526
566
Ø18
Ø18
Ø18
Ø18
LAYER
1
2
3
4
5
L
157
227
297
367
437
LAYER
1
2
3
4
5
L
222
292
362
432
502
LAYER
1
2
3
4
5
L
287
357
427
497
567
LAYER
1
2
3
4
5
L
222
292
362
432
502
LAYER
1
2
3
4
5
L
371
441
511
581
651
LAYER
1
2
3
4
5
L
436
506
576
646
716
LAYER
1
2
3
4
5
L
501
571
641
711
781
LAYER
1
2
3
4
5
L
436
506
576
646
716
ST56EL : AC/DC
ST56EL-BZ : DC
ST56ELF : DC
ST56EL-BZ : AC
ST56ELF-BZ : AC/DC
ST56ELF : AC
ST56EL-WӁ: AC
ST56ELF-WӁ: AC
ST56EL-WӁ: DC
ST56ELF-WӁ: DC
ST56L : AC/DC
ST56L-BZ : DC
ST56LF : DC
ST56L-BZ : AC
ST56LF-BZ : AC/DC
ST56LF : AC
ST56L-WӁ: AC
ST56LF-WӁ: AC
ST56L-WӁ: DC
ST56LF-WӁ: DC
• ST56MEL/ ST56EL
• ST56ML/ ST56L
Dimensions
(Units : mm)

6 7
ST80MEL : AC/DC
ST80MELF : AC/DC
ST80MEL-BZ : AC/DC
ST80MELF-BZ : AC/DC
ST80MEL-WӁ
ST80MELF-WӁ
ST80ML : AC/DC
ST80MLF : AC/DC
ST80ML-BZ : AC/DC
ST80MLF-BZ : AC/DC
ST80ML-WӁ
ST80MLF-WӁ
ST80L : AC/DC
ST80LF : AC/DC
ST80L-BZ : AC/DC
ST80LF-BZ : AC/DC
ST80L-WӁ
ST80LF-WӁ
ST80EL : AC/DC
ST80ELF : AC/DC
ST80EL-BZ : AC/DC
ST80ELF-BZ : AC/DC
ST80EL-WӁ
ST80ELF-WӁ
Ø80 Ø80
Ø80
Ø80 Ø80
Ø24
Ø80
Ø24
Ø80
Ø24
Ø80
12
4080
L
120 12
40
98
L
12
35
12
98 12
70
L
12
70
120 80
L
35
178
Ø24
12
40
L
12
12
40160
L
120 35
12
70120
L12
178 12
70
L
160
35
M24x1.5 THREAD
M24x1.5 THREAD
M24x1.5 THREAD
M24x1.5 THREAD
LAYER
1
2
3
4
5
L
230
270
310
350
390
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD50
LAYER
1
2
3
4
5
L
150
190
230
270
310
LAYER
1
2
3
4
5
L
367
407
447
487
527
LAYER
1
2
3
4
5
L
260
330
400
470
540
LAYER
1
2
3
4
5
L
287
327
367
407
447
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD50
LAYER
1
2
3
4
5
L
180
250
320
390
460
LAYER
1
2
3
4
5
L
397
467
537
607
677
LAYER
1
2
3
4
5
L
317
387
457
527
597
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD50
360°/3-M4 BOLTØ8 CABLE ENTRY
PCD50
• ST80ML/ ST80L
• ST80MEL/ ST80EL
Dimensions
(Units : mm)

8 9
Wiring diagrams Wiring diagrams
DC Steady AC Steady
ST45ML
ST45L
ST56MEL
ST56ML
ST56EL
ST56L
ST80MEL
ST80ML
ST80EL
ST80L
ST45ML
ST45L
ST56MEL
ST56ML
ST56EL
ST56L
ST80MEL
ST80ML
ST80EL
ST80L
DC Steady/Flashing AC Steady/Flashing
ST45MLF
ST45LF
ST56MELF
ST56MLF
ST56ELF
ST56LF
ST80MELF
ST80MLF
ST80ELF
ST80LF
ST45MLF
ST45LF
ST56MELF
ST56MLF
ST56ELF
ST56LF
ST80MELF
ST80MLF
ST80ELF
ST80LF
DC/AC Steady
Built-in Signal Sound
•
ST□□ M(E)L - WS/ WM/ WA
type same wiring instruction
•
ST□□
(E)L -
WS/ WM/ WA
type same wiring instruction
•
ST□□
L
Lens diameter 45(45mm) : ST45L
56(56mm) : ST56L
80(80mm) : ST80L
DC/AC Steady/Flashing
Built-in Signal Sound
•
ST□□ M(E)LF - WS/ WM/ WA
type same wiring instruction
•
ST□□
(E)LF -
WS/ WM/ WA
type same wiring instruction
•
ST□□
LF
Lens diameter 45(45mm) : ST45LF
56(56mm) : ST56LF
80(80mm) : ST80LF
ST45ML
ST45L
ST56MEL
ST56ML
ST56EL
ST56L
ST80MEL
ST80ML
ST80EL
ST80L
ST45MLF
ST45LF
ST56MELF
ST56MLF
ST56ELF
ST56LF
ST80MELF
ST80MLF
ST80ELF
ST80LF
Wiring Instructions
• In case of wiring with external contacts, refer to the wiring diagrams below according to your product’s type and voltage setting.
■ Wiring using external contact
• DC steady type cable specication : External power/ signal line - UL1007 AWG22(0.3sq) 400mm.
• AC steady, AC/DC steady/ashing type cable specication : External power line - UL1015 AWG18(0.75sq) × 2C 400mm,
External signal line - UL1007 AWG22(0.3sq) 400mm






























Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
Red
Amber
Green
Blue
White
Gray1
Gray2
Gray3
Gray4
Gray5
Black
White
Black
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
External contact
External contact External contact
Power
Power Power
Fuse
Fuse Fuse
Steady
Steady Steady
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
White(W)
Black(BK)
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
White(W)
Black(BK)
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
Gray(GR)
White(W)
Black(BK)
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External contact
Fuse
Steady
Power
Common
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External contact
Fuse
Steady
Flash
Power
Common
Common
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External contact
Fuse
Steady
Power
Common
Common
Common
Common
Flash
Flash
Gray/Red(GR/R)Gray/Red(GR/R)
Gray/Amber(GR/A) Gray/Amber(GR/A)
Gray/Blue(GR/B)Gray/Blue(GR/B)
Gray/Green(GR/G)Gray/Green(GR/G)
Gray/White(GR/W)Gray/White(GR/W)
White(W)White(W)
Black(BK) Black(BK)
Violet(VI)
Black(BK) Black(BK)
Red(R) Red(R)
Amber(A) Amber(A)
Green(G) Green(G)
Blue(B) Blue(B)
White(W) White(W)

8 9
Wiring diagrams
DC Steady
ST45ML
ST45L
ST56MEL
ST56ML
ST56EL
ST56L
ST80MEL
ST80ML
ST80EL
ST80L
DC Steady/Flashing AC Steady/Flashing
ST45MLF
ST45LF
ST56MELF
ST56MLF
ST56ELF
ST56LF
ST80MELF
ST80MLF
ST80ELF
ST80LF
ST45MLF
ST45LF
ST56MELF
ST56MLF
ST56ELF
ST56LF
ST80MELF
ST80MLF
ST80ELF
ST80LF
DC/AC Steady
Built-in Signal Sound
•
ST□□ M(E)L - WS/ WM/ WA
type same wiring instruction
•
ST□□
(E)L -
WS/ WM/ WA
type same wiring instruction
•
ST□□
L
Lens diameter 45(45mm) : ST45L
56(56mm) : ST56L
80(80mm) : ST80L
DC/AC Steady/Flashing
Built-in Signal Sound
•
ST□□ M(E)LF - WS/ WM/ WA
type same wiring instruction
•
ST□□
(E)LF -
WS/ WM/ WA
type same wiring instruction
•
ST□□
LF
Lens diameter 45(45mm) : ST45LF
56(56mm) : ST56LF
80(80mm) : ST80LF
ST45ML
ST45L
ST56MEL
ST56ML
ST56EL
ST56L
ST80MEL
ST80ML
ST80EL
ST80L
ST45MLF
ST45LF
ST56MELF
ST56MLF
ST56ELF
ST56LF
ST80MELF
ST80MLF
ST80ELF
ST80LF
• When using a transistor, please choose between the NPN or PNP type transistor which best matches the voltage and product type,
then connect them correctly according to the wiring diagrams below.
■ Wiring using transistor
• DC steady type cable specication : External power/ signal line - UL1007 AWG22(0.3sq) 400mm.
• AC steady, AC/DC steady/ashing type cable specication : External power line - UL1015 AWG18(0.75sq) × 2C 400mm,
External signal line - UL1007 AWG22(0.3sq) 400mm






























Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
External Transistor-NPN External Transistor-PNP NPN-Transistor PNP-Transistor
PNP-Transistor PNP-Transistor
Fuse Fuse
Power Power
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Black(BK)
White(W)
Black(BK)
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
External Transistor-PNP External Transistor-PNP
Fuse
Steady Steady
Power
Flash
Common
Common
Red(G)
Amber(A)
Green(G)
Blue(B)
White(W)
Brown(BN)
Gray(GR)
Black(BK)
White(W)
Black(BK)
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Buzzer
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Fuse Power
Flash
Common
Common






























Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Fuse
Steady
Power
Flash
Common
Common
External Transistor-NPN NPN-Transistor






























Power
External Transistor-NPN NPN-Transistor
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Fuse
Steady
Common
Gray/Red(GR/R)
Gray/Red(GR/R)
Gray/Amber(GR/A)
Gray/Amber(GR/A)
Gray/Blue(GR/B)
Gray/Blue(GR/B)
Gray/Green(GR/G)
Gray/Green(GR/G)
Gray/White(GR/W)
Gray/White(GR/W)
White(W)
White(W)
Black(BK)
Black(BK)
Black(BK)
Black(BK)
Red(R)
Red(R)
Amber(A)
Amber(A)
Green(G)
Green(G)
Blue(B)
Blue(B)
White(W)
White(W)
Violet(VI)

Parts Denition
Installation Environment and Protection Rating
• This product is designed for indoor use with protection rating of IP44(standard type) or IP23(buzzer type).
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating indicated(IP44),
it may cause malfunction or damage to the product.
• For further information, please visit our website(www.qlight.com).
Cover(ABS)
Housing(ABS)
Buzzer hole
Pipe(AL)
Lens(AS)
10
※ Caution when dealing with lens kit
• Lens kits are connected with connector pins each other. Bad connection
may be experienced when the connector pins are touched with a foreign
substance.
• If the lens kits are not turned on or not ashed after lens kits replacement,
please make sure status of lens kit connection.
How to Change Lens Kit
• When rearranging or replacing the lens kits, please be aware of the
contact point ① and the connector pin ②marked in the diagram on
the left.
• Press down to assemble the lens kits while making sure that connector
pin ②and connector ③aligns correctly.
• Please make sure that the rubber spacer placed on the top of each
lens kit is tightly secured to the bottom of the other lens kit.
②
③
①

PCD 30
3-Ø5 HOLES
Ø8 CABLE ENTRY Ø8 CABLE ENTRY Ø8 CABLE ENTRY
PCD 40
3-Ø5 HOLES
PCD 50
3-Ø5 HOLES
①Machine holes on the mounting surface referring to the diagram below.
• Buzzer type model with 2 di󰀨erent sounds of long beeping sound and short beeping sound is available upon request.
②First, remove the ange nuts from bolts and place the product through the mounting surface holes.
③Fasten the ange nuts on the opposite side of the mounting surface until the product is tightened securely.
■
ST45ML/ ST56MEL/ ST56ML/ ST80MEL/ ST80ML
-
Direct Mounting Type Model
■ 2 Sound Buzzer Type
■ Lens Kits supplied by AC Type power (same wiring as DC Steady type product)
■ Customized pole length(ST45L/ ST56EL/ ST56L/ ST80EL/ ST80L)
Dimensions
ST45 series
ST56 series
TWS45 TWA45
ST80 series
TWS80 TWA80
■
ST45ML/ ST56MEL/ ST56ML/ ST80MEL/ ST80ML
-
Direct Mounting Type Model
ST45ML ST56MEL/ ST56ML ST80MEL/ ST80ML
Mounting Hole Specications
Mounting Accessories (Sold Separately)
• Please refer to the dimensions below for installation of mounting brackets.
11

Dimensions
ST45 series
ST56 series
18mm SCREW & NUT LB18
LW18 SZ18
QZ18 SL18
QL18 QLA18
■
ST45L/ ST56EL/ ST56L - Pole Mounting Type Model
Ø18
Ø18
32
34 24
Ø70
51
M18x1.5
THREAD
75
52
69
Ø18
Ø18
66
52
38
34
46
50
58
Ø28
1/2" PF
4-Ø5 HOLES
12x22
CABLE ENTRY
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
60 57
4-Ø5.5 HOLES
Ø19 CABLE ENTRY
Ø18
Ø90
PCD 73
4-Ø5.5 HOLES
2-Ø8.5 HOLES
PCD 54~56
Ø90
Ø18
4-Ø6 HOLES
45.5 66
Ø11 CABLE ENTRY
PCD 73
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
12

Dimensions
ST80 series
24mm SCREW & NUT LB24
LW24 SZ24
QZ24 SL24
QL24 QLA24
■
ST80EL/ ST80L - Pole Mounting Type Model
46
70
81
32
34
46
M24x1.5
THREAD
2-Ø8.5 HOLES
69.5
52
38
34
46
50
70
1/2" PF
4-Ø5 HOLES
12x22 CABLE ENTRY
33
Ø24
Ø70
55
4-Ø5.5 HOLES
PCD 54~56
Ø24
4-Ø5 HOLES
Ø90
55.5
PCD 73
Ø24
Ø35
Ø24
Ø24
60 57
Ø90
Ø19 CABLE ENTRY
PCD 73
Ø24
4-Ø5.5 HOLES
Ø90
4-Ø6 HOLES
45.5 66
Ø11 CABLE ENTRY
PCD 73
Ø24
Ø90
51.567
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 71~73
Ø24
13

Technical Certication
• Qlight products are designed to meet strict quality and technical standards. Thus, the Qlight brand is widely recognized for its high quality
and technical innovations from leading institutions around the world.
ISO
International Organization for
Standardization
IECEx International Explosion
Qlight qualityassurance systemshavebeen
KS Q ISO 9001:2009 regulation.
RoHS2 Restriction of Hazardous
SubstancesDirective
Qlight c omplieswiththe RestrictionofHazardous
Substances Directive by limiting itsuse of hazardous
materials.
KR Korean Register of Shipping
Qlight’s design and qualityassurance system has
CCS
Qlight’s design and qualityassurance system has
ATEX The EuropeanRegulatory
Framework or Manufacture,
Installation andUse of Equip-
ment in ExplosiveAtmospheres
Qlight’sexplosion proof products comply with ATEX
Directives 94/9/EC.
manufactured and manage according to
international standards.
NEPSI National Supervision and Inspection
Center for Explosion Protection
and Safety of Instrumentation
Qlight’s design and manufacturing system
meetsthe People’s RepublicofChina National
explosion proof Standard.
(Chinese Standard-GB3836/GB12476)
KCs Explosion Proof Device
Safety Certification System
The safety performanceofmachines and
Technical capability and production system have
standards.
TIIS Japan Explosion-proof
TIIS is a Japanes explosion proof test and certification
system accordance with the Ministry of Health, Labour
and Welfare Notice and the explosion proof guidelines for
factory electrical equipment. Qlight's explosion proof
products hasve been tested and certified by TIIS.
UL Underwriters Laboratories
Qlight’s design and quality assurance system has
been certified from UL to ensure the stability
of consumption goods and to protect consumers.
CCC
CCCF
Security & Protection
Qlight’s has obtained CCC which guarantees safety,
protection against fraud, environment, etc.
Qlight has passed therigorousexaminationprocess
of "Passing Fire Protection Products Centering" In order
to sell fire-fighting products such as fire alarm equipment
to Chinese market.
CE EuropeanCommission
KC
Commission.
LR Lloyd’s Register
RMRS Russian Maritime
Registerof Shipping
Qlight’sdesign and quality assurancesystemhas
Qlight’s products are certified by KC for preventing
accident caused by fire.
Qlight’s design and quality assurance systemhas
Shipping.
ICAO International Civil Aviation
Organization
Qlight guarantees ourproducts satisfy the criteria
regulated by the International Civil Aviation
Organization(ICAO, FAA).
E-mark Commission Directive
Regarding Vehicle Industry
KCC
Conformity Assessment of Broad-
casting Communication Equipment
Qlight hasobtained EU mark forapprovedvehiclesand
vehicle components sold into theEU(EEA :European
Economic Area)
environment that causes unwanted electromagnetic
waves from thedevice, communication failure due to
other devices or external radiowaves, and malfunction
of the device.
Qlight has been certified to protect the electromagnetic

MEMO

Qlight Co., Ltd. www.qlight.com | [email protected]
Head O󰀩ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. [phone](Toll free. [phone]) Fax. [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone](Toll free. [phone])
Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team O󰀩ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales O󰀩ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86 - 21 - 6651 - 7100 Fax. +86 - 21 - 6315 - 3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86 - 513 - 8384 - 9999 Fax +86 - 513 - 8384 - 9910
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - ST45ML - 2106A
