Qqzm Pnp User manual

Updated on 9 Sept., 2014

Manual for PnP IP Camera

--------IPCameraV

This user manual applies to all the QQZM PnP IP Cameras below:

(1) Home Pan-tilt Wireless IP Cameras

(2) Outdoor Wireless Bullet IP Cameras

(3) Dome/ Cube Wireless IP Cameras

NOTICE:

1. Please use Power Adapter and other accessories come with camera

2. Please CHANGE Camera Password and REMEMBER the New One!

Thank you for reading this user manual, if any problems you find out,

please kindly inform us!

Content

1. Hardware Installation......................................................................................... 3

2. Software Installation .......................................................................................... 4

3. Access to Camera.............................................................................................. 5

3.1 Login IP Camera Client....................................................................................................................... 5

3.2 Adding IP Camera Device .................................................................................................................. 6

3.2.1 Using Auto Setting Guide to Add Camera in LAN ........................................................................... 6

3.2.2 Using “Add” Function to Add Camera in LAN................................................................................. 9

3.2.3 Using Context Menu to Add Camera in WAN................................................................................. 9

4. Wi-Fi Setting ..................................................................................................... 10

5. PT and Color Setting.........................................................................................11

5.1 PT Control Panel ..............................................................................................................................11

5.2 Color Control Panel..........................................................................................................................12

5.3 IR-Cut Filter Control.........................................................................................................................12

NOTICE: This Function is jut for which has the IR Cut Filter ............................. 12

6. Record, Snapshot and Two way Audio........................................................... 13

6.1 Operation of alarm, snapshot and two way audio..........................................................................13

6.2 Record onto SD Card........................................................................................................................13

6.3 Schedule Record..............................................................................................................................14

6.4 Setting Picture and video file path ..................................................................................................14

7. Playback Video................................................................................................. 15

7.1 Playback Video Recorded onto Local Computer..............................................................................15

7.2 Remote Playback Video from SD Card............................................................................................. 15

8. Alarm Setting.................................................................................................... 16

8.1 Alarm Introduction ..........................................................................................................................16

8.2 Alarm I/O Description...................................................................................................................... 16

8.3 Motion Detection Description.........................................................................................................17

8.4 Alarm Record...................................................................................................................................18

8.5 Alarm Email ..................................................................................................................................... 19

8.6 Alarm Snapshot ...............................................................................................................................20

9. OSD Setting ...................................................................................................... 21

10. Time Setting...................................................................................................... 22

11. Camera Password and Factory Reset ............................................................ 22

11.1 Password of Camera......................................................................................................................22

11.2 Factory Reset .................................................................................................................................23

11.3 Password of Client Software.......................................................................................................... 23

12. Setup Camera over Smart Phone.................................................................... 24

12.1 Download App...............................................................................................................................24

12.2 Use Smart Phone to Setup Wi-Fi Connection Via AP Function .....................................................24

1.Hardware Installation

Please Connect camera to the Router FIRST and then Power on the camera ,

like the following way:

Use the correct power supply for camera, and connect it to router or switch.

Note: Please check whether the working status of “Network Indicator”and

“Data Indicator”are same with the following description, if not, please

reconnect the power adaptor and network cable again.

(1) P/T Wireless IP Camera Interface Introduction:

(2) Bullet / Dome IP Camera Interface Introduction:

RJ 45

Port

RS485 Port

Audio In, connected to

external microphone

Power

Port

Audio

Output

RJ 45

Port

SD Card

Slot

I/O Port

Power Port

Network Indicator

Data Indicator

Wi-Fi Antenna

2.Software Installation

(1) Insert the CD into CD driver of your PC

(2) It will pop up the auto installation windows like below:

(3) Click the button of “Install CMS Software”to run the install package; or you

can open the CD directly, find out the folder “1. Camera Monitoring

Software2. PC Monitoring Client Software” and install the software” IPC

CMS Software”.

(4) After finishing installation, the icon like below will display on your desktop

Definition

Description

Network Indicator

Orange color, it is always on when power and network cable are connected correctly

Data Indicator

Green color, it is blinking when data is transmitting

3.Access to Camera

3.1 Login IP Camera Client

(1) Double click the icon to login in; you will see the following interface

(2) After click “Login”, you will see the client interface as below:

3.2 Adding IP Camera Device

3.2.1 Using Auto Setting Guide to Add Camera in LAN

The first time running the CMS, setting guide will pop up automatically

(you can click button “Install Wizard” on top right of software on menu

bar);

1. Connect camera to network like the pictures below (Just click “Next”):

2. Click Button “Next (Search Device)”

3. Select the camera and click button “Next (Modify Network Param)”

4. The camera will be added on the left. After successfully adding the

camera, you can also set up the Wi-Fi next step;

5. Select your SSID on the list and input the Password, click “Connect”

6. After about 5-7 seconds, the Wi-Fi connection will be done

3.2.2 Using “Add”Function to Add Camera in LAN

1. Click “Add”button, the cameras connected to LAN will be shown in the list:

2. Tick the camera and click “Add”. The camera will be added into the folder

“Cameras”on the camera list on the left side;

3.2.3 Using Context Menu to Add Camera in WAN

You can use this function to add the cameras in LAN or WAN

2. Tick the Check box

of Cameras that

Connected in LAN

1. Click “Add“Button

3. Click to Add Camera

1. Right Click folder “Device”

2. Click “Add Device through ID”

4.Wi-Fi Setting

4. Click “Next”

6. Click “Finished”

7. Double click the camera

added under the folder of

“Device”, you will see the

video successfully

1. Select the video

of the camera

you want to set

Wi-Fi, right click

the mouse, and

click “Setup”

3. Fill in a name of

camera and any

information you

want to describe it

5. Fill in

Device ID

and

Password

After about 8-15 seconds, the camera will connect to the Wi-Fi SSID

5.PT and Color Setting

5.1 PT Control Panel

2. Click “Wi-Fi”tag

3. Click “search”

5. Input the WIFI password

and click “Connect”

4. Select your Wi-Fi SSID

1. PT Control Arrow

3. Cruise Setting

2. PT Speed Control.

Larger NO. Means Faster Speed

5.2 Color Control Panel

5.3 IR-Cut Filter Control

NOTICE: This Function is jut for which has the IR Cut Filter

1. Brightness Adjustment

2. Saturation Adjustment

3. Contrast Adjustment

4. Saturation Adjustment

5. Image Mirror Setting

6. Restore Color Setting to Factory Default

1. Select the video

of the camera

you want to set

IR Cut, right

click the mouse,

and click

“Setup”

2. Click “Color”tag

3.Set up“IR CUT”Mode

6.Record, Snapshot and Two way Audio

6.1 Operation of alarm, snapshot and two way audio

①②③④⑤⑥⑦⑧

No.

Function

Icon

Description

Video Quality

Full Definition

Monitor in Best Video Quality

Smooth

Monitor in Medium Video Quality

Top Speed

Monitor in Medium in Best Video Fluency

Record Folder

Click to open the video file that recorded on the computer

Original Size/Tile

Show the original size of the video

Snapshot

Click to capture the current camera image

Alarm

When alarm triggered, the “Alarm”button will turn RED.

Listen-in

Click “Listen-in” button to hear sound around the camera.

Talk Back

Collect voice around you and transmit to the camera side

Record

Record the video manually

6.2 Record onto SD Card

1. Right click the screen and

select “setup”

2. Select the “Record”tag, to setup

SD Card record Parameters

6.3 Schedule Record

6.4 Setting Picture and video file path

1. Click “Mange”

2. Click “General”

3. Click “Save”to

set snapshot

saving path

4. Click “Save”to set video save path

1. Click “Manage”

2. Click “Record Manage”

3. Click “Schedule Record”

4. Select Camera

5. Set the schedule of recording, red square means the

camera will record video at this selected time

6. Click “Save”to save the schedule

7. Click “Change”to

set video saving path

8. Click “Setting”to set record

duration of time, for example,

when set 20, every video file

will be 20 minutes

7.Playback Video

7.1 Playback Video Recorded onto Local Computer

7.2 Remote Playback Video from SD Card

1. Click “Manage”

4. Click “Record

onto SD Card”

3. Select

Camera

2. Set start time and end time,

then click “Search”

5. The video recorded during the selected time will be shown up, click “Download”,

after the video is downloaded completely, and click “Play”to playback the video

1. Click “Manage”

2. Click “Record onto

Computer”

4. Set start time and end time, and then click “Search”

5. The video recorded during the selected time will be shown up,

click “Play”to playback the video

3. Select

Camera

8.Alarm Setting

8.1 Alarm Introduction

Alarm Setting includes “Alarm Source” and “Alarm Strategy”. Alarm Source

means what will trigger alarm. Alarm Linkage means how the camera will notify

the alarm to us

1. Alarm Source:

(1) Motion Detection: Alarm will be triggered when the camera detects the

motion object.

(2) I/O Input Detection: Alarm will be triggered when the I/O Input detects

low-level voltage signal.

2. Alarm Linkage:

(1) Alarm: When Motion Detection or I/O input is detected, the CMS will sound

the siren as well as pop up the alarm events windows.

(2) Alarm Email: Camera sends email (including snapshot and event) to the

preset email address when alarm is triggered.

(3) Alarm Record: Camera records video onto SD Card when alarm is triggered.

(4) Alarm Snapshot: When the switch is opened, the alarm pictures will be send

to the specific email address

8.2 Alarm I/O Description

Click “Alarm I/O”to set I/O input detection and I/O output voltage level.

When I/O input is enabled, low-level voltage will trigger alarm. Alarm I/O

output is high-level voltage and low-level voltage optional.

8.3 Motion Detection Description

The Motion Detection function of our cameras is much more intelligent and

flexible. The special designed “Six Areas Linkage Control”System greatly

reduces the false alarm.

The actualizing form of Motion Detection consists of Group, Area, Sensitivity,

and Interval.

Item

Description

Group

User can set SIX groups alarms at most

Area

User can set 6 areas for an alarm, only when 6 areas all triggered,

the alarm will be triggered. Comparing with 1 area triggered system,

this system greatly reduces the false alarm.

Note: One group supports Six areas at most; user can set 1-6 areas

according to different requirement.

Sensitivity

The sensitivity of motion detection, the larger value is, the higher

sensitivity is. High sensitivity means alarm is triggered more easily.

Interval

The interval of time between the current area and the previous area

Meaning of number

The first “1”means the number of area (6 areas at most), the second

“1”means group (6 groups at most).

1-1 means the first area of the first group

Application 1: One area trigger:

For example: When the bag is moved, the alarm is triggered.

1. Click “on”

Of the switch

2. Tick “Group 1”

3. Tick “Area 1”

4. Classify “Area

1”into”Group 1”

5. Set sensitivity

6. Click “Save”

Application 2: Several areas trigger:

For example: Only when a person is getting in door, the alarm is triggered. If

only a dog (or some other little animal) is getting in the door, the alarm will be

not triggered, as the dog can’t trigger THREE areas at the same time. (This

system greatly reduces false alarm)

8.4 Alarm Record

When alarm is triggered, the camera will record video onto SD Card

Area 1

Area2

Area 3

1. Select the

video of the

camera you

want to set

alarm, right

click the

mouse, and

click “Alarm

Setting”

1. Click “on”

Of switch

2. Tick “Group 1”

3. Tick “Area 1”

5. Classify “Area

1”& “Area 2”&

“Area 3”into

Group 1

6. Set sensitivity

7. Click “Save”

4. Tick “Area 2”

& “Area 3”

8.5 Alarm Email

When alarm is trigged, you will be notified via email

2. Click “Alarm

record”

3. Select “On”

4. Fill in recording time

5. Click “Save”

1. Select the

video of the

camera you

want to set

alarm, right

click the

mouse, and

click “Alarm

Setting”

6. Click “Test email”to test

email setting success or not

2. Click “Alarm

Email”

4. Fill in receiver

email, 5 receiver

email address is

available

5. Click “Save”

3. Turn on Switch

8.6 Alarm Snapshot

Camera takes snapshot when alarm if the email function is opened, the

pictures will be sent to the email address.

dsafdsaf

1. Select the

video of the

camera you

want to set

alarm, right

click the

mouse, and

click “Alarm

Setting”

2. Click “Alarm Snapshot”

3. Click “On”

4. Click “Save”

Table of contents

Other QQZM IP Camera manuals

QQZM

QQZM T5008 User manual

Popular IP Camera manuals by other brands

D-Link

D-Link Air DCS-1000W Quick installation guide

Videology

Videology 20H705IR NTSC instruction manual

Sineoji

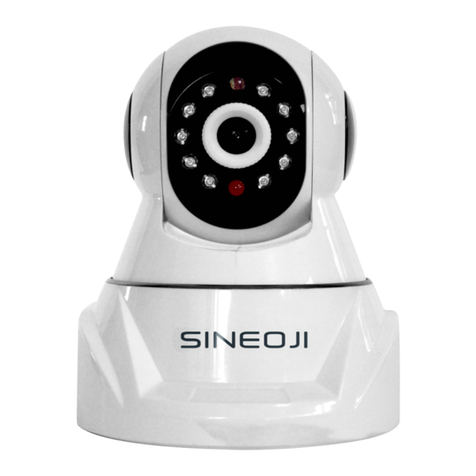

Sineoji PT492V Quick installation guide

Bosch

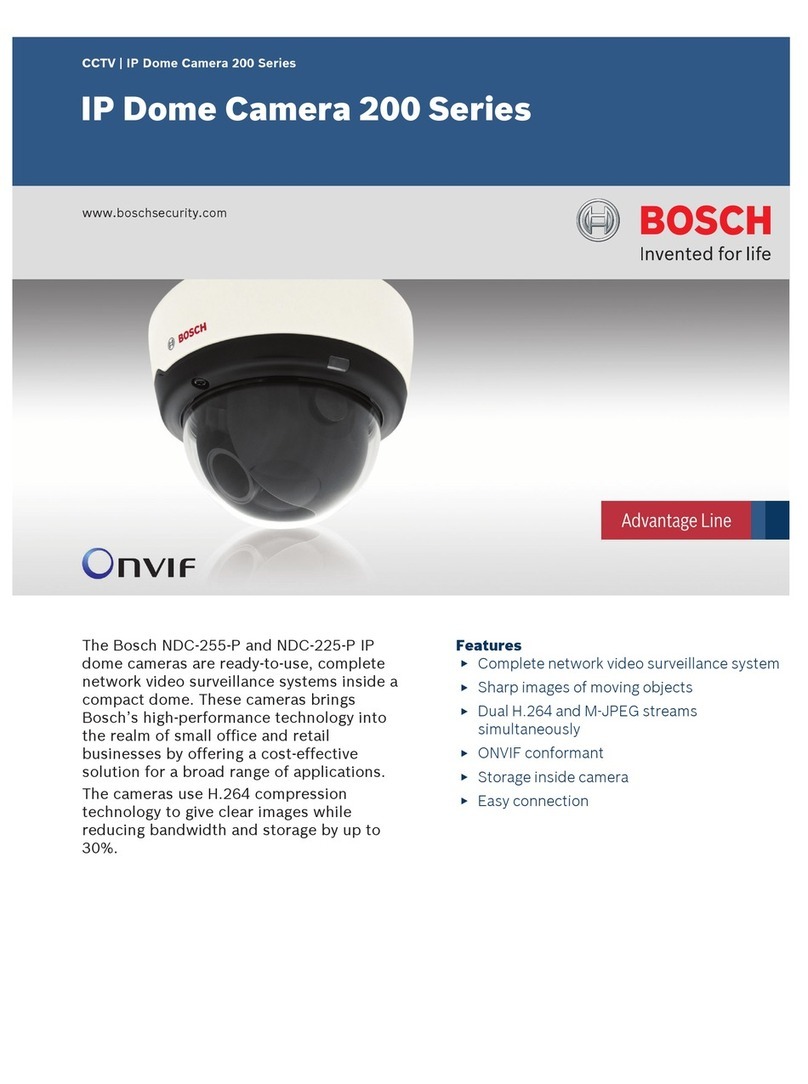

Bosch NDC-225-PI Specifications

BPL

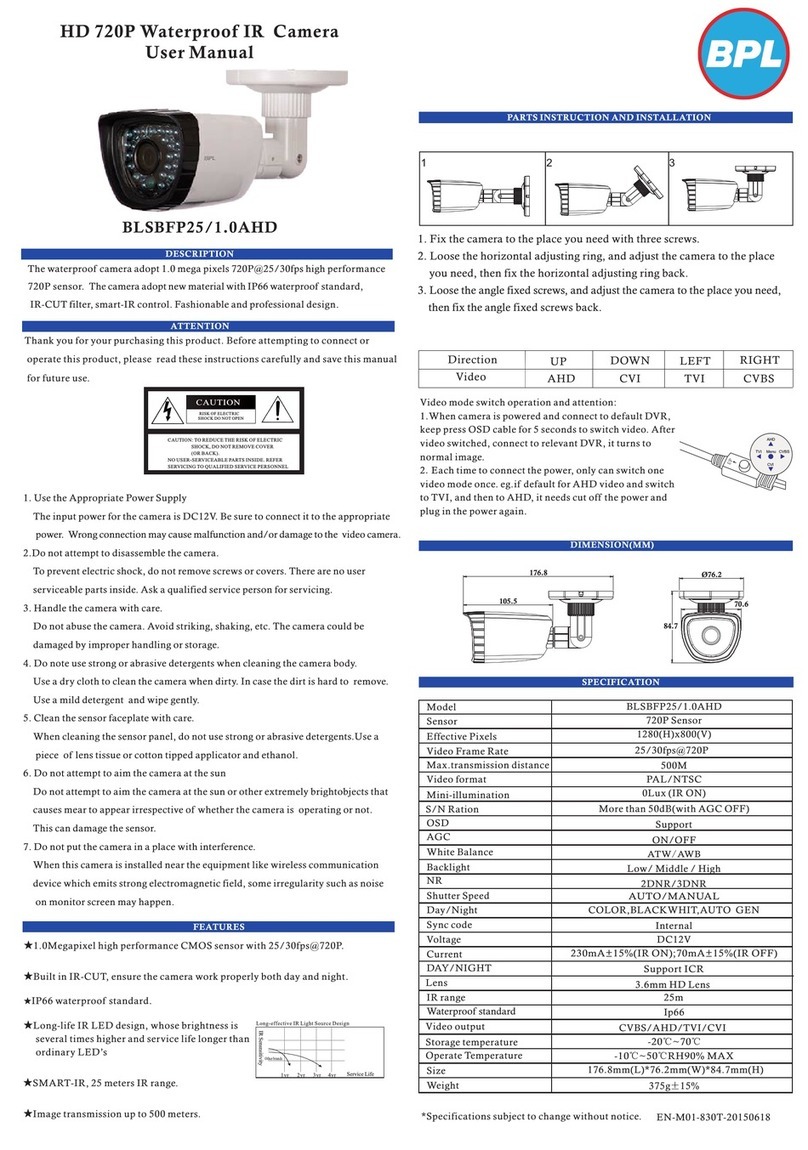

BPL BLSBFP25/1.0AHD user manual

Samsung

Samsung SDC-9410DU user manual

Cisco

Cisco CIVS-IPC-2621V quick start guide

Nexxt

Nexxt XPY 1200 user manual

Foscam

Foscam R2 user manual

Olympia

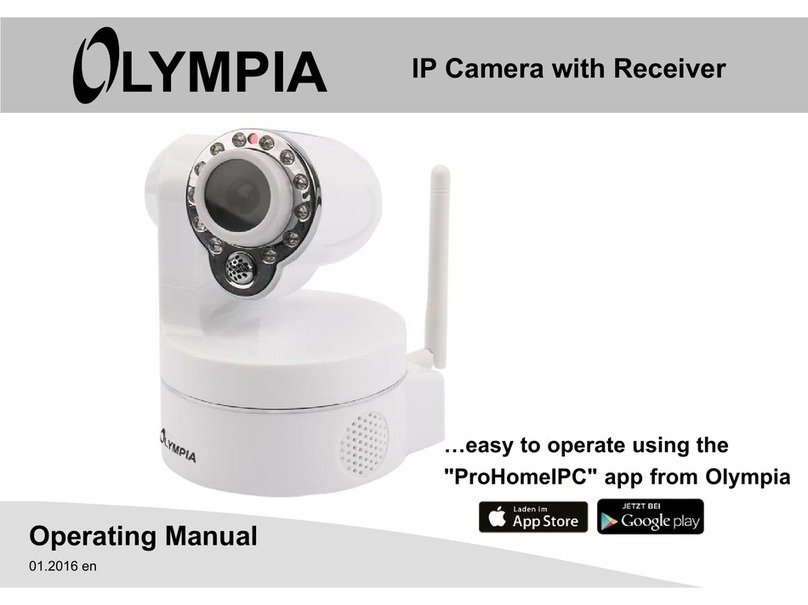

Olympia IC 1280Z operating manual

GeoVision

GeoVision GV-PTZ010D Specifications

Axis

Axis AXIS P3304 user manual

Vitek

Vitek VTC-IR303-212NP installation guide

IP Camera

IP Camera CL-3FBMX user manual

Dalsa

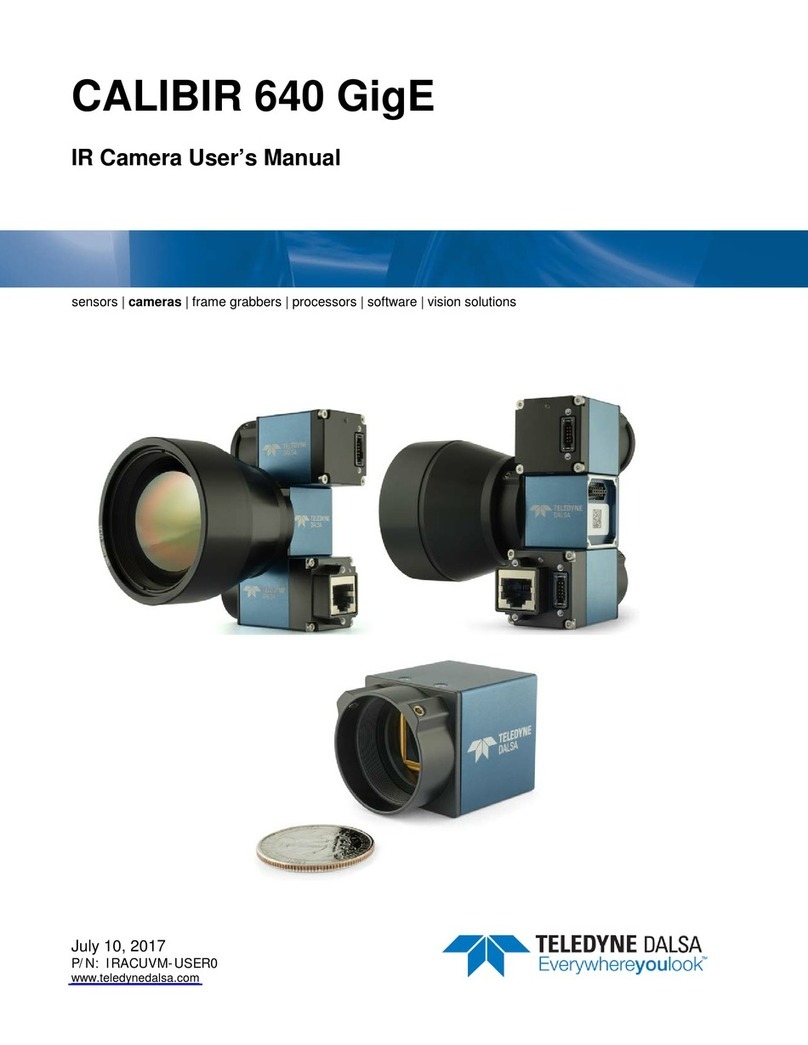

Dalsa CALIBIR 640 GigE user manual

Vitek

Vitek VTC-TNB5RFS/-2 quick start guide

Logitech

Logitech MeetUp manual

Cisco

Cisco EX90 installation guide

QQZM PnP User manual

Popular IP Camera manuals by other brands
