QRS PNO3 User manual

Discover The Legend
Discover The Fun
Since 1900
QRS PNO3
User Guide
File System Version .57x
Adds support for the latest PNO3 controller PNO3WB, and QRS-Connect
with Wi_Fi, Bluetooth MDI and Audio Card Integration
Manual Revision: July 20, 2017
Latest Revision Available With The Latest OS Update On Your System

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Table of Contents & Notes 2-3 Smart Home Setup 27, 28
Quick Start Guide 4-6 Amazon Alexa Setup 27
Set Up Your Wi-Fi Stand-Alone Mode 4 Google Home Setup 28
Set Up Wi-Fi Network Mode 4 3rd Party API on/off 28
Downloading QRSFinder App 4 Record Setup 29 - 32
Activating Your Trial and Registering 4 Record Parameters Described 29
Playing Your Piano 5 QRS PNOscan Record Parameters 30
Setting Up Your QRS-Connect Account 5,6 QRS PNOscan Key Sensor Setups 31
Introduction 7 QRS PNOscan Pedal Sensor Setups 32
Major Components 8Operating System & Media Updates 33
Understanding The Playback Screen 9View and or Modify Network Settings 34
Controlling Volumes 10 Clock - Scheduling Events - Voice Prompt On/O 35
Creating Playlists 10 Other Setups - Language - Theme - LED Intensity
36
Trial Activation - My Account 11 Service Screens (for QRS Tech Support) 37
Accessing System Information 12 - 14 Music Access 38
System Setup 15 - All Access Plans Explained 38-39
Performance/Playback Parameters Explained 15 Purchase by the track, playlist or album 40 - 42
Adjusting How Quietly Piano Can Play 16 Recording 43
Adjusting The Sustain Pedal Solenoid 17 Practicing & Perform 44
Setting The Pianos Dynamics 18 Hardware Indicators/Understanding 45 - 52
Master Volume Balancing Piano with Speaker 19, 20 Pin Light Port Extender 45 - 47
Routing and Delays 21 - Remote Control (Big Legacy) 48
General MIDI Options 21 Remote Control (Compact) 49
Piano MIDI Out 22 PNO3 Control Processor 50 - 51
Legacy 5 Pin MIDI Out 23 PNO3 Key Solenoid Driver Boards 52
MIDI and USB Port Assignments 24 PNO3 Power Supply 52
Internet MIDI and Bluetooth MIDI Setups 25 Networking 51 -
MIDI Ports, Aux Input, Upgrade Kit Key & Pedal Adjust 26 Accessing PNO3s Stand Alone Wi-Fi 51
Accessing PNO3 on your Network 52
QRS PNOmation3 User Manual
Table of Contents
Other Setups
Bluetooth Audio 55 Frequently Asked Questions
58,59
Recommended Apps 56
Piano Marvel Lessons Setup 57

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Serial Number:
Dealer Name:
Dealer Number:
Technician Name:
Technician Number:
Tuner Name:
Tuner Number:
QRS Technician Contact Info:
QRS Sales Rep Contact Info:
QRS PNOmation3 User Manual
Misc Notes

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Download the QRSFinder App
Activating Your Trial
Step 3
Setup Wi-Fi Stand Alone
and Network Client
Step 1 & 2
Playing Your Piano
Step 4
Congratulations On Choosing QRS’s PNOmation3
These Steps will help you get started with the
most popular features that QRS’s PNOmation3
offers.
We welcome your feedback, on any features,
music or ideas to improve the PNOmation3.
Just drop us an email at
qrssuppor[email protected].
Start Here
Step 1: Setup Wi-Fi
12 3 4
Open Settings
On Device
OpenWi-Fi Select“QRSPNO_xxxx”
Enter Password“qrsmusic”
Select Safari or
Web Browser of
Choice
Enter IP Address
10.3.2.1
QRSPNO Start Up Screen
Touch anywhere outside of the images to
bring you to the Home Menu Screen
Stand Alone mode allows you to access the player system without a connection to the Internet.
5
CSPNO3/1120
Step 2: Put PNO3 On Your Home’s Wi-Fi
1
Make SureYou Are In
Stand Alone Mode then
select“System Setup”
23
Select“Wireless Network” 45
EnterThe password for the
network you are joining
6
Select“Connect to ClientWi-Fi” Select Client Network to Join
Select“Network Settings”

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Step 3: The QRS Finder App & Unlock Your Trial
Go to the play/App store for your
device, and search for
QRSFinder and download it.
1Once downloaded select the
App - it will do a search of your
network and open up the PNO3
Built in App.
(Note your device is a window to
whats happening on your piano,
and is viewed over your network
not the Internet. If your network
is large you may need to select
retry initially for the App to rst
locate the piano. )
2
UnlockYourTrial
Step 4: Play Your Piano
• Transport buttons - Stop, Back, Play, Forward, Record, Volume
• Touch the name of the song to begin its playback
• Touch the menu icon to add it to a playlist or create a new one
Black Font Songs Original Artist’s Audio Sync Along Series
Blue Font Songs Piano with Audio
Accompaniment, Concert Series
Red Font Songs Solo Piano Only Nostalgic/Performance
Reference the user manual for advanced setups such as key adjusts, pedal
adjustments, & volume mapping necessary for upgrade kits.
Selecting “Genres”will break out each type by music style.
Selecting “Radio”
Choose your style, type or event
Step 5: Setting Up Your QRS-Connect Account
QRS-Connect.Com is your personal & private music maker platform. It aords you
the following features:
1. Allows your PNOmation to play from remote performances
2. Allows you to follow your favorite artists
3. Request titles to be created for your player
4. If you have a sensor strip or play or sing along with your piano, it can be auto captured,
saved, archived and if you choose apply analytic tools.
5. Learn to play, nd teachers...
6. Single sign on will allow you to sign into QRSmusic.com as well as QRS-Connect
Create a username
and a password,
and press Create
Account, this will
automatically
create your QRS-
Connect.com cloud
account.

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Signing Up For Your
Sessions Live - QRS-Connect Account
• Allows Live Performances to appear as a selection in your App
• Allows for lessons and connections to artists in your App
• Username is a name alias to use within the QRS-Connect Platform
• Password should be 10 Characters - Upper Case - Lower Case -
Numbers - and Special Character.
• QRS uses Single Sign On for all of QRS Music. Using your email and
password created above to log in from
QRSMusic.com will give you access to your account data -
purchases, cases, credits..
• QRS will be implementing a tip jar for quickly compensating a live
artist.
• By going to QRS-Connect.Com you can set up performances,
request tracks we do not have in our library, jump into learning...
6 of 60

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Introduction To PNOmation3
QRS is revolutionizing the player-piano industry with the introduction of its latest player technology,
PNOmation3. PNOmation3is the most advanced and best selling player-piano system available on the market
today. Just take a glance at some of its great features, and you will see why new and current customers are
installing and upgrading to the latest in player technology:
BETTER AESTHETICS [HEARD, NOT SEEN]
PNOmation3is an invisible player. With PNOmation3, there is only a Pin Light Port Extender (PLx) which can be
mounted out of sight for no visible front-end controller or under the piano keyboard where you have the choice
of turning on or off any lights. Enjoy the benefits of a player without altering the appearance of your piano.
BETTER USER EXPERIENCE [USER FRIENDLY / PLEASANT USER EXPERIENCE]
PNOmation3offers the industry’s best user experience. PNOmation3not only functions as a stand-alone
player system, but also as a node on your home network. With PNOmation3’s web-enabled user interface,
the possibilities are endless: create playlists and control your player piano with an iTouch, iPod, iPhone,
or any web-enabled phone; or use a PC or Mac on your home network. PNOmation3is also designed
to support QRS’s new single-song purchase capability. The first system to eliminate the need for CDs or with
the inconvenience of having to buy an entire album to get the one song you really want. Our use of Wi-Fi to
communicate vs Bluetooth or a reliance of an App allows more functionality from control from anywhere in
home vs next to the piano to live performances. PNOmation3’s player radio feature play songs from the industry’s
largest library of music software so you can sit back, relax, and enjoy.
BETTER PERFORMANCE [IMPROVED PERFORMANCE]
PNOmation3features enhanced playback abilities with superior execution of dynamics. The softest pianissimos
and loudest fortissimos offer extremes of expression and produce more convincing musical performances.
PNOmation3 also dramatically improves the control over the sustain pedal solenoid which allows for quieter
sustain pedal operation and more accurate performance.
BETTER DESIGN [IMPROVED DESIGN]
PNOmation3incorporates PNOscan, the player industry’s leading MIDI recording tool. Also included are
tools for the user to refine the performance of the system.
BETTER NOW, BETTER LATER [NEVER LEFT BEHIND]
PNOmation3 is a simple and easy upgrade. It only takes four screws to swap the PNOmation3processor
into your existing player system, and it has been designed from the ground up to integrate with your
existing system while offering the latest, cutting-edge technology. PNOmation3is also prepared for the
future, as it is high-bandwidth ready for next-generation MIDI standards.
New! PNOtouch
Accessory
New! Sessions Live
New! QRS Connector
Accessory
7 of 60

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
QRS Part Number Description Quantity Image
80308S (uses external WiFi
& BT Adapters)
PNO3s Processor/
Controller 1
80308sWB
PNO3s Processor/
Controller with Wi-Fi card
and Bluetooth Built In.
Standard with kit
1
70050A Solenoid Rail Assembly
Grand Piano 1 x 80
84122 Smart PNO3 Note Driver
Boards 5
75210 Power Supply Rev 2 1
70130S Pedal Solenoid 1
79211 Wi-Fi Extender Netgear Not required with
80308sWB
76140 or 76142 QRS Q35 or Q36 PNO
Speaker with Bracket 1
83124 or newest PNO3 PLx (Pin Light Port
Extender) 1
73398 PNOmation IR Remote
Control
No longer valid on new
systems
75399 New PNOmation IR
Remote Control 1
8012405 DB37 Adapter Board sold
with Upgrade Kits 1
PNOmation3Major Components

QRS PNO3 User Guide
QRS Music Technologies, Inc.
Touch/Click on a song
name to play that song.
9 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
10 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
11 of 60

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Information Pages
System - View Settings - Account
Enter dealer/tech contact information if dealer has not already
done. Enter or modify your information if different than
registration.
Checks for updates, Backups, Restore All, and Upload from
Local are their for tech support convenience, they are located
more intuitively elsewhere.

QRS Pno3User Guide
QRS Music Technologies, Inc. Technical Support - 800-247-6557
www.qrsmusic.com
Information Pages
System - View Settings
If you call our tech
support line, we
will more than likely
ask you to Sync this
information to your
systems settings cloud
back up. By selecting
Sync to Server (there
is no confirmation)
this data is sent. If
you select Email it
will create an email
on your default email
platform (used if you
are in Stand Alone
mode. If you do not
have either or are just
on the phone we may
ask for reference to
one of these settings.

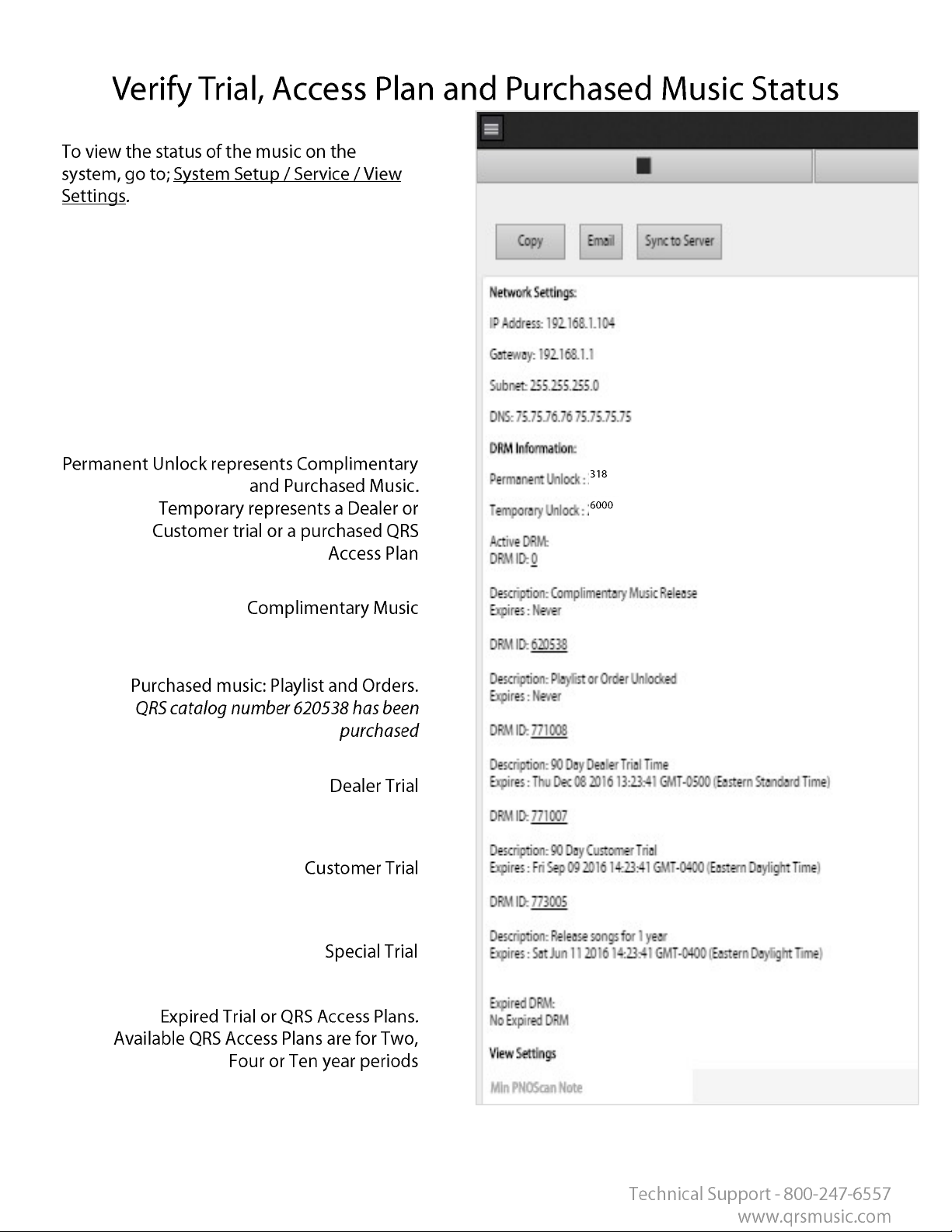

QRS PNO3 User Guide
QRS Music Technologies, Inc.
14 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
15 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
16 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
17 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
18 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
19 of 60

QRS PNO3 User Guide
QRS Music Technologies, Inc.
20 of 60
